  1. Technical Training SWGT-S5250 (Scotia) 2010. 08. 24

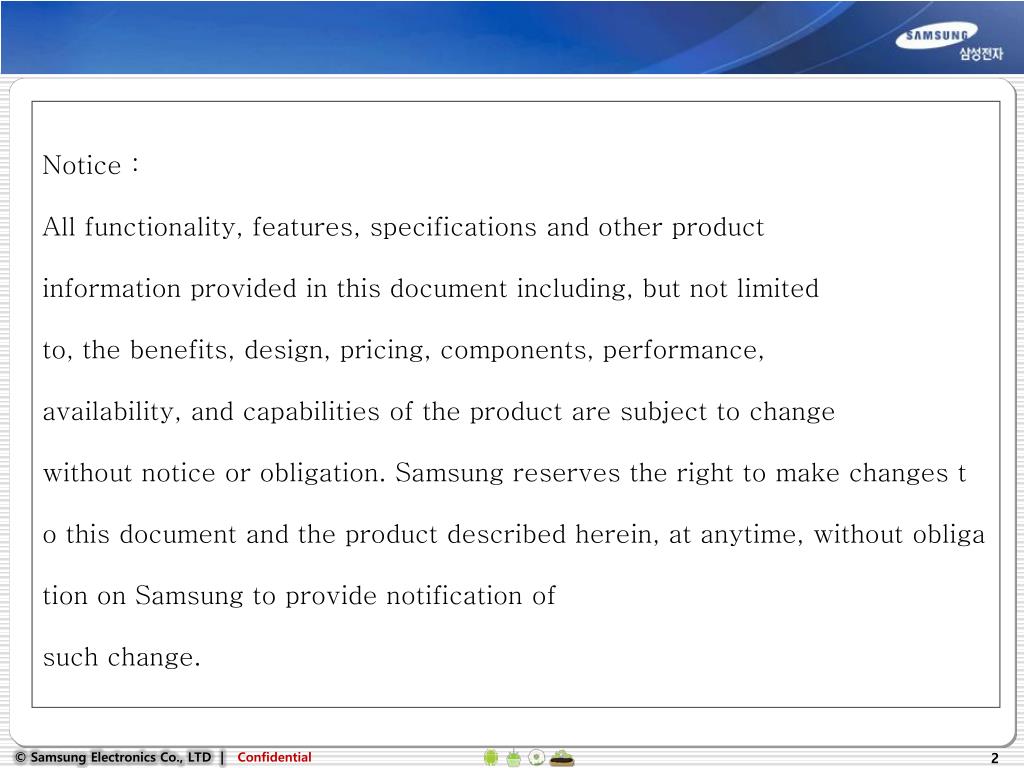

  2. Notice : All functionality, features, specifications and other product information provided in this document including, but not limited  to, the benefits, design, pricing, components, performance,  availability, and capabilities of the product are subject to change  without notice or obligation. Samsung reserves the right to make changes to this document and the product described herein, at anytime, without obligation on Samsung to provide notification of  such change.

  3. Contents • About Bada & Scotia • S/W Download • Key Strings • Trace Log • Features • Q&A

  4. About Bada • What is Bada? • Bada is a new smartphone platform that allows developers to implement feature –rich application that leverage the user experience in mobile spaces. • Bada Provides general Open OS features, service-centric features, and state-of-the-art UI features. • User-interactive • Includes a new UI framework that supports the next generation of Samsung touch UI. • Service-oriented • Introduces several new service-centric capabilities that differentiate if from conventional mobile operating system • Open and configurable • Enables developers to take full advantage of mobile capabilities to create compelling application easily.

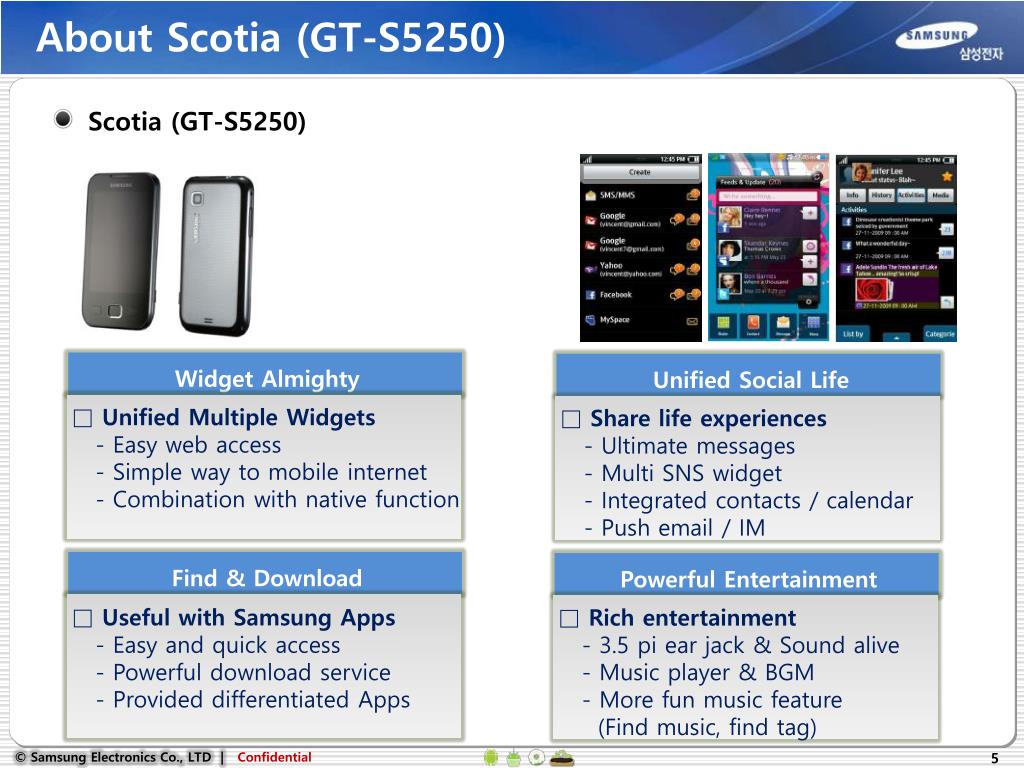

  5. About Scotia (GT-S5250) • Scotia (GT-S5250) Widget Almighty Unified Social Life • Unified Multiple Widgets • - Easy web access • - Simple way to mobile internet • - Combination with native function • Share life experiences • - Ultimate messages • - Multi SNS widget • - Integrated contacts / calendar • - Push email / IM Find & Download Powerful Entertainment • Useful with Samsung Apps • - Easy and quick access • - Powerful download service • - Provided differentiated Apps • Rich entertainment • - 3.5 pi ear jack & Sound alive • - Music player & BGM • - More fun music feature • (Find music, find tag)

  6. S/W Download (1/4) • 执行下载平台: MultiLoader_v5.64 (如果电脑需要安装驱动, 请选择‘schorl-V4_50_7_1-customer-free’. ) • 进入Download 模式. (音量下+ 相机键+ microUSB 数据线连接) microUSB 音量下 相机键

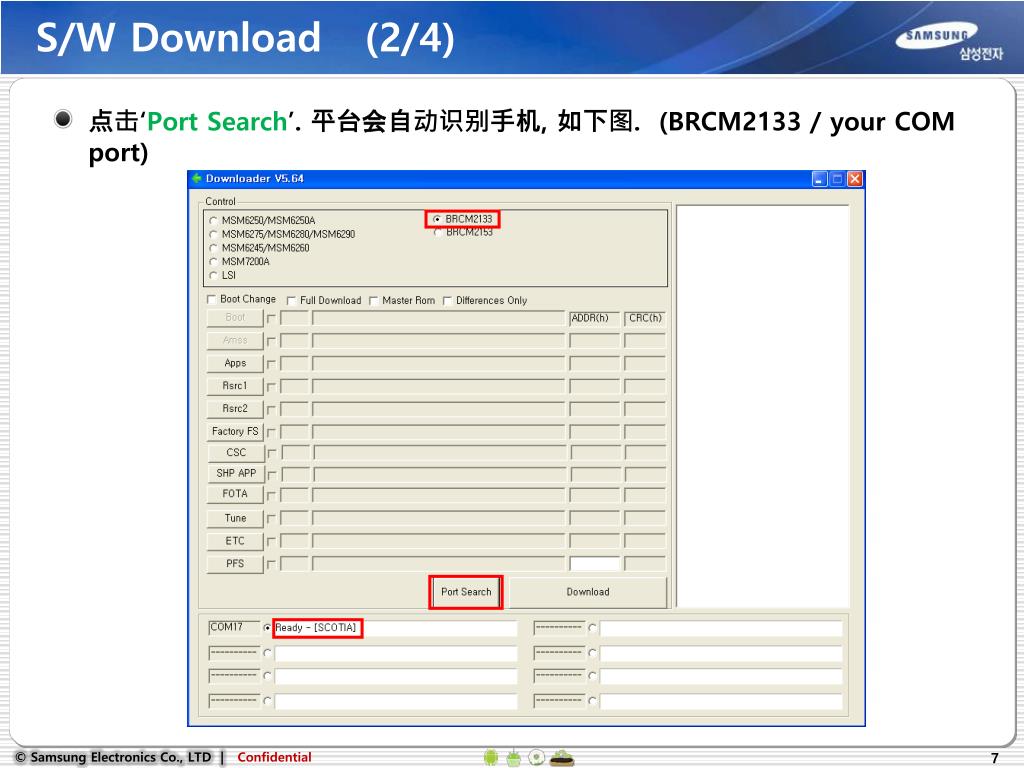

  7. S/W Download (2/4) • 点击‘Port Search’. 平台会自动识别手机, 如下图. (BRCM2133 / your COM port)

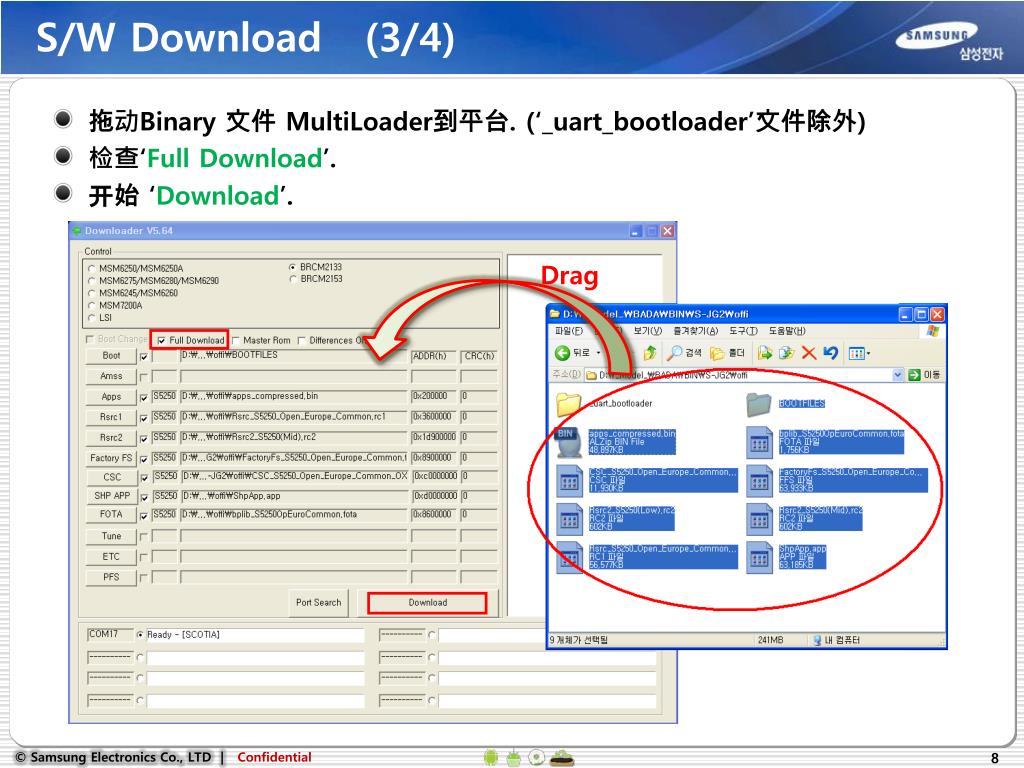

  8. S/W Download (3/4) • 拖动Binary 文件 MultiLoader到平台. (‘_uart_bootloader’文件除外) • 检查‘Full Download’. • 开始 ‘Download’. Drag

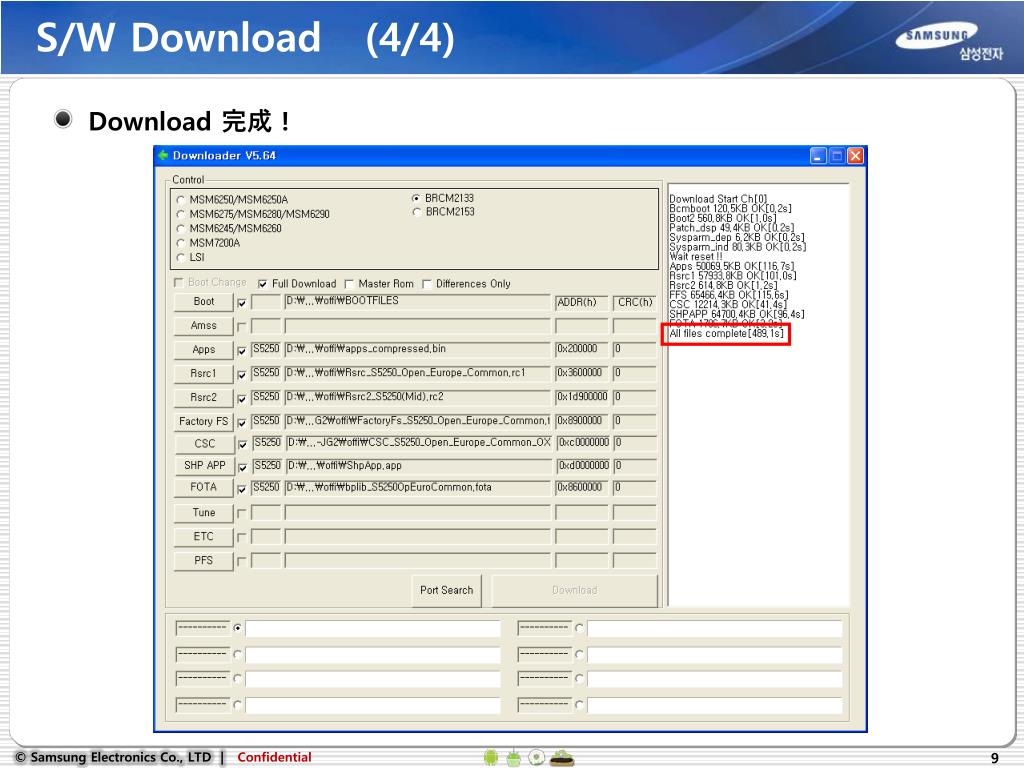

  9. S/W Download (4/4) • Download 完成 !

  10. Key Strings • 软件版本查询 : *#1234# • 硬件版本查询 : *#2222# • 回复原厂设定: *2767*3855# • IMEI 查询: *#06# • LCD 测试模式 : *#0*#

  11. Trace Logs (1/5) • Set your phone for tracing. - MTP Screen Block Disable : *#6870# - MTT on : *#197328640# -> 6 -> 4 -> select 5,6,9 ok. - Reboot. • Connect the phone to PC, and check COM ports. (If your PC needs new USB driver, please select ‘schorl-V4_50_7_1-customer-free’. ) : Please Look at the picture in next page !

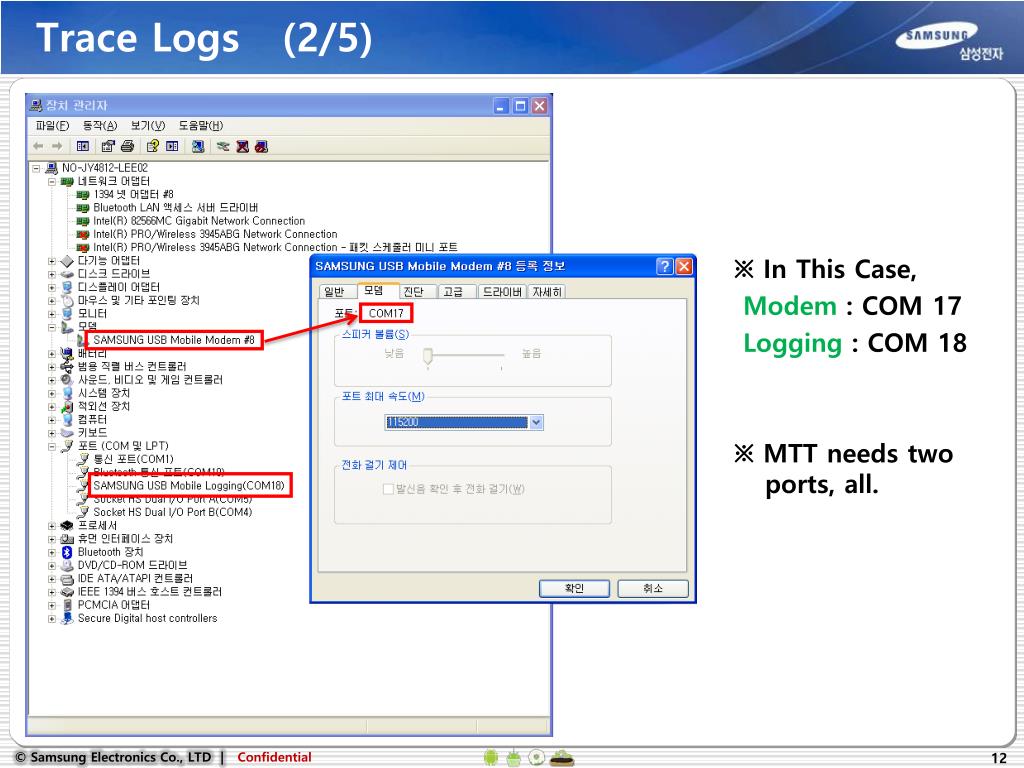

  12. Trace Logs (2/5) ※ In This Case, Modem : COM 17 Logging : COM 18 ※ MTT needs two port ports, all.

  13. Trace Logs (3/5) • Run BMTT (Broadcom Mobile Trace Terminal). • Click Configuration – Decoder - Browse : ‘DecodingLibrary_HEDGE_09_09_09 \ configuration_files_description.xml’ - Load : check ‘hedge_09_09_09(Regular updates)’ and ‘Load’

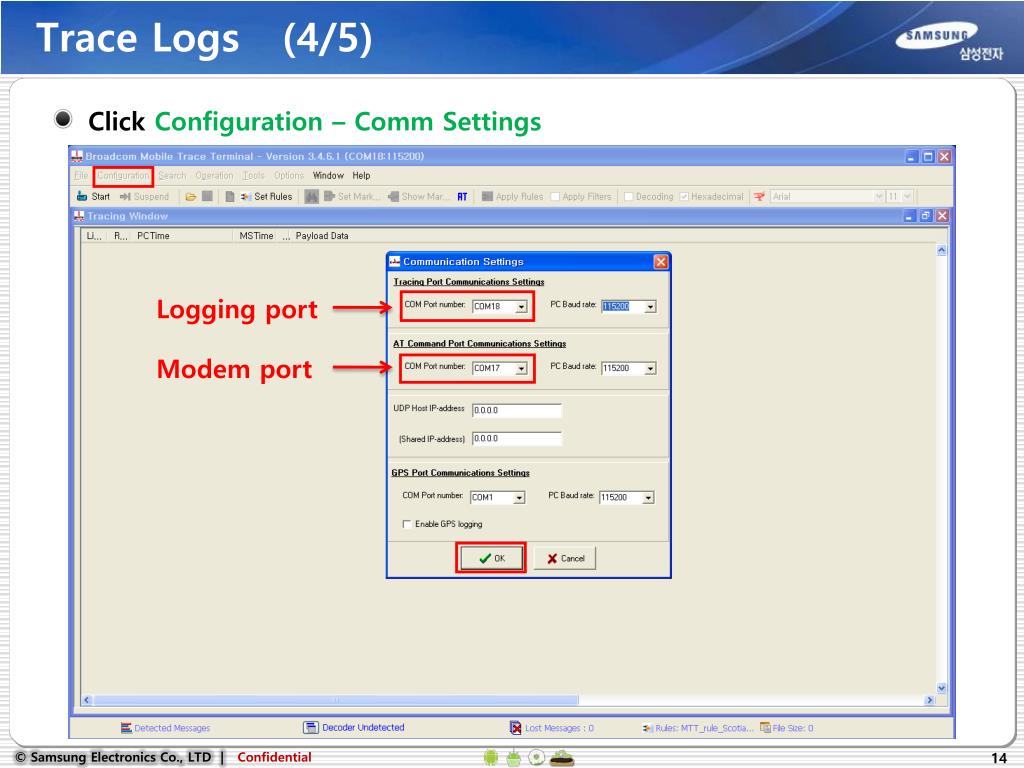

  14. Trace Logs (4/5) • Click Configuration – Comm Settings Logging port Modem port

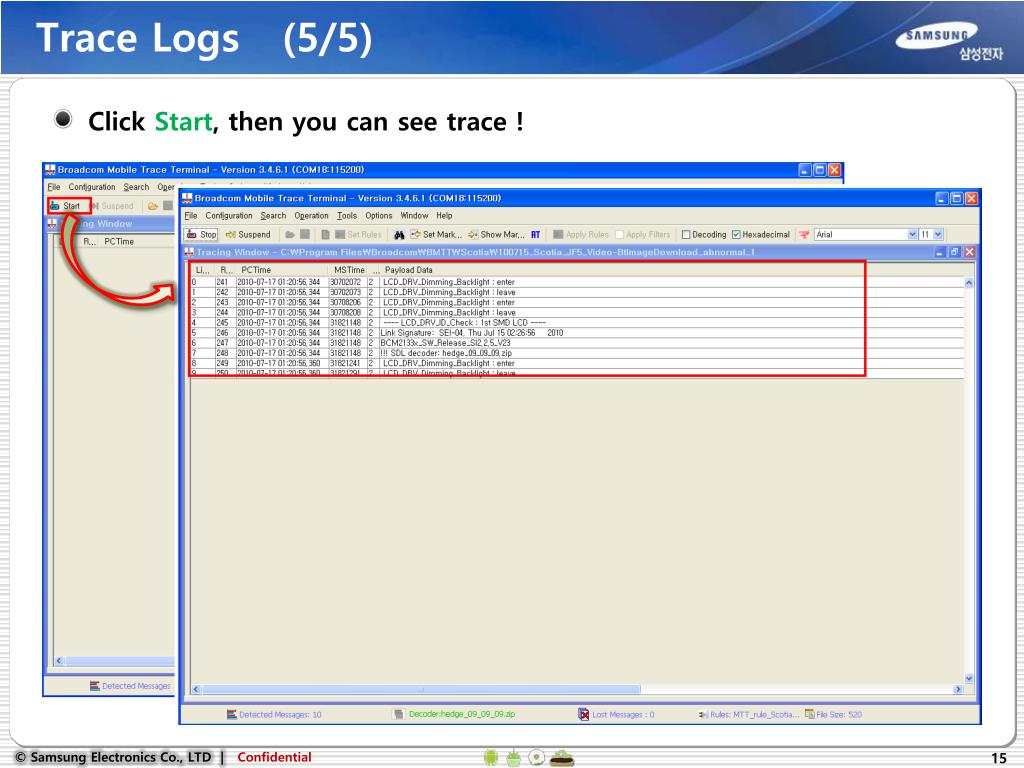

  15. Trace Logs (5/5) • Click Start, then you can see trace !

  16. Features Bada v1.1 Platform Samsung Integrated Messaging (Seven) - Push email, Push IM SMS / MMS (OMA v1.2) E-mail (POP3/IMAP/STMP, SSL) Unified inbox Message Dolfin Browser v2.0 HTML 5.0 HTTP, OTA provisioning supported WAP OMA DRM v2.1, WMDRM DRM

  17. Features TouchWiz 3.0 - Hybrid widgets Multi-touch support FM Radio Google email/search/maps 3.2M Camera Camera special shots (Smile, Panorama, Mosaic, Frame) MS Outlook exchangeable Others Downloadable Contents in A-Store Touchwiz 3.0 UX Push & Integrated experience with Social Hub Powered with native SNS application User Benefit

  18. Q&A • Question
