  1. JA-80 Make your premises an Oasis of security EN 0611 d2

  2. A solution for your security & comfort......

  3. Main differences to the JA-63 868MHz radio (up to 2000 meters), no visible antennas, supervision every 9 minutes 3V lithium batteries - calculated lifetime 3 years LCD keypad with editable texts RFID proximity card reader built into keypads 50 addresses to enroll wireless devices (programmable reactions) Optional enrollment of devices by entering their production code (bar code) 2 hard-wired inputs + inputs in keypads, door detectors and PIR detectors Up to 50 users (each can have code, card or both), code management in Comlink 2 levels of partial arming or splitting into 2 sections + 1 common section External keypads for access control Totally wire-free outdoor siren Indication of active detectors (open windows or doors) Combined wireless movement and glass-break detector Invisible window-detector Final-door detector function (garage etc.) Annual inspection indication (selectable) Summer / Winter time (selectable) Smart heating control Compatible with CA-1802 and CA-1803 car alarms Identical functions for GSM/GPRS and LAN/PSTN communicators Separate programming of ARC (Automatic Receiving Center) Complies with latest EN and TS standards (grade 2)

  4. “LEGO” architecture

  5. JK-81 kit • Devices supplied pre-enrolled and pre-programmed • Simple installation

  6. JK-81 consists of: • Control panel with GSM communicator • Wireless keypad • PIR detector • Magnetic detector • Indoor siren • Key fob • Wireless door bell button • Proximity card • Accessories (batteries etc.)

  7. Installation in 7 steps 5 6 1 4 7 3 2

  8. Service mode after powering up • A:Enrollment ofmore devices • key 1and connect batteries, exitwith # • B: Communication quality test • key298 (turns on signal measurement) • arrow keys scroll devices • device triggering = signal from 1/4 to 4/4 • # returns you to Service mode • C:GSM signal strength test • key922 • return to Service mode by # • Each signal should be at least 2/4

  9. Programming Example: 4 hh mm DD MM YY= clock 201Exit delay 10sec. 81 1 777 775 001 *0= tel. number 9261= forward SMS

  10. 299 enrollment of PGX to AC relay X • 237 PGX function = on / off

  11. Handover to the user

  12. Operating a key-fob SET (arm) UNSET (disarm) Both buttons = PANIC

  13. Keypad layout Alarm or faultSET A, B and C Power Details Setting (arming) Hot keys A, B & C PGX On / Off Detail reading

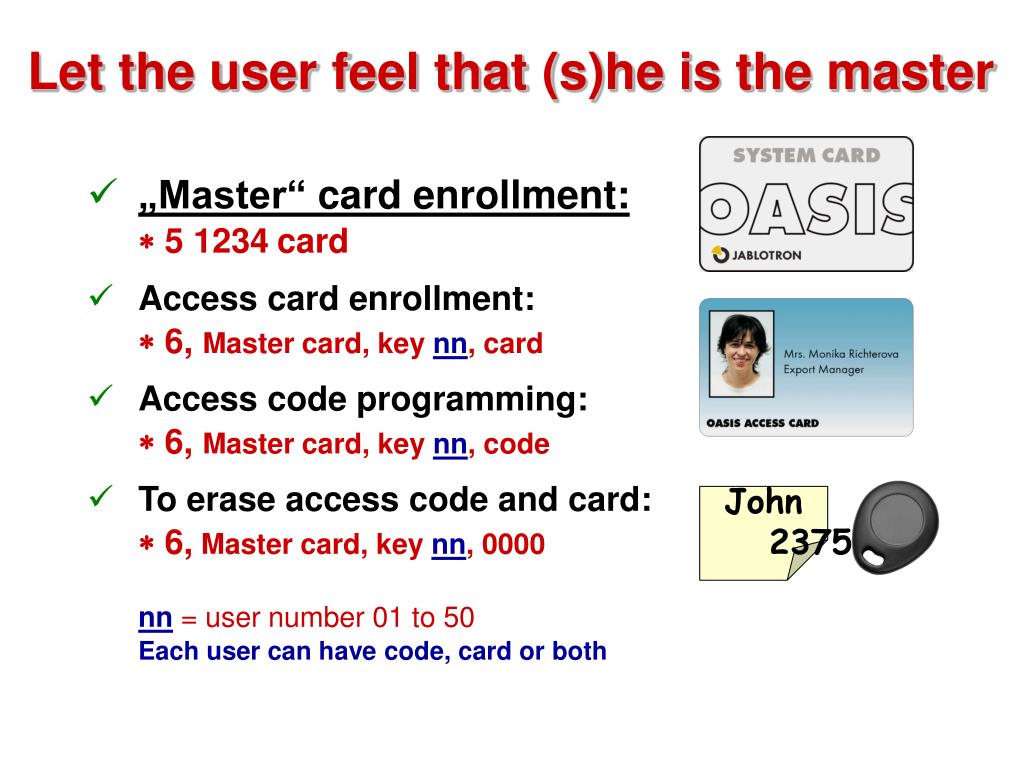

  14. Let the user feel that (s)he is the master • „Master“ card enrollment: * 5 1234card • Access card enrollment: * 6, Master card, keynn, card • Access code programming: * 6, Master card, keynn, code • To erase access code and card: * 6, Master card, keynn, 0000 nn= user number 01 to 50 Each user can have code, card or both John 2375

  15. Keypad operation

  16. * instructions

  17. 2 level partial arming Example:Family house C KeyA A Evening arming Garage…. A A B C Key B A+B Night arming Ground floor + garage A B C Key ABC A+B+C C A B Complete arming A B

  18. Split system Example: Two families in a house A B Code or card Bush Bush ARMED C Code or card Blair A B Blair ARMED C If both A+B armed, then C also armed A B Entire house armed incl. Common section C

  19. Communicator test Both buttons PANIC Panic alarm SMS Result: • Function test • Knowing the SIM card tel. number

  20. Remote access testing Phone keypad authorization: • Call and wait for the system to respond (after 5 rings) • Enter a valid code (master, user or service) • Operate the system - hang up at the end SMS instructions: „CodespaceINSTRUCTION“

  21. Control panel JA-80K • Features 1: • Back up battery 1.3Ah or 2.6Ah • Standby consumption 50 mA • 2 wired inputs (01 and 02) - programmable • Outputs: • EW - external warning (dry contact, max. 1A) • IW - internal warning (switches to GND, max. 0.5A) • PGX & PGY (switch to GND max. 0.2A) • +U power, max. 0.4A • Built in transceiver • Optional external antenna • Up to 50 wireless devices • Selectable reactions (Naturalor others) • Assignment to sections (A, B, C) • All devices have natural reaction in section C as factory-default • Devices can also be enrolled by keying in their production codes

  22. Control panel JA-80K • Hard-wired inputs: • Maximum of 5 detectors in a loop, • Differentiates between triggering and tampering • Programmable reaction (Natural = delayed) • Enrollment of a wireless device to address 01 or 02 disables the input terminal Max. of 5 detectors in a loop

  23. Control panel JA-80K • Features2: • Two-level partial setting (A, AB, ABC) • Or split system: A, B and C (common section) • Devicesand codes/cardscan have reactions: • Off, Natural, Panic, Fire, 24hr., Next delay, Instant, Set, PG control, Set/Unset • Up to 5 final-door detectors • Intruder alarm confirmation by a 2nd detector • Indication of permanently triggered detectors (details by ? key) • Annual inspection request indication option • Summer / winter time option • Memoryfor the last 255 events • Replaceable memory chip • Can be operated with up to: • 50 user codes (locally or remotely by phone or internet) • 50 user cards • Option: Confirmation of the card by code

  24. The JA-80F keypad • LCD (2x 16 characters) • 1stline = status or event • 2nd line = name of the event source • Keypad menu - language selection & chime function • Hard-wired input IN (Natural reaction = Delayed) • Built in proximity card reader • Arrow keys allow you to control PGX (=*81 and*80) A, B & ABCarming hot keys ?Detail reading • Keypad turns off after 20sec (if battery powered) • 2 x AA Lithium 3V batteries(3 year lifetime- 2 operations/day) • JA-80E= hard-wired version

  25. Keypad text editing • In service mode: • Holding?pressed opens editing • Keys: Arrow – selects the text string to be edited 1 and 7 - scroll through characters (A, B, C…..8,9,0) 4 and 5 - move cursor 2 deletes character # exits editing Comlink SW allows more convenient editing - keypad must be connected to the control panel bus

  26. The PC-01 proximity card • RFID access card(EM UNIQUE 125kHz) • Up to 50 cards can be enrolled to the system • The card has the same function as an access code • For higher security the card can be combined with a code • PC-02 is a key tag version

  27. The JA-80H outdoor keypad • Built in RFID reader • Connects to the control panel bus via WJ-80 • Provides a doorbell button • Illuminated keys • IP-65 • Standby consumption 45mA

  28. The JA-80Noutdoor reader • RFID card reader • Connects to the control panel bus via WJ-80 • IP-65 • Standby consumption 40 mA

  29. The WJ-80 interface • Connects outdoor keypad (reader) to the control panel • Built-in door bell transmitter • Output to operate an electrical door lock (Z8-12V) • Open button input • Keypad uses Wiegand protocol 26b • DIP switches: • System keypad / Outdoor bypass switch • PGY can operate the door lock as well (Y/N) • Door lock activation time 3 / 6 seconds • Exit & entrance beeps (Y/N) Sequence 248 = PGY pulse Authorized phone opening 81 1 777 775 001 *79*0 Control panel bus

  30. The RC-80 key-fob • 2 housings provided (2 or 4 buttons) • Key lock (4 buttons only) • Can also be used with UC, AC, JA-80L an CA-180x • Alkaline battery 6V, life time 2 to 3 years • Working range up to 100m

  31. The RC-88 button • DIP switches: • Panic (remote control or panic button function) • TMP (disable tamper sensors and communication supervision) • Can also be used with UC, AC and JA-80L • 1x 1/2 AA Lithium 3V battery (3 year life time, max. 20 activations/day)

  32. The RC-89 door bell button • Works withthe JA-80L indoor siren • Can be enrolled to the control panel as a portable panic button (by keeping pressed for 3 seconds) • Can also be used with AC and UC modules • No radio communication supervision • 6V alkaline battery • Working range up to 200m Mr. Jones

  33. The RC-85 remote control module • Designed to be installed in a car • 3 wires • GND • A = if connected to +12V transmits signal • B = if connected to +12V transmits signal • both A + B connected to +12V transmits a panic signal • Works with the control panel, UC, AC and JA-80L • No battery • Flashing full-beam headlights or blowing the horn send signals • Can also be used to transmit an alarm from a car alarm

  34. The JA-80P detector • PIR sensor • Hard-wired input IN • 15 min test mode after closing the cover • DIP switches • DEL / INS (natural reaction) • NORM / HIGH (immunity level) • Covers 120° / 12m • Optional lenses(pet, long corridor, vertical curtain) • 1 x AA Lithium battery 3V (3 year life time) • 5min sleep time(can be shortened to 1 minute)

  35. The JA-80PB detector • PIR sensor + glass-break sensor • Enrolls to 2 addresses in the system • PIR =identical to JA-80P • 15 min test mode after cover closing • Glass-break DIP switches • DEL / INS (natural reaction) • PIR / GBS (LED indicator function in test mode) • GB detection - up to 9m (can be tested with GBT-212) • 2 Lithium 3V batteries: 1 x AA + 1x 1/2 AA

  36. The JA-80M detector • Magnetic door / window detector • Status detector • DIP switches: • DEL / INS (natural reaction) • MG ON / MG OFF (enables/disables internal sensor) • 2 input terminals: • TMP = tamper input • IN = alarm input • 1x 1/2 AA Lithium 3V battery (3 yearlife time for 20 activations/day)

  37. The JA-80S detector • Fire detector(optical smoke + temperature over 60°) • Test button • Jumpers: • FIRE / INS (natural reaction) • SIREN ON / OFF (enables / disables internal siren) • 1x AA Lithium 3V battery (3 year life time)

  38. The JA-80G detector • Combustive gas or fume detector • Can be tested with a cigarette lighter • Jumpers: • 10 / 20% LEL (gas concentration) • MEM ON / OFF (memory function) • Output relay contact max. 6A • Mains powered Prototypes only

  39. The JA-85P detector • Mini-size PIR detector • Can be used in a house or in a car (CA-180x) • 15 min test mode after closing the cover • DIP switches • NORM / HIGH (immunity level) • DEL / INS (natural reaction) • Supervision ON / OFF • Sleep 1 / 5 minutes • Semi-sphere lens max. detection distance 5m • Communicating range up to 300 meters • 1 x AA Lithium 3V battery (3 year life time)

  40. The JA-85B detector • Mini-size PIR detector • Can be used in a house or in a car (CA-1802 or 1803) • 15 min test mode after closing the cover • DIP switches • DEL / INS (natural reaction) • Supervision ON / OFF • Detection up to 9 meters (can be tested with GBT-212) • Communicating range up to 300 meters • 1 x AA Lithium 3V battery (3 year life time)

  41. The JA-82M detector • Invisible window- (door-) detector • To be installed in the frame of a window (door) • DIP switches: • Position closed (A or B) • INS / DEL • TMP on / off • Status / pulse reporting • Communicating range up to 300 meters • 2 x CR2354 Lithium 3V battery (3 year life time 5 activations/day) A B Prototypes only

  42. The JA-80L indoor siren • Generates sounds: • IW alarm • Exit and entrance beeps • Door bell - 8 melodies • Detector-triggered sounds - 8 melodies • LED indicates PGY status • Mains powered • Tampering reported if disconnected from the power during an alarm • Enrolls by plugging in • Two volume levels (selectable by keeping the button pressed) • Triple click enables/disables arming chirp sounds

  43. The JA-80A outdoor siren • Totally wire-free !!! • Loudness increases gradually • Max. duration of the siren sound: 3 min. • Flashes 30 min. after the alarm • Jumpers: • 50 / 25 s. (communication cycle with the control panel) • LED ON / OFF (warning flash every minute) • Enrolls by connecting its battery • Lithium battery BAT-80 (max. life time 3 to 5 years)

  44. The JA-80Y communicator • Communication via GSM/GPRS • GSM gateway function • Events reporting by: • SMS and phone calls • ARC (IP, SMS or CID protocols) • ARC programming can be locked • Remote access via: • Phone (keypad registration or SMS) • Internet - www.gsmlink.cz • Unanswered ringing from an authorized phone number • Remote access possible with a valid code (UC, MC, SC)

  45. The JA-80Vcommunicator • Communication via LAN & PSTN • Events reporting by: • SMS and phone calls • ARC (IP, CID or DRprotocols) • ARC programming can be locked • Remote access via: • Phone (keypad registration or SMS) • Internet - www.gsmlink.cz • Unanswered ringing from an authorized phone number • Remote access possible with a valid code (UC, MC, SC) Combination of LAN and PSTN enables the same features as GSM/GPRS. Most of the JA-80V and JA-80Y functions are identical

  46. Central monitoring Telephone network INTERNET and or Automatic Receiving Center User notification Oasis

  47. Remote access www.GSMLink.cz INTERNET and or Internet Telephone PC connected to Internet Remote access from Internet

  48. The JA-80X voice communicator • Reports alarms with voice messages • Up to 4 phone numbers via PSTN • 6 voice messages • System name • Intrusion • Fire • Tampering • Panic • Technical alarm • Allows remote access via telephone keypad authorization • Can be combined with JA-80V or JA-80Y Prototypes only

  49. The SP-02 speaker phone • For listening in and talking • Can be connected to PSTN or to the phone line simulated by JA-80Y • Answers calls from authorized numbers • Half-duplex communication allows a high sensitivity for listening • Push-to-talk feature to call an emergency number • 2 x AA alkaline 1.5V battery Prototypes only

  50. The UC-82 relay module • Powered by 12V DC • 2 output relays (X & Y) - max 2A • Low bat. output • External antenna is optional • Can be used with: • Control panel • Detectors • RC-8x transmitters
