Presentation Transcript
Chapter 1 measurements
Chapter 1Measurements

Accuracy and Precision

Timberlake LecturePLUS


Accuracy
Accuracy

How close a measurement is to the actual or true value

good accuracy

true value

poor accuracy

true value

Timberlake LecturePLUS

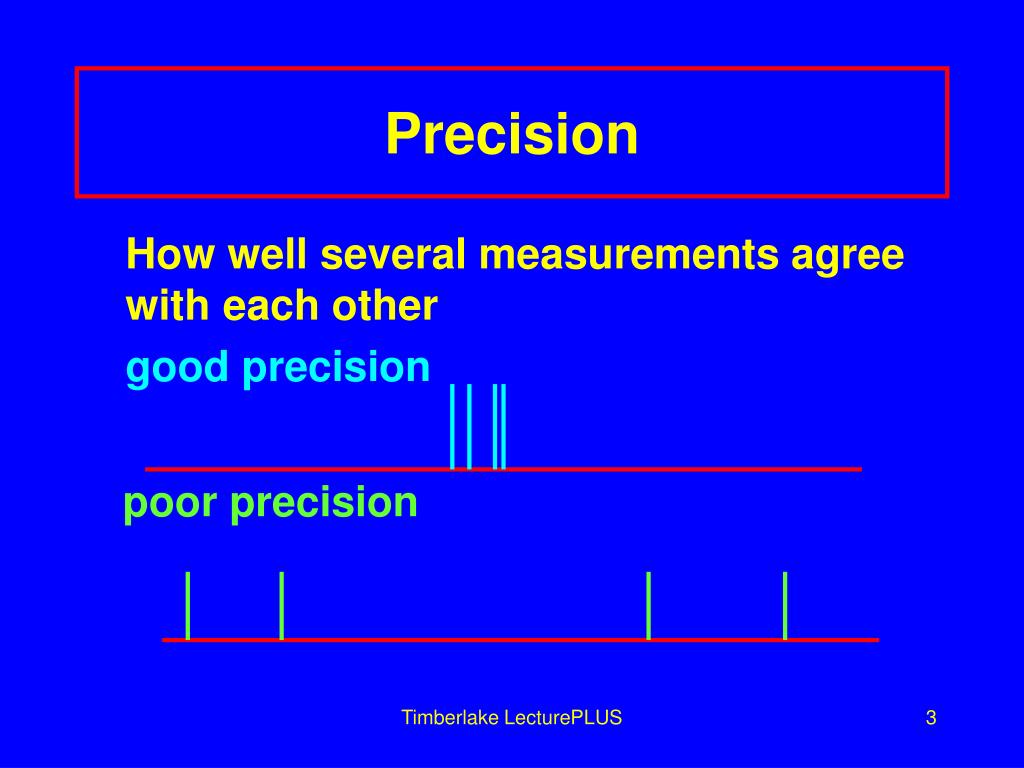

Precision
Precision

How well several measurements agree with each other

good precision

poor precision

Timberlake LecturePLUS

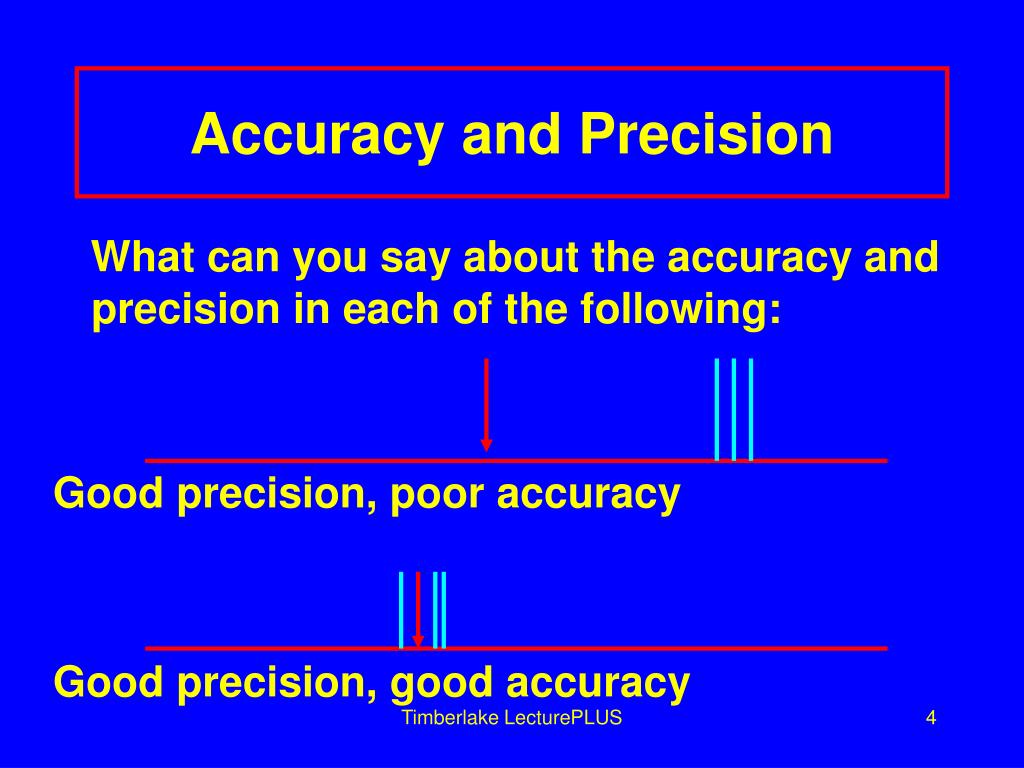

Accuracy and precision
Accuracy and Precision

What can you say about the accuracy and precision in each of the following:

Good precision, poor accuracy

Good precision, good accuracy

Timberlake LecturePLUS

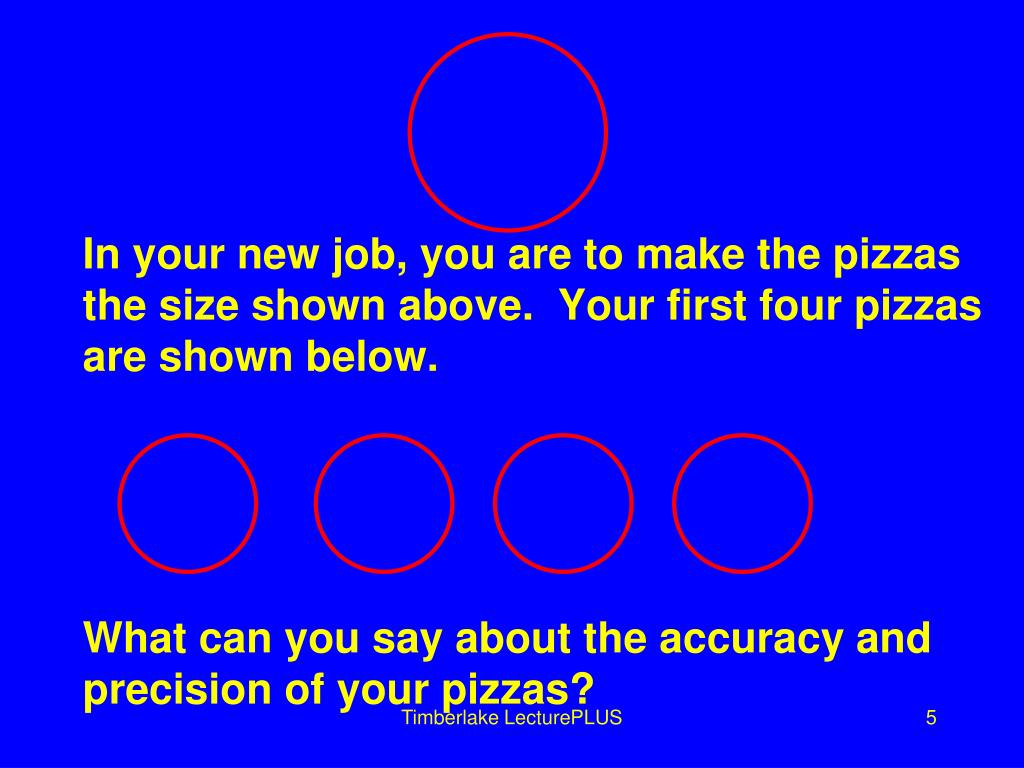

In your new job, you are to make the pizzas the size shown above. Your first four pizzas are shown below.

What can you say about the accuracy and precision of your pizzas?

Timberlake LecturePLUS


The next four pizzas
The next four pizzas. above. Your first four pizzas are shown below.

What can you say about the accuracy and precision of the next four pizzas?

Timberlake LecturePLUS

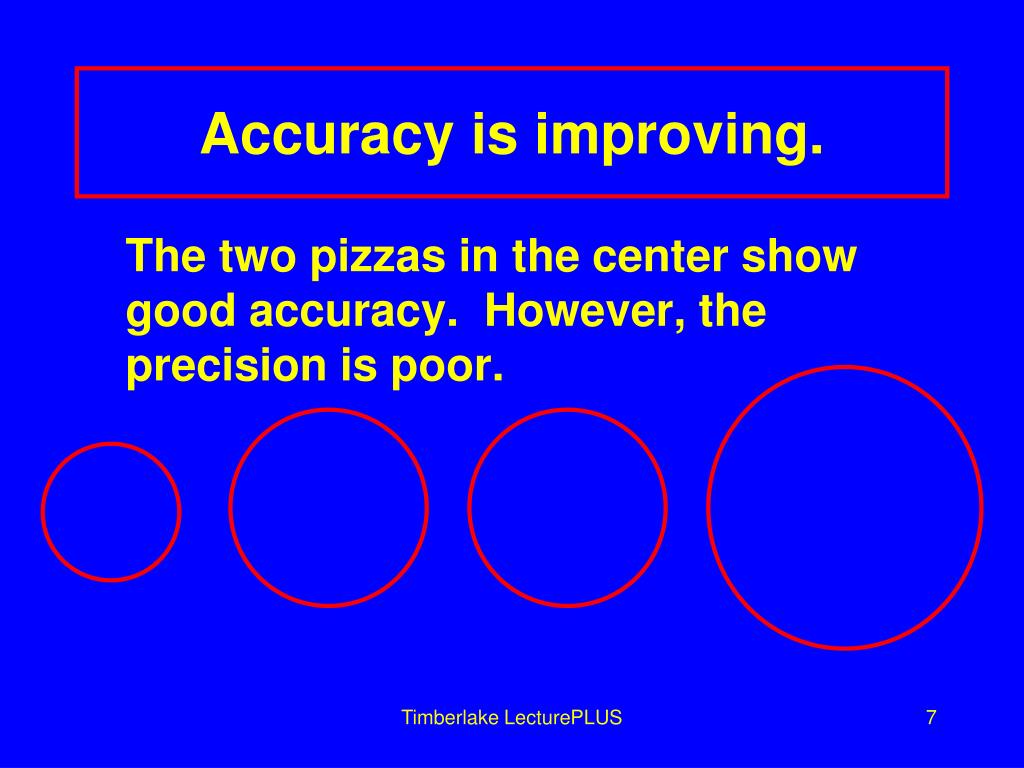

Accuracy is improving
Accuracy is improving. above. Your first four pizzas are shown below.

The two pizzas in the center show good accuracy. However, the precision is poor.

Timberlake LecturePLUS

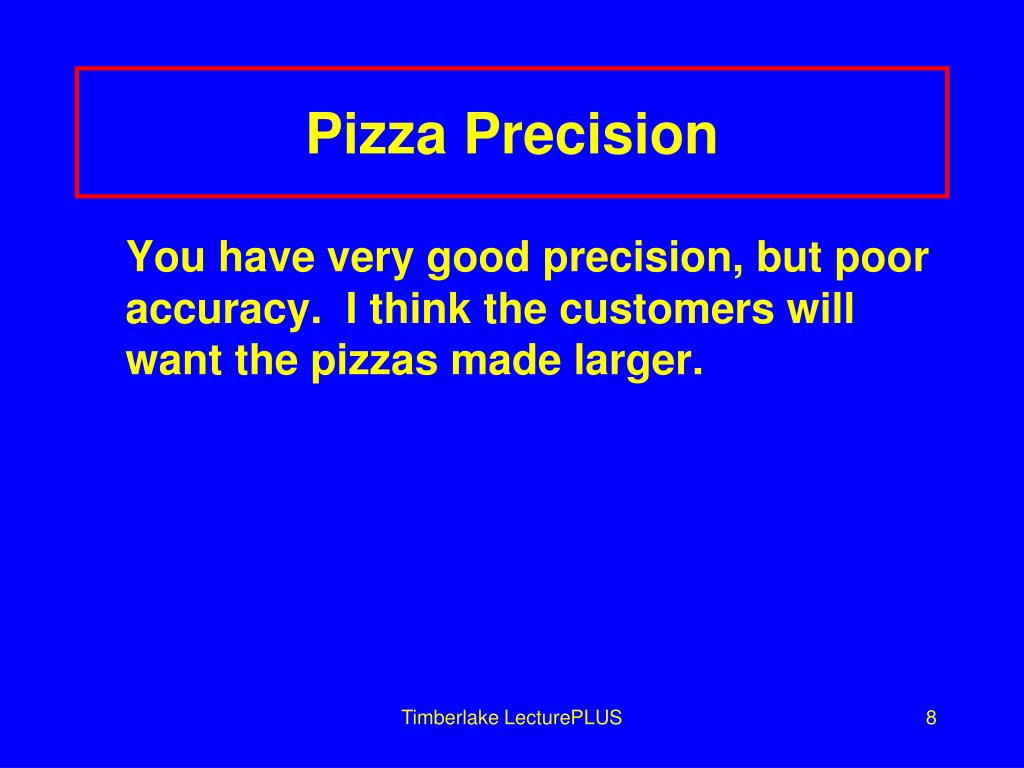

Pizza precision
Pizza Precision above. Your first four pizzas are shown below.

You have very good precision, but poor accuracy. I think the customers will want the pizzas made larger.

Timberlake LecturePLUS

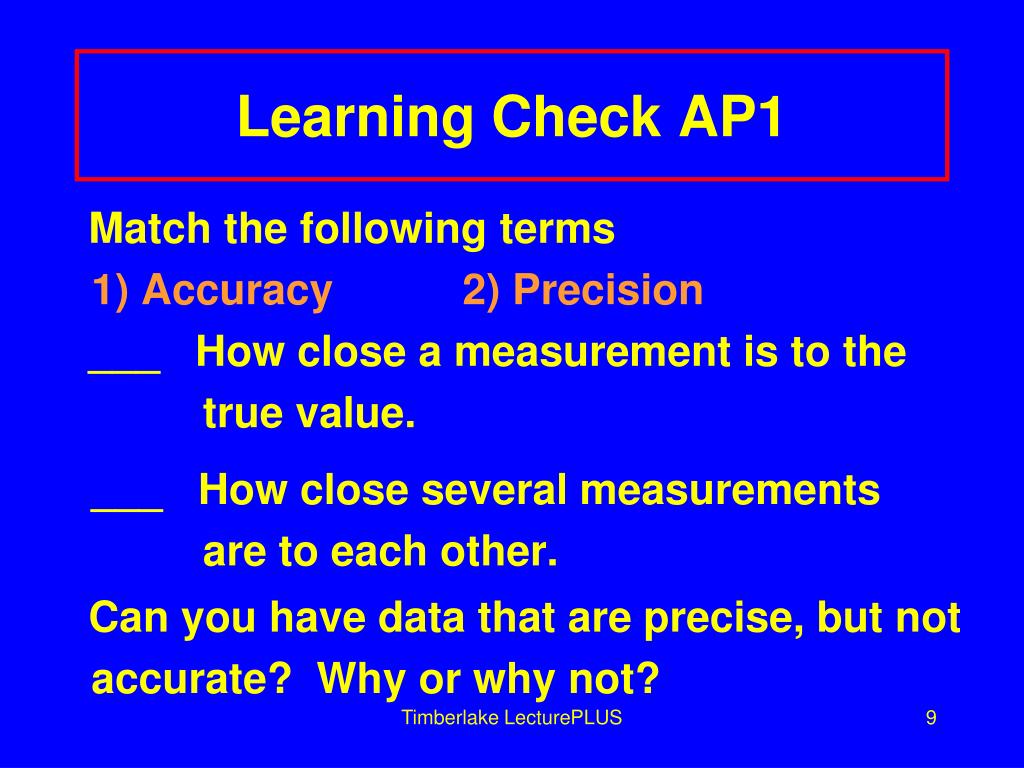

Learning check ap1
Learning Check AP1 above. Your first four pizzas are shown below.

Match the following terms

1) Accuracy 2) Precision

___ How close a measurement is to the

true value.

___ How close several measurements

are to each other.

Can you have data that are precise, but not accurate? Why or why not?

Timberlake LecturePLUS


Solution ap1
Solution AP1 above. Your first four pizzas are shown below.

Match the following terms

1) Accuracy 2) Precision

_1_ Is how close a measurement is to the

true value.

_2_ Is how close several measurements

are to each other.

Yes. Data can be precise, but not come close to the true value.

Timberlake LecturePLUS


Learning check ap2
Learning Check AP2 above. Your first four pizzas are shown below.

How will each of the following affect accuracy and precision?

1. A meter stick that is missing the first centimeter.

2. A scale that has a zero point that is really five pounds above zero.

Timberlake LecturePLUS

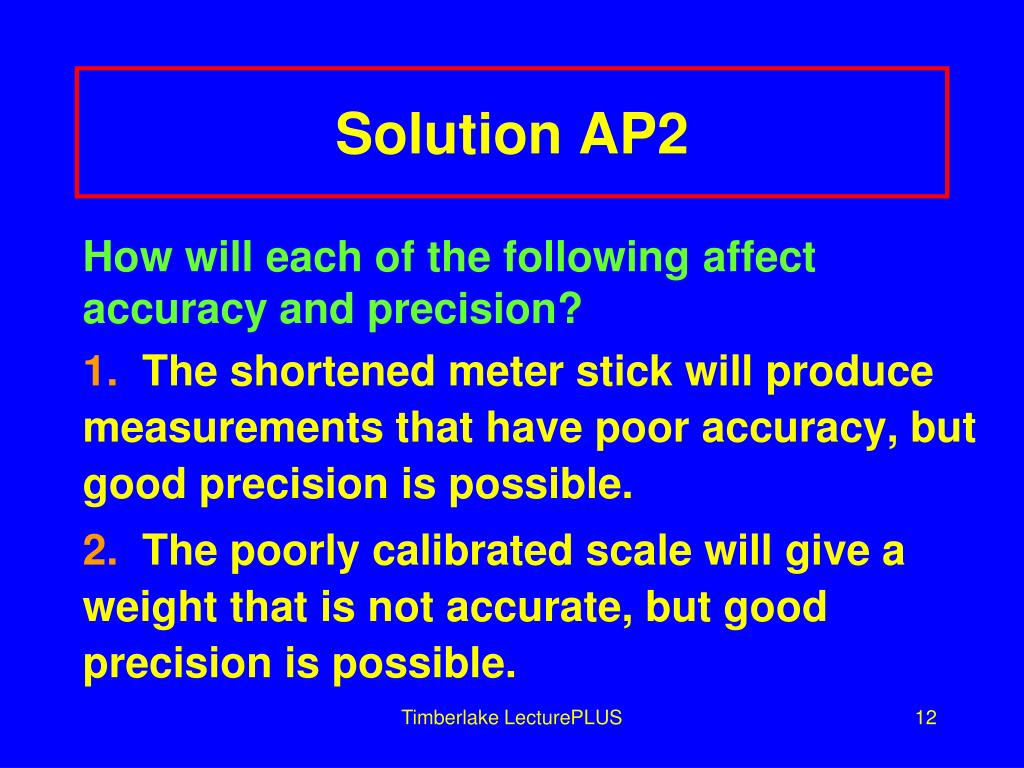

Solution ap2
Solution AP2 above. Your first four pizzas are shown below.

How will each of the following affect accuracy and precision?

1. The shortened meter stick will produce measurements that have poor accuracy, but good precision is possible.

2. The poorly calibrated scale will give a weight that is not accurate, but good precision is possible.

Timberlake LecturePLUS


Learning check ap3
Learning Check AP3 above. Your first four pizzas are shown below.

True(1) or false (2). Measurements can have

poor accuracy and poor precision

good accuracy and poor precision

poor accuracy and good precision

good accuracy and good precision

Timberlake LecturePLUS

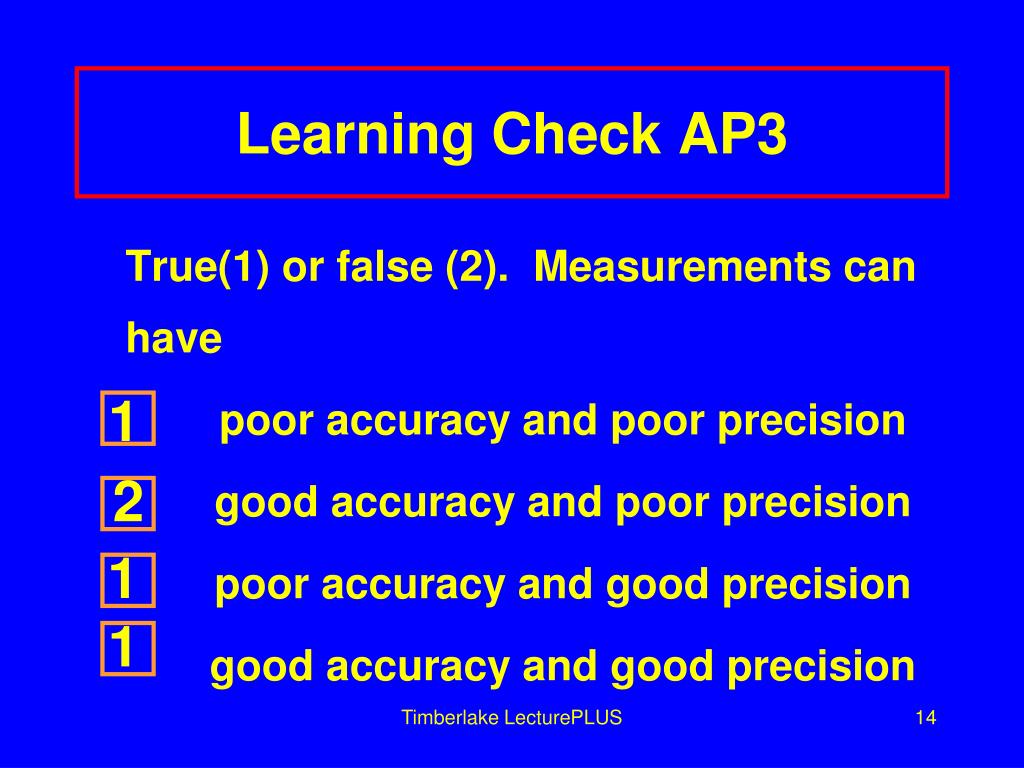

Learning check ap31
Learning Check AP3 above. Your first four pizzas are shown below.

True(1) or false (2). Measurements can have

poor accuracy and poor precision

good accuracy and poor precision

poor accuracy and good precision

good accuracy and good precision

1

2

1

1

Timberlake LecturePLUS
