  1. Why a shareof 80% electricityfromrenewableenergysourcesisnoutopia andwhy a shareof 80% fossil fuels will soonbehistory. International Forum on Low-Carbon Industry and Green EconomyNovember 20th 2013, BeijingDr. Sven-Uwe MuellerHead of Energy Sector, Director of the Sino-German Renewable Energy Programme Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ) GmbH

  2. Because… • Levelized Cost of Electricity (LCOE) of RES are rapidly catching up with fossil fuels – as proven by: • World Energy Council (WEC) World Energy Perspective: Cost of Energy Technologies • Fraunhofer ISE Levelized Cost of Electricity: Renewable Energy • IRENA Renewable Power Generation Costs • Grid integration of variable RES is technically feasible provided that … • Grid integration of variable RES is economically feasible provided that …

  3. WEC: Most RE technologies close to reaching parity LCOE analysis shows that the cost range across RE technologies is wider than those of conventional energies. But the most mature and widely deployed clean technologies (i.e. hydro and onshore wind) are close to reaching parity with traditional sources. LCOE of onshore wind electricity by region (USD/MWh) China USD 49-93/MWh India USD 47-113/MWh LCOE of coal electricity by region (USD/MWh) China USD 35-39/MWh Source: World Energy Council. World Energy Perspective: Cost of Energy Technologies. 2013. http://about.bnef.com/white-papers/world-energy-perspective-cost-of-energy-technologies/

  4. Australian wind power: A success story Source: RE New Economy: Tracking the next Industrial Revolution. By Giles Parkinson. July 25, 2013. http://reneweconomy.com.au/2013/bugger-the-utilities-wind-and-solar-will-be-built-anyway-74216

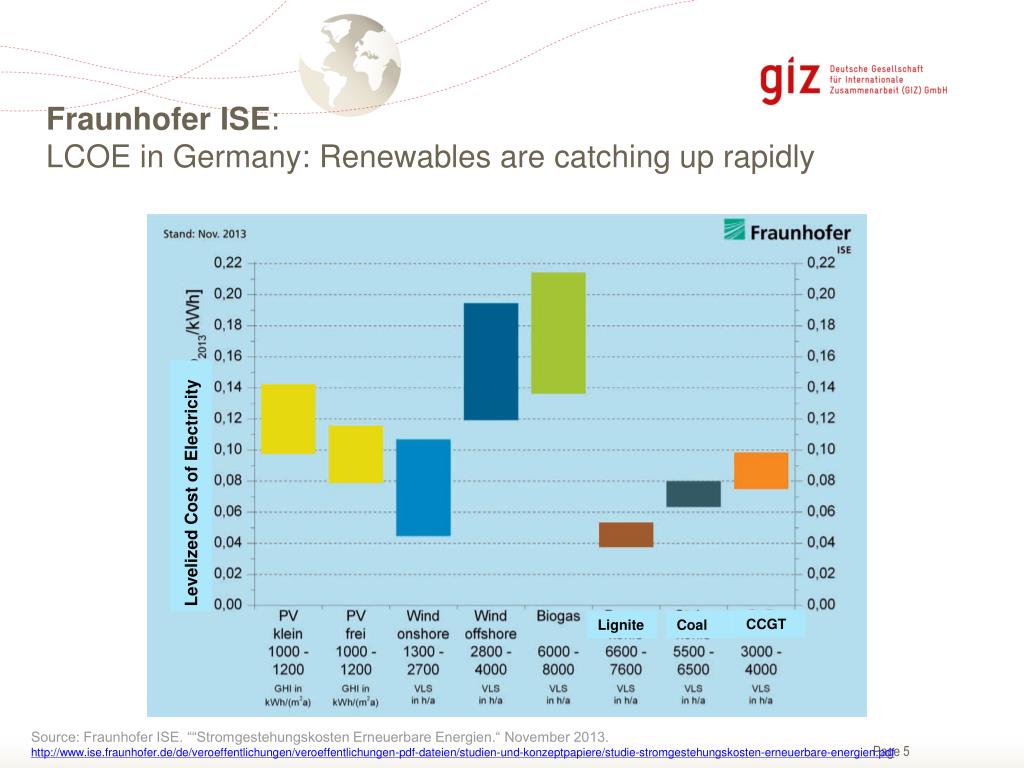

  5. Fraunhofer ISE: LCOE in Germany: Renewables are catching up rapidly Levelized Cost of Electricity CCGT Lignite Coal Source: Fraunhofer ISE. ““Stromgestehungskosten Erneuerbare Energien.“ November 2013. http://www.ise.fraunhofer.de/de/veroeffentlichungen/veroeffentlichungen-pdf-dateien/studien-und-konzeptpapiere/studie-stromgestehungskosten-erneuerbare-energien.pdf.

  6. IRENA: LCOE for RE technologies are continuing to decline (as of Nov 2012) Chart shows cost-effectiveness of today’s RE technologies. However, the cost ranges are wide and very site-specific. A rapid deployment of RE technologies has a significant impact on costs due to the high learning rates for RE. The LCOE for Renewable Power Generation Technologies Note: Assumes the cost of capital is 10%. The bands reflect ranges of typical investment costs (excluding transmission and distribution) and capacity factors. PT = parabolic through, ST = solar tower, BFB/CFB = bubbling fluidized bed, AD = anaerobic digester, CHP = combined heat and power. Source: IRENA. Summary for Policy Makers: Renewable Power Generation Costs. November 2012; http://www.irena.org/menu/index.aspx?mnu=Subcat&PriMenuID=36&CatID=141&SubcatID=261

  7. Because… • Levelized Cost of Electricity (LCOE) of RES are rapidly catching up with fossil fuels – as proven by: • World Energy Council (WEC) World Energy Perspective: Cost of Energy Technologies • Fraunhofer ISE Levelized Cost of Electricity: Renewable Energy • IRENA Renewable Power Generation Costs • Grid integration of variable RES is technically feasible provided that … • Grid integration of variable RES is economically feasible provided that …

  8. … wind and solar fluctuation patterns are compensated for by a more flexible electric system Fossil Fuels Solar Wind Offshore Wind Onshore Hydro Biomass Electricity Demand Fluctuation is the main technical challenge for an electric system with high levels of RE penetration. Source: AGORA. “12 Insights on Germany’s Energiwende.” Feburary 2013. http://www.agora-energiewende.org/fileadmin/downloads/publikationen/Impulse/12_Thesen/Agora_12_Insights_on_Germanys_Energiewende_web.pdf

  9. Technical requirements for the successful integration of variable RES Ways of thinking must change, a new approach is needed! Conventional plants as baseload providers Zero flexibility of dispatchable generation Hierarchical grids as distribution mechanism Electricity as an isolated system Conventional plants as residual load providers Maximum flexibility of dispatchable generation Grids as an aggregation and balancing instrument Electricity as part of the overall energy, heat and transportation system Source: AGORA. “12 Insights on Germany’s Energiwende.” Feburary 2013. http://www.agora-energiewende.org/fileadmin/downloads/publikationen/Impulse/12_Thesen/Agora_12_Insights_on_Germanys_Energiewende_web.pdf

  10. The NREL Renewable Electricity Futures Study comes to similar conclusions… Conventional plants as baseload providers Conventional plants as energy-providers Zero flexibility of dispatchable generation Electric Sector not flexibile enough to accommodate higher levels of RE generation Hierarchical grids as distribution mechanism Today’s grid infrastructure poses a constraint Conventional plants as residual load providers Conventional plants as reserve-providers Maximum flexibility of dispatchable generation Increased flexibility of the electric system Grids as an aggregation and balancing instrument Expansion of transmission infrastructure to share and balance reserves Source: National Renewable Energy Laboratory (NREL). “Renewable Electricity Futures Study.” 2012. http://www.nrel.gov/analysis/re_futures/

  11. Because… • Levelized Cost of Electricity (LCOE) of RES are rapidly catching up with fossil fuels – as proven by: • World Energy Council (WEC) World Energy Perspective: Cost of Energy Technologies • Fraunhofer ISE Levelized Cost of Electricity: Renewable Energy • IRENA Renewable Power Generation Costs • Grid integration of variable RES is technically feasible provided that … • Grid integration of variable RES is economically feasible provided that …

  12. … new market rules and regulations are designed Today's electricity market is about trading kilowatt hours – it does not guarantee system reliability;  Wind and PV cannot be principally refinanced via marginal-cost-based markets – with good weather conditions they create excess electricity and thereby destroy there own market value The new market design must actively engage the demand-side; Source: AGORA. “12 Insights on Germany’s Energiwende.” Feburary 2013. http://www.agora-energiewende.org/fileadmin/downloads/publikationen/Impulse/12_Thesen/Agora_12_Insights_on_Germanys_Energiewende_web.pdf

  13. Mechanism of an energy only market works against RES Source: AGORA. “12 Insights on Germany’s Energiwende.” Feburary 2013. http://www.agora-energiewende.org/fileadmin/downloads/publikationen/Impulse/12_Thesen/Agora_12_Insights_on_Germanys_Energiewende_web.pdf

  14. Mechanism of an energy only market works against RES Source: AGORA. “12 Insights on Germany’s Energiwende.” Feburary 2013. http://www.agora-energiewende.org/fileadmin/downloads/publikationen/Impulse/12_Thesen/Agora_12_Insights_on_Germanys_Energiewende_web.pdf

  15. A transformed energy system needs a new market design and regulations Source: AGORA. “12 Insights on Germany’s Energiwende.” Feburary 2013. http://www.agora-energiewende.org/fileadmin/downloads/publikationen/Impulse/12_Thesen/Agora_12_Insights_on_Germanys_Energiewende_web.pdf

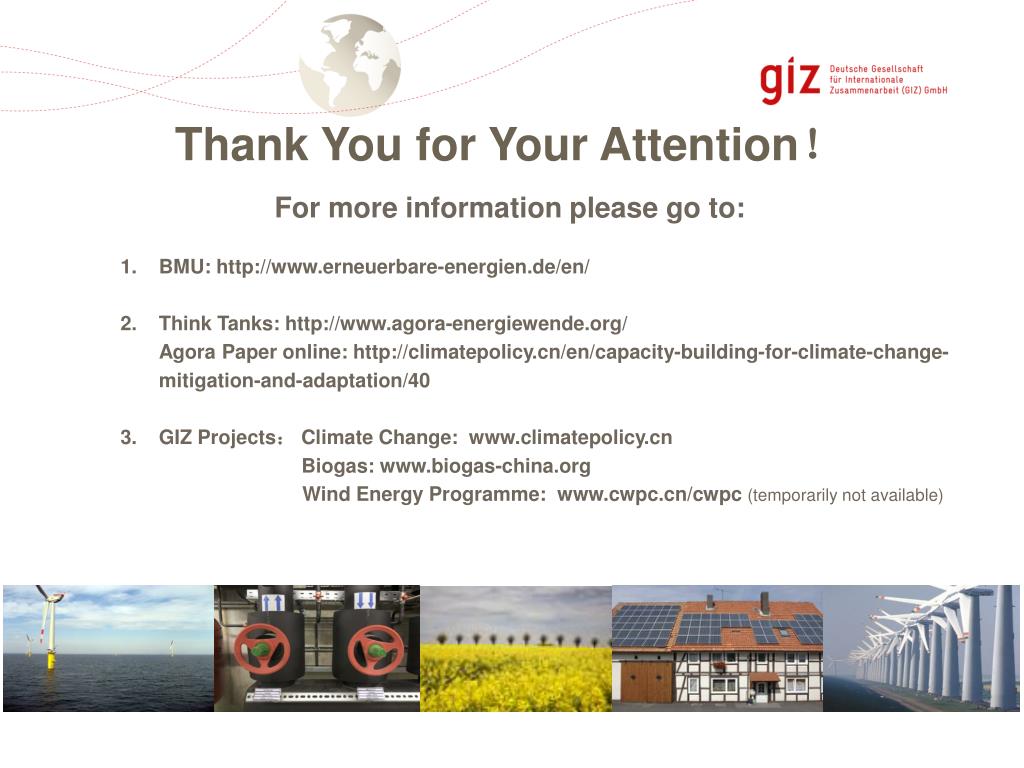

  16. Thank You for Your Attention！ Formoreinformationpleasegoto: • BMU: http://www.erneuerbare-energien.de/en/ • Think Tanks: http://www.agora-energiewende.org/Agora Paper online: http://climatepolicy.cn/en/capacity-building-for-climate-change-mitigation-and-adaptation/40 • GIZ Projects： Climate Change: www.climatepolicy.cn • Biogas: www.biogas-china.org • Wind Energy Programme: www.cwpc.cn/cwpc (temporarily not available) Fed. government Page 16
