Magnetic Field

Magnetic Field. Basic Concepts: A current carrying wire produces a magnetic field in the area around it. A time changing magnetic field induces a voltage in a coil (wire) if is passes through the coil (transformer).

preston
Download Presentation

Magnetic Field

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

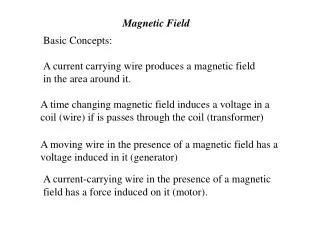

  1. Magnetic Field Basic Concepts: A current carrying wire produces a magnetic field in the area around it. A time changing magnetic field induces a voltage in a coil (wire) if is passes through the coil (transformer) A moving wire in the presence of a magnetic field has a voltage induced in it (generator) A current-carrying wire in the presence of a magnetic field has a force induced on it (motor).

  2. Faraday’s Law- Induced voltage from a time-varying magnetic field Faraday’s Law for a single wire Faraday’s Law for a coil If we define, : Then we have: Flux linkage

  3. Ideal Transformer

  4. Self and Mutual Inductance In a coil In a transformer

  5. Production of induced force on a wire Direction of l is the same as i

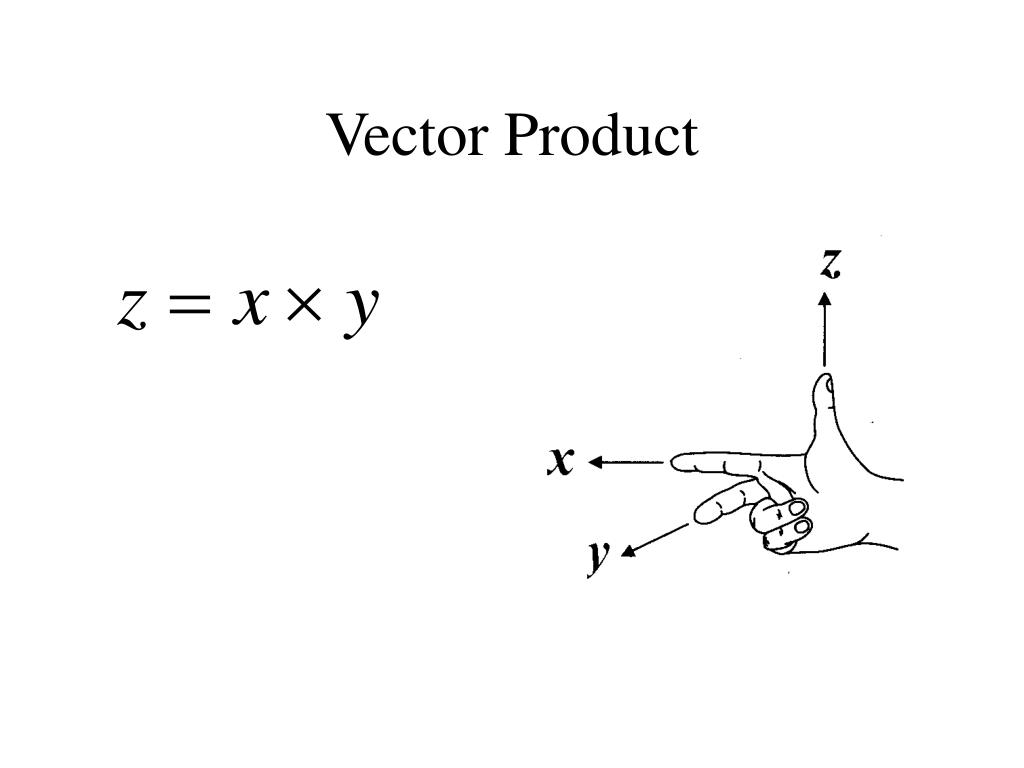

  6. Vector Product

  7. Induced voltage on a conductor moving in a magnetic field Direction of l is such that it would make the smallest angle with points The positive side of the resulted voltage in where

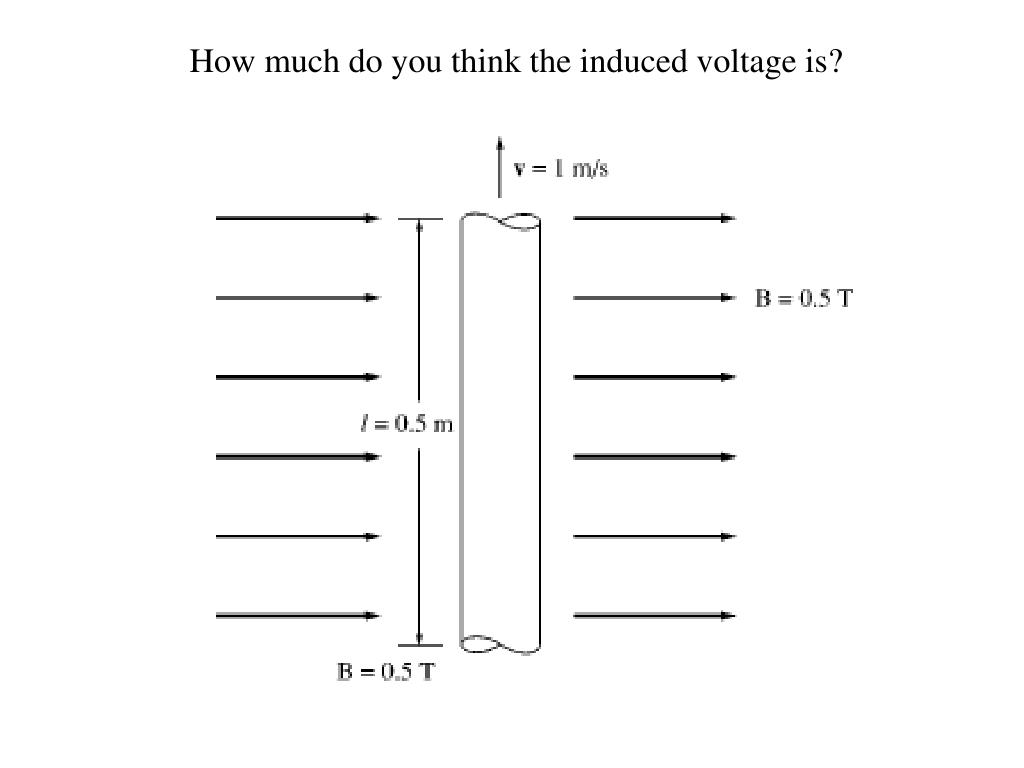

  8. How much do you think the induced voltage is?

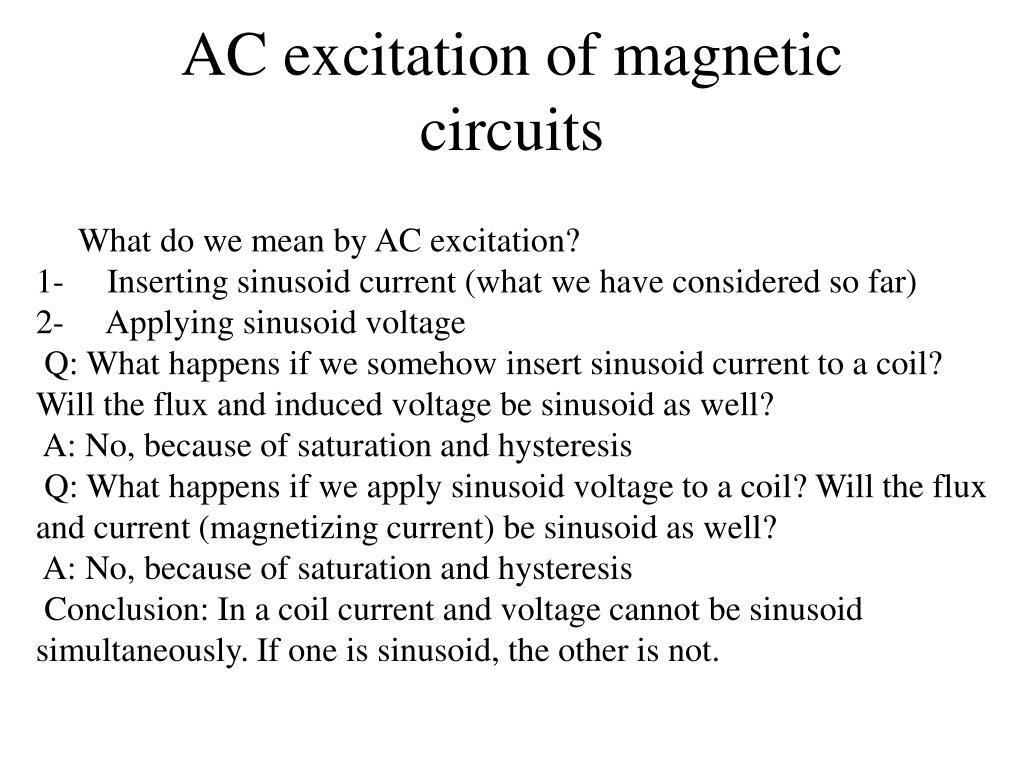

  9. AC excitation of magnetic circuits What do we mean by AC excitation? 1-     Inserting sinusoid current (what we have considered so far) 2-     Applying sinusoid voltage  Q: What happens if we somehow insert sinusoid current to a coil? Will the flux and induced voltage be sinusoid as well?  A: No, because of saturation and hysteresis  Q: What happens if we apply sinusoid voltage to a coil? Will the flux and current (magnetizing current) be sinusoid as well?  A: No, because of saturation and hysteresis  Conclusion: In a coil current and voltage cannot be sinusoid simultaneously. If one is sinusoid, the other is not.

  10. Let’s see what would happen if we apply sinusoid voltage to a coil?

  11. Magnetization current
