Activity, pg 72. Snells Law: The subscripts (1 and 2) correspond to specific substances:. 1. Draw the normal. n air = 1.00. n glass = 1.50. The normal is 90 ° from the boundary between glass and water. Next Step: Measure the incident ray. n air = 1.00. n glass = 1.50.

Download Presentation

Activity, pg 72

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Activity, pg 72

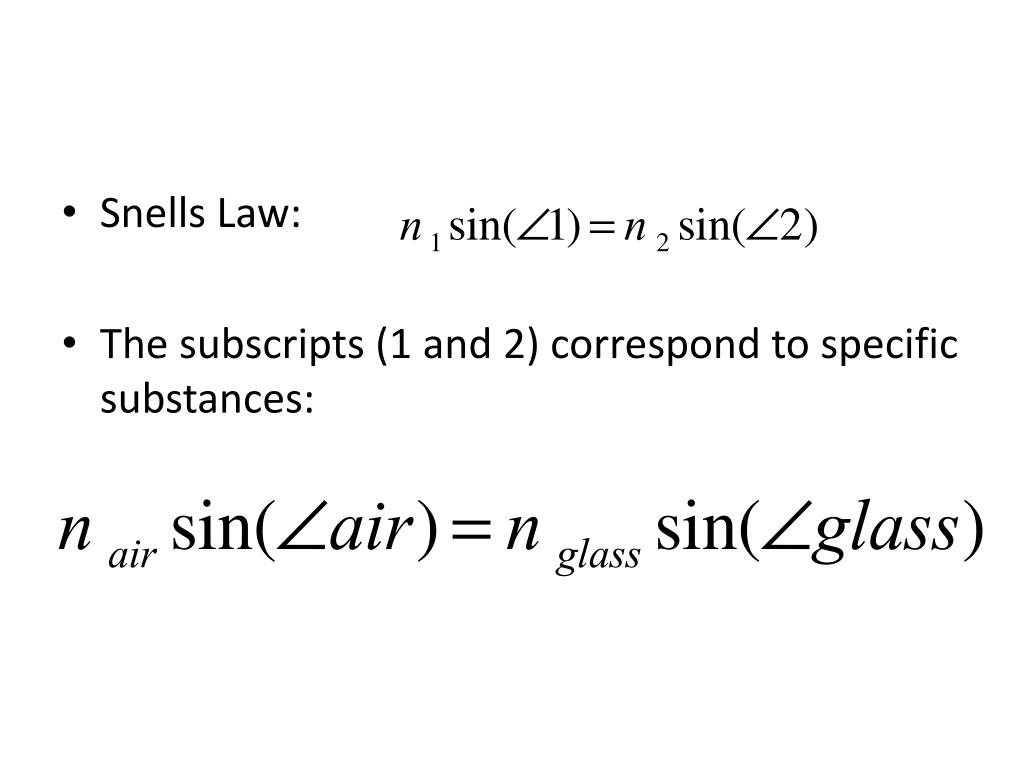

  2. Snells Law: • The subscripts (1 and 2) correspond to specific substances:

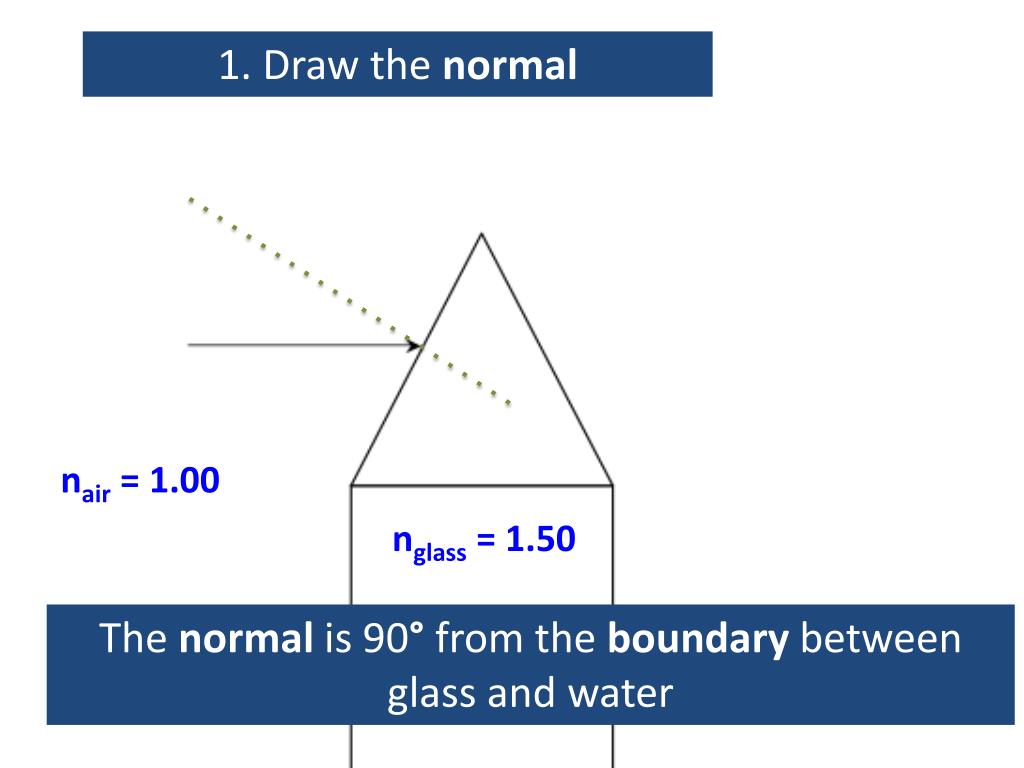

  3. 1. Draw the normal nair = 1.00 nglass = 1.50 The normal is 90° from the boundary between glass and water

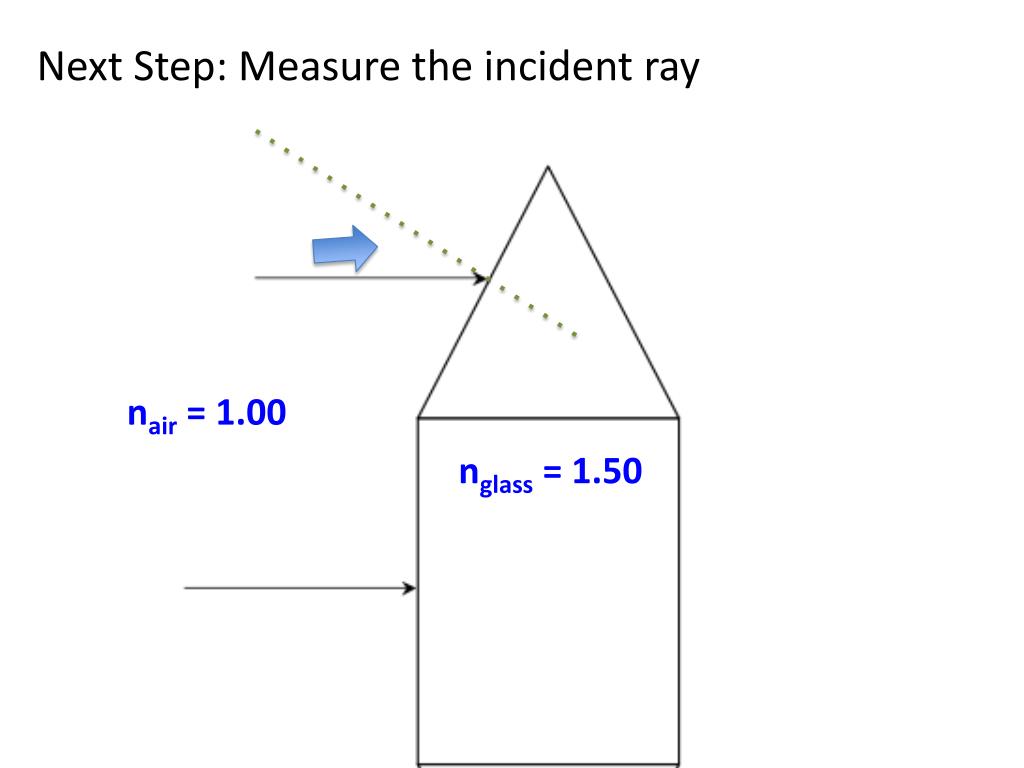

  4. Next Step: Measure the incident ray nair = 1.00 nglass = 1.50

  5. Next Step: Draw the reflected ray Find the refracted angle with this equation: Make sure your calculator is in degree mode! For the first angle of refraction : n = 1.000 Angle of refraction 17° nair = 1.00 nglass = 1.50

  6. Next Step: Draw the Normal nair = 1.00 Path light would take with no refraction nglass = 1.50

  7. Next Step: Calculate & Draw the Refracted Ray nair = 1.00 Path light would take with no refraction nglass = 1.50
