TWS for z/OS 8.5.0 Storyboard – Conditional logic Overview

Disclaimer:

The purpose of this storyboard is to gather customer feedback on the Conditional Logic feature developed with TWS for z/OS 8.5.0 Release.

The content of this storyboard is not committed by IBM and may change over the course of time based on gathered feedback and product requirements.

slide3

TWS for z/OS 8.5.0 Storyboard – Conditional logic Overview

1

2

3

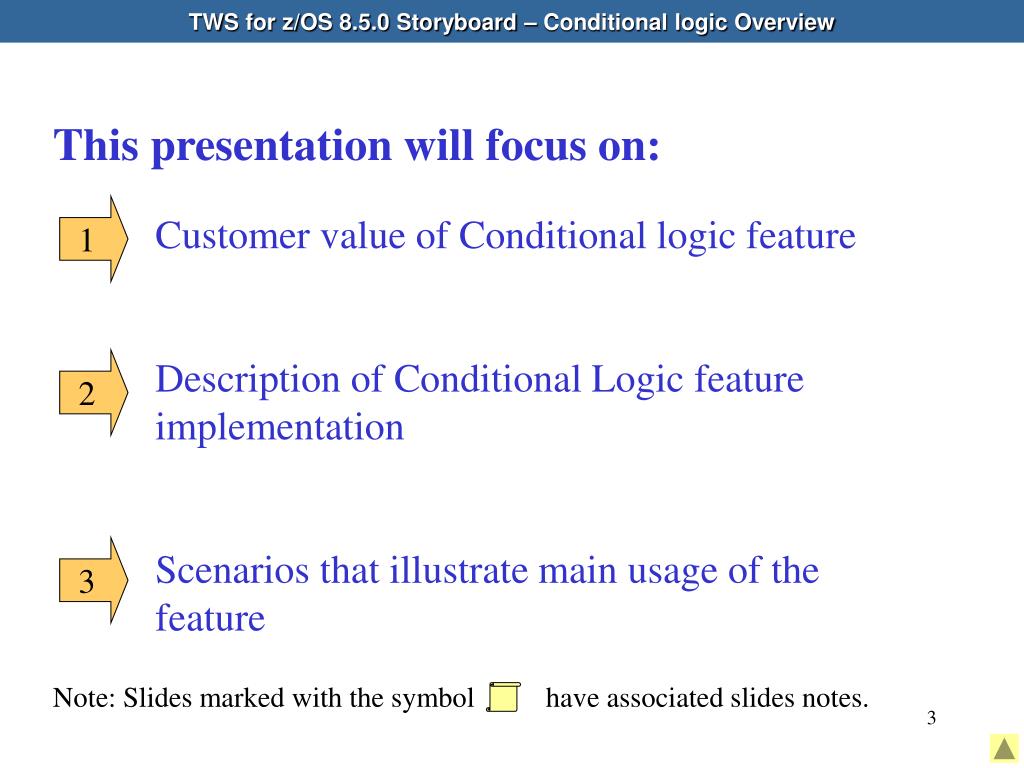

This presentation will focus on:

Customer value of Conditional logic feature

Description of Conditional Logic feature implementation

Scenarios that illustrate main usage of the feature

Note: Slides marked with the symbol have associated slides notes.

slide4

TWS for z/OS 8.5.0 Storyboard – Conditional logic Customer value

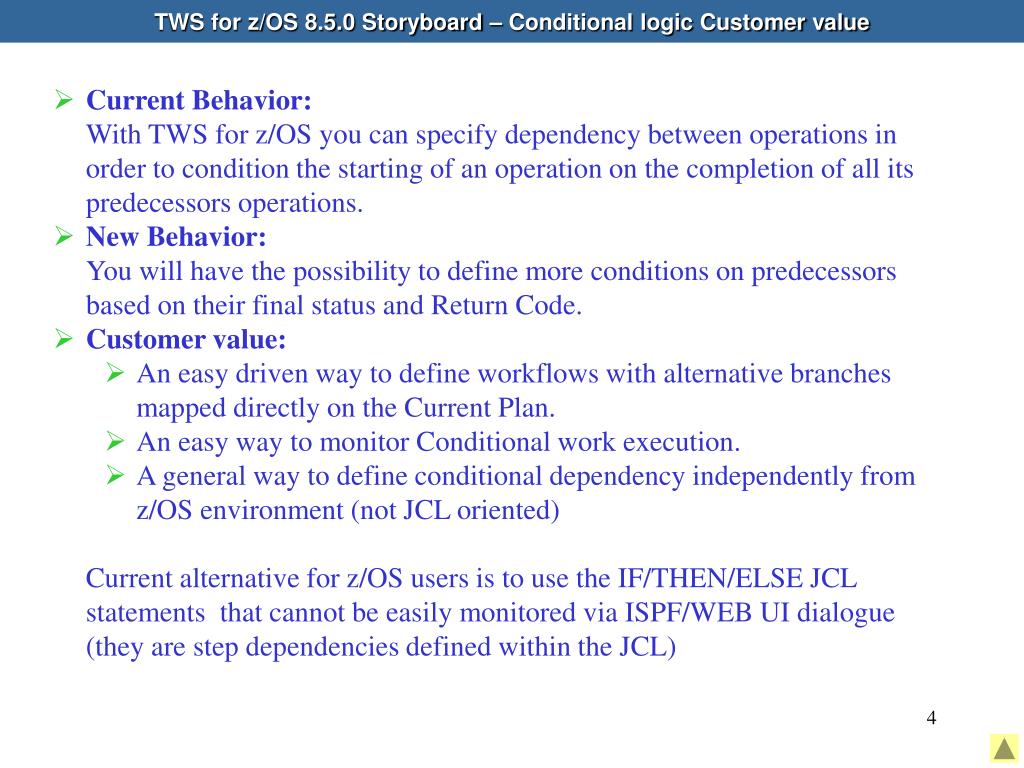

  • Current Behavior:

With TWS for z/OS you can specify dependency between operations in order to condition the starting of an operation on the completion of all its predecessors operations.

  • New Behavior:

You will have the possibility to define more conditions on predecessors based on their final status and Return Code.

  • Customer value:
    • An easy driven way to define workflows with alternative branches mapped directly on the Current Plan.
    • An easy way to monitor Conditional work execution.
    • A general way to define conditional dependency independently from z/OS environment (not JCL oriented)

Current alternative for z/OS users is to use the IF/THEN/ELSE JCL statements that cannot be easily monitored via ISPF/WEB UI dialogue (they are step dependencies defined within the JCL)

slide5

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

  • It will be possible to define a new kind of dependency:

the Condition

    • Defined in AD database at operation level based on logical combinations of conditional dependencies on predecessor operations status or return codes
    • Tracked in the Current Plan as a condition defined on operations, either created at plan creation time or added dynamically
    • Checked by Scheduler to decide if an operation is eligible to be submitted or not
    • A new status, suppressed by condition, (X) will be introduced to identify dead branch path in the Plan.
slide6

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

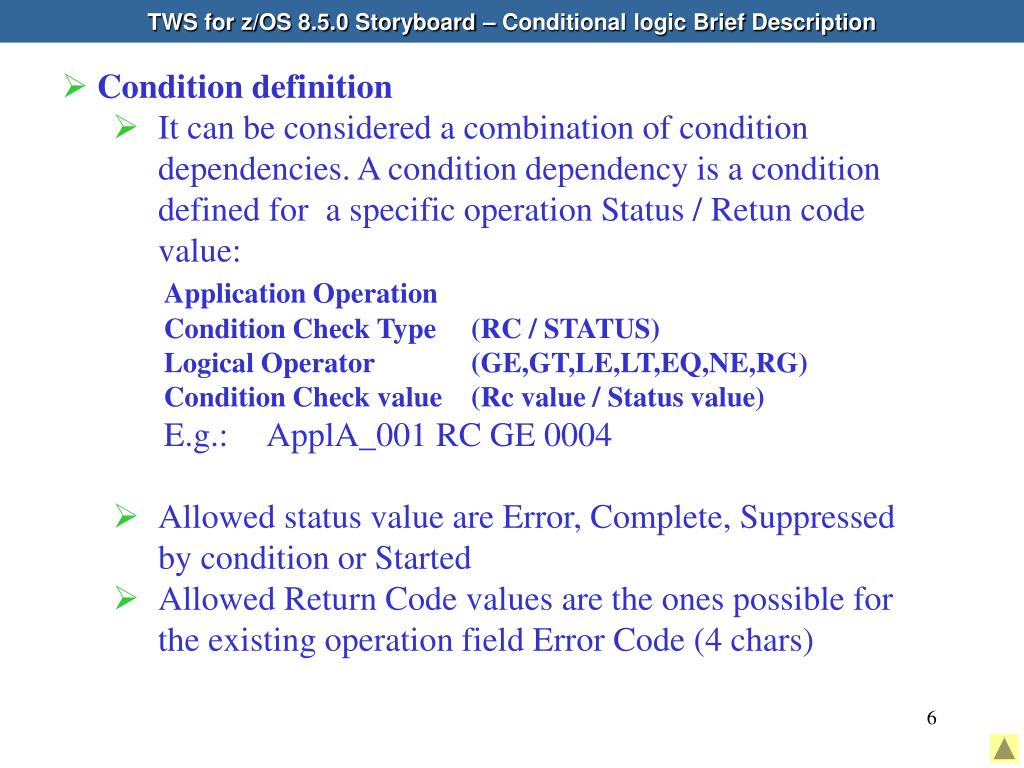

  • Condition definition
    • It can be considered a combination of condition dependencies. A condition dependency is a condition defined for a specific operation Status / Retun code value:

Application Operation

Condition Check Type (RC / STATUS)

Logical Operator (GE,GT,LE,LT,EQ,NE,RG)

Condition Check value (Rc value / Status value)

E.g.: ApplA_001 RC GE 0004

    • Allowed status value are Error, Complete, Suppressed by condition or Started
    • Allowed Return Code values are the ones possible for the existing operation field Error Code (4 chars)
slide7

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

  • Condition status /evaluation
    • The Condition Dependency has its own status that can be: True, False or Undefined
    • The Condition status is the result of the condition dependencies statuses combination
    • Scheduler will evaluate the Condition status each time an operation, involved in the condition dependencies, changes its status, until it assumes the final value: True or False.
    • An operation having a Condition Dependency will have the status set to:
      • W Waiting (Condition dependency is undefined, that is not yet evaluated)
      • R Ready (Condition dependency is True)
      • X Suppressed by condition (Condition dependency is False)
slide8

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

A1

A2

A3

A1

A2

A1

A2

A3

A4

A3

or

or

or

and

B

N out M

and

and

B

B

At least one of A1, A2 A3

Cond deps must be true

All of A1, A2 A3

cond deps must be true

At least 2 out of 4 A1, A2,

A3, A4 cond deps must

be true

  • Condition types
    • Three types of Conditional dependecies combination can be defined:
      • At least one of: cond deps list
      • At least n out of : cond deps list
      • All of: cond deps list
slide9

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

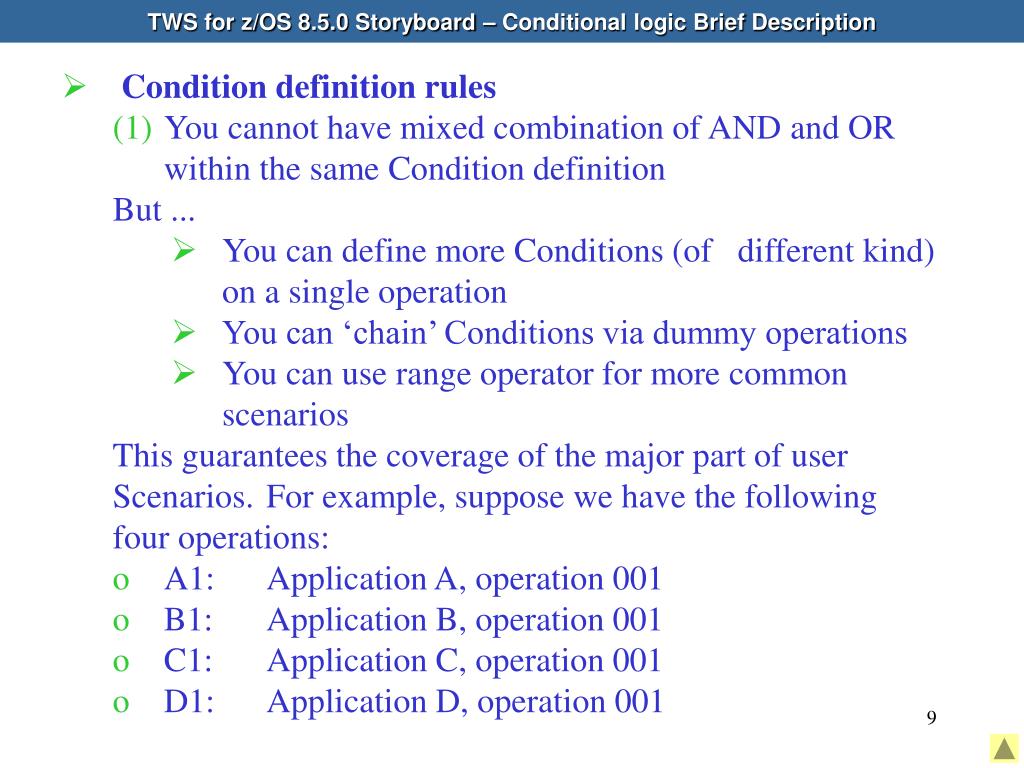

  • Condition definition rules
    • You cannot have mixed combination of AND and OR within the same Condition definition

But ...

      • You can define more Conditions (of different kind) on a single operation
      • You can ‘chain’ Conditions via dummy operations
      • You can use range operator for more common scenarios

This guarantees the coverage of the major part of user

Scenarios. For example, suppose we have the following

four operations:

    • A1: Application A, operation 001
    • B1: Application B, operation 001
    • C1: Application C, operation 001
    • D1: Application D, operation 001
slide10

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

A1

B1

C1

D1

and

and

All must be true:

C1 rc GE 8

D1 rc GE 8

All must be true:

A1 rc GE 4

B1 rc GE 4

Y1

Y2

or

Z1

At least one must be true:

Y1 Status = C

Y2 status = C

  • Condition definition rules

Suppose you want to start operation Z1 when the following Condition is true:

((A1 RC >= 4) and (B1 RC >= 4)) or ((C1 RC >= 8) and (D1 RC >= 8))

You can do this by defining:

Y1 and Y2 are

DUMMY operations

slide11

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

C1

A1

Z1

At least one must be true:

A1 RC range 0-12

C1 RC range 0-12

  • Condition dependency definition rules

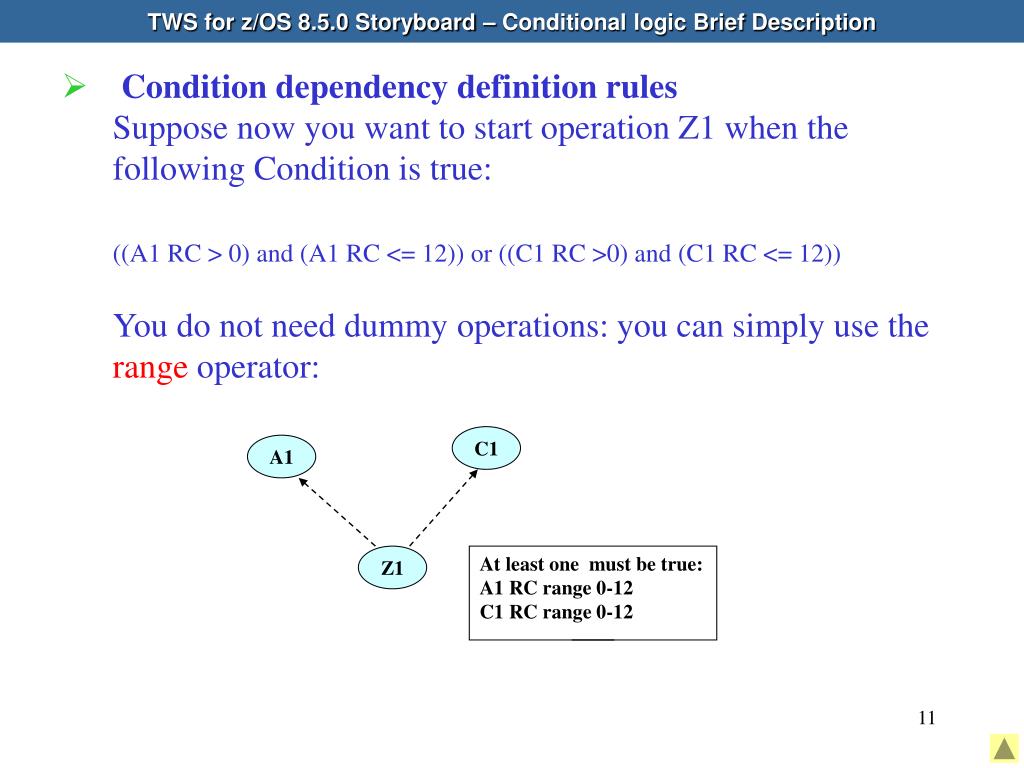

Suppose now you want to start operation Z1 when the following Condition is true:

((A1 RC > 0) and (A1 RC <= 12)) or ((C1 RC >0) and (C1 RC <= 12))

You do not need dummy operations: you can simply use the range operator:

slide12

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

  • Condition definition Rules
    • You cannot define an operation both as a conditional predecessor and a normal predecessor of the same operation:

This means that if you want to define only conditional dependencies within the same Application you need a bypass (All operation within the same Application must be chained by normal dependency)

The bypass is add a FOP dummy operation as normal predecessor of all conditional operation.

slide13

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

  • Condition definition rules

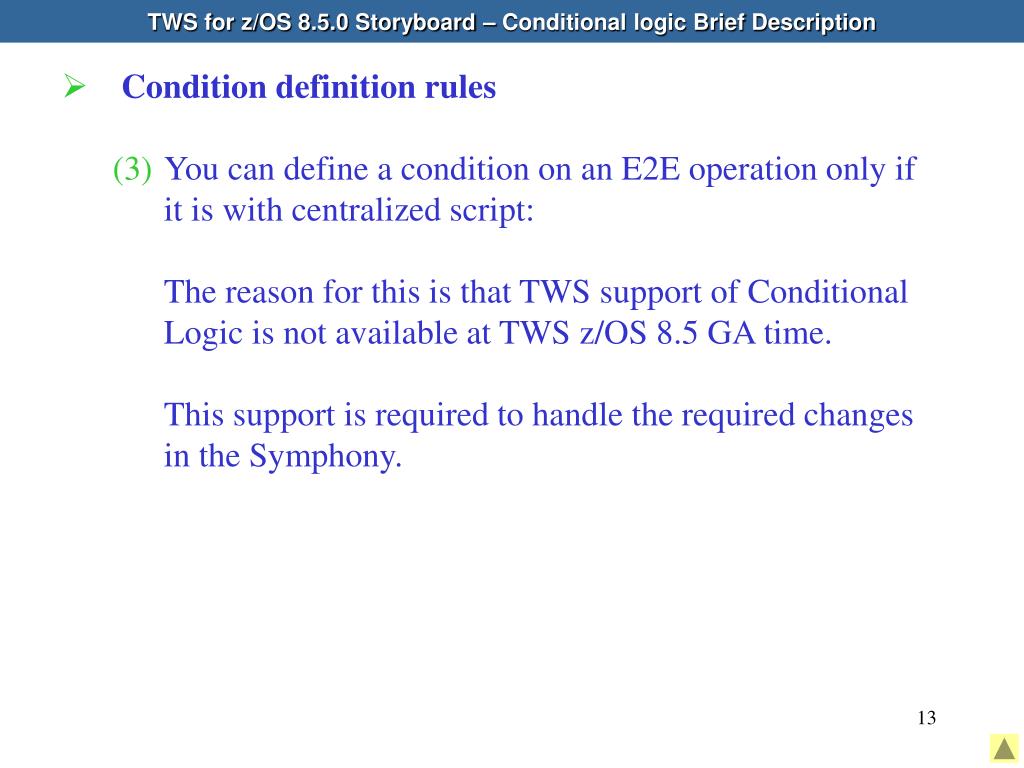

    • You can define a condition on an E2E operation only if it is with centralized script:

The reason for this is that TWS support of Conditional Logic is not available at TWS z/OS 8.5 GA time.

This support is required to handle the required changes in the Symphony.

slide14

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

  • Removal rules for operations with conditions
    • The new status X has been defined for the monitoring of Conditional workflow in order to display the dead branches that will never be executed
    • This leads to have a new meaning for the occurrence status C: it will be set when the operations belonging to the occurrence are all in C or X status
    • Conditional workflows imply the need to remove automatically from the plan also the occurrences in error status when the ended in error operations have been handled by their recovery jobs (no changes about completed occurrences).
slide15

TWS for z/OS 8.5.0 Storyboard – Conditional logic Brief Description

  • Removal rules for operations with conditions
  • You can handle an error condition of an operation by a condition dependency on a job defined as recovery job (job option in the AD)
  • When a job ends in error, if the error code matches the condition defined on a recovery job, then the operation will be flagged as removable from the plan
  • Thus an occurrence will be removed from next plan if:
    • Its status is C
    • Its status is E and all its operations ended in error have been handled by recovery jobs
slide16

TWS for z/OS 8.5.0 – Scenarios Persona and Goals

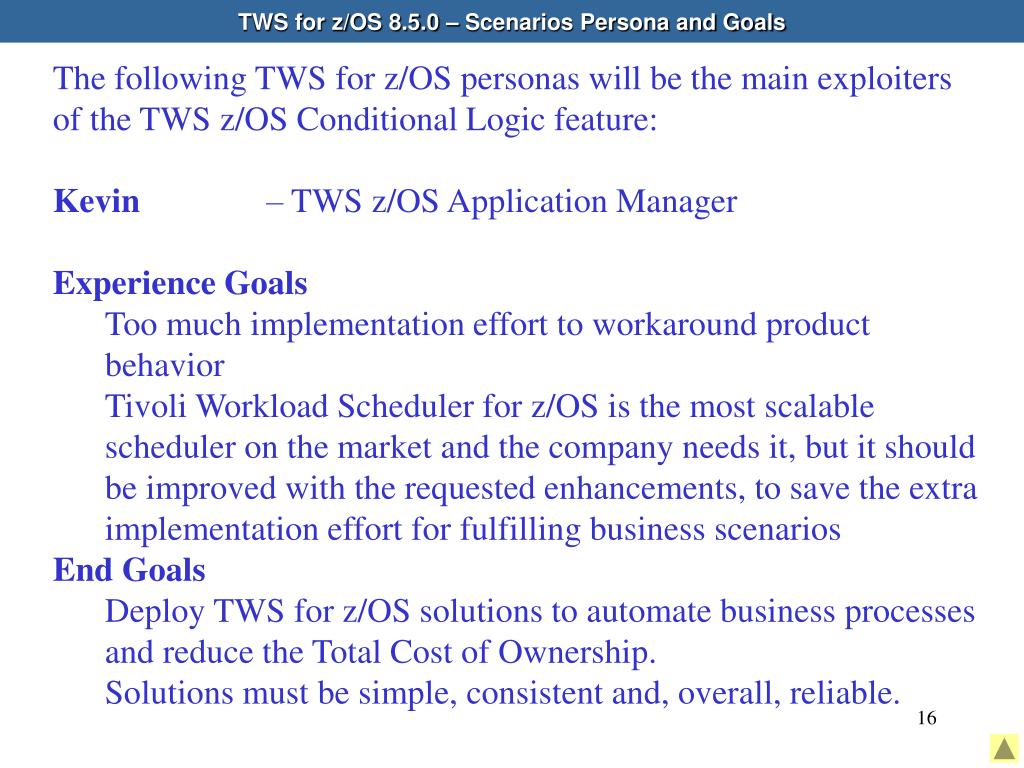

  • The following TWS for z/OS personas will be the main exploiters of the TWS z/OS Conditional Logic feature:
  • Kevin – TWS z/OS Application Manager
  • Experience Goals
    • Too much implementation effort to workaround product behavior
    • Tivoli Workload Scheduler for z/OS is the most scalable scheduler on the market and the company needs it, but it should be improved with the requested enhancements, to save the extra implementation effort for fulfilling business scenarios
  • End Goals
    • Deploy TWS for z/OS solutions to automate business processes and reduce the Total Cost of Ownership.
    • Solutions must be simple, consistent and, overall, reliable.
slide17

TWS for z/OS 8.5.0 – Scenarios Persona and Goals

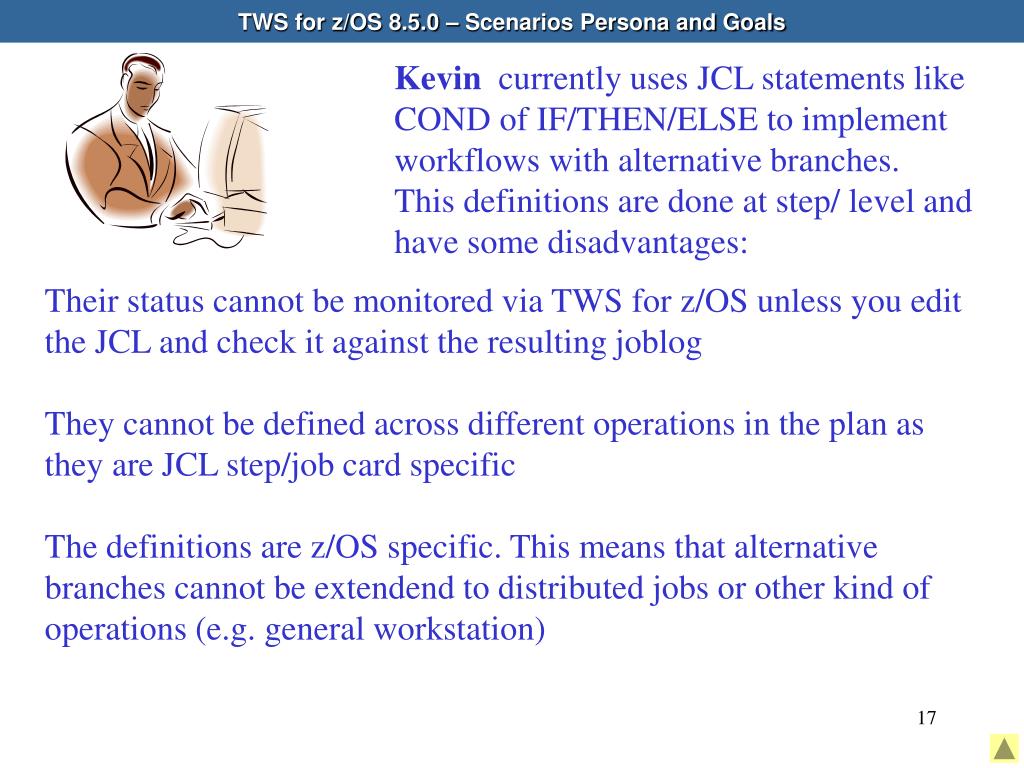

Kevin currently uses JCL statements like COND of IF/THEN/ELSE to implement workflows with alternative branches.

This definitions are done at step/ level and have some disadvantages:

Their status cannot be monitored via TWS for z/OS unless you edit the JCL and check it against the resulting joblog

They cannot be defined across different operations in the plan as they are JCL step/job card specific

The definitions are z/OS specific. This means that alternative branches cannot be extendend to distributed jobs or other kind of operations (e.g. general workstation)

slide18

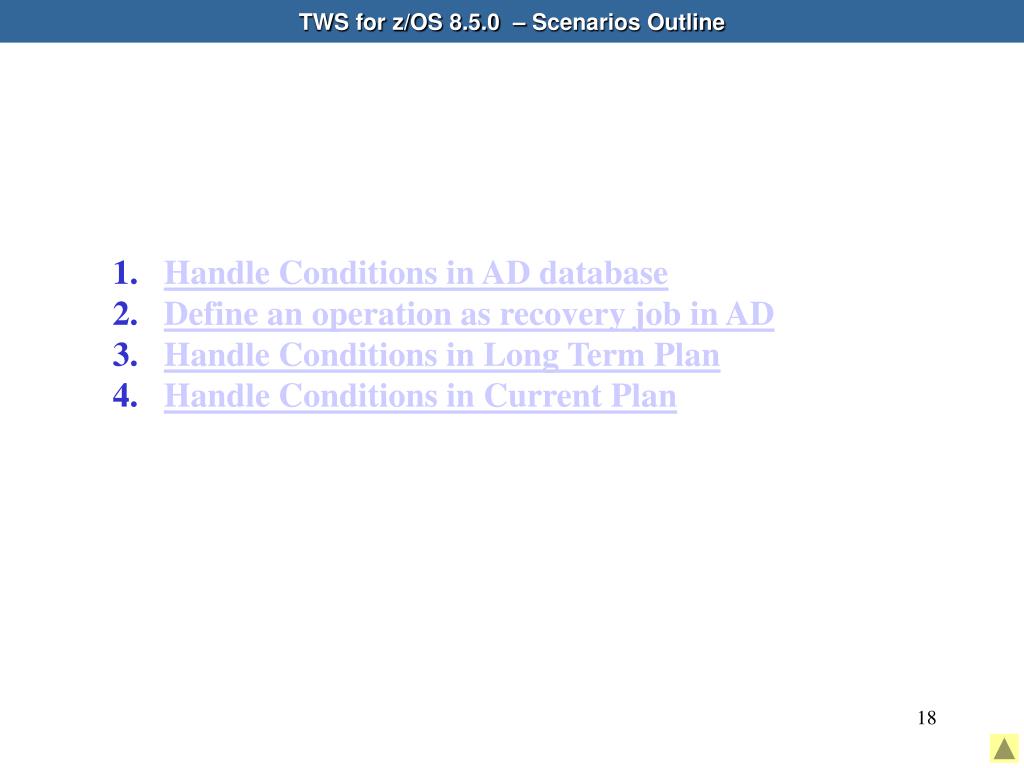

TWS for z/OS 8.5.0 – Scenarios Outline

  • Handle Conditions in AD database
  • Define an operation as recovery job in AD
  • Handle Conditions in Long Term Plan
  • Handle Conditions in Current Plan
slide19

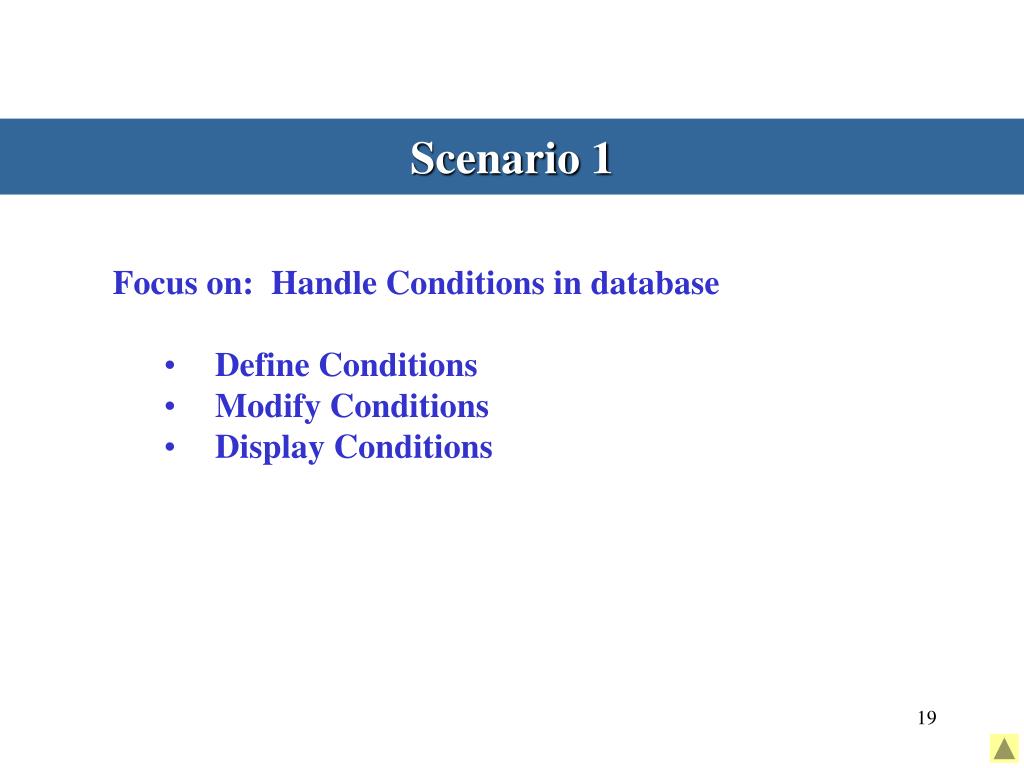

Scenario 1

  • Focus on: Handle Conditions in database
    • Define Conditions
    • Modify Conditions
    • Display Conditions
slide20

Scenario 1 – Handle Conditions in database

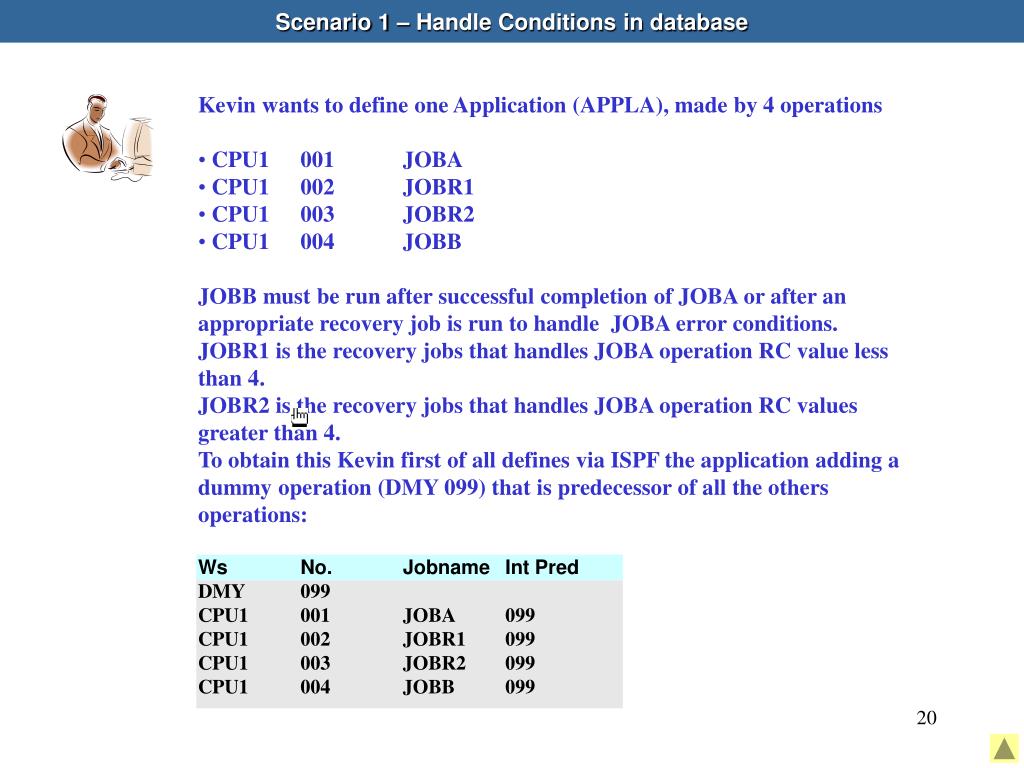

  • Kevin wants to define one Application (APPLA), made by 4 operations
  • CPU1 001 JOBA
  • CPU1 002 JOBR1
  • CPU1 003 JOBR2
  • CPU1 004 JOBB
  • JOBB must be run after successful completion of JOBA or after an appropriate recovery job is run to handle JOBA error conditions.
  • JOBR1 is the recovery jobs that handles JOBA operation RC value less than 4.
  • JOBR2 is the recovery jobs that handles JOBA operation RC values greater than 4.
  • To obtain this Kevin first of all defines via ISPF the application adding a dummy operation (DMY 099) that is predecessor of all the others operations:
  • Ws No. Jobname Int Pred
  • DMY 099
  • CPU1 001 JOBA 099
  • CPU1 002 JOBR1 099
  • CPU1 003 JOBR2 099
  • CPU1 004 JOBB 099
slide21

Scenario 1 – Handle Conditions in database

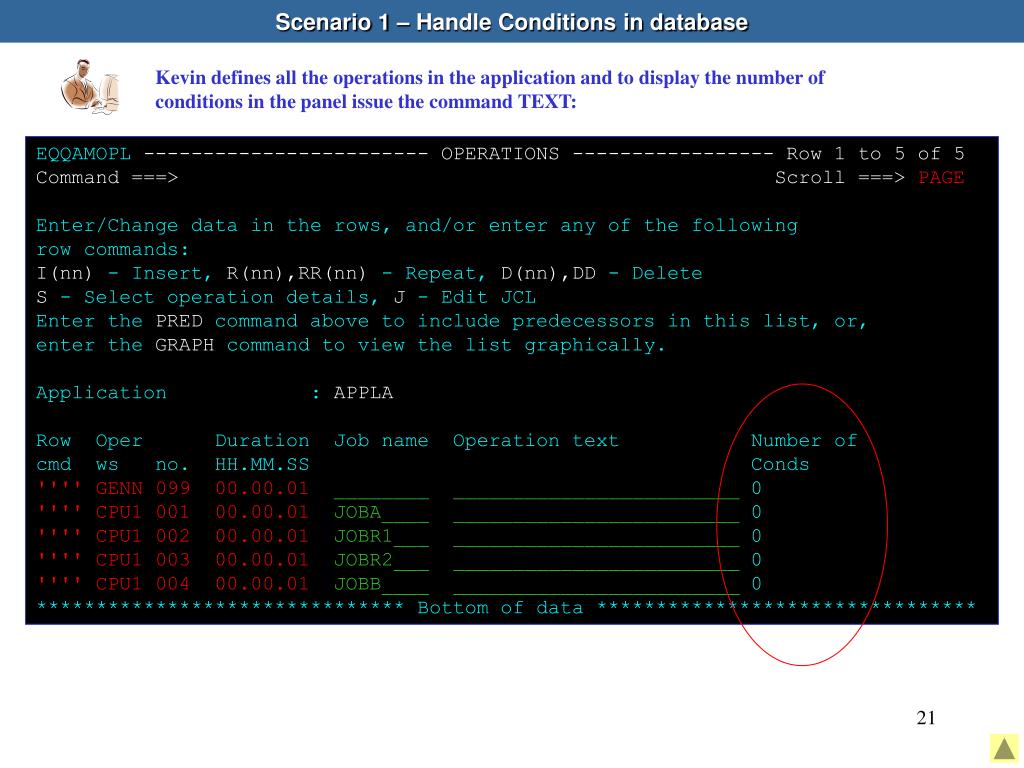

Kevin defines all the operations in the application and to display the number of conditions in the panel issue the command TEXT:

EQQAMOPL ------------------------ OPERATIONS ----------------- Row 1 to 5 of 5

Command ===> Scroll ===>PAGE

Enter/Change data in the rows, and/or enter any of the following

row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Select operation details, J - Edit JCL

Enter the PRED command above to include predecessors in this list, or,

enter the GRAPH command to view the list graphically.

Application : APPLA

Row Oper Duration Job name Operation text Number of

cmd ws no. HH.MM.SS Conds

\'\'\'\' GENN 099 00.00.01 ________ ________________________ 0

\'\'\'\' CPU1 001 00.00.01 JOBA____ ________________________ 0

\'\'\'\' CPU1 002 00.00.01 JOBR1___ ________________________ 0

\'\'\'\' CPU1 003 00.00.01 JOBR2___ ________________________ 0

\'\'\'\' CPU1 004 00.00.01 JOBB____ ________________________ 0

******************************* Bottom of data ********************************

slide22

Scenario 1 – Handle Conditions in database

Kevin at this point go to modify the existing operation CPU1 002 (JOBR1) in order to define a condition dependency and enter option 1 to select predecessor option:

EQQAMSDP --------------------- OPERATION DETAILS -----------------------------

Option ===> 1

Select one of the following:

1 PREDECESSORS - List of predecessors

2 WS RES AND SERVERS - Work station resources and servers

3 SPECIAL RESOURCES - List of special resources

4 AUTOMATIC OPTIONS - Job, WTO, and print options

5 FEEDBACK - Feedback options

6 TIME - Time specifications

7 OP INSTRUCTIONS - Operator instructions

8 JCL EDIT - Edit JCL

9 CLEANUP OPTIONS - Cleanup Options

10 EXTENDED INFO - Operation extended info

11 AUTOMATION INFO - System Automation operation info

Application : APPLA

Operation : CPU1 002

Duration : 00.00.01

Jobname : JOBR1

Number of int preds : 1 Number of ext preds : 0

Number of conds : 0

slide23

Scenario 1 – Handle Conditions in database

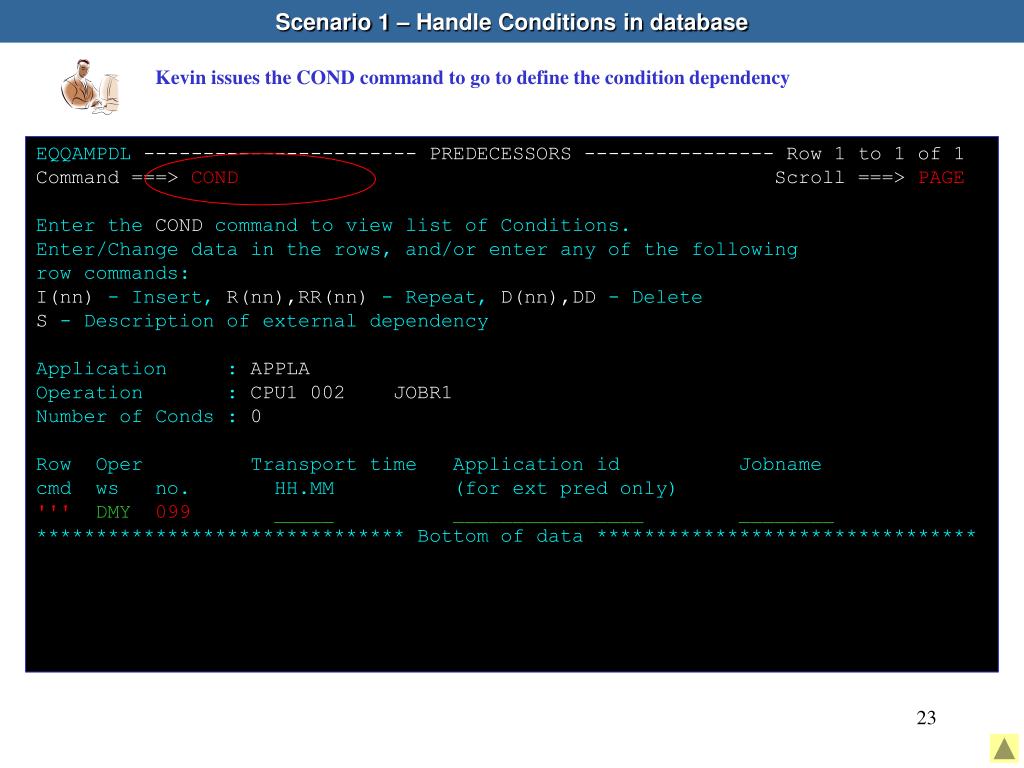

Kevin issues the COND command to go to define the condition dependency

EQQAMPDL ----------------------- PREDECESSORS ---------------- Row 1 to 1 of 1

Command ===>CONDScroll ===>PAGE

Enter the COND command to view list of Conditions.

Enter/Change data in the rows, and/or enter any of the following

row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Description of external dependency

Application : APPLA

Operation : CPU1 002 JOBR1

Number of Conds : 0

Row Oper Transport time Application id Jobname

cmd ws no. HH.MM (for ext pred only)

\'\'\'DMY099 _____ ________________________

******************************* Bottom of data ********************************

slide24

Scenario 1 – Handle Conditions in database

The new panel EQQAMCCL is shown: Kevin identifies the condition with Id 001 and select it to describe it in details

NEW

EQQAMCCL ------------- CONDITIONS DEFINITIONS ---------------- Row 1 to 1 of 1

Command ===> Scroll ===>PAGE

Enter/Change data in the rows, and/or enter any of the following

row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Conditions details

Application : APPLA

Operation : CPU1 002 JOBR1

Row Cond Condition Description Dep Condition Rule

cmd no. No.

S\'\' 001JOBA 0 < RC <=4________ 0

******************************* Bottom of data ********************************

slide25

Scenario 1 – Handle Conditions in database

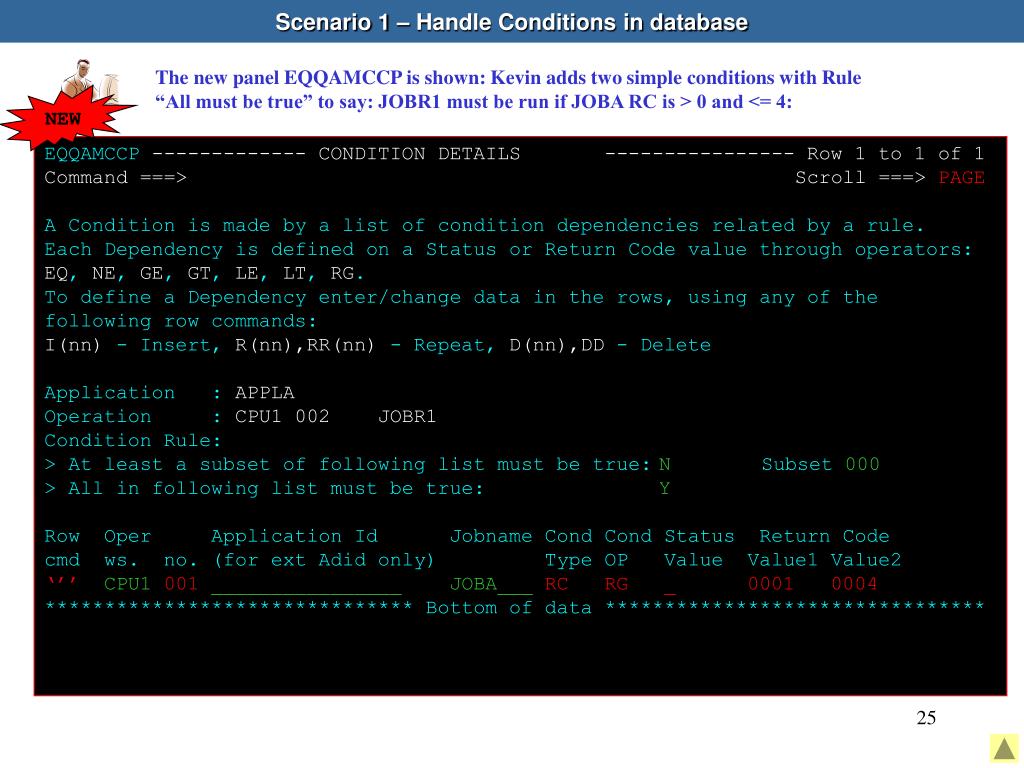

The new panel EQQAMCCP is shown: Kevin adds two simple conditions with Rule “All must be true” to say: JOBR1 must be run if JOBA RC is > 0 and <= 4:

NEW

EQQAMCCP ------------- CONDITION DETAILS ---------------- Row 1 to 1 of 1

Command ===>Scroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Each Dependency is defined on a Status or Return Code value through operators: EQ, NE, GE, GT, LE, LT, RG.

To define a Dependency enter/change data in the rows, using any of the following row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

Application : APPLA

Operation : CPU1 002 JOBR1

Condition Rule:

> At least a subset of following list must be true: N Subset 000

> All in following list must be true: Y

Row Oper Application Id Jobname Cond Cond Status Return Code

cmd ws. no. (for ext Adid only) Type OP Value Value1 Value2

‘’’ CPU1 001 ________________ JOBA___ RC RG _ 00010004

******************************* Bottom of data ********************************

slide26

Scenario 1 – Handle Conditions in database

Kevin goes back to condition list panel and check that now the defined dependency is 1, than go back to previous panel to add a condition to JOBR2 job:

NEW

EQQAMCCL ------------- CONDITIONS DEFINITIONS ---------------- Row 1 to 1 of 1

Command ===> Scroll ===>PAGE

Enter/Change data in the rows, and/or enter any of the following

row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Conditions details

Application : APPLA

Operation : CPU1 002 JOBR1

Row Cond Condition Description Dep Condition Rule

cmd no. no.

\'\'\' 001JOBA 0 < RC <=4______ 1 All

****************************** Bottom of data ********************************

slide27

Scenario 1 – Handle Conditions in database

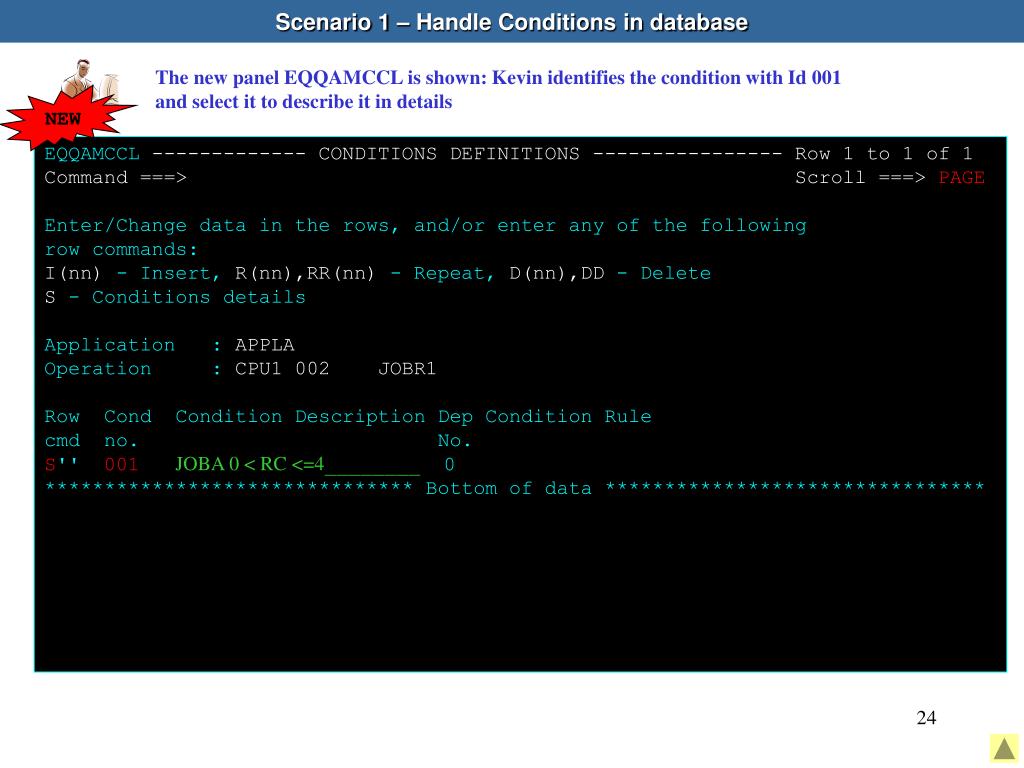

The new panel EQQAMCCL is shown: Kevin identifies the condition with Id 001 and select it to describe it in details

NEW

EQQAMCCL ------------- CONDITIONS DEFINITIONS ---------------- Row 1 to 1 of 1

Command ===> Scroll ===>PAGE

Enter/Change data in the rows, and/or enter any of the following

row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Conditions details

Application : APPLA

Operation : CPU1 003 JOBR2

Row Cond Condition Description Dep Condition Rule

cmd no. No.

S\'\' 001JOBA RC > 4 ____________ 0 All

******************************* Bottom of data ********************************

slide28

Scenario 1 – Handle Conditions in database

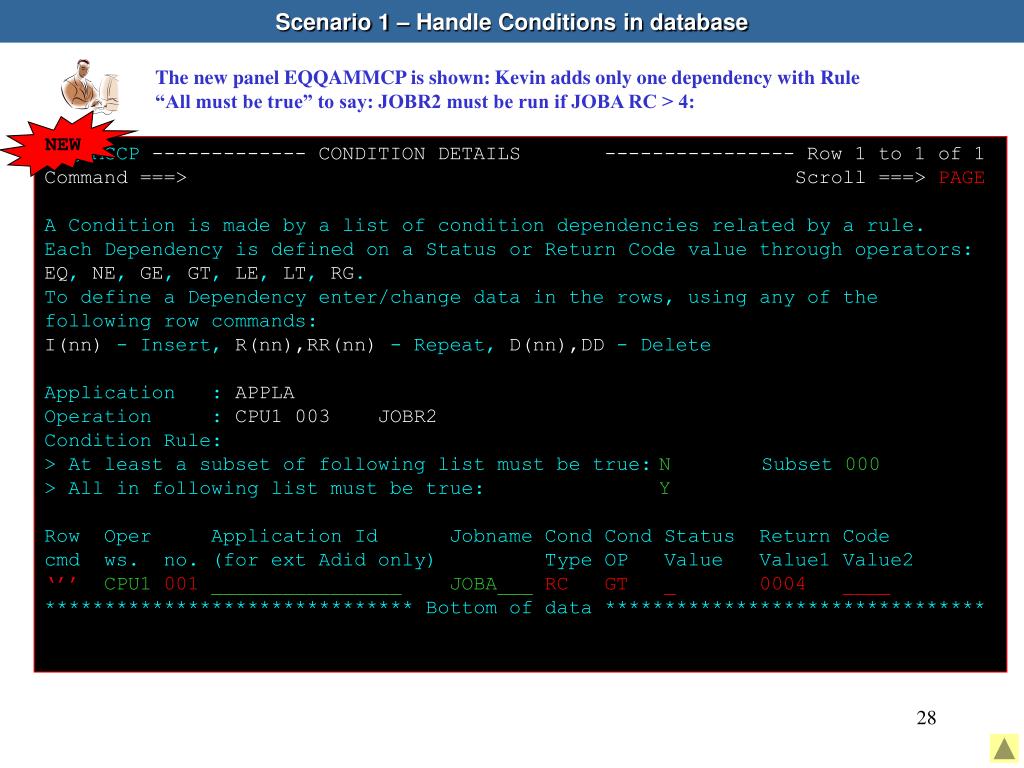

The new panel EQQAMMCP is shown: Kevin adds only one dependency with Rule “All must be true” to say: JOBR2 must be run if JOBA RC > 4:

NEW

EQQAMCCP ------------- CONDITION DETAILS ---------------- Row 1 to 1 of 1

Command ===>Scroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Each Dependency is defined on a Status or Return Code value through operators: EQ, NE, GE, GT, LE, LT, RG.

To define a Dependency enter/change data in the rows, using any of the following row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

Application : APPLA

Operation : CPU1 003 JOBR2

Condition Rule:

> At least a subset of following list must be true: N Subset 000

> All in following list must be true: Y

Row Oper Application Id Jobname Cond Cond Status Return Code

cmd ws. no. (for ext Adid only) Type OP Value Value1 Value2

‘’’ CPU1 001 ________________ JOBA___ RC GT _ 0004____

******************************* Bottom of data ********************************

slide29

Scenario 1 – Handle Conditions in database

Finally Kevin define the condition for JOBB:

NEW

EQQAMCCL ------------- CONDITIONS DEFINITIONS ---------------- Row 1 to 1 of 1

Command ===> Scroll ===>PAGE

Enter/Change data in the rows, and/or enter any of the following

row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Conditions details

Application : APPLA

Operation : CPU1 004 JOBB

Row Cond Condition Description Dep Condition Rule

cmd no. no.

S\'\' 001JOBA or JOBR1 or JOBR2 __ 0

******************************* Bottom of data ********************************

slide30

Scenario 1 – Handle Conditions in database

This time the needed rule is “at least on of” (OR) to say that JOBB must be run if at least one among JOBA, JOBR1 and JOBR2 completes. The simple conditions are 3:

NEW

  • EQQAMCCP ------------- CONDITION DETAILS ---------------- Row 1 to 1 of 1
  • Command ===>Scroll ===>PAGE
  • A Condition is made by a list of condition dependencies related by a rule.
  • Each Dependency is defined on a Status or Return Code value through operators: EQ, NE, GE, GT, LE, LT, RG.
  • To define a Dependency enter/change data in the rows, using any of the following row commands:
  • I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete
  • Application : APPLA
  • Operation : CPU1 004 JOBB
  • Condition Rule:
  • > At least a subset of following list must be true: Y Subset 001
  • All in following list must be true: N
  • Row Oper Application Id Jobname Cond Cond Status Return Code
  • cmd ws. no. (for ext Adid only) Type OP Value Value1 Value2
  • ‘’’CPU1 001 ________________ JOBA___ ST EQ C
  • ‘’’CPU1 002 ________________ JOBR1__ ST EQ C
  • ‘’’CPU1 003 ________________ JOBR2__ ST EQ C
  • ******************************* Bottom of data ********************************
slide31

Scenario 1 – Handle Conditions in database

DMY 99

CPU1 1

CPU1 2

CPU1 3

CPU1 4

Cond 1

All true:

CPU1 001 RC: 1-4

Cond 1

Cond 1

All true:

CPU1 001 RC > 4

At least one of:

CPU1 001 ST = C

CPU1 002 ST = C

CPU1 003 ST = C

At this point Kevin has added in AD database the Application APPLA with one Condition for operation 002 003 and 004:

slide32

Scenario 1 – Handle Conditions in database

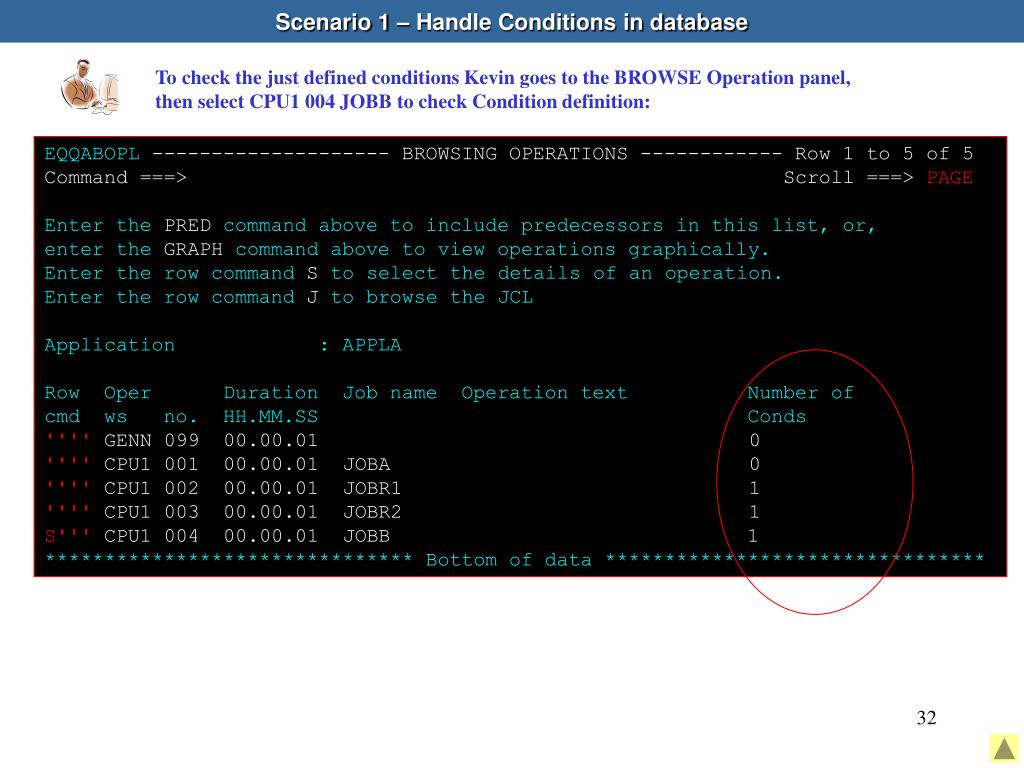

To check the just defined conditions Kevin goes to the BROWSE Operation panel, then select CPU1 004 JOBB to check Condition definition:

EQQABOPL -------------------- BROWSING OPERATIONS ------------ Row 1 to 5 of 5

Command ===> Scroll ===>PAGE

Enter the PRED command above to include predecessors in this list, or,

enter the GRAPH command above to view operations graphically.

Enter the row command S to select the details of an operation.

Enter the row command J to browse the JCL

Application : APPLA

Row Oper Duration Job name Operation text Number of

cmd ws no. HH.MM.SS Conds

\'\'\'\' GENN 099 00.00.01 0

\'\'\'\' CPU1 001 00.00.01 JOBA 0

\'\'\'\' CPU1 002 00.00.01 JOBR1 1

\'\'\'\' CPU1 003 00.00.01 JOBR2 1

S\'\'\' CPU1 004 00.00.01 JOBB1

******************************* Bottom of data ********************************

slide33

Scenario 1 – Handle Conditions in database

The operation detail panels show that we have only one condition defined on JOBB. Selecting option 1 Kevin go to BROWSING PREDECESSORS panel

EQQABSDP ---------------- BROWSING OPERATION DETAILS --------------------------

Option ===> 1

Select one of the following:

1 PREDECESSORS - List of predecessors

2 WS RES AND SERVERS - Work station resources and servers

3 SPECIAL RESOURCES - List of special resources

4 AUTOMATIC OPTIONS - Job, WTO, and print options

5 FEEDBACK - Feedback options

6 TIME - Time specifications

7 OP INSTRUCTIONS - Operator instructions

8 JCL BROWSE - JCL browse

9 CLEANUP OPTIONS - Cleanup Options

10 EXTENDED INFO - Operation Extended Info

11 AUTOMATION INFO - System Automation Operation Info

Application : APPLA

Operation : CPU1 4

Duration : 00.00.01

Jobname : JOBB

Number of int preds : 1 Number of ext preds : 0

Number of conds : 1

slide34

Scenario 1 – Handle Conditions in database

To display the Defined Conditions Kevin issues the COND command:

EQQABPDL ------------------- BROWSING PREDECESSORS ----------- Row 1 to 1 of 1

Command ===> COND Scroll ===>PAGE

Enter COND command to list the existing Conditions.

Enter the row command S to select the description of an external predecessor.

Application : APPLA

Operation : CPU1 004 JOBB

Row Oper Transport Application id Jobname

cmd ws no. time (for ext pred only)

\'GENN 099

******************************* Bottom of data ********************************

slide35

Scenario 1 – Handle Conditions in database

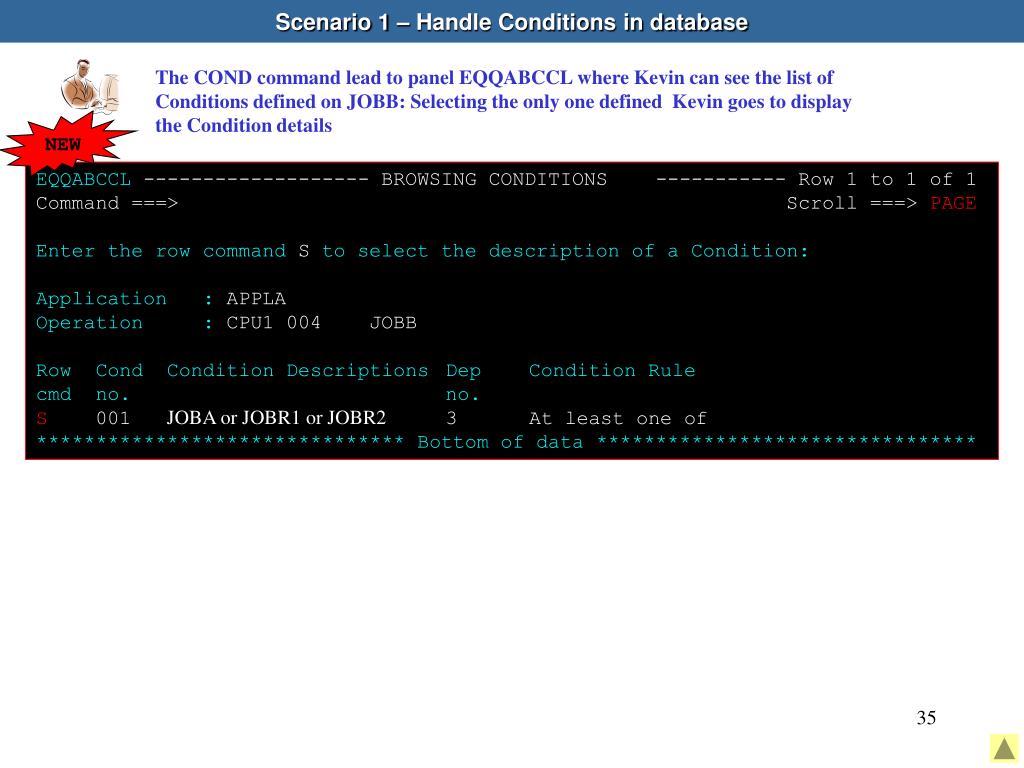

The COND command lead to panel EQQABCCL where Kevin can see the list of Conditions defined on JOBB: Selecting the only one defined Kevin goes to display the Condition details

NEW

EQQABCCL ------------------- BROWSING CONDITIONS ----------- Row 1 to 1 of 1

Command ===> Scroll ===>PAGE

Enter the row command S to select the description of a Condition:

Application : APPLA

Operation : CPU1 004 JOBB

Row Cond Condition Descriptions Dep Condition Rule

cmd no. no.

S001JOBA or JOBR1 or JOBR23 At least one of

******************************* Bottom of data ********************************

slide36

Scenario 1 – Handle Conditions in database

Kevin check that the Browse Condition correctly shows 3 Simple conditions chained in OR (At least one of … is the rule)

NEW

  • EQQABCCP ----------- BROWSING CONDITION DETAILS --------------- Row 1 to 1 of 1
  • Command ===>Scroll ===>PAGE
  • A Condition is made by a list of condition dependencies related by a rule.
  • Each Dependency is defined on a Status or Return Code value through operators: EQ, NE, GE, GT, LE, LT, RG.
  • Application : APPLA
  • Operation : CPU1 004 JOBB
  • Condition Rule: At least one of following list must be true
  • Oper Application Id Jobname Cond Cond Status Return Code
  • ws. no. (for ext Adid only) Type OP Value Value1 Value2 Oper CPU1 001 JOBA ST EQ C
  • CPU1 002 JOBR1 ST EQ C
  • CPU1 003 JOBR2 STEQ C
  • ******************************* Bottom of data ********************************
slide37

Scenario 2

  • Focus on:
    • Define an operation as ‘recovery job’ in database
slide38

Scenario 2 – Define an operation as ‘recovery job’

  • Kevin has defined APPLA as we have just seen in previous slides.
  • Now he has a problem:
  • how to automate the removal of an instance of APPLA in the current plan whenever JOBA ends in error but a recovery job (e.g. JOBR1) fixes the problem so that JOBB can be run successfully?
  • SCENARIO 1
  • JOBA runs and completes
  • JOBR1 is set to suppressed by condition because its condition is false.
  • JOBR2 is set to suppressed by condition because its condition is false.
  • JOBB runs and completes as its condition become true as soon as JOBA completes.
  • Final statuses of operations are:
    • DMY 099 C Complete
    • CPU1 001 JOBA C Complete
    • CPU1 002 JOBR1 X Suppressed by condition
    • CPU1 003 JOBR2 X Suppressed by condition
    • CPU1 004 JOBB C Complete
  • The occurrence is set to C status and will be removed from the plan at next extension.
slide39

Scenario 2 – Define an operation as ‘recovery job’

  • SCENARIO 2
  • JOBA fails with RC = 4
  • JOBR1 runs and completes because its condition becomes true.
  • JOBR2 set to suppressed by condition because its condition becomes false.
  • JOBB runs and completes as its condition become true as soon as JOBA completes.
  • Final statuses of operations would be:
    • DMY 099 C Complete
    • CPU1 001 JOBA E Error RC = 4
    • CPU1 002 JOBR1 C Complete
    • CPU1 003 JOBR2 X Suppressed by condition
    • CPU1 004 JOBB C Complete
  • The occurrence is set to E status and for this reason is not removed from plan at next extension.
  • But from Kevin point of you the JOBA failure has been recovered so that the occurrence could be removed.
  • To obtain this Kevin can define JOBR1 and JOBR2 as ‘recovery jobs’, meaning:
  • If JOBA ends with an error code matching the condition defined for a
  • recovery job, ignore the error for occurrence removal.
slide40

Scenario 2 – Define an operation as ‘recovery job’

Kevin set the recovery job field to Y to say: if JOBA ends in error and is recovered by JOBR1, JOBA can be removed from the plan

EQQAMJBP ---------------- JOB, WTO, AND PRINT OPTIONS -------------------------

Command ===>

Enter/Change data below:

Application : APPLA

Operation : CPU1 002 JOBR1

JOB CLASS ===>_ Job class of corresponding job

ERROR TRACKING ===>Y Y means error automatically tracked

HIGHEST RETURNCODE ===>____ Highest return code not in error

EXTERNAL MONITOR ===> N Job monitored by external product (Y/N)

CENTRALIZED SCRIPT ===>N Centralized script Y/N (for FTW only)

RECOVERY JOB ===>Y Recovery job for a cond predecessor (Y/N)

CRITICAL ===>N Critical job: N P W

POLICY ===> _ CLASS ===> ________ WLM Policy and Service Class

Job release options: Answer Y or N for options below:

SUBMIT ===>Y Automatically submitted

HOLD/RELEASE ===>Y Automatically held and released

TIME DEPENDENT ===>N Run the job at specified time

SUPPRESS IF LATE ===>N Suppress the job if not on time

DEADLINE WTO ===>N Deadline WTO, Y or N

WS fail options:

RESTARTABLE ===>_ Operation is restartable

REROUTEABLE ===>_ Operation is eligible for reroute

Print options:

FORM NUMBER ===>________SYSOUT CLASS ===>_

slide41

Scenario 2 – Define an operation as ‘recovery job’

Kevin browse the operation after the setting of new field:

EQQABJBP ----------- BROWSING JOB, WTO, AND PRINT OPTIONS ---------

Command ===>

View data below:

Application : APPLA

Operation : CPU1 2

Job name : JOBR1

Job class :

Error tracking : Yes

Highest return code :

External monitor : No

Centralized script : No

Recovery job : Yes

Critical : No

WLM Class : WLM Late Job Policy :

Deadline WTO : No

Job release options:

Submit : Yes Hold/release : Yes

Time dependent : No Suppress if late : No

WS fail options:

Restartable :

Rerouteable :

Print options:

Form number : Sysout class :

slide42

Scenario 3

  • Focus on:
    • Handle condition dependencies on Long Term Plan.
slide43

Scenario 3 – Handle condition dependencies on LTP

ADID=ZA

ADID=ZR1

ADID=ZR2

CPU1 1

ADID=ZB

CPU1 2

CPU1 3

CPU1 4

Cond 1

All true:

Z1 CPU1 001 RC > 0

Z1 CPU1 001 RC >= 4

Cond 1

Cond 1

All true:

Z1 CPU1 001 RC > 4

At least one of:

Z1 CPU1 001 ST = C

ZR1 CPU1 002 ST = C

ZR2 CPU1 003 ST = C

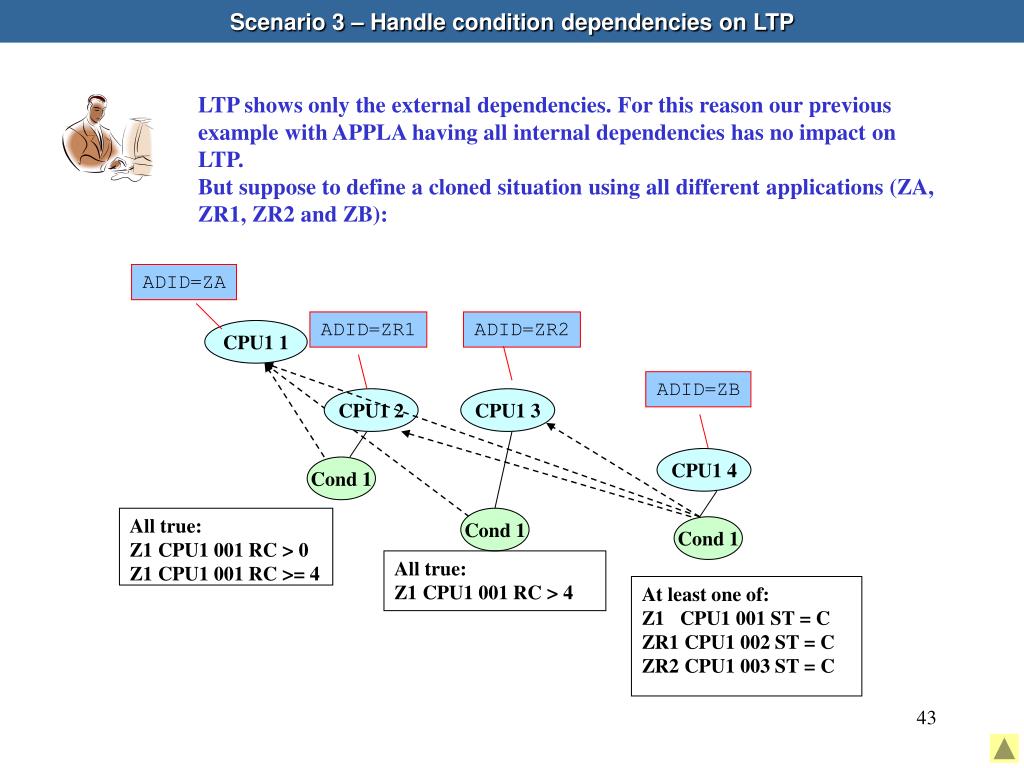

LTP shows only the external dependencies. For this reason our previous example with APPLA having all internal dependencies has no impact on LTP.

But suppose to define a cloned situation using all different applications (ZA, ZR1, ZR2 and ZB):

slide44

Scenario 3 – Handle condition dependencies on LTP

ZR1 and ZR2 have 1 succ and 1 pred, both conditional

ZA has 3 conditional successors: the Cond Pre and Cond Suc columns show the number of conditional predecessors and successors

Kevin run an LTP extend with AD containing APPLA, ZA, ZR1, ZR2 and ZB with run cycle saying that they must run every day at 10.00. APPLA has no PRED and SUCC as expected:

EQQLSTOL ----------- LONG TERM PLAN OCCURRENCES (left part) - row 1 to 10 of 10

Command ===> Scroll ===>CSR

Enter the CREATE command above to create a new occurrence or

enter the GRAPH command above to view occurrences graphically, or,

enter any of the commands below:

B - Browse, D - Delete, J - Job setup, M - Modify, RG - Remove from Group

Row Application id Input arrival Deadline P C Pre Suc Cond Cond

cmd date time date time Pre Suc

\'\'\' APPLA 08/04/29 10.00 08/04/29 23.45 1 N 0 0 0 0

\'\'\' ZA 08/04/29 10.00 08/04/29 23.45 1 N 0 0 0 3

B\'\' ZB 08/04/29 10.00 08/04/29 23.45 1 N 0 0 3 0

\'\'\' ZR1 08/04/29 10.00 08/04/29 23.45 1 N 0 0 1 1

\'\'\' ZR2 08/04/29 10.00 08/04/29 23.45 1 N 0 0 1 1

\'\'\' APPLA 08/04/29 10.00 08/04/29 23.45 1 N 0 0 0 0

\'\'\' ZA 08/04/29 10.00 08/04/29 23.45 1 N 0 0 0 3

\'\'\' ZB 08/04/29 10.00 08/04/29 23.45 1 N 0 0 3 0

\'\'\' ZR1 08/04/29 10.00 08/04/29 23.45 1 N 0 0 1 1

\'\'\' ZR2 08/04/29 10.00 08/04/29 23.45 1 N 0 0 1 1

******************************* Bottom of data ********************************

slide45

Scenario 3 – Handle condition dependencies on LTP

Kevin issue the row command B to browse ZB Occurrence and EQQLBOCP panel is shown were the details about conditional one is displayed. At this point Kevin select option 2 to check Application dependencies:

EQQLBOCP ------------------- BROWSING AN OCCURRENCE ---------------------------

Option ===> 2

Select one of the following:

1 OPERATIONS - Browse operations

2 APPLICATION DEP - Browse dependencies (application level)

3 OPERATION DEP - Browse dependencies (operation level)

Application : ZB

Input arrival : 08/03/29 10.00

Deadline : 08/03/29 23.45

Owner : KEVIN

Priority : 1

Error code :

Variable table :

Successors : 0 Conditional Succ: 0

Predecessors : 0 Conditional Pred: 3

Manually created : No

Group Definition :

slide46

Scenario 3 – Handle condition dependencies on LTP

PC or SC indicate conditional pred and succ

Kevin issues the row command B to browse ZB Occurrence and EQQLBOCP panel is shown were the details about conditional one is displayed. At this point Kevin select option 2 to check Application dependencies:

EQQLBBDL ------------------- BROWSING DEPENDENCIES ----------- Row 1 to 1 of 1

Command ===> Scroll ===>CSR

View data below:

Application : ZB

Input arrival : 08/04/29 10.00

Deadline : 08/04/29 23.45

Dep Application id Input arrival Complete Manually Deleted

Type date time created

PC ZA 08/04/29 10.00 N N N

PC ZR1 08/04/29 10.00 N N N

PC ZR2 08/04/29 10.00 N N N

******************************* Bottom of data ********************************

slide47

Scenario 3 – Handle condition dependencies on LTP

Kevin can delete/add normal predecessor or successors but cannot do this on conditional ones:

EQQLCDPL ------------------- MODIFYING DEPENDENCIES ----------- Row 1 to 1 of 1

Command ===> Scroll ===>CSR

Enter the CREATE command above to create a new dependency or

enter any of the commands below:

B - Browse, D - Delete

Conditional predecessors/ successors cannot be created.

Application : ZB

Input arrival : 08/04/29 10.00

Deadline : 08/04/29 23.45

Row Dep Application id Input arrival Complete Manually Deleted

cmd Type date time Created

\' PC ZA 08/04/29 10.00 N N N

\' PC ZR1 08/04/29 10.00 N N N

\' PC ZR2 08/04/29 10.00 N N N

******************************* Bottom of data ********************************

slide48

Scenario 4

  • Focus on: Handle Conditions in CP
    • For a specific operation in Current Plan:
      • Display Conditional Predecessors / Successors
      • Display Defined Conditions
      • Add / Modify / Delete a Condition
slide49

Scenario 4 – Handle Conditions in CP

Kevin browses the operation APPLA CPU1 004 and from EQQSOPSP select option 4 to check related dependency info (conditional or not)

EQQSOPSP SELECTING APPLICATION OCCURRENCE AND OPERATION INFORMATION ----------

Option ===>4

Select one of the following:

1 APPLICATION - Detailed application occurrence information

2 OPERATION - Detailed operation information

3 OPERATION LIST - Operations of the application occurrence

4 DEPENDENCIES - Immediate predecessor and successor information

5 RESOURCES - List of resources used by the operation

6 JCL - Browse the JCL

7 OPERATOR INSTR - Operator instructions

8 EXTERNAL DEPS - Immediate external dependencies of the occurrence

9 ALL DEPS - All dependencies of this operation

10 CLEANUP OPTIONS - Cleanup options

11 EXTENDED INFO - Operation extended info

12 AUTOMATION INFO - System automation operation info

Application : APPLA

Operation : CPU1 004

Jobname and jobid : JOBB JOB00245

Status of operation : Completed

on Work Station :

Priority of operation : 5

Planned input arrival : 08/04/28 11.11

Actual input arrival : 08/04/28 11.20

slide50

Scenario 4 – Handle Conditions in CP

X is the new status for suppressed by condition

PC or SC indicate conditional pred and succ

Kevin can see that JOBB has 3 conditional PRED and one normal PRED (GENN 099). APPLA run successfully: GENN 099 completed, JOBA run ok, JOBR1 and JOBR2 were consequently set to dummy complete (X) and JOBB finally run ok.

EQQSPP1L -- PREDECESSORS AND SUCCESSORS TO AN OPERATION (left Row 1 to 4 of 4

Command ===> COND Scroll ===>PAGE

Issue command COND to show list of defined Conditions.

Scroll right or enter the row command S to select an operation for details.

Application : APPLA

Operation : CPU1 4

Jobname : JOBB

Row Type Operation Jobname Application id Status

cmd ws no. text

\'\'\' P GENN 099APPLA C

\'\'\' PC CPU1 001APPLA C

\'\'\' PC CPU1 002APPLA X

\'\'\'PC CPU1 003APPLA X

******************************* Bottom of data ********************************

slide51

Scenario 4 – Handle Conditions in CP

Kevin issues the COND command to check the Conditions defined on JOBB.

EQQSPP1L -- PREDECESSORS AND SUCCESSORS TO AN OPERATION (left Row 1 to 4 of 4

Command ===> COND Scroll ===>PAGE

Issue command COND to show list of defined Conditions.

Scroll right or enter the row command S to select an operation for details.

Application : APPLA

Operation : CPU1 4

Jobname : JOBB

Row Type Operation Jobname Application id Status

cmd ws no. text

\'\'\'P GENN 099APPLA C

\'\'\' PC CPU1 001APPLA C

\'\'\'PC CPU1 002APPLA X

\'\'\' PC CPU1 003APPLA X

******************************* Bottom of data ********************************

slide52

Scenario 4 – Handle Conditions in CP

Kevin sees that only one condition is defined, having 3 simple conditions chained by the “At least one of “ rule (OR). At this point Kevin select the Condition to check details

NEW

EQQSCP1L ------- BROWSING condition dependencies ------------ Row 1 to 4 of 4

Command ===>Scroll ===>PAGE

Enter the row command S to show Condition details.

Application : APPLA

Operation : CPU1 4

Jobname : JOBB

Row Cond Condition Description Dep Condition Rule

cmd no. no.

S\'\' 001JOBA or JOBR1 or JOBR23 At least one of

******************************* Bottom of data ********************************

slide53

Scenario 4 – Handle Conditions in CP

The condition is on JOBA, JOBR1 and JOBR2 status Complete as previously defined in database:

NEW

EQQSOCCP ----------- BROWSING CONDITION DETAILS --------------- Row 1 to 3 of 3

Command ===>Scroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Each Dependency is defined on a Status or Return Code value through operators: EQ, NE, GE, GT, LE, LT, RG.

Application : APPLA

Operation : CPU1 004 JOBB

Condition Rule: At least one of following list must be true

Oper Application Id Input arrival Jobname Cond Cond Cond

ws. no. (for ext Adid only) Date Time Type OP Value

CPU1 001 08/04/28 11.11JOBA ST EQ C

CPU1 002 08/04/28 11.11 JOBR1 ST EQ C

CPU1 003 08/04/28 11.11 JOBR2 STEQ C

******************************* Bottom of data ********************************

slide54

Scenario 4 – Handle Conditions in CP

  • Kevin at this points wants to change APPLA conditions by adding a third
  • job (JOBR3) to handle the JOBA RC greater than 16 that is:
  • If JOBA fails with RC:
  • > 0 and <= 4 run JOBR1 to recover
  • > 4 and < 16 run JOBR2 to recover
  • >= 16 run JOBR3 to recover
  • JOBB can run if at at least one among JOBA, JOBR1, JOBR2 and JOBR3
  • run ok.
  • Kevin can do this directly in Current Plan for the just added occurrence by:
  • Adding the new operation CPU1 005 JOBR3 chaining it to the dummy operation 099
  • Defining a Condition on JOBR3 about RC >= 16
  • Changing the Condition defined on JOBR2 with new limit RC < 16
  • Changing the Condition on JOBB adding the condition dependency on JOBR3 too
slide55

Scenario 4 – Handle Conditions in CP

Kevin adds CPU1 005 JOBR3 to the existing occurrence in the plan and select it to modify operation details:

EQQMMOPL --------- MODIFYING OPERATIONS IN THE CURRENT PLAN -- Row 1 to 6 of 6

Command ===> Scroll ===>CSR

Enter the GRAPH command above to view operations graphically or

change data in the rows, and/or enter any of the following row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

J - Edit JCL, O - Browse operator instructions, S - Modify operation details

L - Browse joblog

Application : APPLA

Owner : KEVIN

Input arrival : 08/04/29 10.00

Status : Completed

Row Operation Jobname PS Duration Opt Ext Res Stat

cmd ws no. text HH.MM.SS S T S/P S R1 R2 N Cu

\'\'\' CPU1 001 ________________________ JOBA____ 1 00.00.01 Y N 0 0 _C

\'\'\' CPU1 002 ________________________ JOBR1___ 1 00.00.01 Y N 0 0 _ X

\'\'\' CPU1 003 ________________________ JOBR2___ 1 00.00.01 Y N 0 0 _X

\'\'\' CPU1 004 ________________________ JOBB____ 1 00.00.01 Y N 0 0 _ C

\'\'\' GENN 099 ________________________ ________ 1 00.00.01 Y N 0 0 _C

S\'\' CPU1 005 ________________________ JOBR3___ 1 00.00.01 Y N 0 0 _C

slide56

Scenario 4 – Handle Conditions in CP

Kevin select option 1 to modify dependencies:

EQQMMODP -------- MODIFYING AN OPERATION IN THE CURRENT PLAN ------------------

Option ===>1

Select one of the following:

1 DEPENDENCIES - Delete and add (internal and external)

2 SPEC RESOURCES - Special resources

3 AUTOMATIC OPTIONS - Job, WTO, and print options

4 TIME - Time specifications

5 JCL - Edit JCL for MVS job

6 GENERAL - General information

7 CLEANUP OPTIONS - Cleanup Options

8 EXTENDED INFO - Operation extended info

9 AUTOMATION INFO - Automation info

Application : APPLA

Input arrival : 08/04/29 10.00

Operation : CPU1 005

Duration (HH.MM.SS) : 00.00.01

Jobname : JOBR3

External predecessors : No External Cond pred : No

External successors : No External Cond succ : No

Special resources : No Number of Conds : 0

slide57

Scenario 4 – Handle Conditions in CP

Kevin see that JOBR3 (CPU1 005) has defined as internal predecessor GENN 099. He wants to add the condition: JOBR3 run only if JOBA fails with RC >= 16.

For this reason issues the COND command

EQQMMDPL -------- MODIFYING DEPENDENCIES IN THE CURRENT PLAN - Row 1 to 1 of 1

Command ===> COND Scroll ===>CSR

Enter the CREATE command above to create a new dependency or

enter the row command D to delete a dependency.

Enter the COND command above to handle conditions:

Application : APPLA

Input arrival : 08/04/29 10.00

Operation : CPU1 005

Number of Conds : 0

CHECK DEPENDENCIES ===> Y Y - when leaving panel, N - at occurrence update

Row Trans Application id Input Arrival Operation S D

cmd time (ext deps only) date time ws no. text

\' 00.00 GENN 099 C P

******************************* Bottom of data ********************************

slide58

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCCL is shown. Kevin fill the row with id 001 and description of the new condition to be added and than select the row:

NEW

EQQMMCCL ------ MODIFYING condition dependencies IN THE CP - Row 1 to 1 of 1

Command ===> Scroll ===>CSR

Enter/change data in the rows, and/or enter any of the following row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Modify

Note that if you insert a new condition you must then Modify it (S) in order to add condition dependencies details.

Application : APPLA

Input arrival : 08/04/29 10.00

Operation : CPU1 005

Row Cond Condition Description Dep Condition Rule

cmd no. no.

S\'\'001JOBA RC >= 16 _________ 0

******************************* Bottom of data ********************************

slide59

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCCP is shown. Kevin issue the CREATE command to add a condition dependency:

NEW

EQQMMCCP ----- MODIFYING CONDITION DETAILS IN THE CP ---------- Row 1 to 1 of 1

Command ===>CREATE Scroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Enter the CREATE command above to create a new condition dependency or

enter the row command D to delete a condition dependency:

Application : APPLA

Operation : CPU1 005 JOBR3

Condition Rule:

> At least one of following list must be true: N

> At least a subset of following list must be true: N Subset ___

> All in following list must be true: Y

Row Oper Application Id Input Arrival Jobname Cond Cond Cond

cmd ws. no. (for ext Adid only) Date Time Type OP Value

******************************* Bottom of data ********************************

slide60

Scenario 4 – Handle Conditions in CP

The new panel EQQMMADC is shown. Kevin leave all optional field blank so that, pressing ENTER, the list on internal possible predecessor will be shown:

NEW

EQQMMADC ----- ADD A condition dependency IN THE CP ------------------------- Command ===>

Specify identity of an operation below and press ENTER to create it as

a condition dependency or, if the operation is not uniquely defined,

to create a list of operations.

Application : JOBR3

Input arrival : 07/04/29 10.00

Operation : CPU1 005

Dependency : Identity of dependency.

APPLICATION ID ===> ________________

Blank means internal dependency

INPUT DATE ===> ________ Date in format YY/MM/DD

TIME ===> _____ Time in format HH.MM

WORK STATION ===> ____

OPERATION NUMBER ===> ___

JOBNAME ===> ________

slide61

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCOL is shown. Kevin fill the condition type, operator and value, then select JOBA and press ENTER to go back to previous panel EQQMMADC.

NEW

EQQMMCOL ------ DEFINING A condition dependency IN THE CP -------- Row 1 to 1

Command ===>Scroll ===>CSR

Enter S below to select an operation to define a condition dependency by specifying the Condition Type, Operator and value.

Each Dependency is defined on a Status (ST) or Return Code (RC) value through operators: EQ, NE, GE, GT, LE, LT.

Application : JOBR3

Input arrival : 07/04/29 10.00

Operation : CPU1 005

Row Application id Input arrival Jobname Operation Cond Cond Cond S

date time ws no. Type OP Value

S’’JOBA CPU1 001 RC GE 0016 C

‘’’JOBR1 CPU1 002 __ __ ____X

‘’’ JOBR2 CPU1 003 __ __ ____ X

‘’’JOBB CPU1 004 __ __ ____ C

‘’’ GENN 099 __ __ ____ C ******************************* Bottom of data ********************************

slide62

Scenario 4 – Handle Conditions in CP

Kevin press PF3 to go back to previous panel

NEW

EQQMMADC ----- ADD A condition dependency IN THE CP -------------------------

Command ===>

Specify identity of an operation below and press ENTER to create it as

a condition dependency or, if the operation is not uniquely defined,

to create a list of operations.

Application : JOBR3

Input arrival : 07/04/29 10.00

Operation : CPU1 005

Dependency : Identity of dependency.

APPLICATION ID ===> ________________

Blank means internal dependency

INPUT DATE ===> ________ Date in format YY/MM/DD

TIME ===> _____ Time in format HH.MM

WORK STATION ===> ____

OPERATION NUMBER ===> ___

JOBNAME ===> ________

slide63

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCCP is shown again with the added condition dependency. Kevin goes back to previous panel EQQMMOCP (list of operations) pressing PF3.

NEW

EQQMMCCP ----- MODIFYING CONDITION DETAILS IN THE CP ---------- Row 1 to 1 of 1

Command ===>Scroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Enter the CREATE command above to create a new condition dependency or

enter the row command D to delete a condition dependency:

Application : APPLA

Operation : CPU1 005 JOBR3

Condition Rule:

> At least one of following list must be true: N

> At least a subset of following list must be true: N Subset ___

> All in following list must be true: Y

Row Oper Application Id Input Arrival Jobname Cond Cond Cond

cmd ws. no. (for ext Adid only) Date Time Type OP Value

‘’’ CPU1 001 ________________ _____________ JOBA___ RC GE 0016

******************************* Bottom of data ********************************

slide64

Scenario 4 – Handle Conditions in CP

Kevin selects CPU1 003 JOBR2 in order to modify the existing Condition on it from: “run if JOBAA RC > 0 and < 4” to “run if JOBAA RC > 0 and < 16”.

EQQMMOPL --------- MODIFYING OPERATIONS IN THE CURRENT PLAN -- Row 1 to 6 of 6

Command ===> Scroll ===>CSR

Enter the GRAPH command above to view operations graphically or

change data in the rows, and/or enter any of the following row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

J - Edit JCL, O - Browse operator instructions, S - Modify operation details

L - Browse joblog

Application : APPLA

Owner : KEVIN

Input arrival : 08/04/29 10.00

Status : Completed

Row Operation Jobname PS Duration Opt Ext Res Stat

cmd ws no. text HH.MM.SS S T S/P S R1 R2 N Cu

\'\'\' CPU1 001 ________________________ JOBA____ 1 00.00.01 Y N 0 0 _C

\'\'\' CPU1 002 ________________________ JOBR1___ 1 00.00.01 Y N 0 0 _ X

S\'\' CPU1 003 ________________________ JOBR2___ 1 00.00.01 Y N 0 0 _X

\'\'\' CPU1 004 ________________________ JOBB____ 1 00.00.01 Y N 0 0 _ C

\'\'\' GENN 099 ________________________ ________ 1 00.00.01 Y N 0 0 _C

\'\'\' CPU1 005 ________________________ JOBR3___ 1 00.00.01 Y N 0 0 _C

slide65

Scenario 4 – Handle Conditions in CP

Kevin select option 1 to modify dependencies:

EQQMMODP -------- MODIFYING AN OPERATION IN THE CURRENT PLAN ------------------

Option ===>1

Select one of the following:

1 DEPENDENCIES - Delete and add (internal and external)

2 SPEC RESOURCES - Special resources

3 AUTOMATIC OPTIONS - Job, WTO, and print options

4 TIME - Time specifications

5 JCL - Edit JCL for MVS job

6 GENERAL - General information

7 CLEANUP OPTIONS - Cleanup Options

8 EXTENDED INFO - Operation extended info

9 AUTOMATION INFO - Automation info

Application : APPLA

Input arrival : 08/04/29 10.00

Operation : CPU1 003

Duration (HH.MM.SS) : 00.00.01

Jobname : JOBR2

External predecessors : No External Conditional pred : No

External successors : No External Conditional succ : No

Special resources : No Number Of Conds : 1

slide66

Scenario 4 – Handle Conditions in CP

Kevin see that JOBR2 (CPU1 003) has defined as internal predecessor GENN 099. He wants to modify the existing Condition and therefore issues the COND command

EQQMMDPL -------- MODIFYING DEPENDENCIES IN THE CURRENT PLAN - Row 1 to 1 of 1

Command ===> COND Scroll ===>CSR

Enter the CREATE command above to create a new dependency or

enter the row command D to delete a dependency.

Enter the COND command above to handle conditions:

Application : APPLA

Input arrival : 08/04/29 10.00

Operation : CPU1 003

Number of Conds : 1

CHECK DEPENDENCIES ===> Y Y - when leaving panel, N - at occurrence update

Row Trans Application id Input Arrival Operation S D

cmd time (ext deps only) date time ws no. text

\' 00.00 GENN 099 C P

******************************* Bottom of data ********************************

slide67

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCCL is shown: Kevin changes the description and selects the Condition to modify it

NEW

EQQMMCCL ------ MODIFYING condition dependencies IN THE CP - Row 1 to 1 of 1

Command ===> Scroll ===>CSR

Enter/change data in the rows, and/or enter any of the following row commands:

I(nn) - Insert, R(nn),RR(nn) - Repeat, D(nn),DD - Delete

S - Modify

Note that if you insert a new condition you must then Modify it (S) in order to add condition dependencies details.

Application : APPLA

Input arrival : 08/04/29 10.00

Operation : CPU1 003

Row Cond Condition Description Dep Condition Rule

cmd no. no.

S\'\'001JOBA 0 < RC < 16_____ 1 All

******************************* Bottom of data ********************************

slide68

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCCP is shown: Kevin must add a new simple condition: JOBA RC < 16. To do this issue the CREATE command.

NEW

EQQMMCCP ----- MODIFYING CONDITION DETAILS IN THE CP ---------- Row 1 to 1 of 1

Command ===>CREATEScroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Enter the CREATE command above to create a new condition dependency or

enter the row command D to delete a condition dependency:

Application : APPLA

Operation : CPU1 003 JOBR2

Condition Rule:

> At least one of following list must be true: N

> At least a subset of following list must be true: N Subset ___

> All in following list must be true: Y

Row Oper Application Id Input Arrival Jobname Cond Cond Cond

cmd ws. no. (for ext Adid only) Date Time Type OP Value

‘’’ CPU1 001 ________________ _____________ JOBA___ RC GT 0004

******************************* Bottom of data ********************************

slide69

Scenario 4 – Handle Conditions in CP

The new panel EQQMMADC is shown. Kevin set the Jobname to JOBA so that, pressing ENTER, the list on internal possible predecessor with JOBA will be shown:

NEW

EQQMMADC ----- ADD A condition dependency IN THE CP ------------------------- Command ===>

Specify identity of an operation below and press ENTER to create it as

a condition dependency or, if the operation is not uniquely defined,

to create a list of operations.

Application : JOBR2

Input arrival : 07/04/29 10.00

Operation : CPU1 003

Dependency : Identity of dependency.

APPLICATION ID ===> ________________

Blank means internal dependency

INPUT DATE ===> ________ Date in format YY/MM/DD

TIME ===> _____ Time in format HH.MM

WORK STATION ===> ____

OPERATION NUMBER ===> ___

JOBNAME ===> JOBA____

slide70

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCOL is shown. Kevin fill the condition type, operator and value, then select JOBA and press ENTER to go back to previous panel EQQMMADC, press ENTER again and go back to EQQMMCCP panel.

NEW

EQQMMCOL ------ DEFINING A condition dependency IN THE CP ------ Row 1 to 1

Command ===>Scroll ===>CSR

Enter S below to select an operation to define a condition dependency by specifying the Condition Type, Operator and value.

Each Dependency is defined on a Status (ST) or Return Code (RC) value through operators: EQ, NE, GE, GT, LE, LT.

Application : JOBR3

Input arrival : 07/04/29 10.00

Operation : CPU1 005

Row Application id Input arrival Jobname Operation Cond Cond Cond S

date time ws no. Type OP Value

S’’JOBA CPU1 001 RC LT 0016 C

******************************* Bottom of data ********************************

slide71

Scenario 4 – Handle Conditions in CP

The new panel EQQMMCCP is shown: Kevin press PF3 until all Occurrence change are saved.

The update of JOBB condition is done in a similar way.

NEW

EQQMMCCP ----- MODIFYING CONDITION DETAILS IN THE CP ---------- Row 1 to 1 of 1

Command ===>Scroll ===>PAGE

A Condition is made by a list of condition dependencies related by a rule.

Enter the CREATE command above to create a new condition dependency or

enter the row command D to delete a condition dependency:

Application : APPLA

Operation : CPU1 003 JOBR2

Condition Rule:

> At least one of following list must be true: N

> At least a subset of following list must be true: N Subset ___

> All in following list must be true: Y

Row Oper Application Id Input Arrival Jobname Cond Cond Cond

cmd ws. no. (for ext Adid only) Date Time Type OP Value

‘’’ CPU1 001 ________________ _____________ JOBA___ RC GT 0004

‘’’ CPU1 001 ________________ _____________ JOBA___ RC LT 0016

******************************* Bottom of data ********************************

slide72

Scenario 4 – Handle Conditions in CP

Listing the operation in the CP via 5.3 Kevin see

EQQMOPRL --------- MODIFYING OPERATIONS IN THE CURRENT PLAN -- Row 1 to 5 of 5

Command ===>Scroll ===>PAGE

Enter the GRAPH command above to view list graphically,

enter the HIST command to select operation history list, or

enter any of the following row commands:

J - Edit JCL M - Modify B - Browse details

DEL - Delete Occurrence MH - Man. HOLD MR - Man. RELEASE oper

O - Browse operator instructions NP - NOP oper UN - UN-NOP oper

EX - EXECUTE operation D - Delete Oper RG - Remove from group

L - Browse joblog RC - Restart and CleanUp

FSR - Fast path SR FJR - Fast path JR

FSC - Fast path SC RI - Recovery Info

K - Kill TCJ - Target Critical Job

Row Application id Operat Jobname Input Arrival Duration Op Depen S Op

cmd ws no. Date Time HH.MM.SS ST Su Pr HN

\'\'\'\'APPLA CPU1 001 JOBA 08/04/29 10.00 00.00.01 YN 3 1 C NN

\'\'\'\'APPLA CPU1 002 JOBR1 08/04/29 10.00 00.00.01 YN 1 2 X NN

\'\'\'\'APPLA CPU1 003 JOBR2 08/04/29 10.00 00.00.01 YN 1 2 X NN

\'\'\'\'APPLA CPU1 004 JOBB 08/04/29 11.11 00.00.01 YN 0 4 C NN

\'\'\'\'APPLA GENN 099 08/04/29 10.00 00.00.01 YN 4 0 C NN

******************************* Bottom of data ********************************

ad
