Installing Java LiveUpdate (JLU) Manuallyafter Symantec Mail Security for Domino (SMSDOM) has been installed

Larry Wall

Sr. Principle Software Support Engineer

Installing Java LiveUpdate (JLU) Manually after SMSDOM


We will cover the following topics

We Will Cover The Following Topics

Introduction

1

Downloading/Installing Java

2

Downloading/Installing Java Crypto Extensions (JCE)

3

Install Java LiveUpdate (JLU)

4

Replace the liveupdate.conf file

5

Replace the Product.Catalog.JavaLiveUpdate file

6

Problems you may encounter

7

Installing Java LiveUpdate (JLU) Manually after SMSDOM

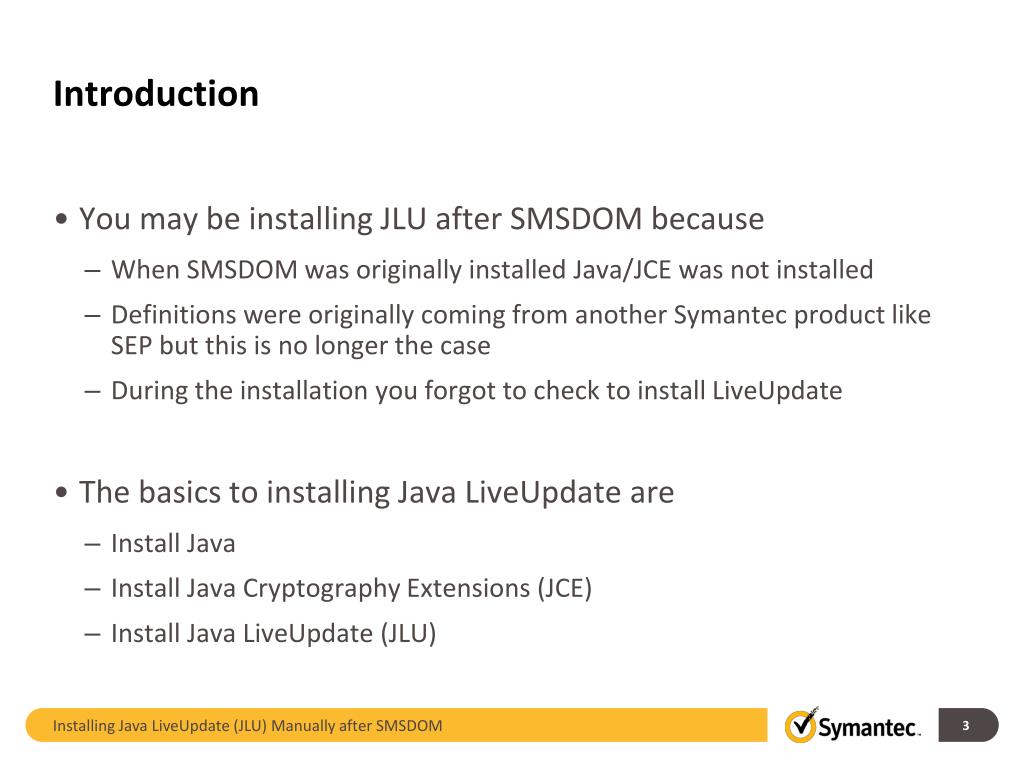

Introduction

Introduction

  • You may be installing JLU after SMSDOM because

    • When SMSDOM was originally installed Java/JCE was not installed

    • Definitions were originally coming from another Symantec product like SEP but this is no longer the case

    • During the installation you forgot to check to install LiveUpdate

  • The basics to installing Java LiveUpdate are

    • Install Java

    • Install Java Cryptography Extensions (JCE)

    • Install Java LiveUpdate (JLU)

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Installing java liveupdate jlu manually after symantec mail security for domino smsdom has been installed

While this presentations is specifically for installing JLU after SMSDOM the same steps with some minor modifications can be done to work with other products.

Your paths could be different depending on OS version and bit version. It is more confusing when on a 64bit machine because 64bit and 32bit applications can both run. Minimally you need the same bit version of Java to match the bit version of SMSDOM. But you can simplify this by just installing both 32bit and 64bit versions of Java.

Also, the Product.Catalog.JavaLiveUpdate file may need to be changed. It needs to contain the correct moniker and product name in order to download the proper definitions.

Lastly, the steps listed are specifically for Windows. JLU works across different types of operating systems because it is a Java program. But the basics are still the same, install java, java cryptography extensions (if required), install Java LiveUpdate, and then make sure the configuration files are okay. As of this writing JCE is not needed on AIX for example because the program will not try to encrypt/decrypt the liveupdate.conf file.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Download java jre and jce

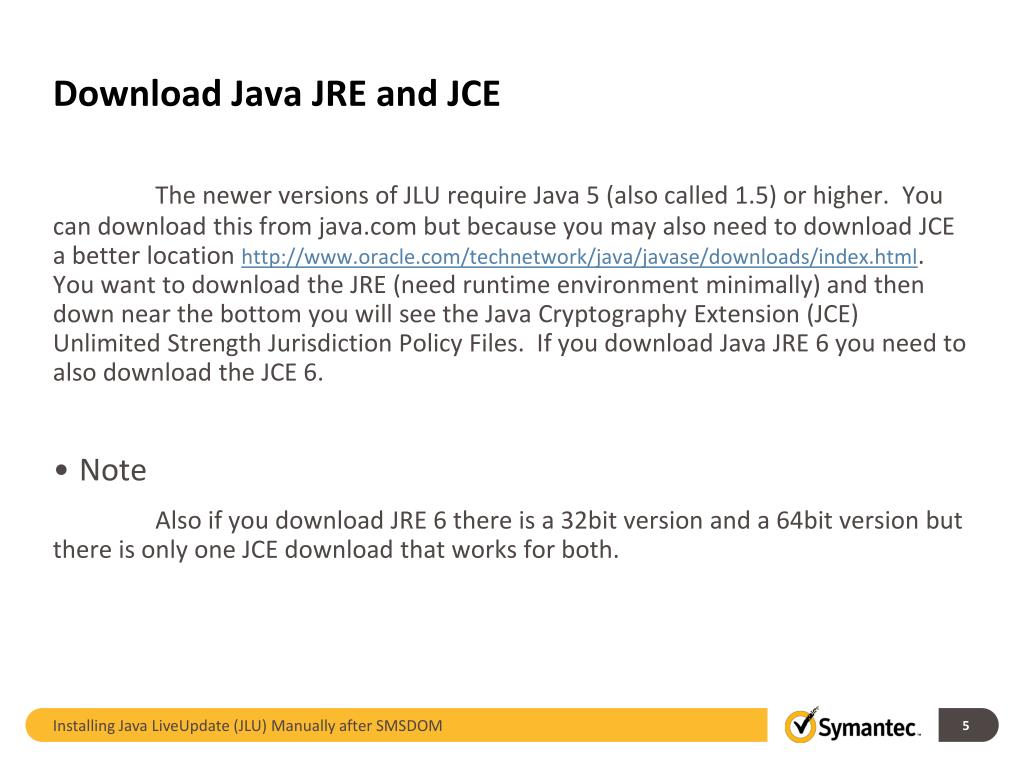

Download Java JRE and JCE

The newer versions of JLU require Java 5 (also called 1.5) or higher. You can download this from java.com but because you may also need to download JCE a better location http://www.oracle.com/technetwork/java/javase/downloads/index.html. You want to download the JRE (need runtime environment minimally) and then down near the bottom you will see the Java Cryptography Extension (JCE) Unlimited Strength Jurisdiction Policy Files. If you download Java JRE 6 you need to also download the JCE 6.

  • Note

    Also if you download JRE 6 there is a 32bit version and a 64bit version but there is only one JCE download that works for both.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Installing java jre

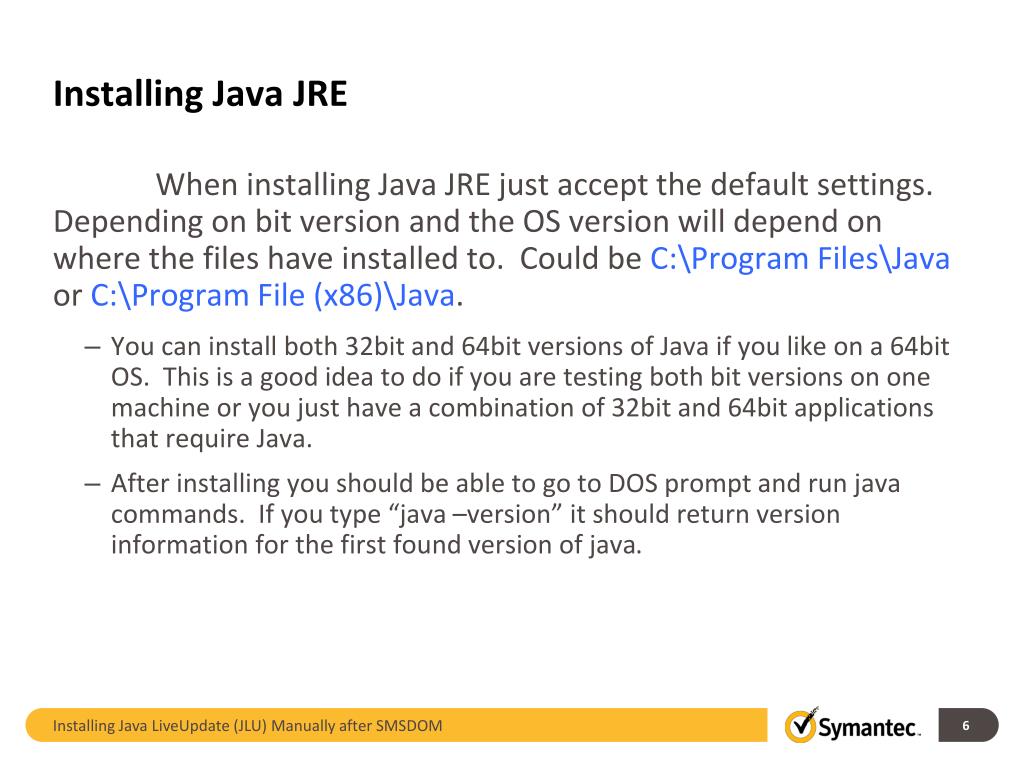

Installing Java JRE

When installing Java JRE just accept the default settings. Depending on bit version and the OS version will depend on where the files have installed to. Could be C:\Program Files\Java or C:\Program File (x86)\Java.

  • You can install both 32bit and 64bit versions of Java if you like on a 64bit OS. This is a good idea to do if you are testing both bit versions on one machine or you just have a combination of 32bit and 64bit applications that require Java.

  • After installing you should be able to go to DOS prompt and run java commands. If you type “java –version” it should return version information for the first found version of java.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Installing java jce

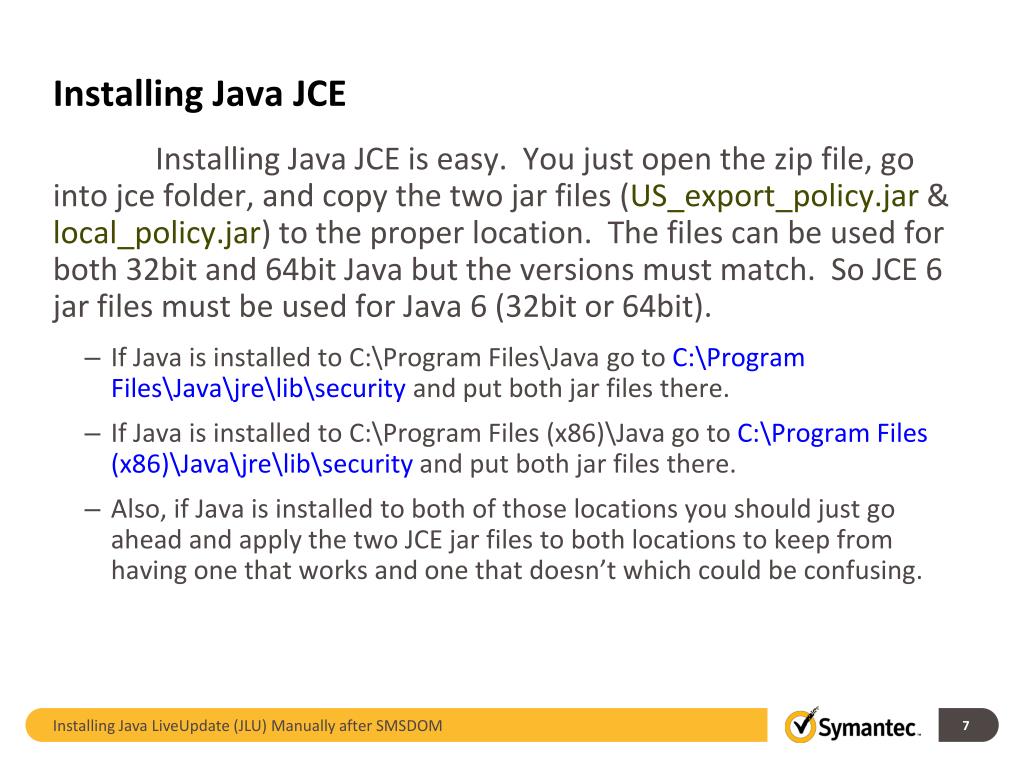

Installing Java JCE

Installing Java JCE is easy. You just open the zip file, go into jce folder, and copy the two jar files (US_export_policy.jar & local_policy.jar) to the proper location. The files can be used for both 32bit and 64bit Java but the versions must match. So JCE 6 jar files must be used for Java 6 (32bit or 64bit).

  • If Java is installed to C:\Program Files\Java go to C:\Program Files\Java\jre\lib\security and put both jar files there.

  • If Java is installed to C:\Program Files (x86)\Java go to C:\Program Files (x86)\Java\jre\lib\security and put both jar files there.

  • Also, if Java is installed to both of those locations you should just go ahead and apply the two JCE jar files to both locations to keep from having one that works and one that doesn’t which could be confusing.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Installing java liveupdate

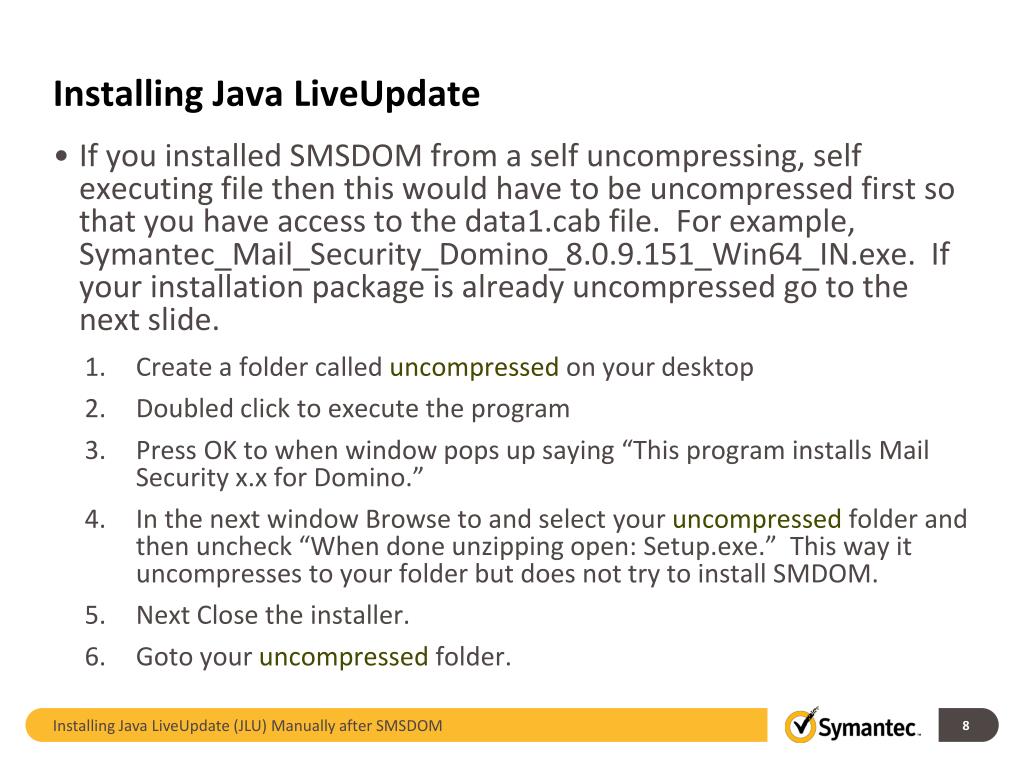

Installing Java LiveUpdate

  • If you installed SMSDOM from a self uncompressing, self executing file then this would have to be uncompressed first so that you have access to the data1.cab file. For example, Symantec_Mail_Security_Domino_8.0.9.151_Win64_IN.exe. If your installation package is already uncompressed go to the next slide.

    • Create a folder called uncompressed on your desktop

    • Doubled click to execute the program

    • Press OK to when window pops up saying “This program installs Mail Security x.x for Domino.”

    • In the next window Browse to and select your uncompressed folder and then uncheck “When done unzipping open: Setup.exe.” This way it uncompresses to your folder but does not try to install SMDOM.

    • Next Close the installer.

    • Goto your uncompressed folder.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Installing java liveupdate jlu manually after symantec mail security for domino smsdom has been installed

Note:If you uncompressed the 64bit version of SMSDOM go to uncompressed folder and then double click the Data1.cab file to open it so that you can access the files inside. If you had uncompressed the 32bit version of SMSDOM you will see two folders called SMSDOM and SMSDOM-x64 and this may be confusing. The SMSDOM-x64 is still 32bit compilation but was specifically compiled as a 32bit application to run on a 64bit OS. You can choose either folder to go into because the jlu.jar file we are looking for is the same in both folders. Once in that folder open the Data1.cab file by double clicking it.

  • Copy the jlu.jar.54E561A0_BE49_4E56_B71C_FC93C7BAF85D to your desktop. Thenumbers and lettersafter as part ofthefilenameafterjlu.jarmaybedifferent.

  • Rename the file to just jlu.jar

  • Now copy jlu.jar to the root of your C:\ drive.

  • Bring up a Command Window to enter DOS commands and go to the root by typing “cd \” and pressing enter.

  • Type “java -classpathjlu.jar Installer” and press enter. JLU should install.

  • Can now delete the jlu.jar file by typing “del jlu.jar” and press enter.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Replace liveupdate conf file

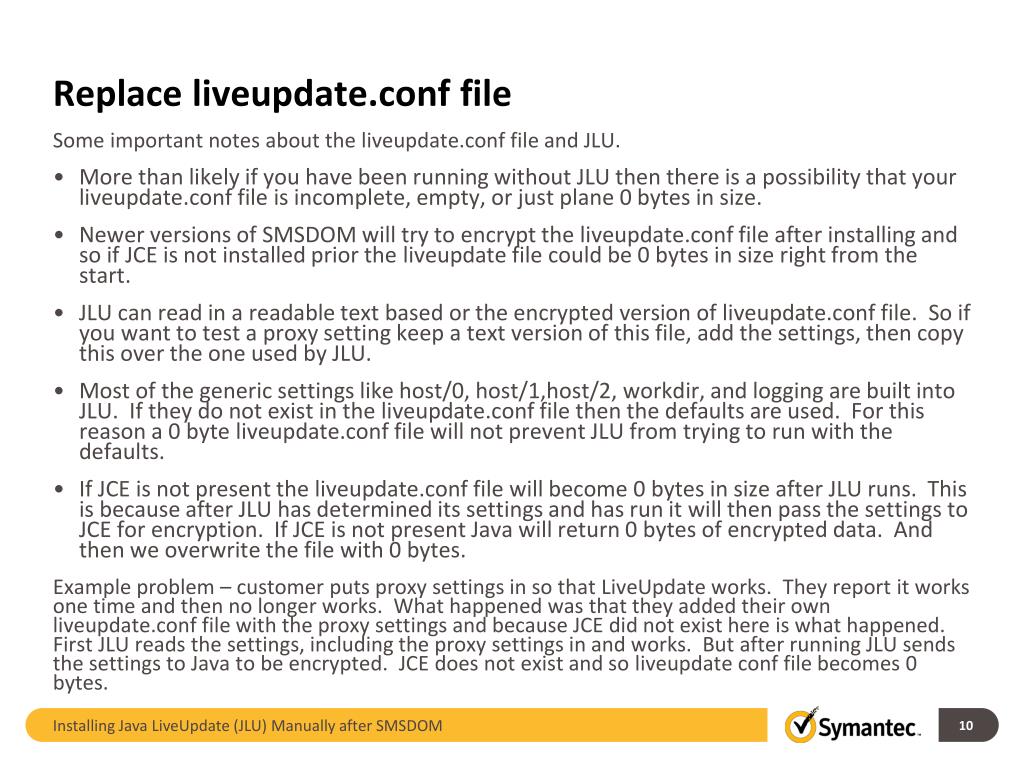

Replace liveupdate.conf file

Some important notes about the liveupdate.conf file and JLU.

  • More than likely if you have been running without JLU then there is a possibility that your liveupdate.conf file is incomplete, empty, or just plane 0 bytes in size.

  • Newer versions of SMSDOM will try to encrypt the liveupdate.conf file after installing and so if JCE is not installed prior the liveupdate file could be 0 bytes in size right from the start.

  • JLU can read in a readable text based or the encrypted version of liveupdate.conf file. So if you want to test a proxy setting keep a text version of this file, add the settings, then copy this over the one used by JLU.

  • Most of the generic settings like host/0, host/1,host/2, workdir, and logging are built into JLU. If they do not exist in the liveupdate.conf file then the defaults are used. For this reason a 0 byte liveupdate.conf file will not prevent JLU from trying to run with the defaults.

  • If JCE is not present the liveupdate.conf file will become 0 bytes in size after JLU runs. This is because after JLU has determined its settings and has run it will then pass the settings to JCE for encryption. If JCE is not present Java will return 0 bytes of encrypted data. And then we overwrite the file with 0 bytes.

    Example problem – customer puts proxy settings in so that LiveUpdate works. They report it works one time and then no longer works. What happened was that they added their own liveupdate.conf file with the proxy settings and because JCE did not exist here is what happened. First JLU reads the settings, including the proxy settings in and works. But after running JLU sends the settings to Java to be encrypted. JCE does not exist and so liveupdateconf file becomes 0 bytes.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Default liveupdate conf file

Default liveupdate.conf file

############################################################

# #

# livepdate.conf - Symantec LiveUpdate configuration file #

# #

# This file is used to configure the settings used by #

# LiveUpdate #

# #

############################################################

hosts/0/url=http://liveupdate.symantecliveupdate.com:80

hosts/1/url=http://liveupdate.symantec.com:80

hosts/2/login:ENC=b3effdd10d982d2c7339c9604c67c34c

hosts/2/password:ENC=18d2e2d4c1445548f8a5ef124ed20bfd

hosts/2/url=ftp://update.symantec.com/opt/content/onramp

logfile=C:\Documents and Settings\AllUsers\Application Data\Symantec\Java LiveUpdate\liveupdt.log

workdir=C:\Documents and Settings\AllUsers\Application Data\Symantec\Java LiveUpdate\Downloads

serverlogging=true

cacheMode=false

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Installing java liveupdate jlu manually after symantec mail security for domino smsdom has been installed

You can go ahead and copy the liveupdate.conf file from the last slide and use this as your default liveupdate.conf file which can be modified for your own use in the future. You do need to make sure the paths are correct for the workdir and logging parameters. If you change the paths as needed this file can also work on other platforms.

The settings in the liveupdate.conf file are also case sensitive. So the cacheMode line must have that M capitalized or else it will not work. If cacheMode equals false JLU will remove cache files when it is done which will help prevent running out of disk space.

If you use a text based liveupdate.conf file and then run JLU the file will become encrypted if JCE is installed. To make changes then you can either overwrite this with another text based copy or you can use the ConfigEditor parameter to bring up a GUI for making changes. To run this editor find where jlu.jar installed itself to. Could be one of the following paths:

C:\Program Files\Common Files\Symantec Shared\Java LiveUpdate

C:\Program Files (x86)\Common Files\Symantec Shared\Java LiveUpdate

Go to this folder with command window DOS prompt and then run the following command:

java -classpathjlu.jarConfigEditor

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Replace product catalog javaliveupdate file

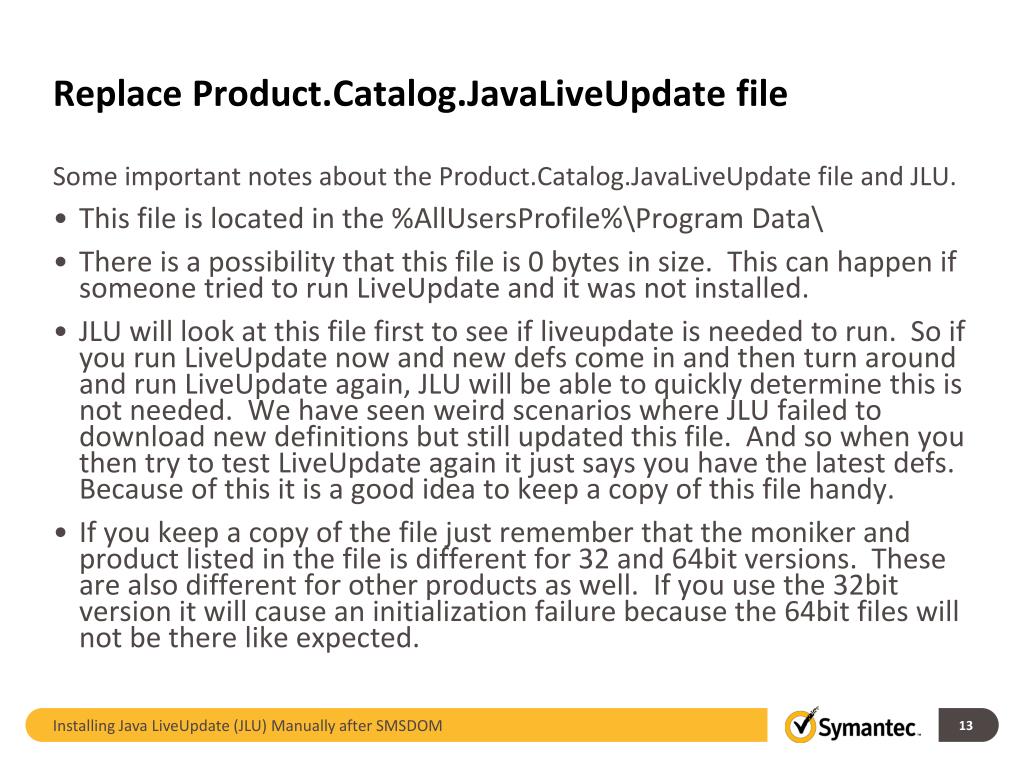

Replace Product.Catalog.JavaLiveUpdate file

Some important notes about the Product.Catalog.JavaLiveUpdate file and JLU.

  • This file is located in the %AllUsersProfile%\Program Data\

  • There is a possibility that this file is 0 bytes in size. This can happen if someone tried to run LiveUpdate and it was not installed.

  • JLU will look at this file first to see if liveupdate is needed to run. So if you run LiveUpdate now and new defs come in and then turn around and run LiveUpdate again, JLU will be able to quickly determine this is not needed. We have seen weird scenarios where JLU failed to download new definitions but still updated this file. And so when you then try to test LiveUpdate again it just says you have the latest defs. Because of this it is a good idea to keep a copy of this file handy.

  • If you keep a copy of the file just remember that the moniker and product listed in the file is different for 32 and 64bit versions. These are also different for other products as well. If you use the 32bit version it will cause an initialization failure because the 64bit files will not be there like expected.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Default product catalog javaliveupdate file for 32bit smsdom on windows

Default Product.Catalog.JavaLiveUpdate file for 32bit SMSDOM on Windows

[{6B9B12D6-93E0-460e-BF4E-0A7251925D80}]

MONIKER={6B9B12D6-93E0-460e-BF4E-0A7251925D80}

PRODUCTNAME=SMSDOM Windows Virus Definitions

PRODUCT=SMSDOM Windows Virus Definitions

VERSION=8.0

LANGUAGE=English

SEQ.VirusDef=0

[{C498C4FD-B2DE-4415-BE68-5CA2BD9D113F}]

MONIKER={C498C4FD-B2DE-4415-BE68-5CA2BD9D113F}

PRODUCTNAME=SMSDOM VSP

PRODUCT=SMSDOM VSP

VERSION=2.0

LANGUAGE=SymAllLanguages

SEQ.VSP=0

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Default product catalog javaliveupdate file for 64bit smsdom on windows

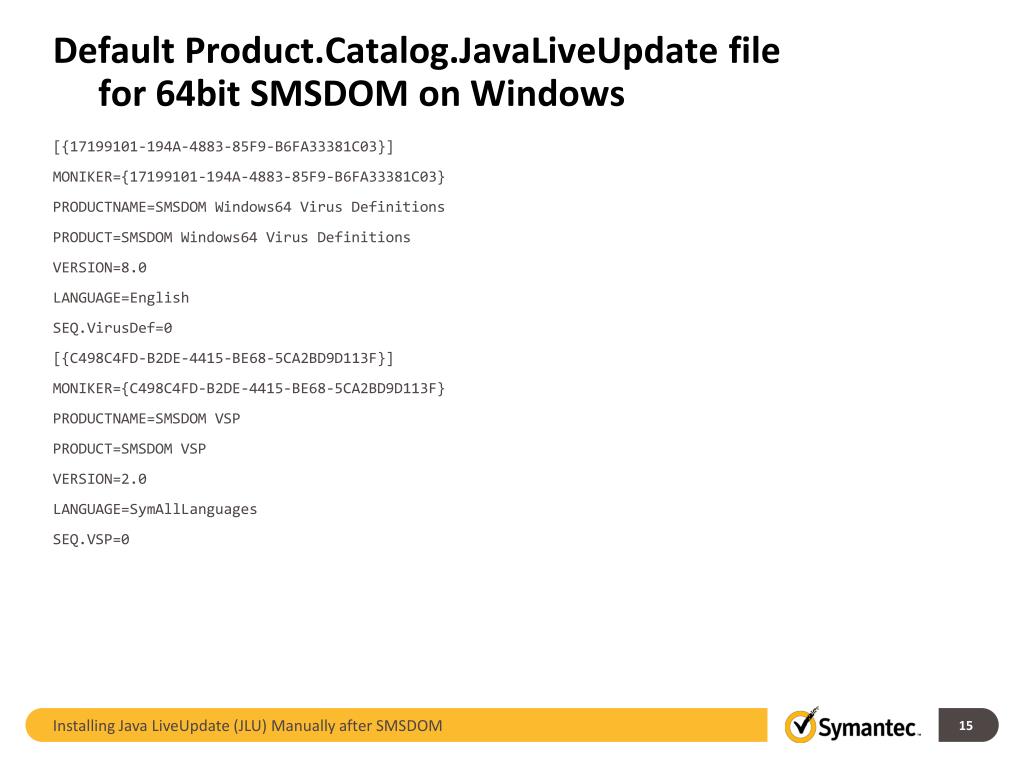

Default Product.Catalog.JavaLiveUpdate file for 64bit SMSDOM on Windows

[{17199101-194A-4883-85F9-B6FA33381C03}]

MONIKER={17199101-194A-4883-85F9-B6FA33381C03}

PRODUCTNAME=SMSDOM Windows64 Virus Definitions

PRODUCT=SMSDOM Windows64 Virus Definitions

VERSION=8.0

LANGUAGE=English

SEQ.VirusDef=0

[{C498C4FD-B2DE-4415-BE68-5CA2BD9D113F}]

MONIKER={C498C4FD-B2DE-4415-BE68-5CA2BD9D113F}

PRODUCTNAME=SMSDOM VSP

PRODUCT=SMSDOM VSP

VERSION=2.0

LANGUAGE=SymAllLanguages

SEQ.VSP=0

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Default product catalog javaliveupdate file for 32bit smsdom on aix

Default Product.Catalog.JavaLiveUpdate file for 32bit SMSDOM on AIX

[{5C5CD07E-2B50-4a23-A410-F3A935AB5920}]

MONIKER={5C5CD07E-2B50-4a23-A410-F3A935AB5920}

PRODUCTNAME=SMSDOM AIX Virus Definitions

PRODUCT=SMSDOM AIX Virus Definitions

VERSION=8.0

LANGUAGE=English

SEQ.VirusDef=0

[{A7F40636-A387-49da-8C21-8CDAC9FB79B9}]

MONIKER={A7F40636-A387-49da-8C21-8CDAC9FB79B9}

PRODUCTNAME=SMSDOM VSP

PRODUCT=SMSDOM VSP

VERSION=2.0

LANGUAGE=SymAllLanguages

SEQ.VSP=0

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Default product catalog javaliveupdate file for 64bit smsdom on aix

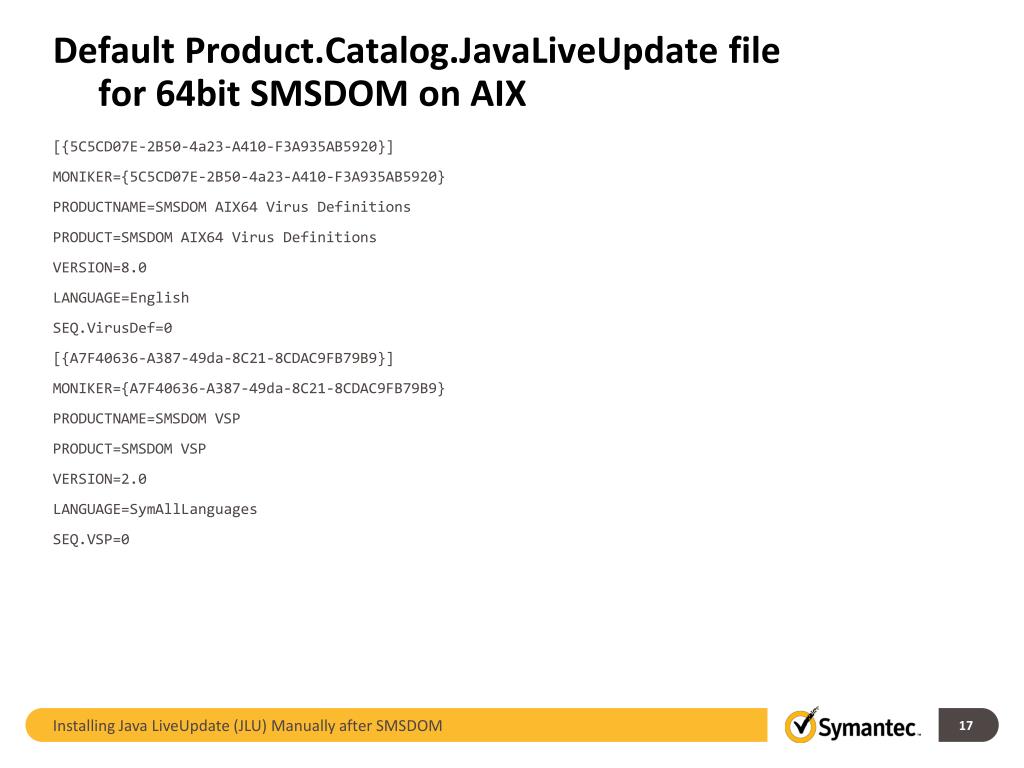

Default Product.Catalog.JavaLiveUpdate file for 64bit SMSDOM on AIX

[{5C5CD07E-2B50-4a23-A410-F3A935AB5920}]

MONIKER={5C5CD07E-2B50-4a23-A410-F3A935AB5920}

PRODUCTNAME=SMSDOM AIX64 Virus Definitions

PRODUCT=SMSDOM AIX64 Virus Definitions

VERSION=8.0

LANGUAGE=English

SEQ.VirusDef=0

[{A7F40636-A387-49da-8C21-8CDAC9FB79B9}]

MONIKER={A7F40636-A387-49da-8C21-8CDAC9FB79B9}

PRODUCTNAME=SMSDOM VSP

PRODUCT=SMSDOM VSP

VERSION=2.0

LANGUAGE=SymAllLanguages

SEQ.VSP=0

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Problems you may encounter

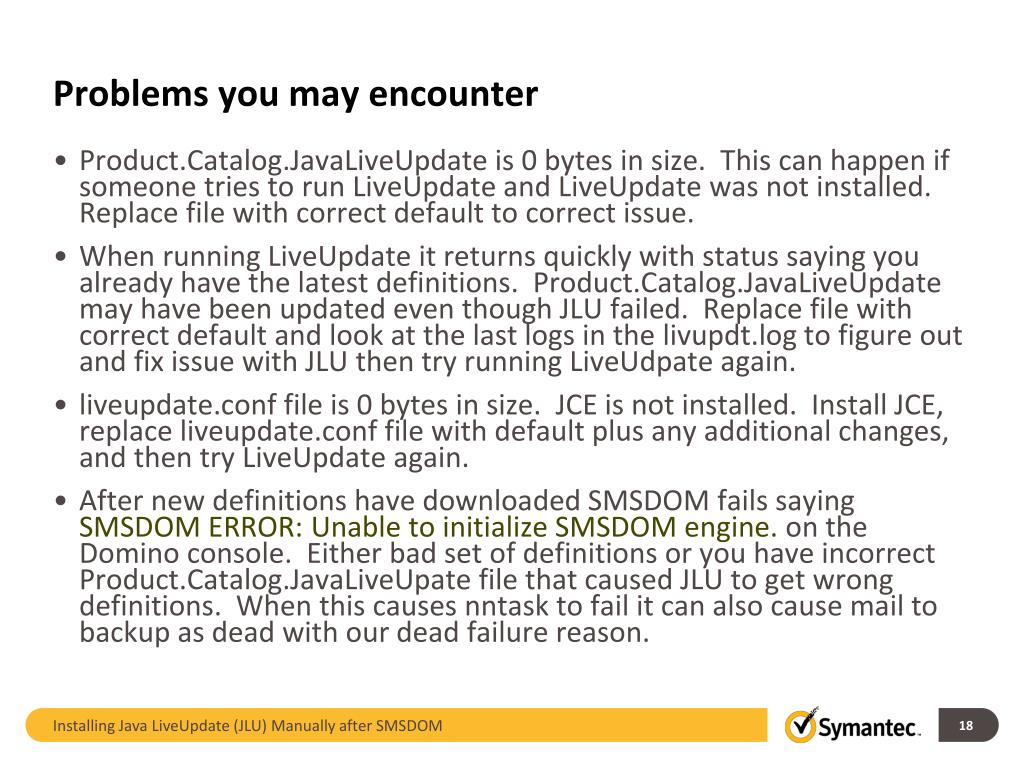

Problems you may encounter

  • Product.Catalog.JavaLiveUpdate is 0 bytes in size. This can happen if someone tries to run LiveUpdate and LiveUpdate was not installed. Replace file with correct default to correct issue.

  • When running LiveUpdate it returns quickly with status saying you already have the latest definitions. Product.Catalog.JavaLiveUpdate may have been updated even though JLU failed. Replace file with correct default and look at the last logs in the livupdt.log to figure out and fix issue with JLU then try running LiveUdpate again.

  • liveupdate.conf file is 0 bytes in size. JCE is not installed. Install JCE, replace liveupdate.conf file with default plus any additional changes, and then try LiveUpdate again.

  • After new definitions have downloaded SMSDOM fails saying SMSDOM ERROR: Unable to initialize SMSDOM engine. on the Domino console. Either bad set of definitions or you have incorrect Product.Catalog.JavaLiveUpate file that caused JLU to get wrong definitions. When this causes nntask to fail it can also cause mail to backup as dead with our dead failure reason.

Installing Java LiveUpdate (JLU) Manually after SMSDOM


Conclusion

Conclusion

There are a lot of variables that can make installing and troubleshooting Java LiveUpdate seem like a difficult task. But really when it comes to just installing after a install of SMSDOM, you just need to install java, jce, jlu, and replace the two configuration files. If you have each of these already in front of you and on the machine intended for this process can be done in just a few minutes.

Essentially the same requirements are needed for AIX without the need for JCE. But you do need good running Java, JLU and configuration files.
