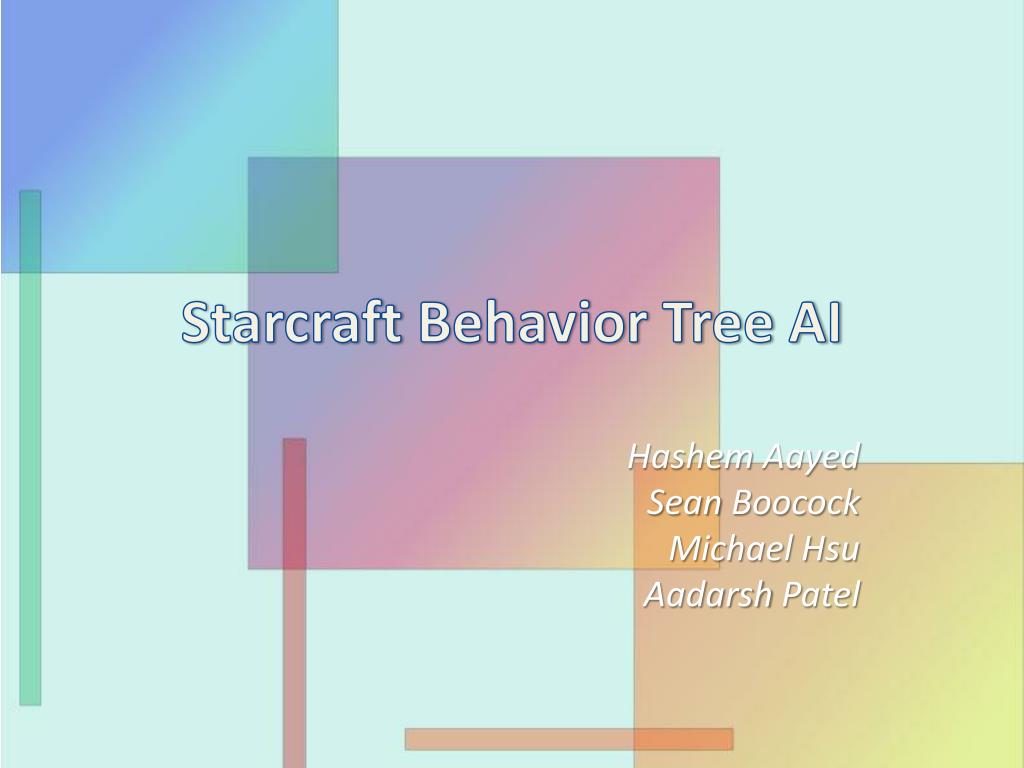

  1. Starcraft Behavior Tree AI HashemAayed Sean Boocock Michael Hsu Aadarsh Patel

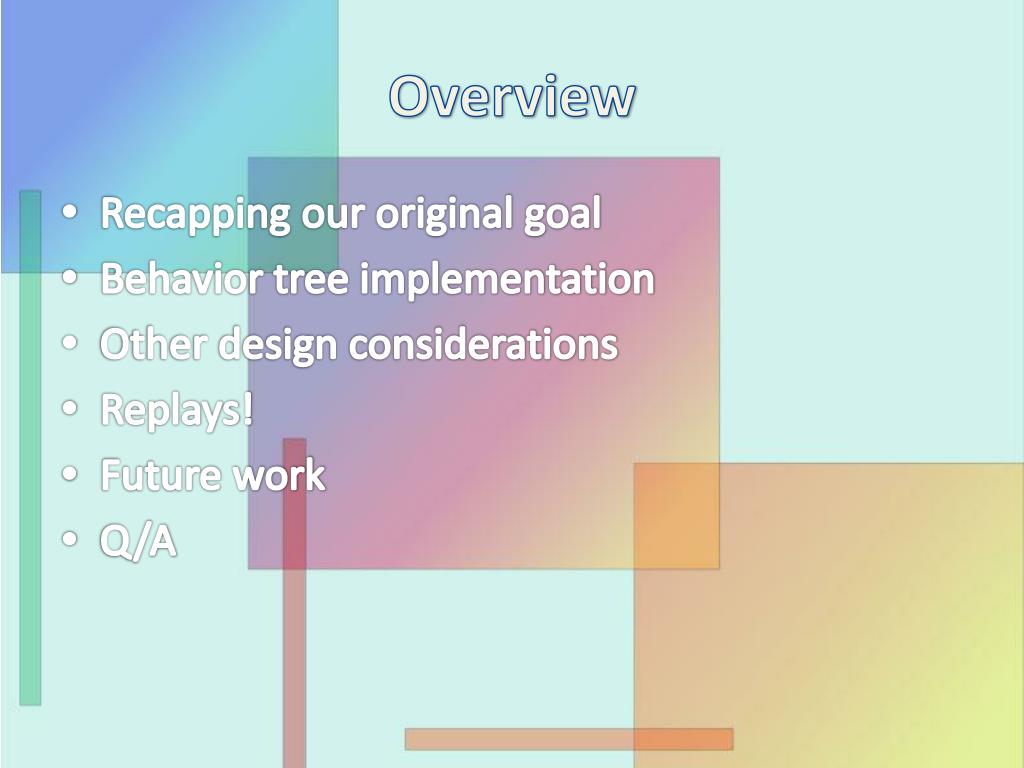

  2. Overview • Recapping our original goal • Behavior tree implementation • Other design considerations • Replays! • Future work • Q/A

  3. Original Goal • Develop an AI capable of playing a full game of Starcraft: Broodwar as the Terran race against other Ais or human opponents and at least at the level of the game’s most difficult, stock AI

  4. Results • Our AI defeats the stock AI the vast majority of the time on arbitrary maps and in all three match types (TvT, TvZ, and TvP) • Has also shown success defending against more gambit style openings like early zergling rushes and Dark Templar rushes • Plays “smart” using recognizable strategies that emerged from the AI priorities, not baked in build orders

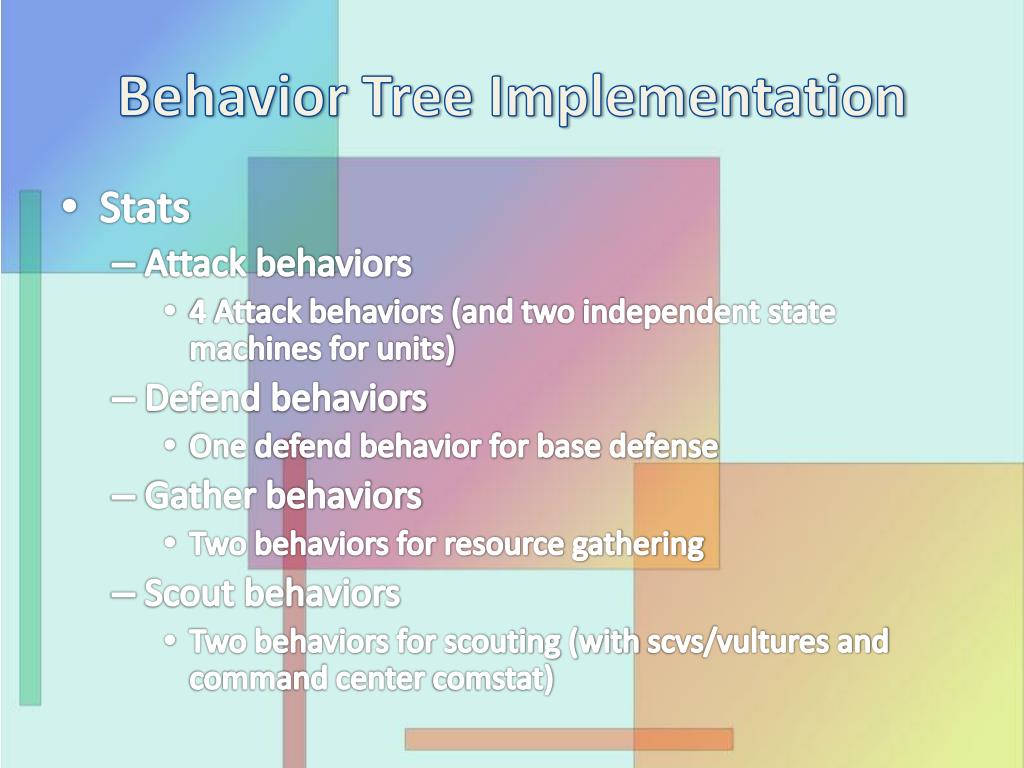

  5. Behavior Tree Implementation • Stats • Attack behaviors • 4 Attack behaviors (and two independent state machines for units) • Defend behaviors • One defend behavior for base defense • Gather behaviors • Two behaviors for resource gathering • Scout behaviors • Two behaviors for scouting (with scvs/vultures and command center comstat)

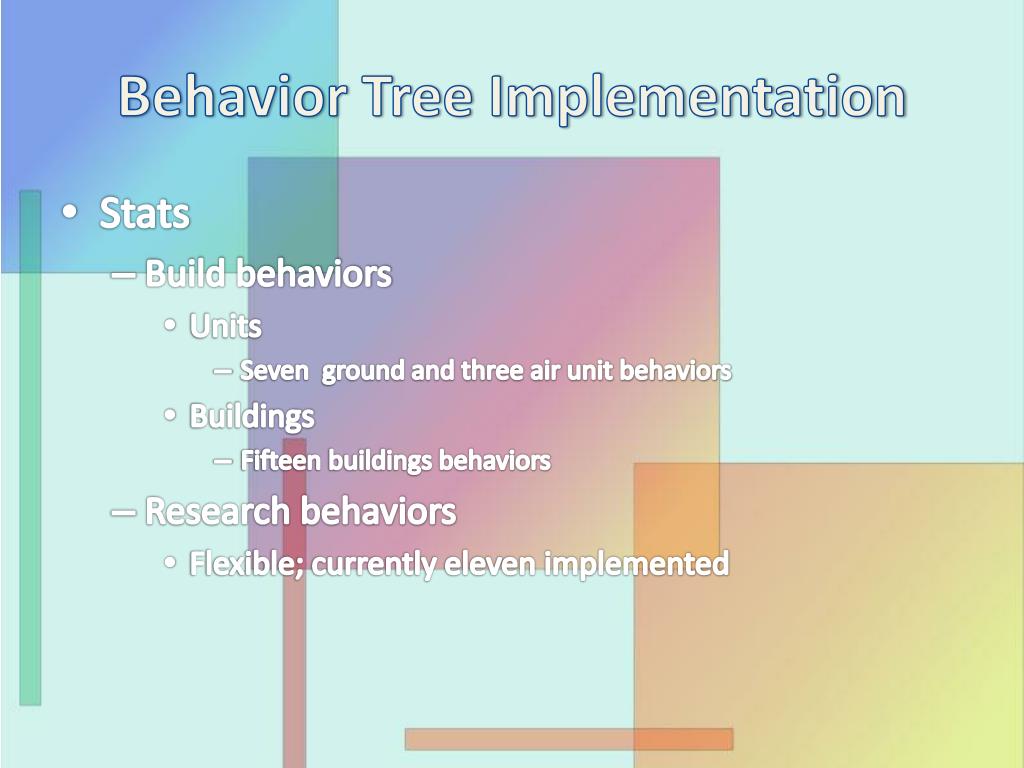

  6. Behavior Tree Implementation • Stats • Build behaviors • Units • Seven ground and three air unit behaviors • Buildings • Fifteen buildings behaviors • Research behaviors • Flexible; currently eleven implemented

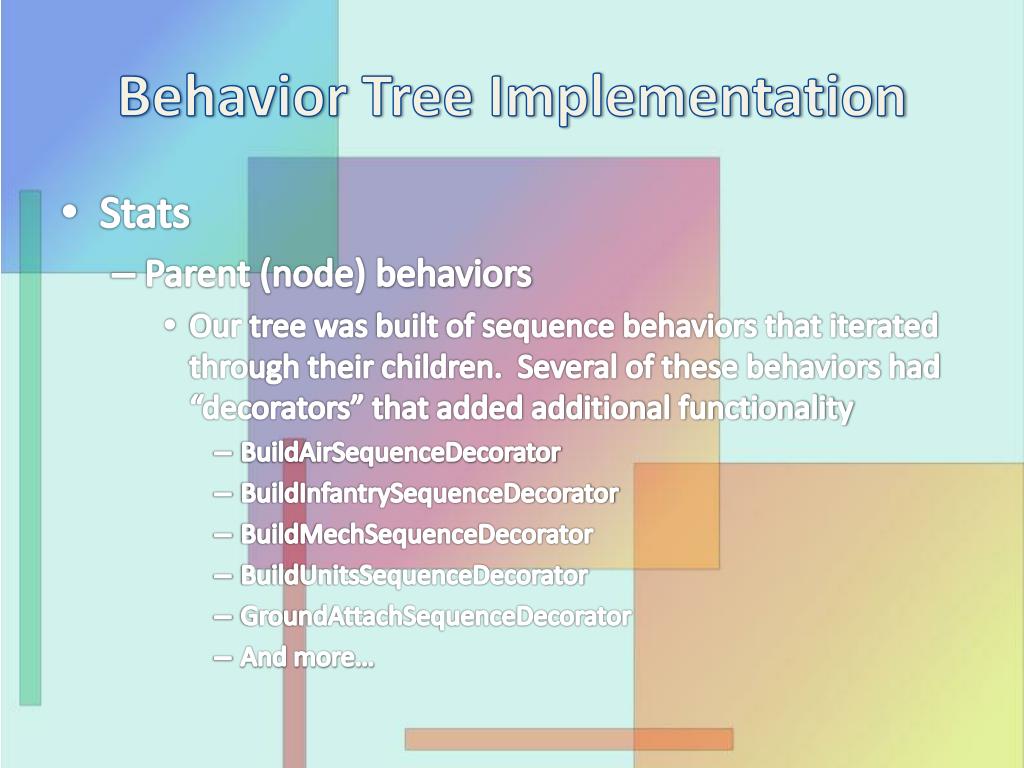

  7. Behavior Tree Implementation • Stats • Parent (node) behaviors • Our tree was built of sequence behaviors that iterated through their children. Several of these behaviors had “decorators” that added additional functionality • BuildAirSequenceDecorator • BuildInfantrySequenceDecorator • BuildMechSequenceDecorator • BuildUnitsSequenceDecorator • GroundAttachSequenceDecorator • And more…

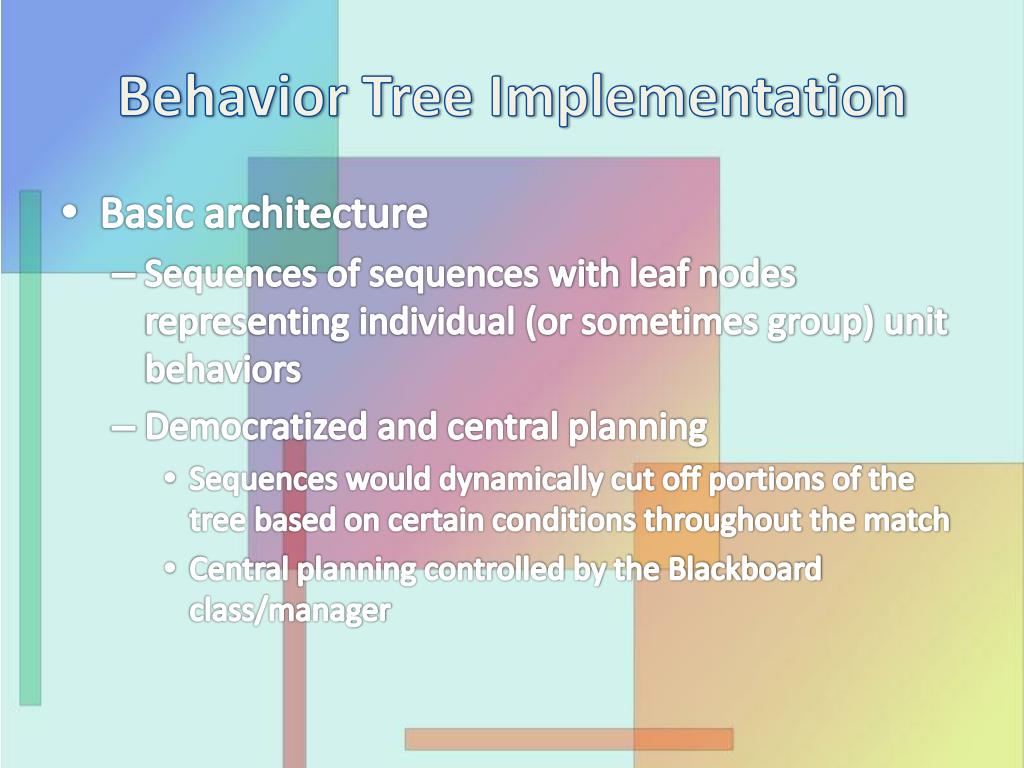

  8. Behavior Tree Implementation • Basic architecture • Sequences of sequences with leaf nodes representing individual (or sometimes group) unit behaviors • Democratized and central planning • Sequences would dynamically cut off portions of the tree based on certain conditions throughout the match • Central planning controlled by the Blackboard class/manager

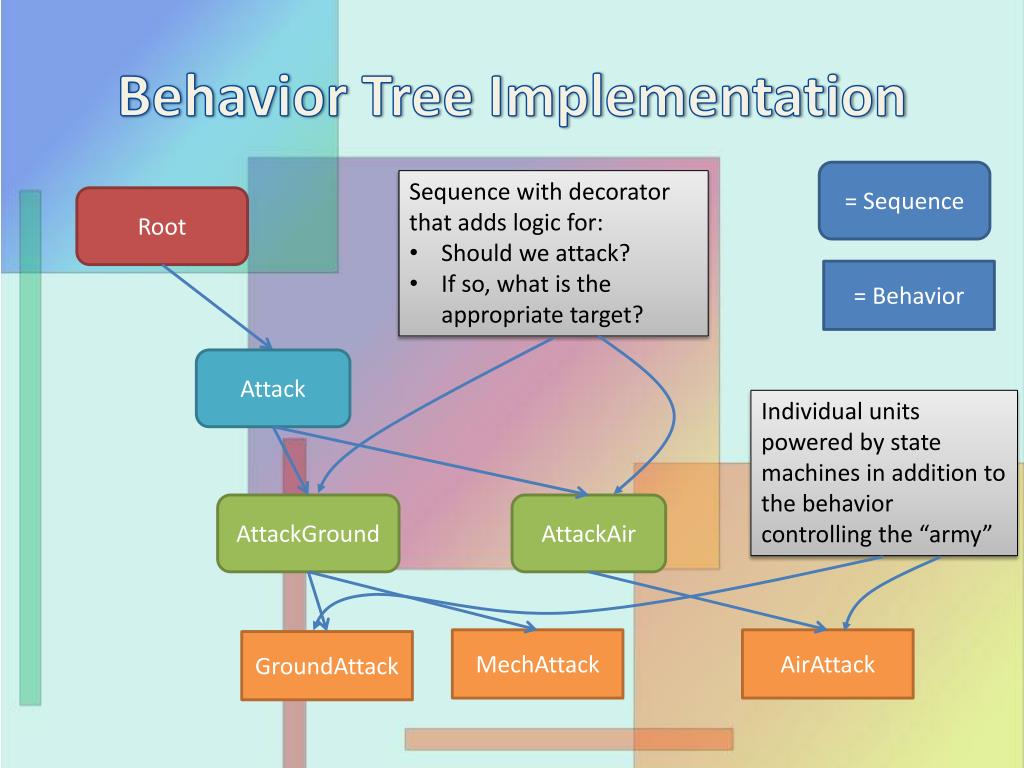

  9. Behavior Tree Implementation = Sequence • Sequence with decorator that adds logic for: • Should we attack? • If so, what is the appropriate target? Root = Behavior Attack Individual units powered by state machines in addition to the behavior controlling the “army” AttackGround AttackAir MechAttack AirAttack GroundAttack

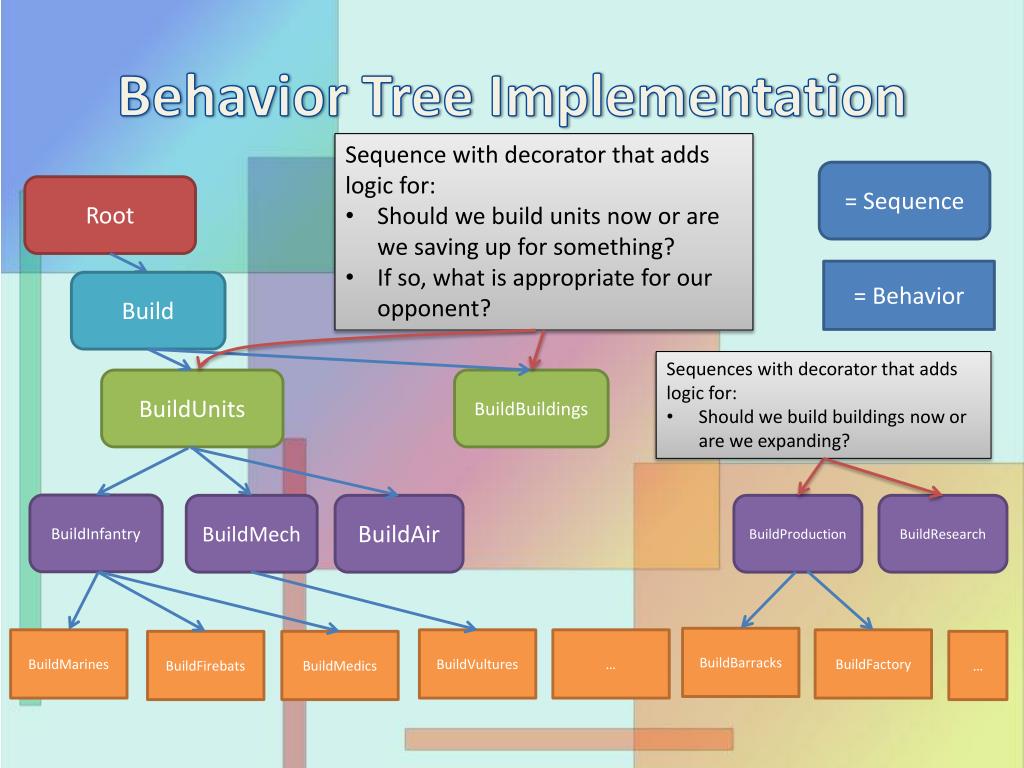

  10. Behavior Tree Implementation • Sequence with decorator that adds logic for: • Should we build units now or are we saving up for something? • If so, what is appropriate for our opponent? = Sequence Root = Behavior Build • Sequences with decorator that adds logic for: • Should we build buildings now or are we expanding? BuildUnits BuildBuildings BuildInfantry BuildMech BuildAir BuildProduction BuildResearch BuildBarracks BuildMarines BuildVultures … BuildFactory BuildFirebats BuildMedics …

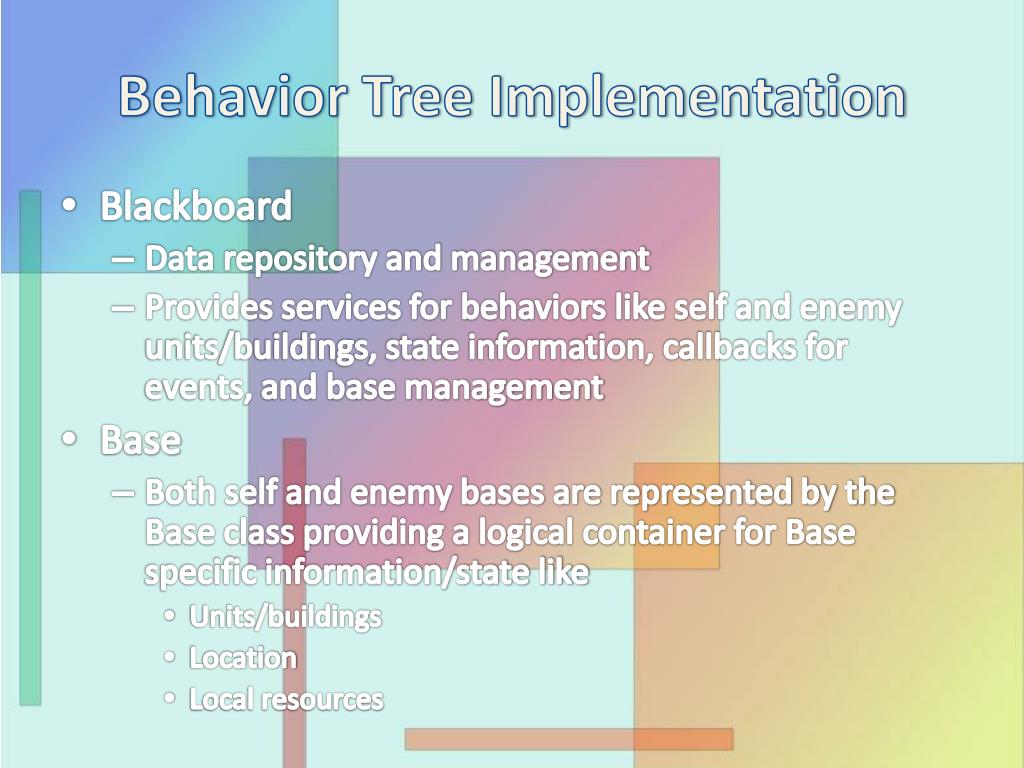

  11. Behavior Tree Implementation • Blackboard • Data repository and management • Provides services for behaviors like self and enemy units/buildings, state information, callbacks for events, and base management • Base • Both self and enemy bases are represented by the Base class providing a logical container for Base specific information/state like • Units/buildings • Location • Local resources

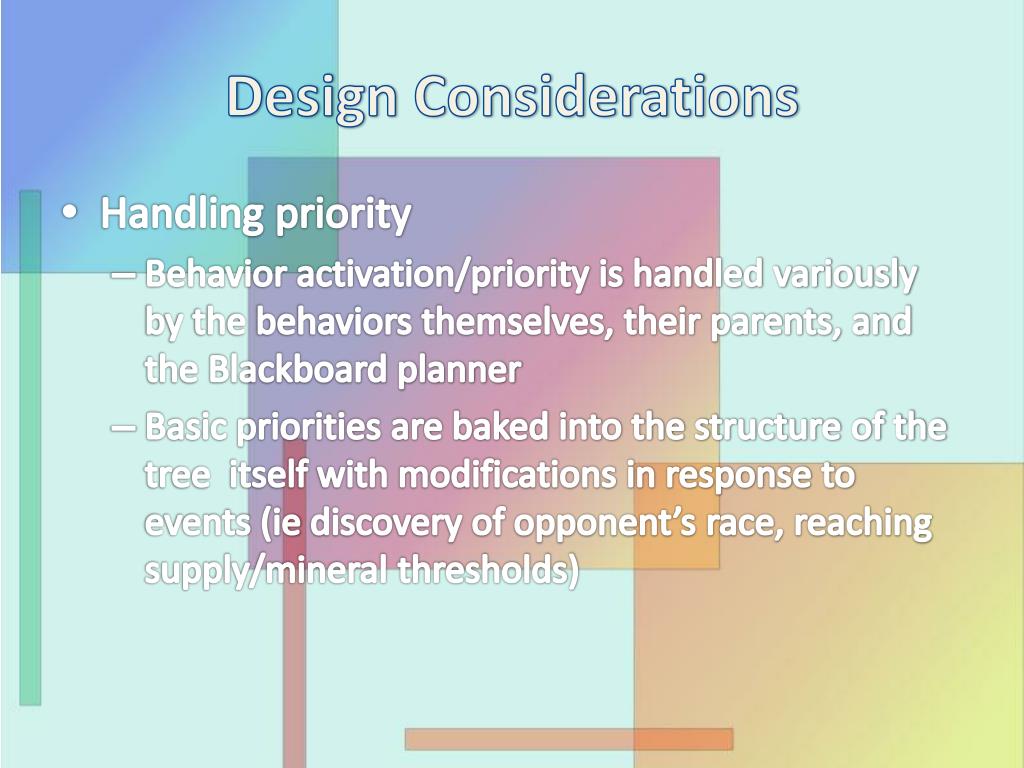

  12. Design Considerations • Handling priority • Behavior activation/priority is handled variously by the behaviors themselves, their parents, and the Blackboard planner • Basic priorities are baked into the structure of the tree itself with modifications in response to events (ie discovery of opponent’s race, reaching supply/mineral thresholds)

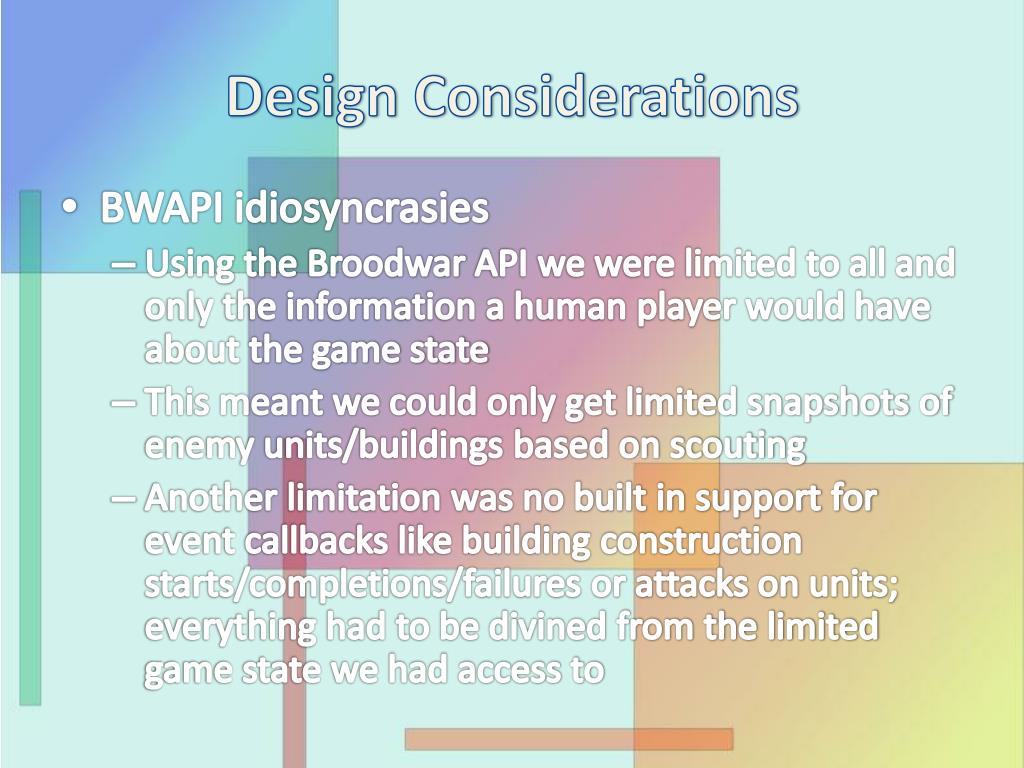

  13. Design Considerations • BWAPI idiosyncrasies • Using the Broodwar API we were limited to all and only the information a human player would have about the game state • This meant we could only get limited snapshots of enemy units/buildings based on scouting • Another limitation was no built in support for event callbacks like building construction starts/completions/failures or attacks on units; everything had to be divined from the limited game state we had access to

  14. Replays

  15. Future work • Rearchitect parts of the implementation to expose as many tunable parameters as possible • Refine our implementation of proxy bot, a java server/client wrapper for BWAPI, to run randomized instances of our AI against each other and train them with a genetic algorithm

  16. Q/A Thanks for listening
