A scalable cache based queue management subsystem for network processors

A Scalable, Cache-Based Queue Management Subsystem for Network Processors

Sailesh Kumar, Patrick Crowley

Dept. of Computer Science and Engineering


Packet processing systems

Packet processing systems

  • ASIC based

    • High performance

    • Low configurability

    • May be expensive when volumes are low

  • Network processors (NP) based

    • Very high degree of configurability

    • High volumes can result in low cost

    • Challenges in matching the ASIC performance

  • In this paper we concentrate on queuing bottlenecks associated with NP based packet processors

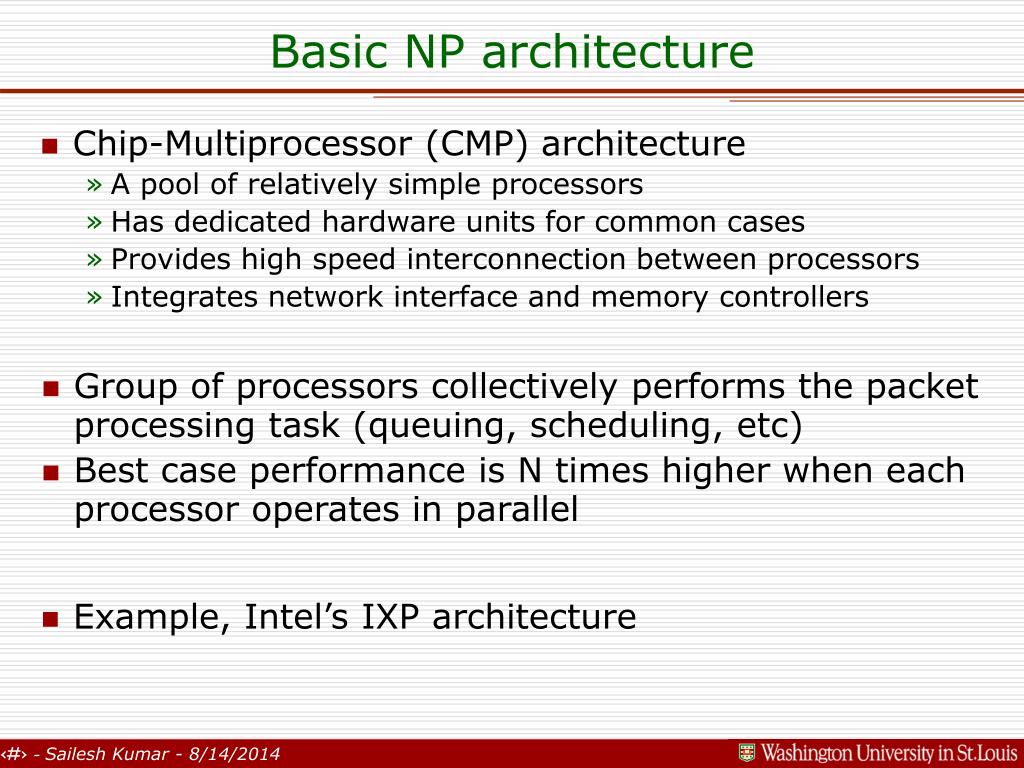

Basic np architecture

Basic NP architecture

  • Chip-Multiprocessor (CMP) architecture

    • A pool of relatively simple processors

    • Has dedicated hardware units for common cases

    • Provides high speed interconnection between processors

    • Integrates network interface and memory controllers

  • Group of processors collectively performs the packet processing task (queuing, scheduling, etc)

  • Best case performance is N times higher when each processor operates in parallel

  • Example, Intel’s IXP architecture

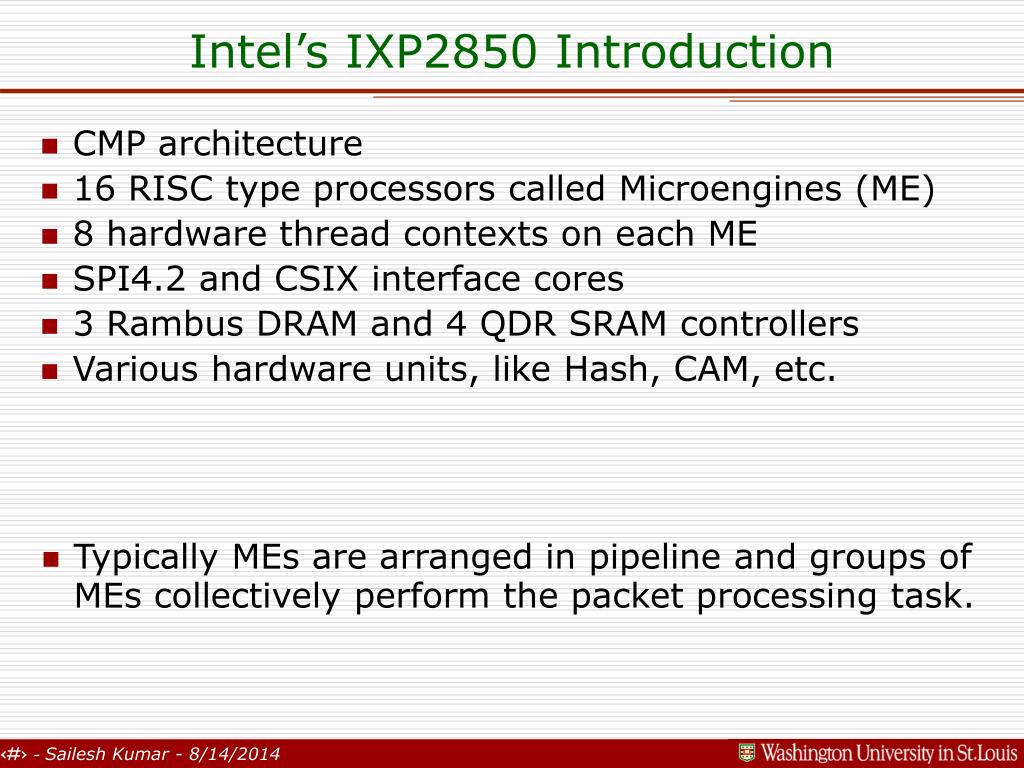

Intel s ixp2850 introduction

Intel’s IXP2850 Introduction

  • CMP architecture

  • 16 RISC type processors called Microengines (ME)

  • 8 hardware thread contexts on each ME

  • SPI4.2 and CSIX interface cores

  • 3 Rambus DRAM and 4 QDR SRAM controllers

  • Various hardware units, like Hash, CAM, etc.

  • Typically MEs are arranged in pipeline and groups of MEs collectively perform the packet processing task.

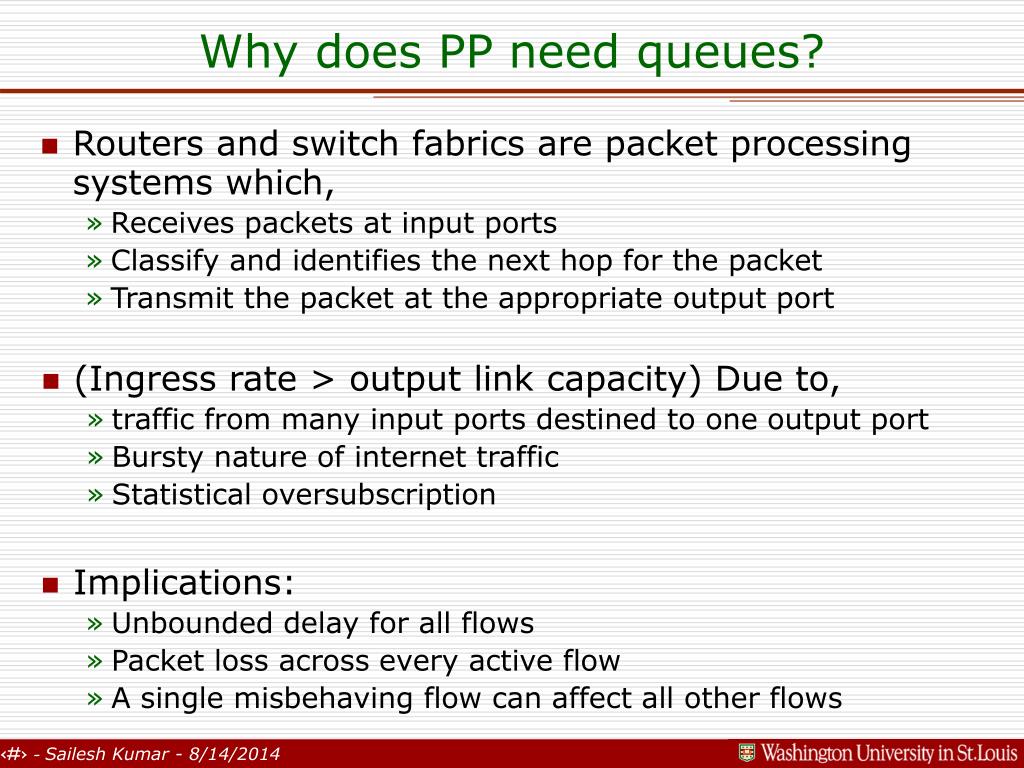

Why does pp need queues

Why does PP need queues?

  • Routers and switch fabrics are packet processing systems which,

    • Receives packets at input ports

    • Classify and identifies the next hop for the packet

    • Transmit the packet at the appropriate output port

  • (Ingress rate > output link capacity) Due to,

    • traffic from many input ports destined to one output port

    • Bursty nature of internet traffic

    • Statistical oversubscription

  • Implications:

    • Unbounded delay for all flows

    • Packet loss across every active flow

    • A single misbehaving flow can affect all other flows


Solution

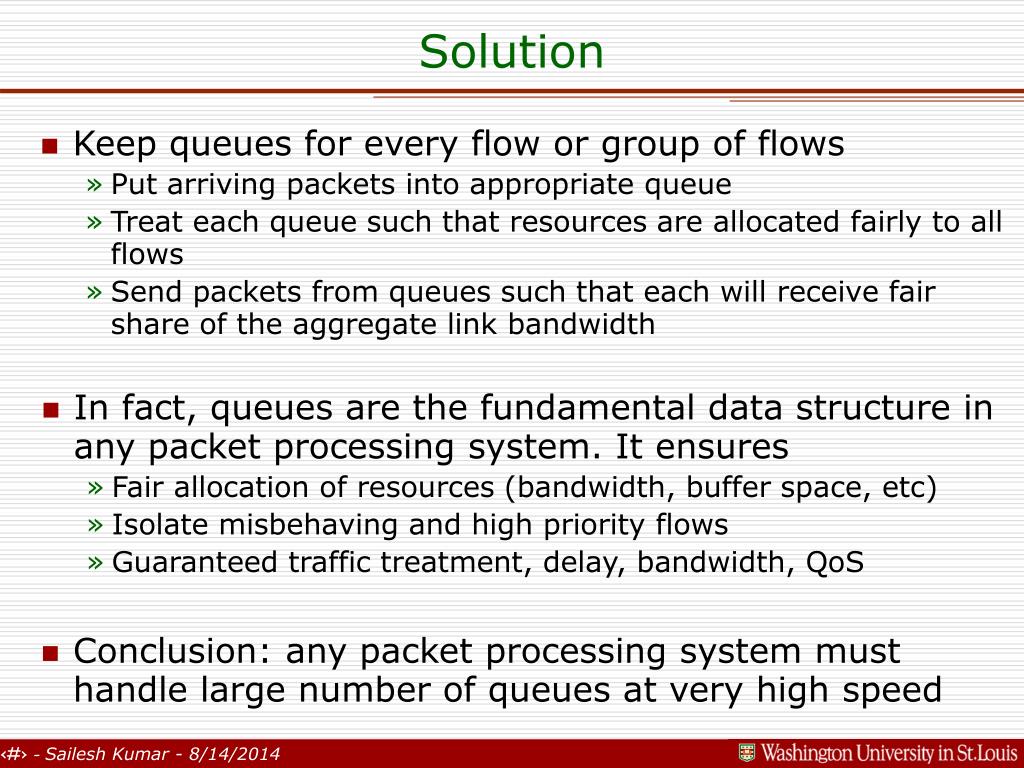

Solution

  • Keep queues for every flow or group of flows

    • Put arriving packets into appropriate queue

    • Treat each queue such that resources are allocated fairly to all flows

    • Send packets from queues such that each will receive fair share of the aggregate link bandwidth

  • In fact, queues are the fundamental data structure in any packet processing system. It ensures

    • Fair allocation of resources (bandwidth, buffer space, etc)

    • Isolate misbehaving and high priority flows

    • Guaranteed traffic treatment, delay, bandwidth, QoS

  • Conclusion: any packet processing system must handle large number of queues at very high speed

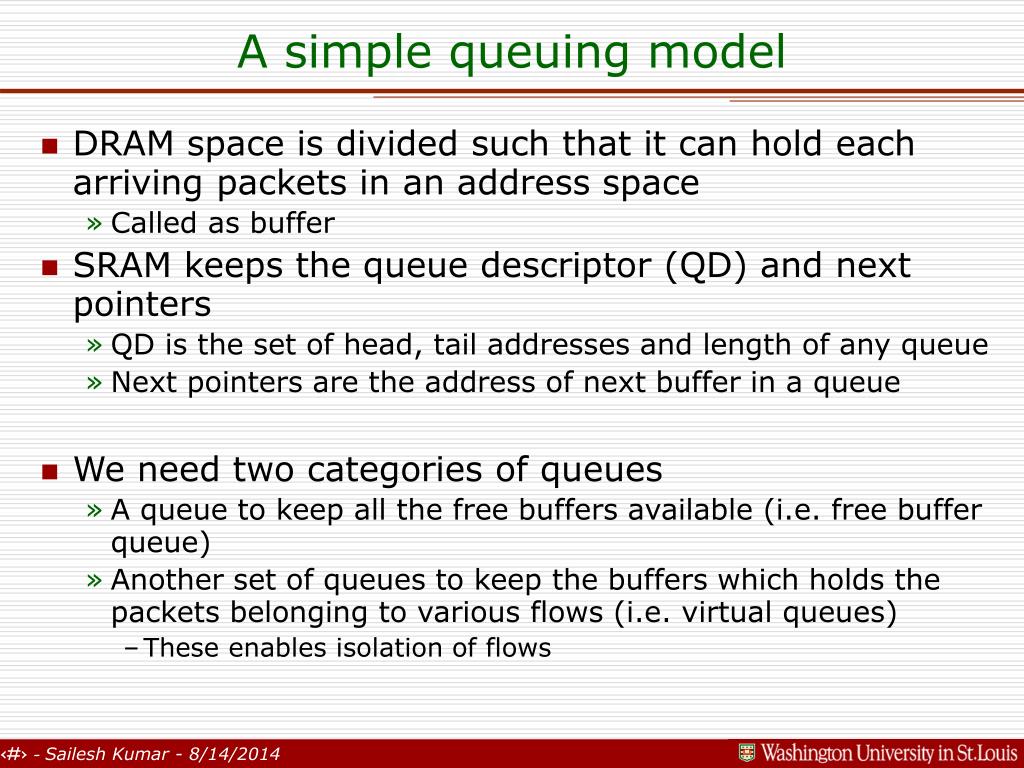

A simple queuing model

A simple queuing model

  • DRAM space is divided such that it can hold each arriving packets in an address space

    • Called as buffer

  • SRAM keeps the queue descriptor (QD) and next pointers

    • QD is the set of head, tail addresses and length of any queue

    • Next pointers are the address of next buffer in a queue

  • We need two categories of queues

    • A queue to keep all the free buffers available (i.e. free buffer queue)

    • Another set of queues to keep the buffers which holds the packets belonging to various flows (i.e. virtual queues)

      • These enables isolation of flows

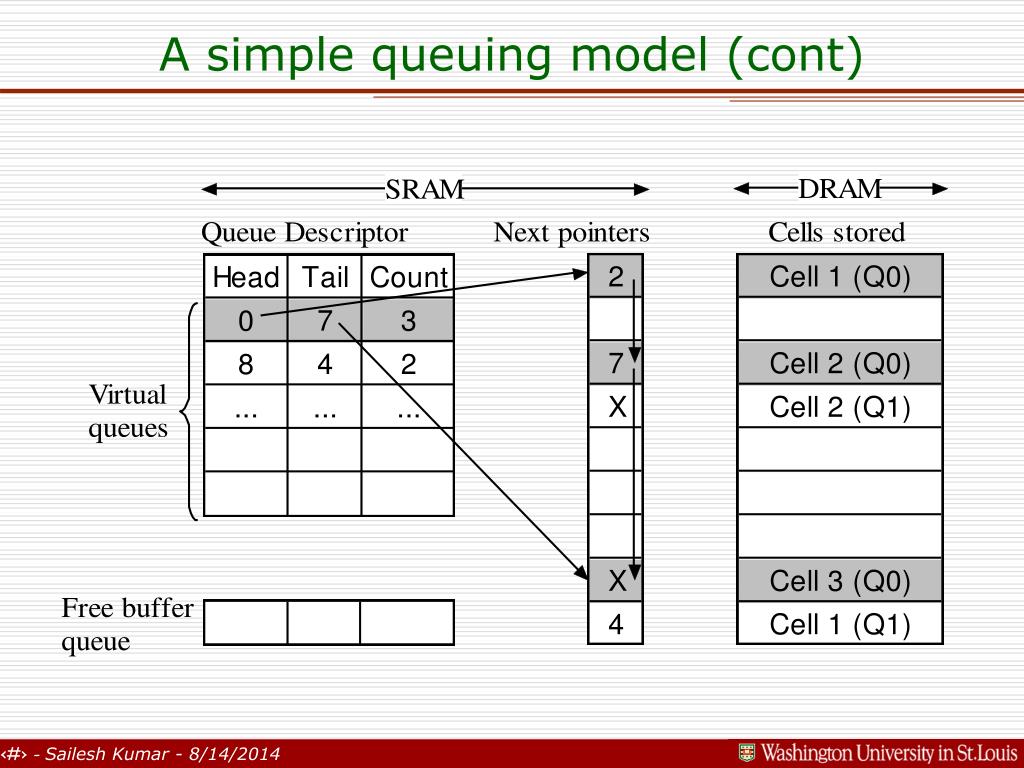

A simple queuing model cont

A simple queuing model (cont)


Queuing operation

Queuing Operation

  • For each arriving packet

    • A buffer is dequeued from the free buffer queue

    • Packet is written into it

    • Buffer is enqueued into the appropriate queue

    • Queue descriptors are updated

  • Thus enqueue operation into any queue involves

    • Update of free queue descriptor

      • Read followed by write

    • Update of virtual queue descriptor

      • Read followed by write

  • Free queue descriptor is kept on-chip, so updates fast

  • However, virtual queue descriptors are off-chip and hence their updates are slow


Queuing operation in a np

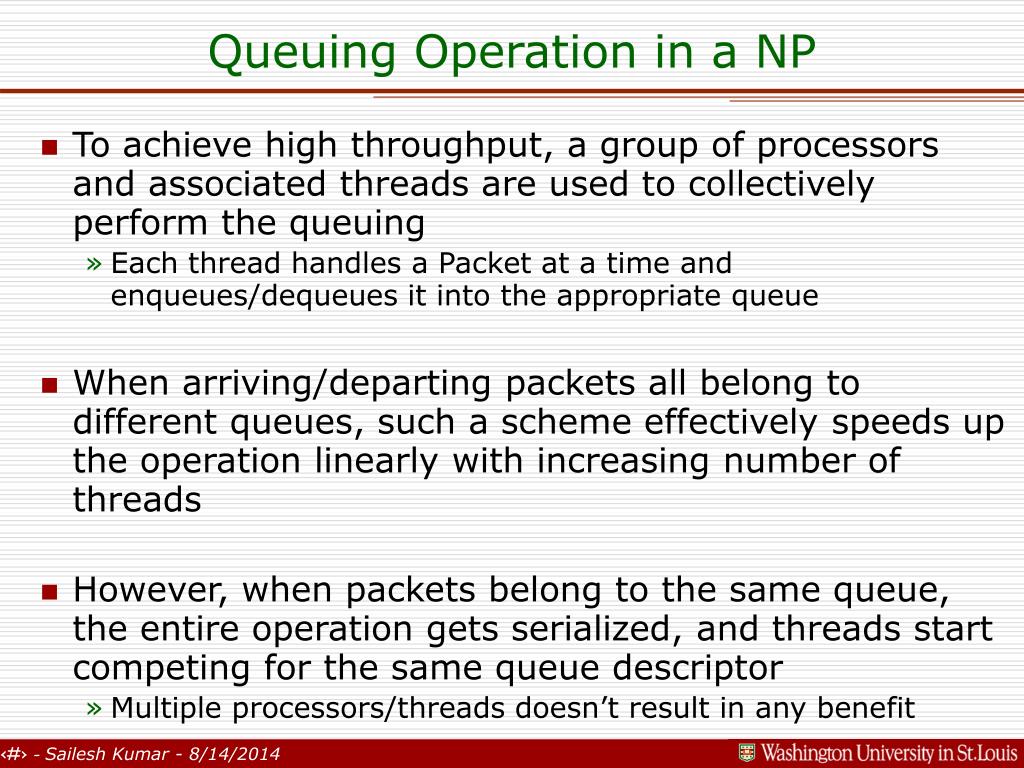

Queuing Operation in a NP

  • To achieve high throughput, a group of processors and associated threads are used to collectively perform the queuing

    • Each thread handles a Packet at a time and enqueues/dequeues it into the appropriate queue

  • When arriving/departing packets all belong to different queues, such a scheme effectively speeds up the operation linearly with increasing number of threads

  • However, when packets belong to the same queue, the entire operation gets serialized, and threads start competing for the same queue descriptor

    • Multiple processors/threads doesn’t result in any benefit


Operation

Operation

  • If all threads access different queues

Thread 0

Read QD A

Update

Write QD B

Update

Write QD A

Read QD B

Thread 1

Read QD C

Update

Update

Write QD C

Read QD D

Thread 2

Read QD E

Read QD F

Update

Write QD E

Thread x

Update

Write QD G

Read QD G

Read QD H

  • What if all threads access the same queue

Thread 0

Update

Write QD A

Read QD A

Wait

Thread 1

Wait for thread 0

Read QD A

Update

Write QD A

Thread 2

Wait

Thread x

Wait

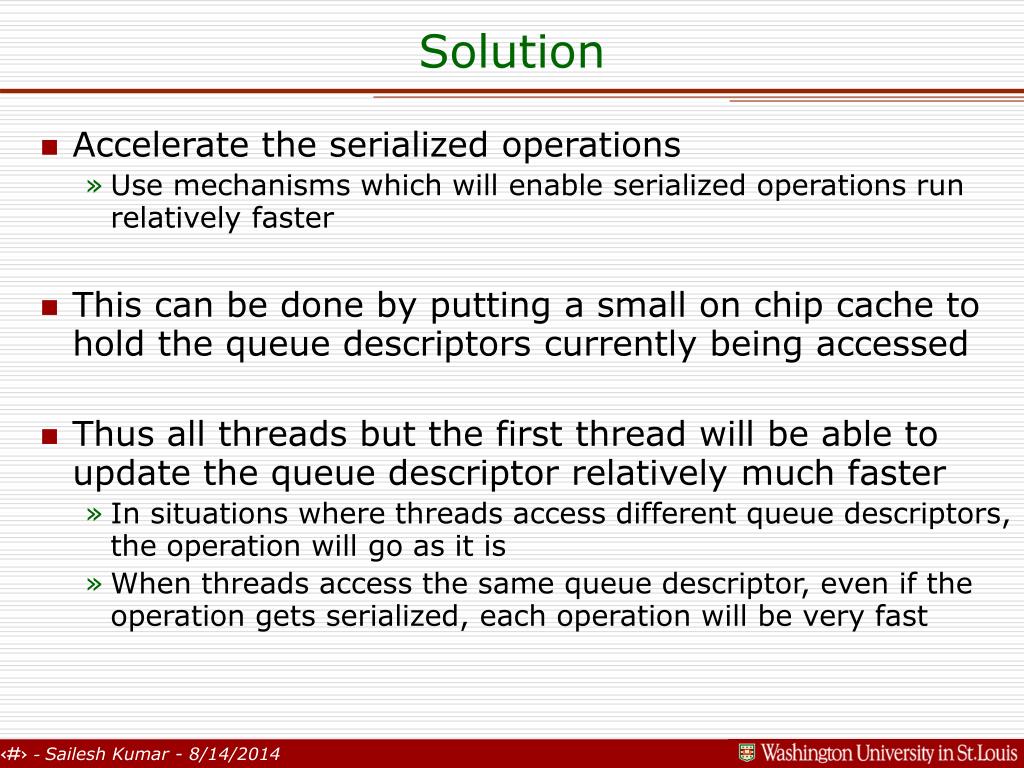

Solution1

Solution

  • Accelerate the serialized operations

    • Use mechanisms which will enable serialized operations run relatively faster

  • This can be done by putting a small on chip cache to hold the queue descriptors currently being accessed

  • Thus all threads but the first thread will be able to update the queue descriptor relatively much faster

    • In situations where threads access different queue descriptors, the operation will go as it is

    • When threads access the same queue descriptor, even if the operation gets serialized, each operation will be very fast

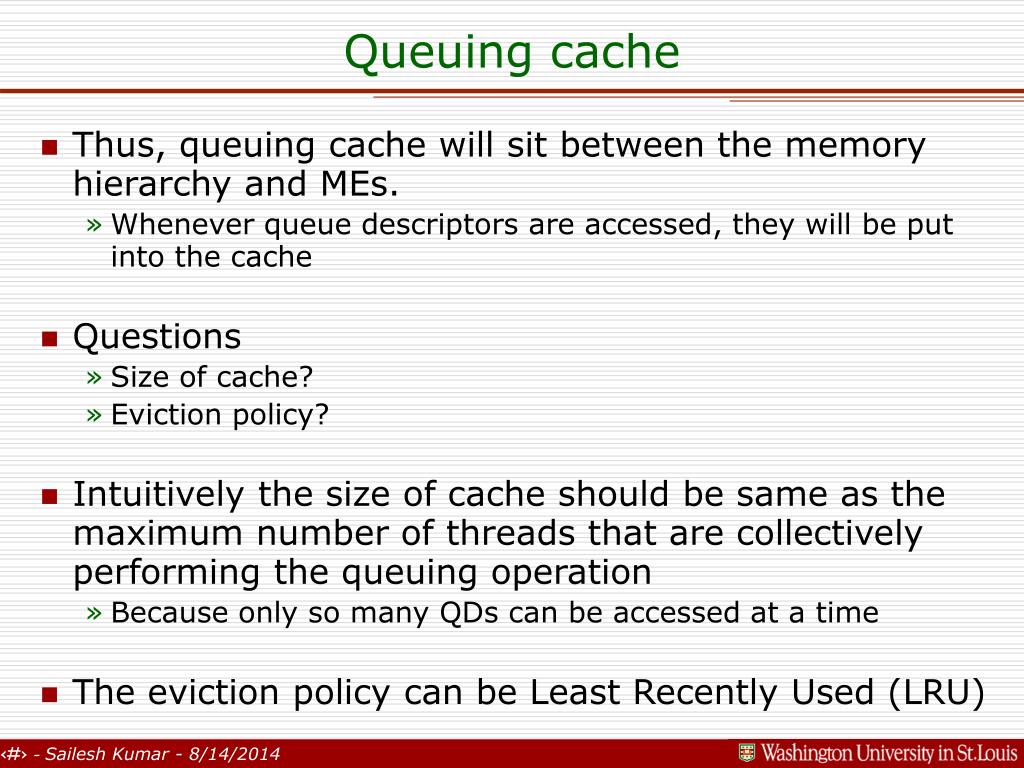

Queuing cache

Queuing cache

  • Thus, queuing cache will sit between the memory hierarchy and MEs.

    • Whenever queue descriptors are accessed, they will be put into the cache

  • Questions

    • Size of cache?

    • Eviction policy?

  • Intuitively the size of cache should be same as the maximum number of threads that are collectively performing the queuing operation

    • Because only so many QDs can be accessed at a time

  • The eviction policy can be Least Recently Used (LRU)


Operation with queuing cache

Operation with queuing cache

  • If all threads access different queues

Thread 0

Read QD A

Update

Write QD LRU

Update

Write QD LRU

Read QD B

Thread 1

Read QD C

Update

Update

Write QD LRU

Read QD D

Thread 2

Read QD E

Read QD F

Update

Write QD LRU

Thread x

Update

Write QD LRU

Read QD G

Read QD H

  • If all threads access the same queue

Thread 0

Update

Update

Read QD A

Wait

Thread 1

Update

Update

Wait for QD A

Wait

Thread 2

Wait

Update

Wait

Thread x

Wait

Update

Wait


Performance comparison

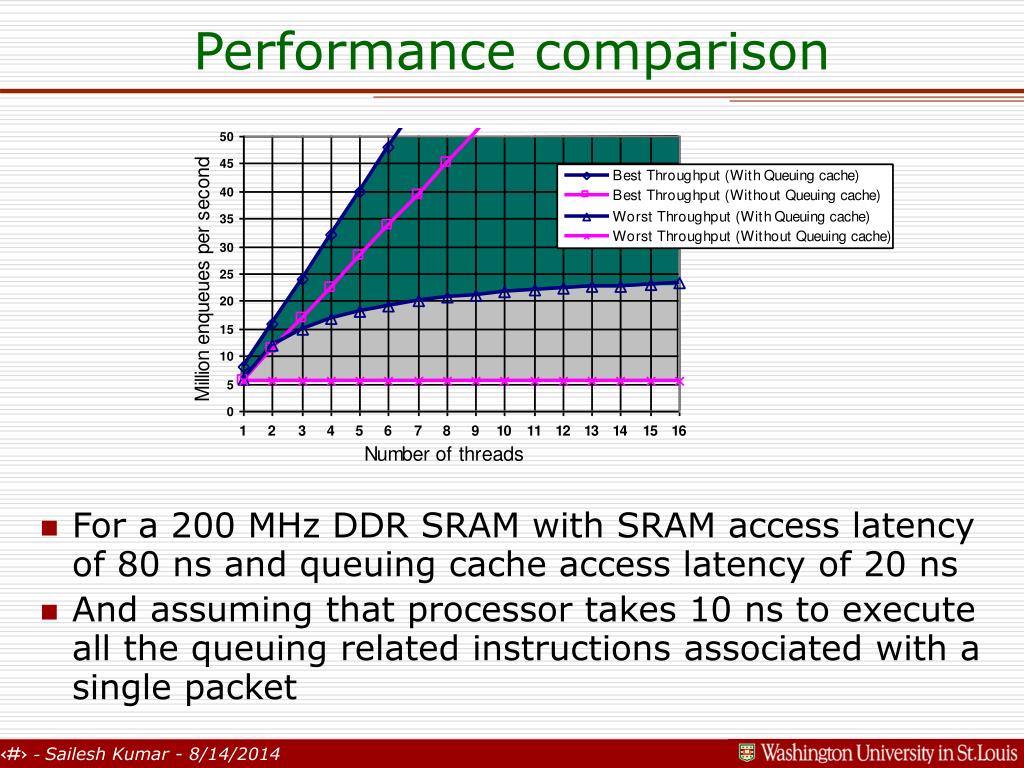

Performance comparison

  • For a 200 MHz DDR SRAM with SRAM access latency of 80 ns and queuing cache access latency of 20 ns

  • And assuming that processor takes 10 ns to execute all the queuing related instructions associated with a single packet


Our design approach

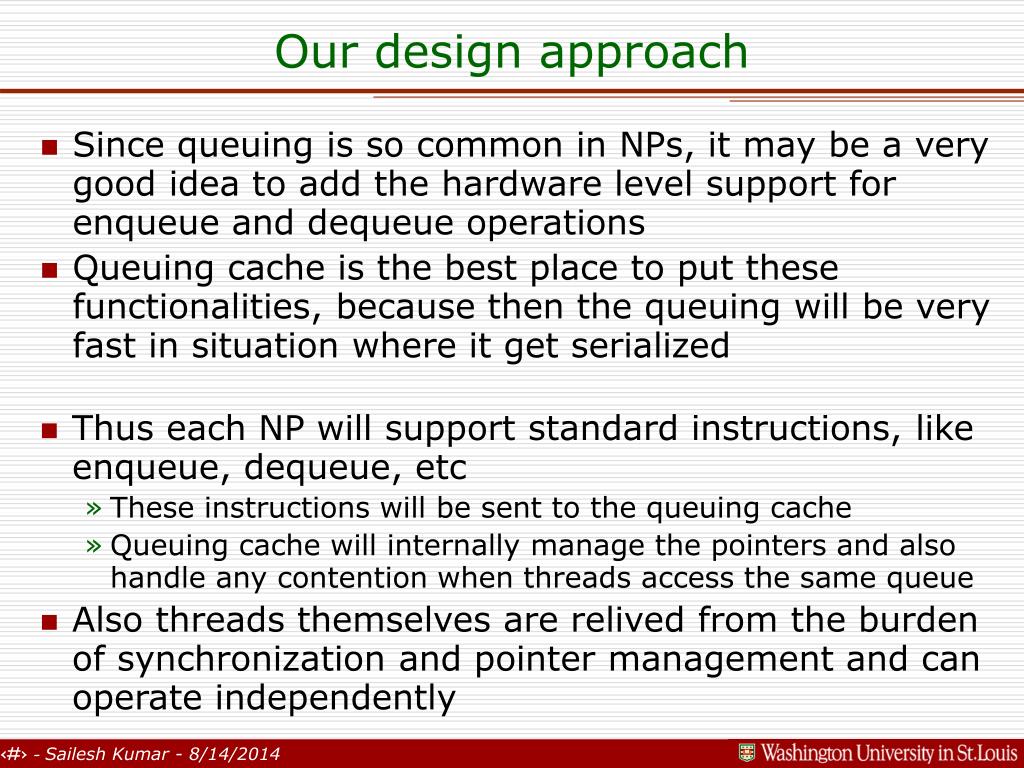

Our design approach

  • Since queuing is so common in NPs, it may be a very good idea to add the hardware level support for enqueue and dequeue operations

  • Queuing cache is the best place to put these functionalities, because then the queuing will be very fast in situation where it get serialized

  • Thus each NP will support standard instructions, like enqueue, dequeue, etc

    • These instructions will be sent to the queuing cache

    • Queuing cache will internally manage the pointers and also handle any contention when threads access the same queue

  • Also threads themselves are relived from the burden of synchronization and pointer management and can operate independently

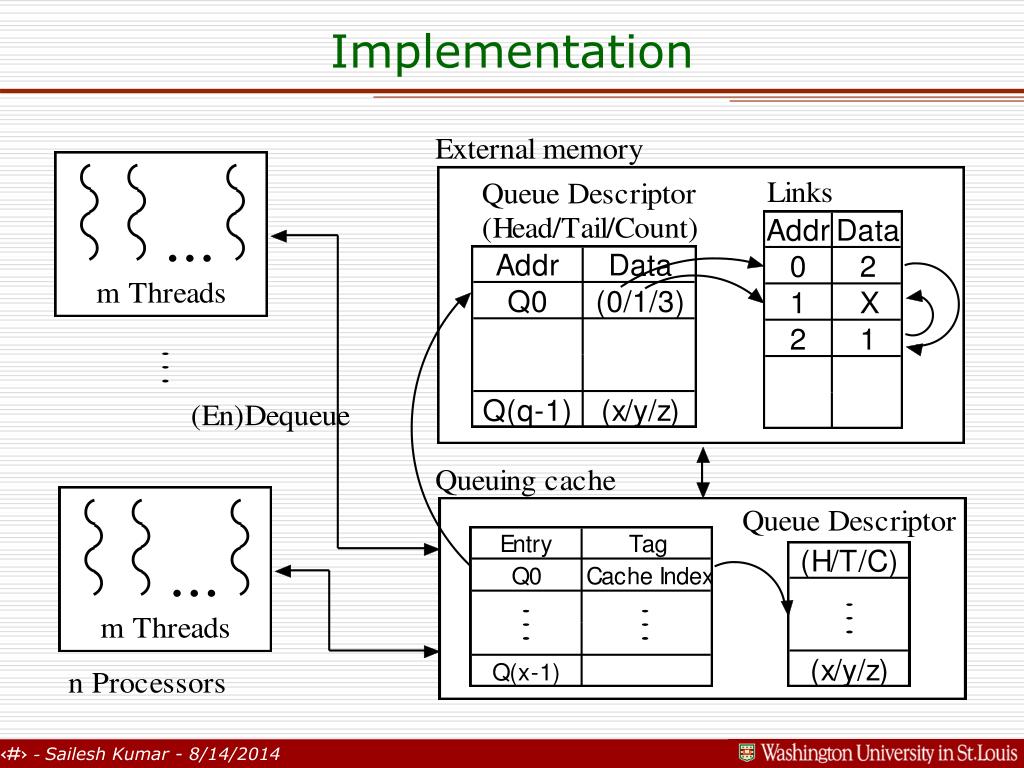

Implementation

Implementation


Intel s approach

Intel’s Approach

  • Intel’s second-generation IXP network processors have support for queuing via,

    • SRAM controller, which holds queue descriptors and implements queuing operations, and

    • MEs, which support enqueue and dequeue instructions

  • Caching of queue descriptors is implemented using

    • A Q-array in memory controller

    • Any queuing operation precedes a transfer of queue descriptors from SRAM to Q-array

    • A CAM in kept in each ME

      • To keep track of which QD are cached and their position in the Q-array

  • CAM supports LRU which is used to evict entries from the Q-array


Comparison

Comparison

  • Reduced instruction count on each processor

    • If we move all the logic associated with the enqueues and dequeues to the queuing cache, software may become simple

  • Simple and modular software code for queuing tasks

    • No need for synchronization, etc

  • Queuing cache built near the memory controller results in significantly reduced on chip communication

    • Since queuing cache handles the pointer processing as well, the processors needn’t fetch the queue descriptors at all

    • Only communication between processors and queuing cache is instruction exchange

  • More scalable

    • Any number of MEs can participate in queuing

    • No local CAM per ME needed unlike Intel’s IXP approach


Conclusion

Conclusion

  • Contributions

    • Brief qualitative and quantitative analysis of queuing cache

    • A proposal for efficient and scalable design

  • Future work

    • Comparison to other caching technique

    • Implementation to measure the real complexity

  • We believe that such a cache based centralized queuing hardware unit will make the future network processors more

    • Scalable and

    • Easy to program

  • Questions?
