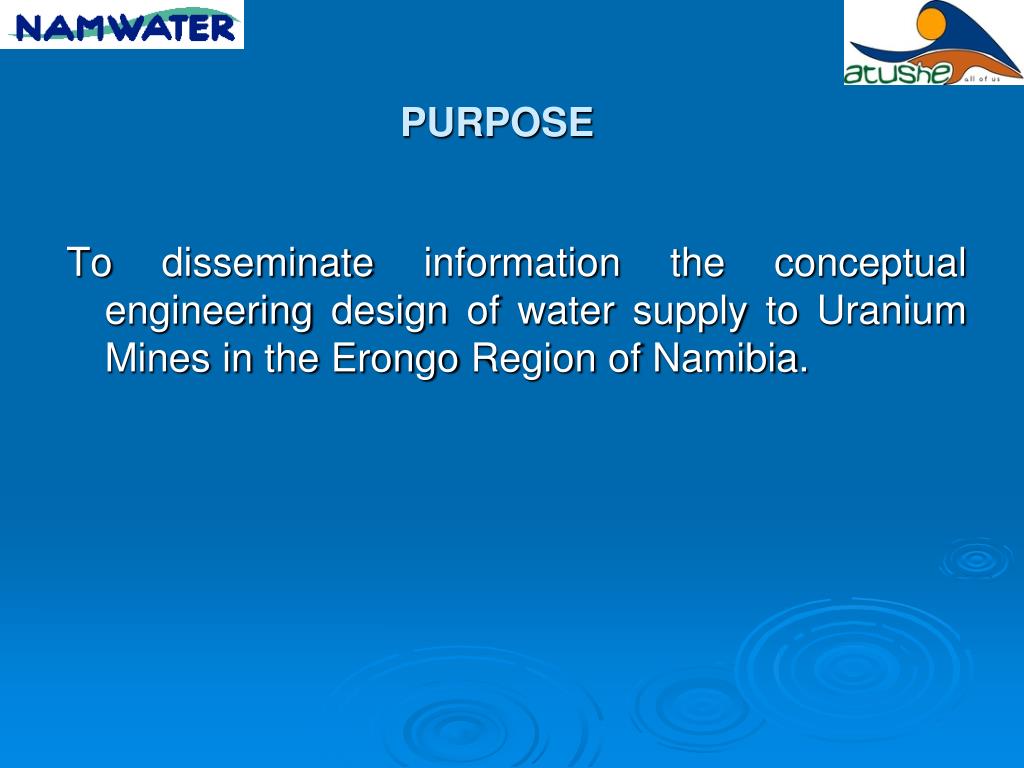

Purpose
PURPOSE NAMIBIA

To disseminate information the conceptual engineering design of water supply to Uranium Mines in the Erongo Region of Namibia.

.


Topics
TOPICS NAMIBIA

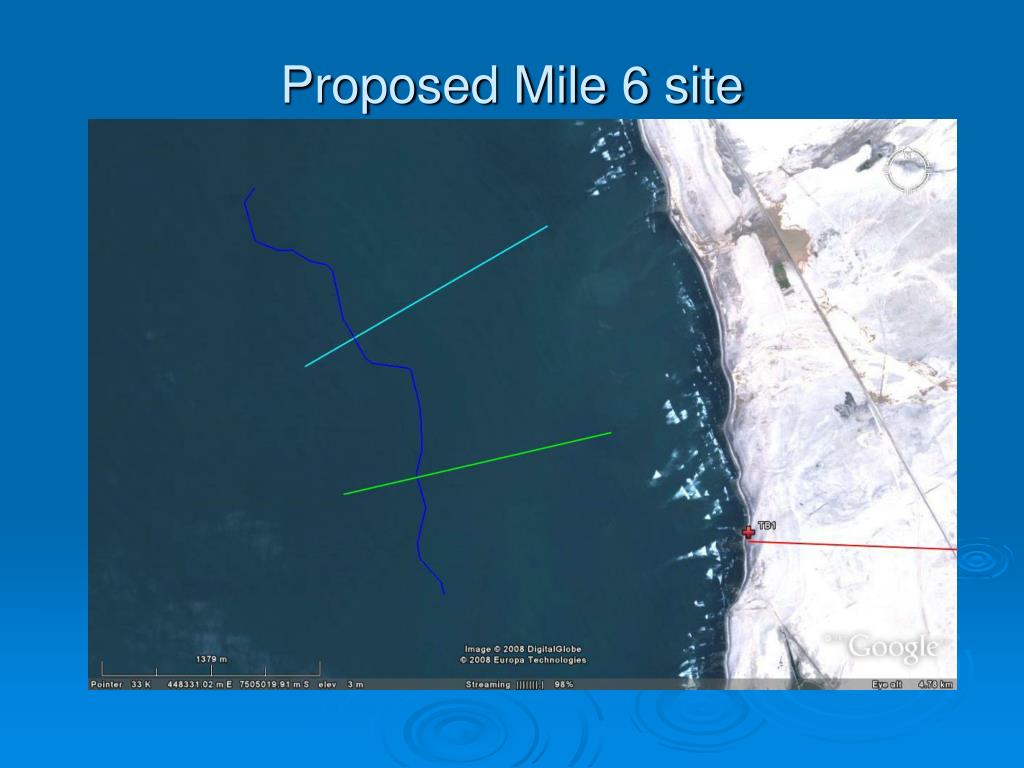

  • Proposed site

  • Conceptual layout

  • Process flow diagram

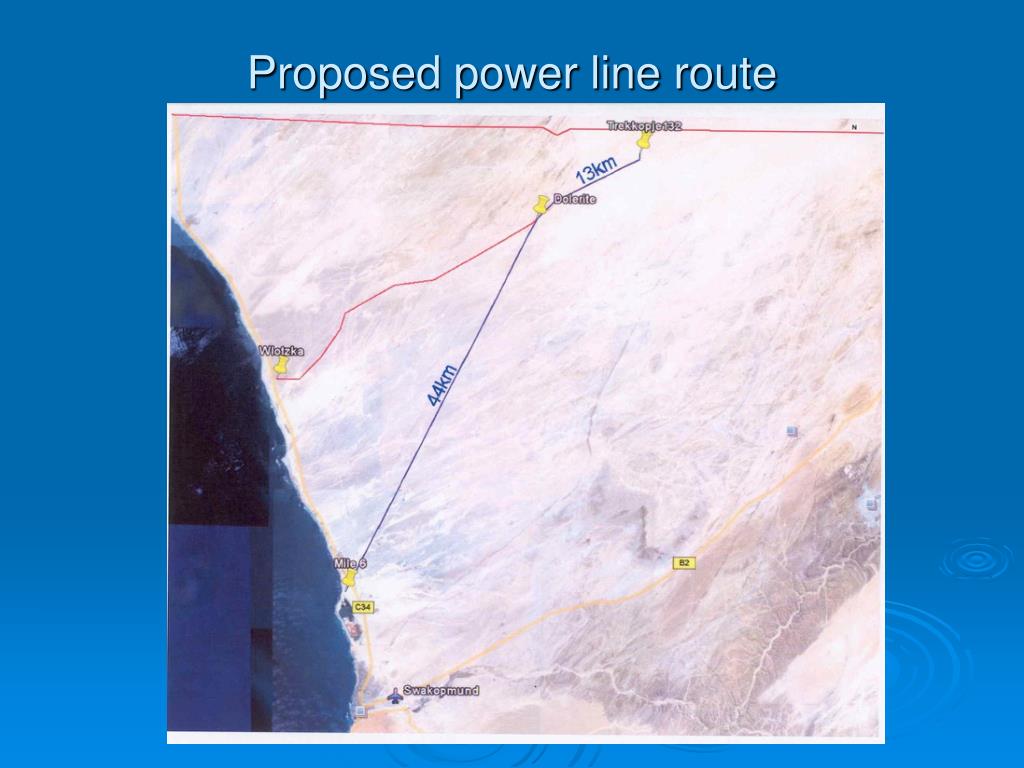

  • Power supply

  • Project cost estimate

  • Progress to date

  • Questions

.

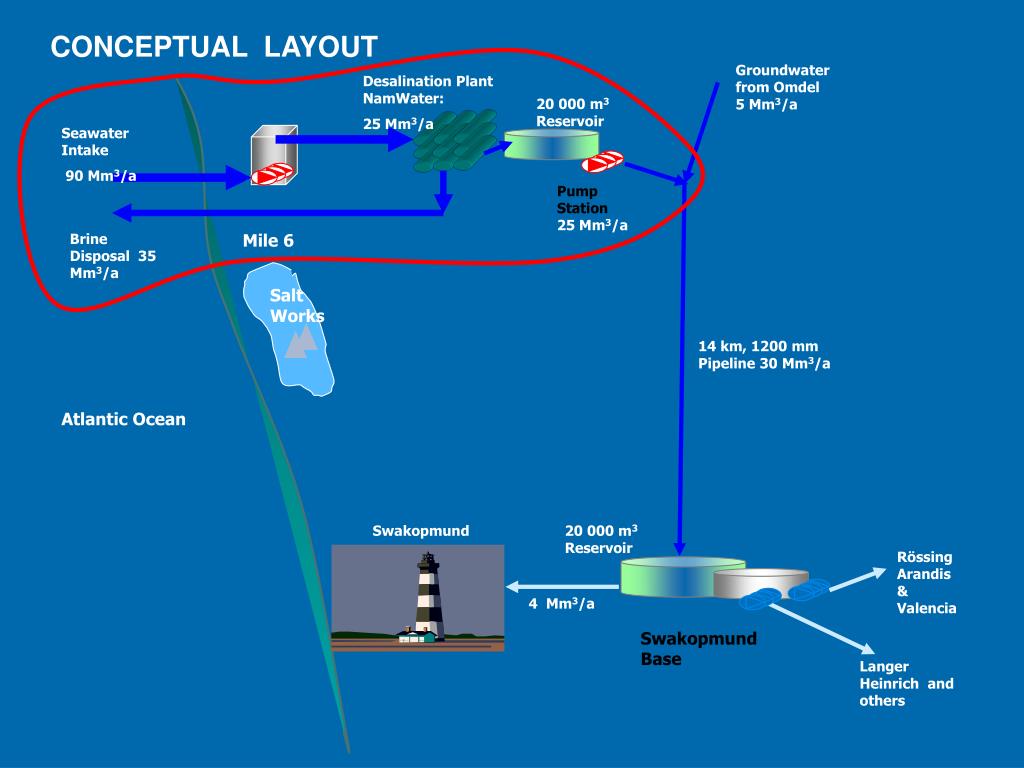

CONCEPTUAL LAYOUT NAMIBIA

Groundwater from Omdel 5 Mm3/a

Desalination Plant NamWater:

25 Mm3/a

20 000 m3 Reservoir

Seawater Intake

90 Mm3/a

Pump Station

25 Mm3/a

Brine Disposal 35 Mm3/a

Mile 6

Salt Works

14 km, 1200 mm Pipeline 30 Mm3/a

Atlantic Ocean

Swakopmund

20 000 m3 Reservoir

Rössing Arandis & Valencia

4 Mm3/a

Swakopmund Base

Langer Heinrich and others

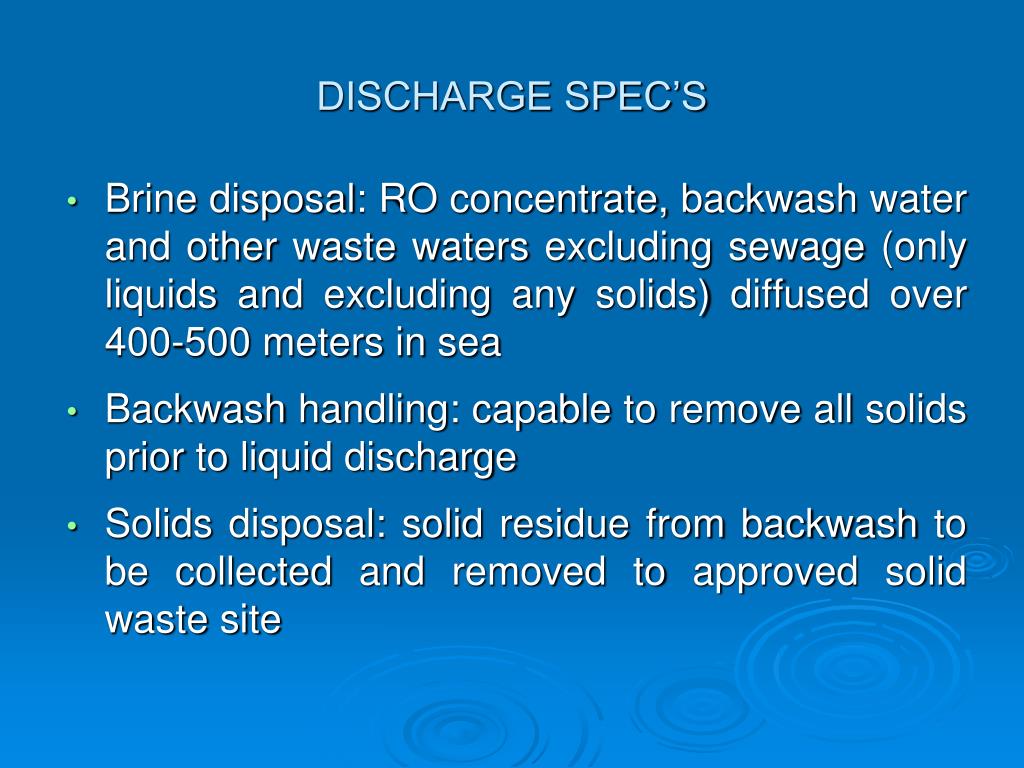

Discharge spec s
DISCHARGE SPEC’S NAMIBIA

  • Brine disposal: RO concentrate, backwash water and other waste waters excluding sewage (only liquids and excluding any solids) diffused over 400-500 meters in sea

  • Backwash handling: capable to remove all solids prior to liquid discharge

  • Solids disposal: solid residue from backwash to be collected and removed to approved solid waste site



Project cost estimate

Estimated capital cost = N$ 1,8 billion NAMIBIA

PROJECT COST ESTIMATE

.

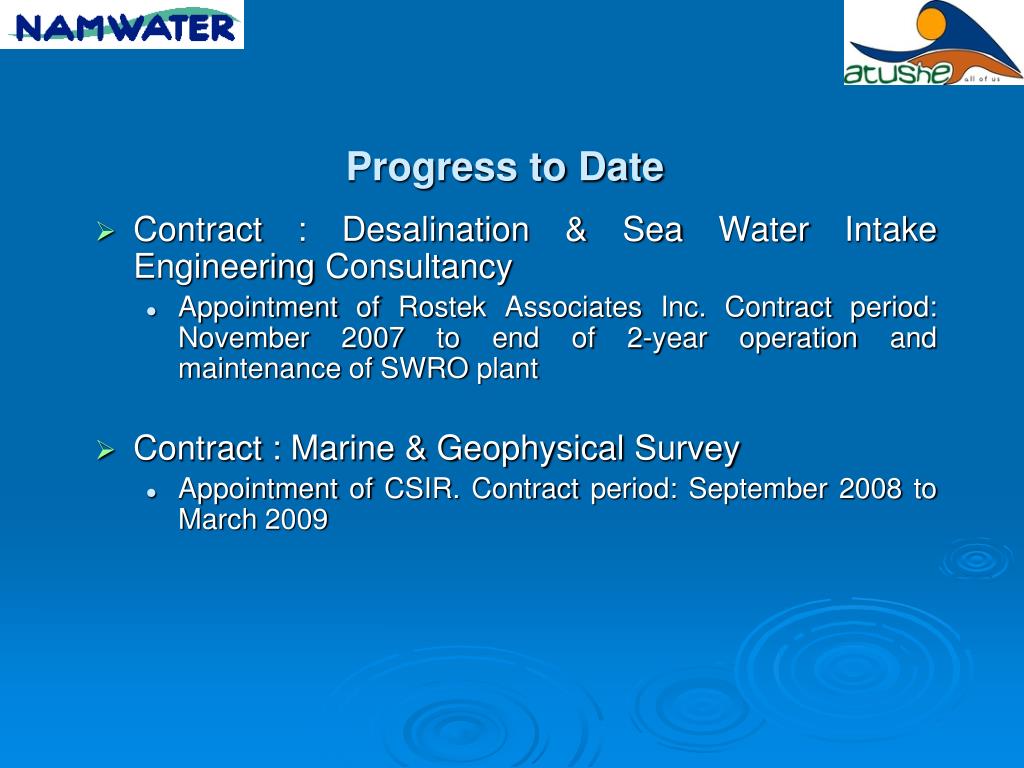

Progress to date

Contract : Desalination & Sea Water Intake Engineering Consultancy

Appointment of Rostek Associates Inc. Contract period: November 2007 to end of 2-year operation and maintenance of SWRO plant

Contract : Marine & Geophysical Survey

Appointment of CSIR. Contract period: September 2008 to March 2009

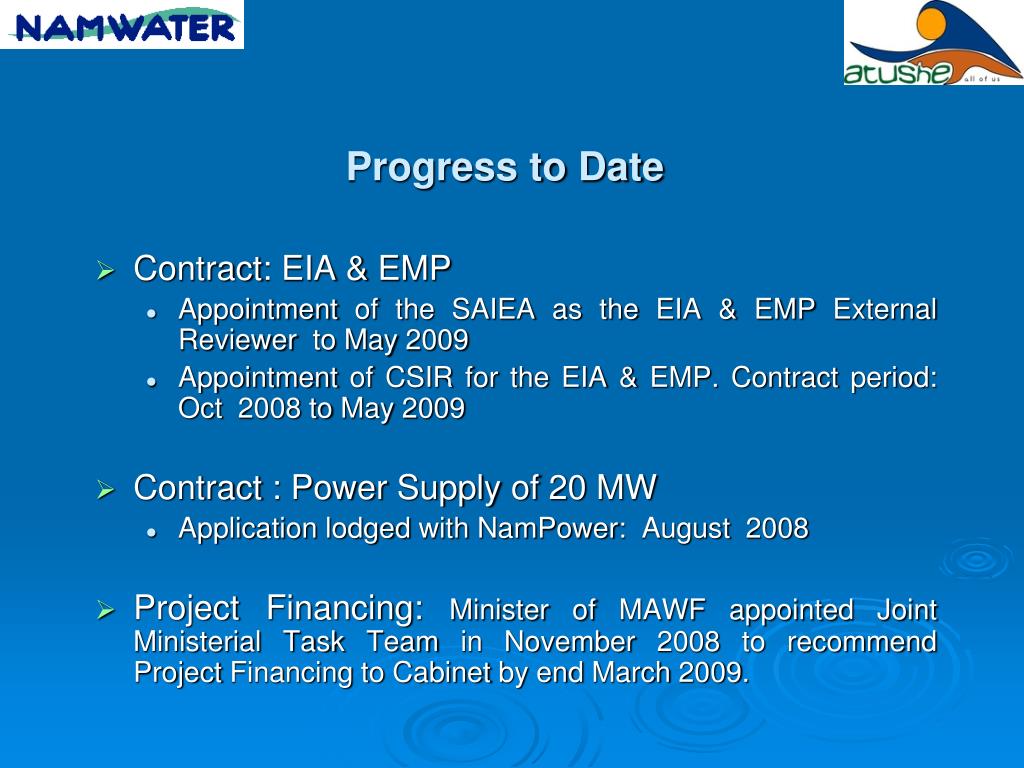

Progress to Date

.


Progress to date1

Contract: EIA & EMP Consultancy

Appointment of the SAIEA as the EIA & EMP External Reviewer to May 2009

Appointment of CSIR for the EIA & EMP. Contract period: Oct 2008 to May 2009

Contract : Power Supply of 20 MW

Application lodged with NamPower: August 2008

Project Financing: Minister of MAWF appointed Joint Ministerial Task Team in November 2008 to recommend Project Financing to Cabinet by end March 2009.

Progress to Date

.


?’s Consultancy
