  1. Mechanical Properties of Nanocomposites John Rozen Chem 350

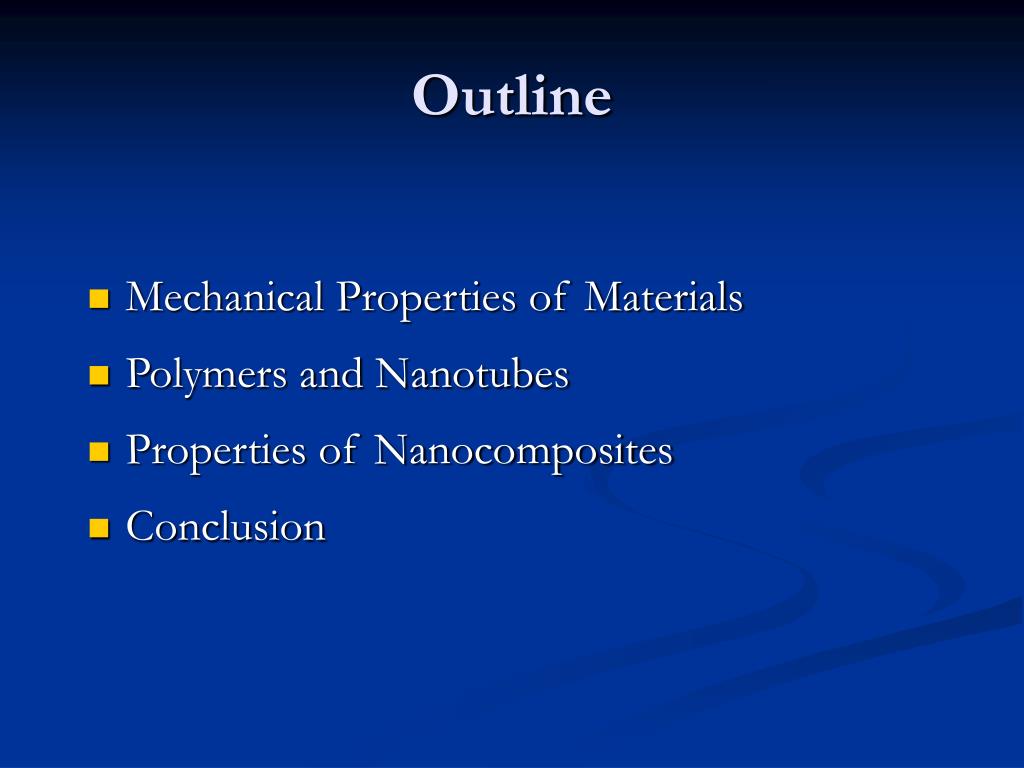

  2. Outline • Mechanical Properties of Materials • Polymers and Nanotubes • Properties of Nanocomposites • Conclusion

  3. Outline • Mechanical Properties of Materials • Polymers and Nanotubes • Properties of Nanocomposites • Conclusion

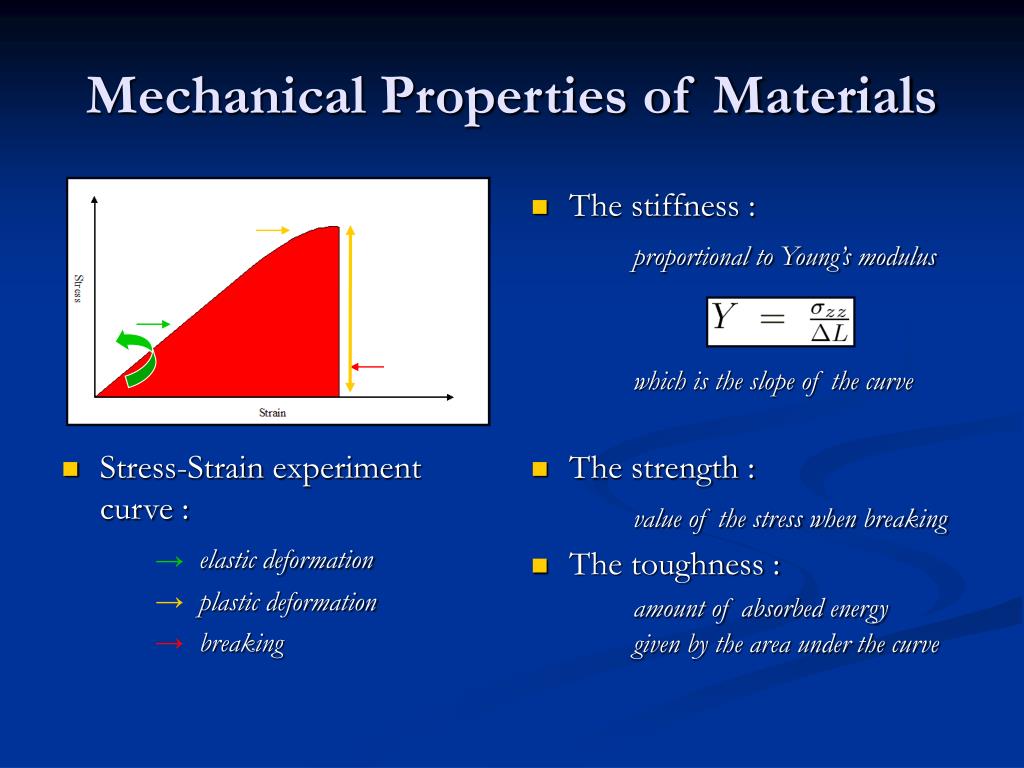

  4. Mechanical Properties of Materials The stiffness : proportional to Young’s modulus which is the slope of the curve Stress-Strain experiment curve : elastic deformation plastic deformation breaking The strength : value of the stress when breaking → → → • The toughness : amount of absorbed energy given by the area under the curve

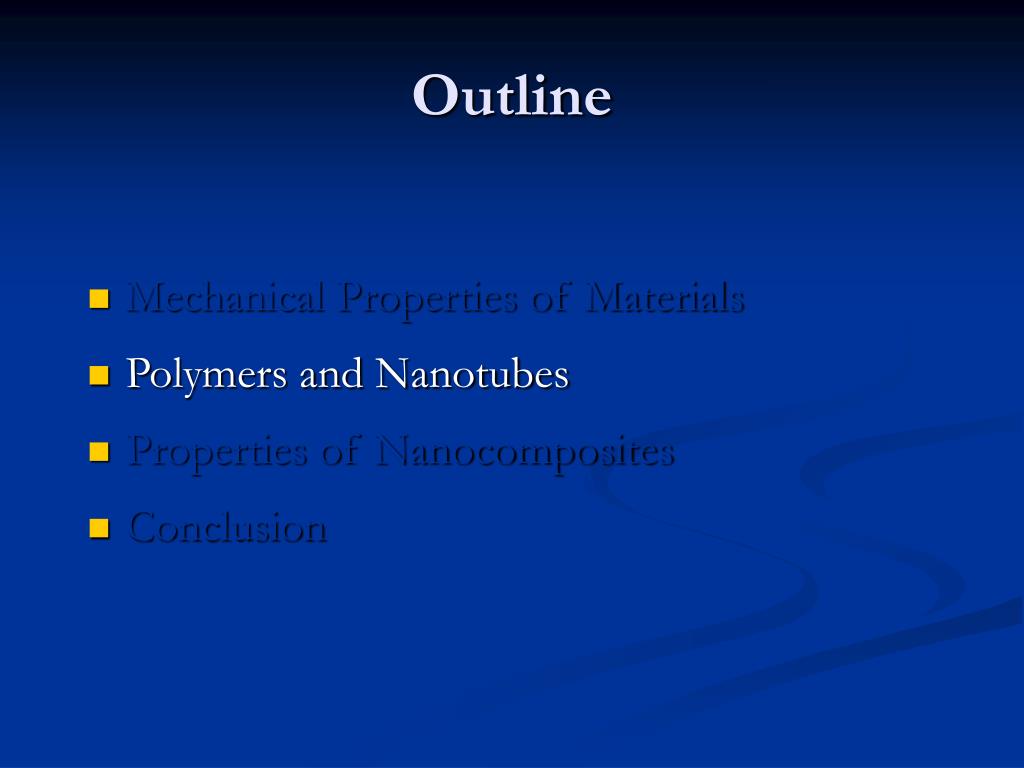

  5. Outline • Mechanical Properties of Materials • Polymers and Nanotubes • Properties of Nanocomposites • Conclusion

  6. Polymers Origin of elasticity : ► Energy minimized when straight ► Cannot reach equilibrium ► Creation of an amorphous phase ► Movements allowed

  7. Polymers • Creep-Recovery : ► A constant force is applied Fast elastic response Slow deformation processes ► Recovery shows constant damages → → • Energy relaxation processes in the amorphous phase : ►Elasticity is due to local movements of monomers which can freely rotate and increase the total extension of the chain in the amorphous phase. ► Irreversible deformationis the consequence of viscous flows occuring in the amorphous phase presents between crystallites .

  8. Nanotubes • Mechanical properties : ► High stiffness is expected (rolled graphite sheets) ► High axial strength is expected ► How to probe single tubes? • Transmission Electron Microscope measurements ► Young’s modulusof multi-walled nanotubes (MWNTs) is probed by analyzing the thermal vibrations in the tube. ► “Exceptionnally high stiffness” in the TPa range is detected. ► It is higher than usual carbon fibers but it drops to 15 Gpa in the bulk.

  9. Nanotubes The Nanomanipulator ► AFM as a tool ► Electron microscope for observation ► Feel the nanotubes ► Displace the nanotubes

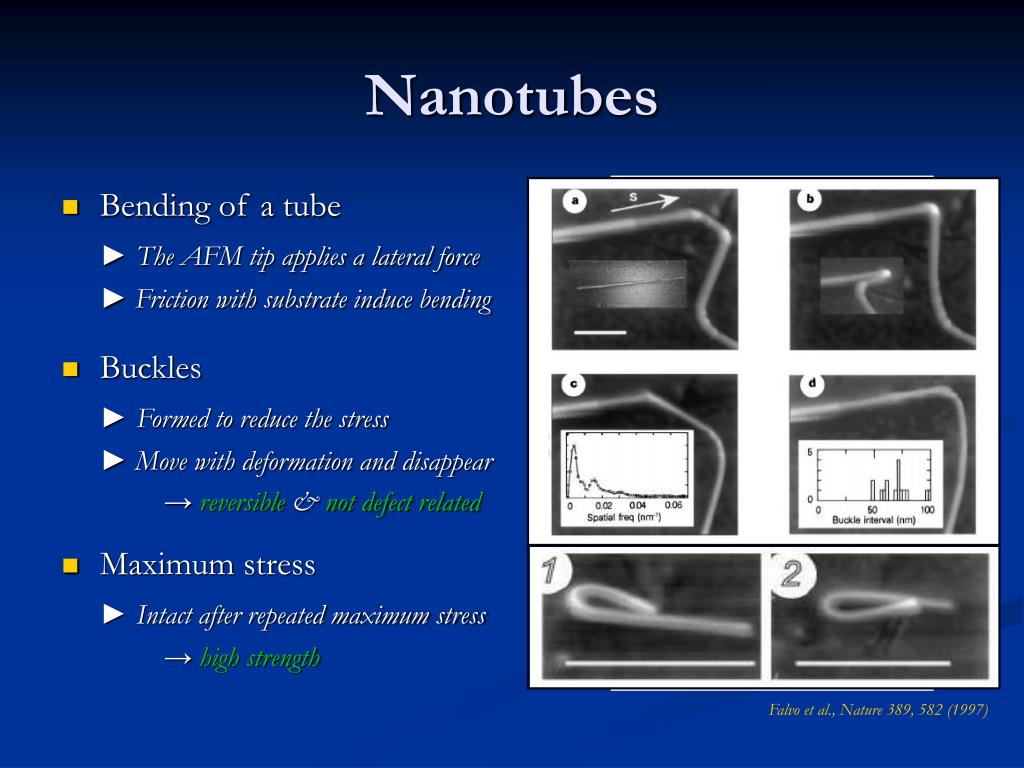

  10. Nanotubes • Bending of a tube ►The AFM tip applies a lateral force ► Friction with substrate induce bending • Buckles ►Formed to reduce the stress ► Move with deformation and disappear → reversible & not defectrelated • Maximum stress ►Intact after repeated maximum stress → high strength Falvo et al., Nature 389, 582 (1997)

  11. Outline • Mechanical Properties of Materials • Polymers and Nanotubes • Properties of Nanocomposites • Conclusion

  12. Alumina & Nanotubes • Properties of ceramics : ►Low density ►Stiff and strong (even at high T) ►Low sensitivity to corrosion ►Very brittle (more than metals) • Mixing process : ► Ball-milling of powders → good dispersion ► Sintering to reduce pores sizes → fracture toughness Zhan et al., Nature Materials 2, 38 (2003)

  13. Alumina & Nanotubes • Resulting properties : ► Strength reduced ► Toughness multiplied by 3 → better than MW → better than Fe

  14. Polymers & Nanotubes • The homogeneity challenge ► How to overcome phase segregation? ► Florry-Huggins expression → ΔGmix = -TΔSt + ΔGloc → two distinct phases? • Mixing process : ► Layer by Layer (LBL) deposition → dipping in NT & PEI ► Heating of the material → induced covalent crosslinking → highest strength observed Mamedov et al., Nature Materials 1, 190 (2002)

  15. Outline • Mechanical Properties of Materials • Polymers and Nanotubes • Properties of Nanocomposites • Conclusion

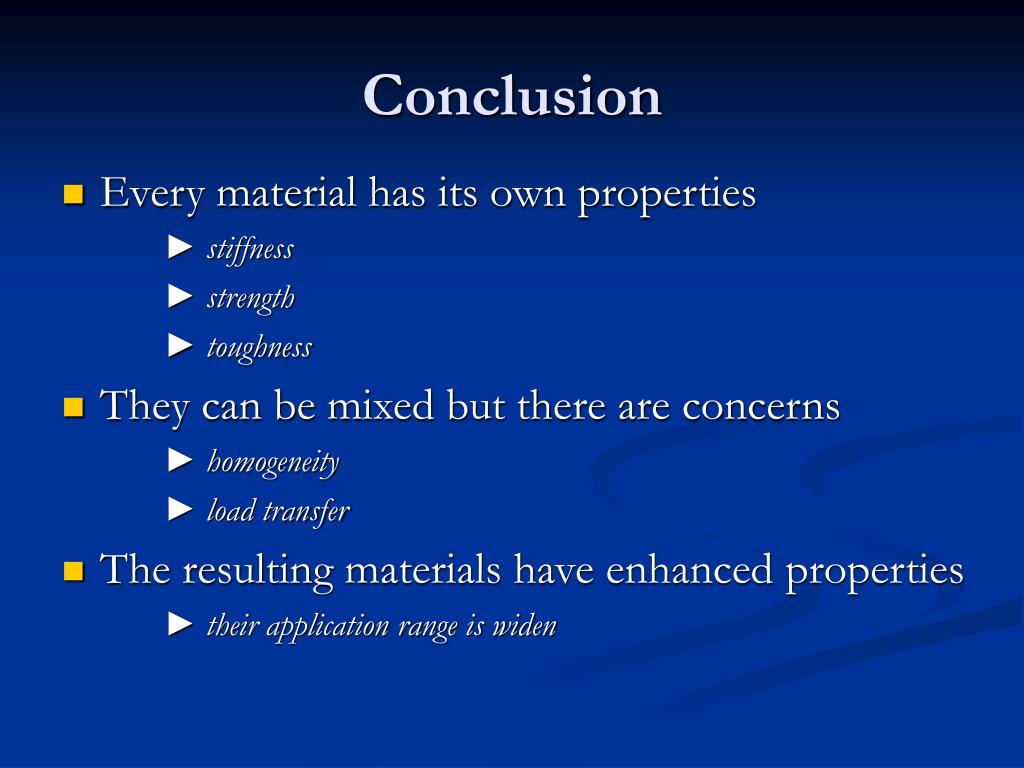

  16. Conclusion • Every material has its own properties ► stiffness ► strength ► toughness • They can be mixed but there are concerns ► homogeneity ► load transfer • The resulting materials have enhanced properties ► their application range is widen

  17. Bibliography
