  1. KaonAerogel Cherenkov Detector Brief Overview of a new experiment for JLab Hall C Nathaniel Hlavin Stephen Rowe Catholic University of America Catholic University of America, Washington, D.C. August 5, 2010

  2. Outline • Physical Motivation • Detector Overview • Calculations for Refractive Indices of Aerogel • Computer Simulations Results and Optimization • Outlook for Detector

  3. Physical Motivation: Proton Substructure • To understand further what makes up a proton, we use Generalized Parton Distributions (GPD). • They combine the spatial and momentum distribution of the quarks into one concise chart. Below are some examples based on models. We seek experimental confirmation. “x” is the fraction of the momentum of the quark over the momentum of the proton

  4. Meson Electroproduction • A high-energy electron beam releases a photon of a very high frequency. The high-frequency allows us to observe objects with greater detail. • The interaction of the photon and proton (pictured “GPD” here) results in a neutron (pictured here with momentum p’) and a meson (for example a pion or a kaon). For our proposed experiment, the meson would be a kaon. • We are able to detect/calculate the portions of the diagram above to dotted line, and from them we can contsruct the GPD. However, the meson released must conform with the Quantum Chromo Dynamic (QCD) theory of quarks. K+ or Above dotted Line: Hard Scattering Process (QCD) We can calculate this. Below Dotted Line: GPD. This is what we want.

  5. Problematic Pions T. Horn et al., Phys. Rev. Lett. 97 (2006) 192001. • We know how to calculate the hard or perturbative QCD model, but our data for the pion spatial quark distribution does not match the QCD prediction. • Further experimentation with the kaon could provide data that matches the QCD prediction. The dotted prediction seems to doubt it. • Matching data would enable GPD construction to reveal the proton substructure. • The 12 GeV upgrade allows for kaon production above a Q2 value of 1, and even higher into the hard QCD range. T. Horn et al., arXiv:0707.1794 (2007). A.P. Bakulev et al, Phys. Rev. D70 (2004)]

  6. KaonAerogel Detector Side View Front View Aerogel Panels • As a charged particle (kaon) passes through a substance (aerogel) faster than light passes through that substance, light is emitted. • This light is called Cherenkov light and can be thought of as a shock wave in the electromagnetic field. It is analogous to a sonic boom. • The light is collected by Photomultiplier Tubes (PMT) and converted into an electron signal by the photoelectric effect. • This signal is then amplified into a signal that can be analyzed. • An example image of a detector is pictured at right. PMTs Kaon Cherenkov Light

  7. Note on Efficiencies • The efficiency of the detector is a good deal less than 100% percent for a number of reasons. Below is a list of contributing inefficiencies • Detection efficiency/Quantum Efficiency: 26% • Diffusion wall reflectivity: 90% (This figure could increase to 96% if millipore material is used) • PMT transmission: 60% • Aerogel reflectivity: 80% • Total efficiency: 11.2% • These numbers have been taken account of in our calculations to get an accurate idea of how large the signal from the PMTs will really be.

  8. Calculations • Below is an example graph of the number of photoelectrons for the range of momentum we are interested in (2-8 GeV/c). The refractive index used here was 1.031. The upper curve is for pions, the middle for kaons, and the lower for protons. • Since a detector already adequately distinguishes pions and kaons, we are interested in distinguishing protons and kaons, which becomes a little more difficult, due to the proton interference for a wide range of momenta.

  9. Finding Likely Candidates • The refractive index of our aerogel must be between 1.007 and 1.13, approximately, which is due to limits the material itself has. • The index must also cut down on proton signal and maximize kaon signal. • We could have a few indices for our one detector to cover the full range in momentum. • To find likely candidates, we graphed the number of photoelectrons emitted over a range of indices for each momentum value in the range we are interested in (2-8 GeV). At right is the graph for 3 GeV. (Kaons above, protons below) • After analyzing the 7 graphs, we ascertained several candidate values: 1.01, 1.015, 1.02, and 1.03 Kaon Proton

  10. Testing the Candidates • Below are the graphs of number of photoelectrons vs. momentum (GeV/c) for the four index candidates. Index: 1.01 Index: 1.015 Kaon Kaon Np.e. Np.e. Proton Proton Momentum (GeV/c) Momentum (GeV/c) Index: 1.02 Index: 1.03 Kaon Kaon Np.e. Np.e. Proton Proton Momentum (GeV/c) Momentum (GeV/c)

  11. Choosing Candidates • As we examined the data several things became apparent to us: • 1.01 would not work due to its weak signal for the kaon and its lack of signal for the kaon in the early momenta (up to appx. 3 GeV) • Since we need a strong signal in the early momenta of 2-4 GeV, 1.03 seemed to be a good choice. • Particles in momenta 6-8 GeV can be distinguishing using kinematic checks, time of flight, etc. • The last range we needed to cover then, was 4-6 GeV • This range is covered with minimal proton interference and decent kaon signal by the 1.015 index. • 1.015 and 1.03 thus seemed like desirable choices.

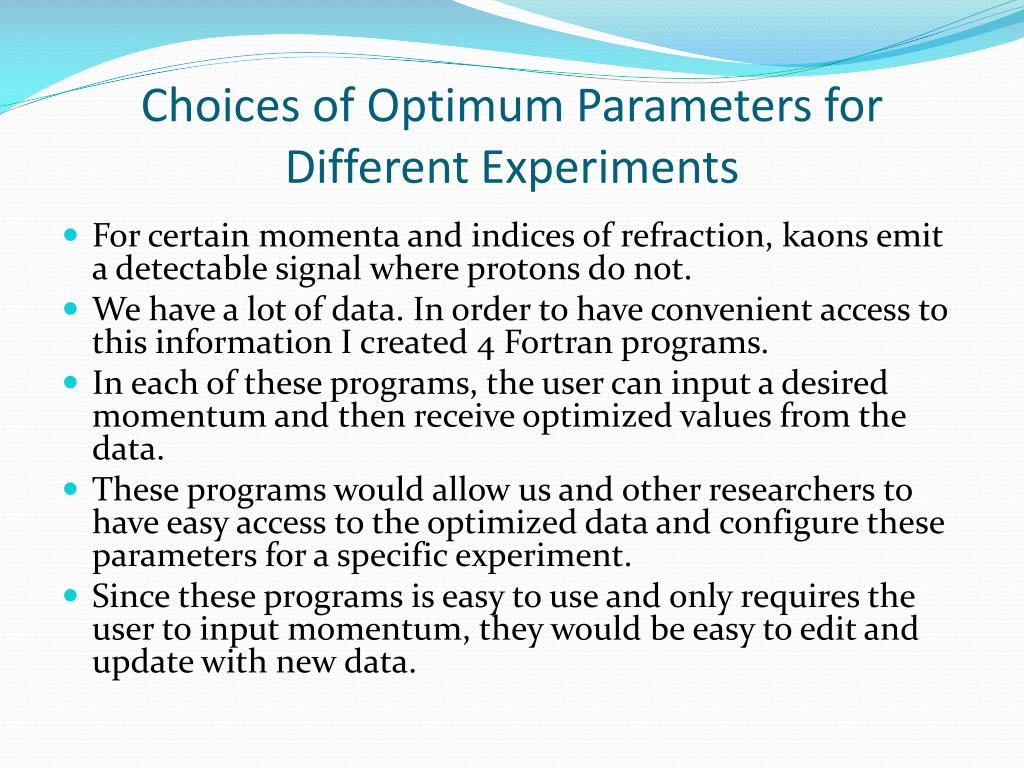

  12. Choices of Optimum Parameters for Different Experiments • For certain momenta and indices of refraction, kaons emit a detectable signal where protons do not. • We have a lot of data. In order to have convenient access to this information I created 4 Fortran programs. • In each of these programs, the user can input a desired momentum and then receive optimized values from the data. • These programs would allow us and other researchers to have easy access to the optimized data and configure these parameters for a specific experiment. • Since these programs is easy to use and only requires the user to input momentum, they would be easy to edit and update with new data.

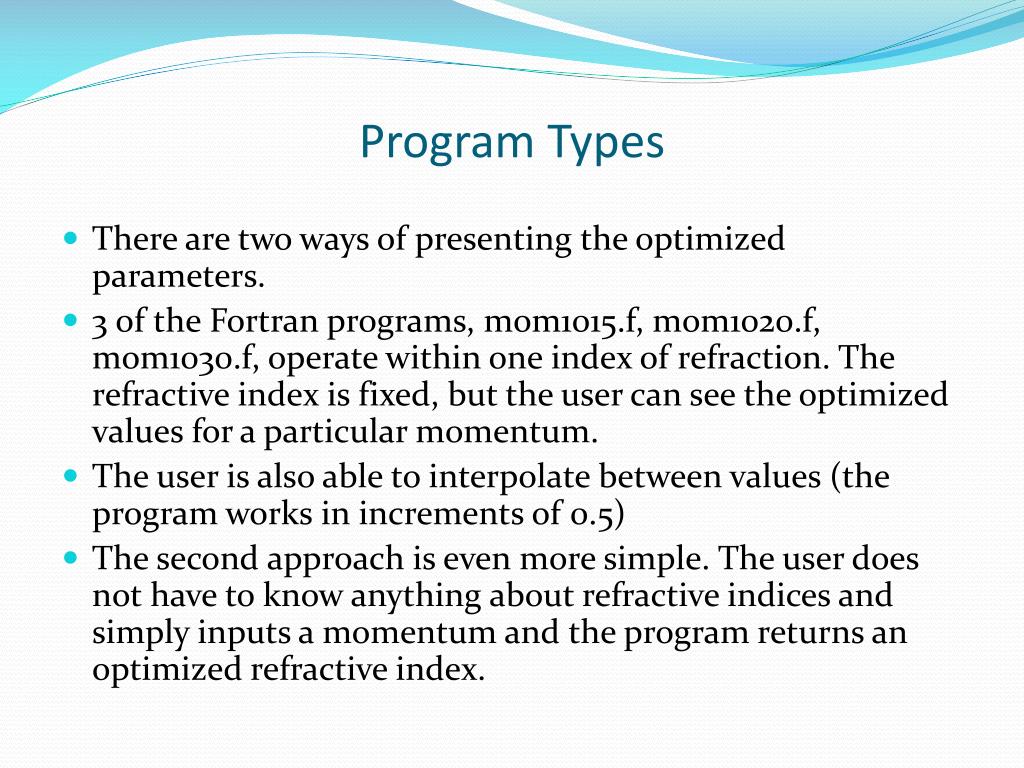

  13. Program Types • There are two ways of presenting the optimized parameters. • 3 of the Fortran programs, mom1015.f, mom1020.f, mom1030.f, operate within one index of refraction. The refractive index is fixed, but the user can see the optimized values for a particular momentum. • The user is also able to interpolate between values (the program works in increments of 0.5) • The second approach is even more simple. The user does not have to know anything about refractive indices and simply inputs a momentum and the program returns an optimized refractive index.

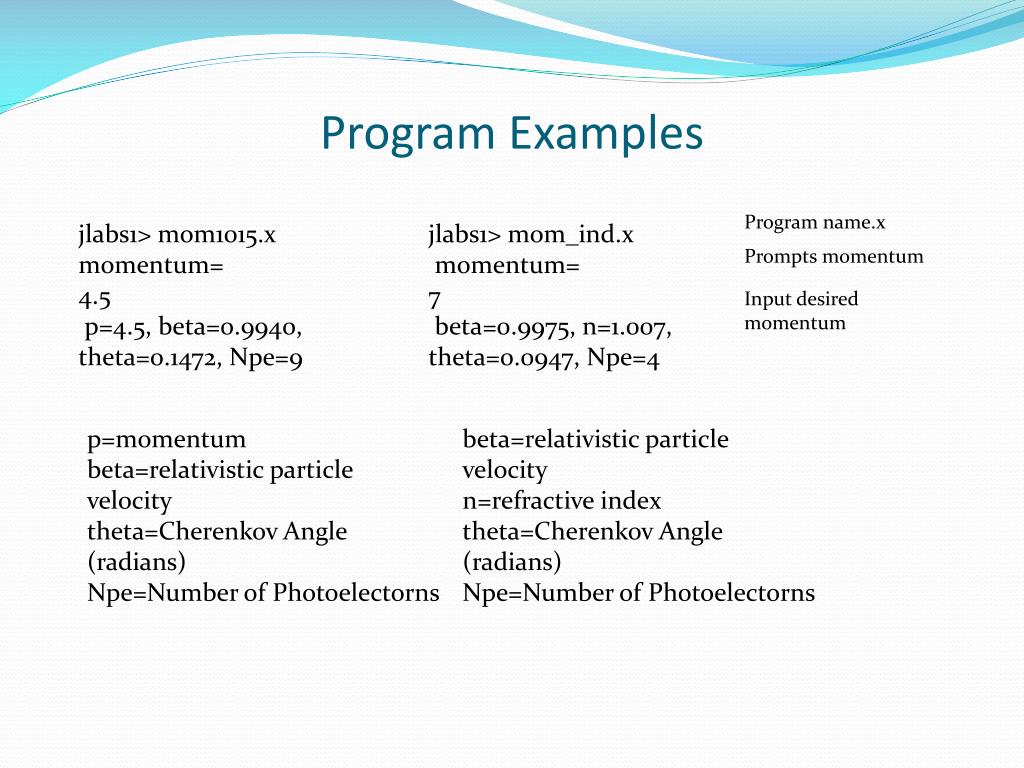

  14. Program Examples Program name.x jlabs1> mom1015.x momentum= 4.5 p=4.5, beta=0.9940, theta=0.1472, Npe=9 jlabs1> mom_ind.x momentum= 7 beta=0.9975, n=1.007, theta=0.0947, Npe=4 Prompts momentum Input desired momentum p=momentum beta=relativistic particle velocity theta=Cherenkov Angle (radians) Npe=Number of Photoelectorns beta=relativistic particle velocity n=refractive index theta=Cherenkov Angle (radians) Npe=Number of Photoelectorns

  15. Accessing Programs • These programs were compiled and tested on jlabs1, one of the computers on a JLab computation cluster. Its architecture is SUN. • These programs are located in /u/home/stephenr/stephendir • To compile these programs type f77 program.f –o program.x • To run these programs type program.x on the command line.

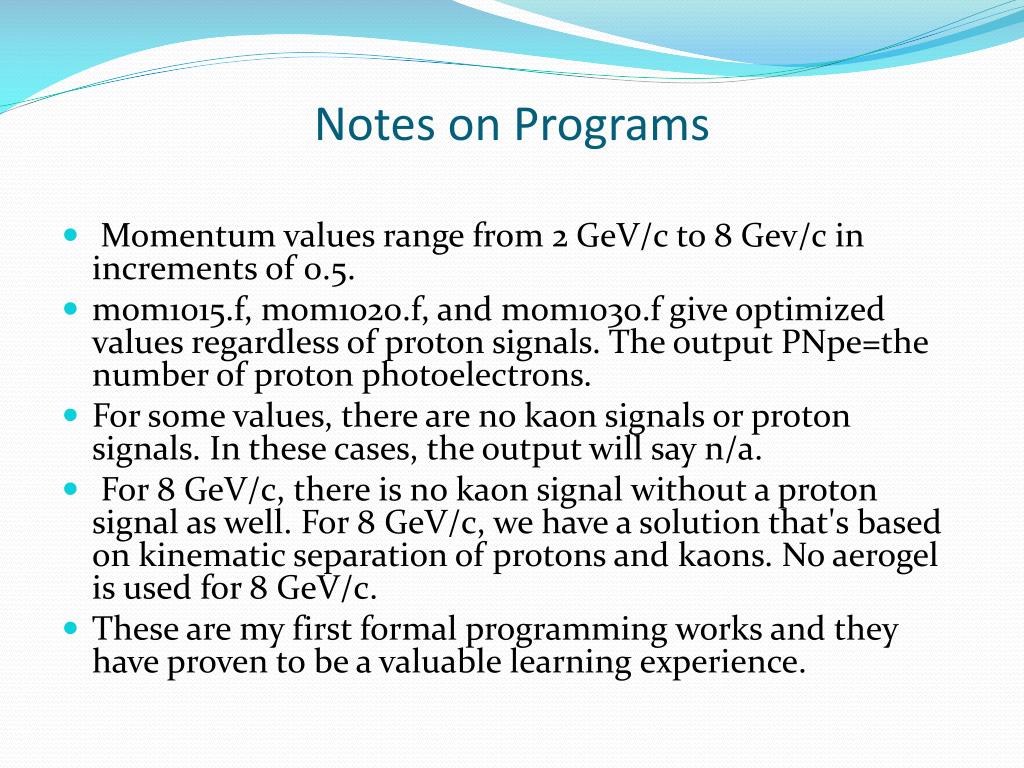

  16. Notes on Programs • Momentum values range from 2 GeV/c to 8 Gev/c in increments of 0.5. • mom1015.f, mom1020.f, and mom1030.f give optimized values regardless of proton signals. The output PNpe=the number of proton photoelectrons. • For some values, there are no kaon signals or proton signals. In these cases, the output will say n/a. • For 8 GeV/c, there is no kaon signal without a proton signal as well. For 8 GeV/c, we have a solution that's based on kinematic separation of protons and kaons. No aerogel is used for 8 GeV/c. • These are my first formal programming works and they have proven to be a valuable learning experience.

  17. How the Programs Work • The programs begin with a prompt allowing the user to input their desired momentum. • That input is then matched to a variable. • A series of IF statements follow. IF the variable (inputted momentum) equals ___ then output _____. write (*,*) 'momentum=' • read (*,*) m • if (m.eq.2) print*, 'beta=0.9709, n=1.102, theta=0.3634, Npe=52' • if (m.eq.3) print*, 'beta=0.9867, n=1.047, theta=0.2538, Npe=26' • if (m.eq.4) print*, 'beta=0.9925, n=1.027, theta=0.1947, Npe=16' • if (m.eq.5) print*, 'beta=0.9952, n=1.017, theta=0.1547, Npe=10' • if (m.eq.6) print*, 'beta=0.9966, n=1.012, theta=0.1306, Npe=7' • if (m.eq.7) print*, 'beta=0.9975, n=1.007, theta=0.0947, Npe=4' • if (m.eq.8) print*, 'n/a, see program introduction' • if (m.eq.2.5) print*, 'beta=0.9811,n=1.067,theta=0.3001,Npe=36' • if (m.eq.3.5) print*, 'beta=0.9902,n=1.032,theta=0.2073,Npe=18' • if (m.eq.4.5) print*, 'beta=0.9940,n=1.017,theta=0.1472,Npe=9' • if (m.eq.5.5) print*, 'beta=0.9960,n=1.012,theta=0.1257,Npe=7' • if (m.eq.6.5) print*, 'beta=0.9971,n=1.007,theta=0.0905,Npe=3' • if (m.eq.7.5) print*, 'beta=0.9978,n=1.007,theta=0.0980,Npe=4'

  18. Computer Simulations • Testing the detector’s photoelectron output for different parameters with a computer simulation is the next step for the design of the detector. • SimCherenkov, a FORTRAN program written by D. W. Higinbotham, will provide this simulation. I have edited it considerably to allow further testing of more varied parameters. Nuclear Instruments and Methods in Physics Research A 414 (1998) 332-339 • It allows inputs of the many variables such as dimensions of the detector, width of aerogel, various reflectivities and efficiencies and so on. • By experimenting with this program, we were able to find the more efficient design characteristics of our detector • These include but are not limited to the number, radius and placement of the PMTs and the dimensions of the box. Top and bottom? Left and right? What kind of PMT? How many PMTs? What size box?

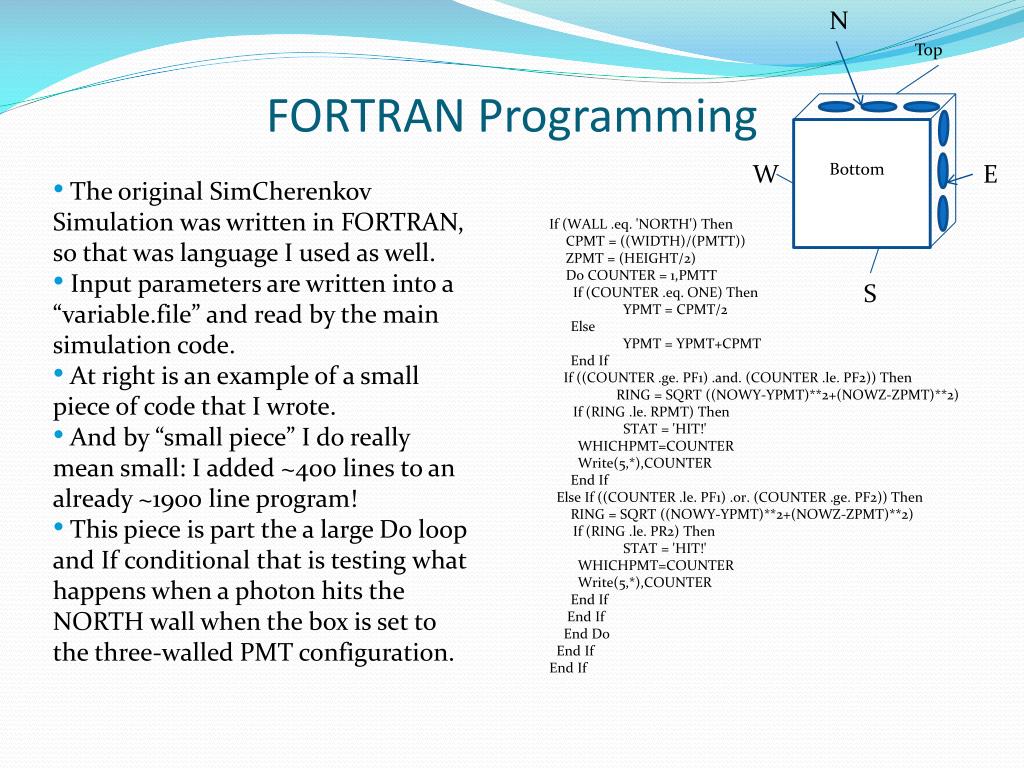

  19. N Top FORTRAN Programming W Bottom E • The original SimCherenkov Simulation was written in FORTRAN, so that was language I used as well. • Input parameters are written into a “variable.file” and read by the main simulation code. • At right is an example of a small piece of code that I wrote. • And by “small piece” I do really mean small: I added ~400 lines to an already ~1900 line program! • This piece is part the a large Do loop and If conditional that is testing what happens when a photon hits the NORTH wall when the box is set to the three-walled PMT configuration. If (WALL .eq. 'NORTH') Then CPMT = ((WIDTH)/(PMTT)) ZPMT = (HEIGHT/2) Do COUNTER = 1,PMTT If (COUNTER .eq. ONE) Then YPMT = CPMT/2 Else YPMT = YPMT+CPMT End If If ((COUNTER .ge. PF1) .and. (COUNTER .le. PF2)) Then RING = SQRT ((NOWY-YPMT)**2+(NOWZ-ZPMT)**2) If (RING .le. RPMT) Then STAT = 'HIT!' WHICHPMT=COUNTER Write(5,*),COUNTER End If Else If ((COUNTER .le. PF1) .or. (COUNTER .ge. PF2)) Then RING = SQRT ((NOWY-YPMT)**2+(NOWZ-ZPMT)**2) If (RING .le. PR2) Then STAT = 'HIT!' WHICHPMT=COUNTER Write(5,*),COUNTER End If End If End Do End If End If S

  20. Hourglass Distribution Distribution Location SHMS • At the spot where our detector would be placed within the stack of the SHMS, the particle distribution is as pictured • The hourglass distribution is created by the arrangement of focusing and defocusing magnets that guide the scattered particles from the target to the detector stack. • The large dotted box is 110 x 100 cm and encloses the full spectrum. • The smaller box is 90 x 60 and encloses the area of largest density.

  21. Length and Width of the Box 90 x 60 • Here are three of the box optimizations. The blue lines are kaons and green are protons. • The most efficient was the one the most closely enclosed the hourglass distribution: 90 x 60 • Other slightly larger aerogel panels resulted in some loss of photoelectron signal. n = 1.015 110 x 80 110 x 100 Photoelectrons Momentum (GeV)

  22. Aerogel Thickness n = 1.03 10 cm thick • In this case a considerable gain in signal was achieved by thicker aerogel values • 10 cm seems to be far and away the best choice. 8 cm thick Photoelectrons 5 cm thick Momentum (GeV)

  23. N Top Photomultiplier Tube Placement n = 1.015 W Bottom E • As far as PMT placement goes, lots of configurations had to be tried out. • The low values were for PMTs placed on one wall. • The next curves up is for PMTs on either the E/W walls or N/S, or three walls with mixed PMT radii • The cluster of three lines next up is PMTs on four walls, and PMTs on three walls with 90x90 and 110x100 panels • The top curve is for PMTs on three walls with the 90x60 panel. 90x60 (6x6x4) 90x90 110x100 S 110x100 Photoelectrons 110x100 Momentum (GeV)

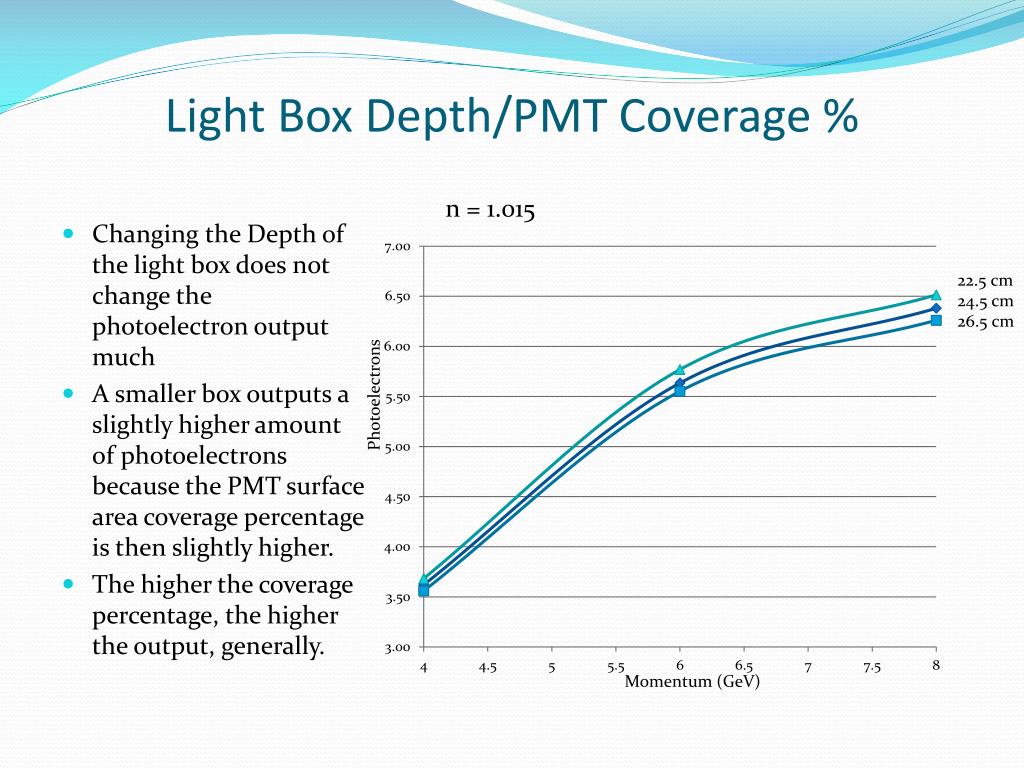

  24. Light Box Depth/PMT Coverage % n = 1.015 • Changing the Depth of the light box does not change the photoelectron output much • A smaller box outputs a slightly higher amount of photoelectrons because the PMT surface area coverage percentage is then slightly higher. • The higher the coverage percentage, the higher the output, generally. 22.5 cm 24.5 cm 26.5 cm Photoelectrons Momentum (GeV)

  25. Results of Optimization • The studies with the SimCherenkov Program result in several conclusions. • 90 x 60 is the optimal size of the aerogel panel • 10 cm is the optimal thickness • A three-walled 6 x 6 x 4 5” radius PMT configuration is the optimal PMT placement • There will be an option left for future expansion to a 110 x 100 panel. The aerogel thickness remains the same but the PMT configuration goes to 6 x 6 x 6 5” radius.

  26. The Future of the Detector: JLab Hall C Trip to Jlab Summer 2010 Dr. Muller made it in the picture!

  27. The Future of the Detector: JLab Hall C Hall C

  28. The Future of the Detector: JLab Hall C Our detector would be placed between the gas Cherenkov detector (for kaons and pions) and the second plane of the scintillatorhodoscope. This also gives us physical constraints to work with for our detector. Green Box: Our proposed detector SHMS

  29. Conclusion • Detector will operate with the new 12 GeV upgrade that the JLab is receiving. • This summer we found optimal solutions for various components of the detector using computational means such as calculations and simulations. • Future steps include making technical drawings to communicate the design to engineers, as well as constructing a test setup to test the performance of the aerogel and PMTs. • Research with our detector could bring us one step closer to understanding the substructure of the proton!
