GRAVITY ELECTRIC ( GE) GENERATOR PowerPoint PPT Presentation


  • 62 Views
  • Uploaded on
  • Presentation posted in: General

GRAVITY ELECTRIC ( GE) GENERATOR. Now everyone can generate electricity. TEAM MEMBERS TAN CHIN KEAT (LEADER) AHMED SUJITH MICHELLE TAI CHONG JOE YIE. Objective. To produce self-generated decentralised energy by using simple mechanical principles.

Download Presentation

GRAVITY ELECTRIC ( GE) GENERATOR

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Gravity electric ge generator

GRAVITY ELECTRIC

(GE)

GENERATOR

Now everyone can generate electricity

TEAM MEMBERS

TAN CHIN KEAT (LEADER)AHMED SUJITHMICHELLE TAICHONG JOE YIE

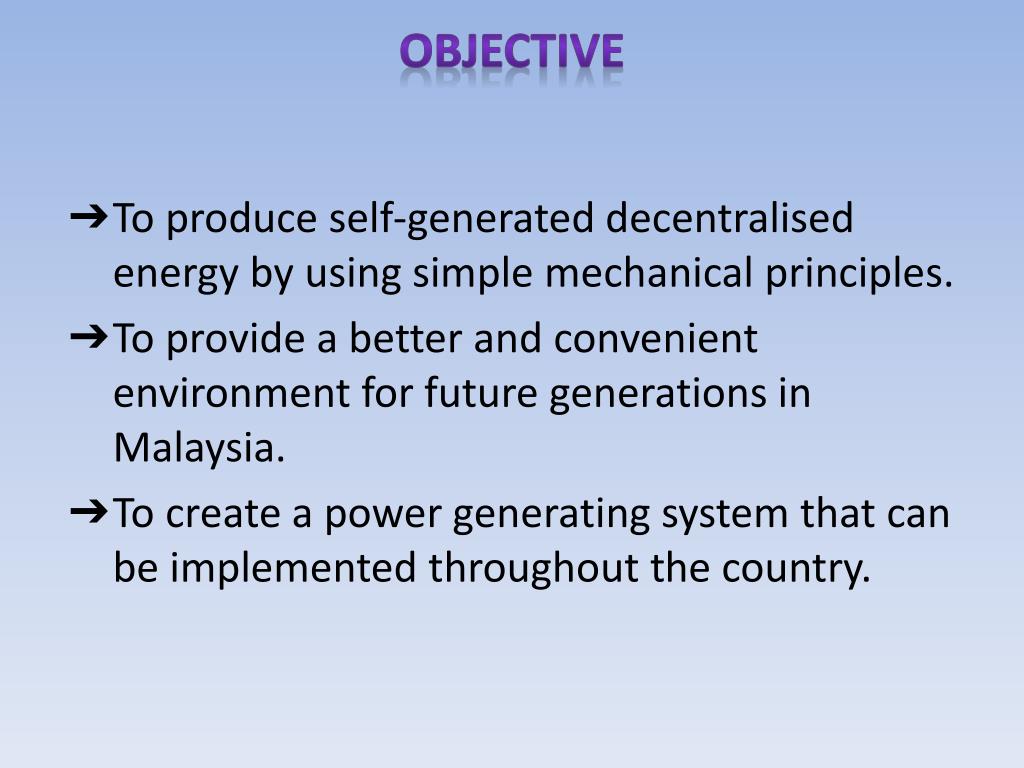

Objective

Objective

  • To produce self-generated decentralised energy by using simple mechanical principles.

  • To provide a better and convenient environment for future generations in Malaysia.

  • To create a power generating system that can be implemented throughout the country.


Introduction

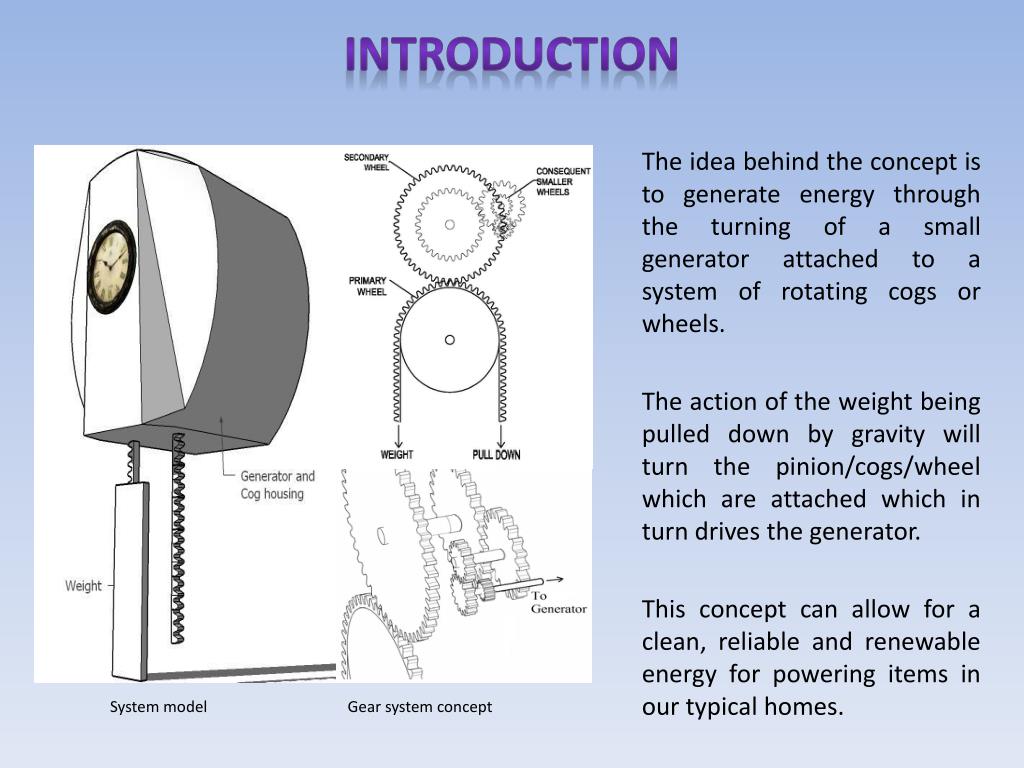

Gear system concept

System model

Introduction

The idea behind the concept is to generate energy through the turning of a small generator attached to a system of rotating cogs or wheels.

The action of the weight being pulled down by gravity will turn the pinion/cogs/wheel which are attached which in turn drives the generator.

This concept can allow for a clean, reliable and renewable energy for powering items in our typical homes.


Gravity electric ge generator

Justifications

Reasons of choosing this idea:

Make electricity possible for everyone (includes people living in rural areas where electricity is scarce).

Provides alternatives and renewable energy for residential, commercial and industrial purposes.

Can function at anytime, anywhere in the world.

Where to use it?

  • Homes (Urban and rural areas)

  • Commercial (eg. washroom)

  • Industrial (Machine powering)

  • Car (Smartphone charging)

How to use it?

  • Assemble the system after purchasing it, all you need is just a pull to make it works!


Gravity electric ge generator

Energy in the body of falling mass,

E1 = (mass)*(gravitational acceleration)*(height)

Energy stored in spring,

E2 = 0.5*(spring constant)*(length of extension of spring)2

***NOTE : Watch in slide show for animation

Functional Details

Note that the locking mechanism is unlocked

The spring is pulled downwards due to rotation of the gear

At one point, the elastic potential energy stored in the spring. E2 is equals to the potential energy possessed by the mass, E1.

Although the energies at both sides are now equal, the linear momentum due to the falling motion of the mass causes the mass to continue to fall.

The locking mechanism is unlocked, and the motion of the gear is now not restricted by the lock.

Rack (Gear bar) is pulled downwards

The gear experiences angular acceleration as the mass continues to pull the rack downwards.

When the gear rotated 90°, rotatable shaft hit the switch and unlock the locking mechanism

The gear continues to rotate in counter-clockwise direction until the spring loses most of its elastic potential energy and the mass regains its potential energy.

Pinion (circular gear) rotates clockwise with locking mechanism slowing down the motion & limiting the speed of rotation

Mass, M starts falling

E2 continues to increase while E1 is decreased.

E1 decreases due to reducing height, while E2 increases due to increasing length of extension of spring

Locking mechanism

Rotatable shaft (to hit switch)

Spring

Switch to unlock the locking mechanism

Rack & Pinion mechanism

Mass, M

When the falling mass loses its linear momentum, the spring contracts, making the gear to rotates counter-clockwise.

The switch returns to its original position and at the same time the locking mechanism is put in place again to restrict the rotating motion of the gear.

The mass will then start to fall again and the whole process will be repeated.

M

M

M

M

-----NOTE-----

The process will stop when the system loses all its energy due to friction and air resistance.

When the system stops, what you need is just a pull to returns the mass to its original position.


Gravity electric ge generator

Functional Details

  • Types of gearing systems used

Converts linear motion to rotational motion and vice versa

Change the rotational input speed to a different output speed

Transfer or increase rotational speed of smaller gear using difference in number of teeth and gear radius


Gravity electric ge generator

Functional Details

  • Circuit diagram

Sensor (Detect direction of rotation of gear)

- Output : Logic high (1) for clockwise, Logic low (0) for counter-clockwise

Output will be sent to 3 transistors

(acting as switches)

Transistor 3

Generator

When the sensor sensed that the gear is rotating counter-clockwise, it will send a logic low output to the transistors, the circuit at transistors 1 and 3 will be opened and transistor 2 will be closed, so the current will flow from battery to the load.

High Speed Gear

Battery

Load

Transistor 1

When the sensor sensed that the gear is rotating clockwise, it will send a logic high output to the transistors, the circuit at transistors 1, 2 and 3 will be closed so the current will flow from generator to the battery and load.

Transistor 2


Materials cost estimation

Materials & COST ESTIMATION


Estimations of mass spring constant power output speed of rotation needed

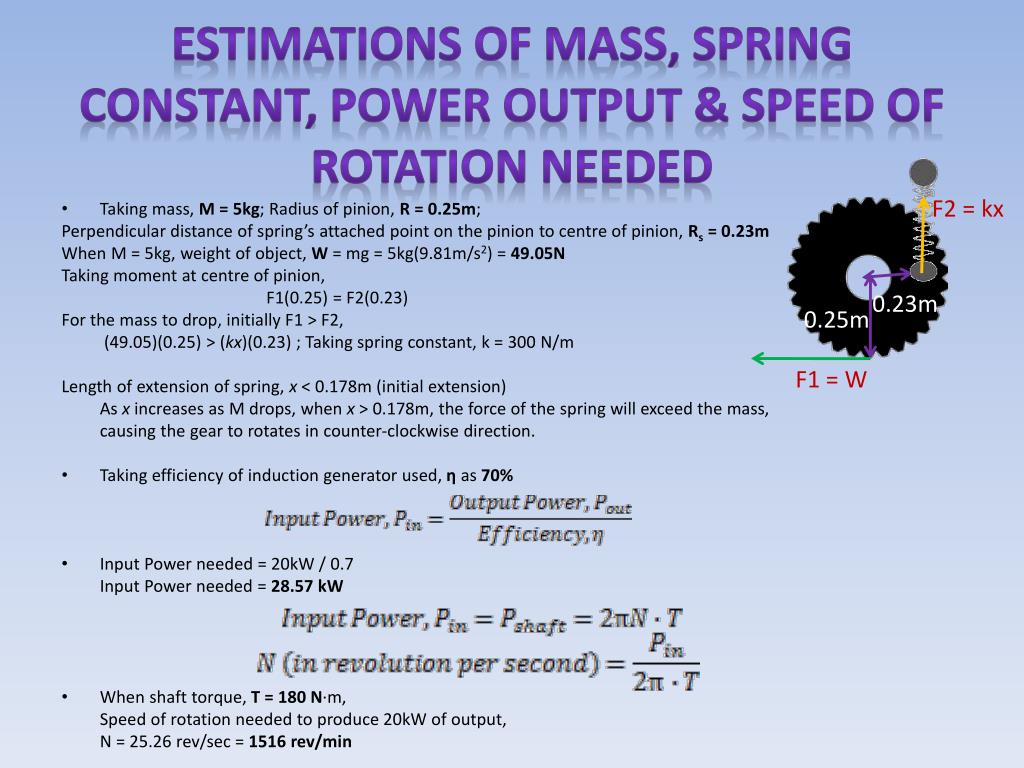

Estimations of MASS, SPRING CONSTANT, Power Output & SPEED OF ROTATION NEEDED

  • Taking mass, M = 5kg; Radius of pinion, R = 0.25m;

    Perpendicular distance of spring’s attached point on the pinion to centre of pinion, Rs = 0.23m

    When M = 5kg, weight of object, W = mg = 5kg(9.81m/s2) = 49.05N

    Taking moment at centre of pinion,

    F1(0.25) = F2(0.23)

    For the mass to drop, initially F1 > F2,

    (49.05)(0.25) > (kx)(0.23) ; Taking spring constant, k = 300 N/m

    Length of extension of spring, x < 0.178m (initial extension)

    As x increases as M drops, when x > 0.178m, the force of the spring will exceed the mass,

    causing the gear to rotates in counter-clockwise direction.

  • Taking efficiency of induction generator used, η as 70%

  • Input Power needed = 20kW / 0.7

    Input Power needed = 28.57 kW

  • When shaft torque, T = 180 N·m,

    Speed of rotation needed to produce 20kW of output,

    N = 25.26 rev/sec = 1516 rev/min

F2 = kx

0.23m

0.25m

F1 = W


Pros cons

Pros & Cons


Conclusion

Conclusion

  • Design can be customized based on residential, commercial and industrial purpose.

  • Further research and development on the concept can be done to :

    • Promote the usage of recyclable and environment friendly materials in the manufacturing process.

    • Create a system that does not require a manual restart when the systemstops and at the same time maintaining the efficiency of the system.

    • Improve the design to make it more compact, elegant, classy.

    • Minimize the usage of battery by creating a system that allows the generator to rotates in a single direction (eg. using camshaft or cam and follower systems).

  • Power generated by the Gravity Electric Generator is green, efficient and sustainable for the entire mankind.
