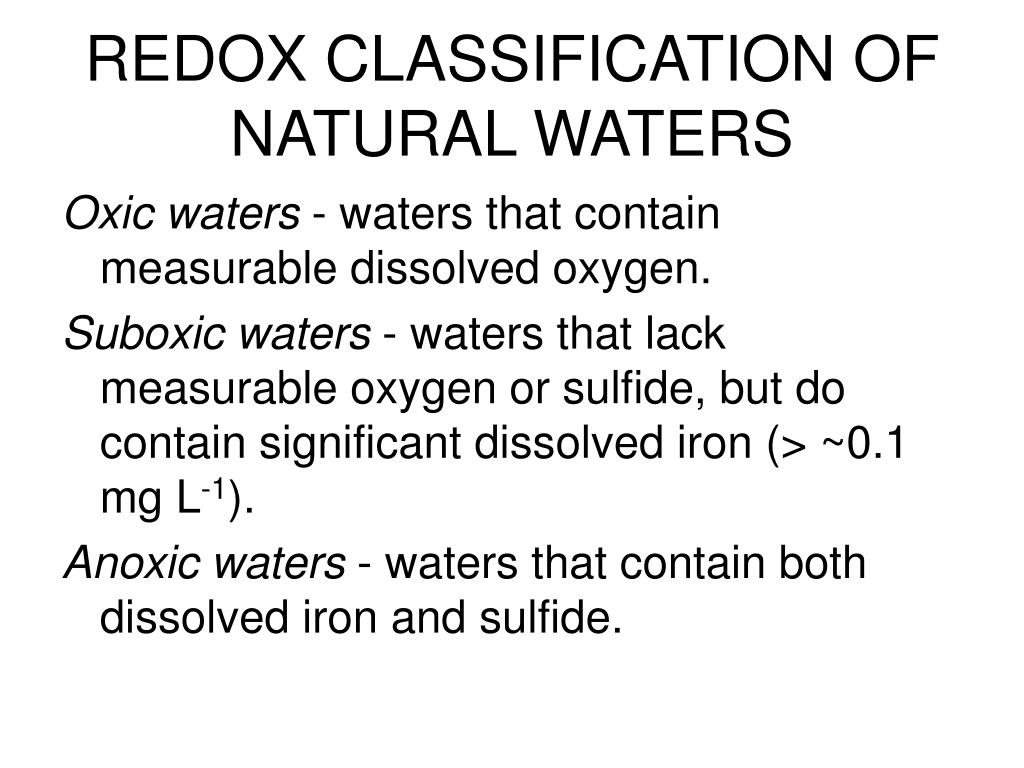

REDOX CLASSIFICATION OF NATURAL WATERS. Oxic waters - waters that contain measurable dissolved oxygen. Suboxic waters - waters that lack measurable oxygen or sulfide, but do contain significant dissolved iron (> ~0.1 mg L -1 ).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'REDOX CLASSIFICATION OF NATURAL WATERS' - piper


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Redox classification of natural waters
REDOX CLASSIFICATION OF NATURAL WATERS

Oxicwaters - waters that contain measurable dissolved oxygen.

Suboxic waters - waters that lack measurable oxygen or sulfide, but do contain significant dissolved iron (> ~0.1 mg L-1).

Anoxic waters - waters that contain both dissolved iron and sulfide.


Definition of eh
DEFINITION OF Eh

Eh - the potential of a solution relative to the SHE.

Both pe and Eh measure essentially the same thing. They may be converted via the relationship:

Where  = 96.42 kJ volt-1 eq-1 (Faraday’s constant).

At 25°C, this becomes

or


Eh measurement and meaning
Eh – Measurement and meaning

  • Eh is the driving force for a redox reaction

  • No exposed live wires in natural systems (usually…)  where does Eh come from?

  • From Nernst  redox couples exist at some Eh (Fe2+/Fe3+=1, Eh = +0.77V)

  • When two redox species (like Fe2+ and O2) come together, they should react towards equilibrium

  • Total Eh of a solution is measure of that equilibrium



Problems with eh measurements
PROBLEMS WITH Eh MEASUREMENTS

  • Natural waters contain many redox couples NOT at equilibrium; it is not always clear to which couple (if any) the Eh electrode is responding.

  • Eh values calculated from redox couples often do not correlate with each other or directly measured Eh values.

  • Eh can change during sampling and measurement if caution is not exercised.

  • Electrode material (Pt usually used, others also used)

    • Many species are not electroactive (do NOT react at electrode)

      • Many species of O, N, C, As, Se, and S are not electroactive at Pt

    • electrode can become poisoned by sulfide, etc.


Figure 5-6 from Kehew (2001). Plot of Eh values computed from the Nernst equation vs. field-measured Eh values.


Other methods of determining the redox state of natural systems
Other methods of determining the redox state of natural systems

  • For some, we can directly measure the redox couple (such as Fe2+ and Fe3+)

  • Techniques to directly measure redox SPECIES:

    • Amperometry (ion specific electrodes)

    • Voltammetry

    • Chromatography

    • Spectrophotometry/ colorimetry

    • EPR, NMR

    • Synchrotron based XANES, EXAFS, etc.


Free energy and electropotential
Free Energy and Electropotential systems

  • Talked about electropotential (aka emf, Eh)  driving force for e- transfer

  • How does this relate to driving force for any reaction defined by DGr ??

    DGr = nDE or DG0r = nDE0

    • Where n is the # of e-’s in the rxn,  is Faraday’s constant (23.06 cal V-1), and E is electropotential (V)

  • pe for an electron transfer between a redox couple analagous to pK between conjugate acid-base pair


Electromotive series
Electromotive Series systems

  • When we put two redox species together, they will react towards equilibrium, i.e., e- will move  which ones move electrons from others better is the electromotive series

  • Measurement of this is through the electropotential for half-reactions of any redox couple (like Fe2+ and Fe3+)

    • Because DGr = nDE, combining two half reactions in a certain way will yield either a + or – electropotential (additive, remember to switch sign when reversing a rxn)

      -E  - DGr, therefore  spontaneous

  • In order of decreasing strength as a reducing agent  strong reducing agents are better e- donors


Biology’s view systems upside down?

Reaction directions for 2 different redox couples brought together??

More negative potential  reductant // More positive potential  oxidant

Example – O2/H2O vs. Fe3+/Fe2+  O2 oxidizes Fe2+ is spontaneous!


Nernst equation
Nernst Equation systems

Consider the half reaction:

NO3- + 10H+ + 8e- NH4+ + 3H2O(l)

We can calculate the Eh if the activities of H+, NO3-, and NH4+ are known. The general Nernst equation is

The Nernst equation for this reaction at 25°C is


Let’s assume that the concentrations of NO systems3- and NH4+ have been measured to be 10-5 M and 310-7 M, respectively, and pH = 5. What are the Eh and pe of this water?

First, we must make use of the relationship

For the reaction of interest

rG° = 3(-237.1) + (-79.4) - (-110.8)

= -679.9 kJ mol-1


The Nernst equation now becomes systems

substituting the known concentrations (neglecting activity coefficients)

and


Stability limits of water
Stability Limits of Water systems

  • H2O  2 H+ + ½ O2(g) + 2e-

    Using the Nernst Equation:

  • Must assign 1 value to plot in x-y space (PO2)

  • Then define a line in pH – Eh space


Upper stability limit of water eh ph
UPPER STABILITY LIMIT OF WATER (Eh-pH) systems

To determine the upper limit on an Eh-pH diagram, we start with the same reaction

1/2O2(g) + 2e- + 2H+ H2O

but now we employ the Nernst eq.


As for the pe-pH diagram, we assume that p systemsO2 = 1 atm. This results in

This yields a line with slope of -0.0592.


Lower stability limit of water eh ph
LOWER STABILITY LIMIT OF WATER (Eh-pH) systems

Starting with

H+ + e- 1/2H2(g)

we write the Nernst equation

We set pH2 = 1 atm. Also, Gr° = 0, so E0 = 0. Thus, we have


O2/H2O systems

C2HO


Redox titrations
Redox titrations systems

  • Imagine an oxic water being reduced to become an anoxic water

  • We can change the Eh of a solution by adding reductant or oxidant just like we can change pH by adding an acid or base

  • Just as pK determined which conjugate acid-base pair would buffer pH, pe determines what redox pair will buffer Eh (and thus be reduced/oxidized themselves)


Making stability diagrams
Making stability diagrams systems

  • For any reaction we wish to consider, we can write a mass action equation for that reaction

  • We make 2-axis diagrams to represent how several reactions change with respect to 2 variables (the axes)

  • Common examples: Eh-pH, PO2-pH, T-[x], [x]-[y], [x]/[y]-[z], etc


Construction of these diagrams
Construction of these diagrams systems

  • For selected reactions:

    Fe2+ + 2 H2O  FeOOH + e- + 3 H+

    How would we describe this reaction on a 2-D diagram? What would we need to define or assume?


  • How about: systems

  • Fe3+ + 2 H2O  FeOOH(ferrihydrite) + 3 H+

    Ksp=[H+]3/[Fe3+]

    log K=3 pH – log[Fe3+]

    How would one put this on an Eh-pH diagram, could it go into any other type of diagram (what other factors affect this equilibrium description???)


Redox titrations1
Redox titrations systems

  • Imagine an oxic water being reduced to become an anoxic water

  • We can change the Eh of a solution by adding reductant or oxidant just like we can change pH by adding an acid or base

  • Just as pK determined which conjugate acid-base pair would buffer pH, pe determines what redox pair will buffer Eh (and thus be reduced/oxidized themselves)


Redox titration ii
Redox titration II systems

  • Let’s modify a bjerrum plot to reflect pe changes


Redox titrations in complex solutions
Redox titrations in complex solutions systems

  • For redox couples not directly related, there is a ladder of changing activity

  • Couple with highest + potential reduced first, oxidized last

  • Thermodynamics drives this!!


The redox ladder

O systems2

Aerobes

Oxic

H2O

Dinitrofiers

NO3-

N2

Maganese reducers

Post - oxic

MnO2

Mn2+

Iron reducers

Fe(OH)3

Fe2+

SO42-

Sulfate reducers

Sulfidic

H2S

CO2

Methanogens

CH4

Methanic

H2O

H2

The Redox ladder

The redox-couples are shown on each stair-step, where the

most energy is gained at the top step and the least at the bottom step. (Gibb’s free energy becomes more positive going down the steps)
