Presentation Transcript


Paging l.jpg

Paging

CS-502 Operating Systems

CS502 Spring 2006


Paging2 l.jpg

Paging

  • A different approach

  • Addresses all of the issues of previous topic

  • Introduces new issues of its own

CS502 Spring 2006


Memory management review l.jpg

CPU

Logical Addresses

MMU

Physical Addresses

Memory

I/O Devices

Memory Management – Review

  • Virtual (or logical) address vs. Physical addresses

  • Memory Management Unit (MMU)

    • Set of registers and mechanisms to translate virtual addresses to physical addresses

  • Processes (and CPU) see virtual addresses

    • Virtual address space is same for all processes, usually 0 based

    • Virtual spaces are protected from other processes

  • MMU and devices see physical addresses

CS502 Spring 2006


Paging4 l.jpg

Logical Address Space (virtual memory)

physical memory

page 0

frame 0

page 1

frame 1

page 2

frame 2

MMU

page 3

frame Y

page X

Paging

  • Solve fragmentation problems, internal and external

  • Use fixed size units in both physical and virtual memory

  • Provide sufficient MMU hardware to allow units to be scattered across memory

  • Make it possible to leave infrequently used parts of virtual address space out of physical memory

CS502 Spring 2006


Paging5 l.jpg

Paging

  • Processes see a contiguous virtual address space

  • Memory Manager divides the virtual address space into equal sized pieces called pages

  • Memory Manager divides the physical address space into equal sized pieces called frames

    • Frame size usually a power of 2 between 512 and 8192 bytes

    • Frame table

      • One entry per frame of physical memory

      • State

        • Free

        • Allocated – process(es)

  • sizeof(page) = sizeof(frame)

CS502 Spring 2006


Paging address translation l.jpg

Paging – Address Translation

  • Translating virtual addresses

    • a virtual address has two parts: virtual page number & offset

    • virtual page number (VPN) is index into a page table

    • page table entry contains page frame number (PFN)

    • physical address is: startof(PFN) + offset

  • Page tables

    • Supported by MMU hardware

    • Managed by the Memory Manager

    • Map virtual page numbers to page frame numbers

      • one page table entry (PTE) per page in virtual address space

      • i.e., one PTE per VPN

CS502 Spring 2006


Paging translation l.jpg

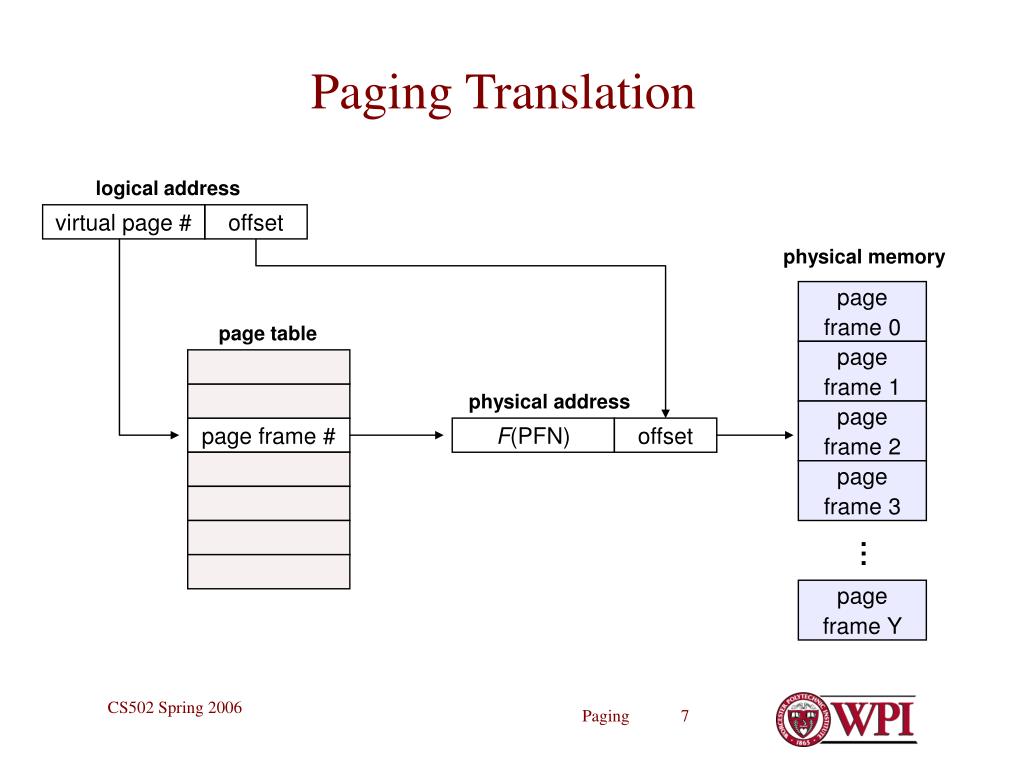

Paging Translation

logical address

virtual page #

offset

physical memory

page

frame 0

page table

page

frame 1

physical address

page

frame 2

page frame #

F(PFN)

offset

page

frame 3

page

frame Y

CS502 Spring 2006


Page translation example l.jpg

Page Translation Example

  • Assume a 32 bit address space

    • Assume page size 4KB (log2(4096) = 12 bits)

    • For a process to address the full logical address space

      • Need 220 PTEs – VPN is 20 bits

      • Offset is 12 bits

  • Translation of virtual address 0x12345678

    • Offset is 0x678

    • Assume PTE(12345) contains 0x01000

    • Physical address is 0x01000678

CS502 Spring 2006


Pte structure l.jpg

1

1

1

2

20

V

R

M

prot

page frame number

PTE Structure

  • Valid bit gives state of this PTE

    • says whether or not a virtual address is valid – in memory and VA range

    • If not set, page might not be in memory or may not even exist!

  • Reference bit says whether the page has been accessed

    • it is set by hardware when a page has been read or written to

  • Modify bit says whether or not the page is dirty

    • it is set by hardware on every write to the page

  • Protection bits control which operations are allowed

    • read, write, etc.

  • Page frame number (PFN) determines the physical page

    • physical page start address

  • Other bits dependent upon machine architecture

CS502 Spring 2006


Paging advantages l.jpg

Paging – Advantages

  • Easy to allocate physical memory

    • pick any free frame

  • No external fragmentation

    • All frames are equal

  • Easy to swap out pages (called pageout)

    • Size is usually a multiple of disk blocks

    • PTE contains info that helps reduce disk traffic

  • Processes can run with not all pages swapped in

  • CS502 Spring 2006


    Definition page fault l.jpg

    Definition — Page Fault

    • A trap when a process attempts to reference a virtual address of a page not in physical memory

      • Valid bit in PTE is set to false

  • If page exists on disk:–

    • Suspend process

    • If necessary, throw out some other page (update its PTE)

    • Swap in desired page, resume execution

  • If page does not exist on disk:–

    • Return program error

      or

    • Conjure up a new page and resume execution

      • E.g., for growing the stack!

  • CS502 Spring 2006


    Paging observations l.jpg

    Paging Observations

    • Recurring themes in paging

      • Temporal Locality – locations referenced recently tend to be referenced again soon

      • Spatial Locality – locations near recent references tend to be referenced soon

    • Definitions

      • Working set: The set of pages that a process needs to run without frequent page faults

      • Thrashing: Excessive page faulting due to insufficient frames to support working set

    CS502 Spring 2006


    Paging issues l.jpg

    Paging Issues

    • Minor issue – internal fragmentation

      • Memory allocation in units of pages (also file allocation!)

    • #1 — Page Tables can consume large amounts of space

      • If PTE is 4 bytes, and use 4KB pages, and have 32 bit VA space -> 4MB for each process’s page table

      • What happens for 64-bit logical address spaces?

    • #2 — Performance Impact

      • Converting virtual to physical address requires multiple operations to access memory

        • Read Page Table Entry from memory!

        • Get page frame number

        • Construct physical address

        • Assorted protection and valid checks

      • Without fast hardware support, requires multiple memory accesses and a lot of work per logical address

    CS502 Spring 2006


    Issue 1 page table size l.jpg

    Issue #1: Page Table Size

    • Process Virtual Address spaces

      • Not usually full – don’t need every PTE

      • Processes do exhibit locality – only need a subset of the PTEs

    • Two-level page tables

    • Virtual Addresses have 3 parts

      • Master page number – points to secondary page table

      • Secondary page number – points to PTE containing page frame #

      • Offset

    • Physical Address = offset + startof (PFN)

    • Note: Master page number can be used as Segment #

      • previous topic

    • n-level page tables are possible, but rare in 32-bit systems

    CS502 Spring 2006


    Two level page tables l.jpg

    Two-level page tables

    virtual address

    master page #

    secondary page#

    offset

    physical memory

    page

    frame 0

    master

    page table

    physical address

    page

    frame 1

    page frame #

    offset

    secondary

    page table #

    secondary

    page table # addr

    page

    frame 2

    page

    frame 3

    page frame

    number

    page

    frame Y

    CS502 Spring 2006


    Multilevel page tables l.jpg

    Multilevel Page Tables

    • Sparse Virtual Address space – very few secondary PTs ever needed

    • Process Locality – only a few secondary PTs needed at one time

    • Can page out secondary PTs that are not needed now

      • Don’t page Master Page Table

      • Save physical memory

        However

    • Performance is worse

      • Now have 3 memory access per virtual memory reference or instruction fetch

    • How do we get back to about 1 memory access per VA reference?

      • Problem #2 of previous slide

    CS502 Spring 2006


    Paging issues17 l.jpg

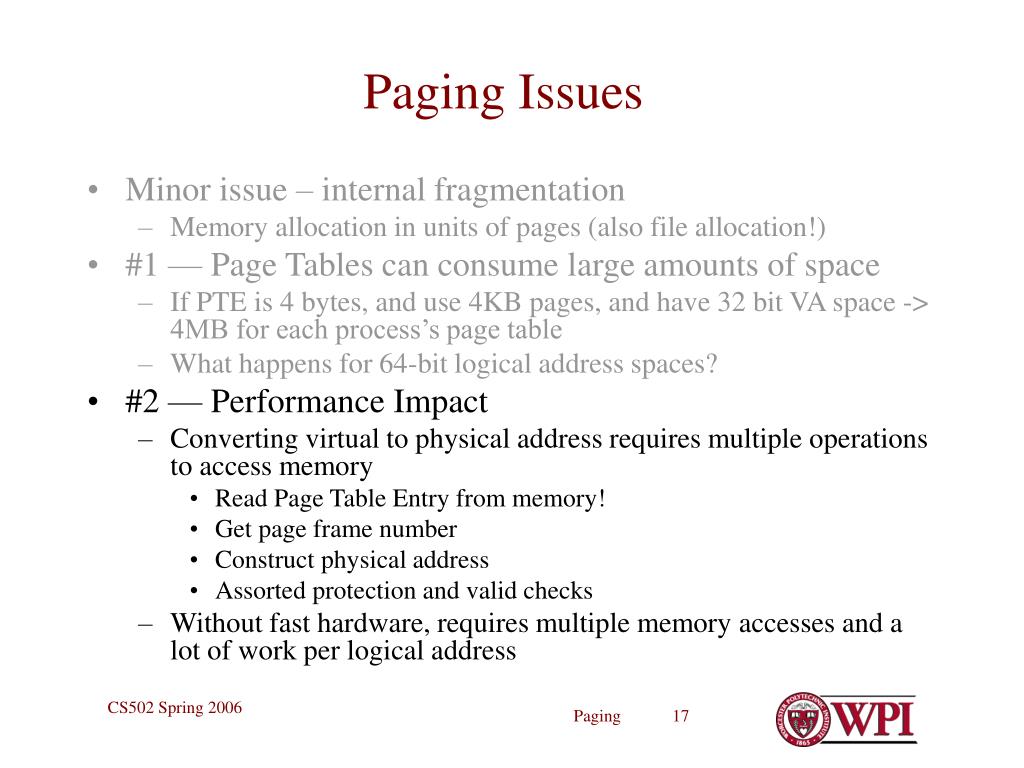

    Paging Issues

    • Minor issue – internal fragmentation

      • Memory allocation in units of pages (also file allocation!)

    • #1 — Page Tables can consume large amounts of space

      • If PTE is 4 bytes, and use 4KB pages, and have 32 bit VA space -> 4MB for each process’s page table

      • What happens for 64-bit logical address spaces?

    • #2 — Performance Impact

      • Converting virtual to physical address requires multiple operations to access memory

        • Read Page Table Entry from memory!

        • Get page frame number

        • Construct physical address

        • Assorted protection and valid checks

      • Without fast hardware, requires multiple memory accesses and a lot of work per logical address

    CS502 Spring 2006


    Associative memory aka dynamic address translation l.jpg

    VPN #

    Frame #

    Associative Memory(aka Dynamic Address Translation)

    • Do fast hardware search of all entries in parallel for VPN

    • If present, use PFN directly

    • If not,

      • Look up in page table (multiple accesses)

      • Load VPN and PFN into Associative Memory (throwing out another entry as needed)

    CS502 Spring 2006


    Translation lookaside buffer tlb l.jpg

    Translation Lookaside Buffer (TLB)

    • Associative memory implementation in hardware

      • Translates VPN to PTE (containing PFN)

      • Done in single machine cycle

    • TLB is hardware assist

      • Fully associative – all entries searched in parallel with VPN as index

      • Returns PFN

      • MMU use PFN and offset to get Physical Address

    • Locality makes TLBs work

      • Usually have 8–1024 TLB entries

      • Sufficient to deliver 99%+ hit rate (in most cases)

    • Works well with multi-level page tables

    CS502 Spring 2006


    Mmu with tlb l.jpg

    MMU with TLB

    CS502 Spring 2006


    Typical machine architecture l.jpg

    Memory

    Memory

    Memory

    I/O device

    I/O device

    I/O device

    I/O device

    Typical Machine Architecture

    CPU

    MMU and TLBlive here

    Bridge

    Graphics

    CS502 Spring 2006


    Tlb related policies l.jpg

    TLB-related Policies

    • OS must ensure that TLB and page tables are consistent

      • When OS changes bits (e.g. protection) in PTE, it must invalidate TLB copy

      • If dirty bit is set, write back to page table entry

    • TLB replacement policies

      • Random

      • Least Recently Used (LRU) – with HW help

    • What happens on context switch?

      • Each process has own page tables (multi-level)

      • Must invalidate all TLB entries

      • Then TLB fills as new process executes

      • Expensive context switches just got more expensive!

        • Note benefit of Threads

    CS502 Spring 2006


    Alternative page table format hashed l.jpg

    Alternative Page Table format – Hashed

    • Common in address spaces > 32 bits.

    • The virtual page number is hashed into a page table. This page table contains a chain of VPNs hashing to the same value.

    • Virtual page numbers are compared in this chain searching for a match. If a match is found, the corresponding physical frame is extracted

    • Still uses TLB for execution

    CS502 Spring 2006


    Hashed page tables l.jpg

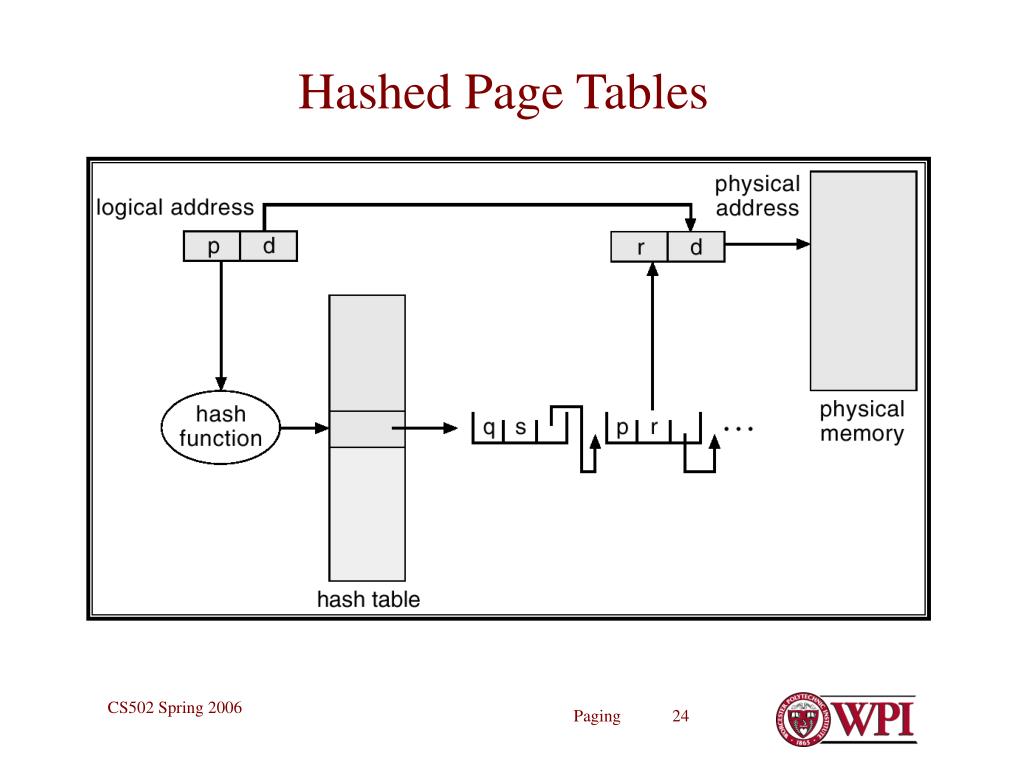

    Hashed Page Tables

    CS502 Spring 2006


    Alternative page table format inverted l.jpg

    Alternative Page Table format – Inverted

    • One entry for each real page of memory.

    • Entry consists of the virtual address of the page stored in that real memory location, with information about the process that owns that page.

    • Decreases memory needed to store each page table, but increases time needed to search the table when a page reference occurs.

    • Use hash table to limit the search to one or a few page-table entries.

    • Still uses TLB for execution

    CS502 Spring 2006


    Inverted page table architecture l.jpg

    Inverted Page Table Architecture

    CS502 Spring 2006


    Paging some tricks l.jpg

    Paging – Some Tricks

    • Shared Memory

      • Part of virtual memory of two or more processes map to same frames

        • Finer grained sharing than segments

        • Data sharing with Read/Write

        • Shared libraries with eXecute

      • Each process has own PTEs – different privileges

    • Copy-on-write (COW) – e.g. on fork()

      • Don’t copy all pages – create shared mapping of parent pages in child

        • Make shared pages read-only in child

        • When child does write, a protection fault occurs

        • OS copies the page and resumes client

    CS502 Spring 2006


    Paging more tricks l.jpg

    Paging – More Tricks

    • Memory-mapped files

      • Instead of standard system calls (read(), write(), etc.) map file starting at virtual address X

        • I.e., use the file for swap space for that part of VM

      • Access to “X + n” refers to file at offset n

      • All mapped file PTEs marked at start as invalid

      • OS reads from file on first access

      • OS writes to file when page is dirty and page is evicted

    CS502 Spring 2006


    Paging summary l.jpg

    Paging – Summary

    • Partition virtual memory into equal size units called pages

    • Any page can fit into any frame in physical memory

    • No relocation needed by loader

    • Only active pages in memory at any time

    • Supports very large virtual memories and segmentation

    • Hardware assistance is essential

    • First introduction to the fundamental principle of caching

    CS502 Spring 2006


    Caching l.jpg

    Caching

    • The act of keeping a small subset of active items in fast storage while most of the items are in much larger, slower storage

      • Virtual Memory

        • Very large, mostly stored on (slow) disk

        • Small working set in (fast) RAM during execution

      • Page tables

        • Very large, mostly stored in (slow) RAM

        • Small working set stored in (fast) TLB registers

    CS502 Spring 2006


    Caching is ubiquitous in computing l.jpg

    Caching is Ubiquitous in Computing

    • Transaction processing

      • Keep records of today’s departures in RAM while records of future flights are on disk

  • Program execution

    • Keep the bytes near the current program counter in on-chip memory while rest of program is in RAM

  • File management

    • Keep disk maps of open files in RAM while retaining maps of all files on disk

  • CS502 Spring 2006


    Caching issues l.jpg

    Caching issues

    • When to put something in the cache

    • What to throw out to create cache space for new items

    • How to keep cached item and stored item in sync after one or the other is updated

    • How to keep multiple caches in sync across processors or machines

    • Size of cache needed to be effective

    • Size of cache items for efficiency

    CS502 Spring 2006


  • Login
