Developing Custom ASP.NET Providers For Membership And Role Manager

Developing Custom ASP.NET Providers For Membership And Role Manager. Stefan Schackow PRS404 Program Manager – Web Platform and Tools Microsoft Corporation. Agenda. Provider Model Extensibility scenarios with code demos Projecting Membership via web services

piper
Download Presentation

Developing Custom ASP.NET Providers For Membership And Role Manager

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Developing Custom ASP.NET Providers For Membership And Role Manager Stefan Schackow PRS404 Program Manager – Web Platform and Tools Microsoft Corporation

  2. Agenda • Provider Model • Extensibility scenarios with code demos • Projecting Membership via web services • Role caching with SQL Server 2005 • Virtualizing applications • Integrating Membership with custom data

  3. Provider Model • Enable new functionality in a transparent fashion • Enable extensibility for • Web services • Browser based “Atlas” clients • Smart clients • Application services as pluggable building blocks • Decoupled via configuration • Use structural classes for your own features

  4. Static feature class Feature config. Provider instances Provider ModelFeature Lifecycle

  5. Provider ModelFeature Configuration public class QuotationsConfiguration : ConfigurationSection { [ConfigurationProperty("providers")] public ProviderSettingsCollection Providers { get; } [ConfigurationProperty("defaultProvider", DefaultValue = "StaticQuotationProvider")] public string DefaultProvider { get; set; } }

  6. Provider ModelCreating Provider Instances //Start with empty provider collection providerCollection = new QuotationsProviderCollection(); //Helper class converts configuration information into //concrete providers ProvidersHelper.InstantiateProviders( qc.Providers, //a ProviderSettingsCollection providerCollection, typeof(QuotationsProvider)); //Lock the provider collection providerCollection.SetReadOnly();

  7. Writing A Provider-Based Feature

  8. Projecting Membership • Physical 3-tier deployments • May not allow web server to connect directly to Sql tier • “Atlas” and smart clients • Clients can only communicate over Http • Need app services to work across the Internet

  9. Projecting MembershipDesign Issues • Authenticating to the web service • Not all methods should be public • Serialization of MembershipUser • Read-only properties don’t serialize • WebMethod parameter constraints • Collection types and [out] parameters • Selecting from multiple providers • Choosing a non-default provider

  10. Projecting Membership3-Tier Flow Webservice server Web server .asmx Membership wrapper Application code Webservice provider SQL provider

  11. Internet client “login” Application Returns forms ticket pass ticket w/ each request Projecting MembershipAuthenticated Flow Webservice server .asmx Formsuth wrapper .asmx Membership wrapper Validate ticket and roles SQL provider

  12. Projecting Membership With Web Services

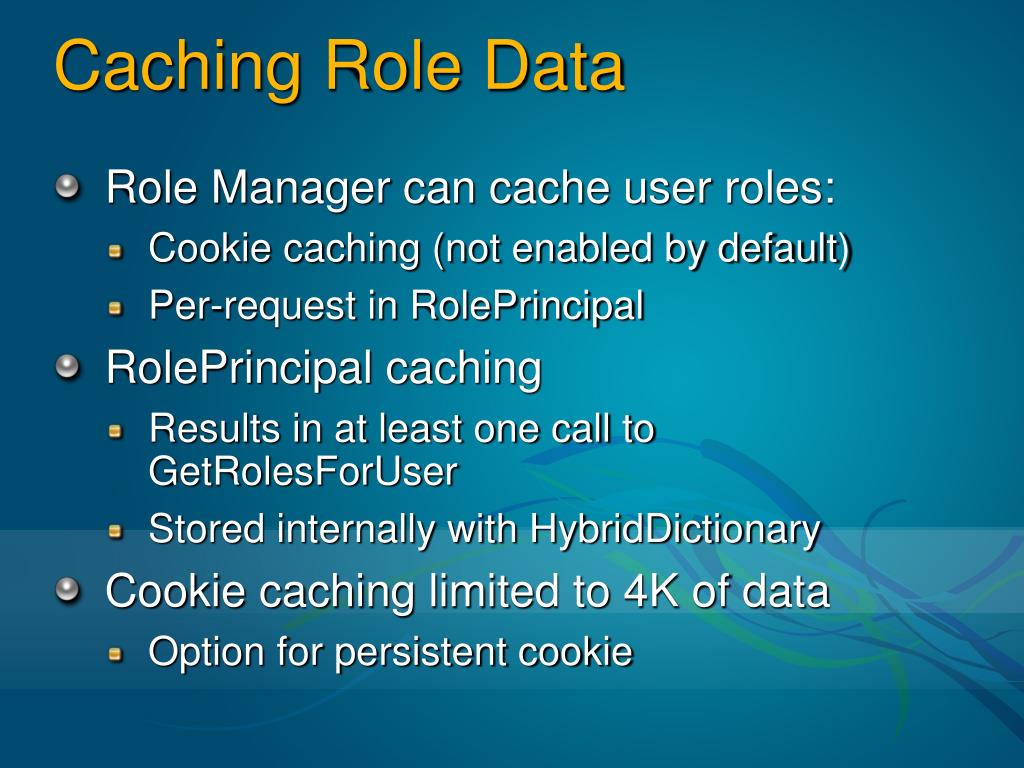

  13. Caching Role Data • Role Manager can cache user roles: • Cookie caching (not enabled by default) • Per-request in RolePrincipal • RolePrincipal caching • Results in at least one call to GetRolesForUser • Stored internally with HybridDictionary • Cookie caching limited to 4K of data • Option for persistent cookie

  14. Caching Role Data • Cache role data using SQL Server 2005 query notifications • Data is cached until SQL notifies you • Good for clients that cannot use cookies • Can handle apps with hundreds of roles

  15. Caching Role DataQuery Notification Specifics • Need to change “SET QUOTED IDENTIFIER” in ASP.NET SQL scripts to “ON” • Then recompile stored procedures • Custom provider must query ASP.NET tables directly • Cannot create notifications against SQL views

  16. Role Caching With SQL Server 2005

  17. Virtualized Applications • One physical ASP.NET application • Multiple “virtual” applications • Portal style applications • DotNetNuke portal provisioning • Self-registered forums and portals • Sharepoint • However providers are • “Application-centric” • Statically defined in configuration

  18. Virtualized Applications • Override ApplicationName property • Determine virtual application context dynamically (e.g. IHttpModule) • Retrieve it in the override • Cautionary Notes! • Prevent auth ticket re-use across apps • Don’t accidentally map roles in one virtual app to a user in a different virtual app • Turn off cookie caching for roles

  19. Setting Application Context Dynamically

  20. Integrating Custom Data • Need to integrate existing data • Don’t want to write a provider from scratch • May need to link to your own data • What can “safely” be referenced? • How do you handle transactions? • How do you pass extra data along?

  21. Integrating Custom DataCustom Provider Design Issues • Referential Integrity • Foreign key to aspnet_Users table • Use SQL views to lookup UserID • Transactional Integrity • Use the new ADO.NET 2.0 TransactionScope • Custom Data • Pass via HttpContext to CreateUser • Extend MembershipUser for other cases

  22. Integrating Membership w/ Custom Data

  23. Summary • Rewrite or enhance features • Plug-in rich functionality independently from the presentation tier • Project current features onto other platforms via web services • Use the provider infrastructure for your own features

  24. Community Resources • “Atlas” application development • PRS312: ASP.NET: Future Directions for Developing Rich Web Applications with Atlas (Part 1) (Wed 5pm) • PRS420: ASP.NET: Future Directions for Developing Rich Web Applications with Atlas (Part 2) (Thursday 11:30AM) • Ask The Experts Thursday night • Drop by the PRS track lounge!

  25. Community ResourcesProvider Links on the Web • Access providers from Beta 1 • Installs as a Visual Studio 2005 VSI template • Includes full source for Membership, Role Manager, Profile and Web Parts Personalization providers • Provider Toolkit • Extensive 120 page whitepaper • Sample providers for all provider based features • Both will be available at http://msdn.microsoft.com/asp.net/beta2/providers/default.aspx

  26. © 2005 Microsoft Corporation. All rights reserved. This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.

  27. Provider Model AppendixPatterns • Strategy • Provider base classes • Factory Method • System.Web.Configuration.ProvidersHelper • Singleton Pattern • Only one provider instance is instantiated • Façade • Feature classes like Membership, Roles, etc…

  28. Provider Model Appendix • Provider Class Definition • What is the pluggable aspect for the feature? • Configuration • Feature configuration • Provider-specific configuration • Common entry point class • Triggers feature initialization
