Woodworking joinery

Woodworking Joinery

by

Scott Engelmann


Woodworking joinery1

Woodworking Joinery

  • Why are joints used? To produce more complex shapes and products

  • When are joints used? when changing the direction of the grain or a member of the structure and to strengthen the part.

  • What joints to use?

  • How to make the joint?

  • Advantages and disadvantages


Woodworking joinery

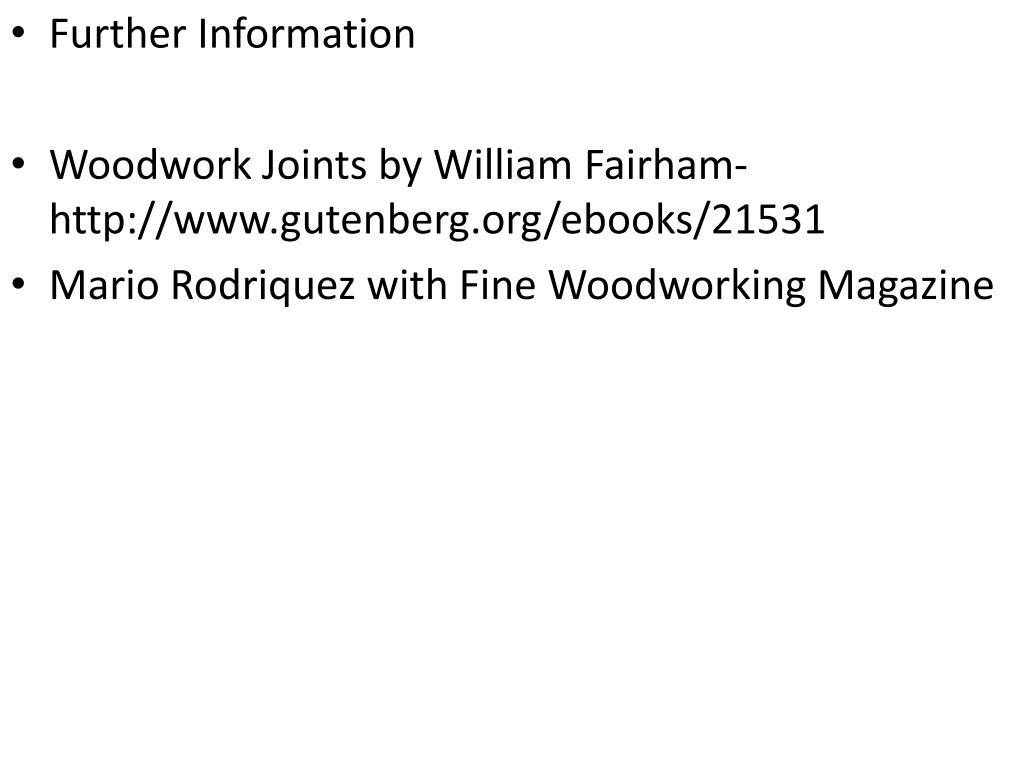

  • Further Information

  • Woodwork Joints by William Fairham-http://www.gutenberg.org/ebooks/21531

  • Mario Rodriquez with Fine Woodworking Magazine


Basic joints

Basic Joints

  • Butt joints

  • Miter joints

  • Bridle joints

  • Dovetail joints

  • Dado joints

  • Rabbet joints

  • Mortise and Tenon

  • Splice joints

  • Lap joints

  • Finger/Box joints

  • Groove joints

  • Splines - Keys

  • Biscuits – Dowels

  • Pocket holes

  • Frame and Panel Construction

  • Cope and Stick joinery


Woodworking joinery

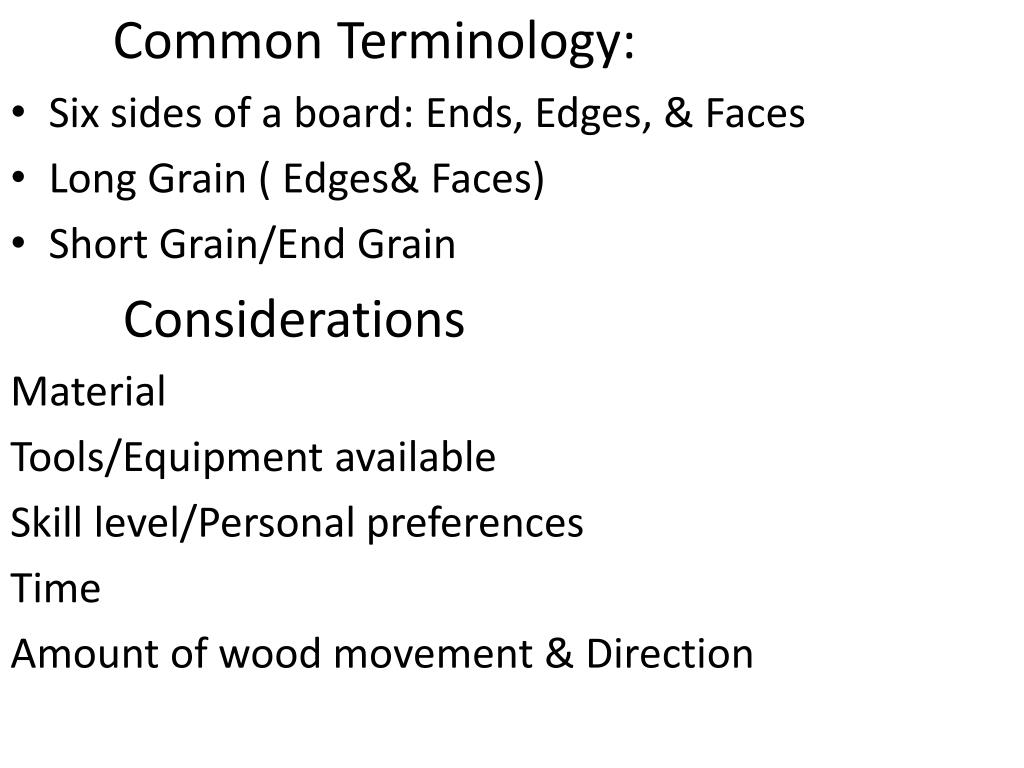

Common Terminology:

  • Six sides of a board: Ends, Edges, & Faces

  • Long Grain ( Edges& Faces)

  • Short Grain/End Grain

    Considerations

    Material

    Tools/Equipment available

    Skill level/Personal preferences

    Time

    Amount of wood movement & Direction


Woodworking joinery

  • Requirements for a well made joint

  • Snug, not so tight that too much pressure could cause the joint to fail. Not so loose that glue is being used as “filler”. Remember, wet glue will cause wood to swell so a tight joint may become unmanageable during final assembly.


Woodworking joinery

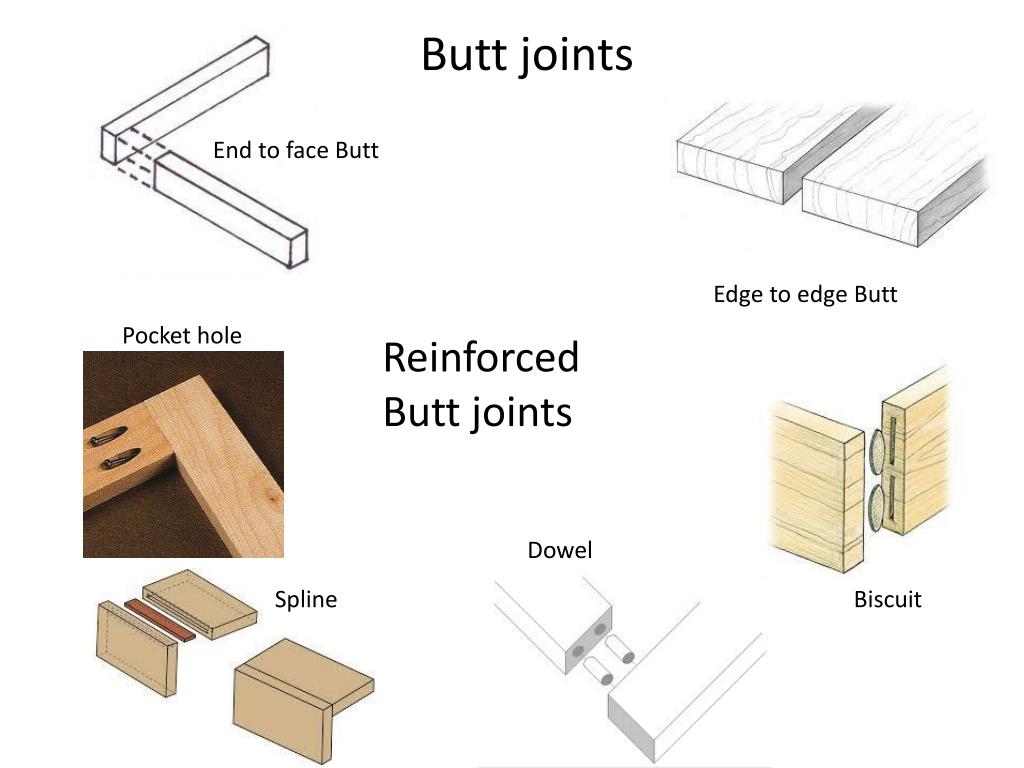

End to face Butt

Butt joints

Edge to edge Butt

Pocket hole

Reinforced Butt joints

Dowel

Spline

Biscuit


Butt joints

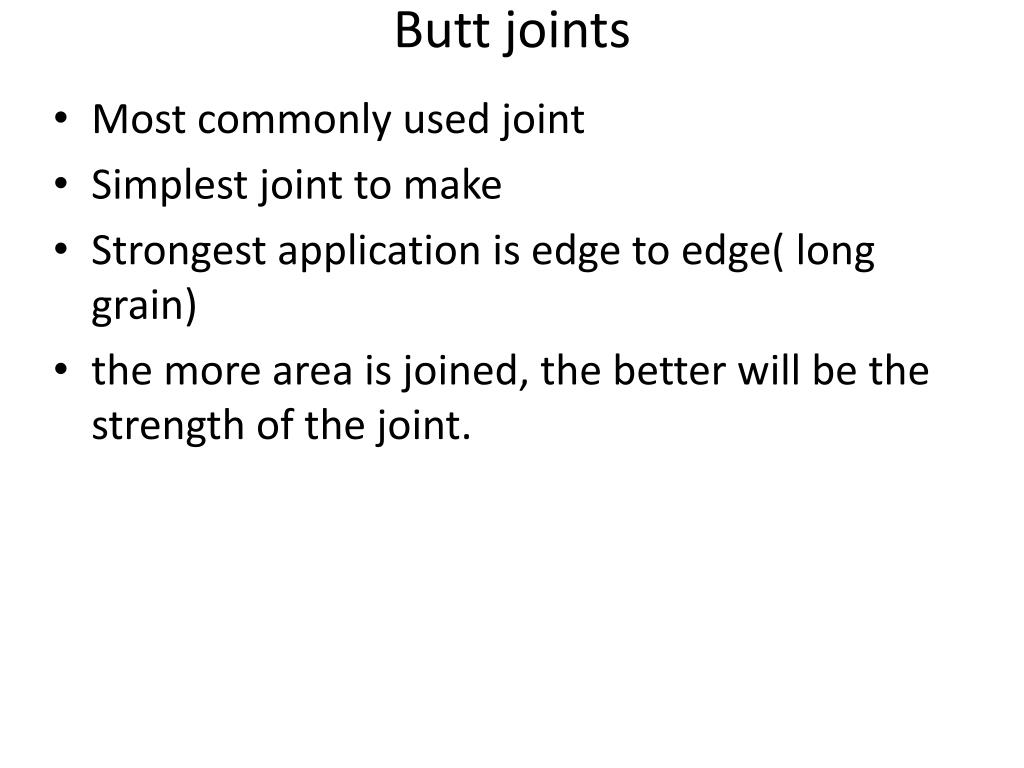

Butt joints

  • Most commonly used joint

  • Simplest joint to make

  • Strongest application is edge to edge( long grain)

  • the more area is joined, the better will be the strength of the joint.


Woodworking joinery

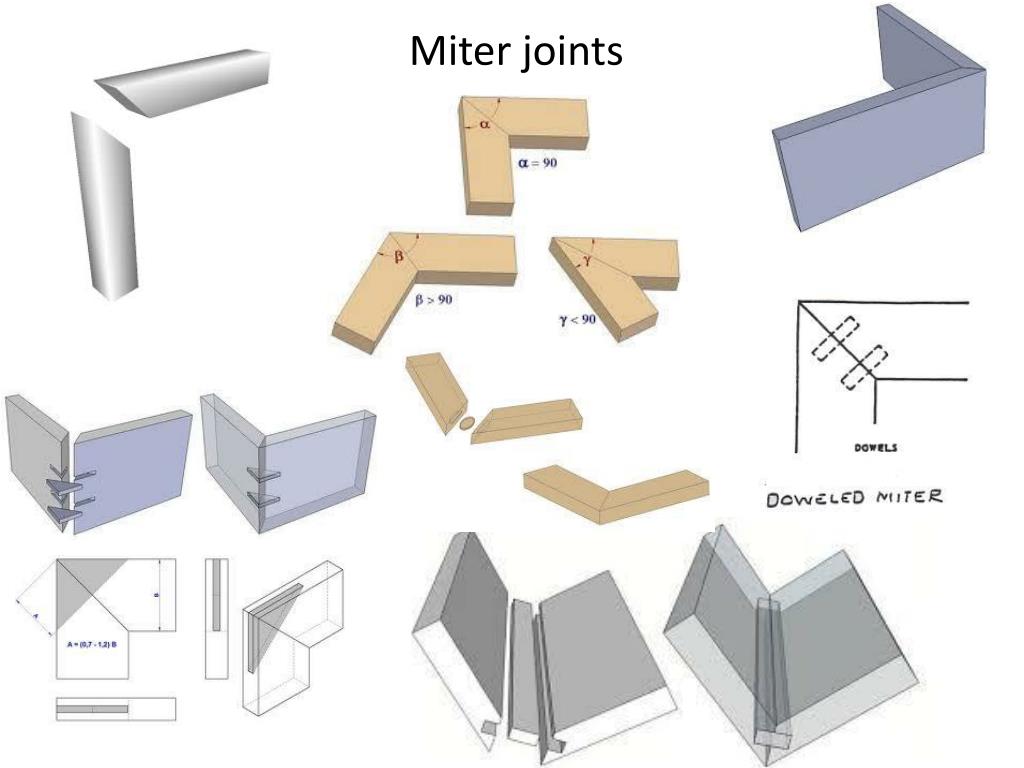

Miter joints


Woodworking joinery

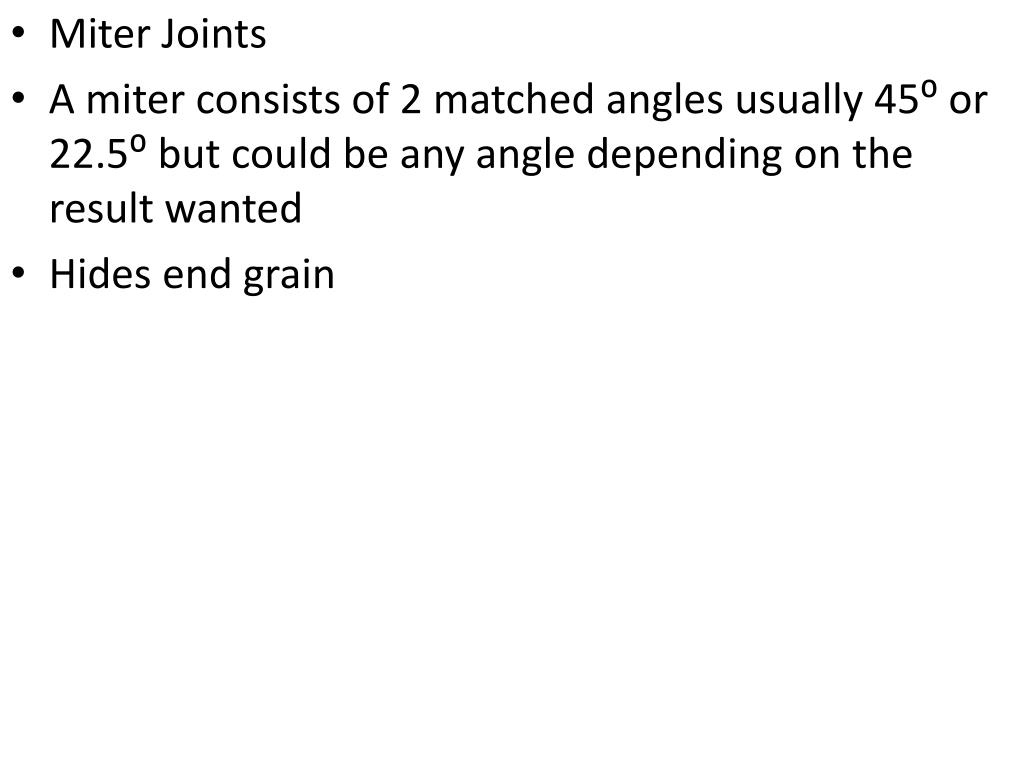

  • Miter Joints

  • A miter consists of 2 matched angles usually 45⁰ or 22.5⁰ but could be any angle depending on the result wanted

  • Hides end grain


Woodworking joinery

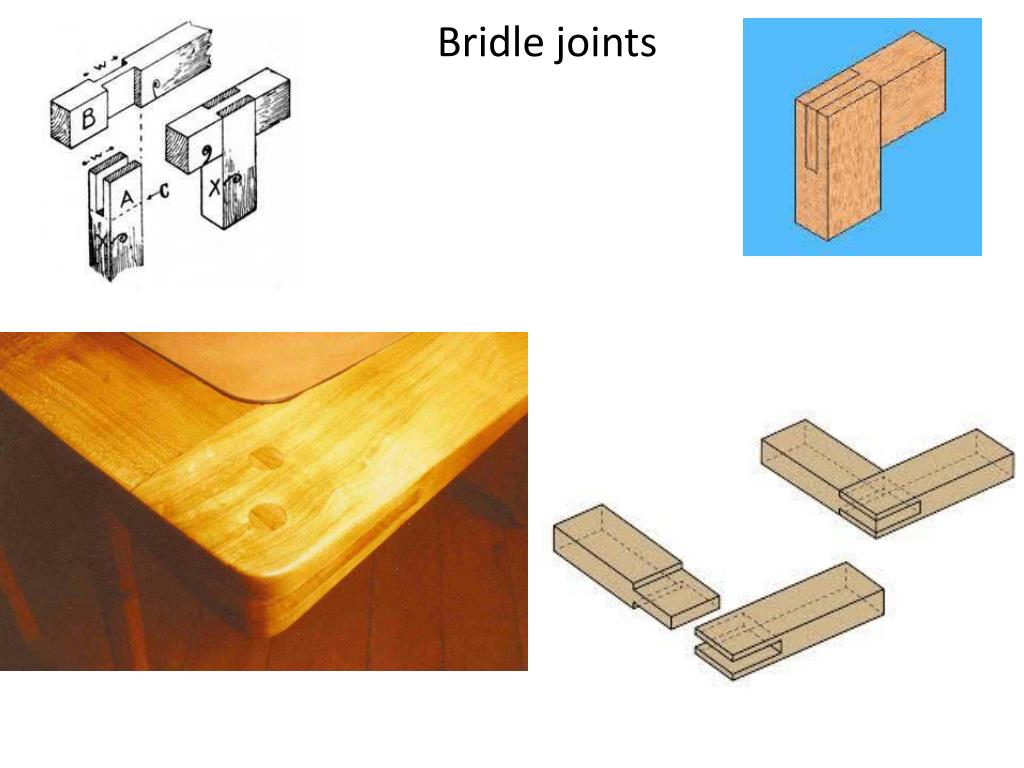

Bridle joints


Woodworking joinery

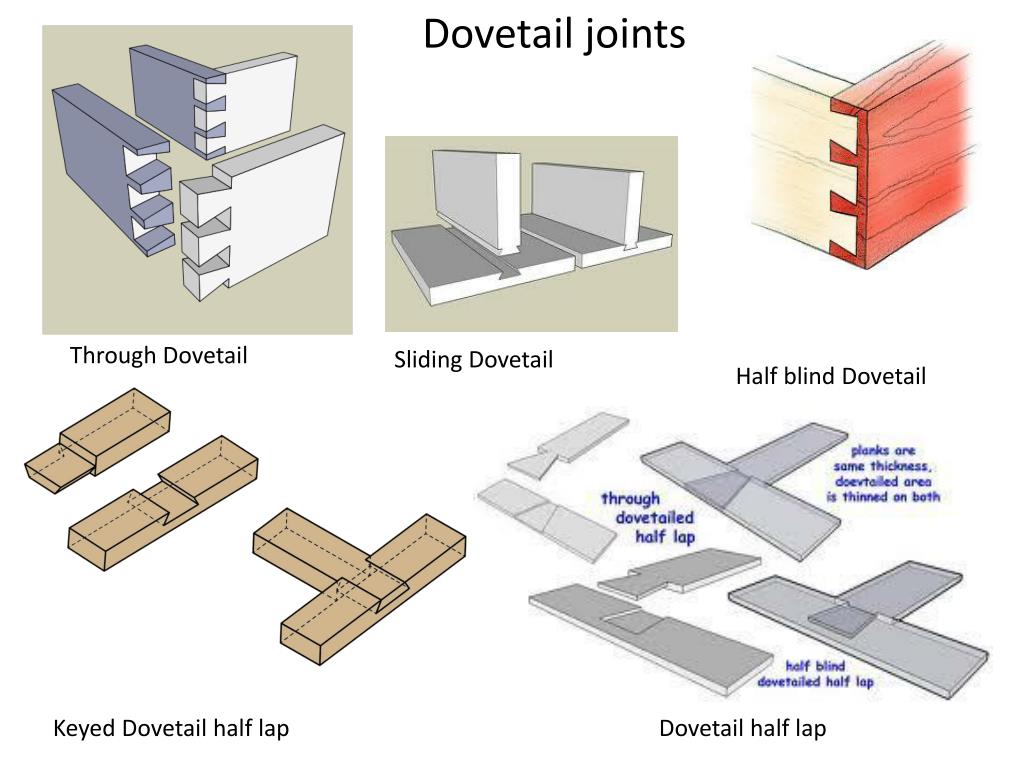

Dovetail joints

Through Dovetail

Sliding Dovetail

Half blind Dovetail

Keyed Dovetail half lap

Dovetail half lap


Woodworking joinery

  • Dovetail joints

  • Advantages - strong and interlocking joint- decorative

  • Disadvantages – time consuming make by hand or a jig is needed to machine cut

  • This joint requires precision cutting and can be difficult for a beginner to make well.

  • Uses- drawer and box corners


Woodworking joinery

Dado joints Rabbet/Rebate joints

Stopped Dado

Through Dado

Dado-rabbet


Woodworking joinery

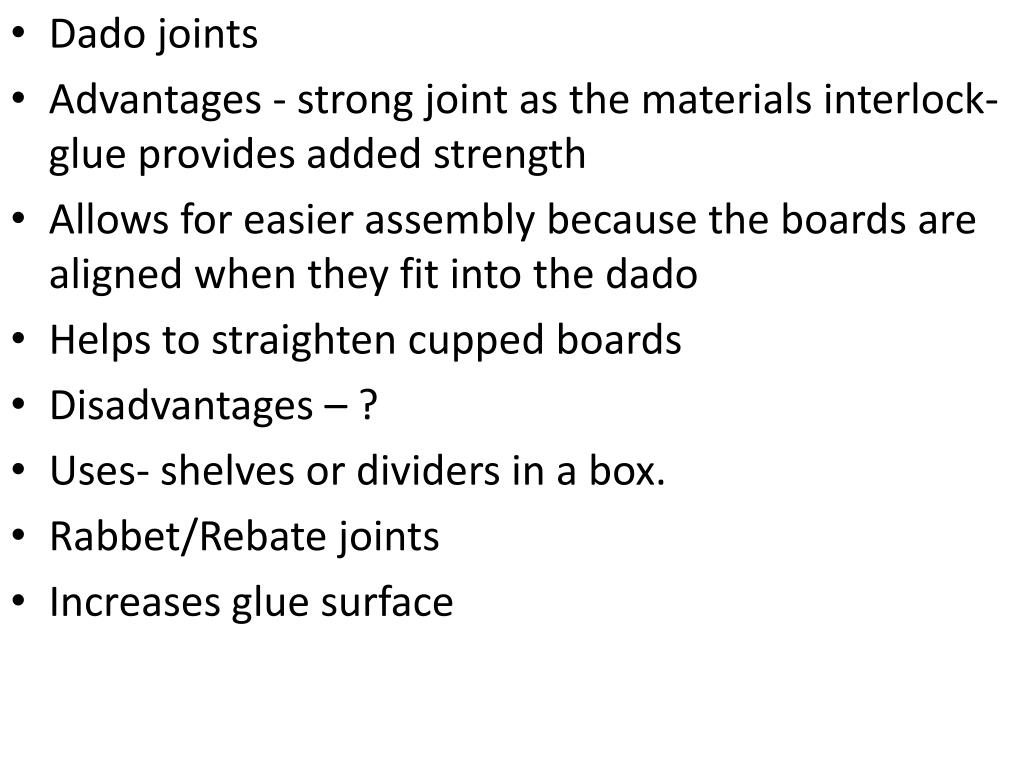

  • Dado joints

  • Advantages - strong joint as the materials interlock- glue provides added strength

  • Allows for easier assembly because the boards are aligned when they fit into the dado

  • Helps to straighten cupped boards

  • Disadvantages – ?

  • Uses- shelves or dividers in a box.

  • Rabbet/Rebate joints

  • Increases glue surface


Woodworking joinery

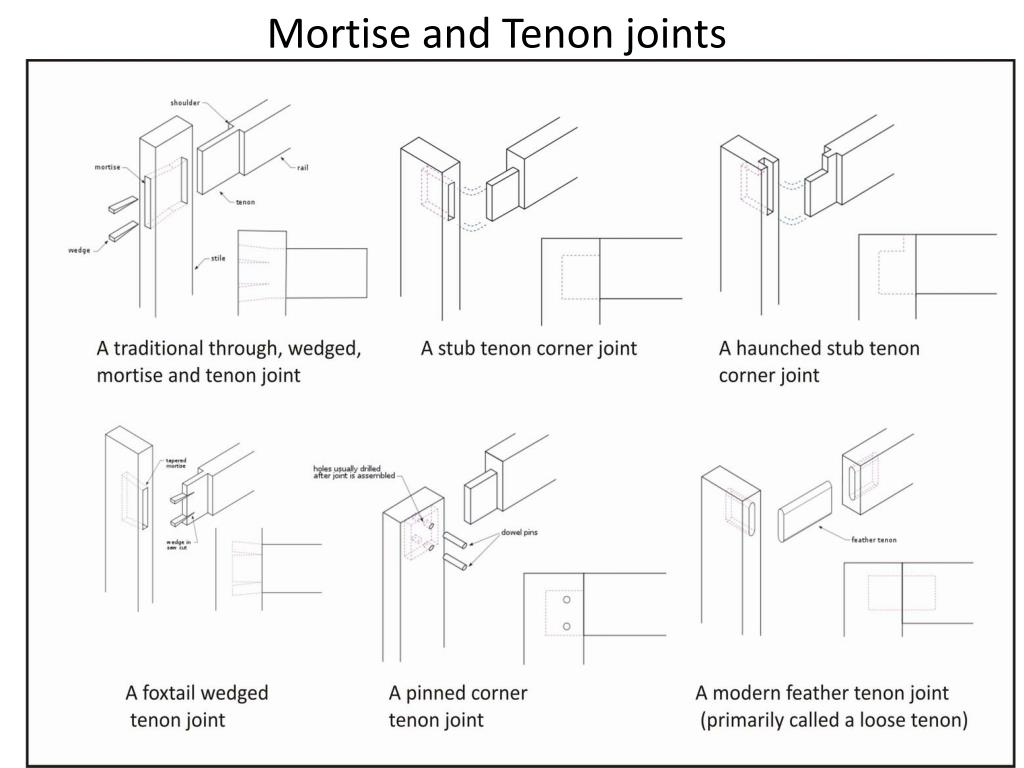

Mortise and Tenon joints


Woodworking joinery

  • Mortise & tenon joint

  • Advantages - A very strong and versatile joint

  • Disadvantages – somewhat time consuming to make depending on the equipment avaiable

  • Uses - strong corner joints for sturdy frames for windows, doors, beds and tables

  • Mortises can be cut with routers, drills, or by hand


Woodworking joinery

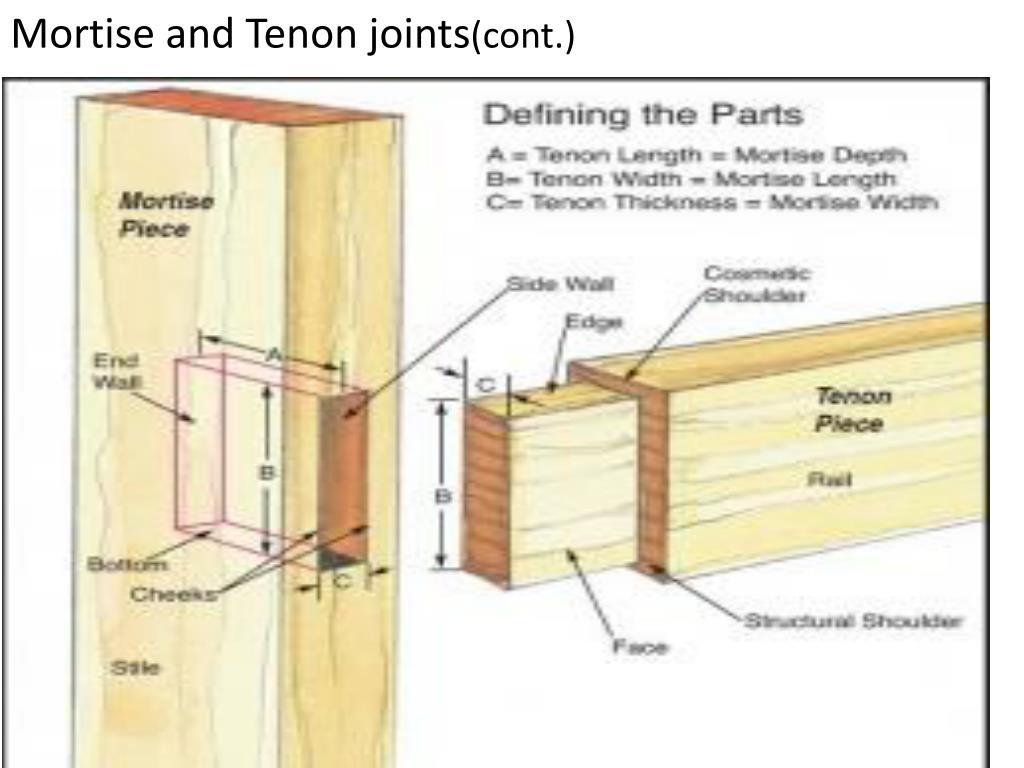

Mortise and Tenon joints(cont.)


Woodworking joinery

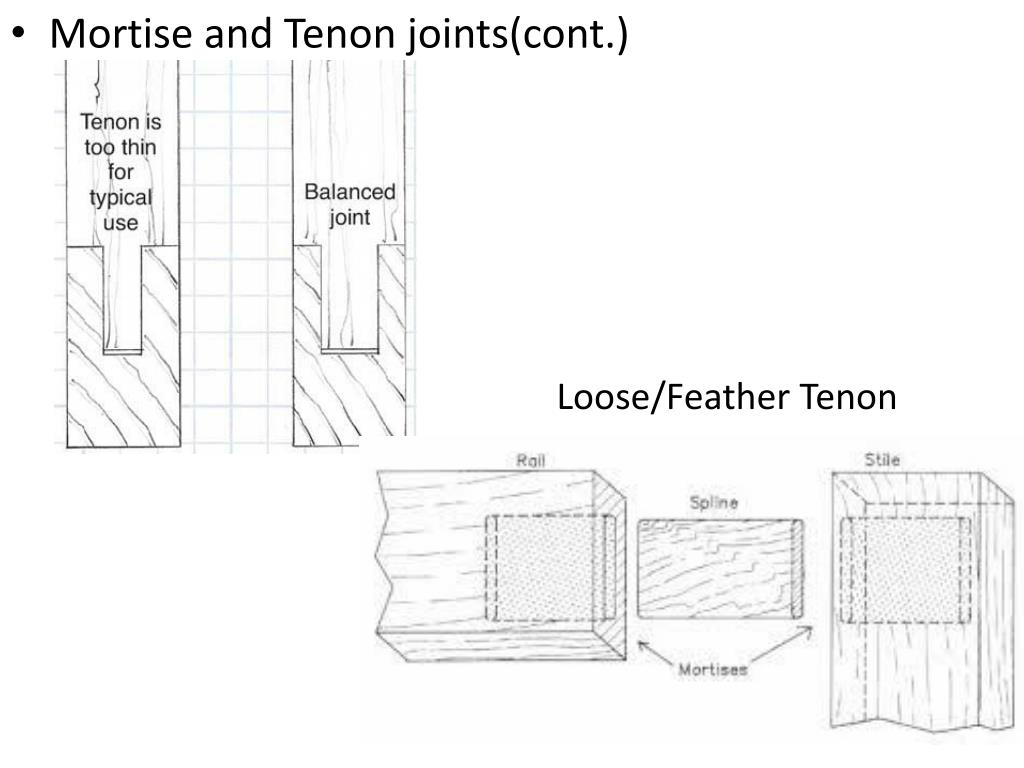

  • Mortise and Tenon joints(cont.)

Loose/Feather Tenon


Woodworking joinery

  • Mortise and Loose Tenon joints Commercial products.


Woodworking joinery

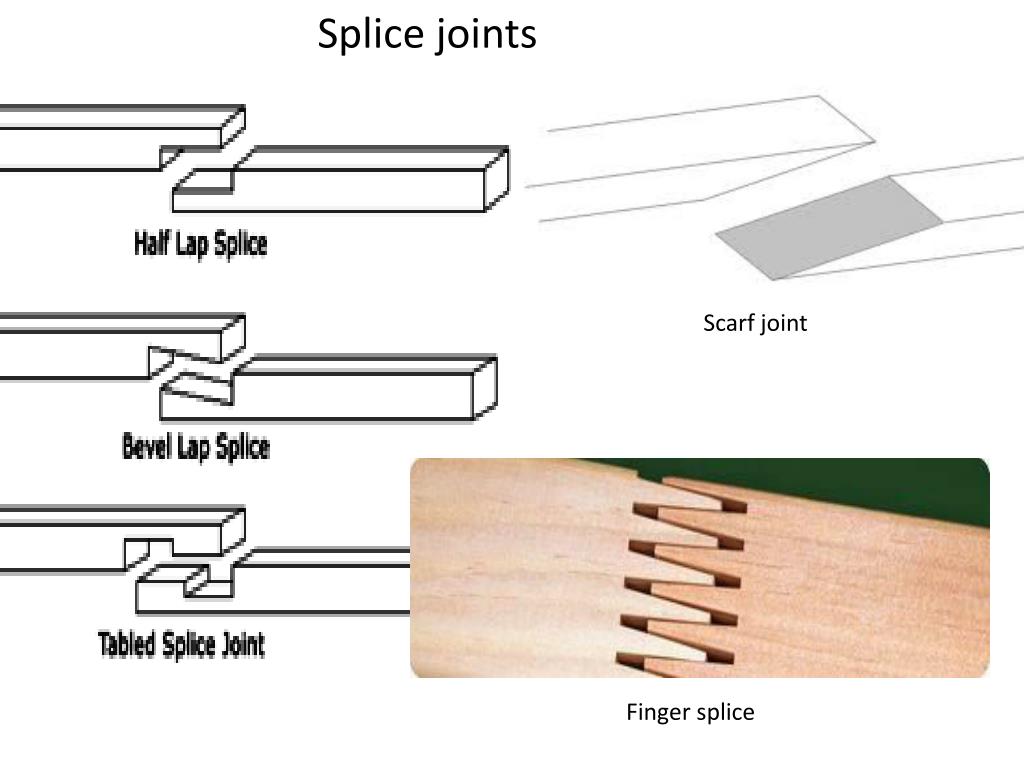

Splice joints

Scarf joint

Finger splice


Woodworking joinery

Lap joints

Half lap

Cross lap

Mitered Half Lap


Woodworking joinery

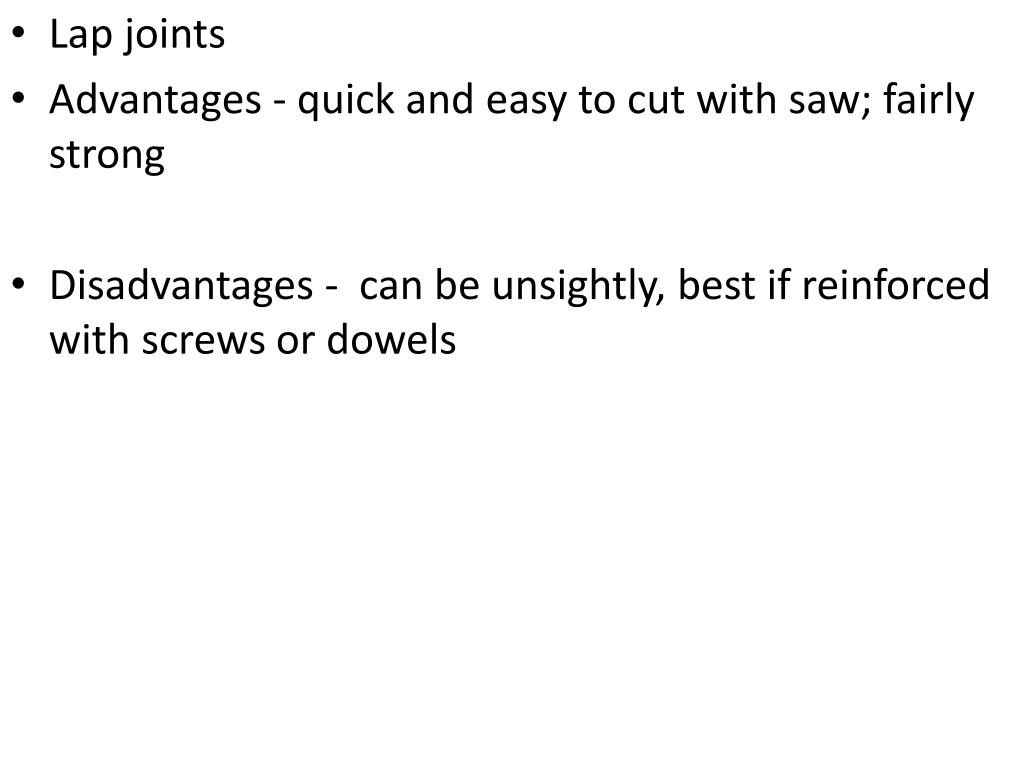

  • Lap joints

  • Advantages - quick and easy to cut with saw; fairly strong

  • Disadvantages - can be unsightly, best if reinforced with screws or dowels


Woodworking joinery

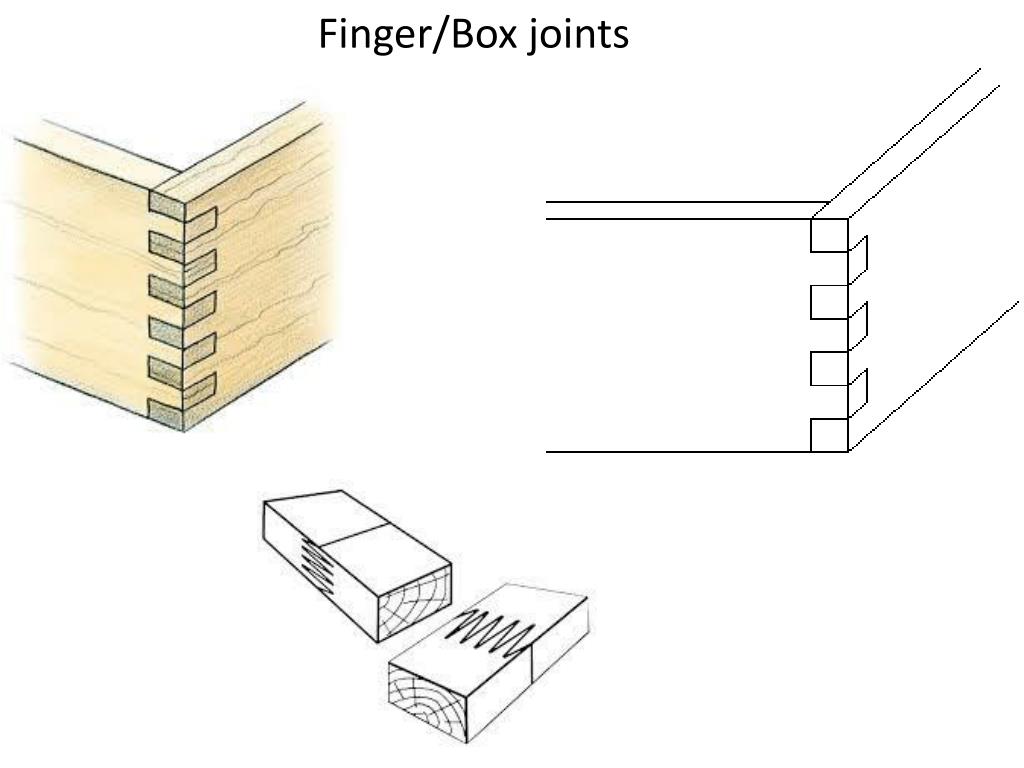

Finger/Box joints


Woodworking joinery

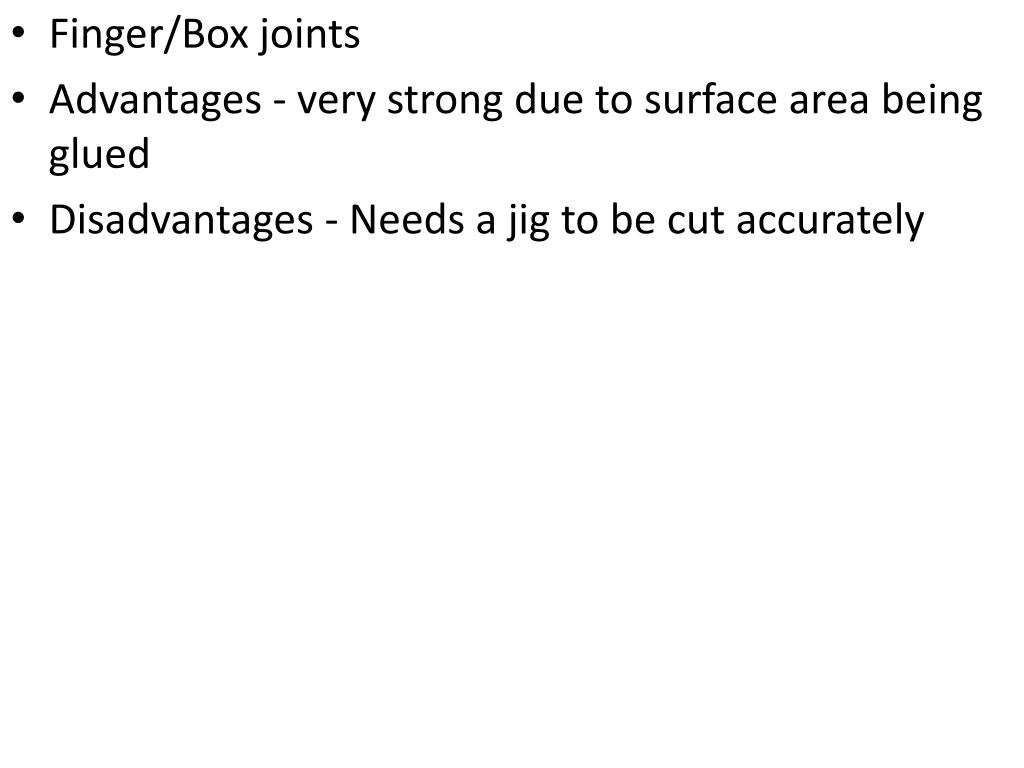

  • Finger/Box joints

  • Advantages - very strong due to surface area being glued

  • Disadvantages - Needs a jig to be cut accurately


Woodworking joinery

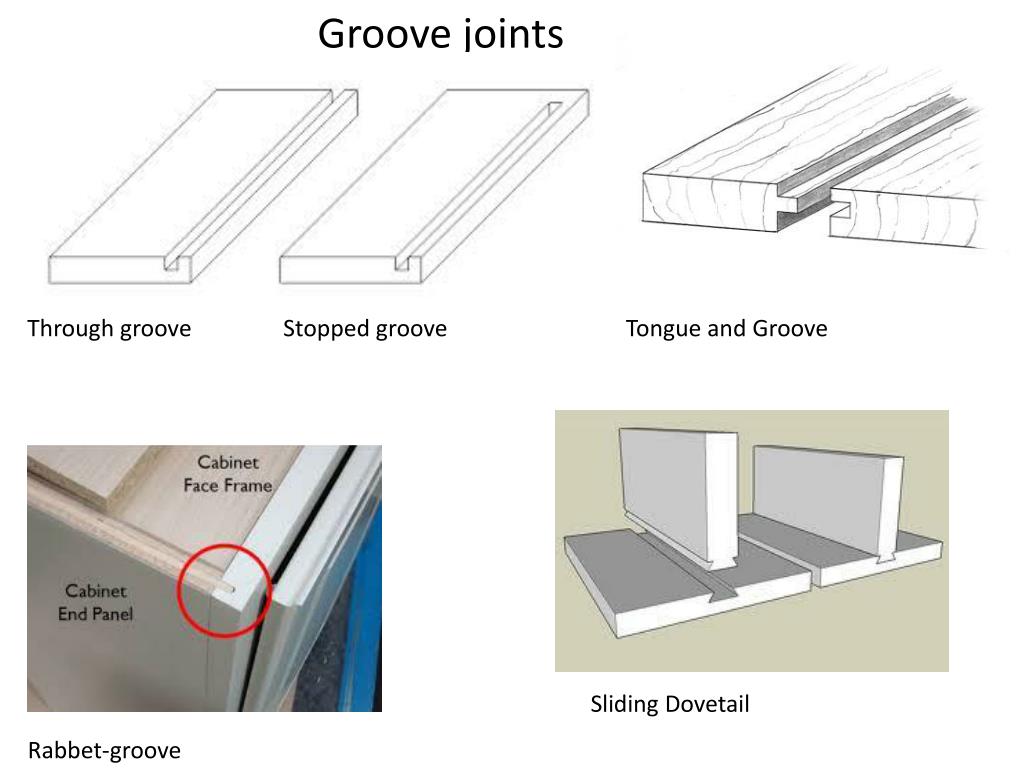

Groove joints

Through groove

Stopped groove

Tongue and Groove

Sliding Dovetail

Rabbet-groove


Woodworking joinery

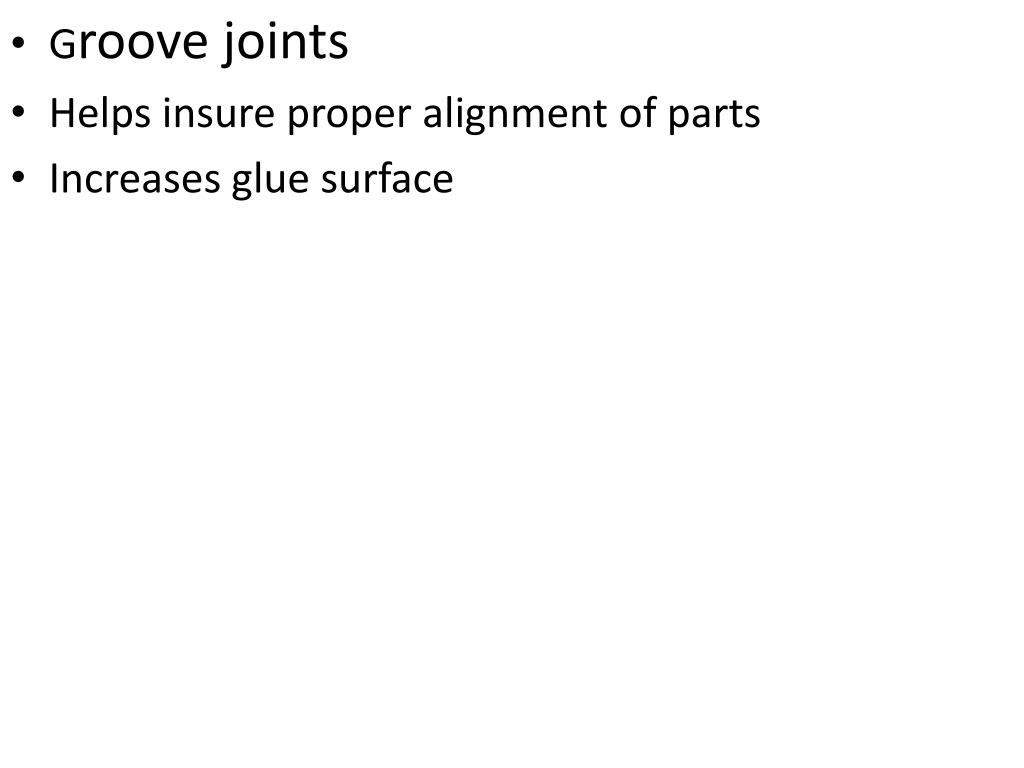

  • Groove joints

  • Helps insure proper alignment of parts

  • Increases glue surface


Woodworking joinery

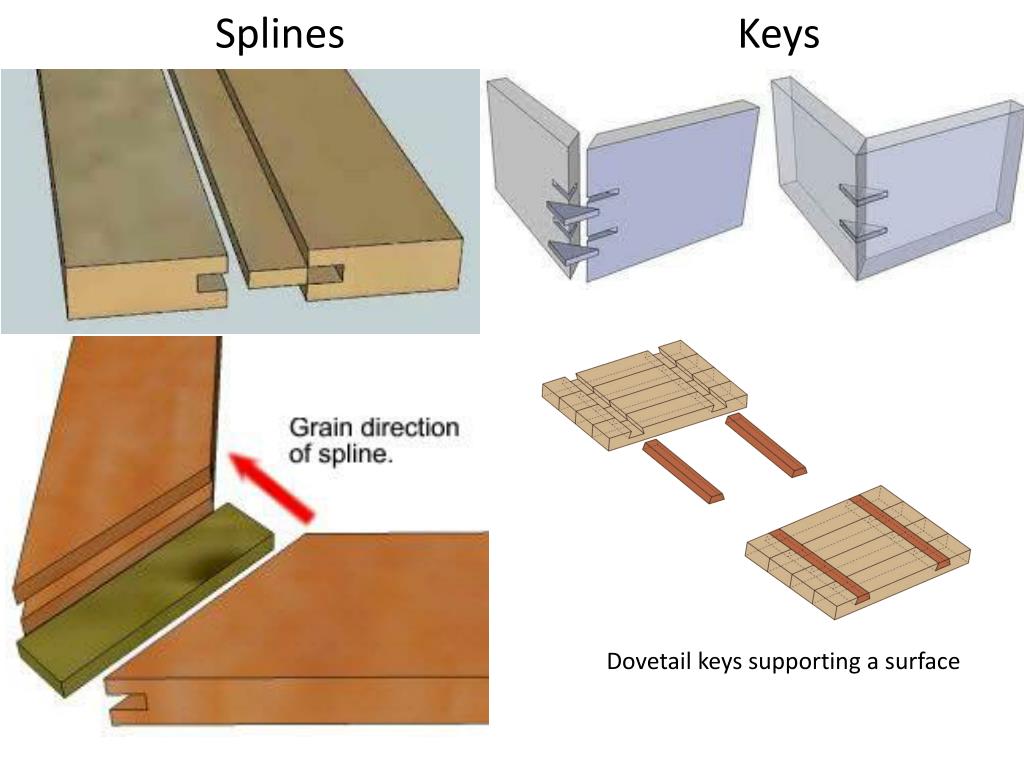

Splines Keys

Dovetail keys supporting a surface


Woodworking joinery

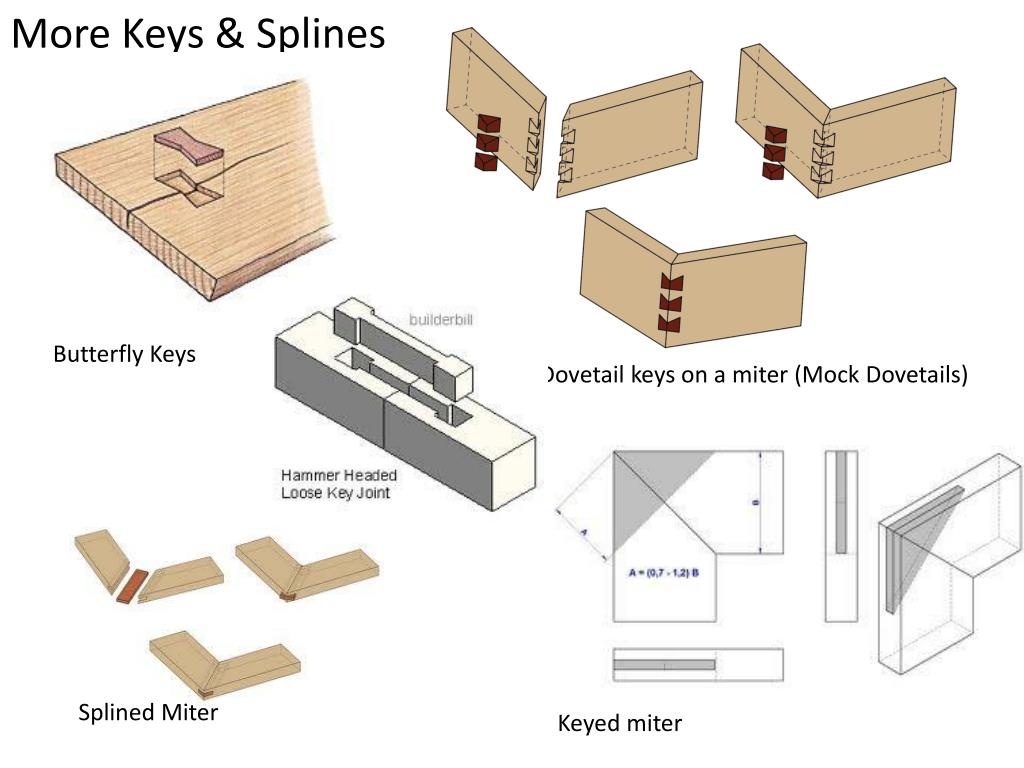

More Keys & Splines

Butterfly Keys

Dovetail keys on a miter (Mock Dovetails)

Splined Miter

Keyed miter


Woodworking joinery

  • Biscuits – Dowels


Woodworking joinery

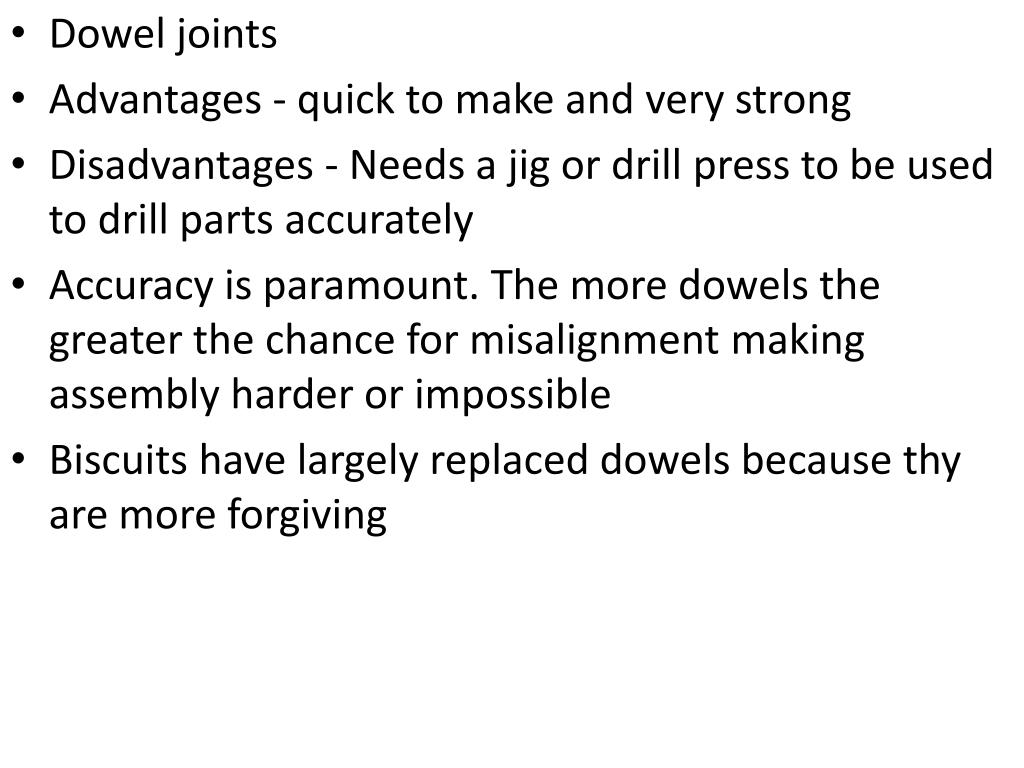

  • Dowel joints

  • Advantages - quick to make and very strong

  • Disadvantages - Needs a jig or drill press to be used to drill parts accurately

  • Accuracy is paramount. The more dowels the greater the chance for misalignment making assembly harder or impossible

  • Biscuits have largely replaced dowels because thy are more forgiving


Woodworking joinery

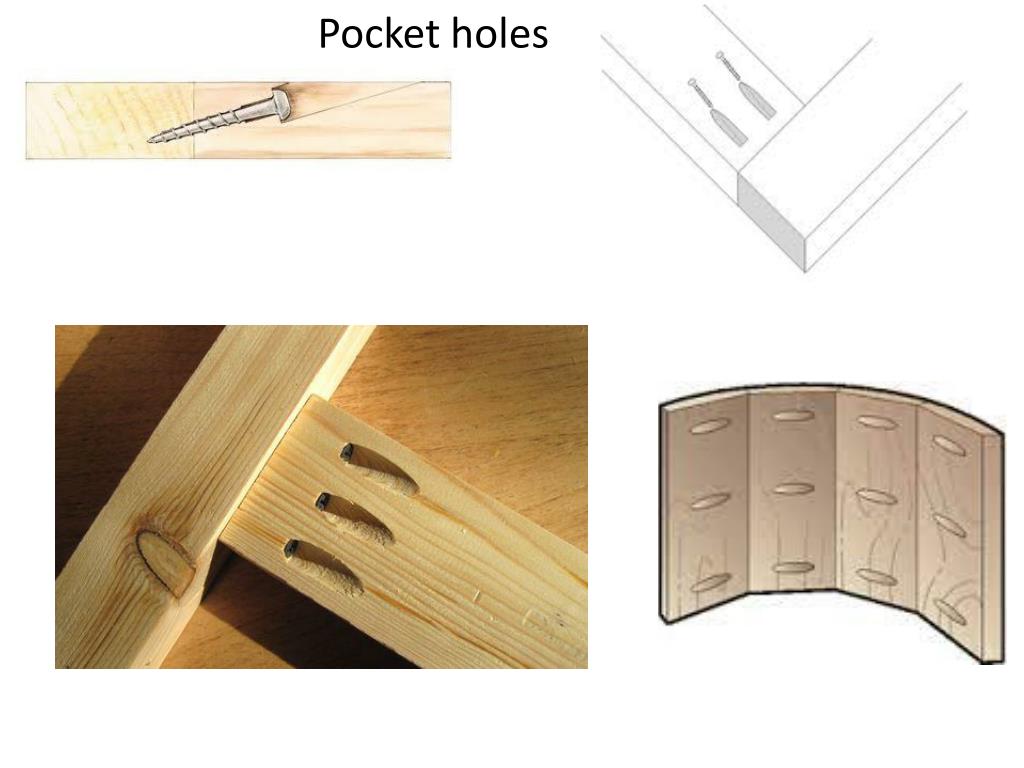

Pocket holes


Woodworking joinery

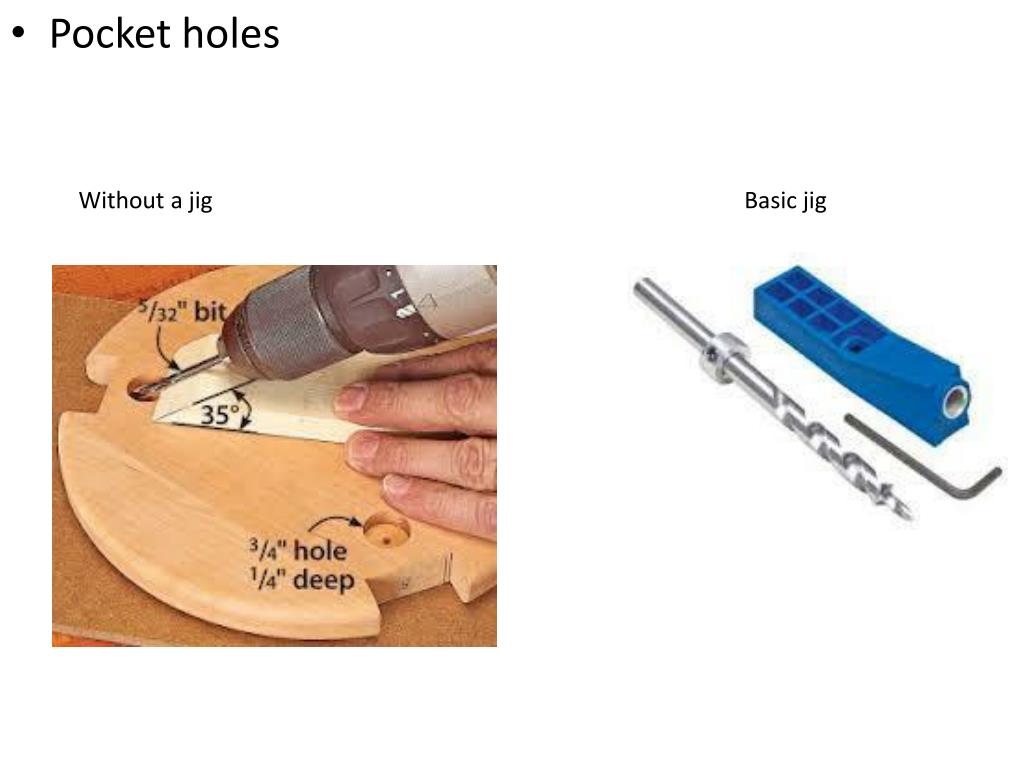

  • Pocket holes

Without a jig

Basic jig


Woodworking joinery

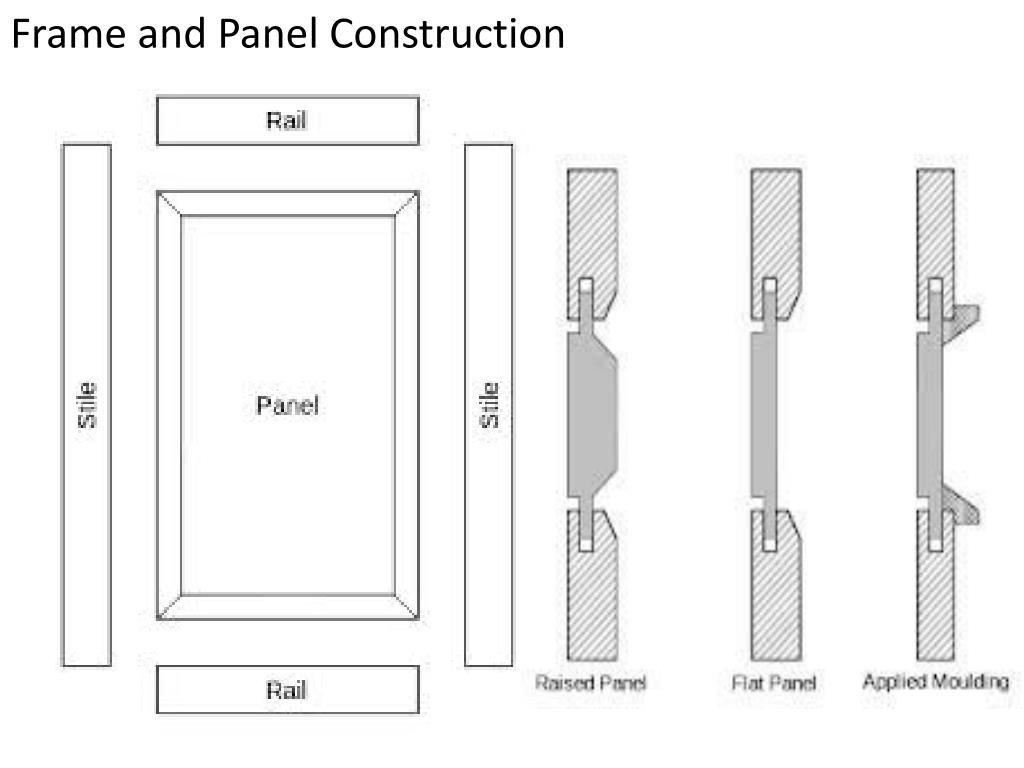

Frame and Panel Construction


Woodworking joinery

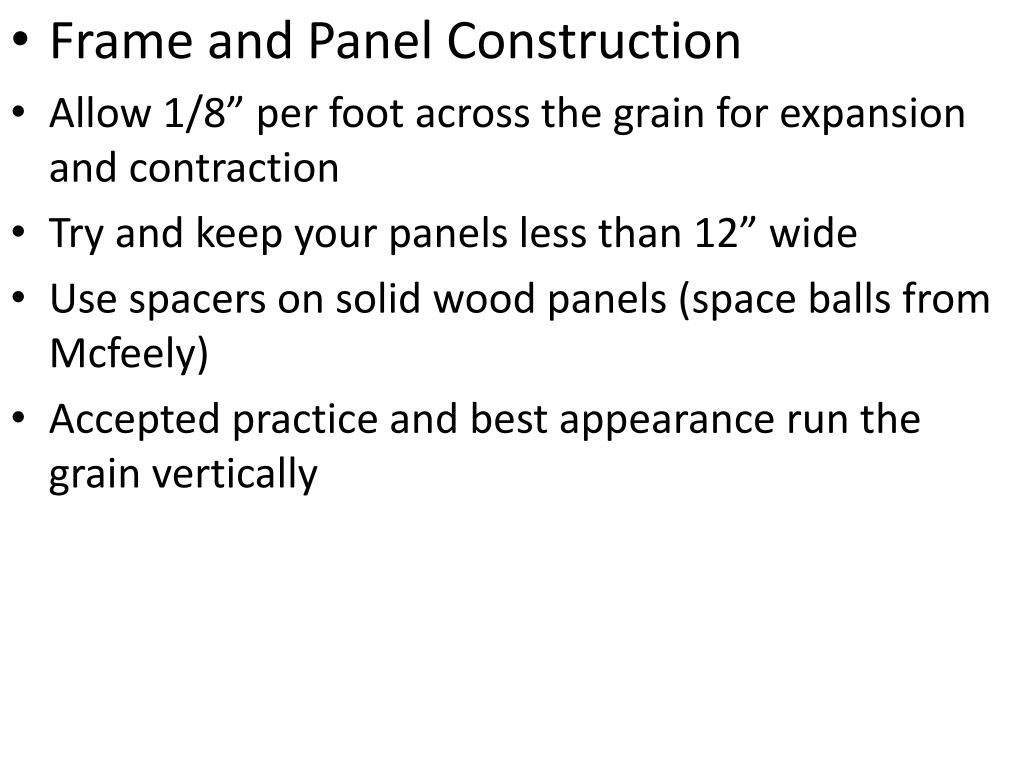

  • Frame and Panel Construction

  • Allow 1/8” per foot across the grain for expansion and contraction

  • Try and keep your panels less than 12” wide

  • Use spacers on solid wood panels (space balls from Mcfeely)

  • Accepted practice and best appearance run the grain vertically


Woodworking joinery

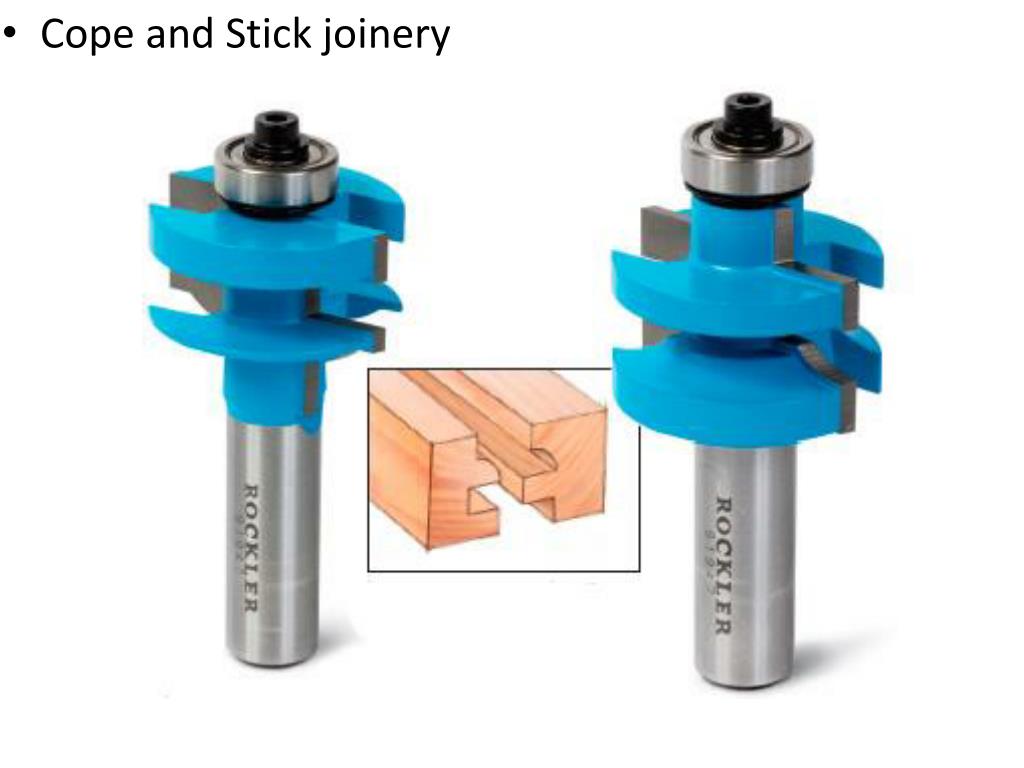

  • Cope and Stick joinery


Woodworking joinery

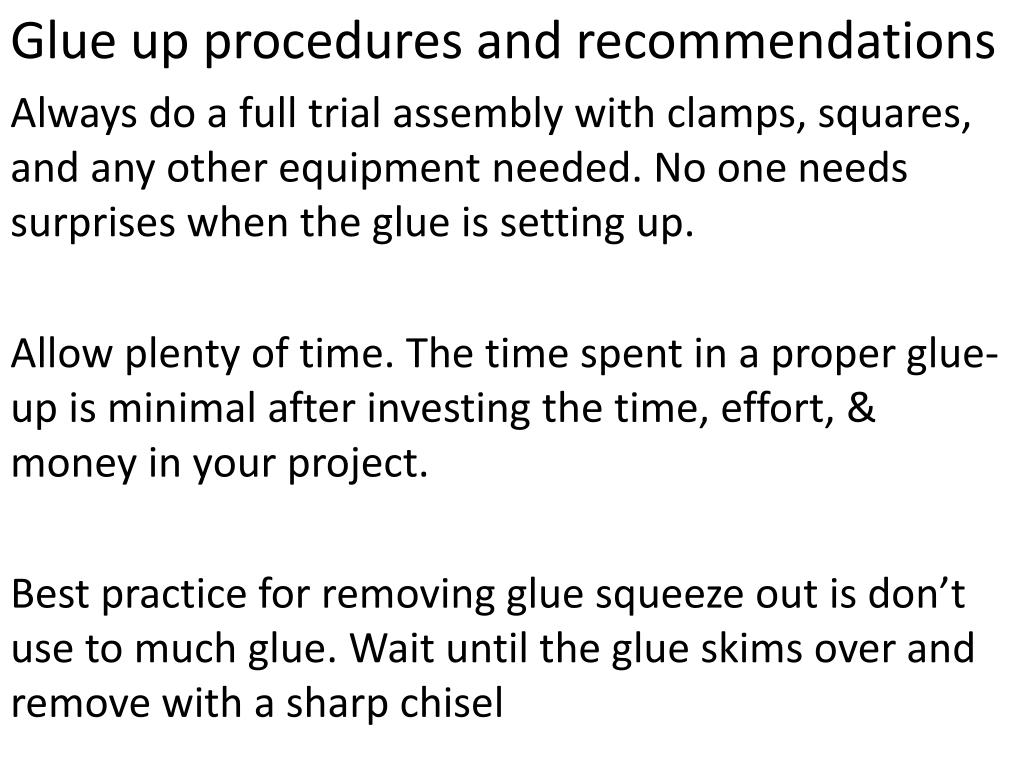

Glue up procedures and recommendations

Always do a full trial assembly with clamps, squares, and any other equipment needed. No one needs surprises when the glue is setting up.

Allow plenty of time. The time spent in a proper glue-up is minimal after investing the time, effort, & money in your project.

Best practice for removing glue squeeze out is don’t use to much glue. Wait until the glue skims over and remove with a sharp chisel


Woodworking joinery

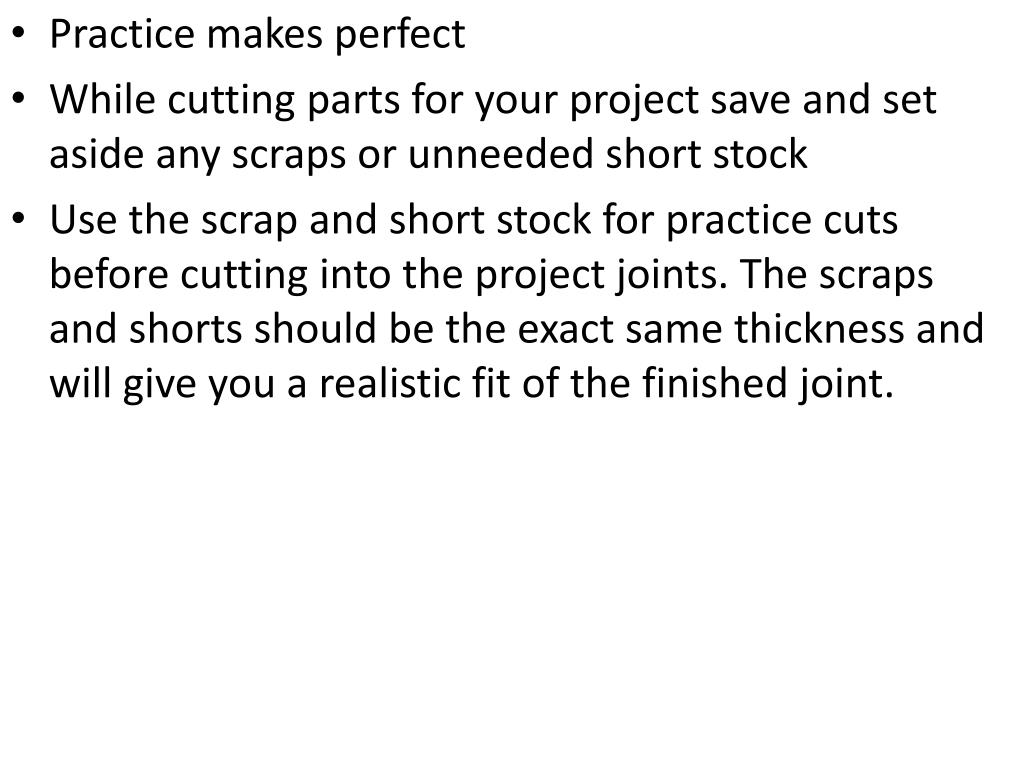

  • Practice makes perfect

  • While cutting parts for your project save and set aside any scraps or unneeded short stock

  • Use the scrap and short stock for practice cuts before cutting into the project joints. The scraps and shorts should be the exact same thickness and will give you a realistic fit of the finished joint.
