  1. Higgs Physics at theLarge Hadron Collider Markus Schumacher, Bonn University NRW Phenomenology Meeting 2006, Bad Honnef, January 2006

  2. Outline • the Higgs Mechanism and SM Higgs phenomenology at LHC • Higgs physics program at the LHC • discovery of 1 neutral scalar SM like Higgs boson (determination of mass, spin, CP) • discrimination: SM or extended Higgs sectors (e.g. MSSM) direct observation of additional Higgs bosons determination of Higgs profile: deviations from SM prediction quantum numbers: spin and CP BRs, total width, couplings self coupling at SLHC - > 1 neutral Higgs boson - charged Higgs boson - exotic decays:Hinvisible Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  3. The Higgs Mechanism in the Nut Shell The problem: • consistent description of nature seems to be based on gauge symmetry • SU(2)LxU(1) gauge symmetry  no masses for W and Z and fermions • „ad hoc“ mass terms spoil • renormalisibility  no precise calculation of observables • bad high energy behaviour  WLWL scattering violates unitarity at ECM~1.2 TeV The „standard“ solution: • new doublet of complex scalar fields • with appropiately choosen potential V • vacuumspontaneously breaks gauge symmetry • one new particle:the Higgs boson H F =v+H • Higgs boson mass unknown: theory: unitarity  MH<1TeV • LEP search: MH<114.4 GeV electroweak fit: MH<186 GeV excluded at 95% CL at 95%CL Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  4. Mass generation and Higgs couplings: F = v+H x • Interaction of particles withv=247 GeV v =247 GeV gf effective mass = friction of particles with omnipresent „Äther“ fermion x x 2 mf ~ gfv Yukawa coupling MV ~ gvgauge coupling g gauge W/Z boson • Interaction of particles withHiggs H Higgs gf Fermions gf ~ mf / v W/Z Bosons: gV ~ 2 MV / v fermion v Higgs x 2 g gauge VVH coupling ~ vev only present after EWSB breaking !!! W/Z boson unknown Higgs mass fixes Higgs profile completely Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

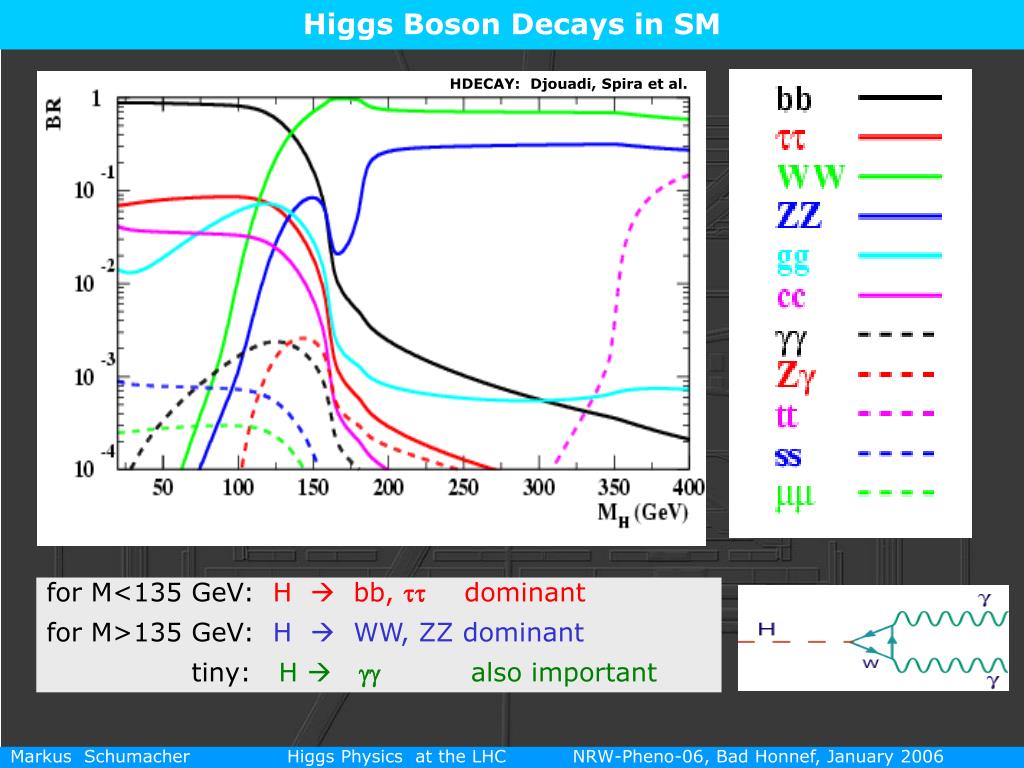

  5. Higgs Boson Decays in SM bb WW ZZ tt cc tt gg gg HDECAY: Djouadi, Spira et al. for M<135 GeV: H  bb, tt dominant for M>135 GeV: H  WW, ZZ dominant tiny: H  gg also important Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  6. pp collisions at the Large Hadron Collider LHC SPPS • start in 2007 at ECM of 14 TeV • first years: low lumi running  10 fb-1/year • later (x10): high lumi running  100 fb-1/year Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  7. Complexity of a LHC event hard process + ISR,FSR + underlying event + ~23 additional pp-interactions per bunch crossing at high lumi  ~109 proton-proton collisions / sec  ~1600 charged particles in detector per event Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  8. The challenge of reconstruction low lumi. high lumi. Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  9. Production of the SM Higgs Boson at LHC K = s(N)NLO/sLO K ~ 2 K ~ 1.2 K ~ 1.4 • Ds~4 to 15% + D from PDF (5 to15%) • signal MC at NLO only avaiable for GGF • background: NLO calculations often not avaiable • ATLAS: use K=1 and LO MC for signal and BG • CMS:K-factor for GGF + „guestimated“ K for BG K ~ 1.1 Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  10. Cross sections for background processes l  q q W W q H p p q l  background: mainly QCD driven q q q p p q signal: often electroweak interaction  photons, leptons, … • overwhelming background • trigger: 10-7 reduction on leptons, photons, missing E Higgs 150 GeV: S/B <= 10-10 Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  11. Considerations for Discovery Channels • sufficient signal rate no sensitivity to Hmm in SM • efficient trigger (g,e,m, …) no sensitivity for: GGF, WBF: Hbb • H mass reconstructable?yes: Hgg, ZZ, bb, ttno: HWW • control of background - signal-to-background ratio - estimate of BG from data possible? - sometimes: shape from MC needed • main discovery channels • GGF: H  gg • GGF: H  ZZ  4l+- • GGF: HWW2(ln) • ttH: H  bb • VBF: H  tt • VBF: H  WW ATLAS excluded by LEP since 2000 Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

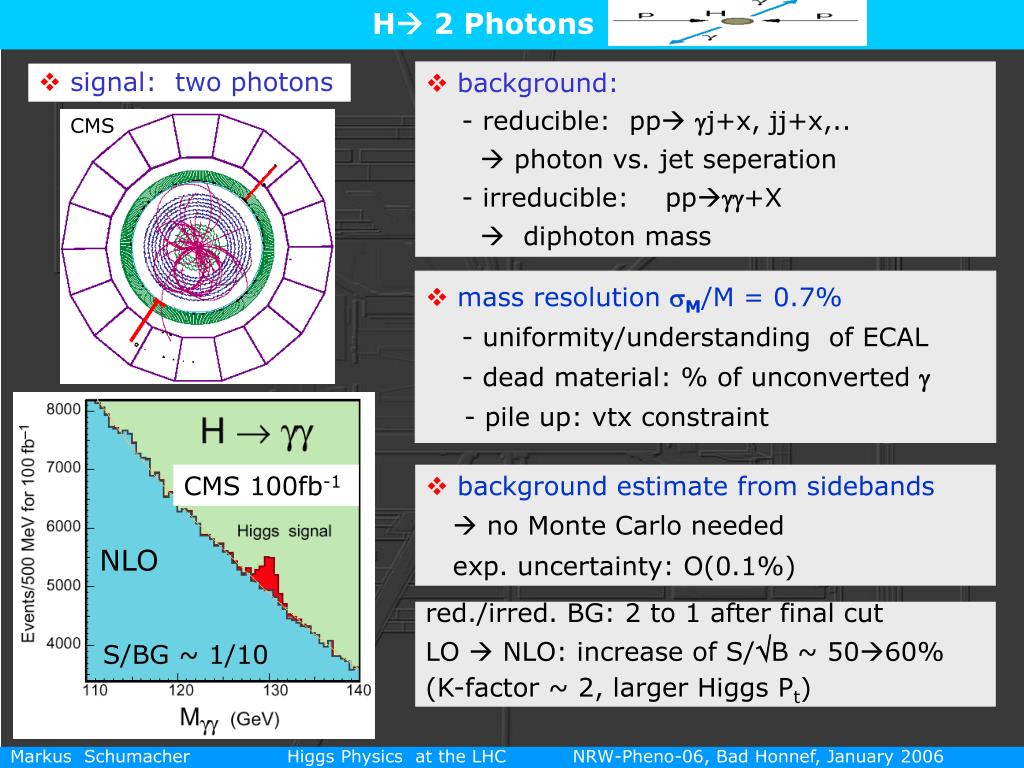

  12. H 2 Photons • background: - reducible: pp gj+x, jj+x,..  photon vs. jet seperation - irreducible: ppgg+X  diphoton mass • signal: two photons CMS • mass resolution sM/M = 0.7% - uniformity/understanding of ECAL - dead material: % of unconverted g - pile up: vtx constraint CMS 100fb-1 • background estimate from sidebands •  no Monte Carlo needed • exp. uncertainty: O(0.1%) NLO red./irred. BG: 2 to 1 after final cut LO  NLO: increase of S/ÖB ~ 5060% (K-factor ~ 2, larger Higgs Pt) S/BG ~ 1/10 Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  13. H ZZ(*)4 Leptons • signal:4 iso. leptons 1(2) dilepton mass= MZ • reducible BG: tt, Zbb  4 leptons  lepton isolation and veto against b-jets CMS • irreducible BG: ZZ  4 leptons  four lepton mass • good mass resolution sM: <~1%  muon spectrometer + tracking detectors CMS 100fb-1 NLO • small and flat background  easy estimate from sidebands no Monte Carlo needed Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  14. H WW  ln ln • signal: - 2 leptons + missing ET - lepton spin corrleations - no mass peak  transverse mass ATLAS M=160GeV 30fb-1 transverse mass • BG: WW, WZ, tt lepton iso., missing E resolution jet (b-jet) veto against tt Dührssen, prel. • BG estimate in data from DFll normalisation rom sideband shape from MC • NLO effect on spin corr.  ggWW contribution signal like DFll Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  15. Vector Boson Fusion: ppqqH • signature: • 2 forward jets with large rapidity gap • only Higgs decay products in central part of detector rapidity of tag jets rapidity difference Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  16. Vector Boson Fusion: ppqqH Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  17. Vector Boson Fusion: challenges ATLAS • forward jet reconstruction influence of UE and pile up?  so far only for low lumi pT>20GeV h • central jet veto: influence of UE and pile up? •  so far only for low lumi • efficiency of jet veto at NLO.? • distributions at NLO calculated but: need NLO MC generator for signal and BG Zeppenfeld et al. Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  18. Vector Boson Fusion: H tau tau  ll 4 n (or l had 3 n) • signature:tagging jets +2 high pt leptons + large missing ET • backgrounds:tt,Zjj central jet veto reconstruction of mtt collinear approximation Httem ATLAS 30 fb-1 • expected BG uncertainty ~ 5 to 10% for MH > 125 GeV: flat sideband for MH < 125 normalisation from Z peak, but shape? • mass resolution ~ 10% • dominated bei Emiss resolution Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  19. Vector Boson Fusion, Htt: estimate of BG shape from data • Idea:jjZmmandjjZttmm • look almost the same, esp. in calos •  same missing energy • only m momenta different • Method:select Z mm events randomise mmomenta apply „normal“ mass reco. promising prel. results from ongoing diploma thesis in BN (M. Schmitz) PTmiss,final (GeV) Mtt (GeV) Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  20. Weak Boson Fusion: HWWllnn (lnqq) VBF versus inclusive channel H2 photons  S/BG ~ 1/1 S/BG ~1/10  CMS ATLAS M=160GeV 30fb-1 ATLAS HWWll  S/BG ~ 4/1 S/BG ~ 2/3  HWWe 10 fb-1 MH=160 GeV • smaller rate larger sig-to-BG ratio smaller K-factor • more challenging for detector understanding • order of significance depends on channel and Higgs mass Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  21. Discovery Potential for light SM Higgs boson excluded by LEP • for GGF: raise of significance by ~ 50% from LO to NLO • results for cut based analysis  improvement by multivariate methods • discovery from LEP exclusion until 1 TeV • from combination of search channels with 15 fb-1 of well understood data • with individual search channels with 30 fb-1 of well understood data Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  22. Measurement of Higgs Boson Mass • Direct from mass peak: HggHbbHZZ4l • “Indirect” from Likelihood fit to transverse mass spectrum: HWWlnln WHWWWlnlnln • Uncertainties considered: i) statistical ii) absolute energy scale 0.1 (0.02) % for l,g,1% for jets iii) 5% on BG + signal for HWW ATLAS VBF with Htt or WW not studied yet ! DM/M: 0.1% to 1% Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  23. Determination of Higgs boson couplings • couplings in production sHx= const x GHxand decay BR(Hyy) = GHy / Gtot prod decay GHX GHy 2 partial width:GHz ~ gHz sHx x BR ~ Gtot • tasks: - disentangle contribution from production and decay • - determine Gtot • model independent: • only ratio or partial decay widths • 13 signal rates used in global fit (incl. various syst. uncertainties) H WW chosen as reference as best measured for MH>120 GeV for 30fb-1 worse by factor 1.5 to 2 Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  24. Absolute couplings with gV < gVSM constraint • for MH<200 GeV, Gtot<<mass resolution  no direct determination  have to use indirect constraints onGtot • coupling to W, Z, t, b, t Dührssen et al. • lower limit from observable rates: Gtot > GW+GZ+Gt+Gg+.... • upper limit needs input from theory: mild assumption: gV<gVSM rate(VBF,HWW)~GV2/Gtot<(GV2in SM)/Gtot  Gtot< rate/(GV2 in SM) Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

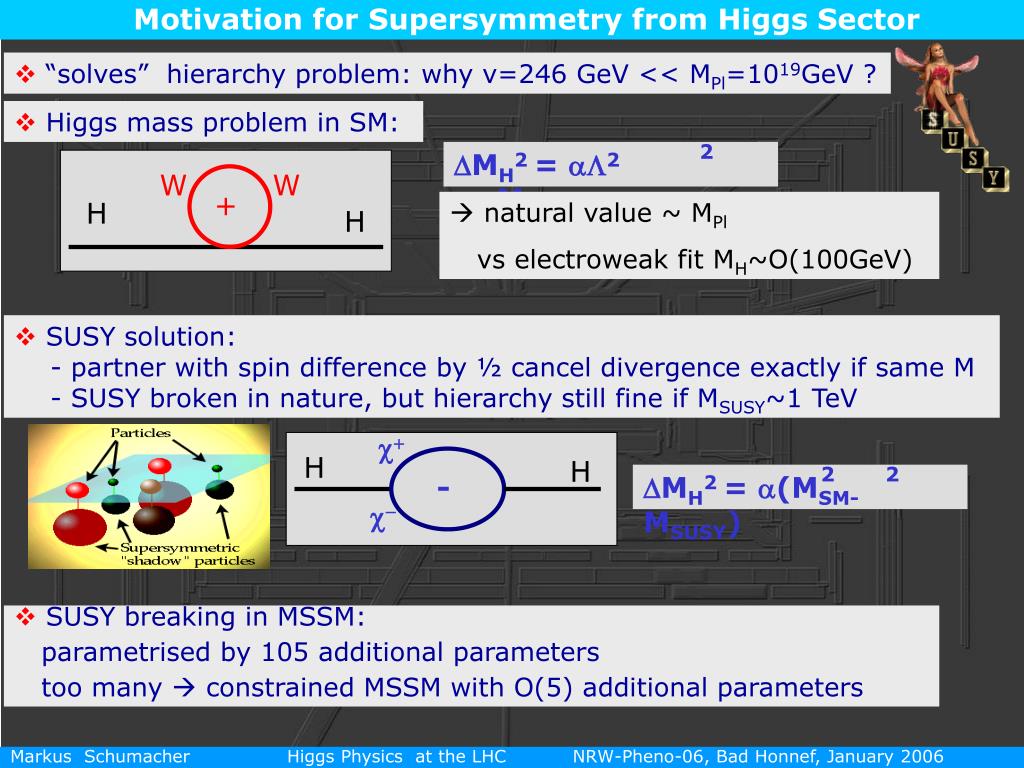

  25. Motivation forSupersymmetryfrom Higgs Sector 2 2 DMH2 = a(MSM-MSUSY) • “solves” hierarchy problem: why v=246 GeV << MPl=1019GeV ? • Higgs mass problem in SM: 2 DMH2 = aL2 =aMPlanck W W + H  natural value ~ MPl vs electroweak fit MH~O(100GeV) H • SUSY solution: - partner with spin difference by ½ cancel divergence exactly if same M - SUSY broken in nature, but hierarchy still fine if MSUSY~1 TeV c+ H H - c- • SUSY breaking in MSSM: • parametrised by 105 additional parameters • too many  constrained MSSM with O(5) additional parameters Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  26. The MSSM Higgs sector in a tiny Nut Shell • SUSY: 2 Higgs doublets  5 physical bosons real MSSM: 2 CP even h, H, 1 CP odd A, charged H+, H- • at Born level 2 parameters: tanb, m A mh < MZ • large corrections: mh < 133 GeV for mtop=175 GeV, MSUSY=1TeV • corrections depend on 5 SUSY parameters:Xt, M0 , M2, Mgluino, m fixed in the benchmark scenarios e.g. MHMAX scenario  maximal Mh conservative LEP exclusion main questions for LHC: • at least 1 Higgs boson observable in the entire parameter space? • how many Higgs bosons can be observed? • can the SM be discriminated from extended Higgs sectors? Mtop=174.3 GeV calculated with FeynHiggs Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  27. Light Higgs Boson h 300 fb-1 30 fb-1 ATLAS preliminary ATLAS preliminary • large area covered by many channels  sure discovery and parameter determination possible • small area uncovered @ mh~95 GeV • VBF, Htt covers hole plane from either H or h observation with 30fb-1 • VBF dominates observation • small area from bbh,hmm for small Mh Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  28. Overall Discovery Potential: 300 fb-1 300 fb-1 • at least one Higgs boson observable for all parameters in all CPC benchmark scenarios • significant area where only lightest Higgs boson h is observable • can H SUSY decays or Higgs from SUSY decays provide observation? • discrimination via h profile • determination? ATLAS preliminary similar results in other benchmark scenarios VBF channels , H/Att only used with 30fb-1 Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  29. Higgs Decays to Gauginos e.g. H0 20 20  10 10+4l CMS 100fb-1 dominant background from SUSY Msleptons=250 GeV • results for most optimistic • scenarios shown  fine tuned • require small slepton masses • for large BR(2  1 +2 leptons ) • reduced sensitivity for other channels, • consistent interpretation needed Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  30. SM or Extended Higgs Sector e.g. Minimal SUSY ? discrimination via rates from VBF compare expected measurement of R in MSSM with prediction from SM for same value of MH BR(h WW) BR(h tt) R = 300 fb-1 ATLAS prel. • assume Higgs mass well measured • no systematic errors considered • same contribution from GGF D=|RMSSM-RSM|/sexp Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  31. CP-Violating MSSM: Overall Discovery Potential • at Born level: CP symmetry conserved in Higgs sector • complex SUSY parameters  mixing between neutral CP eigenstates • no absolute mass limit from LEP 300 fb-1 • yet uncovered area • size and location of „hole“ depends on Mtop and program for calculation ATLAS preliminary MH1: < 70 GeV MH2: 105 to 120 GeV MH3: 140 to 180 GeV small masses below 70 GeV not yet studied in ATLAS Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006

  32. Conclusion and Outlook • Standard model: discovery of SM Higgs boson with 15 fb-1 • requires good understanding of whole detector • multiple channels with larger luminosity  Higgs profile investigaton • CP conserving MSSM: at least one Higgs boson observable • only h observable in wedge area at intermediate tanb • maybe Higgs to SUSY or SUSY to Higgs observable? • discrimination via Higgs parameter determination seems promising • CP violating MSSM: probably a „hole“ with current MC studies • promising MC studies on the way  see 2nd next talk • more realistic MC studies: • influence of miscalibrated and misaligned detector • improved methods for background estimation from data • use of NLO calcluations and MCs for signal and background • additional extended models + seach channels: • CPV MSSM, NMSSM, 2HDM • Higgs  SUSY, SUSYHiggs • VBF, Hbb (b-trigger at LV2), VBF,Hinv. (add. forward jet trigger) Markus Schumacher Higgs Physics at the LHC NRW-Pheno-06, Bad Honnef, January 2006
