Presentation Transcript


Async xds b

Async XDS.b


Key use cases

Key Use Cases

  • Scenario 1: Async XDS allows for scenarios where actors are not simultaneously connected (off-line) making store-and-forward scenarios possible through the use of intermediaries.

  • Scenario 2 (on demand query): In the integrated document source/document repository the XDS document is retrieved from off-line storage and persisted. Allowing for Async responses reduces the time that the document source is left hanging waiting for a response.

  • Scenario 3:Async XDS allows for multiple responses for the same request: pagination of results (return x records at a time), streaming of documents (return x Kilobytes at a time).

  • Scenario 4: In XCA, the gateway can issue separate queries to the federated affinity domains in parallel without having to hang until each one is satisfied. Responses can be received asynchronously and collated for the requestor. The response time will be shortened as the results are retrieved in parallel instead of sequentially.


Standards systems

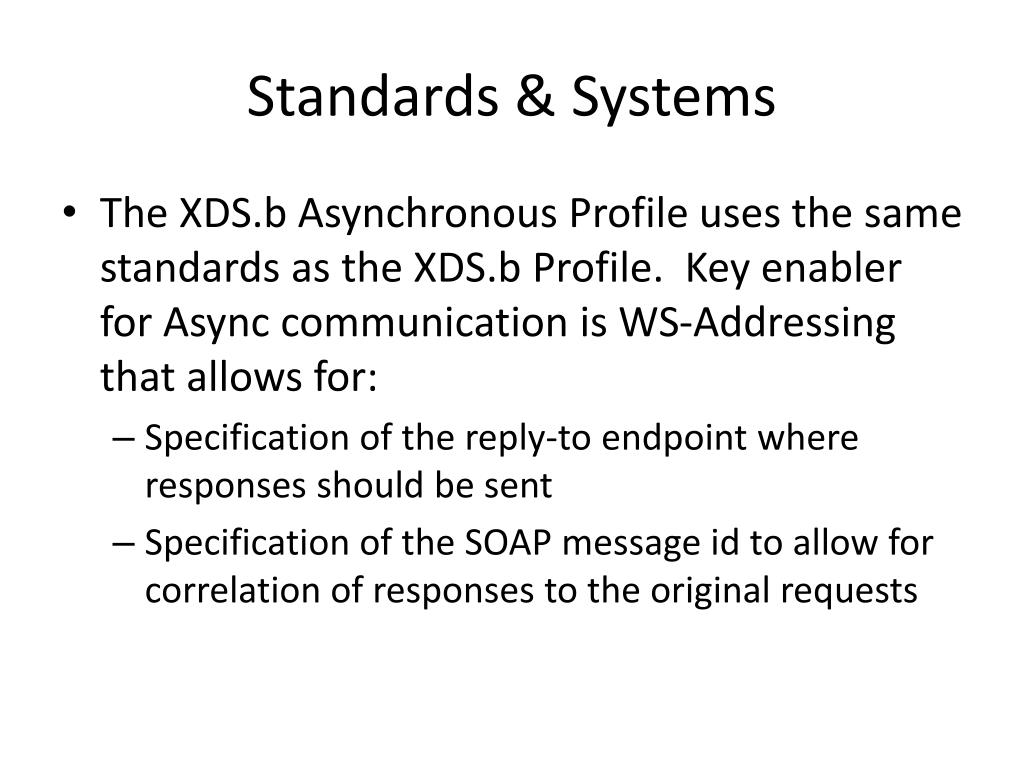

Standards & Systems

  • The XDS.b Asynchronous Profile uses the same standards as the XDS.b Profile. Key enabler for Async communication is WS-Addressing that allows for:

    • Specification of the reply-to endpoint where responses should be sent

    • Specification of the SOAP message id to allow for correlation of responses to the original requests


Summary technical approach

Summary Technical Approach

  • Transactions

    The XDS.bAsync profile uses the same transactions specified in the XDS.b profile without changing the message format. Async XDS changes the WSDL definition of the messages decoupling the request from the response, allowing the two to be executed asynchronously.

  • Existing actors

    While the actors defined in XDS.b still maintain the same role, the technical details of how transactions are implemented will differ.

  • New actors

    No new actors are necessary.

  • Existing transactions

    Existing transactions in XDS.b will not be touched. XDS.b can be coupled with Async XDS, that is the same actor can expose both sync and async versions of the same transaction at the same time (on different ports/endpoints).


Provide and register document set b sync

Provide and Register Document Set-b Sync

Provide and Register Document Set-b [ITI-41]

Document Source

Document Repository


Provide and register document set b async

Provide and Register Document Set-b ASync

Provide and Register Document Set-b Request

Document Source

Document Repository

Provide and Register Document Set-b Response


Async xds b actors and transactions

AsyncXDS.b Actors and Transactions

Patient Identity Source

Patient Identity Feed [ITI-8]

Patient Identity Feed HL7v3 [ITI-44]

Registry Stored Query

Request [ITI-18 Request]

New WSDL

Document Registry

Document Consumer

Registry Stored Query Response [ITI-18 Response]

Register Document Set-b Response [ITI-42 Response]

Register Document Set-b

Request [ITI-42 Request]

Retrieve Document Set

Request [ITI-43 Request]

Provide and Register Document Set-b

Request [ITI-41 Request]

New WSDL

Document Source

Document Repository

Provide and Register Document Set-b Response Request [ITI-41 Response]

Retrieve Document Set Response [ITI-43 Response]

Integrated Document Source/Repository


Transactions by actors

Transactions by Actors

  • Document Source

    • Provide and Register Document Set-b Response [ITI-41-Response]

  • Document Repository

    • Provide and Register Document Set-b Request [ITI-41-Request]

    • Register Document Set-b Response [ITI-42-Response]

    • Retrieve Document Set Request [ITI-43-Request]

  • Document Registry

    • Register Document Set-b Request [ITI-42-Request]

    • Registry Stored Query Request [ITI-18-Request]

  • Document Source

    • Registry Stored Query Response [ITI-18-Response]

    • Retrieve Document Set Response [ITI-43-Response]


Sample wsdl update

Sample WSDL Update

Document Repository Sync

<portType name="DocumentRepository_PortType">

<operation name="DocumentRepository_ProvideAndRegisterDocumentSet-b">

<input message="ihe:ProvideAndRegisterDocumentSet-b_Message" wsaw:Action="urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-b"/>

<output message="ihe:ProvideAndRegisterDocumentSet-bResponse_Message" wsaw:Action="urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-bResponse"/>

</operation>

<operation name="DocumentRepository_RetrieveDocumentSet">

<input message="ihe:RetrieveDocumentSet_Message" wsaw:Action="urn:ihe:iti:2007:RetrieveDocumentSet"/>

<output message="ihe:RetrieveDocumentSetResponse_Message" wsaw:Action="urn:ihe:iti:2007:RetrieveDocumentSetResponse"/>

</operation>

</portType>

Document Repository Async (Updated)

<portType name="DocumentRepository_PortType">

<operation name="DocumentRepository_ProvideAndRegisterDocumentSet-b(a)">

<input message="ihe:ProvideAndRegisterDocumentSet-b_Message" wsaw:Action="urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-b"/>

</operation>

<operation name="DocumentRepository_RetrieveDocumentSet(a)">

<input message="ihe:RetrieveDocumentSet_Message" wsaw:Action="urn:ihe:iti:2007:RetrieveDocumentSet"/>

</operation>

</portType>

Document Source Async (New)

<portType name="DocumentSource_PortType">

<operation name="DocumentSource_ProvideAndRegisterDocumentSet-b(a)">

<input message="ihe:ProvideAndRegisterDocumentSet-bResponse_Message" wsaw:Action="urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-bResponse"/>

</operation>

</portType>


How soap headers change

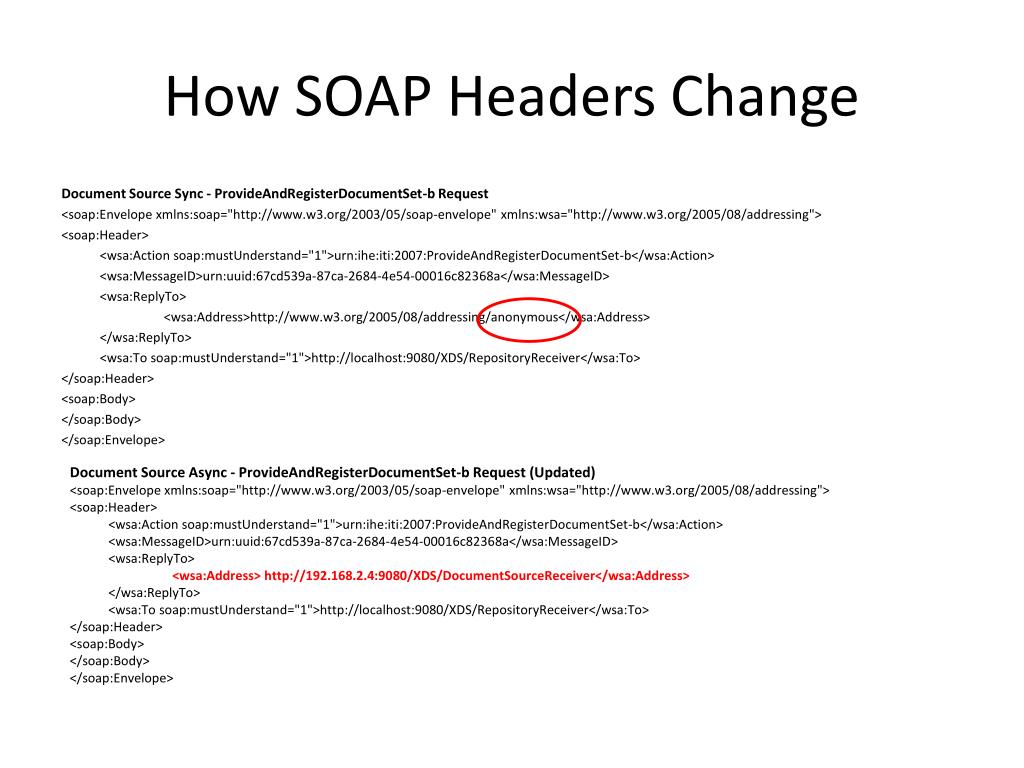

How SOAP Headers Change

Document Source Sync - ProvideAndRegisterDocumentSet-b Request

<soap:Envelopexmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://www.w3.org/2005/08/addressing">

<soap:Header>

<wsa:Actionsoap:mustUnderstand="1">urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-b</wsa:Action>

<wsa:MessageID>urn:uuid:67cd539a-87ca-2684-4e54-00016c82368a</wsa:MessageID>

<wsa:ReplyTo>

<wsa:Address>http://www.w3.org/2005/08/addressing/anonymous</wsa:Address>

</wsa:ReplyTo>

<wsa:Tosoap:mustUnderstand="1">http://localhost:9080/XDS/RepositoryReceiver</wsa:To>

</soap:Header>

<soap:Body>

</soap:Body>

</soap:Envelope>

Document Source Async - ProvideAndRegisterDocumentSet-b Request (Updated)

<soap:Envelopexmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://www.w3.org/2005/08/addressing">

<soap:Header>

<wsa:Actionsoap:mustUnderstand="1">urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-b</wsa:Action>

<wsa:MessageID>urn:uuid:67cd539a-87ca-2684-4e54-00016c82368a</wsa:MessageID>

<wsa:ReplyTo>

<wsa:Address> http://192.168.2.4:9080/XDS/DocumentSourceReceiver</wsa:Address>

</wsa:ReplyTo>

<wsa:Tosoap:mustUnderstand="1">http://localhost:9080/XDS/RepositoryReceiver</wsa:To>

</soap:Header>

<soap:Body>

</soap:Body>

</soap:Envelope>


How soap headers change 2

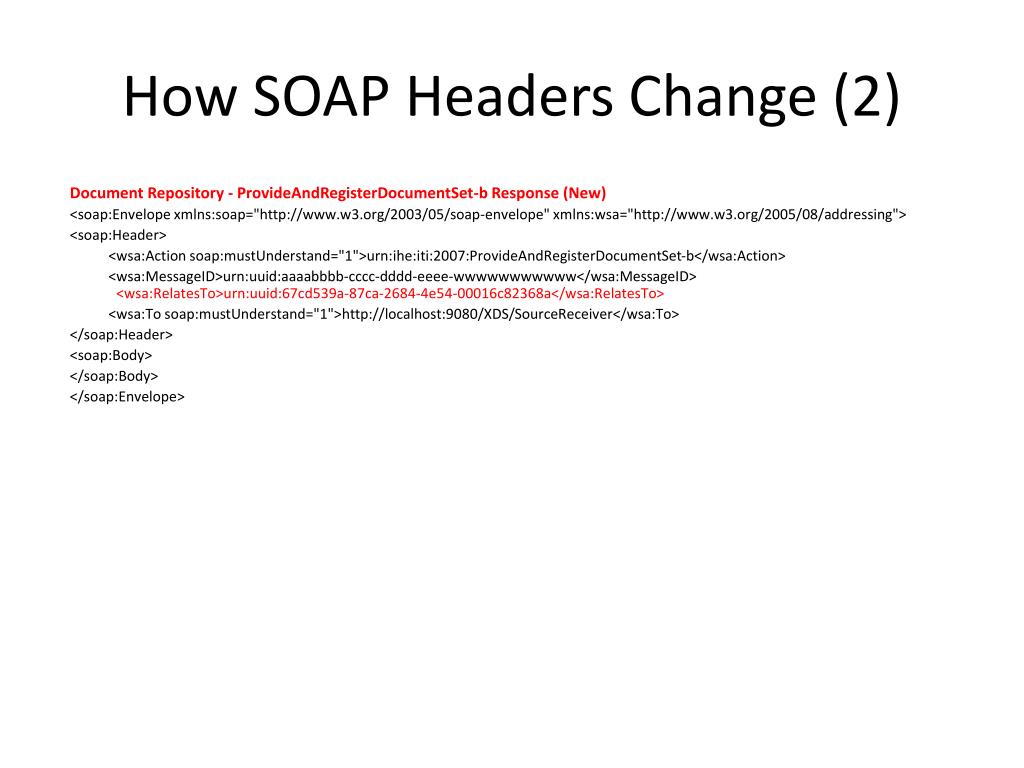

How SOAP Headers Change (2)

Document Repository - ProvideAndRegisterDocumentSet-b Response (New)

<soap:Envelopexmlns:soap="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://www.w3.org/2005/08/addressing">

<soap:Header>

<wsa:Actionsoap:mustUnderstand="1">urn:ihe:iti:2007:ProvideAndRegisterDocumentSet-b</wsa:Action>

<wsa:MessageID>urn:uuid:aaaabbbb-cccc-dddd-eeee-wwwwwwwwwww</wsa:MessageID>

<wsa:RelatesTo>urn:uuid:67cd539a-87ca-2684-4e54-00016c82368a</wsa:RelatesTo>

<wsa:Tosoap:mustUnderstand="1">http://localhost:9080/XDS/SourceReceiver</wsa:To>

</soap:Header>

<soap:Body>

</soap:Body>

</soap:Envelope>


Enabled enhanced scenarios

Enabled/Enhanced Scenarios


Store forward offline

Store & Forward, Offline

Request Queue

Provide and Register Document Set-b Request

Document Source

Document Repository

Provide and Register Document Set-b Response

Response Queue


Reliable messaging

Reliable Messaging

Provide and Register Document Set-b Request

Document Source

Document Repository

Provide and Register Document Set-b Response


Xca actors and transactions

XCA Actors and Transactions

Initiating Community

Responding Community

Registry Stored Query [ITI-18]

Retrieve Document Set Request

Document Consumer

Retrieve Document Set [ITI-43]

Cross Gateway Query [ITI-38]

Retrieve Document Set Response

Initiating Gateway

Responding Gateway

Cross Gateway Retrieve [ITI-39]


Discussion

Discussion
