Metal forming course

Metal Forming Course

Bulk-Deformation Processes


Metal forming course1

Metal Forming Course

Open-Die Forging

  • (a) Ideal deformation of a solid cylindrical specimen compressed between flat frictionless dies.

  • (b) Deformation in upsetting with friction at the die-workpiece interfaces.


Metal forming course2

Metal Forming Course

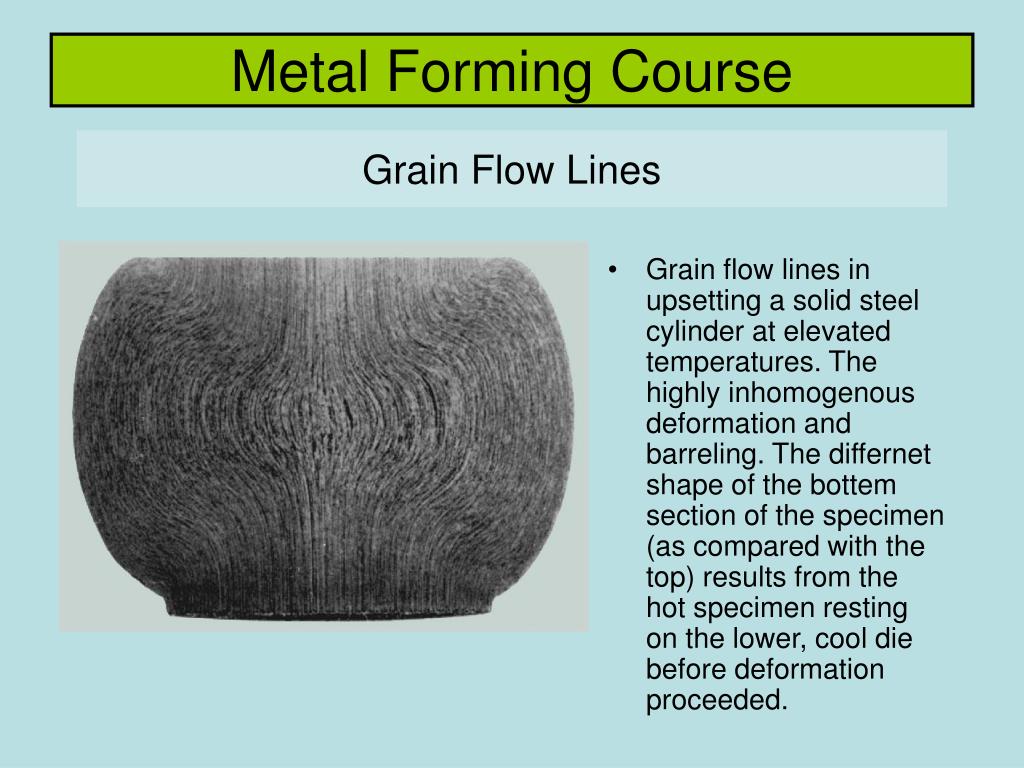

Grain Flow Lines

  • Grain flow lines in upsetting a solid steel cylinder at elevated temperatures. The highly inhomogenous deformation and barreling. The differnet shape of the bottem section of the specimen (as compared with the top) results from the hot specimen resting on the lower, cool die before deformation proceeded.


Metal forming course3

Metal Forming Course

Impression (Closed) Die Forging

  • Schematic illustration of stages in impression-die forging. Note the formation of flash, or excess material that is subsequently trimmed off.


Metal forming course4

Metal Forming Course

Load-Stroke Curve in Closed-Die Forging

  • Typical load-stroke curve for closed-die forging. Note the sharp increase in load after the flash begins to form. In hot-forging operations, the flash requires high levels of stress, because it is thin-that is, it has a small h-and cooler than the bulk of the forging.


Metal forming course5

Metal Forming Course

  • Schematic illustration of orbital-forging process. The die is in contact with only a portion of the workpiece surface. This process is also called rotary forging, swing forging, and rocking-die forging and can be used for forming bevel gears, wheels, and bearing rings.


Metal forming course6

Metal Forming Course

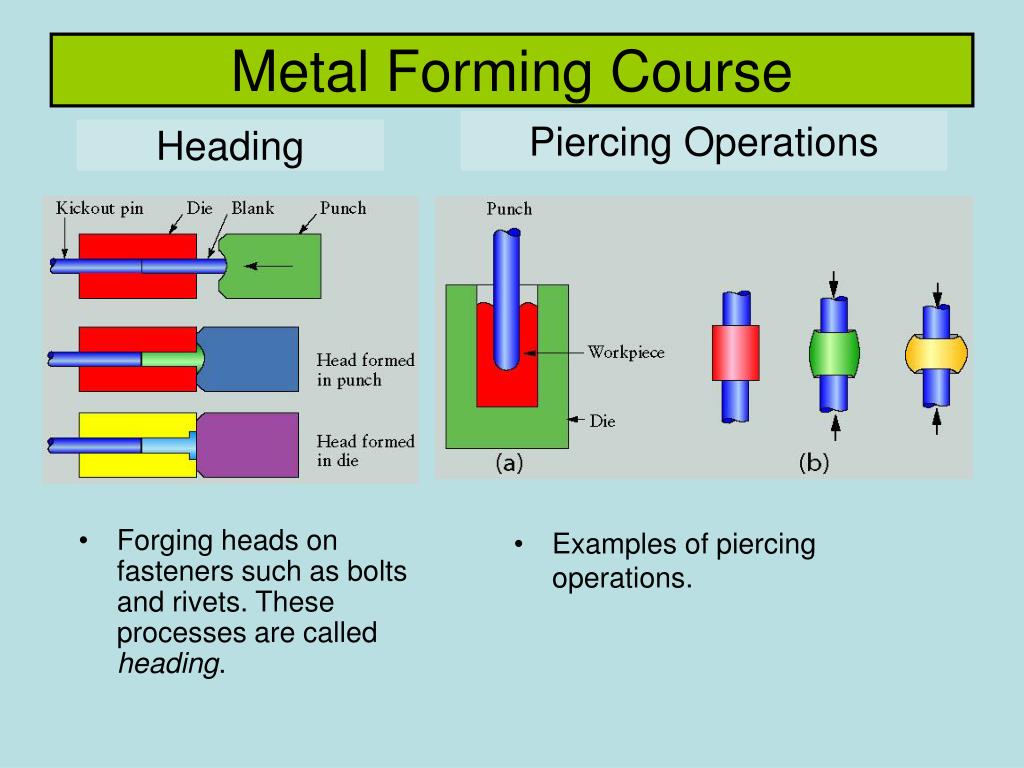

Piercing Operations

Heading

  • Forging heads on fasteners such as bolts and rivets. These processes are called heading.

  • Examples of piercing operations.


Metal forming course7

Metal Forming Course

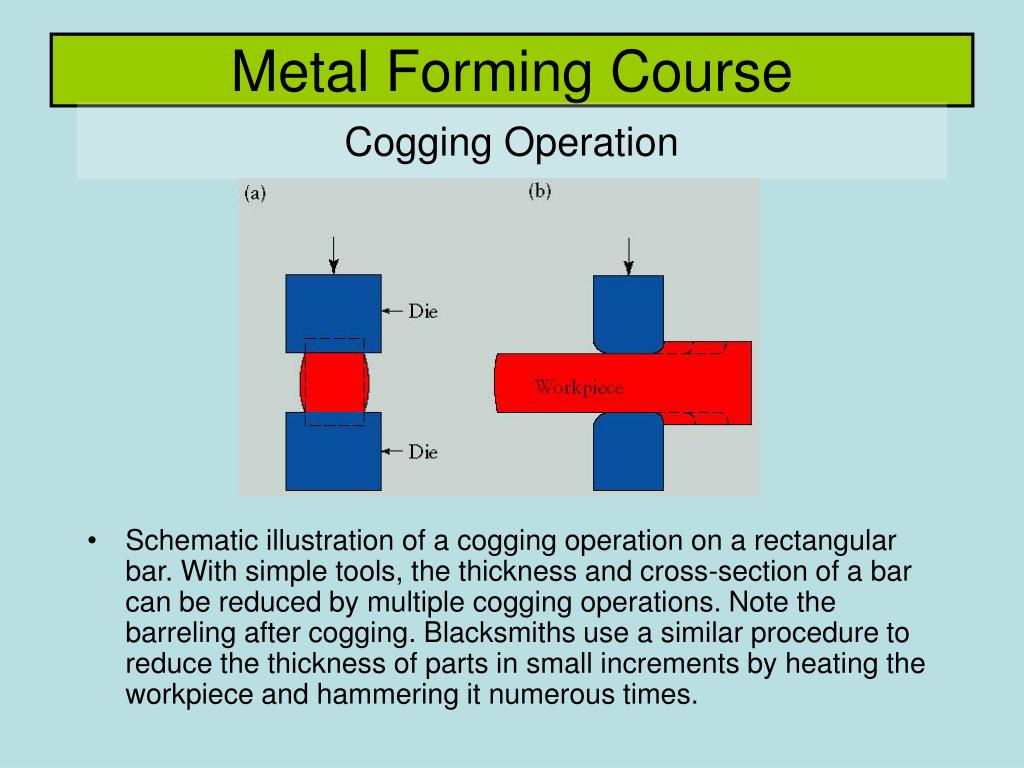

Cogging Operation

  • Schematic illustration of a cogging operation on a rectangular bar. With simple tools, the thickness and cross-section of a bar can be reduced by multiple cogging operations. Note the barreling after cogging. Blacksmiths use a similar procedure to reduce the thickness of parts in small increments by heating the workpiece and hammering it numerous times.


Metal forming course8

Metal Forming Course

Roll Forging Operation

  • Schematic illustration of a roll forging (cross-rolling) operation. Tapered leaf springs and knives can be made by this process with specially designed rolls.


Metal forming course9

Metal Forming Course

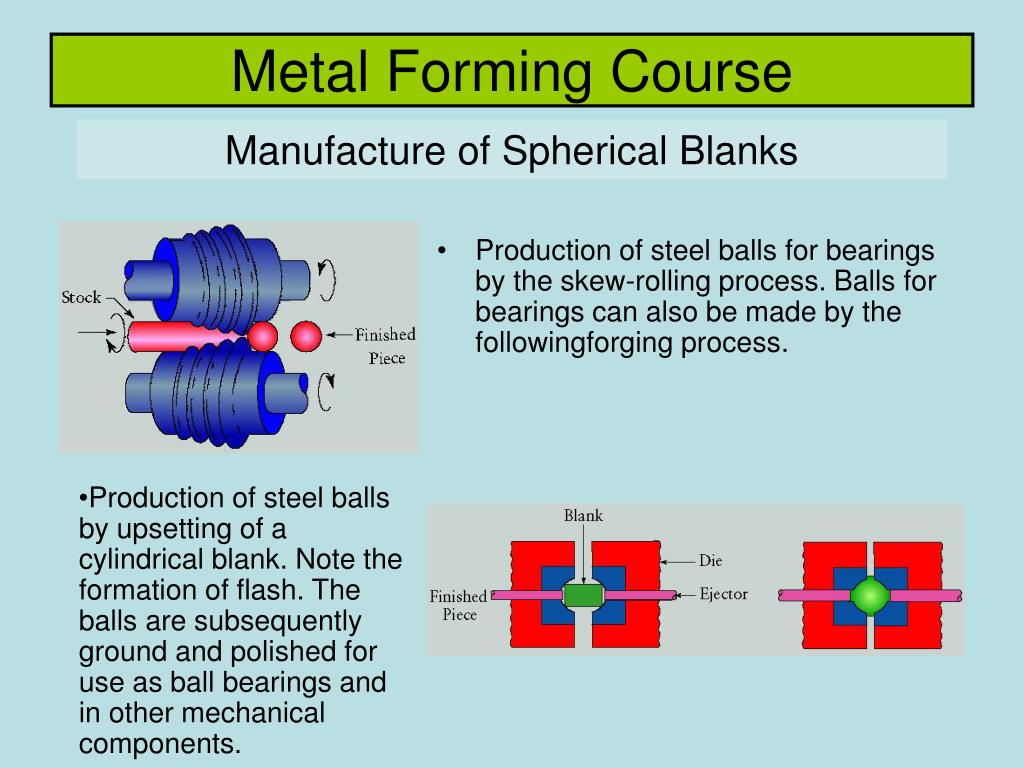

Manufacture of Spherical Blanks

  • Production of steel balls for bearings by the skew-rolling process. Balls for bearings can also be made by the followingforging process.

  • Production of steel balls by upsetting of a cylindrical blank. Note the formation of flash. The balls are subsequently ground and polished for use as ball bearings and in other mechanical components.


Metal forming course10

Metal Forming Course

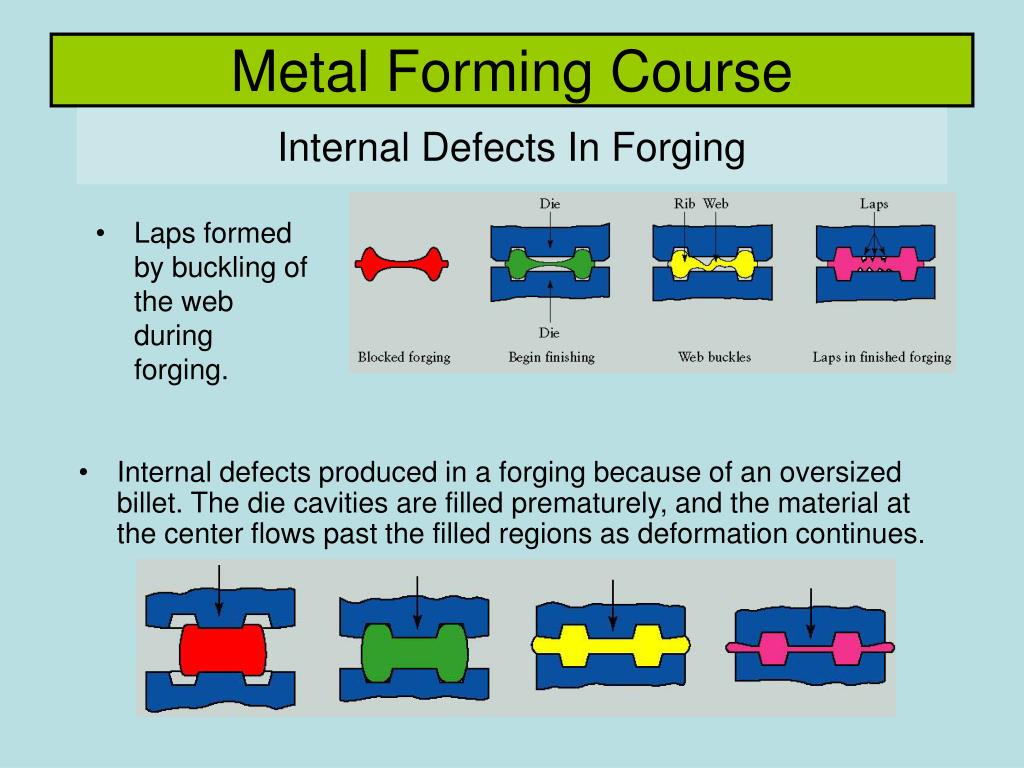

Internal Defects In Forging

  • Laps formed by buckling of the web during forging.

  • Internal defects produced in a forging because of an oversized billet. The die cavities are filled prematurely, and the material at the center flows past the filled regions as deformation continues.


Metal forming course11

Metal Forming Course

Defect Formation In Forging

  • Effect of fillet radius on defect formation in forging. Small fillets (right side of drawings) cause the defects.


Metal forming course12

Metal Forming Course

Forging A Connecting Rod

  • Stages in forging a connecting rod for an internal combustion engine. Note the amount of flash that is necessary to fill the die cavities properly.


Metal forming course13

Metal Forming Course

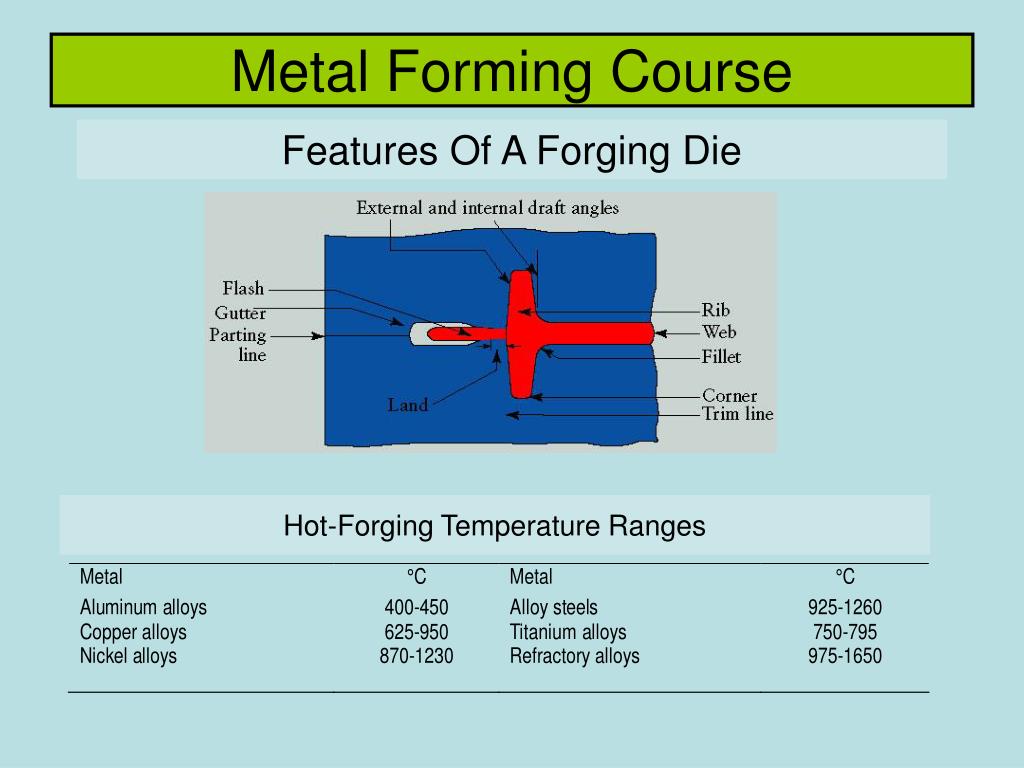

Features Of A Forging Die

Hot-Forging Temperature Ranges


Metal forming course14

Metal Forming Course

Presses Used In Metalworking

  • Schematic illustration of various types of presses used in metalworking. The choice of the press is an important factor in the overall operation.


Metal forming course15

Metal Forming Course

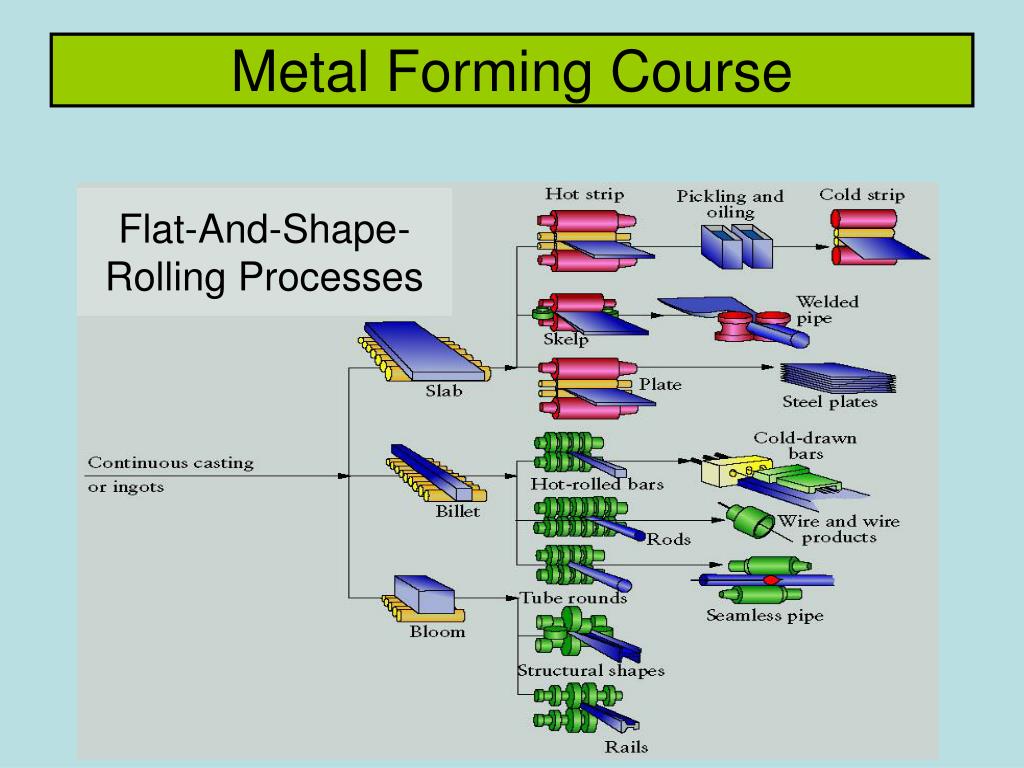

Flat-And-Shape-Rolling Processes


Metal forming course16

Metal Forming Course

Flat-Rolling Process

  • Schematic illustration of the flat-rolling process. A greater volume of metal is formed by rolling than by any other metalworking process.

  • Relative velocity distribution between roll and strip surfaces. Note the difference in the direction of frictional forces. The arrows represent the frictional forces acting on the strip.


Metal forming course17

Metal Forming Course

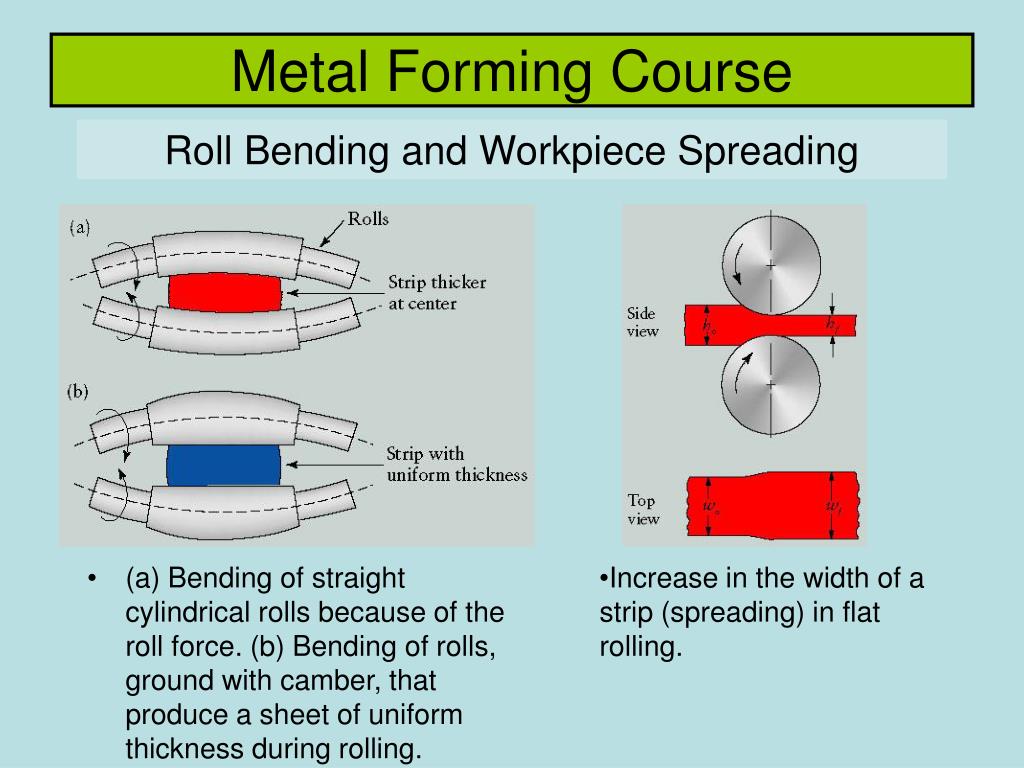

Roll Bending and Workpiece Spreading

  • (a) Bending of straight cylindrical rolls because of the roll force. (b) Bending of rolls, ground with camber, that produce a sheet of uniform thickness during rolling.

  • Increase in the width of a strip (spreading) in flat rolling.


Metal forming course18

Metal Forming Course

Defects In Flat Rolling

  • Schematic illustration of typical defects in flat rolling: (a) wavy edges; (b) zipper cracks in the center of strip; (c) edge cracks; (d) alligatoring.


Metal forming course19

Metal Forming Course

Shape Rolling

  • Stages in shape rolling of an H-section part. Various other structural sections, such as channels and I-beams, are also rolled by this process.


Metal forming course20

Metal Forming Course

Ring-Rolling

  • (a) Schematic illustration of a ring-rolling operation. Reducing the thickness results in an increase in the part’s diameter. (b) Examples of cross-sections that can be formed by ring rolling.


Metal forming course21

Metal Forming Course

Thread-Rolling Processes

  • Thread-rolling processes: (a) flat dies and (b) two-roller dies. These processes are used extensively in making threaded fasteners at high rates of production.


Metal forming course22

Metal Forming Course

Machined And Rolled Threads

  • (a) Schematic illustration of machined or rolled threads. (b) Grain-flow lines in machined and rolled threads. Unlike machined threads, which are cut through the grains of the metal, rolled threads follow the grains and are stronger, because of the cold working involved.


Metal forming course23

Metal Forming Course

Mannesmann Process

  • Cavity formation by secondary tensile stresses in a solid round bar and its use in the rotary-tube-piercing process. This procedure uses the principle of the Mannesmann mill for seamless tube making. The mandrel is held in place by the long rod, although techniques have been developed in which the mandrel remains in place without the rod.


Metal forming course24

Metal Forming Course

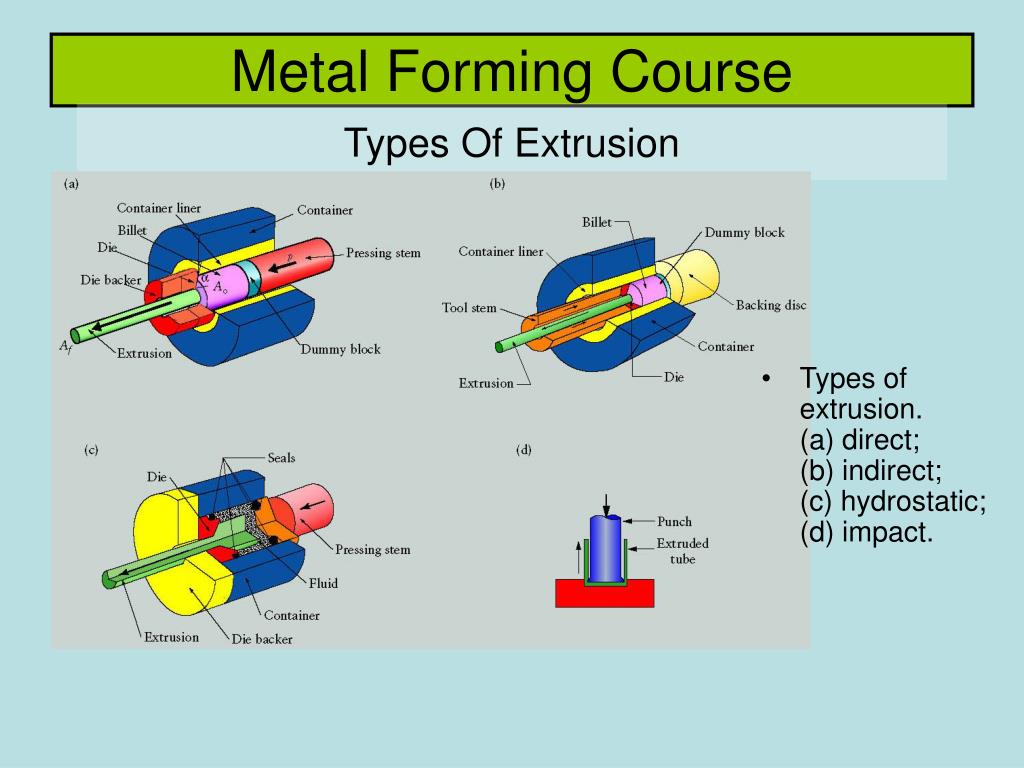

Types Of Extrusion

  • Types of extrusion. (a) direct; (b) indirect; (c) hydrostatic; (d) impact.


Metal forming course25

Metal Forming Course

Extrusion

  • Schematic illustration of three different types of metal flow in direct extrusion.

  • Extrusion and examples of products made by sectioning off extrusions.


Metal forming course26

Metal Forming Course

Cold and Impact Extrusion

  • Examples of cold extrusion. Arrows indicate the direction of material flow. These parts may also be considered as forgings.

  • (a) Impact extrusion of a tube (Hooker process).(b) Two examples of products made by impact extrusion, these parts may also be made by casting, forging, and machining, depending on the dimensions and materials involved and the properties desired. Economic considerations are also important in process selection.


Metal forming course27

Metal Forming Course

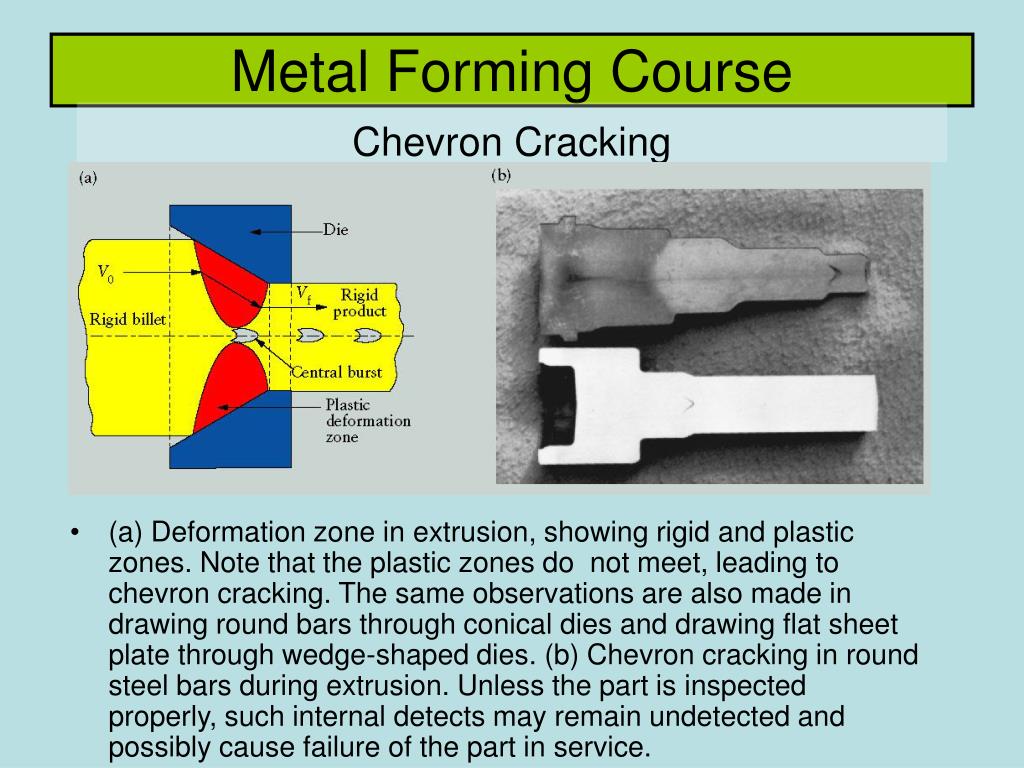

Chevron Cracking

  • (a) Deformation zone in extrusion, showing rigid and plastic zones. Note that the plastic zones do not meet, leading to chevron cracking. The same observations are also made in drawing round bars through conical dies and drawing flat sheet plate through wedge-shaped dies. (b) Chevron cracking in round steel bars during extrusion. Unless the part is inspected properly, such internal detects may remain undetected and possibly cause failure of the part in service.


Metal forming course28

Metal Forming Course

Extrusion of Seamless Tube

  • Extrusion of a seamless tube. The hole in the billet may be prepunched or pierced, or it may be generated during extrusion.


Metal forming course29

Metal Forming Course

Extrusion of Complicated Shapes

  • (a) An extruded 6063-T6 aluminum ladder lock for aluminum extension ladders. This part is 8 mm thick and is sawed from the extrusion. (b) Components of various dies for extruding intricate hollow shapes.


Metal forming course30

Metal Forming Course

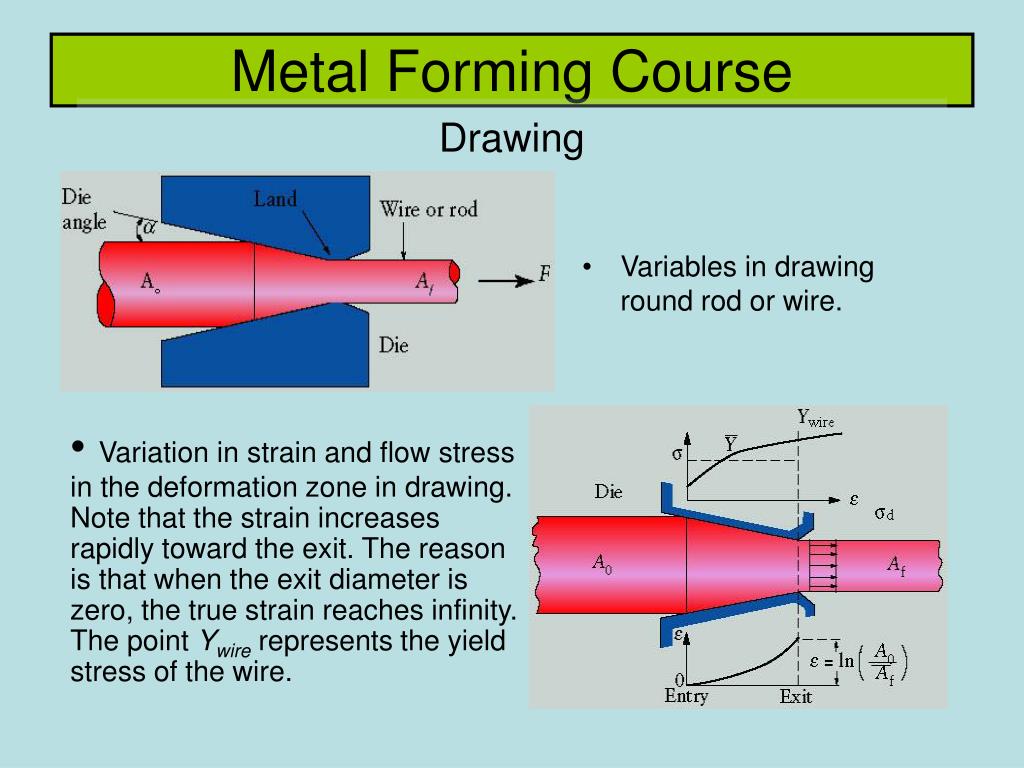

Drawing

  • Variables in drawing round rod or wire.

  • Variation in strain and flow stress in the deformation zone in drawing. Note that the strain increases rapidly toward the exit. The reason is that when the exit diameter is zero, the true strain reaches infinity. The point Ywire represents the yield stress of the wire.


Metal forming course31

Metal Forming Course

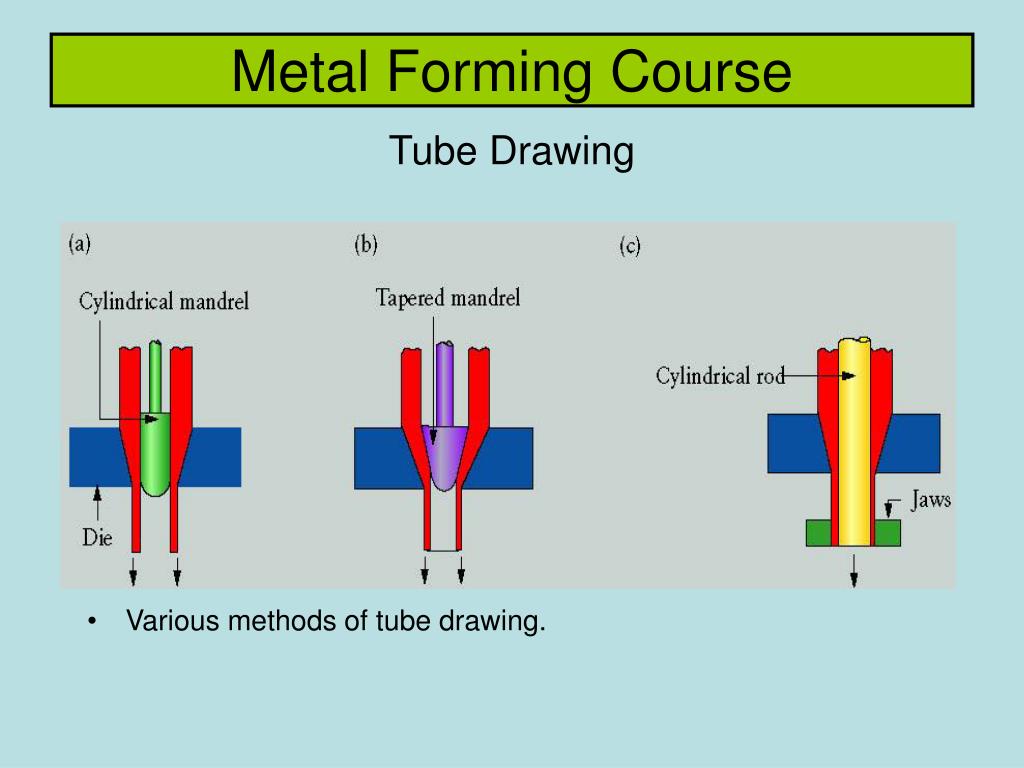

Tube Drawing

  • Various methods of tube drawing.


Metal forming course32

Metal Forming Course

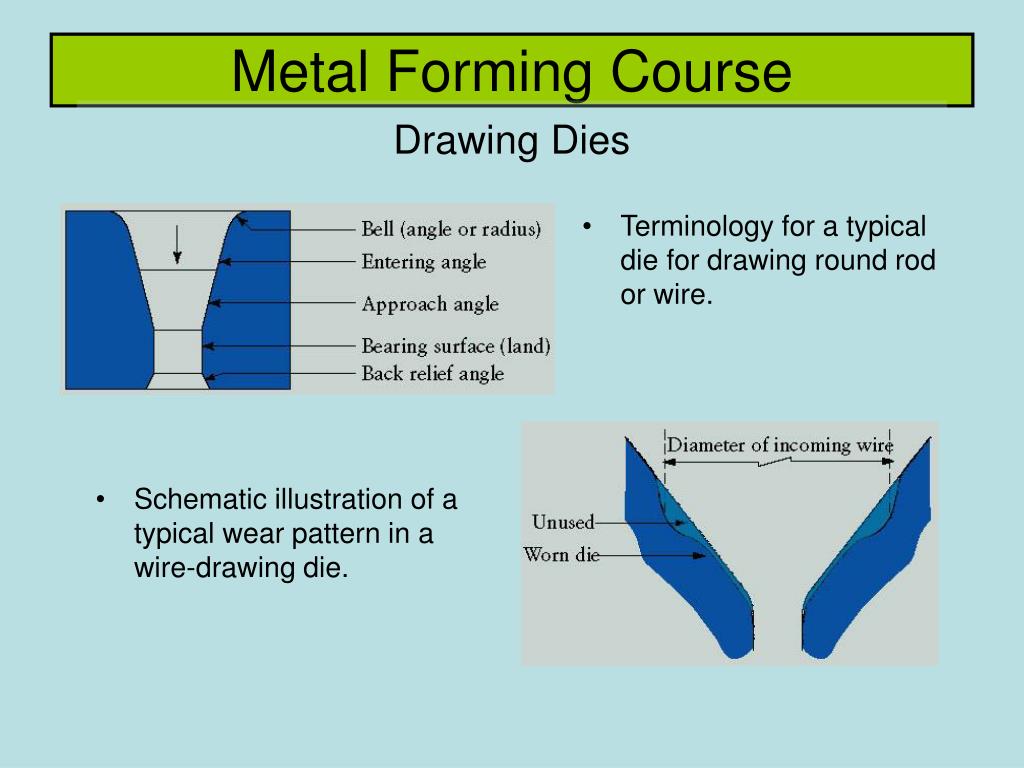

Drawing Dies

  • Terminology for a typical die for drawing round rod or wire.

  • Schematic illustration of a typical wear pattern in a wire-drawing die.


Metal forming course33

Metal Forming Course

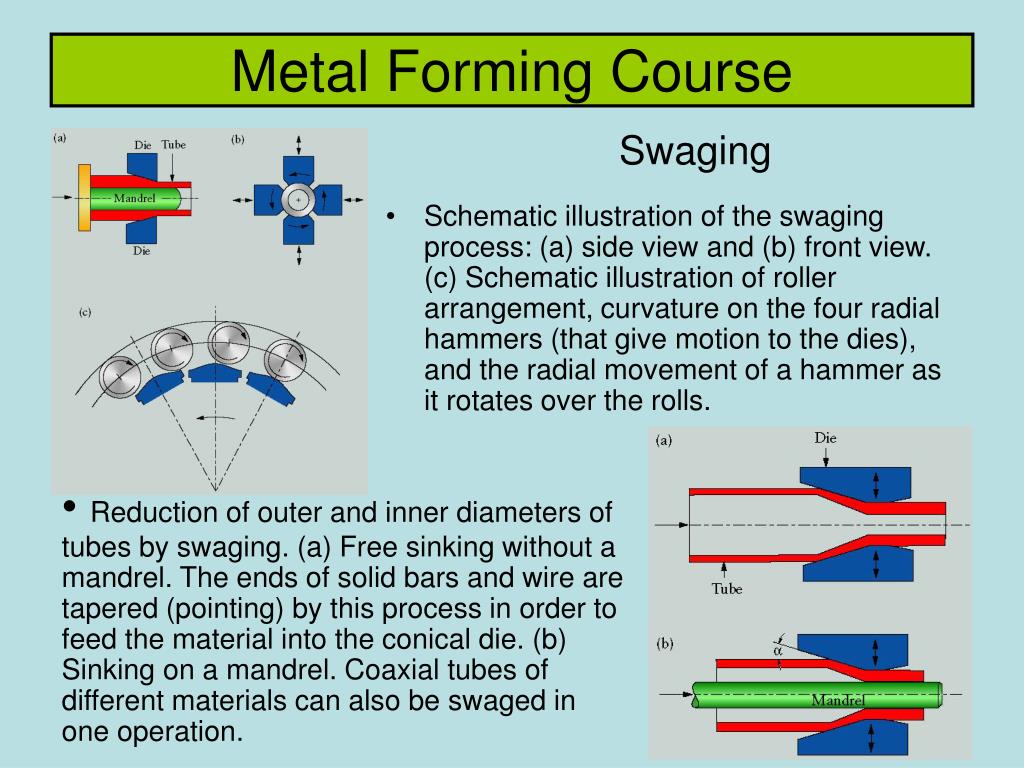

Swaging

  • Schematic illustration of the swaging process: (a) side view and (b) front view. (c) Schematic illustration of roller arrangement, curvature on the four radial hammers (that give motion to the dies), and the radial movement of a hammer as it rotates over the rolls.

  • Reduction of outer and inner diameters of tubes by swaging. (a) Free sinking without a mandrel. The ends of solid bars and wire are tapered (pointing) by this process in order to feed the material into the conical die. (b) Sinking on a mandrel. Coaxial tubes of different materials can also be swaged in one operation.


Metal forming course34

Metal Forming Course

Cross-Sections Produced By Swaging

  • (a) Typical cross-sections produced by swaging tube blanks with a constant wall thickness on shaped mandrels. Rifling of small gun barrels can also be made by swaging, using a specially shaped mandrel. The formed tube is then removed by slipping it out of the mandrel. (b) These parts can also be made by swaging.


Metal forming course35

Metal Forming Course

Forming Processes For Rocket Casings

  • The forming processes involves in the manufacture of solid rocket casings for the U.S. Space Shuttle.


Metal forming course36

Metal Forming Course

The End
