  1. 12.2 Surface Area of Prisms and Cylinders Lateral face Oblique

  2. Definition of a Prism A Prism is a solid having bases or ends that are parallel, congruent polygons and sides that are parallelograms. http://dictionary.reference.com/browse/prism

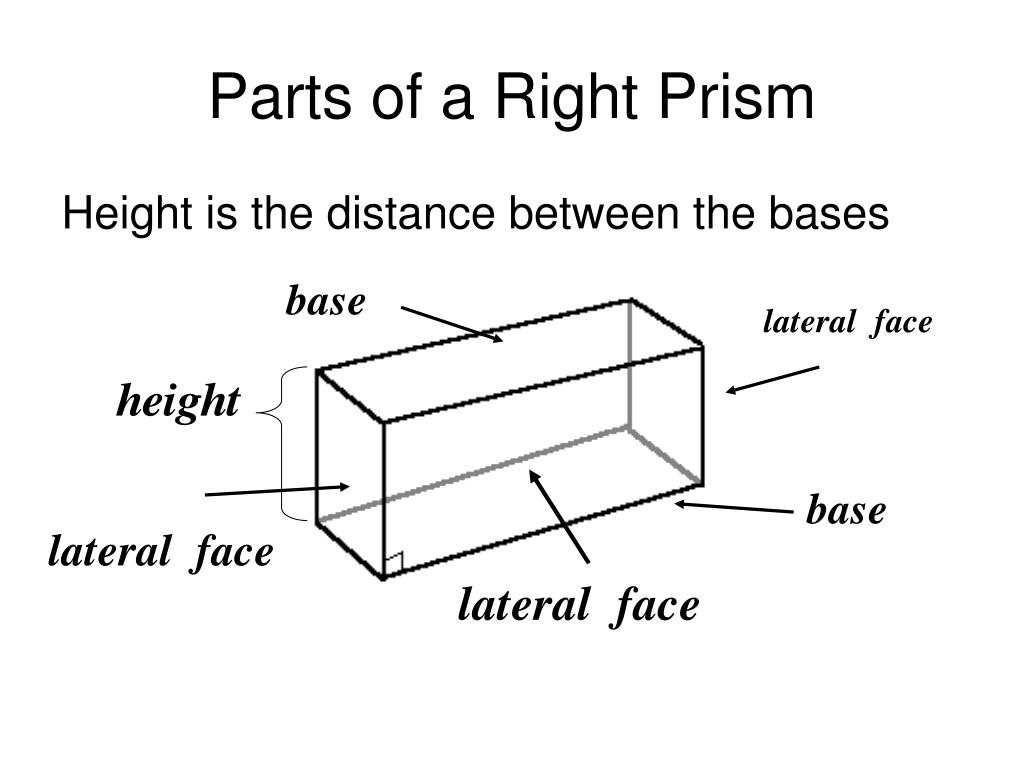

  3. Parts of a Right Prism Height is the distance between the bases

  4. Different Right Prisms All Prisms with a Right angle

  5. Definition of an Oblique Prism A prism with angles that are not right angles.

  6. A way to show the surface of a Prism A two Dimensional representation of a prism is called a net

  7. Right Prism Theorem The Surface Area of a Prism is two bases plus the lateral faces. Lateral faces = Height times Perimeter B is Base P is Perimeter H is Height

  8. Right Prism Theorem The Base is 4(7)= 28 Perimeter is 2(4)+2(7) = 22 Height is 5 S.A. = 2(28) + 22(5) S.A. = 166

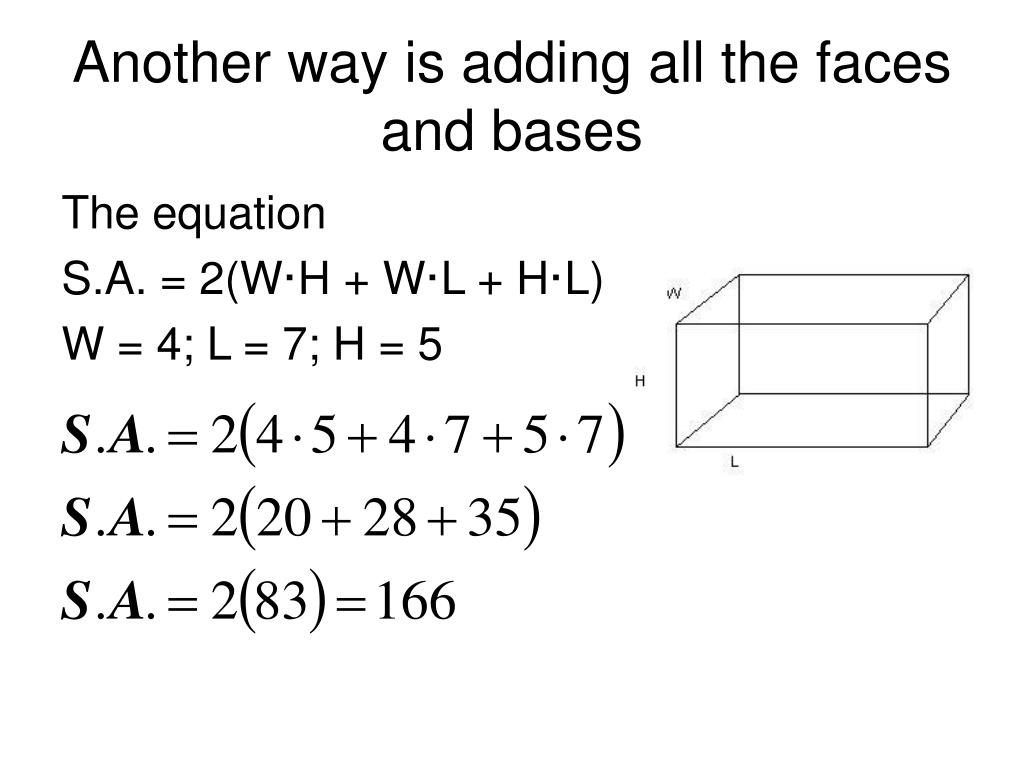

  9. Another way is adding all the faces and bases The equation S.A. = 2(W·H + W·L + H·L) W = 4; L = 7; H = 5

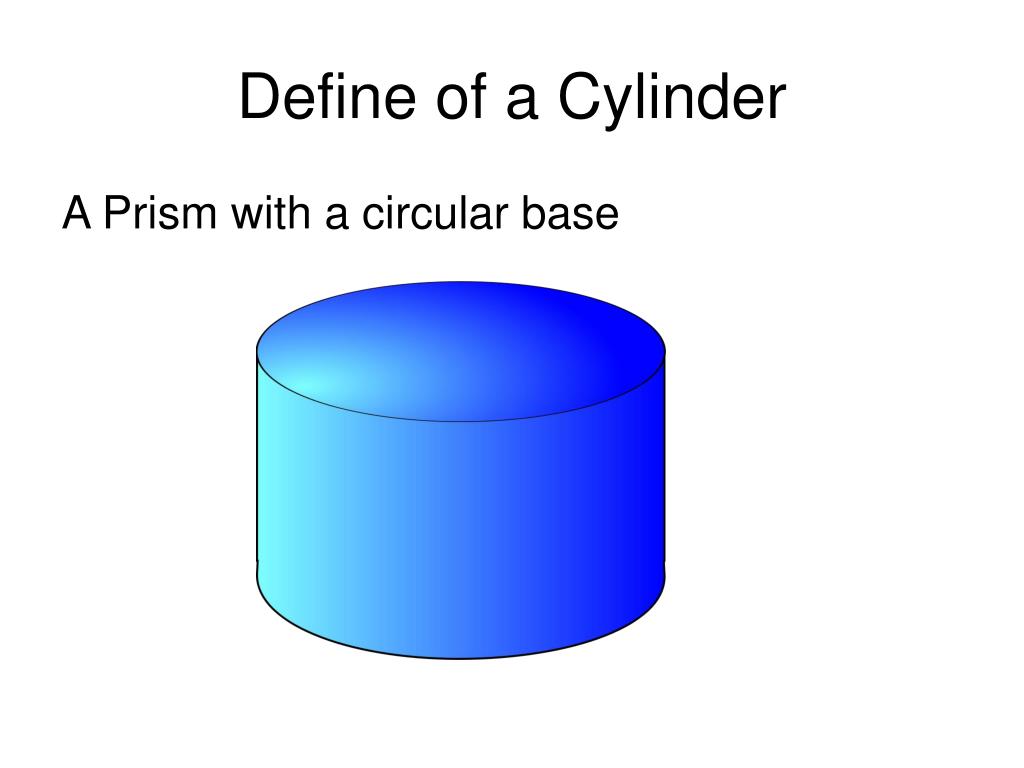

  10. Define of a Cylinder A Prism with a circular base

  11. The net of a Cylinder Two circles and a Rectangle

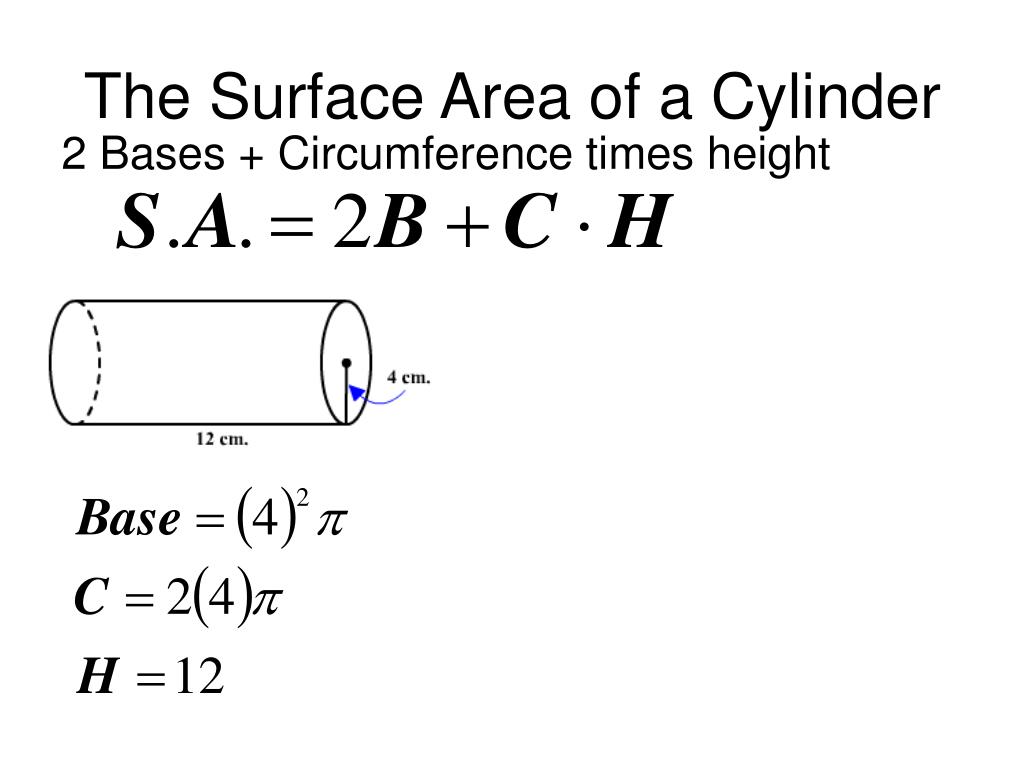

  12. The Surface Area of a Cylinder 2 Bases + Circumference times height

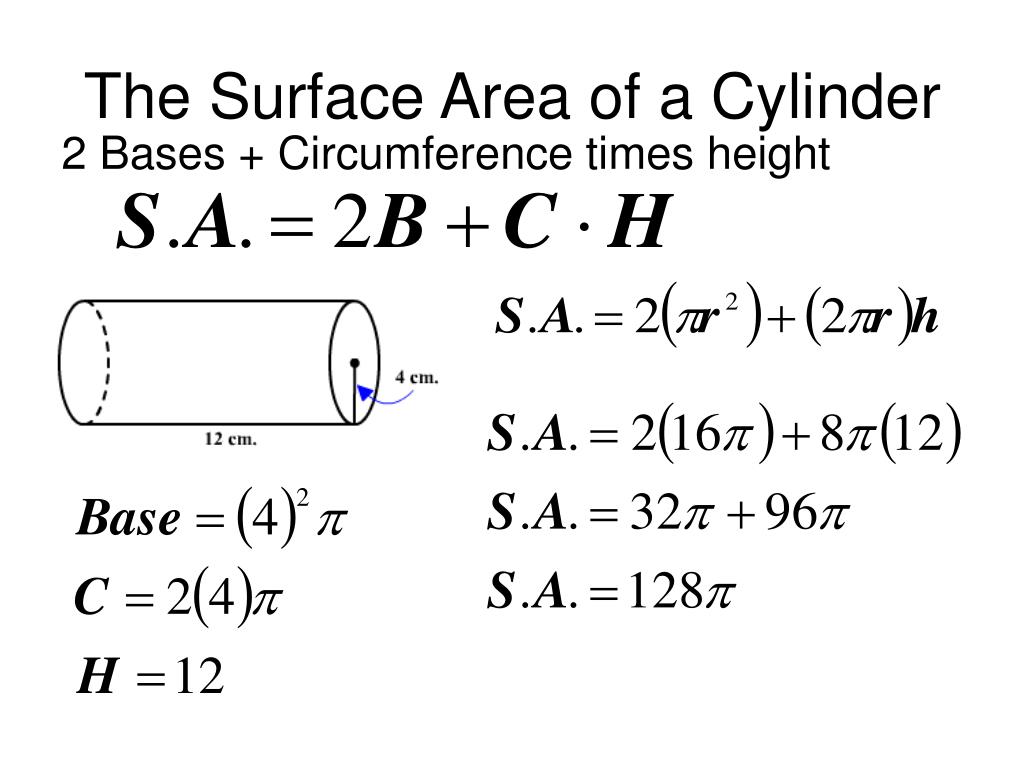

  13. The Surface Area of a Cylinder 2 Bases + Circumference times height

  14. The Surface Area of a Cylinder 2 Bases + Circumference times height

  15. Homework Page 732 – 734 # 13 – 43 odd, 49, 53

  16. Homework Page 732 – 734 # 14 – 44 even, 48, 55
