Diffraction and imaging

Diffraction and Imaging



  • Objective aperture selection

  • BF/DF imaging

  • Relationship of DP to image

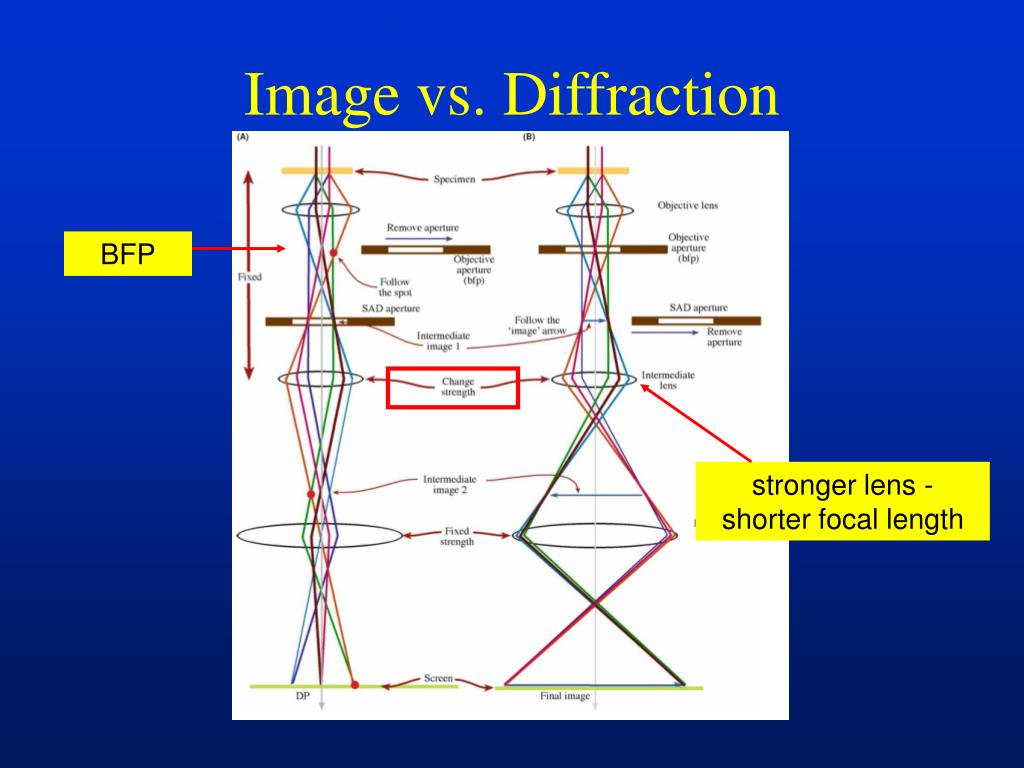

Image vs diffraction


stronger lens - shorter focal length

Image vs. Diffraction

Objective aperture selection

Objective aperture selection

  • The BFP contains the DP (shows reciprocal space) and the objective aperture.

  • Remember, small objects in real space become large in reciprocal space.

  • Larger objective apertures allow finer detail.

  • … but by allowing more of the scattered electrons to contribute to the image it has lower contrast.

Objective aperture size

No scattered electrons from hole

Large aperture – lower contrast

Small aperture – higher contrast

Objective Aperture Size

Obj aperture selection video

Obj. aperture selection video

Bf df aperture position

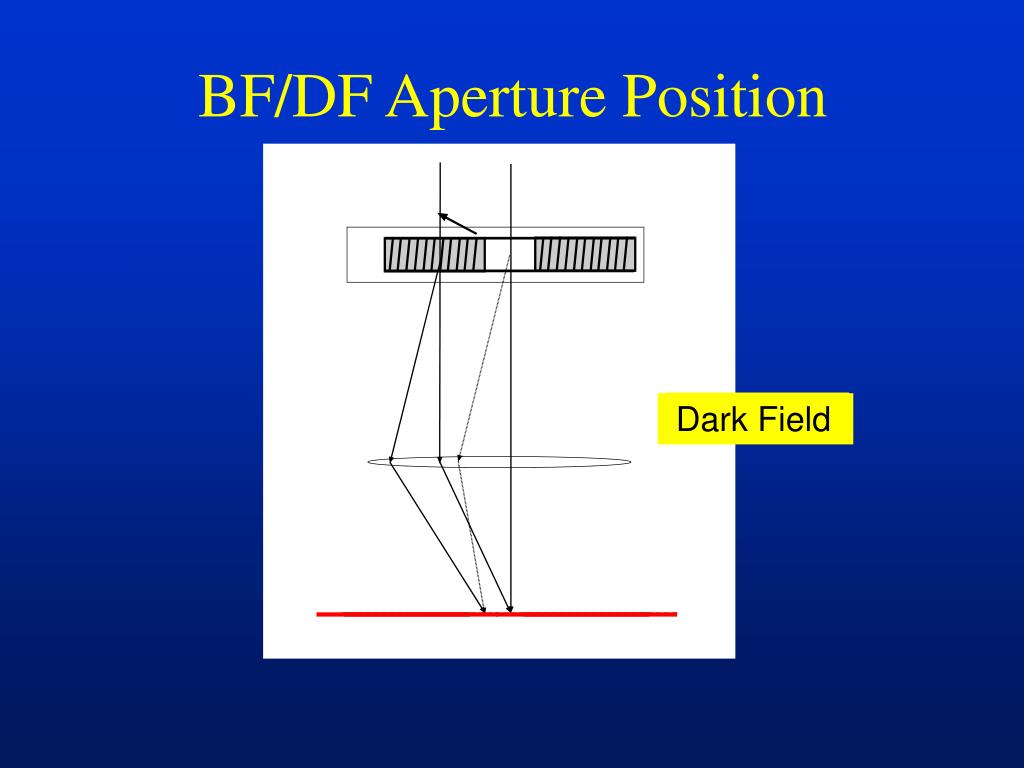

BF/DF Aperture Position

Dark Field

Bright Field

On axis dark field

What you see on screen

On-axis Dark Field

How do you center DF beam?

Tilt to g

Not in Bragg condition!

Tilt to +g

If you move diffracted spot into center, it will disappear.

Tilt to g1

Still in Bragg condition!

Tilt to -g

If you move direct beam to +g spot, -g will light up.

Df imaging

DF imaging

Dark Field

Bf df imaging

BF/DF imaging

Df controls

BF/DF selector

Beam Tilts in DF mode

DF controls

Df page

DF channel (memory)

Beam Tilt Display

DF page

Displaced aperture df video

Displaced aperture DF video

Centered aperture df video

Centered aperture DF video

Crystallographic imaging

Crystallographic Imaging

  • TEM can give both image and crystallographic (diffraction) information.

  • To be useful, we need to relate the image to the diffraction pattern.

  • We can then mark crystallographic directions on our images.

Image rotation

Image Rotation

  • Lorentz force causes the electron to spiral through the lens.

  • The amount of spiral varies with the magnetic field.

  • Changing the field (lens strength) rotates the image.

Dp under over focus


1st intermediate image

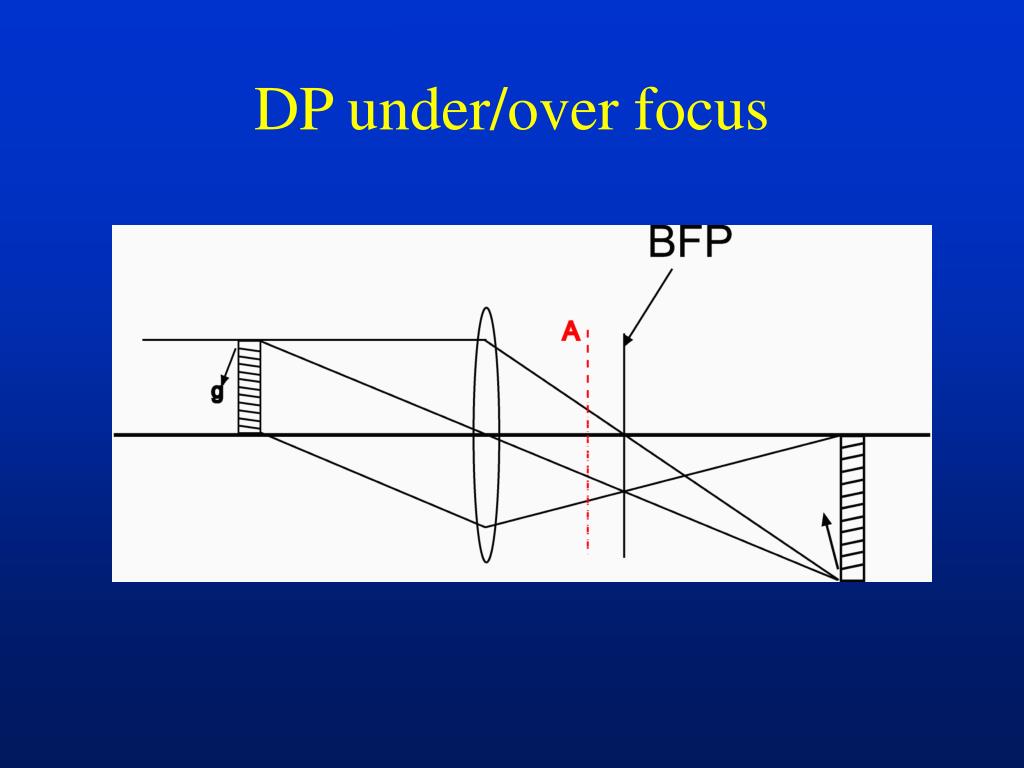

DP under/over focus

Dp under over focus1

DP under/over focus

Dp under over focus2

DP under/over focus

Dp under over focus3

DP under/over focus

Moo 3 crystal

SA aperture

MoO3 Crystal

Underfocus dp


Underfocus DP

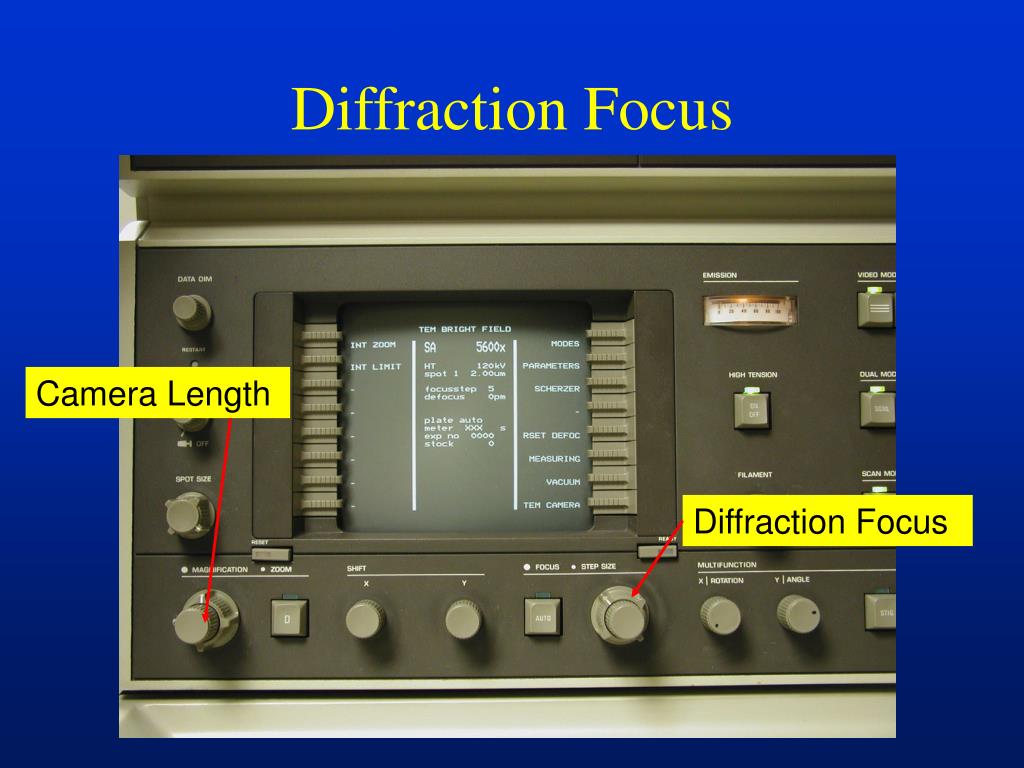

Diffraction focus

Camera Length

Diffraction Focus

Diffraction Focus

Under over focus video

Under-over focus video

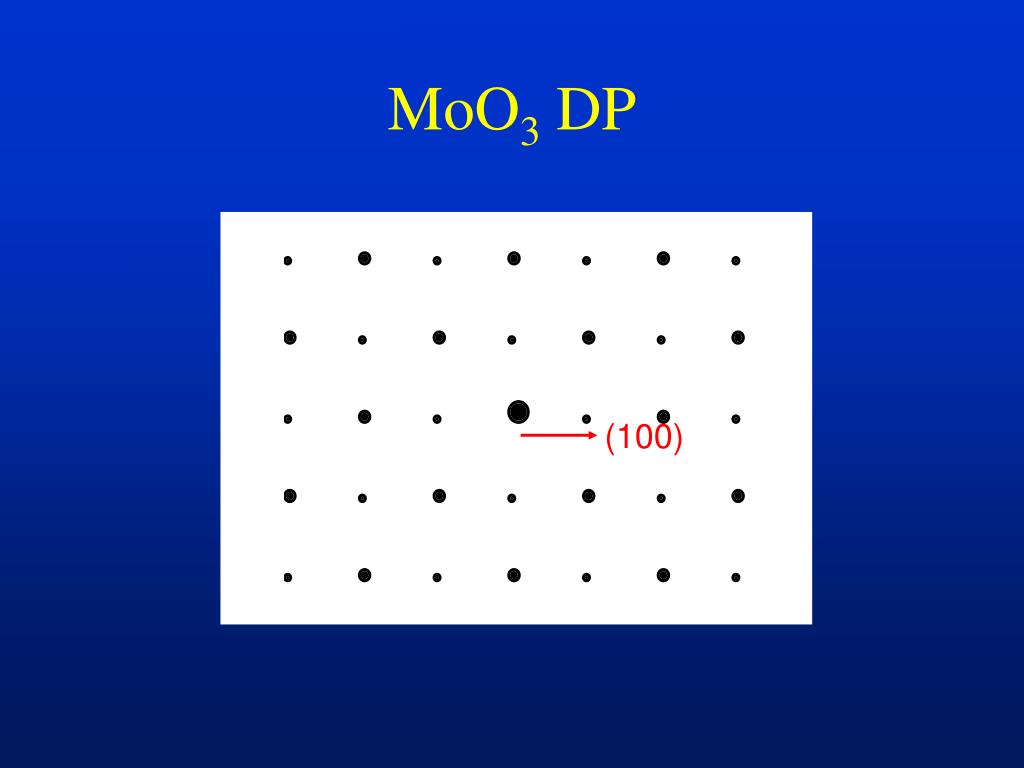

Moo 3 dp



Rotation angle

34° CCW

Rotation angle

Double exposure

Double Exposure

Double Exposure

Rotation angle1

Rotation Angle

  • We usually work at fixed CL,  measure from DP to image

  • Note sense of rotation (CW/CCW)

  • Work with film emulsion up. Be consistent.

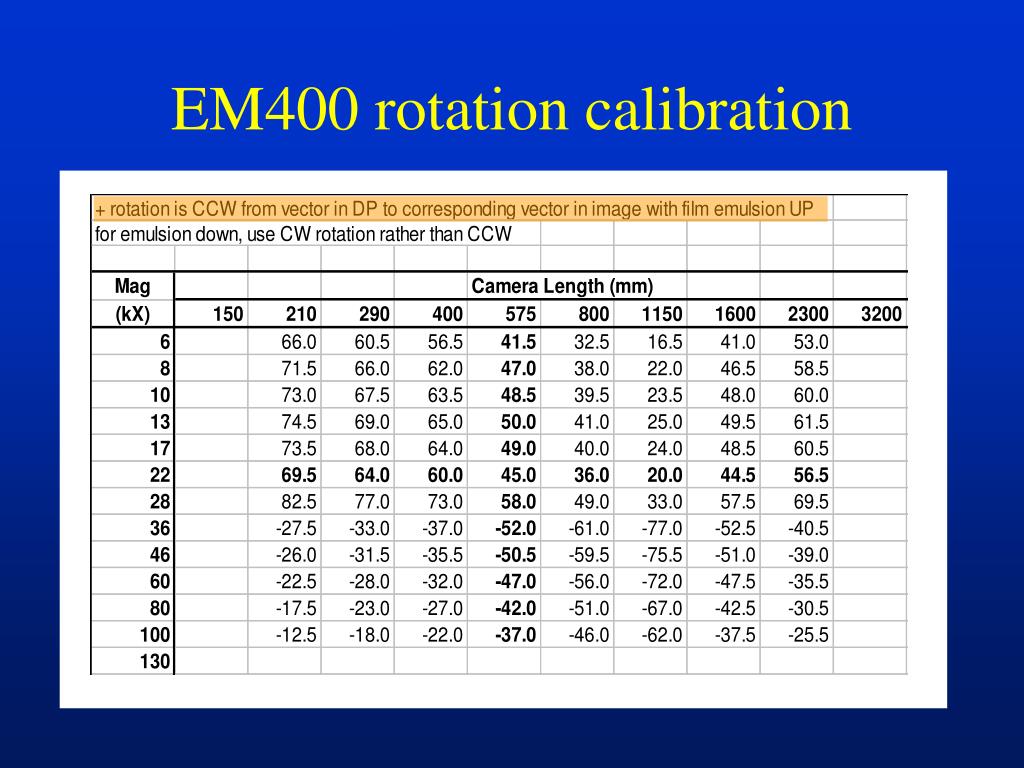

Em400 rotation calibration

EM400 rotation calibration

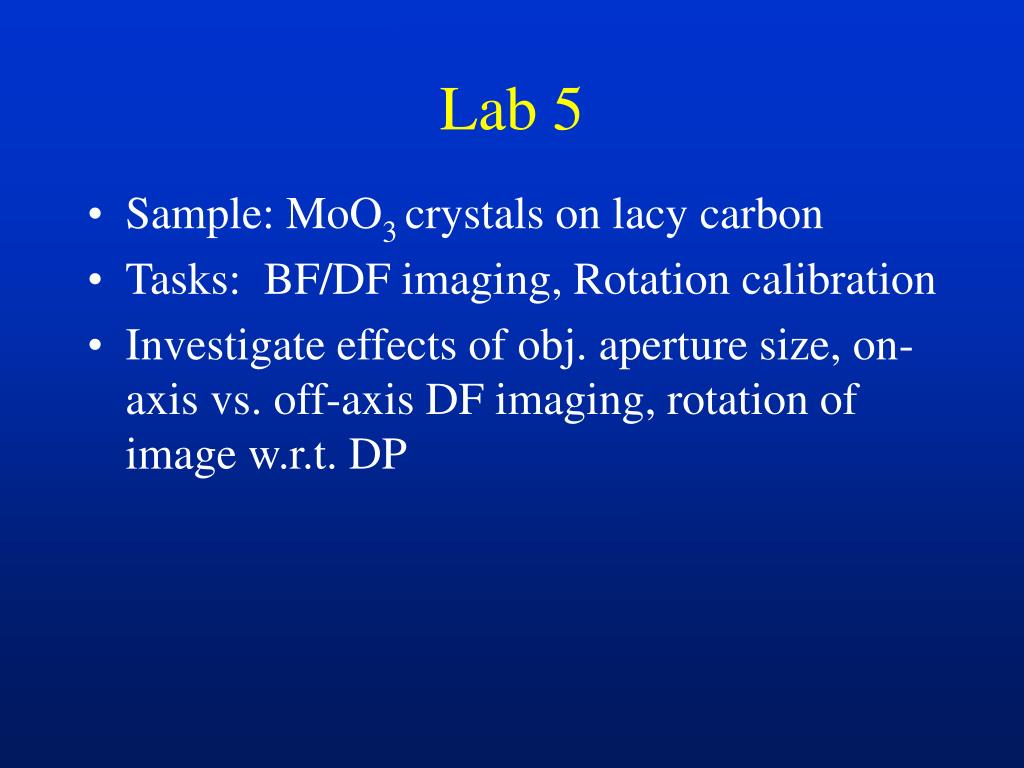

Lab 5

Lab 5

  • Sample: MoO3 crystals on lacy carbon

  • Tasks: BF/DF imaging, Rotation calibration

  • Investigate effects of obj. aperture size, on-axis vs. off-axis DF imaging, rotation of image w.r.t. DP

  • Login
