16.34. The following pictures represent solutions that contain one or more of the compounds H 2 A, NaHA, and Na 2 A where H 2 A is a weak diprotic acid. (Na + ions and solvent water molecules have been omitted for clarity.). Which of the solutions are buffer solutions?

Download Presentation

16.34

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Powerpoint presentation 1324283

16.34

The following pictures represent solutions that contain one or more of the compounds H2A, NaHA, and Na2A where H2A is a weak diprotic acid. (Na+ ions and solvent water molecules have been omitted for clarity.)

Which of the solutions are buffer solutions?

(b)Which solution has the greatest buffer capacity?


Powerpoint presentation 1324283

16.35

The following pictures represent solutions that contain a weak acid HA (pKa= 6.0) and its sodium salt NaA. (NA+ ions and solvent water molecules have been omitted for clarity.)

(a)Which solution has the highest pH? Which has the lowest pH?

(b)Draw a picture that represents the equilibrium state of solution (1) after addition of two H3O+ ions.

(c)Draw a picture that represents the equilibrium state of solution (1) after addition of two OH ions.


Powerpoint presentation 1324283

The strong acid HA is mixed with an equal molar amount of aqueous NaOH. Which of the following pictures represents the equilibrium state of the solution? (NA+ ions and solvent water molecules have been omitted for clarity.)

16.36


Powerpoint presentation 1324283

16.37

The following pictures represent solutions at various stages in the titration of a weak diprotic acid H2A with aqueous NaOH. (Na+ ions and solvent water molecules have been omitted for clarity.)

(a)To which of the following stages do solutions (1)–(4) correspond?

(i) Halfway to the first equivalence point

(ii) At the first

equivalence point

(iii) Halfway between the

first and second

equivalence points

(iv) Beyond the second equivalence point

(b)Which solution has the

highest pH? Which has thelowest pH?


Powerpoint presentation 1324283

16.38

The following pictures represent solutions at various stages in the titration of a weak base B with aqueous HCl. (Cl ions and solvent water molecules have been omitted for clarity.)

(a)To which of the following stages do solutions

(1)–(4) correspond?

(i) The initial solution before addition of

any HCl

(ii) Halfway to the equivalence point

(iii) At the

equivalence point

(iv) Beyond the

equivalence point

(b)Is the pH at the equivalence point more or less than 7?


Powerpoint presentation 1324283

16.39

The following pictures represent solutions of AgCl, which also may contain ions other than Ag+ and Cl- that are not shown. If solution (1) is a saturated solution of AgCl, classify solutions (2)–(4) as unsaturated, saturated, or supersaturated.


Powerpoint presentation 1324283

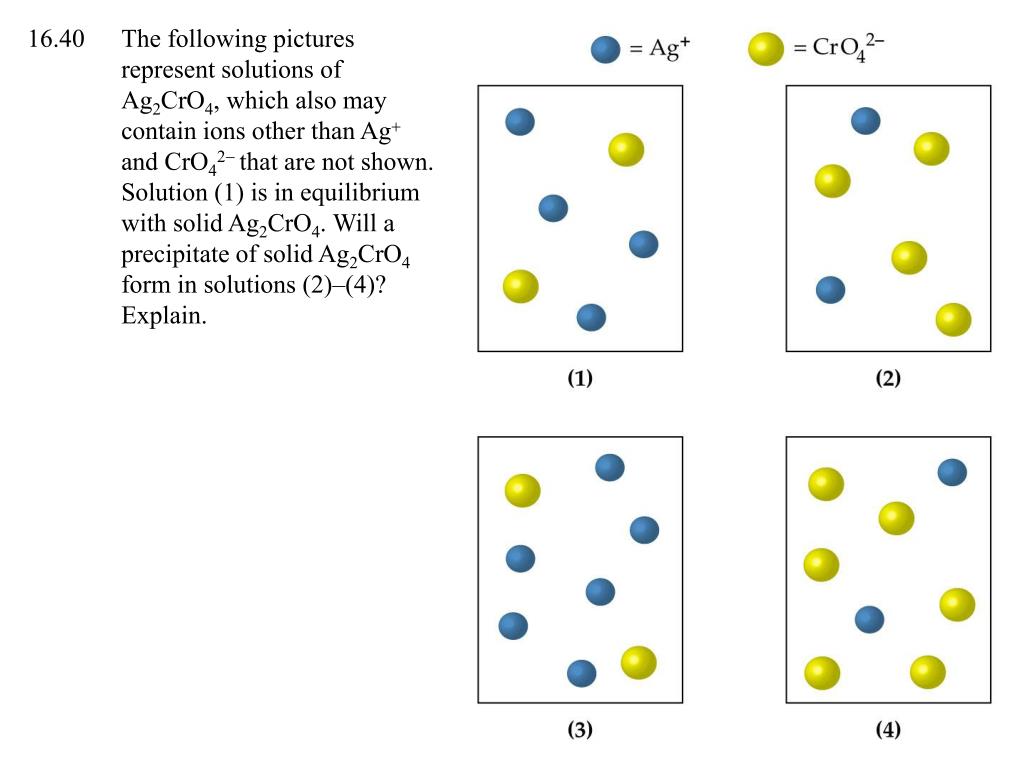

16.40

The following pictures represent solutions of Ag2CrO4, which also may contain ions other than Ag+ and CrO42that are not shown. Solution (1) is in equilibrium with solid Ag2CrO4. Will a precipitate of solid Ag2CrO4 form in solutions (2)–(4)? Explain.


Powerpoint presentation 1324283

16.41

The following plot shows two titration curves, each representing the titration of 50.0 mL of 0.100 M acid with 0.100 M NaOH:

(a)Which of the two curves represents the titration of a strong acid, and which a weak acid?

(b)What is the approximate pH at the equivalence point for each of the acids?

(c)What is the approximate pKa of the weak acid?
