GS1 Standards Autumn Event8-12 October 2012 – Dublin, IrelandBuilding Standards to Deliver Business Value

Name of Session: RFID Bar Code Interoperability Guideline

Time of Session: Tuesday 7.45

Who May Attend: Everyone

Speaker names: Michael SarachmanKen TraubAndrew Osborne


Anti trust caution

Anti-Trust Caution

GS1 and the GSMP operate under the GS1 anti-trust caution. Strict compliance with anti-trust laws is and always has been the policy of GS1.

The best way to avoid problems is to remember that the purpose of the committee is to enhance the ability of all industry members to compete more efficiently.

This means:

  • There shall be no discussion of prices, allocation of customers, or products, etc.

  • If any participant believes the group is drifting towards an impermissible discussion, the topic shall be tabled until the opinion of counsel can be obtained.

  • The full anti-trust caution is available in the Community Room if you would like to read it in its entirety.


Meeting etiquette

Meeting Etiquette

Meetings will begin promptly at designated start times

Avoid distracting behaviour:

  • Place all mobile devices on silent mode

  • Avoid cell phones

  • Avoid sidebar conversations

    Speak in turn and be respectful of others

    Be collaborative in support of the meeting objectives


Agenda

Agenda

  • Interoperability ChallengesMichael Sarachman

  • Guideline OverviewKen Traub

  • BenefitsAndrew Osborne

  • On-going InitiativesMichael Sarachman


Background

Background

  • BarCodes & EPC Interoperability Work Group

    • Kicked off – November 2009

  • Business Requirements Analysis Document issued August 2010


Background business requirements

Background – Business Requirements

  • Identified 26 requirements delivered via three initiatives:

    • Implementation Guideline

      • 6 requirements

    • Update EPCIS standards

      • 2 requirements

    • GS1 company prefix length determination solution

      • 7 requirements

    • Final 11 out of scope or previously resolved

  • Guideline Objectives

    • Clarify encoding, decoding and handling of GS1 Keys and attributes using BarCodes and EPC RFID


Rfid bar code interoperability guideline

RFID Bar Code Interoperability Guideline

  • Guideline ratified 21 September 2012

  • Available at GS1 Knowledge Center

    • RFID Bar Code Interoperability Guideline

  • BarCodes & ID Keys Section


Guideline overview

Guideline Overview


Guideline scope

Guideline Scope

Enterprise Resource Planning

Warehouse Management

Supply Chain Traceability

Point of Sale


Guideline scope1

Guideline Scope

Three Best Practices:

  • Design business-level applications, databases, and messages to be independent of the data capture method and the data carriers used.

  • Confine the use of data carrier-specific representations to the lowest levels of implementation architecture.

  • Adopt best practices for implementing translations between data carrier-specific representations and application-level representations.


Data carrier independence

Data Carrier Independence

“Plain” GTIN and Serial Number806141411234586789

Business data

GS1 DataMatrix Bar Code containing GS1 Element String

(01) 80614141123458 (21) 6789

Gen2 RFID Tag containing EPC Binary Encoding

3074257BF7194E4000001A85

Data Carrier-specific encoding of business data


Application level syntax

Application-Level Syntax

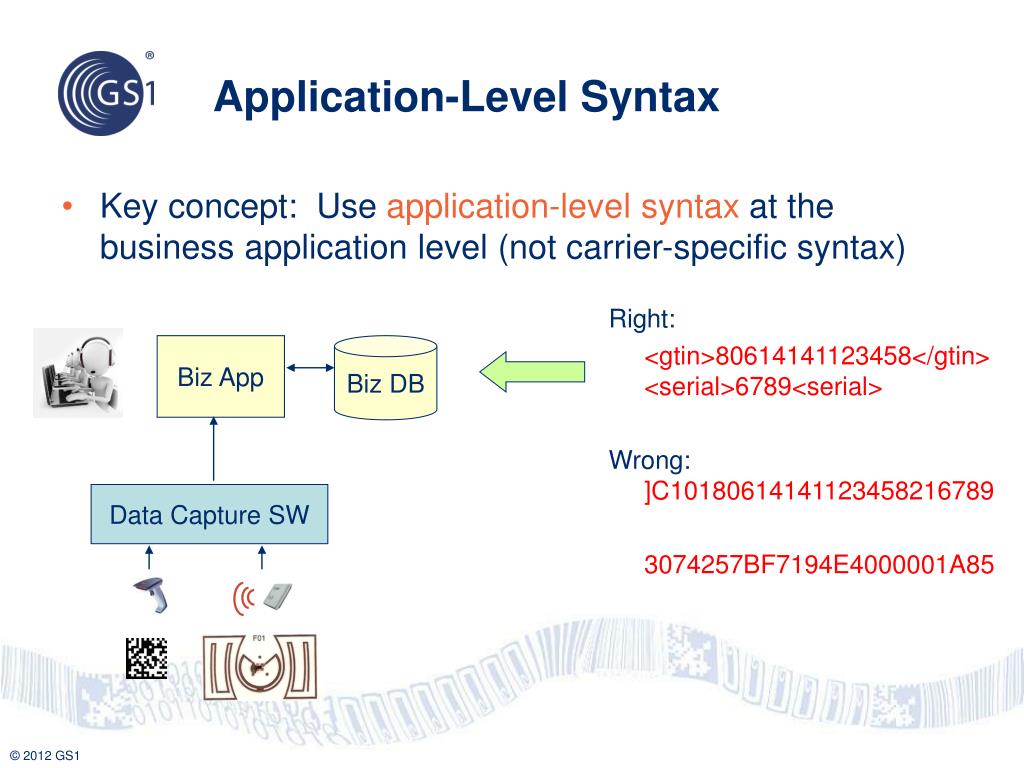

  • Key concept: Use application-level syntax at the business application level (not carrier-specific syntax)

Right:

<gtin>80614141123458</gtin> <serial>6789<serial>

Wrong:]C10180614141123458216789

3074257BF7194E4000001A85

Biz App

Biz DB

Data Capture SW


Application level syntax characteristics

Application-Level Syntax Characteristics

  • Accommodates every possible value of a GS1 Identification Key without limitation, and so it is capable of representing a key read from any data carrier.

  • Does not include additional information that is specific to a particular type of data carrier.

  • Provides only one possible way to represent each distinct key value within the syntax.

    • Therefore, an application can determine whether two values refer to the same real-world entity by a simple string comparison, with no additional normalization or parsing required


Application level syntax1

Application-Level Syntax


Carrier specific syntax

Carrier-Specific Syntax


Interoperability principles

Interoperability Principles

  • Design business applications, messages, and databases to accept data from any data carrier

    • accept the full range of data values defined by GS1 Standards; do not carry data carrier-specific restrictions to this level

  • Business applications, messages, and databases should only use application-level syntax:

    • “Plain” key

    • GS1 Element String

    • EPC URI


Serial number issues

Serial Number Issues

  • Leading zeros can lead to errors:

    • 7, 07, and 007 are all different serial numbers according to GS1 Gen Specs

    • But some applications don’t respect this

      • MS Excel is a well-known example; it treats a GS1 serial number as an ordinary number

    •  Avoid the problem by not assigning leading zeros

  • Variable-length serial number leads to variation in bar code size

    • QA and packaging design often rely on fixed size symbols

    •  Avoid the problem by assigning a fixed-length serial

  • 96-bit RFID tags are limited in serial number capacity

    •  Avoid the problem by staying within allowed range

  • Putting it together, the most interoperable serial number allocation policy is:

    • 10000000000 – 99999999999; or

    • 100000000000 – 274877906943

  • But applications should accept any valid serial number and never add or remove leading zeros


Architecture

Architecture

Principle: Confine the use of data carrier-specific representations to the lowest possible level in the architecture

EPCIS Query Interface

To/from external parties

eCOM (GS1 XML / EANCOM) Interface

GDSN Interface

Enterprise-level Applications

EPCIS Capture Interface

Human Interfaces

Various app-specific Interfaces

Data Capture Application

Application-level

Data Capture Workflow

Carrier-specific

ALE Interface

Filtering & Collection Engine

Bar Code Scanner Output

LLRP Interface

RFID Reader

RFID Air Interface

Bar Code Symbology

RFID Tag

Bar Code


Translations

“Plain” Key

806141411234586789

Application-level Syntax

Length of GS1 Company Prefix needed in this direction

GS1 Element String

0180614141123458216789

TDS §7

Pure Identity EPC URI

urn:epc:id:sgtin:0614141.812345.6789

Business Applications

Bar CodeSpecific

RFID Specific

Data Capture Facilities

Bar Code Reader Output

]C10180614141123458216789

EPC Tag URI

urn:epc:tag:sgtin-96:3.0614141.812345.6789

Printer-specific commands

Printed Bar Code

EPC Binary Encoding in RFID Tag

3074257BF7194E4000001A85

GS §3, §5.10.2

TDS §12

GS §7.9

TDS §14

GS §5, ISO Specs

Translations


Guideline scope2

Guideline Scope

Three Best Practices:

  • Design business-level applications, databases, and messages to be independent of the data capture method and the data carriers used.

  • Confine the use of data carrier-specific representations to the lowest levels of implementation architecture.

  • Adopt best practices for implementing translations between data carrier-specific representations and application-level representations.


Member organization view

Member Organization View


This is the uk

This is the UK


Gs1 uk

GS1 UK

Established in 1976

Independent, neutral, not for profit association

~ 55 (FTE) staff based in central London

>26,000 members

2011/12 turnover of approx £8m (~€10m)


In principle

In Principle

  • Carrier Independence

  • RFID/ Bar code co-existence

  • Seamless transition

  • Application level syntax

  • One system not two: correcting perceptions


From gs1 house

From GS1 “House”

The Global Language of Business

Improving efficiency & visibility in supply and demand chains

GS1 Solutions

Point of Sale, Inventory Mgt, Asset Mgt, Collaborative Planning, Traceability

Global standards for item identification

Global standards for electronic business

messaging

Global Standards for global data synchronisation

Global Standards for RFID-based identification

Common Identifiers: GTIN, GLN, GRAI, GSRN, SSCC, GIAI, GDTI

Attribute data: eg Best before date, Deliver to location, batch number……

Global & Local Services

Global Standards Management Process, Global Registry, Learn….

Help desk, events, facilitation, training guides and publications…

Representation, community adoption….

Data Pool, Quality Assurance Services…..


To gs1 system architecture

To GS1 System Architecture


Demand for the document

Demand for the Document

  • Overwhelming?

  • Real?


Our small members

Our small members


Gs1 uk solution provider programme

GS1 UK Solution Provider Programme


Gs1 uk solution provider programme1

GS1 UK Solution Provider Programme

All members must adhere to GS1 UK core values and principles as detailed in the GS1 UK Partner Programme Code of Practice


Summary

Summary

  • Based on principles

  • Grounded in reality

  • Practical advice


Ongoing initiatives

Ongoing Initiatives


Company prefix solution

Company Prefix Solution

  • Project launched August 2012

  • Objectives

    • Develop and launch tool that enables smooth interoperability

    • Support applications not continually connected to Internet


Gs1 company prefix length determination

061414107346

GCP, Item Ref.and Check Digit

(01)10614141073464

GS1 Company Prefix length determination

  • Provide a software tool to end-users that extracts the GS1 company prefix (and its length) given any string that begins with a GS1 company prefix

Periodic check for updates using GEPIR(internet connection required)

GCP lengthsummary file

Receive updates

Parsing Tool(availableto end users)works offline

0614141

or

Length = 7


Gcp range solution

GCP Range Solution

GCP Range file published to Internet

MOs send GCP range data to GO

GO collects GCP range data and compiles single file

End users & solution providers download file


Gcp tool project update

GCP Tool Project Update

  • Status

    • Project team formed & meeting bi-weekly

    • Requirements developed – drafting functional specifications

  • Next Steps

    • Prepare pilot program

      • Collect and consolidate GCP ranges from 5 to 8 MOs

      • 2-3 Solution Providerstest GCP length programs using pilot data table

      • Publish pilot report in December 2012

    • Plan ongoing system development and testing

  • Contacts for more information

    • Henri Barthel

    • Michael Sarachman
