  1. Computer Networks II By: Ing. Hector M Lugo-Cordero, MS

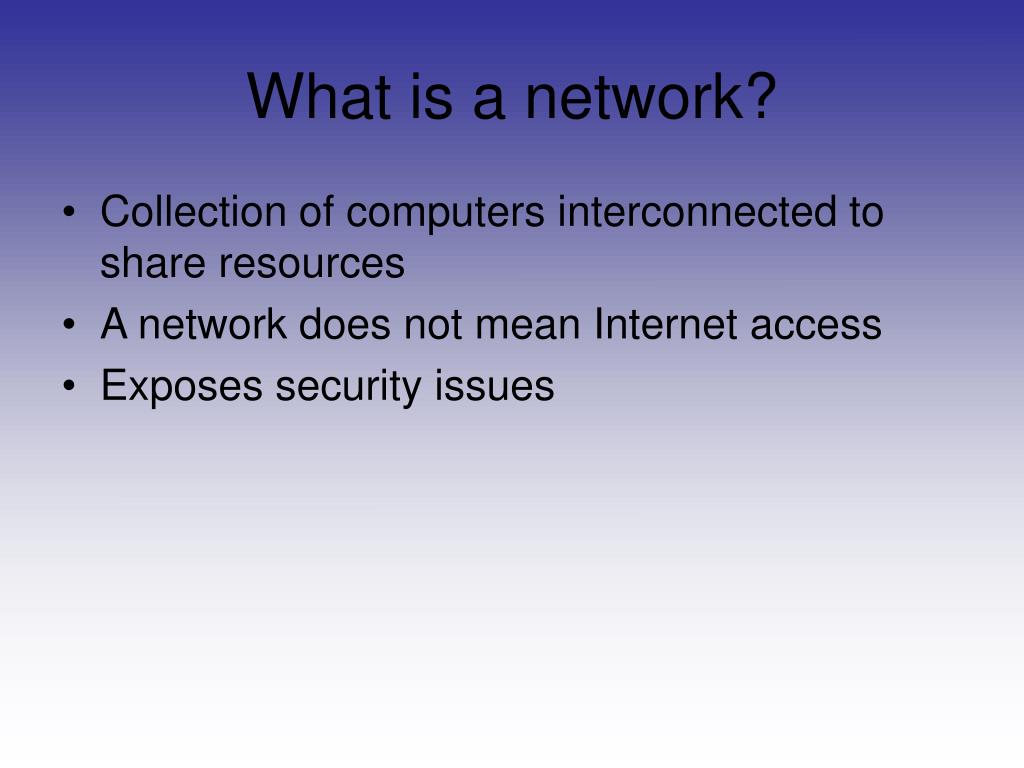

  2. What is a network? • Collection of computers interconnected to share resources • A network does not mean Internet access • Exposes security issues

  3. OSI Model Layers • Physical (repeaters/hubs): signals • Data Link (bridges/switches): frame • Network (routers/L3switches): packet • Transport: segment • Session • Presentation • Application: data

  4. Network Layer • Is responsible of two tasks: • Pre-routing: creates optimal routes from one end node to another storing them in a routing table • Post-routing: communicates data through the network using IP Address (Postal Office) • Communication pattern • Unicast: one source, one destination • Multicast: one source, multiple destination • Broadcast: one source, all destination

  5. IP Addresses • Identify nodes in a network in combination with the subnet mask • Is divided into classes, each one has some private ranges • A (1 – 127) • Private: 10.x.x.x and 127.x.x.x (localhost) • Default subnet mask: 255.0.0.0 • 24.0.0.0/8 Cable Television Networks • B (128 – 191) • Private: 172.16.x.x – 172.31.x.x • Default subnet mask: 255.255.0.0 • C (192 – 223) • Private: 192.168.x.x • Default subnet mask: 255.255.255.0 • E (240 ) • Reserved for future use

  6. Multicast IP Addresses • Class D (224 – 239) • 224.0.0.0 – 224.0.0.255 (Reserved) • 224.0.0.5 (OSPF Routers) • 224.0.0.6 (OSPF Designated Routers) • 224.0.0.9 (RIP Routers) • 224.0.1.0 – 238.255.255.255 (global) • 239.0.0.0 – 239.255.255.255 (local) • A widely used multicast protocol is • Protocol Independent Multicasting (PIM) • Uses multicast address 224.0.0.13

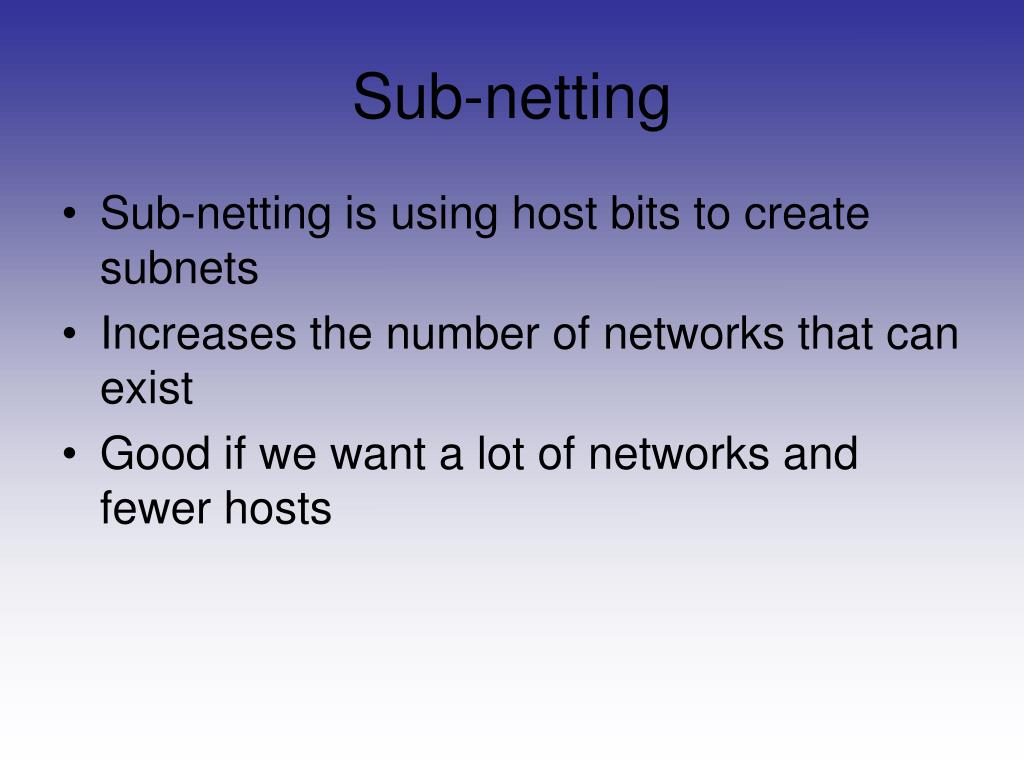

  7. Sub-netting • Sub-netting is using host bits to create subnets • Increases the number of networks that can exist • Good if we want a lot of networks and fewer hosts

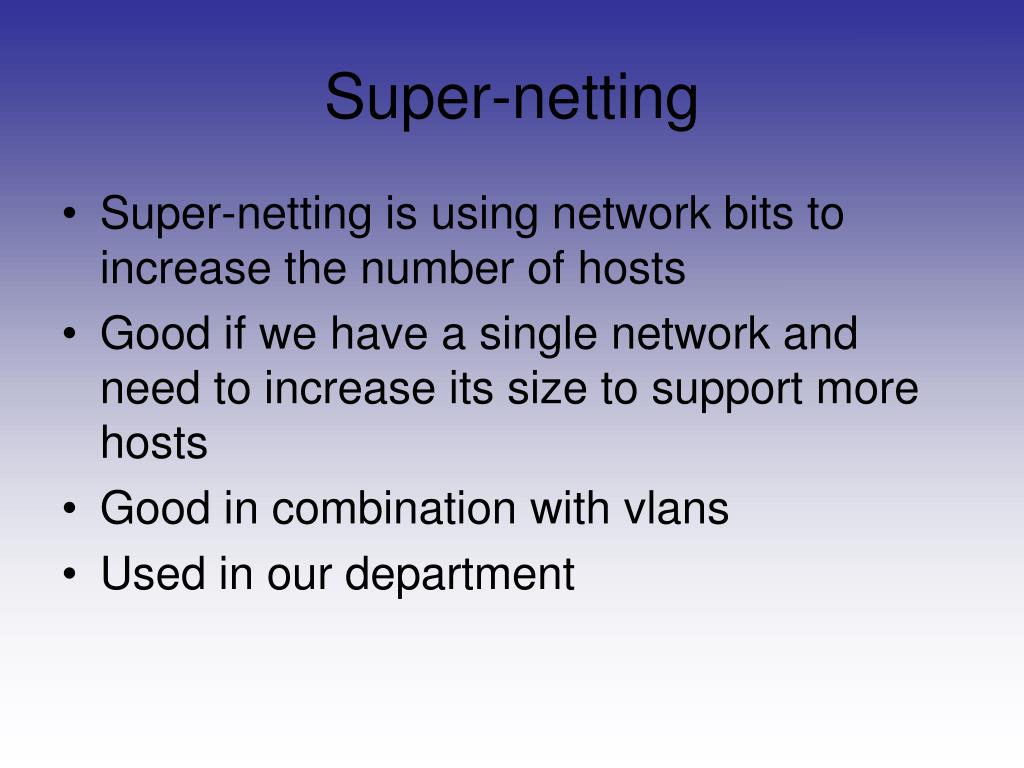

  8. Super-netting • Super-netting is using network bits to increase the number of hosts • Good if we have a single network and need to increase its size to support more hosts • Good in combination with vlans • Used in our department

  9. Interface Configuration (Cisco) • Router (config)# interface <interface_name> <interface_number> • Router (config-if)# duplex full • Router (config-if)# speed 100 • Router (config-if)# ip address <address> <netmask> • Router (config-if)# no shutdown • Router (config-if)# no keep-alive

  10. NAT/PAT • Network Address Translation • Enables address translation from one interface to another • Typically this translation is from private to public for local computers accessing the Internet • When overloaded uses one single IP for many computers by changing the source port • Known as Port Address Translation

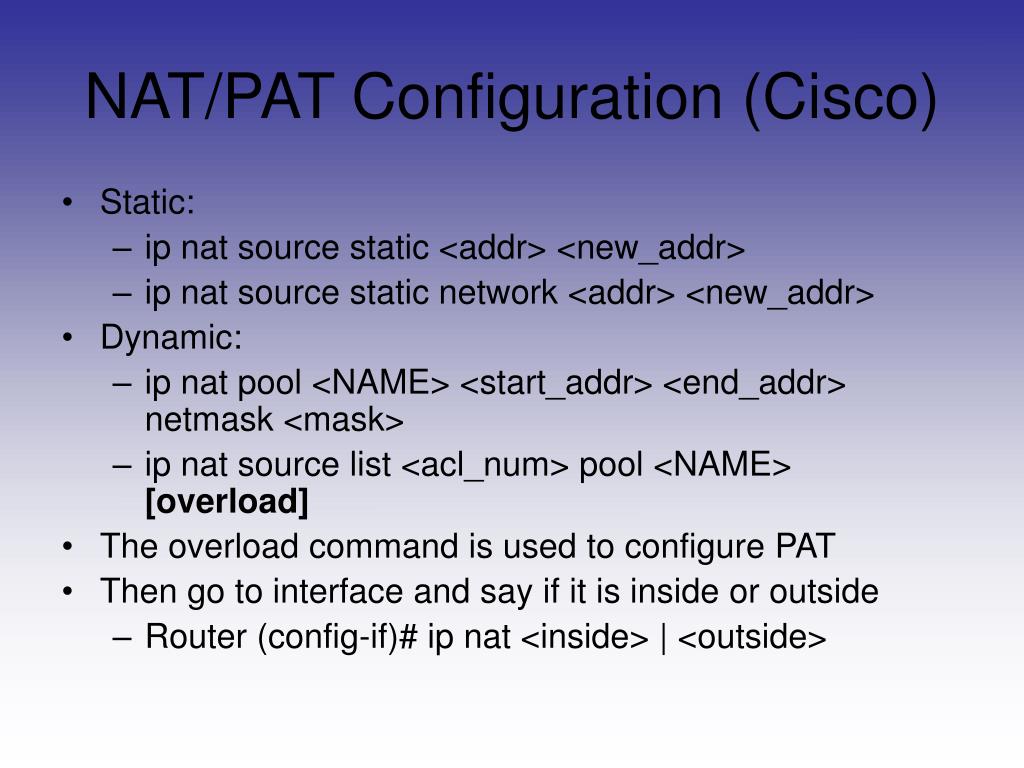

  11. NAT/PAT Configuration (Cisco) • Static: • ip nat source static <addr> <new_addr> • ip nat source static network <addr> <new_addr> • Dynamic: • ip nat pool <NAME> <start_addr> <end_addr> netmask <mask> • ip nat source list <acl_num> pool <NAME> [overload] • The overload command is used to configure PAT • Then go to interface and say if it is inside or outside • Router (config-if)# ip nat <inside> | <outside>

  12. Routing Protocols • Routing Information Protocol (RIP) • 224.0.0.9 • Open Shortest Path First (OSPF) • 224.0.0.5 and 224.0.0.6 • Optimal Link State Routing (OLSR) • Ports 698 and 255.255.255.255 (limited broadcast) • Ad hoc On-Demand Distance Vector (AODV) • Used on ZigBees Modules (IEEE802.15.4)

  13. Routing Configuration (Cisco) • Router (config)# router rip • Router (config-router)# network <base_address> • Router (config-router)# version 2 • Router (config-router)# end • Router # show ip route • FOR STATIC ROUTE USE: • Router (config)# ip route <dest_address> <dest_mask> <next_hop> | <if_name>

  14. Sub-Interfaces • Enable having multiple interfaces on one single router port • Useful for interconnecting vlans • Physical properties of the interface must be configured in the main interface (e.g. speed, duplex, no shutdown)

  15. Sub-Interfaces Configuration (Cisco) • Router (config)# interface fa 0/0.1 • Router (config-if)# ip address <addr> <mask> • Router (config-if)# encapsulation dot1Q # • Router (config-if)# no shutdown

  16. Router Security • Remote login • Set password on all vty interfaces • Some routers allow TELNET as well as SSH remote sessions • Firewalls • Control what kind of traffic passes through you network • Access Control Lists (Cisco) • 1 – 99 and 1300 – 1999 (standard ACL) • 100 – 199 and 2000 – 2699 (extended ACL) • 700 – 799 and 1100 – 1199 (MAC ACL) • Iptables (Linksys with Openwrt)

  17. ACL Configuration (Cisco) • Standards (can only evaluate source) • Apply it as close to the destination as possible • For a specific host • Router (config)# access-list <num> [deny | permit] host [address | hostname] • For a network • Router (config)# access-list <num> [deny | permit] [address | hostname] [wildcard] • Can be used for specific host • In general • Router (config)# access-list <num> [deny | permit] any • There is an implicit deny any at the end of all ACLs

  18. ACL Configuration (Cisco) • Extended (source and destination) • Apply it as close to the source as possible • For a specific host • Router (config)# access-list <num> [deny | permit] [proto] host [address | hostname] [info for destination optional] [lt |gt | eq | neq] • For a network • Router (config)# access-list <num> [deny | permit] [proto] [address | hostname] [wildcard] [info for destination optional] [lt |gt | eq | neq] • Can be used for specific host • In general • Router (config)# access-list <num> [deny | permit] [proto] any [info for destination optional] [lt |gt | eq | neq] • There is an implicit deny any at the end of all ACLs

  19. ACL Configuration (Cisco) • MAC (evaluates the MAC address) • Apply it in the same network where the node is connected, since mac are local addresses • Router (config)# access-list <num> [deny | permit] <mac_addr>

  20. ACL Configuration (Cisco) • Applying ACLs • Go to the interface and type • Router (config-if)# access-group <num> [in | out] • If interface is vty (TELNET) • Router (config-line)# access-class <num> [in | out] • Important to know • Applying an ACL that is not created does nothing, all traffic is accepted • Applying an empty ACL blocks everything, remember the implicit deny any

  21. iptables Configuration (Linksys) • iptables [-t table] command [match] [target/jump] • -t table is used to specify the table to be configured, if none then filter table is used • iptables –P FORWARD DROP • -P flag set the default policy in case no rule is matched

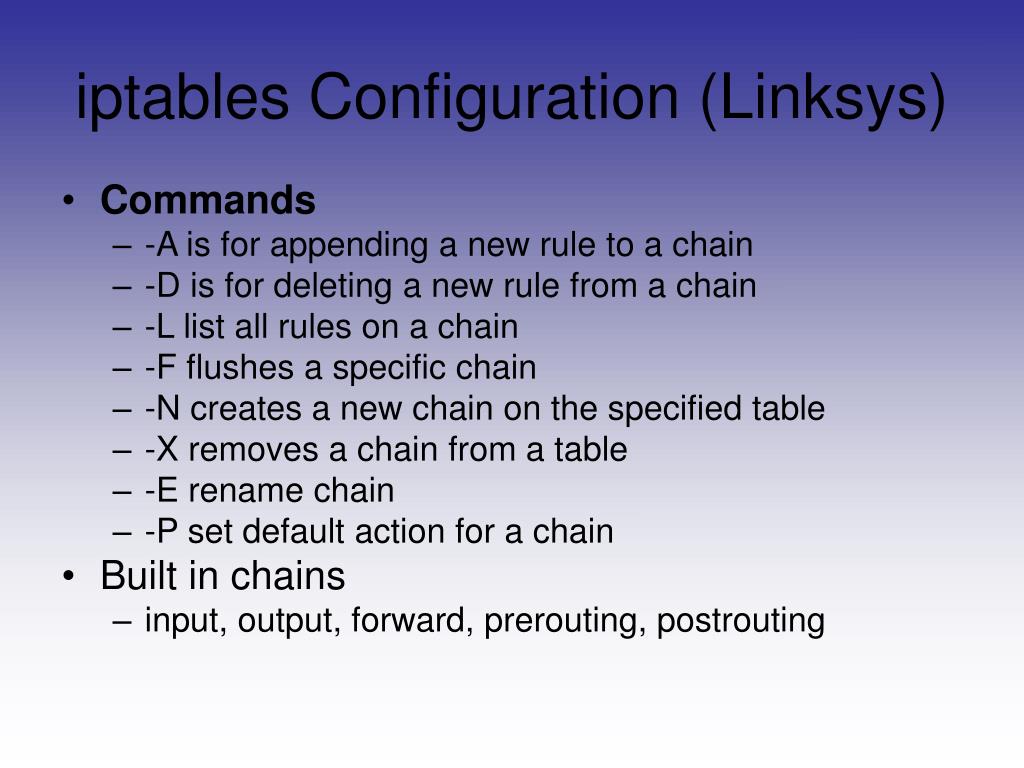

  22. iptables Configuration (Linksys) • Commands • -A is for appending a new rule to a chain • -D is for deleting a new rule from a chain • -L list all rules on a chain • -F flushes a specific chain • -N creates a new chain on the specified table • -X removes a chain from a table • -E rename chain • -P set default action for a chain • Built in chains • input, output, forward, prerouting, postrouting

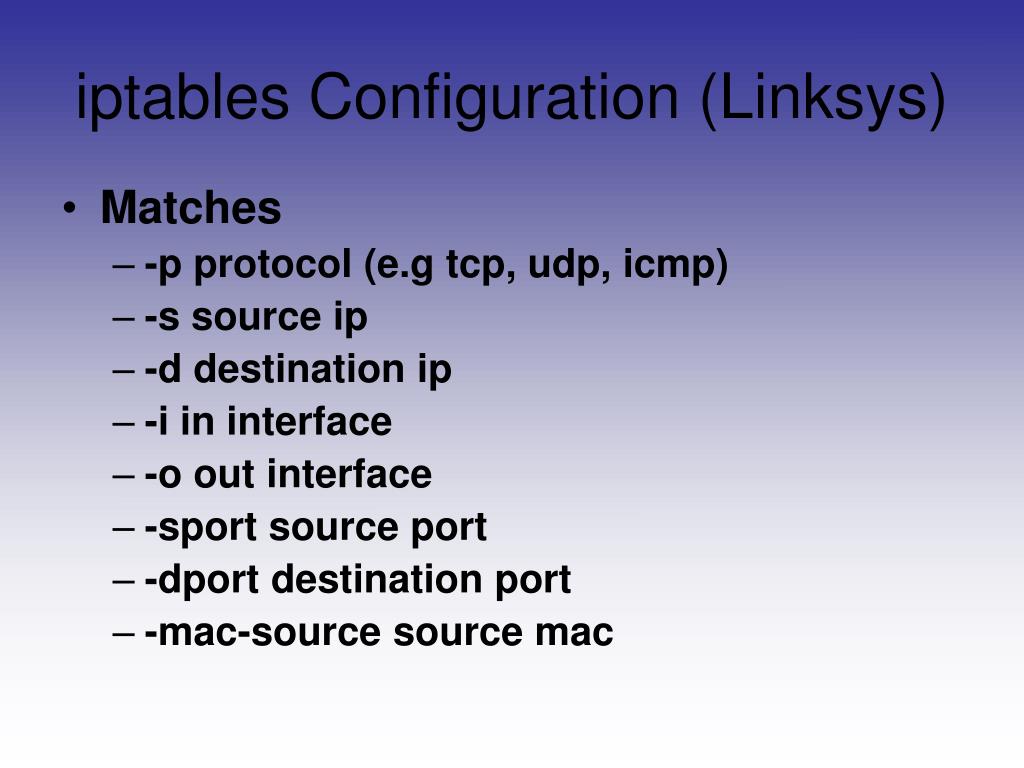

  23. iptables Configuration (Linksys) • Matches • -p protocol (e.g tcp, udp, icmp) • -s source ip • -d destination ip • -i in interface • -o out interface • -sport source port • -dport destination port • -mac-source source mac

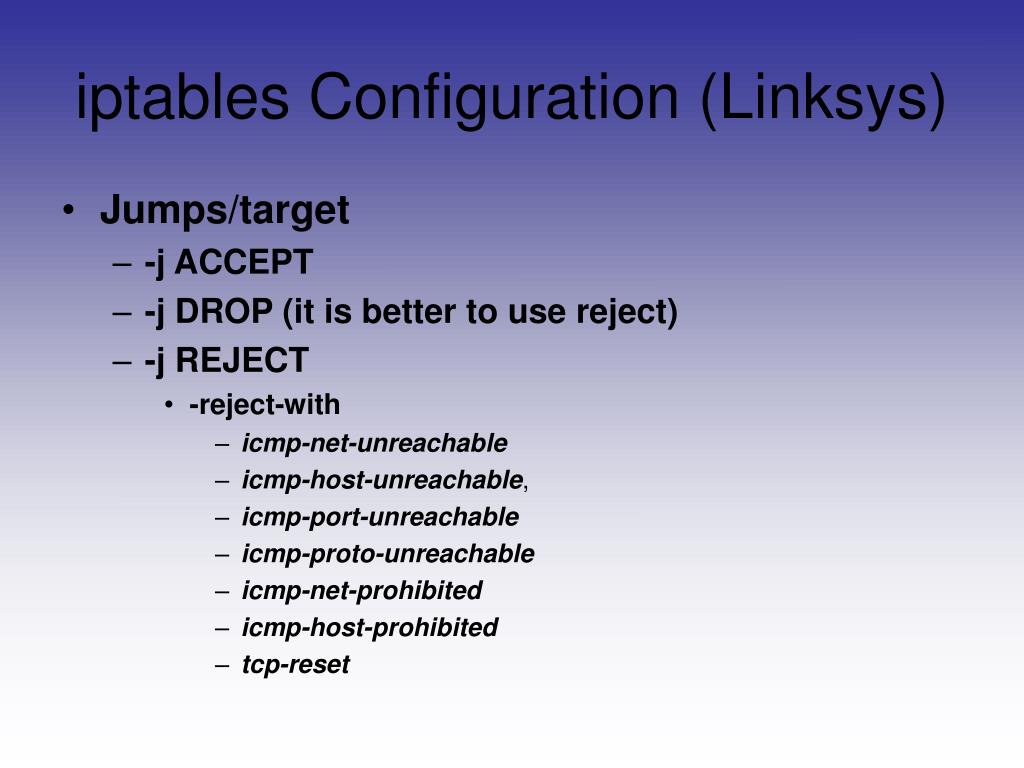

  24. iptables Configuration (Linksys) • Jumps/target • -j ACCEPT • -j DROP (it is better to use reject) • -j REJECT • -reject-with • icmp-net-unreachable • icmp-host-unreachable, • icmp-port-unreachable • icmp-proto-unreachable • icmp-net-prohibited • icmp-host-prohibited • tcp-reset

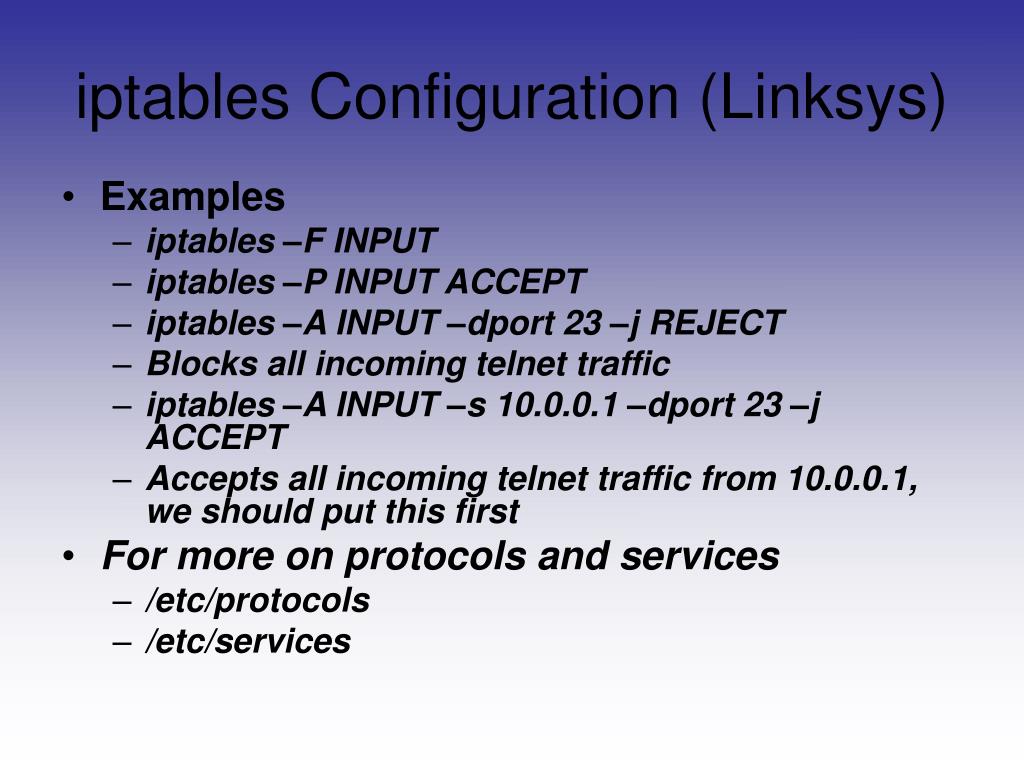

  25. iptables Configuration (Linksys) • Examples • iptables –F INPUT • iptables –P INPUT ACCEPT • iptables –A INPUT –dport 23 –j REJECT • Blocks all incoming telnet traffic • iptables –A INPUT –s 10.0.0.1 –dport 23 –j ACCEPT • Accepts all incoming telnet traffic from 10.0.0.1, we should put this first • For more on protocols and services • /etc/protocols • /etc/services

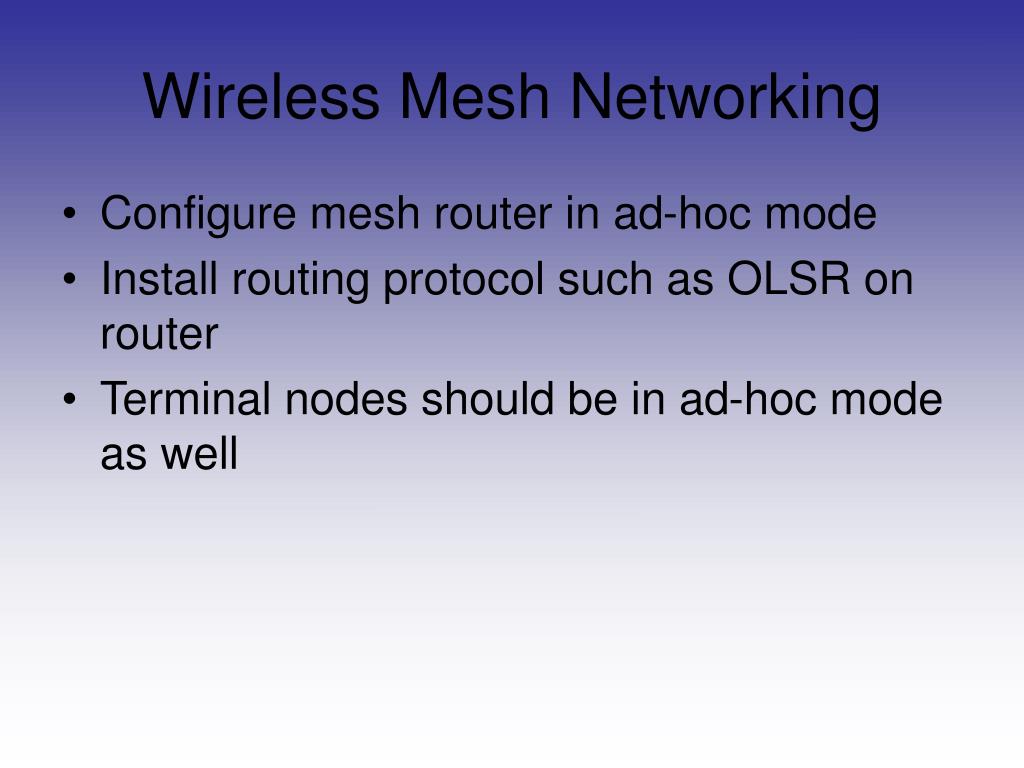

  26. Wireless Mesh Networking • Configure mesh router in ad-hoc mode • Install routing protocol such as OLSR on router • Terminal nodes should be in ad-hoc mode as well

  27. Wireless Mesh Networking Router PC In Linux may also use: sudo iwconfig eth1 mode ad-hoc

  28. IPv6 • New IP family with more ip addresses • 128 bits instead of 32 • Hex notation instead of decimal notation • Travels using ip tunnels • Router (config-if) # ipv6 … • Does not require MAC layer header • IPv6 link local address is derived from MAC address Step 1 Step 2

  29. OSPFv3 • OSPF version for the IPv6 family • Is configured inside of the interface • Router (config-if)# ipv6 ospf area <area_number> • Need to configure another ip routing protocol (e.g. ospf, rip) • Need to activate ipv6 routing in global configuration mode • Router (config)# ipv6 unicast-routing

  30. Transport Layer • Ensures connectivity between two end nodes independent of their route • Uses ports (doors) to keep connectivity • Two protocols are widely used • User Datagram Protocol (UDP) • Transport Control Protocol (TCP)

  31. Transport Protocols • UDP uses datagram connection to send information faster but does not guarantee delivery and end node has to put segments in order • TCP uses virtual circuit ensuring that all segments arrive at destination and in order, however it takes more time. Uses triple handshake

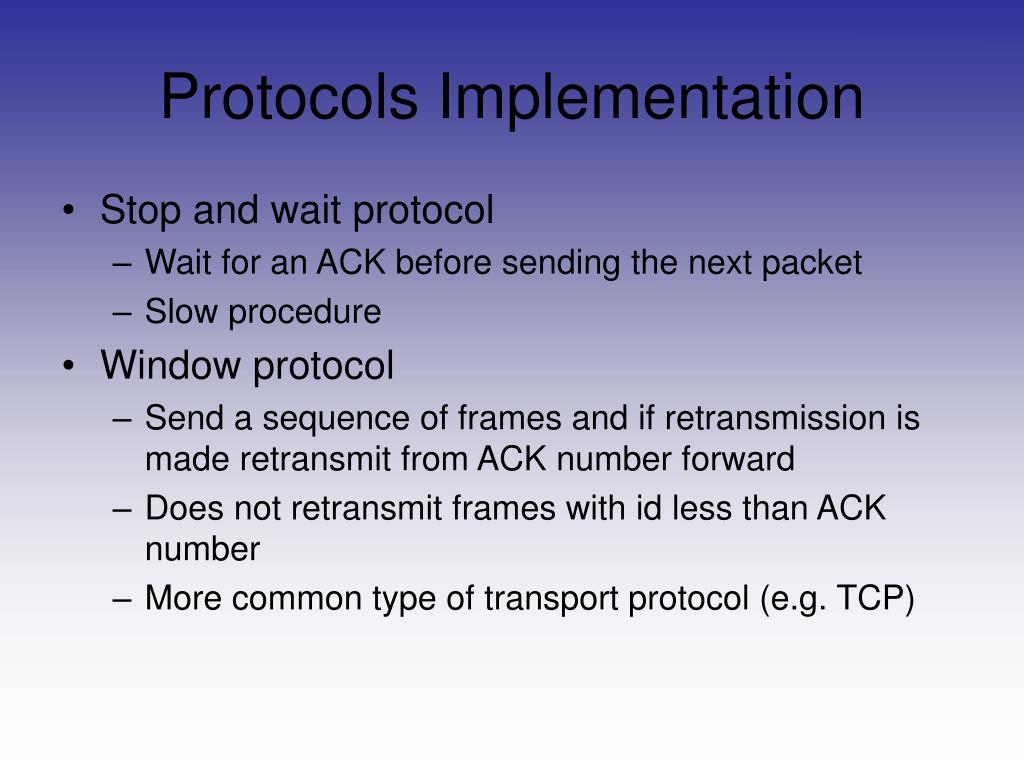

  32. Protocols Implementation • Stop and wait protocol • Wait for an ACK before sending the next packet • Slow procedure • Window protocol • Send a sequence of frames and if retransmission is made retransmit from ACK number forward • Does not retransmit frames with id less than ACK number • More common type of transport protocol (e.g. TCP)

  33. Port Forwarding • Transport layer technique that involves transferring segments from one port to another so that the other port deals with it • Ex. Pass from port 80 (http) to 21 (ftp)

  34. Port Numbers • FTP TCP 20, 21 • SSH TCP 22 • TELNET TCP 23 • SMTP TCP 25 • DNS UDP 53 • DHCP UDP 67, 68 • TFTP UDP 69 • HTTP TCP 80 • MYSQL TCP 3306 • RTP UDP 5004 • RTCP UDP 5005 • VoIP UDP ≥ 1024 • IPTV UDP ≥ 1024 • Online Games UDP ≥ 1024

  35. Applications • Session Layer is in charge of scheduling in a multi-user computer who utilizes the network • Presentation Layer is in charge of formatting the data depending on the application (JPG, MP3, DOC, etc) • Application Layer is in charge of providing interaction with users

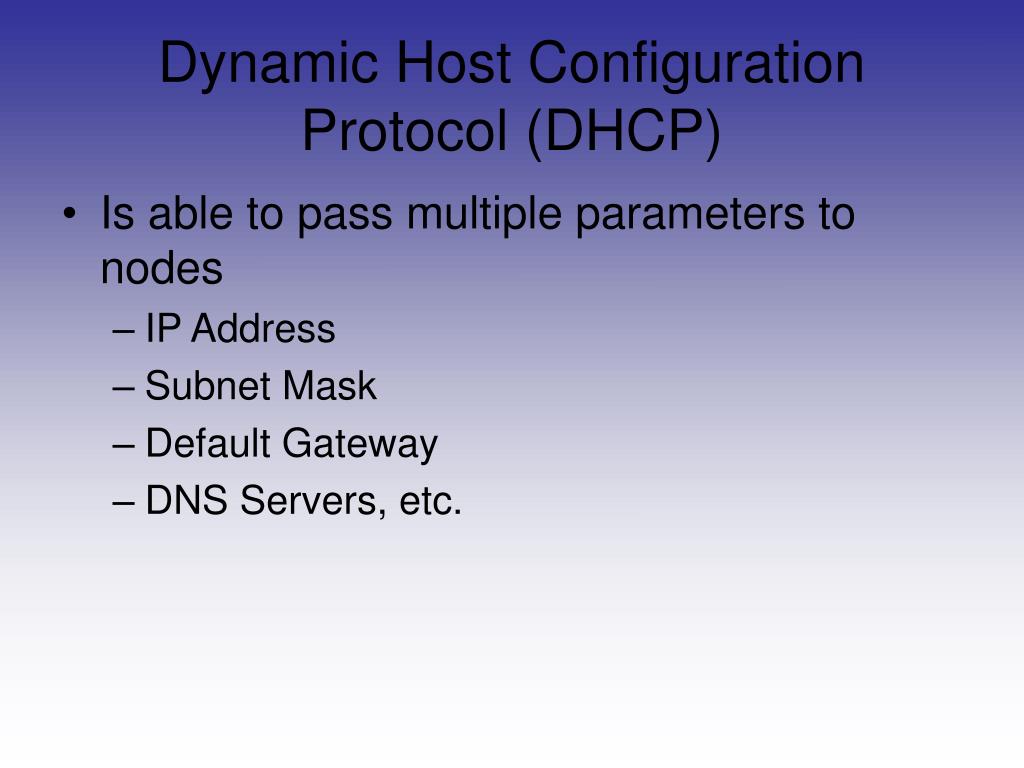

  36. Dynamic Host Configuration Protocol (DHCP) • Is able to pass multiple parameters to nodes • IP Address • Subnet Mask • Default Gateway • DNS Servers, etc.

  37. File Transfer Protocol (FTP) • Application protocol for downloading files • Uses two TCP ports • 20 for establishing connection • 21 for downloading the file itself • It has a faster but less reliable version for UDP called TFTP (Trival FTP) • Uses port 69

  38. Domain Name Service (DNS) • Translates computer names to ip addresses • Makes networks, websites and servers/hosts easier to remember • Uses UDP port 53

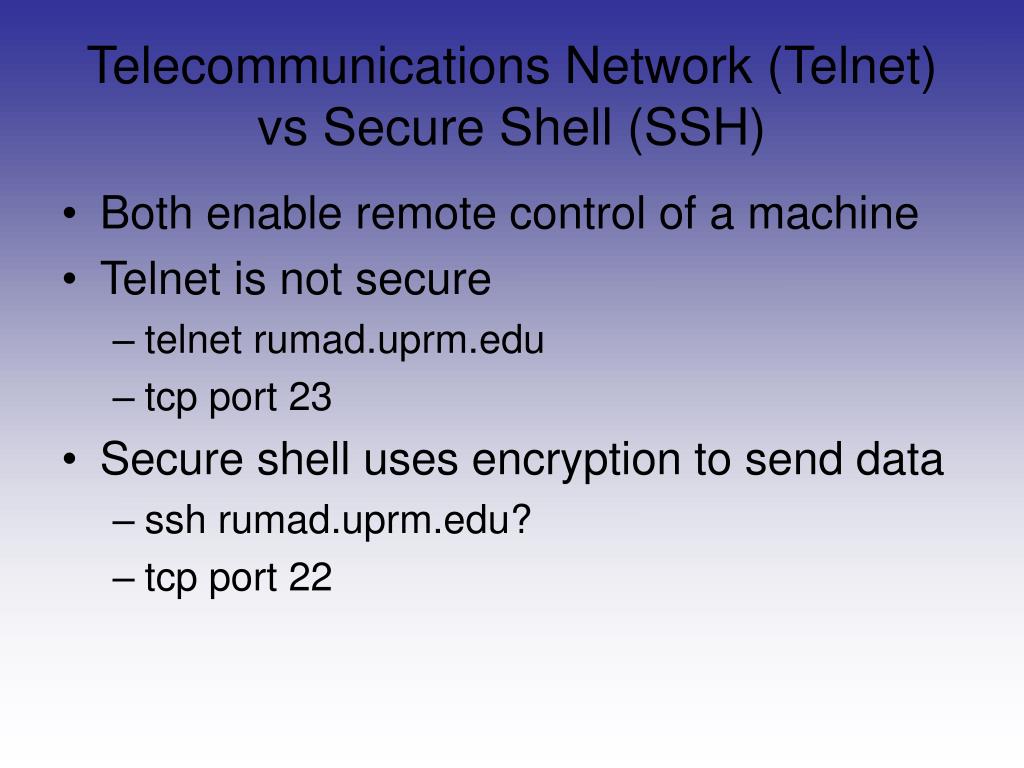

  39. Telecommunications Network (Telnet) vs Secure Shell (SSH) • Both enable remote control of a machine • Telnet is not secure • telnet rumad.uprm.edu • tcp port 23 • Secure shell uses encryption to send data • ssh rumad.uprm.edu? • tcp port 22

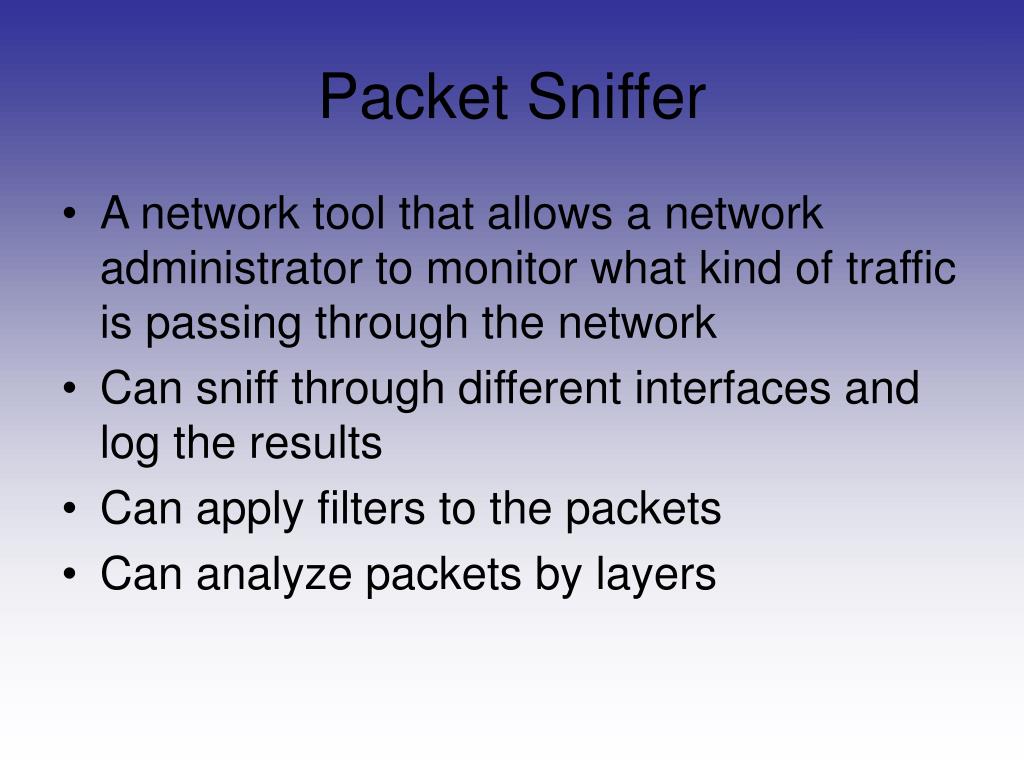

  40. Packet Sniffer • A network tool that allows a network administrator to monitor what kind of traffic is passing through the network • Can sniff through different interfaces and log the results • Can apply filters to the packets • Can analyze packets by layers

  41. Ping • A network tool to test connectivity with a remote host (all the way up to the application layer) • Should be the first thing to be checked (after the power and cable of course) • Can be used for a denial of service attack • Some routers have extended ping

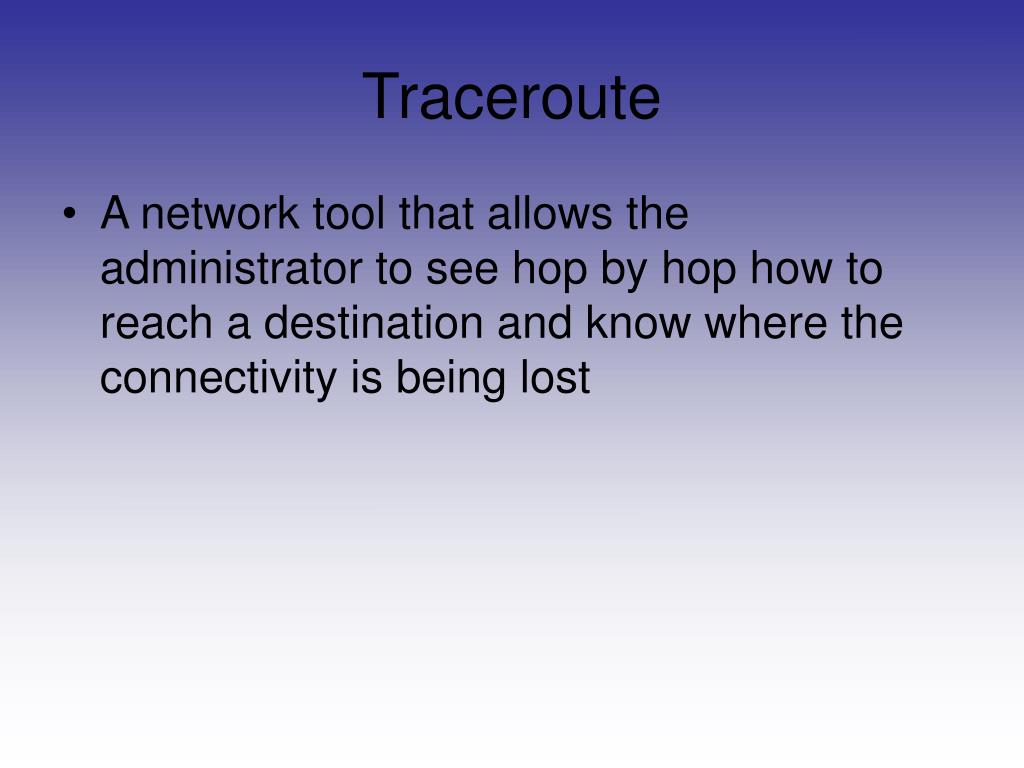

  42. Traceroute • A network tool that allows the administrator to see hop by hop how to reach a destination and know where the connectivity is being lost
