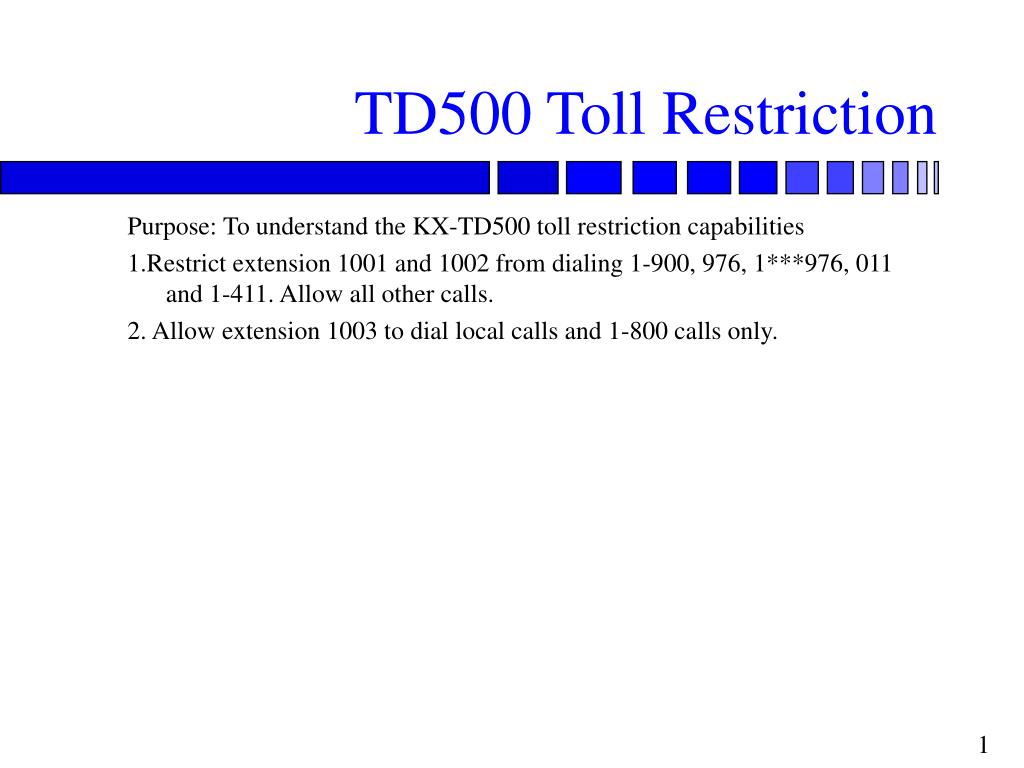

  1. TD500 Toll Restriction Purpose: To understand the KX-TD500 toll restriction capabilities 1.Restrict extension 1001 and 1002 from dialing 1-900, 976, 1***976, 011 and 1-411. Allow all other calls. 2. Allow extension 1003 to dial local calls and 1-800 calls only.

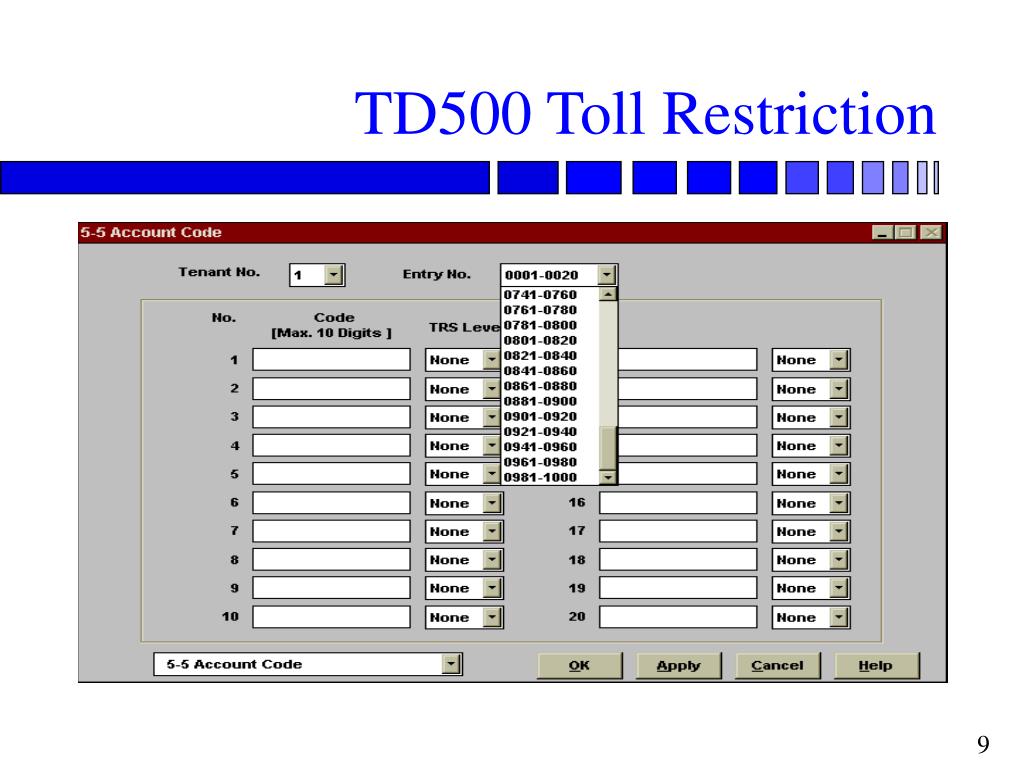

  2. TD500 Toll Restriction • The TD500 System has 8 Toll Restriction Levels available in both Day and Night mode • Levels 1, 7, and 8 are fixed levels • Level 1 All calls allowed • Level 7 Allows intercom calls and 911 calls only • Level 8 Allows internal operator calls and 911 calls only • Levels 2-6 are based on user programmable deny and exception tables (10 digit) • Toll Restriction Override by Account Code changes the users TR level to the level Programmed in the Account Code table • The X can be used as a wild card in any TR table

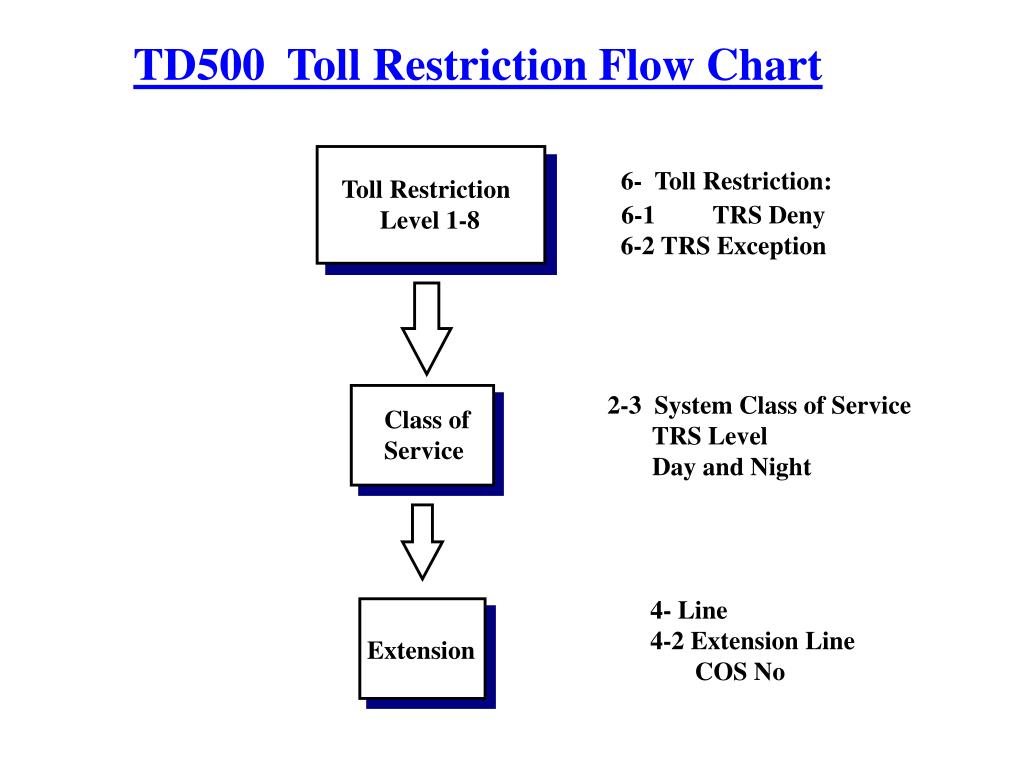

  3. TD500 Toll Restriction Flow Chart 6- Toll Restriction: Toll Restriction Level 1-8 6-1 TRS Deny 6-2 TRS Exception 2-3 System Class of Service TRS Level Day and Night Class of Service 4- Line 4-2 Extension Line COS No Extension

  4. TD500 Toll Restriction

  5. TD500 Toll Restriction

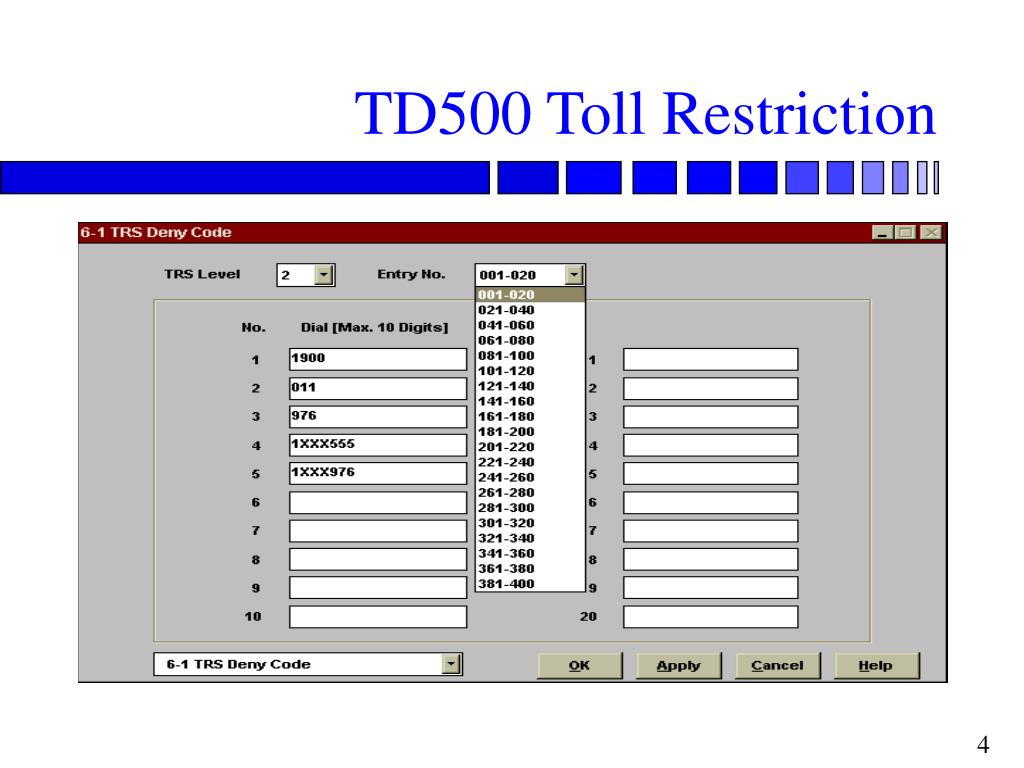

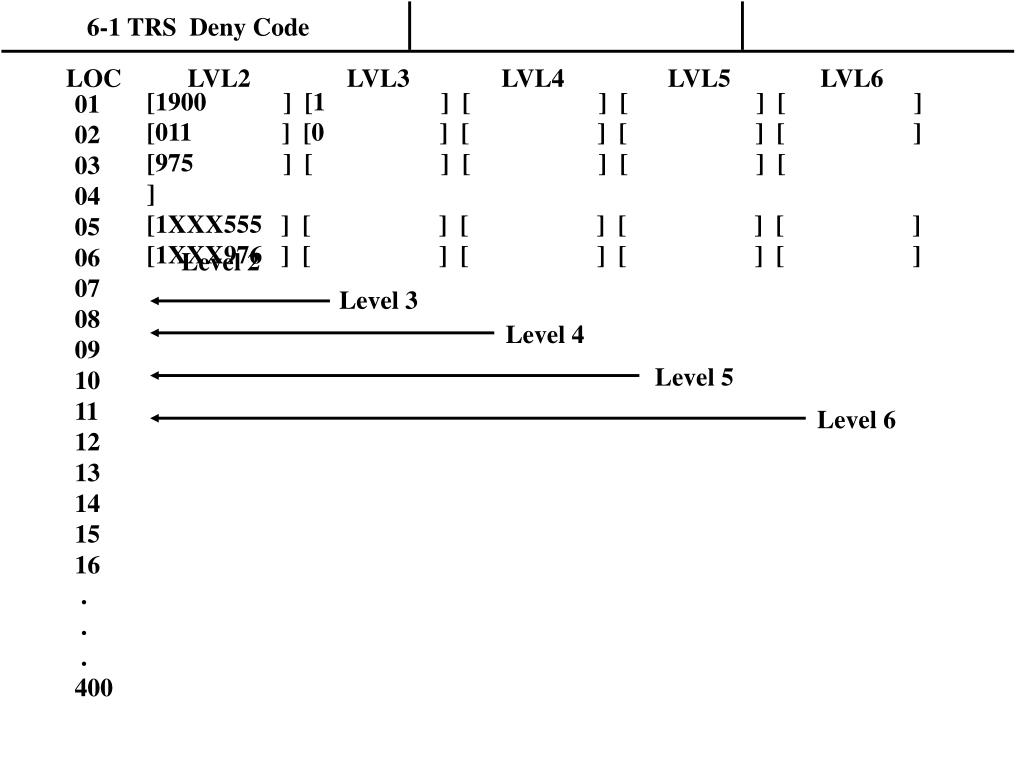

  6. 6-1 TRS Deny Code LOC LVL2 LVL3 LVL4 LVL5 LVL6 [1900 ] [1 ] [ ] [ ] [ ] 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 . . . 400 [011 ] [0 ] [ ] [ ] [ ] [975 ] [ ] [ ] [ ] [ ] [1XXX555 ] [ ] [ ] [ ] [ ] [1XXX976 ] [ ] [ ] [ ] [ ] Level 2 Level 3 Level 4 Level 5 Level 6

  7. TD500 Toll Restriction

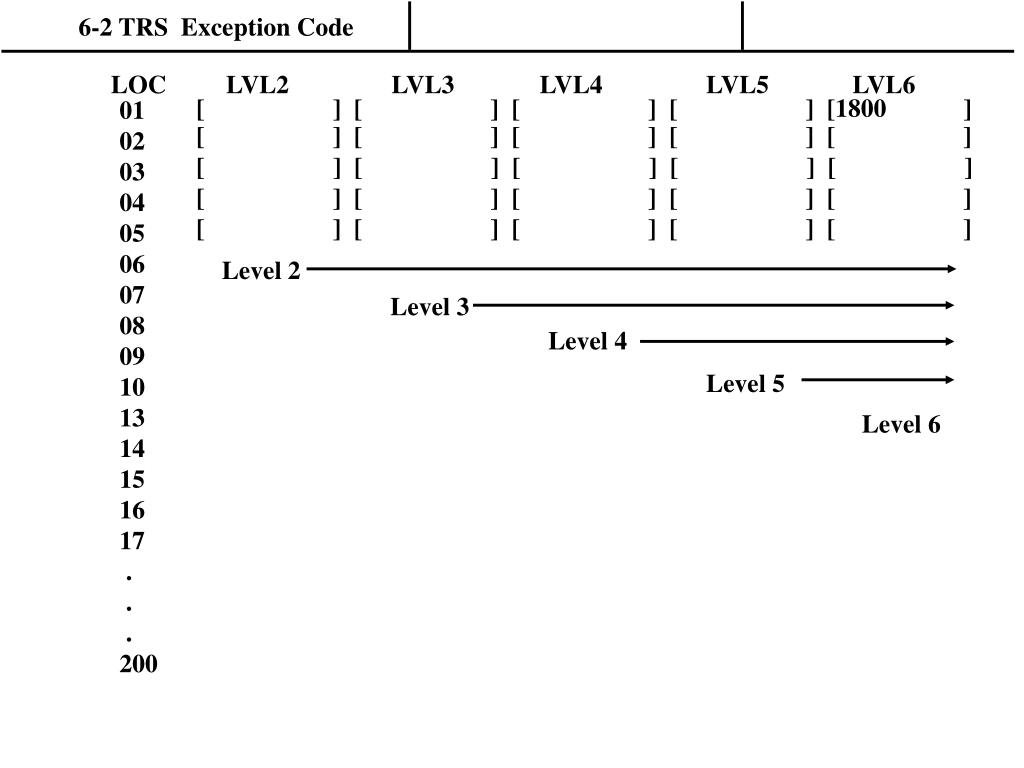

  8. 6-2 TRS Exception Code LOC LVL2 LVL3 LVL4 LVL5 LVL6 [ ] [ ] [ ] [ ] [1800 ] 01 02 03 04 05 06 07 08 09 10 13 14 15 16 17 . . . 200 [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] Level 2 Level 3 Level 4 Level 5 Level 6

  9. TD500 Toll Restriction

  10. TD500 Toll Restriction

  11. TD500 Toll Restriction

  12. TD500 Toll Restriction

  13. TD500 Toll Restriction

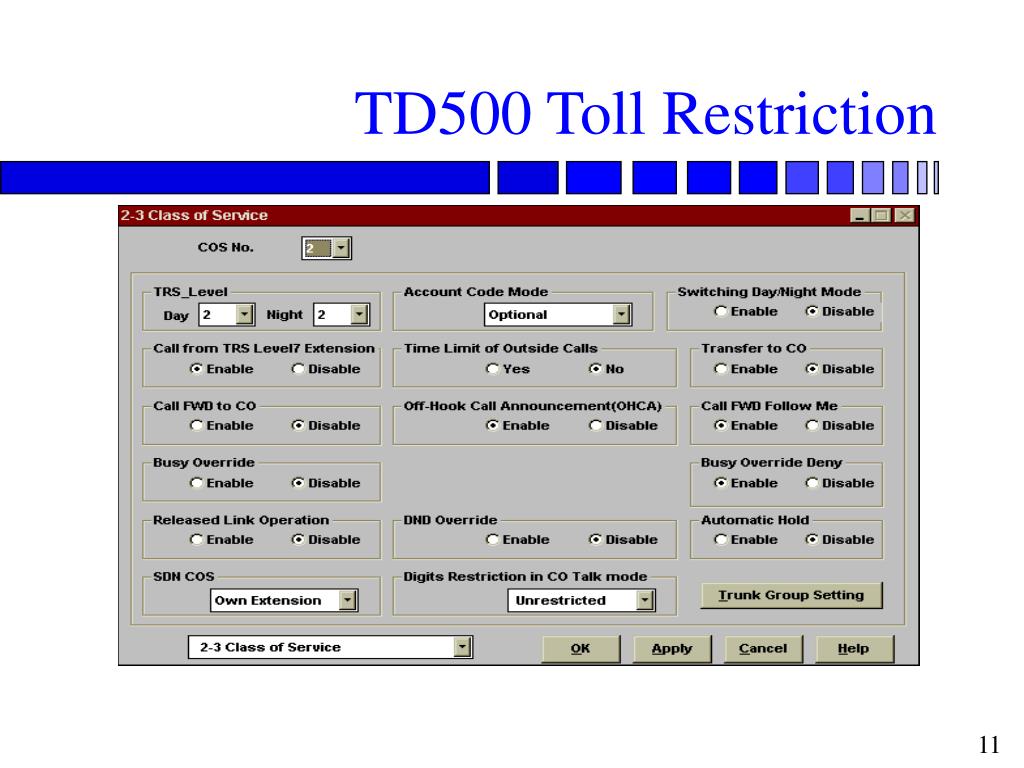

  14. TD500 Toll Restriction

  15. TD500 Toll Restriction

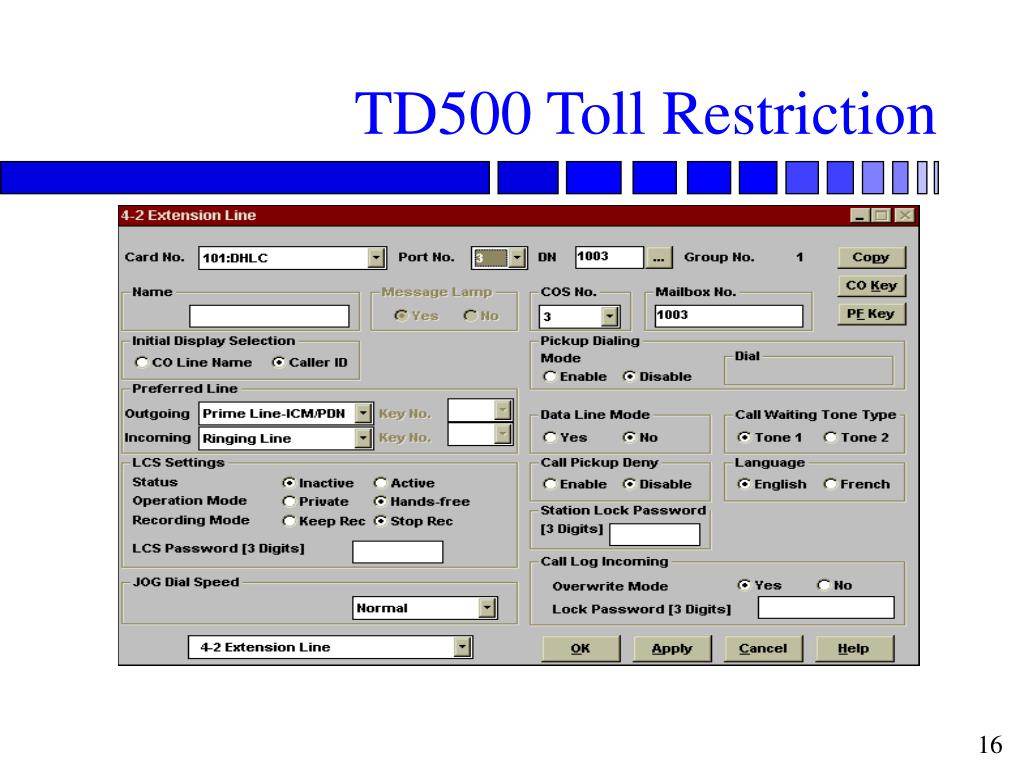

  16. TD500 Toll Restriction

  17. Automatic Route Selection Purpose: To understand the KX-TD500 Automatic Route Selection capabilities 1. Using ARS, route all outgoing CO calls over the LCOT in Trunk Group 1.

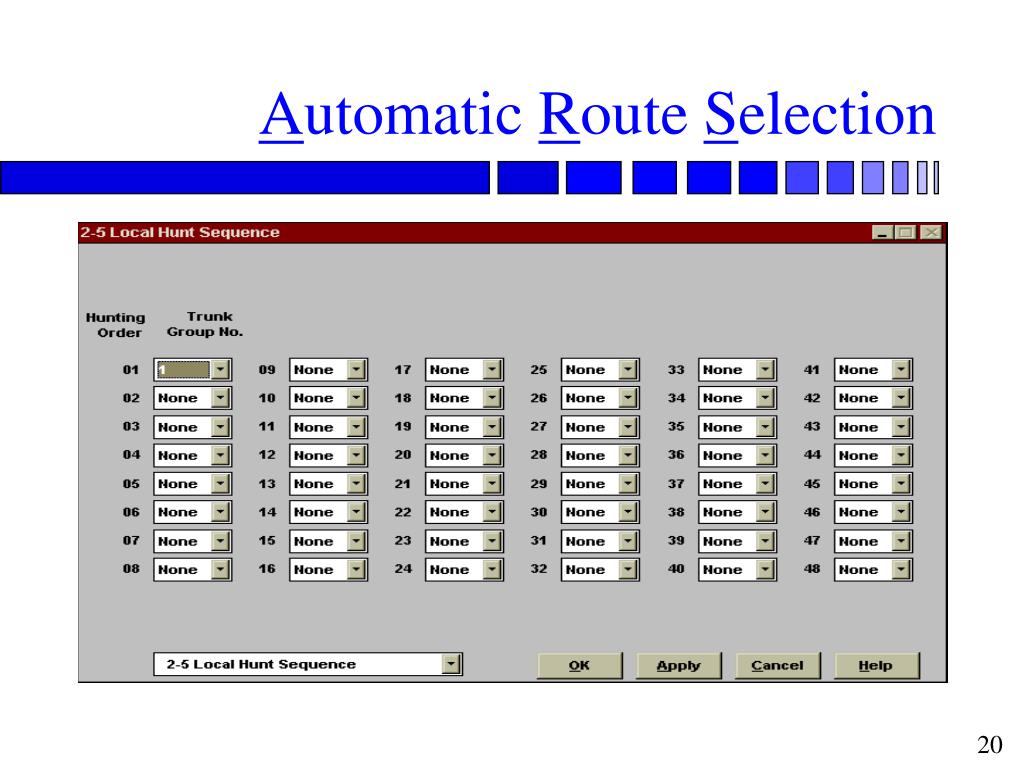

  18. Automatic Route Selection • ARS allows outbound Central Office Calls to be routed over the most cost effective line • ARS also allows digit modification • When ARS is enabled, the feature can be accessed by dialing 9 from intercom dial tone or by depressing a Loop CO key. • The TD500 System will route the call over the most cost effective line based on the number dialed and the time of day • If the dialed number is not found in the Leading Digit Tables, the system will route the call over a line in the System - Local Hunt Sequence

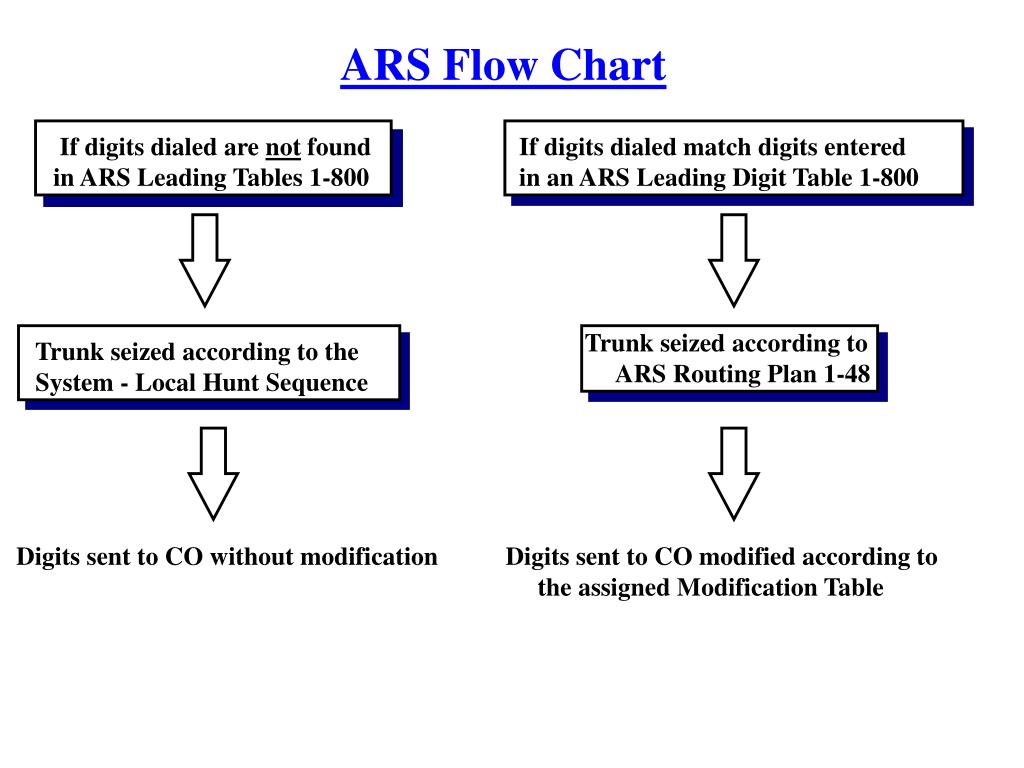

  19. ARS Flow Chart If digits dialed are not found in ARS Leading Tables 1-800 If digits dialed match digits entered in an ARS Leading Digit Table 1-800 Trunk seized according to ARS Routing Plan 1-48 Trunk seized according to the System - Local Hunt Sequence Digits sent to CO without modification Digits sent to CO modified according to the assigned Modification Table

  20. Automatic Route Selection

  21. Modification Table as programmed Modification Table as programmed Modification Table as programmed ARS Flow Chart Leading Digit Location 1 Leading Digit Location 2 Leading Digit Location 3 Routing Plan Table 1-48 Routing Plan Table 1-48 Routing Plan Table 1-48 System will route call using Routing Plan on first match of Leading Digit Table

  22. Automatic Route Selection

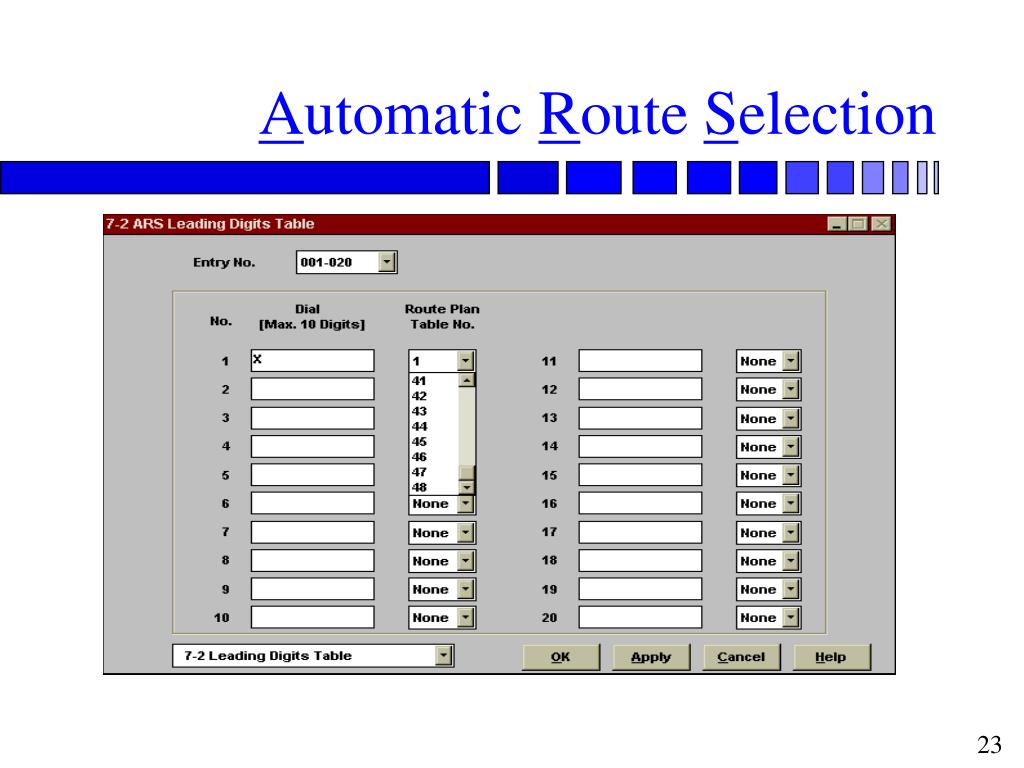

  23. Automatic Route Selection

  24. Automatic Route Selection

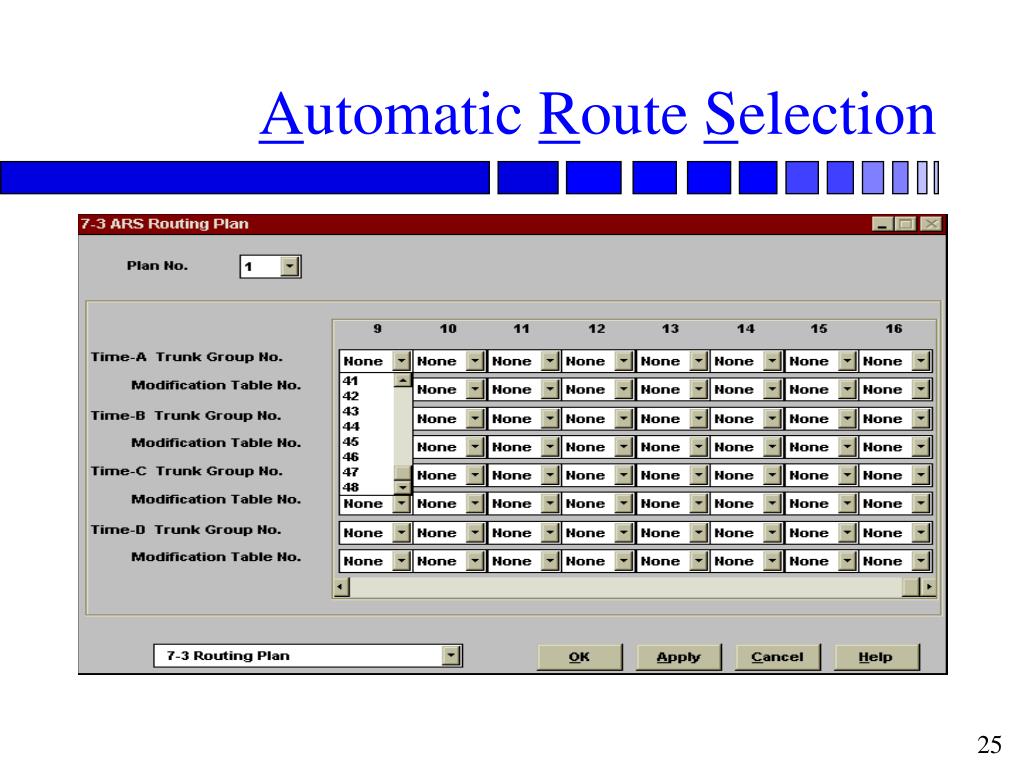

  25. Automatic Route Selection

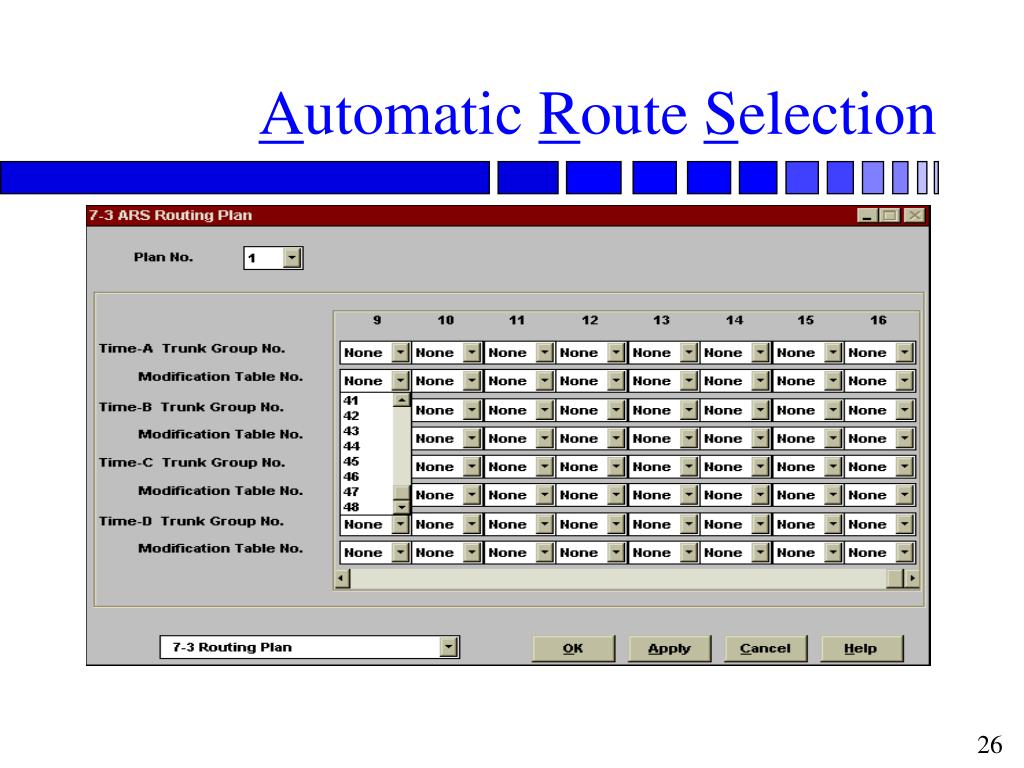

  26. Automatic Route Selection

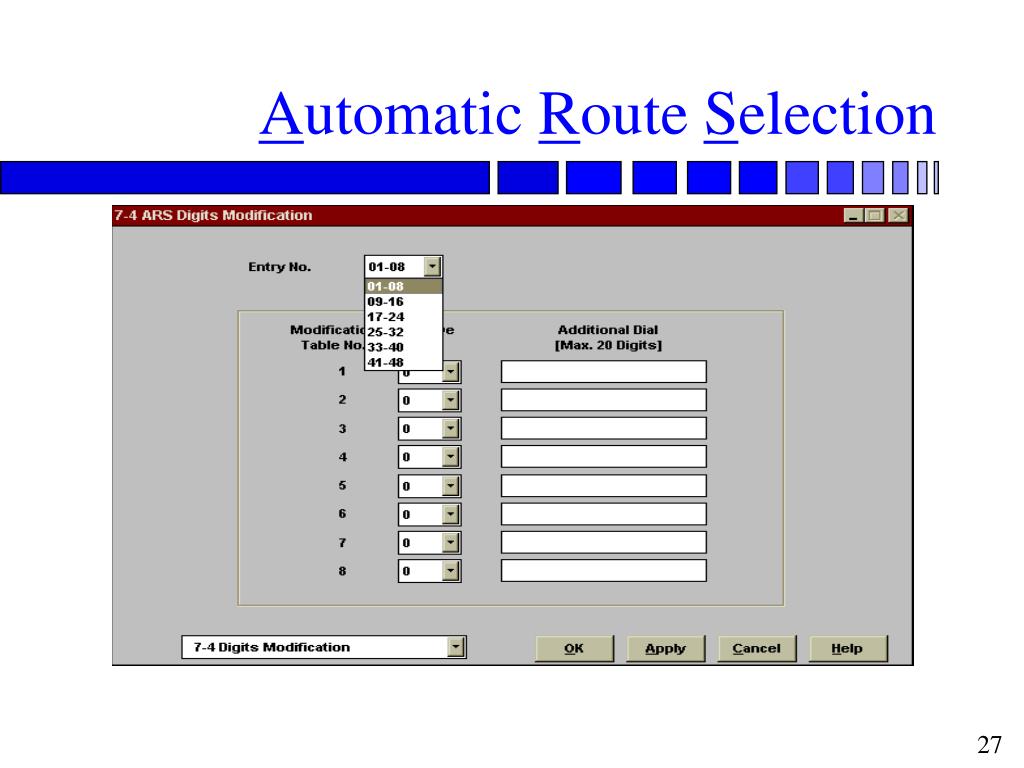

  27. Automatic Route Selection

  28. Automatic Route Selection

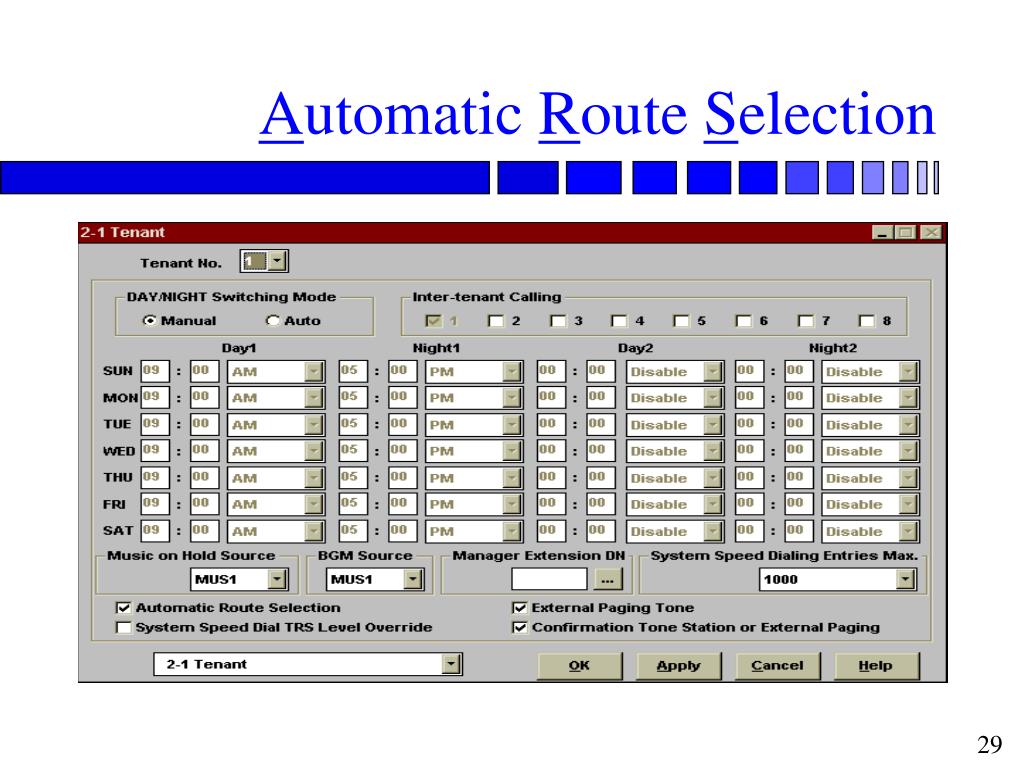

  29. Automatic Route Selection
