Ap economics

AP Economics

Mr. Bernstein

Micro Graphs Review

May 2014


Ap economics mr bernstein
AP EconomicsMr. Bernstein

The Production Possibilities Curve


Ap economics mr bernstein1
AP EconomicsMr. Bernstein

Economic Growth

  • Concave due to “Law of increasing opportunity costs”


Ap economics mr bernstein2
AP EconomicsMr. Bernstein

Circular Flow Diagram


Ap economics mr bernstein3
AP EconomicsMr. Bernstein

Expanded Circular Flow Diagram


Ap economics mr bernstein4
AP EconomicsMr. Bernstein

Demand Curves

  • A Shift in Demand is different from movement along the Demand Curve!!


Ap economics mr bernstein5
AP EconomicsMr. Bernstein

Supply Curves

  • A Shift in Supply is different from movement along the Supply Curve!!


Ap economics mr bernstein6
AP EconomicsMr. Bernstein

Equilibrium

  • Price is the adjustment mechanism: falls when

    there is a surplus, rises when there is a shortage


Ap economics mr bernstein7
AP EconomicsMr. Bernstein

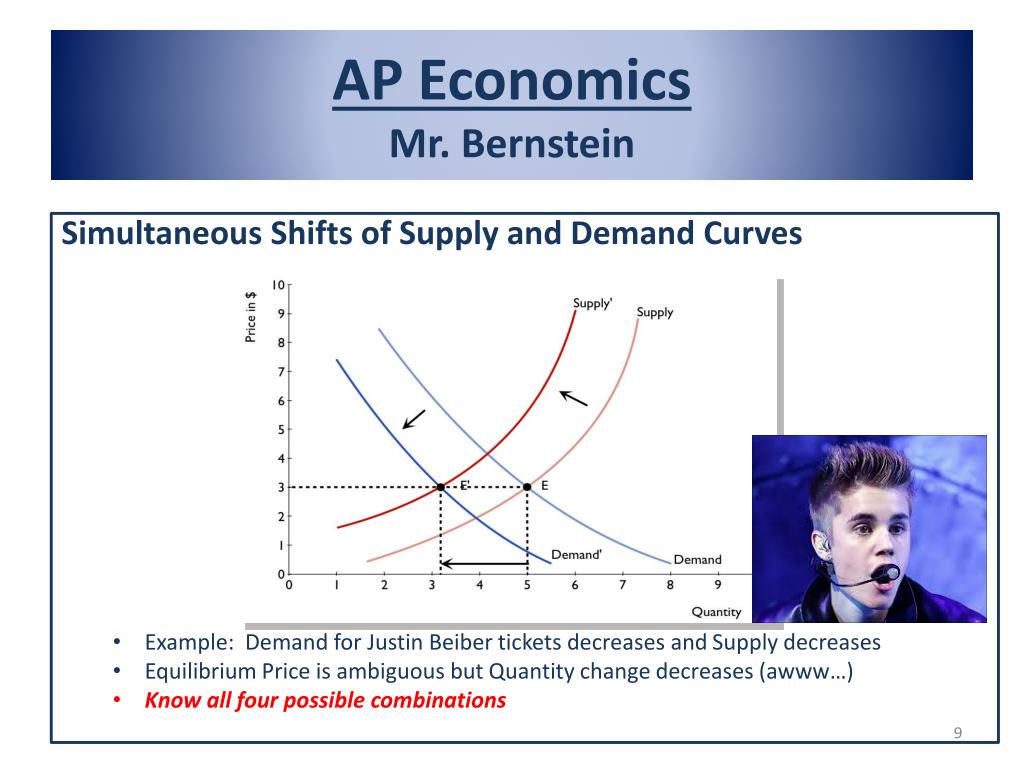

Simultaneous Shifts of Supply and Demand Curves

  • Example: Demand for Justin Beiber tickets decreases and Supply decreases

  • Equilibrium Price is ambiguous but Quantity change decreases (awww…)

  • Know all four possible combinations


Ap economics mr bernstein8
AP EconomicsMr. Bernstein

Elasticity along the Demand Curve

  • Consumers are less price sensitive on inexpensive items

  • TR begins to fall as prices rise and Elasticity grows


Ap economics mr bernstein9
AP EconomicsMr. Bernstein

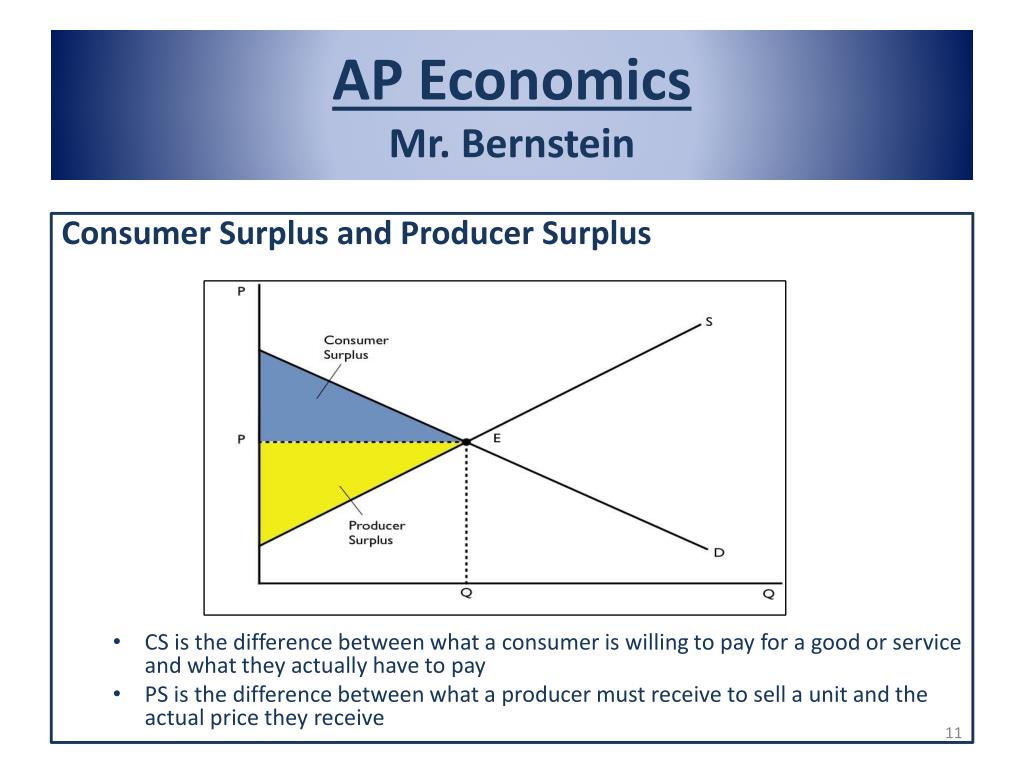

Consumer Surplus and Producer Surplus

  • CS is the difference between what a consumer is willing to pay for a good or service and what they actually have to pay

  • PS is the difference between what a producer must receive to sell a unit and the actual price they receive


Ap economics mr bernstein10

Dead Weight Loss

P

D

Q

QtQ

AP EconomicsMr. Bernstein

Deadweight Loss Example: The Effect of Taxes

  • Excise tax causes lower Q, efficiency loss

S1

S

CS

T

D

D

T

PS


Ap economics mr bernstein11
AP EconomicsMr. Bernstein

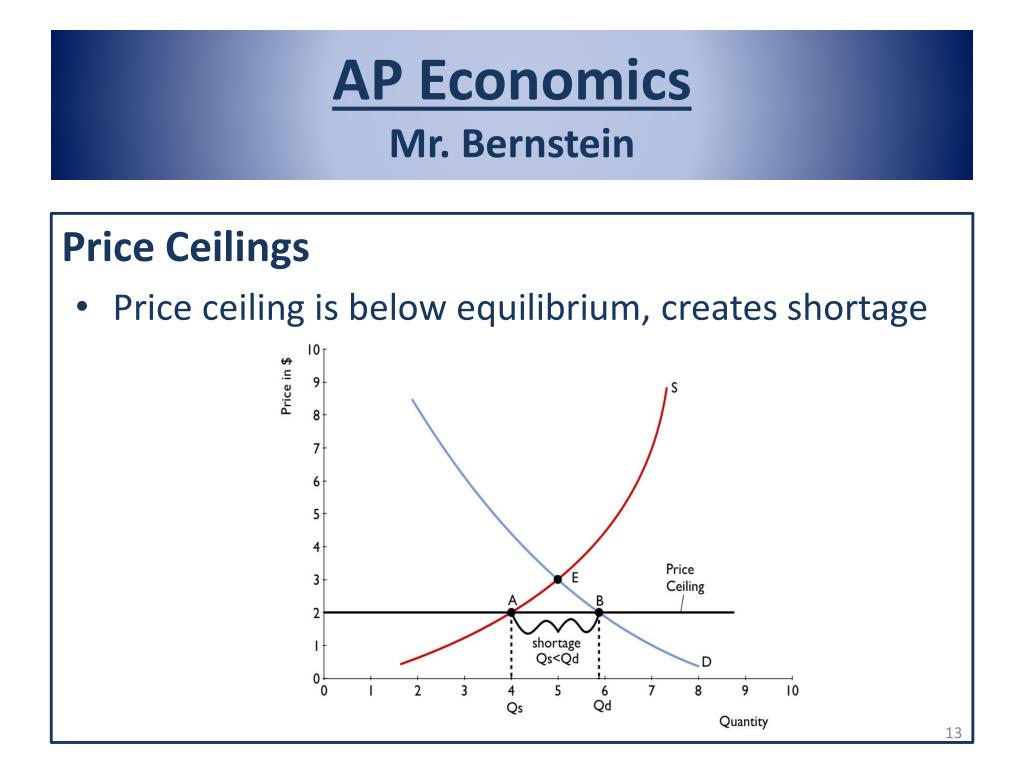

Price Ceilings

  • Price ceiling is below equilibrium, creates shortage


Ap economics mr bernstein12
AP EconomicsMr. Bernstein

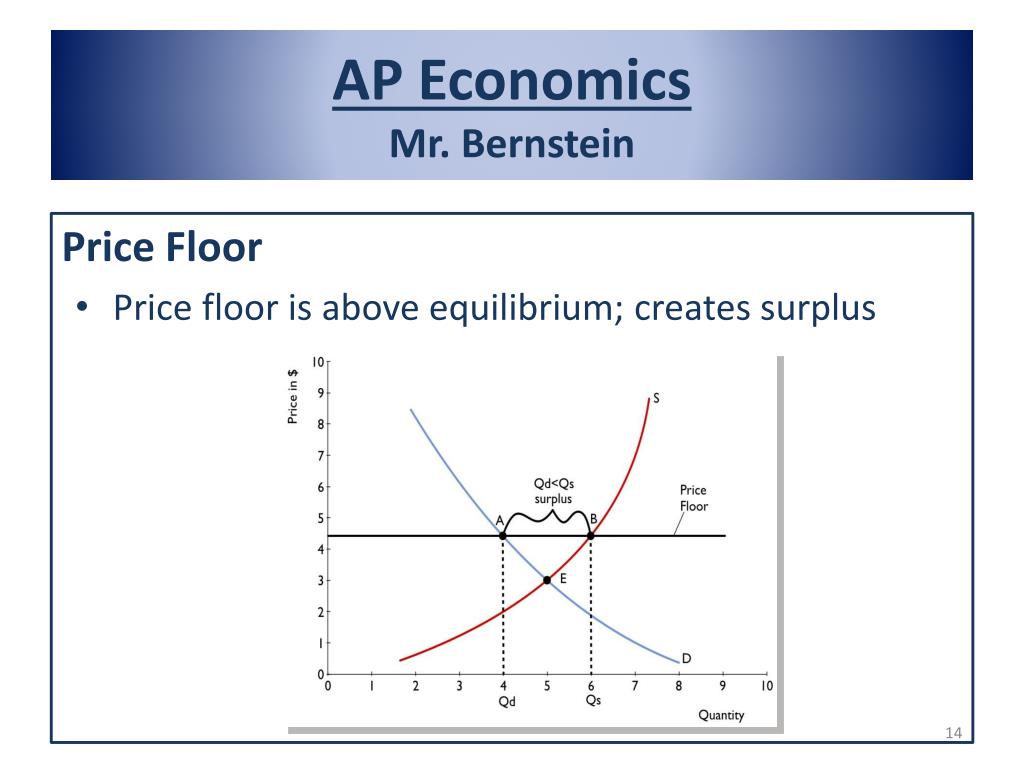

Price Floor

  • Price floor is above equilibrium; creates surplus


Ap economics mr bernstein13
AP EconomicsMr. Bernstein

Quotas (Quantity Controls)

  • Examples: limits, licenses; creates price “wedge”


Ap economics mr bernstein14
AP EconomicsMr. Bernstein

Firm’s Cost Curves: Swoosh, Smirk and Smile

  • The MC curve intersects the U-shaped AC and AVC curves at their minimum points


Ap economics mr bernstein15

$

MC

ATC

MR D.AR.P!

Output

Q*

AP EconomicsMr. Bernstein

Perfectly Competitive Firm

  • Produce at MR=MC

  • Profit = MR – ATC

  • In this case, zero

    economic profit…

  • This is long-run

    equilibrium…

  • Profit or loss if P > or < ATC


Ap economics mr bernstein16

MC

$

ATC

P=ATC

P=MR=d=AR

Output

Q*

AP EconomicsMr. Bernstein

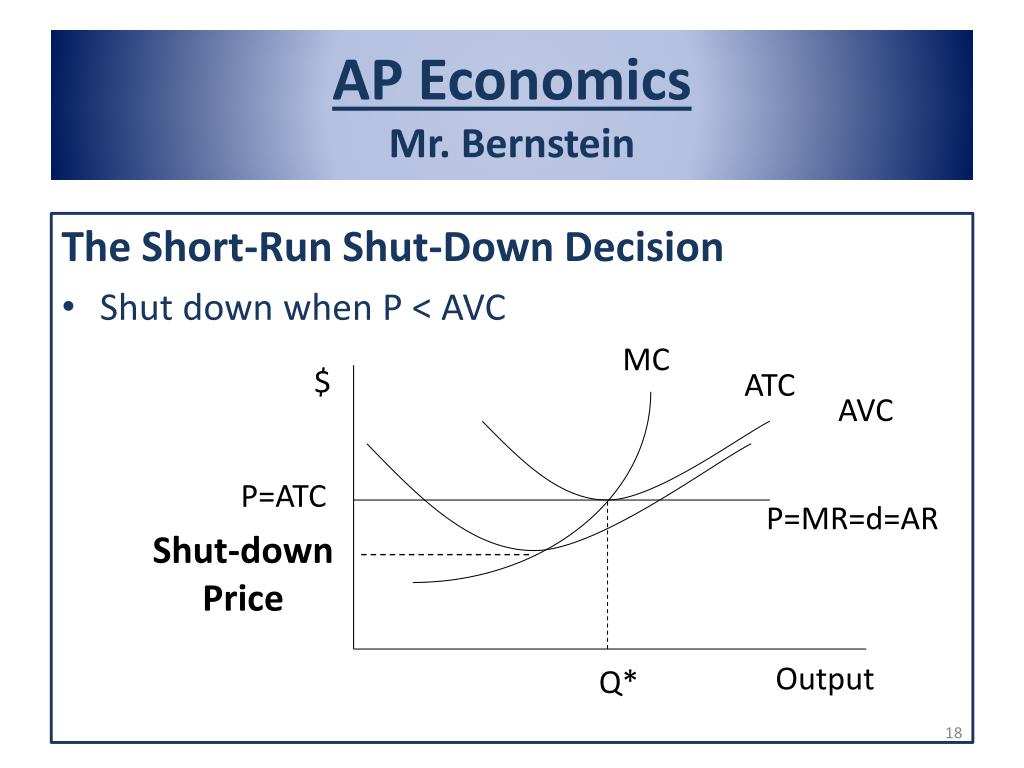

The Short-Run Shut-Down Decision

  • Shut down when P < AVC

AVC

Shut-down

Price


Ap economics mr bernstein17
AP EconomicsMr. Bernstein

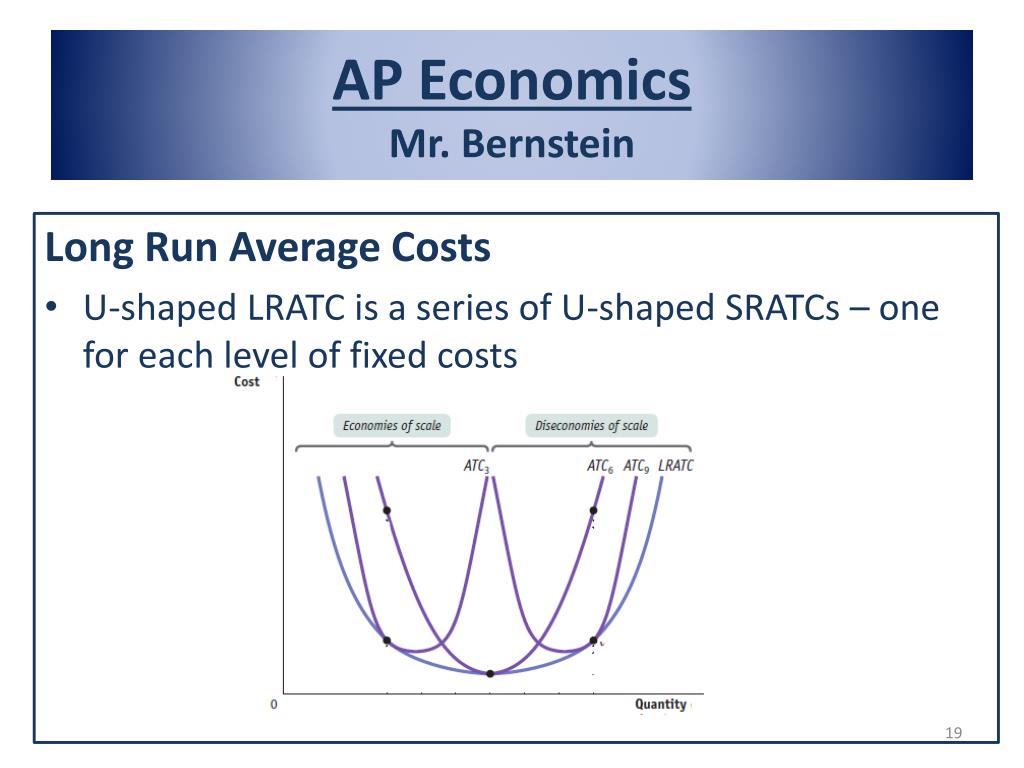

Long Run Average Costs

  • U-shaped LRATC is a series of U-shaped SRATCs – one for each level of fixed costs


Ap economics mr bernstein18
AP EconomicsMr. Bernstein

Adjustment toward Long-Run Equil(Perf Comp)


Ap economics mr bernstein19
AP EconomicsMr. Bernstein

Classic Monopoly Graph

  • Q at MR=MC; lower Q and higher P than Perfect Competition; long-run economic profit exists due to barriers to entry


Ap economics mr bernstein20
AP EconomicsMr. Bernstein

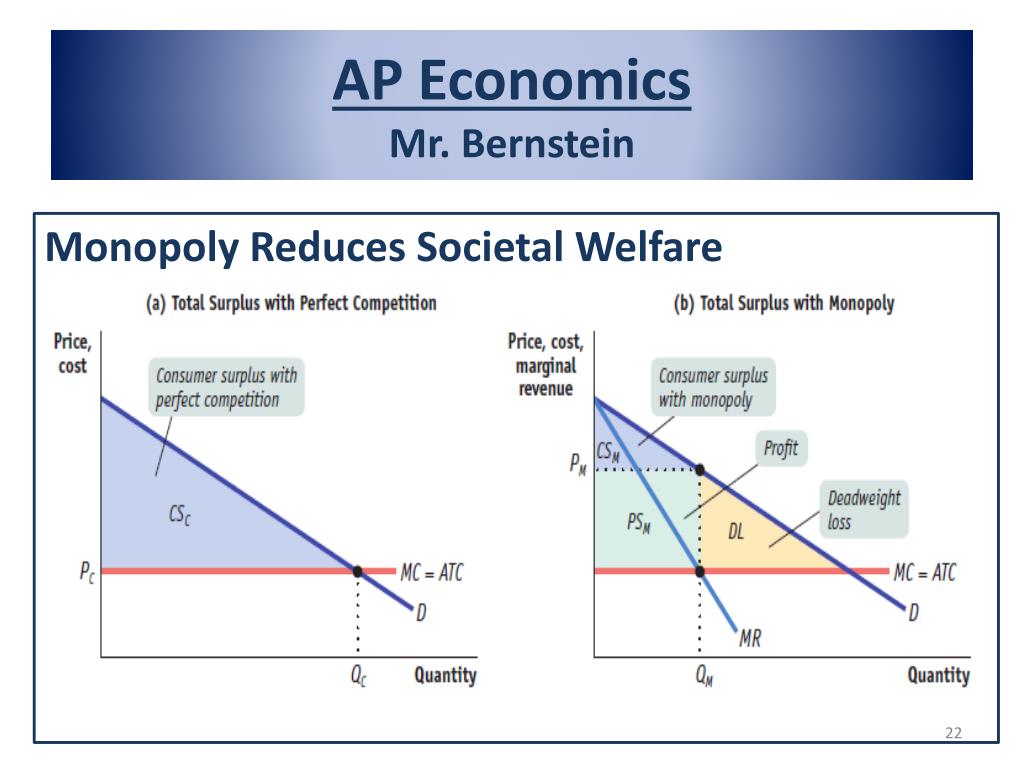

Monopoly Reduces Societal Welfare


Ap economics mr bernstein21
AP EconomicsMr. Bernstein

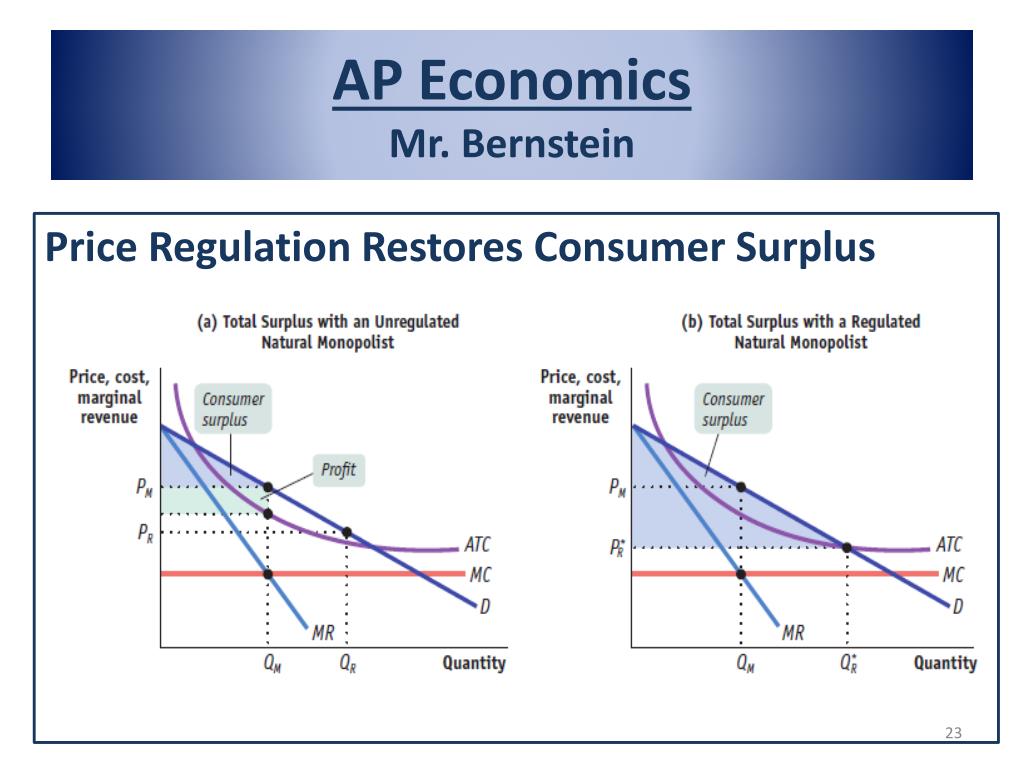

Price Regulation Restores Consumer Surplus


Ap economics mr bernstein22
AP EconomicsMr. Bernstein

Monopolists will use Price Discrimination

  • Without competition, they take advantage of differing elasticities


Ap economics mr bernstein23
AP EconomicsMr. Bernstein

Game Theory

  • Each player competes

    to maximize individual

    payoffs and ignores the

    effects of his/her action

    on the payoffs received

    by the rival

  • But Oligopolies engage

    in tacit collusion, tit for tat


Ap economics mr bernstein24
AP EconomicsMr. Bernstein

Monopolistic Competition in the Long Run

  • Adjusts to normal profit, as in Perfect Competition

  • P*=ATC, tangent to ATC (not at minimum…)


Ap economics mr bernstein25

Wage

Market Labor Supply

AP EconomicsMr. Bernstein

W*

Factor Market: Labor

  • Value of W* = MRPL; (MC = W)

Market Labor Demand

Q


Ap economics mr bernstein26
AP EconomicsMr. Bernstein

MFCL

Labor Supply

Imperfect Competition in the Labor Market

  • Hire where

    MPRL = MFCL

  • Monopsony pays

    W* < MRPL

    Remember, whether

    Perfect or Imperfect

    Markets, firms hire

    where MRPL = MFCL

W*

Wage

MRPL

Quantity of Labor (workers)

E*


Ap economics mr bernstein27
AP EconomicsMr. Bernstein

Equilibrium in the Market for Land and Capital

  • Supply curve for Land is very steep (inelastic)


Ap economics mr bernstein28
AP EconomicsMr. Bernstein

S

Popt

Positive Externalities: MSB > MPB

  • Market underproduces

    vs. socially optimal outcome

  • Deadweight loss

  • Policy to eliminate:

    Subsidy

Pmkt

Subsidy

Pcons

MSB

Price, MSB

MPB

Qmkt

Qopt

Qty


Ap economics mr bernstein29
AP EconomicsMr. Bernstein

MSC

MPC

Negative Externalities: MSC > MPC

  • Market overproduces

    vs. socially optimal outcome

  • Deadweight loss

  • Policy to eliminate:

    Per unit tax

  • Lump-sum tax does

    not affect MC so does not

    affect Q

Popt

Tax

Pmkt

Pfirm

Price, MSC

D

Qopt

Qmkt
