Presentation Transcript


Chapter 12: ADO.NET and ASP.NET

Programming with Microsoft Visual Basic .NET, Second Edition


Database TerminologyLesson A Objectives

  • Define the terms used when talking about databases

  • Explain the purpose of the DataAdapter, Connection, and DataSet objects

  • Explain the role of the provider

  • Create and configure an OleDbDataAdapter object

Programming with Microsoft Visual Basic .NET, Second Edition


Database TerminologyLesson A Objectives (continued)

  • Write SQL SELECT statements

  • Create a dataset

  • Display a dataset in a DataGrid control

Programming with Microsoft Visual Basic .NET, Second Edition


Database Terminology (continued)

  • Database: organized collection of related information stored in a file on a disk

  • Relational database: database that stores information in tables

    • Each column represents a field

    • Each row represents a record

Programming with Microsoft Visual Basic .NET, Second Edition


Database Terminology (continued)

  • Table: a group of related records

  • Each record in a table pertains to the same topic, and each contains the same type of information

  • Relational database contains one or more tables

  • Primary key: a field that uniquely identifies each record in a table

Programming with Microsoft Visual Basic .NET, Second Edition


Database Terminology (continued)

Figure 12-3: Example of a two-table relational database

Programming with Microsoft Visual Basic .NET, Second Edition


Database Terminology (continued)

  • In Figure 12-3:

    • The first table is called the parent table

    • The second table is called the child table

    • In the parent table, the Number field is the primary key

    • In the child table, the Number field is called the foreign key

Programming with Microsoft Visual Basic .NET, Second Edition


ADO.NET

  • To connect an application to a database, Visual Basic .NET uses ADO.NET

  • With ADO.NET, the connection between an application and a database is a temporary one

  • Use three ADO.NET objects and a provider to access a database from a Visual Basic .NET application

    • DataAdapter, Connection, and DataSet

Programming with Microsoft Visual Basic .NET, Second Edition


ADO.NET (continued)

Figure 12-4: Illustration of the relationships among an application, the ADO.NET objects, a provider, and a database

Programming with Microsoft Visual Basic .NET, Second Edition


Creating and Configuring a DataAdapter Object

  • The DataAdapter object is the link between the application and the Connection object

  • DataAdapter object contacts the Connection object whenever the application needs to read data from or write data to a database

Programming with Microsoft Visual Basic .NET, Second Edition


Creating and Configuring a DataAdapter Object (continued)

Figure 12-6: Procedure for creating and configuring a DataAdapter object for a Microsoft Access database

Programming with Microsoft Visual Basic .NET, Second Edition


Creating and Configuring a DataAdapter Object (continued)

Figure 12-6: Procedure for creating and configuring a DataAdapter object for a Microsoft Access database (continued)

Programming with Microsoft Visual Basic .NET, Second Edition


SQL

  • SQL (Structured Query Language): a set of commands to access and manipulate the data stored in many database management systems

  • SQL commands perform database tasks such as storing, retrieving, updating, deleting, and sorting

Programming with Microsoft Visual Basic .NET, Second Edition


SQL (continued)

  • SELECT statement allows you to:

    • Specify the fields and records you want to view

    • Control the order in which the fields and records appear when displayed

Programming with Microsoft Visual Basic .NET, Second Edition


SQL (continued)

Figure 12-13: Syntax and examples of the SELECT statement

Programming with Microsoft Visual Basic .NET, Second Edition


SQL (continued)

Figure 12-13: Syntax and examples of the SELECT statement (continued)

Programming with Microsoft Visual Basic .NET, Second Edition


Using the Query Builder to Enter a SELECT Statement

  • When you click the Next > button on the Choose a Query Type screen, the Generate the SQL statements screen appears

  • You can enter the SELECT statement yourself, or you can have the Query Builder enter it for you

  • To use the Query Builder, click the Query Builder button

    • The Query Builder and Add Table dialog boxes open

Programming with Microsoft Visual Basic .NET, Second Edition


Using the Query Builder to Enter a SELECT Statement (continued)

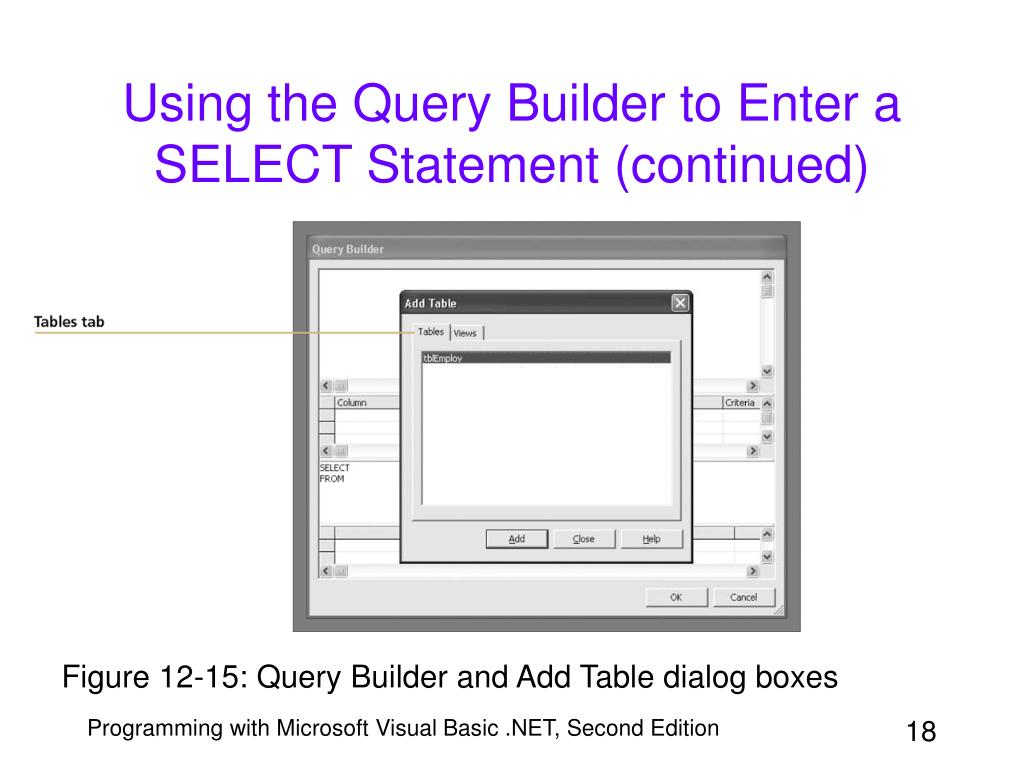

Figure 12-15: Query Builder and Add Table dialog boxes

Programming with Microsoft Visual Basic .NET, Second Edition


Using the Query Builder to Enter a SELECT Statement (continued)

Figure 12-18: SELECT statement entered in the Generate the SQL statements screen

Programming with Microsoft Visual Basic .NET, Second Edition


Creating a Dataset

  • A dataset contains the data you want to access from the database, as specified in the SELECT statement associated with the DataAdapter object

  • XML (Extensible Markup Language): a text-based language used to store and share data between applications and across networks and the Internet

  • An XML schema definition file defines the tables and fields that make up the dataset

Programming with Microsoft Visual Basic .NET, Second Edition


Creating a Dataset (continued)

Figure 12-21: Procedure for creating a dataset

Programming with Microsoft Visual Basic .NET, Second Edition


Using the Fill Method

  • Use the DataAdapter object’s Fill method to fill a dataset with data while an application is running

Figure 12-25: Syntax and an example of the Fill method

Programming with Microsoft Visual Basic .NET, Second Edition


Binding the DataSet Object to a DataGrid Control

  • View the data contained in a dataset by connecting its DataSet object to one or more controls in the interface

  • Binding: Connecting a DataSet object to a control

  • Bound controls: the connected controls

  • Bind a control using one or more properties listed in the Properties window

Programming with Microsoft Visual Basic .NET, Second Edition


Binding the DataSet Object to a DataGrid Control (continued)

Figure 12-26: Procedure for binding a DataSet object to a DataGrid control

Programming with Microsoft Visual Basic .NET, Second Edition


Binding the DataSet Object to a DataGrid Control (continued)

  • When bound to a DataSet object, the DataGrid control displays the data from the dataset in a row and column format

    • Each field in the dataset appears in a column in the DataGrid control

    • Each record in the dataset appears in a row in the DataGrid control

Programming with Microsoft Visual Basic .NET, Second Edition


Reconfiguring the DataAdapter Object

Figure 12-30: Procedure for reconfiguring an existing DataAdapter object

Programming with Microsoft Visual Basic .NET, Second Edition


More on Binding ControlsLesson B Objectives

  • Display a dataset in various controls in an interface

  • Position the record pointer in a dataset

Programming with Microsoft Visual Basic .NET, Second Edition


Binding the DataSet Object to a Label Control or a Text Box

Figure 12-33: Procedure for binding a DataSet object to a label control or text box

Programming with Microsoft Visual Basic .NET, Second Edition


Coding the Cartwright Industries Application

  • Carl Simons, the sales manager at Cartwright Industries, records the item number, name, and price of each product the company sells in a database named Items.mdb

  • Items.mdb database

    • Contains one table named tblItems

    • The Number and Name fields contain text, and the Price field contains numbers

Programming with Microsoft Visual Basic .NET, Second Edition


Coding the Cartwright Industries Application (continued)

Figure 12-37: Items.mdb database opened in Microsoft Access

Programming with Microsoft Visual Basic .NET, Second Edition


Coding the Cartwright Industries Application (continued)

Figure 12-39: TOE chart for the Cartwright Industries application

Programming with Microsoft Visual Basic .NET, Second Edition


Creating Web Applications Using ASP.NETLesson C Objectives

  • Define the terms used when talking about the Web

  • Create a Web application

  • Add controls to a Web form

  • Start a Web application

Programming with Microsoft Visual Basic .NET, Second Edition


Creating Web Applications Using ASP.NET Lesson C Objectives (continued)

  • Use the validator controls

  • Include a list box on a Web form

  • Determine whether a postback has occurred

  • Include a DataGrid control on a Web form

Programming with Microsoft Visual Basic .NET, Second Edition


Web Terminology

  • The Internet is the world’s largest computer network, connecting millions of computers located all around the world

  • World Wide Web (WWW or the Web)

    • Part of the Internet

    • Consists of documents called Web pages that are stored on Web servers

Programming with Microsoft Visual Basic .NET, Second Edition


Web Terminology (continued)

  • Web server: computer that contains software that “serves up” Web pages in response to requests from clients

  • A client is a computer that requests information from a Web server

  • The information is requested and subsequently viewed through the use of a program called a Web browser (or simply, a browser)

Programming with Microsoft Visual Basic .NET, Second Edition


Web Terminology (continued)

Figure 12-49: Illustration of the relationship between a client, a browser, and a Web server

Programming with Microsoft Visual Basic .NET, Second Edition


Web Terminology (continued)

  • Static Web page: document whose purpose is merely to display information to the viewer

  • Dynamic Web page is interactive; it can accept information from the user and also retrieve information for the user

  • Every Web page has a unique address called a URL (Uniform Resource Locator) that indicates its location on the Web

Programming with Microsoft Visual Basic .NET, Second Edition

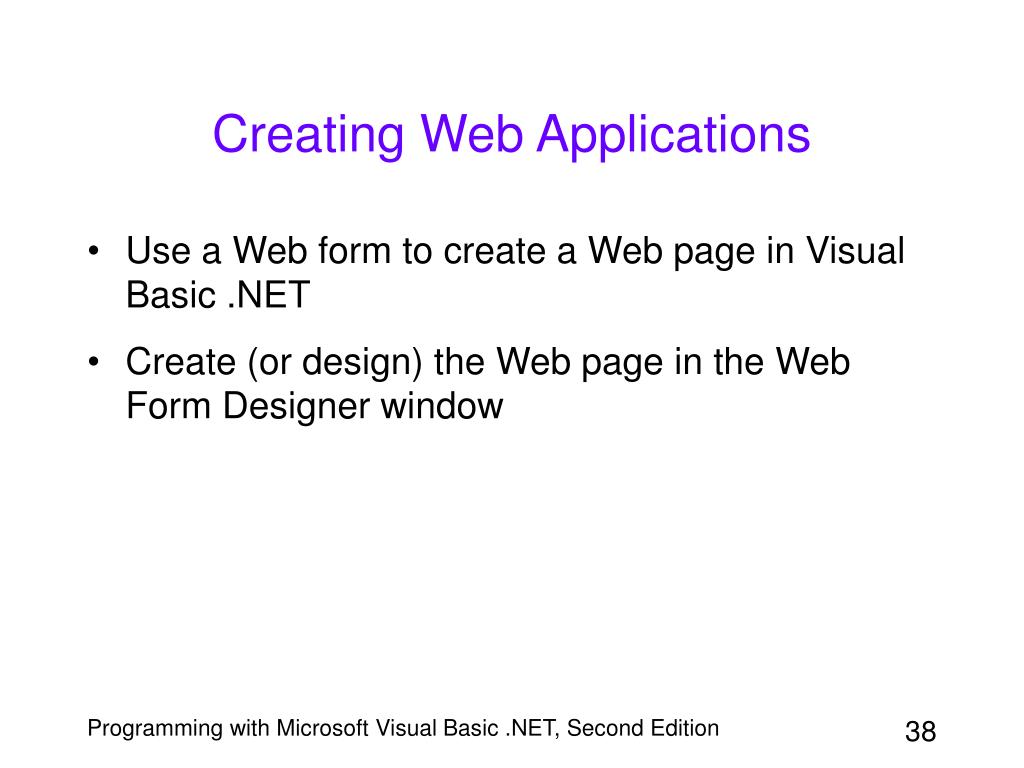

Creating Web Applications

  • Use a Web form to create a Web page in Visual Basic .NET

  • Create (or design) the Web page in the Web Form Designer window

Programming with Microsoft Visual Basic .NET, Second Edition


Creating Web Applications (continued)

Figure 12-52: Procedure for creating a Web application

Programming with Microsoft Visual Basic .NET, Second Edition


Adding Controls to a Web Form

  • Use the tools contained in the Toolbox window to add controls to a Web form

  • The tools for a Web form are located on the Web Forms tab in the toolbox

  • Can add a control to a Web form by simply dragging the corresponding tool from the Web Forms tab to the form

Programming with Microsoft Visual Basic .NET, Second Edition


Using the Web Validator Tools

  • These tools allow you to validate user input

Figure 12-65: The Web validator tools

Programming with Microsoft Visual Basic .NET, Second Edition


Including a List Box on a Web Form

  • Use the ListBox tool on the Web Forms tab to add a list box to a Web form

  • Can use a list box on a Web form to display a list of choices from which the user can select one or more choices

Programming with Microsoft Visual Basic .NET, Second Edition


Including a List Box on a Web Form (continued)

  • A postback refers to the client requesting data from the server, and the server responding

  • Each time a postback occurs, the Web page is redisplayed on the client’s screen

  • Can use the Web form’s IsPostBack property to determine if the Web form is being displayed for the first time or as a result of a postback

Programming with Microsoft Visual Basic .NET, Second Edition


Including a DataGrid Control on a Web Form

  • DataGrid control displays the data from a dataset in a row and column format

  • Each field in the dataset appears in a column in the DataGrid control, and each record appears in a row

  • The DataGrid control’s DataBind method is used to bind the control to the dataset

Programming with Microsoft Visual Basic .NET, Second Edition


Including a DataGrid Control on a Web Form (continued)

Figure 12-72: Web form for the Fairview application

Programming with Microsoft Visual Basic .NET, Second Edition


Including a DataGrid Control on a Web Form (continued)

  • DataGrid control provides many properties to control the appearance of its output

  • DataGrid control provides an Auto Format dialog box that allows selection from a list of predefined formats, or schemes, for displaying data

Programming with Microsoft Visual Basic .NET, Second Edition


Summary

  • To access a database from a Visual Basic .NET application, use the DataAdapter, Connection, and DataSet objects

  • Use SQL SELECT to specify the fields and records to view, and to control the order in which the fields and records appear when displayed

  • Use the Fill method to fill a dataset with data while an application is running

Programming with Microsoft Visual Basic .NET, Second Edition


Summary (continued)

  • To bind a DataSet object to a DataGrid control

    • Set DataGrid control’s DataSource property to the name of the DataSet object

    • Set DataMember property to the name of a table

  • To bind a DataSet object to a list box

    • Set the list box’s DataSource property to the name of the DataSet object

    • Set its DisplayMember property to the name of the table and field

Programming with Microsoft Visual Basic .NET, Second Edition


Summary (continued)

  • To add a control to a Web form, use the tools on the Web Forms tab in the toolbox

  • To validate user input on a Web page, use one or more Web validator tools

  • To determine whether a postback has occurred, use the Web form’s IsPostBack property

  • To bind a Web DataGrid control to a dataset, use the DataBind method

Programming with Microsoft Visual Basic .NET, Second Edition


  • Login
