Computed envelope linearity of several fm broadcast antenna arrays j dane jubera

COMPUTED ENVELOPE LINEARITY OF SEVERAL FM BROADCAST ANTENNA ARRAYSJ. Dane Jubera

2008 NAB Engineering Conference

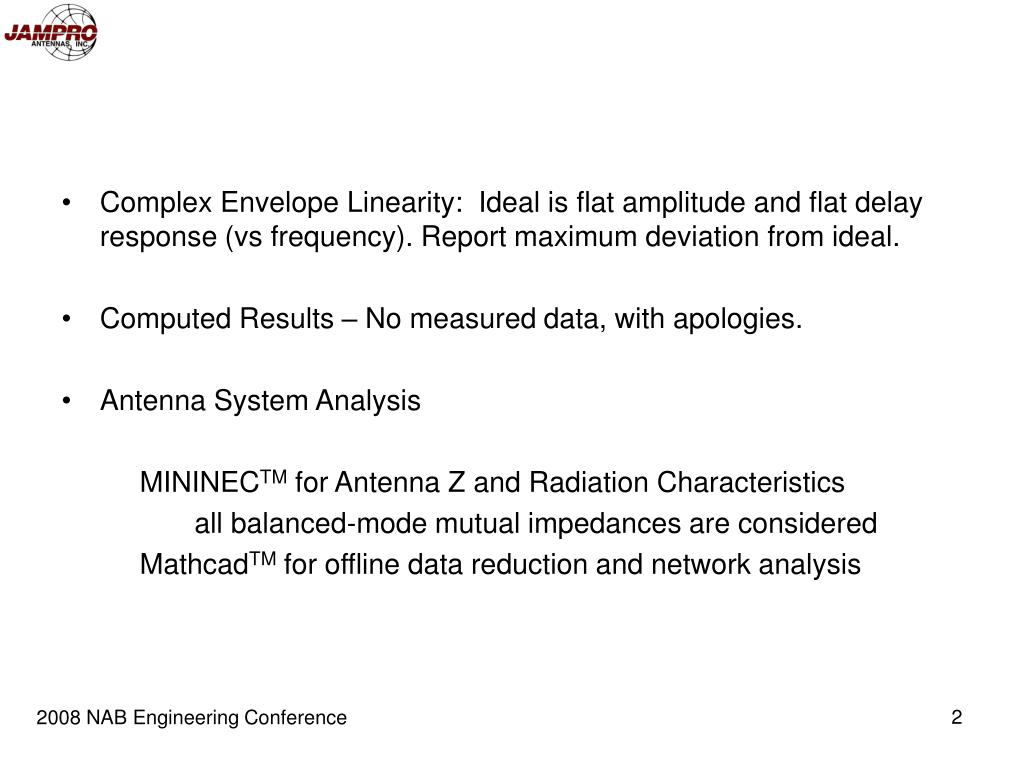

  • Complex Envelope Linearity: Ideal is flat amplitude and flat delay response (vs frequency). Report maximum deviation from ideal.

  • Computed Results – No measured data, with apologies.

  • Antenna System Analysis

    MININECTM for Antenna Z and Radiation Characteristics

    all balanced-mode mutual impedances are considered

    MathcadTM for offline data reduction and network analysis

2008 NAB Engineering Conference

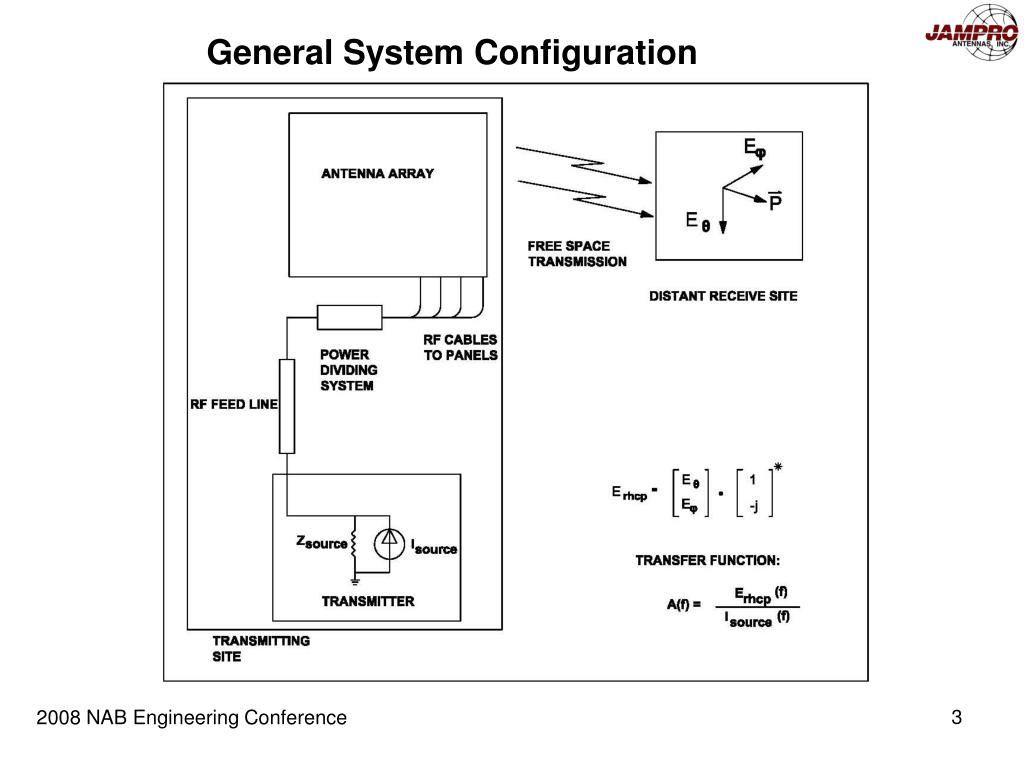

General System Configuration flat delay response (vs frequency). Report maximum deviation from ideal.

2008 NAB Engineering Conference

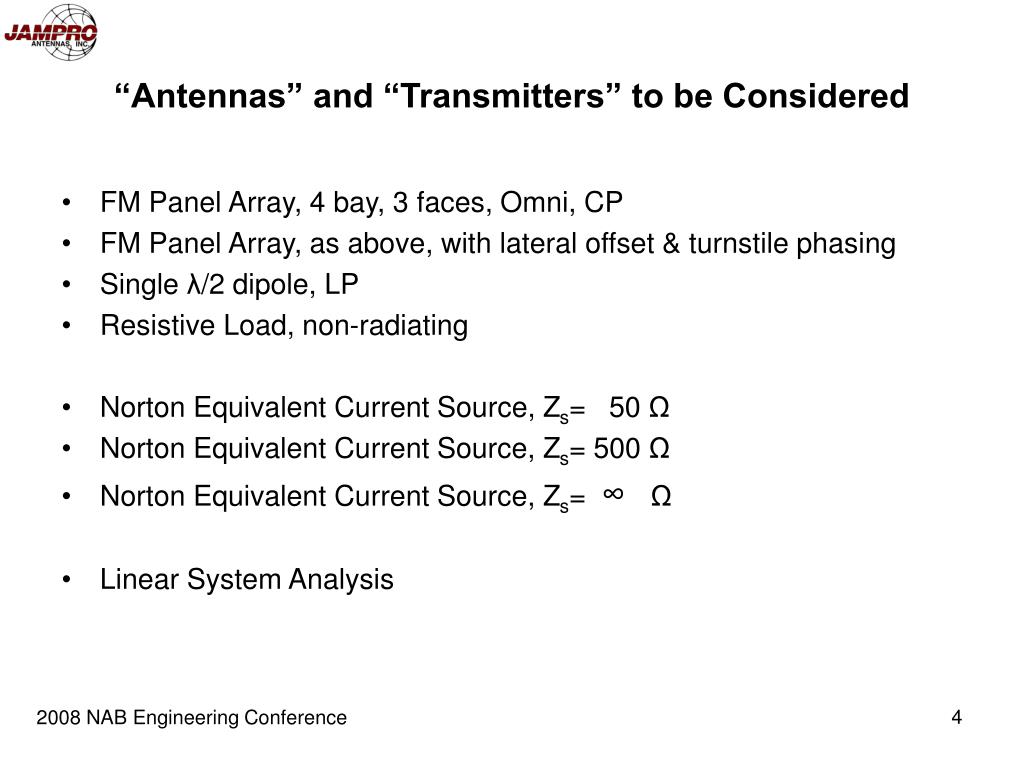

Antennas and transmitters to be considered
“Antennas” and “Transmitters” to be Considered flat delay response (vs frequency). Report maximum deviation from ideal.

  • FM Panel Array, 4 bay, 3 faces, Omni, CP

  • FM Panel Array, as above, with lateral offset & turnstile phasing

  • Single λ/2 dipole, LP

  • Resistive Load, non-radiating

  • Norton Equivalent Current Source, Zs= 50 Ω

  • Norton Equivalent Current Source, Zs= 500 Ω

  • Norton Equivalent Current Source, Zs= ∞ Ω

  • Linear System Analysis

2008 NAB Engineering Conference


Ibiquity digital corporation hd radio tm specification for gain and delay flatness
iBiquity Digital Corporation HD Radio flat delay response (vs frequency). Report maximum deviation from ideal.TM Specification for Gain and Delay Flatness

“The total gain of the transmission signal path as verified at the antenna output shall be flat to within ± 0.5 dB for all frequencies between (Fc – 200 kHz) to (Fc +200 kHz), where Fc is the RF channel frequency.”

“The differential group delay variation of the entire transmission signal path (excluding the RF channel) as measured at the RF channel frequency (Fc ) shall be within 600 ns peak to peak from (Fc – 200 kHz) to (Fc +200 kHz).”

[1] Doc. No. SY_SSS_1026s, Rev D, February 18, 2005,

“HD Radio FM Transmission System Specifications”

2008 NAB Engineering Conference


Top view of panel system
Top View of Panel System flat delay response (vs frequency). Report maximum deviation from ideal.

Feed Region

Reflector Panel

Dipole

2008 NAB Engineering Conference


Isometric view of panel system
Isometric View of Panel System flat delay response (vs frequency). Report maximum deviation from ideal.

2008 NAB Engineering Conference


Top view of offset panel system
Top View of Offset Panel System flat delay response (vs frequency). Report maximum deviation from ideal.

2008 NAB Engineering Conference


Flow chart for mininec tm computations

Specify source locations. flat delay response (vs frequency). Report maximum deviation from ideal.

Specify source currents – one “on”, others “off”.

Generate geometry of radiating structure.

Save configuration file.

Specify frequencies and far field directions.

Duplicate configuration file for each source current location. Modify source currents.

Execute analysis for each configuration file.

Flow Chart for MININECTM Computations

2008 NAB Engineering Conference

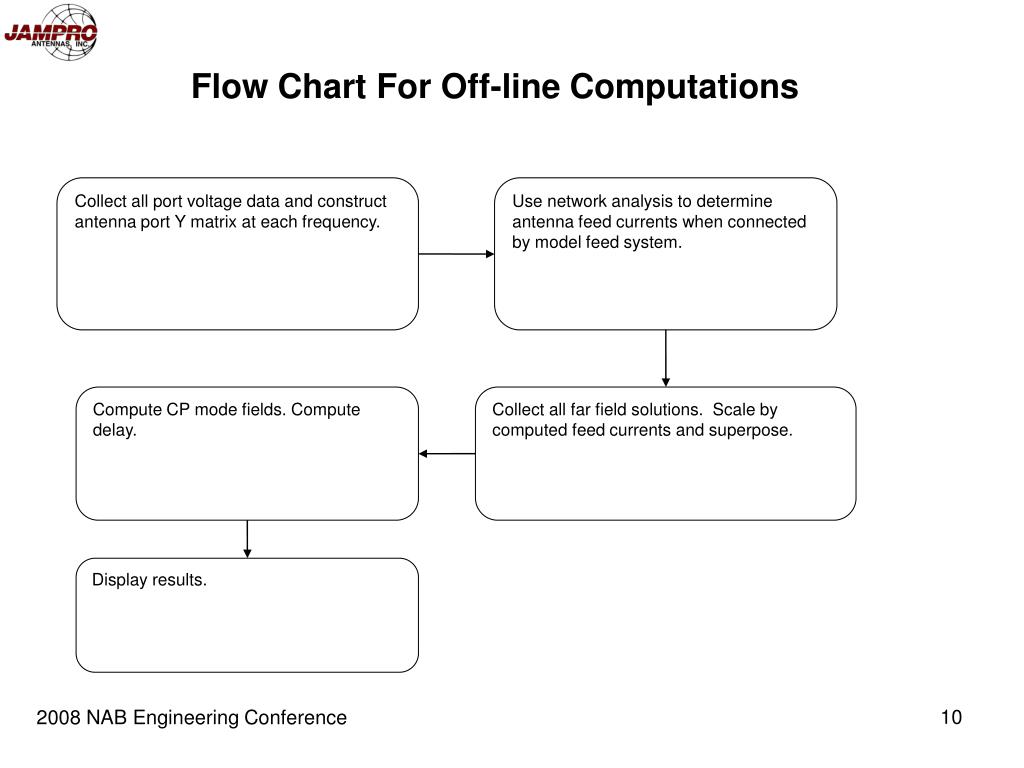

Flow chart for off line computations

Collect all port voltage data and construct antenna port Y matrix at each frequency.

Use network analysis to determine antenna feed currents when connected by model feed system.

Compute CP mode fields. Compute delay.

Collect all far field solutions. Scale by computed feed currents and superpose.

Display results.

Flow Chart For Off-line Computations

2008 NAB Engineering Conference


Results configuration 1
Results, Configuration 1 matrix at each frequency.

Source Impedance: 50Ω

2008 NAB Engineering Conference


Antenna input impedance plane
Antenna Input Impedance, matrix at each frequency.Γ Plane

2008 NAB Engineering Conference

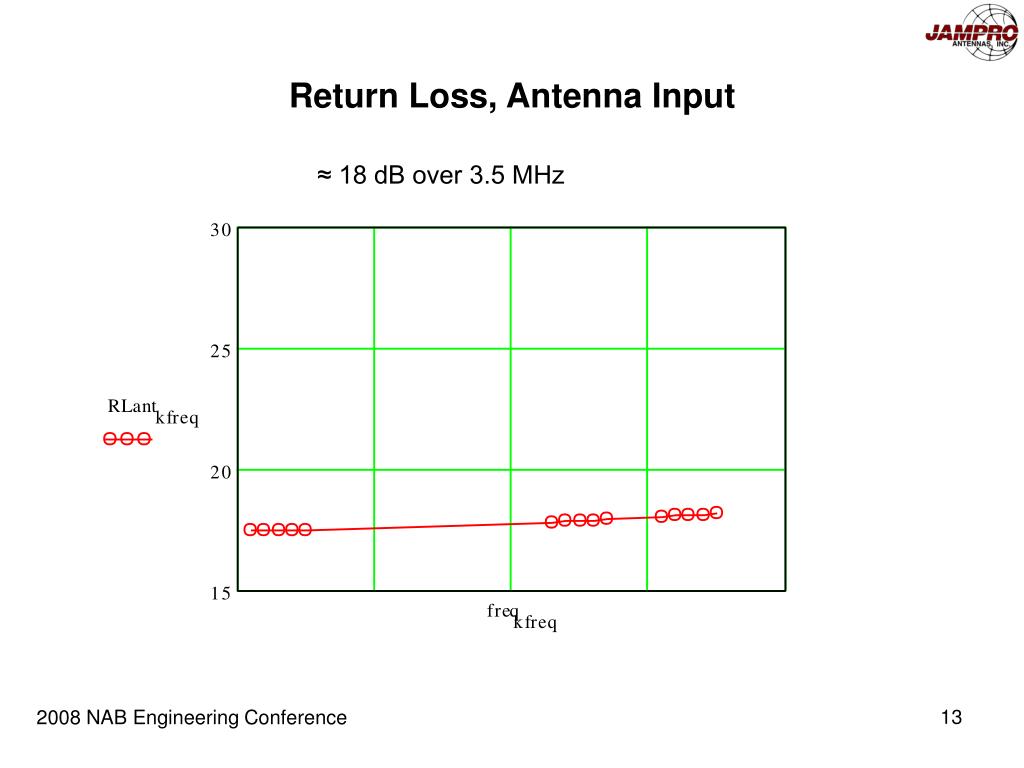

Return loss antenna input
Return Loss, Antenna Input matrix at each frequency.

≈ 18 dB over 3.5 MHz

2008 NAB Engineering Conference

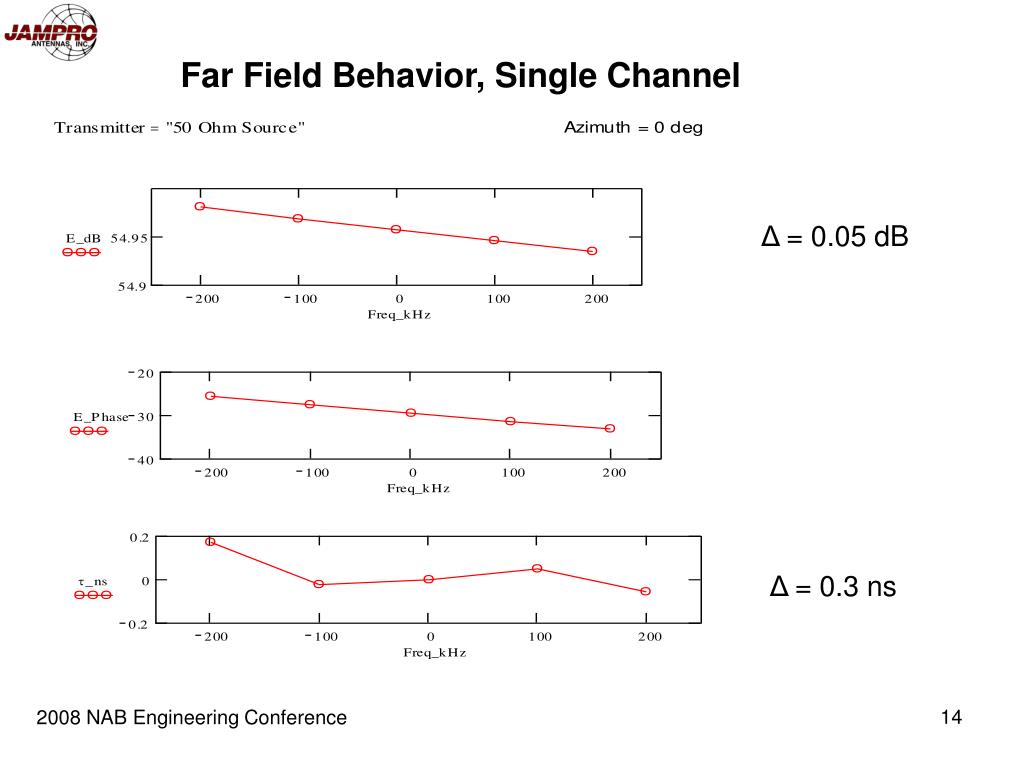

Far field behavior single channel
Far Field Behavior, Single Channel matrix at each frequency.

Δ = 0.05 dB

Δ = 0.3 ns

2008 NAB Engineering Conference

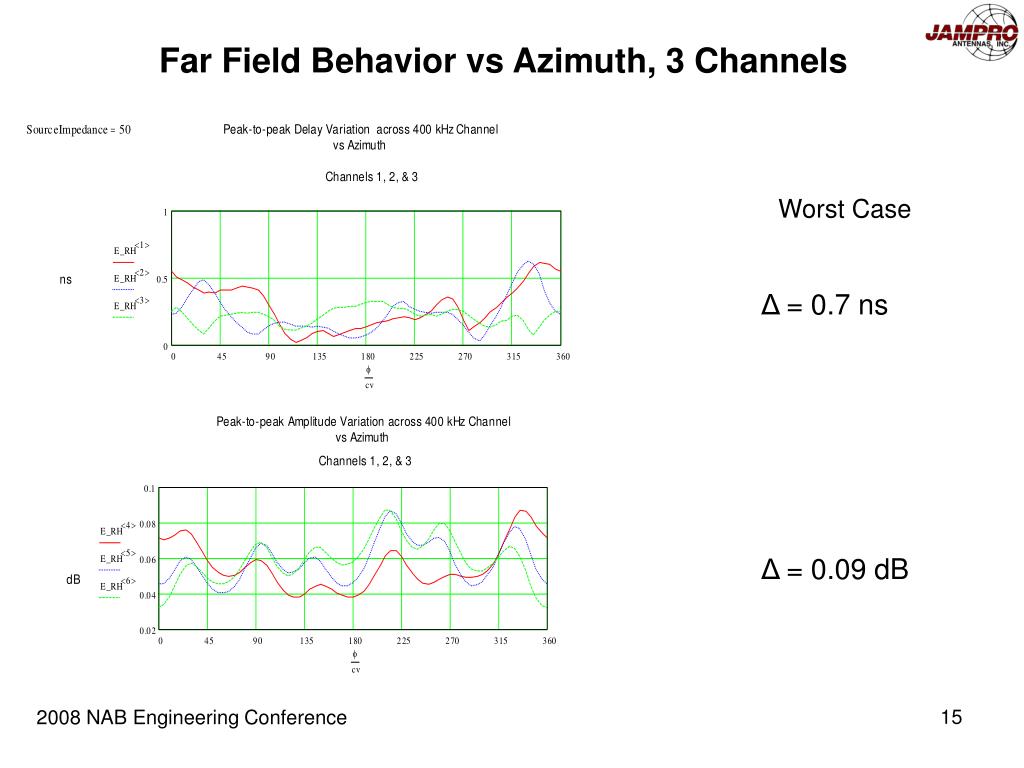

Far field behavior vs azimuth 3 channels
Far Field Behavior vs Azimuth, 3 Channels matrix at each frequency.

Worst Case

Δ = 0.7 ns

Δ = 0.09 dB

2008 NAB Engineering Conference

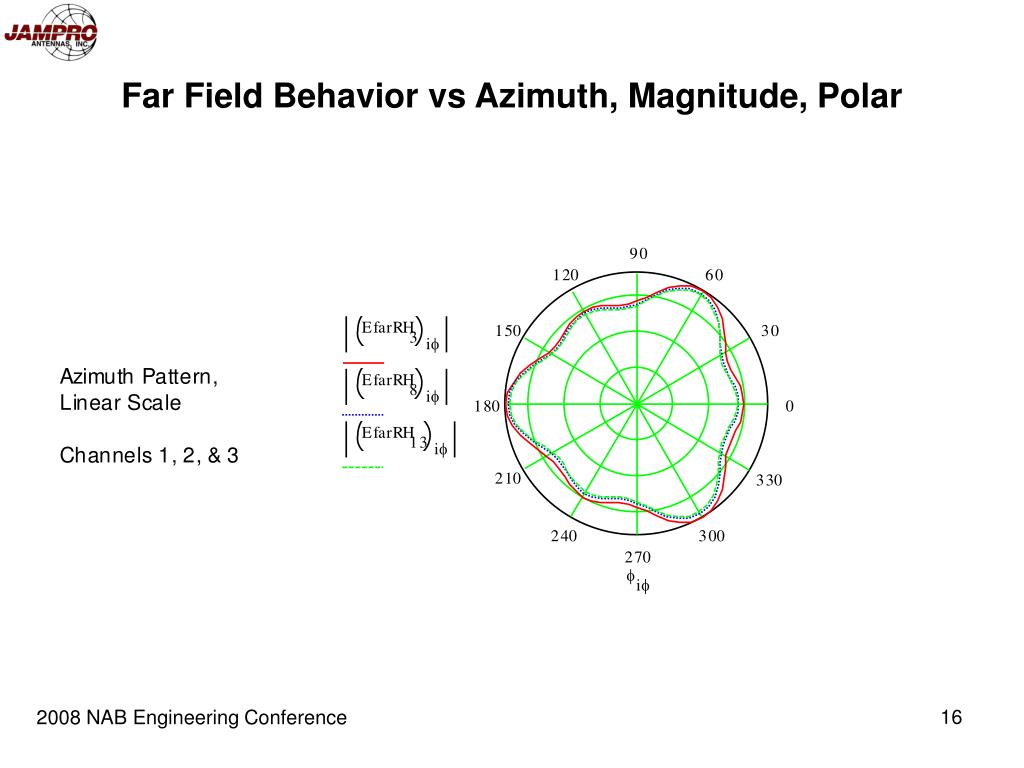

Far field behavior vs azimuth magnitude polar
Far Field Behavior vs Azimuth, Magnitude, Polar matrix at each frequency.

2008 NAB Engineering Conference

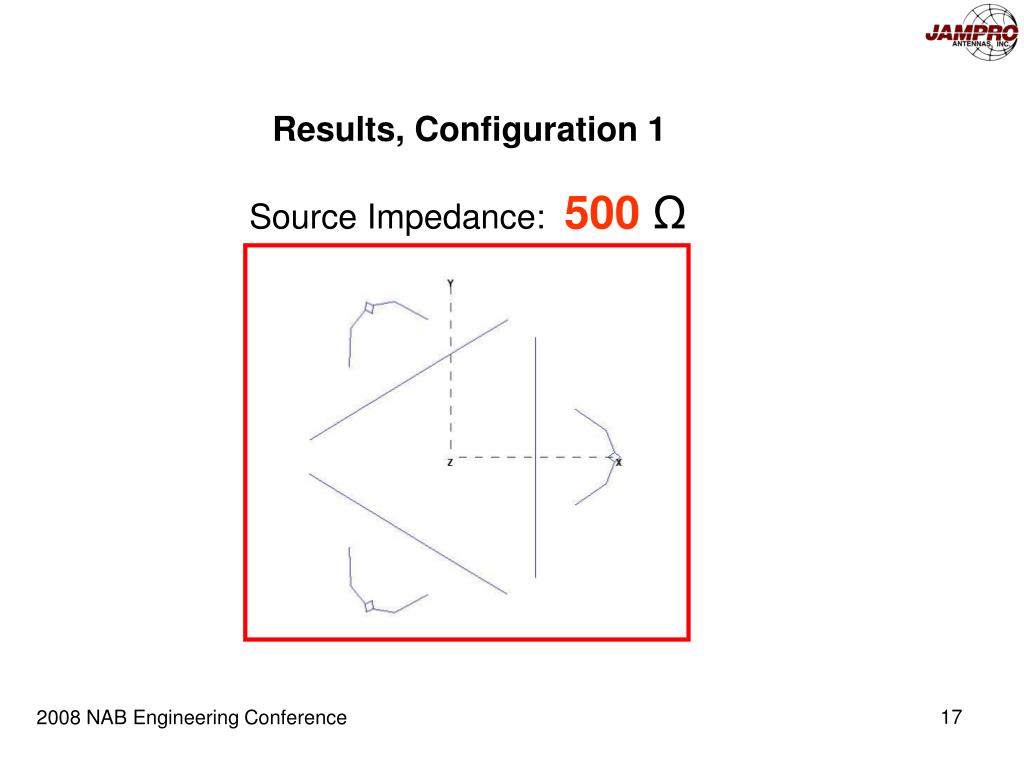

Results configuration 11
Results, Configuration 1 matrix at each frequency.

Source Impedance: 500Ω

2008 NAB Engineering Conference

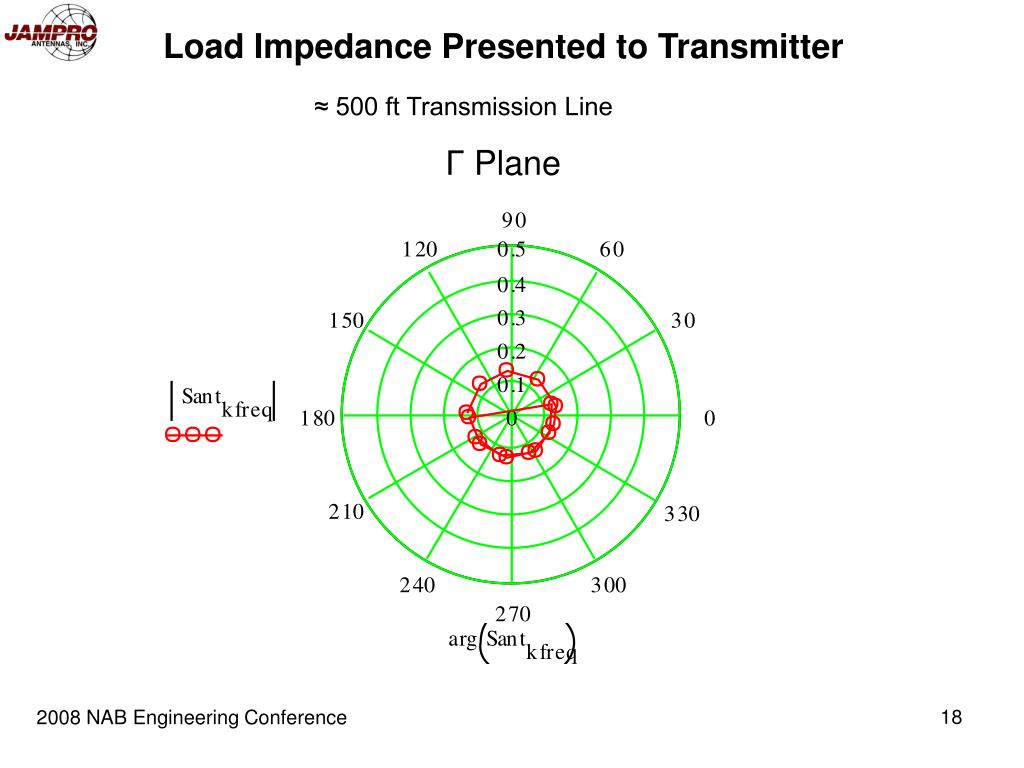

Load impedance presented to transmitter
Load Impedance Presented to Transmitter matrix at each frequency.

≈ 500 ft Transmission Line

Γ Plane

2008 NAB Engineering Conference


Far field behavior single channel1
Far Field Behavior, Single Channel matrix at each frequency.

Δ = 1.87 dB

Δ = 251 ns

2008 NAB Engineering Conference

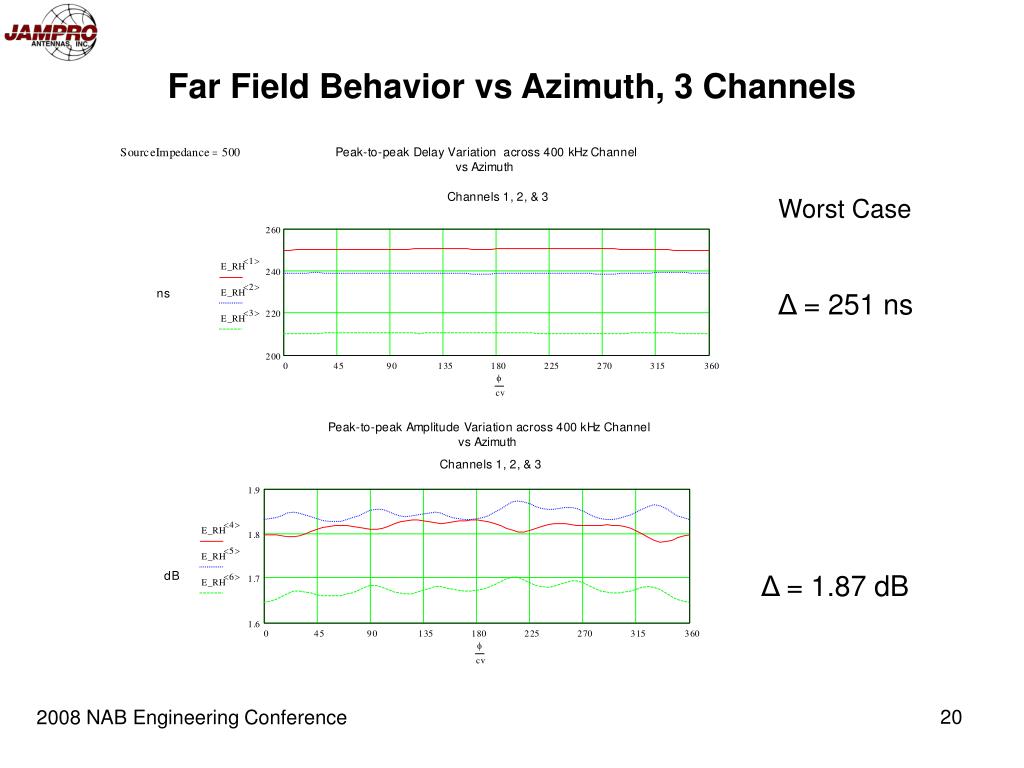

Far field behavior vs azimuth 3 channels1
Far Field Behavior vs Azimuth, 3 Channels matrix at each frequency.

Worst Case

Δ = 251 ns

Δ = 1.87 dB

2008 NAB Engineering Conference

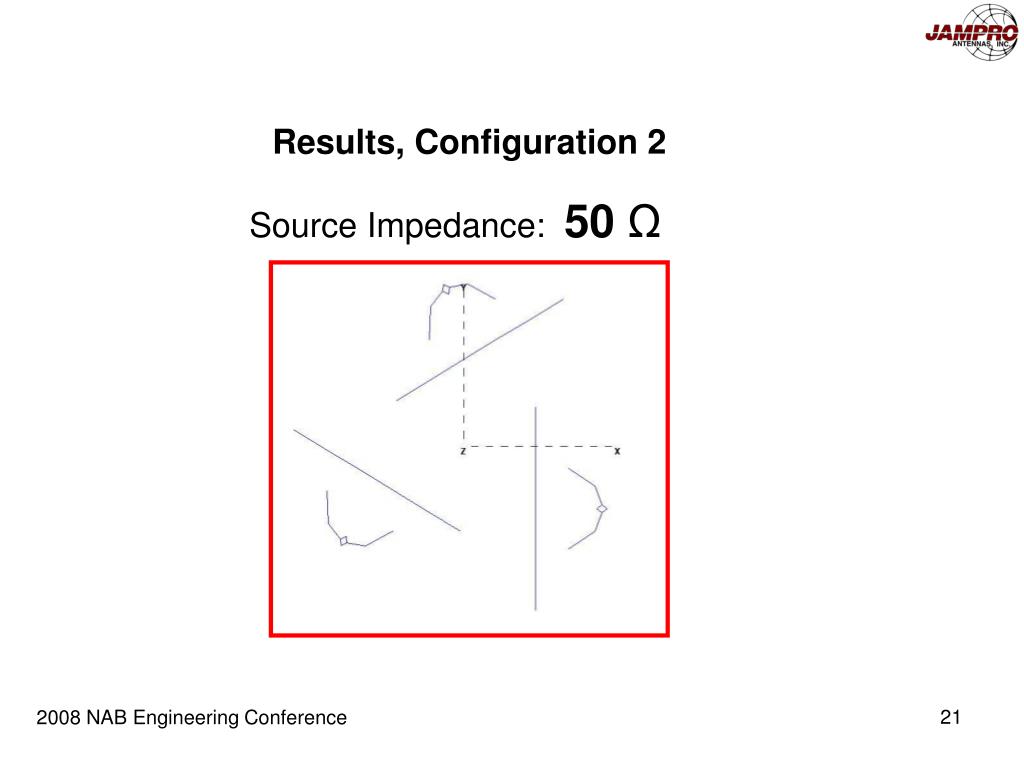

Results configuration 2
Results, Configuration 2 matrix at each frequency.

Source Impedance: 50Ω

2008 NAB Engineering Conference


Antenna input impedance plane1
Antenna Input Impedance, matrix at each frequency.ΓPlane

2008 NAB Engineering Conference


Return loss antenna input1
Return Loss, Antenna Input matrix at each frequency.

2008 NAB Engineering Conference


Far field behavior single channel2
Far Field Behavior, Single Channel matrix at each frequency.

Δ = 0.2 dB

Δ = 2.2 ns

2008 NAB Engineering Conference


Far field behavior vs azimuth 3 channels2
Far Field Behavior Vs Azimuth, 3 Channels matrix at each frequency.

Worst Case

Δ = 3.49 ns

Δ = 0.25 dB

2008 NAB Engineering Conference


Far field behavior vs azimuth magnitude polar1
Far Field Behavior vs Azimuth, Magnitude, Polar matrix at each frequency.

2008 NAB Engineering Conference

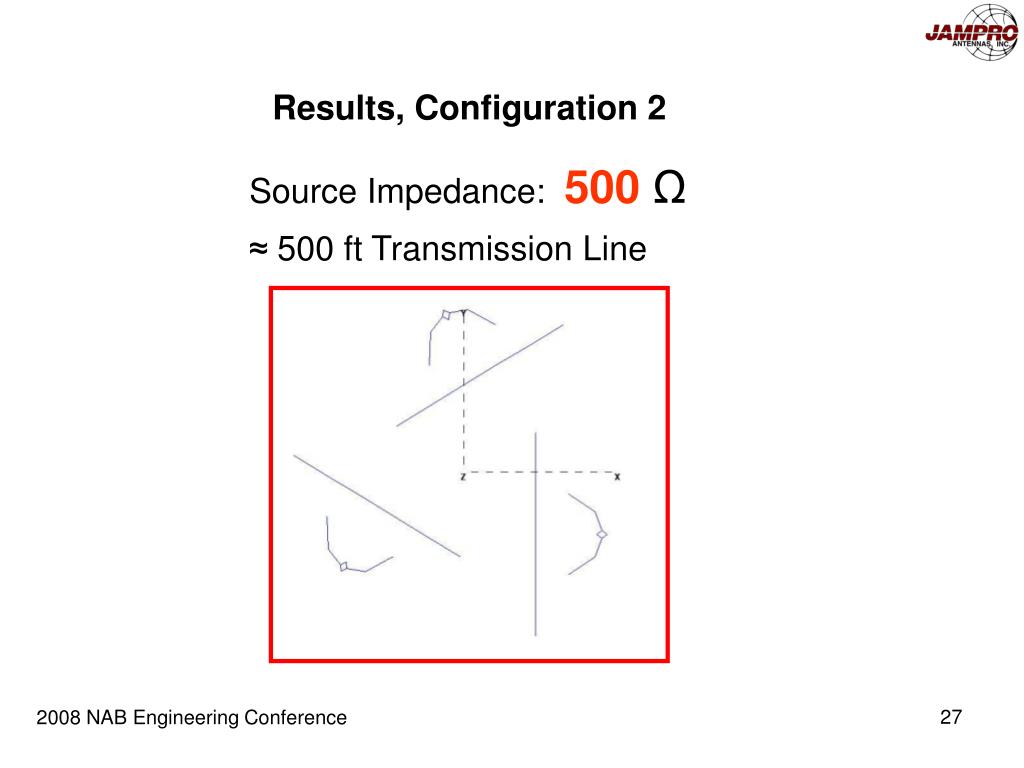

Results configuration 21
Results, Configuration 2 matrix at each frequency.

Source Impedance: 500Ω

≈ 500 ft Transmission Line

2008 NAB Engineering Conference

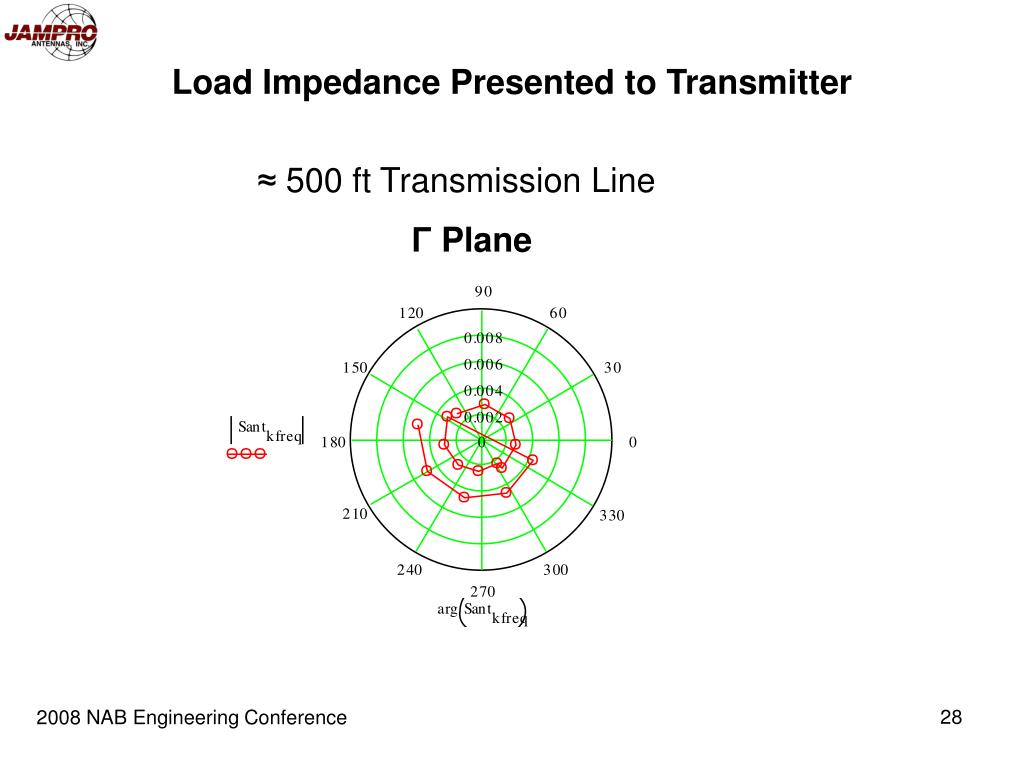

Load impedance presented to transmitter1
Load Impedance Presented to Transmitter matrix at each frequency.

≈ 500 ft Transmission Line

Γ Plane

2008 NAB Engineering Conference


Far field behavior single channel3
Far Field Behavior, Single Channel matrix at each frequency.

Δ = 0.31 dB

Δ = 11.3 ns

2008 NAB Engineering Conference


Far field behavior vs azimuth 3 channels3
Far Field Behavior vs Azimuth, 3 Channels matrix at each frequency.

Worst Case

Δ = 11.3 ns

Δ = 0.31 dB

2008 NAB Engineering Conference

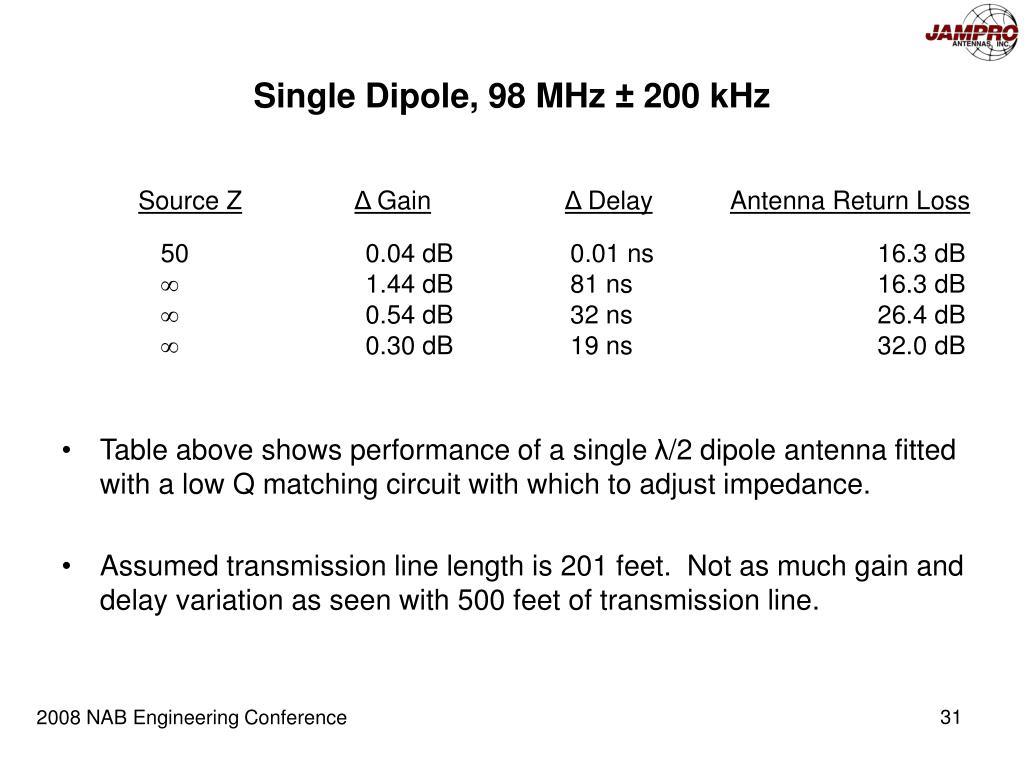

Single dipole 98 mhz 200 khz
Single Dipole, 98 MHz matrix at each frequency.± 200 kHz

  • Table above shows performance of a single λ/2 dipole antenna fitted with a low Q matching circuit with which to adjust impedance.

  • Assumed transmission line length is 201 feet. Not as much gain and delay variation as seen with 500 feet of transmission line.

Source ZΔ GainΔ DelayAntenna Return Loss

50 0.04 dB 0.01 ns 16.3 dB

1.44 dB 81 ns 16.3 dB

0.54 dB 32 ns 26.4 dB

0.30 dB 19 ns 32.0 dB

2008 NAB Engineering Conference


Resistive load non radiating
Resistive Load, Non-Radiating matrix at each frequency.

  • Resistive Load (RL + j 0)

  • Long Transmission Line, Lossless

  • Current Source (Zs = )

  • Evaluate voltage on load resistor vs frequency

  • ρ=|Γ|, Γ = (RL-Z0)/(RL+Z0)

  • For sufficiently long transmission line (≈ 600’ @ FM)

    Δt = 4ρ(L/v)/(1- ρ2)

    ΔG = 20 log(VSWR) = 20 log [(1+ρ)/(1-ρ)]

    (L/v is 1-way transit time in transmission line)

  • Example 1: For ρ=0.2, L/v = 720 ns ( ≈ 700 ft) =>

    Δt = 600 ns & ΔG = 3.5 dB

    Example 2: For ρ=0.126 (18 dB RL), L/v = 508 ns ( ≈ 500 ft) =>

    Δt = 260 ns & ΔG = 2.2 dB

2008 NAB Engineering Conference

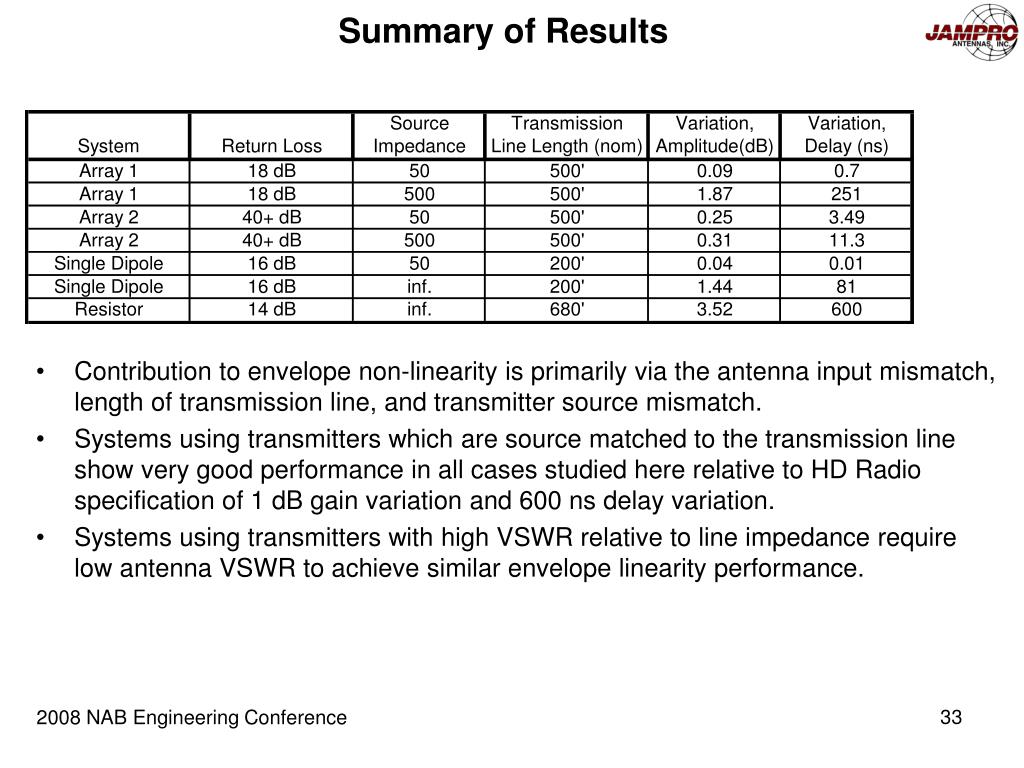

Summary of results
Summary of Results matrix at each frequency.

  • Contribution to envelope non-linearity is primarily via the antenna input mismatch, length of transmission line, and transmitter source mismatch.

  • Systems using transmitters which are source matched to the transmission line show very good performance in all cases studied here relative to HD Radio specification of 1 dB gain variation and 600 ns delay variation.

  • Systems using transmitters with high VSWR relative to line impedance require low antenna VSWR to achieve similar envelope linearity performance.

2008 NAB Engineering Conference
