2 3 trigonometric functions the unit circle approach

2.3 Trigonometric Functions: The Unit Circle Approach

  • Definition of Trigonometric Functions

  • Calculator Evaluation

  • Application

  • Summary of Sign Properties


Trigonometric functions

Trigonometric Functions


The unit circle

The Unit Circle

If a point (a,b) lies on the unit circle, then the following are true for the angle x associated with that point:

sin x = b

cos x = a

tan x = b/a (a ≠ 0)

csc x = 1/b (b ≠ 0)

sec x = 1/a (a ≠ 0)

cot x = a/b (b ≠ 0)


Evaluating trigonometric functions

Evaluating Trigonometric Functions

Example:

Find the exact values of the 6 trigonometric functions for the point (-4, -3)

The Pythagorean Theorem shows that the distance from the point to the origin is 5.

sin x = -3/5

cos x = -4/5

tan x = 3/4

csc x = -5/3

sec x = -5/4

cot x = 4/3


Using given information to evaluate trigonometric functions

Using Given Information to Evaluate Trigonometric Functions

  • Example:

  • Given that the terminal side of an angle is in Quadrant IV and cos x = 3/5 find the remaining trigonometric functions.

  • b2 = 25 – 9 = 16, so b = 4

  • Sin x = 4/5, tan x = -4/3, csc x = -5/4,

  • sec x = 5/3 and cot x = -3/4

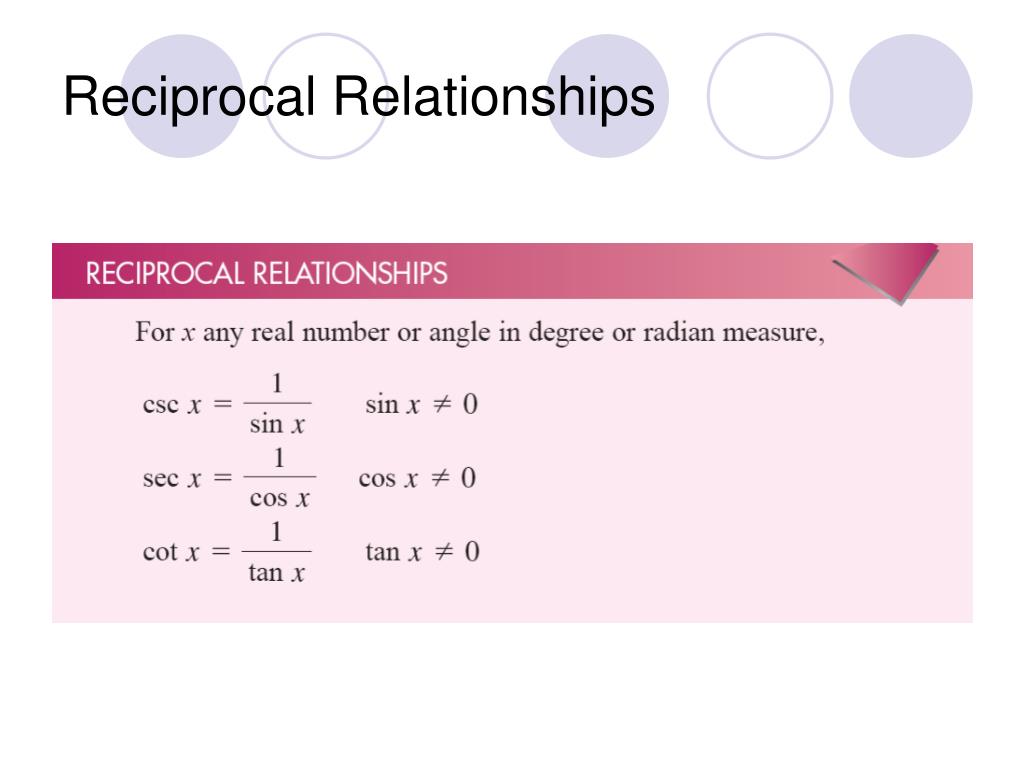

Reciprocal relationships

Reciprocal Relationships

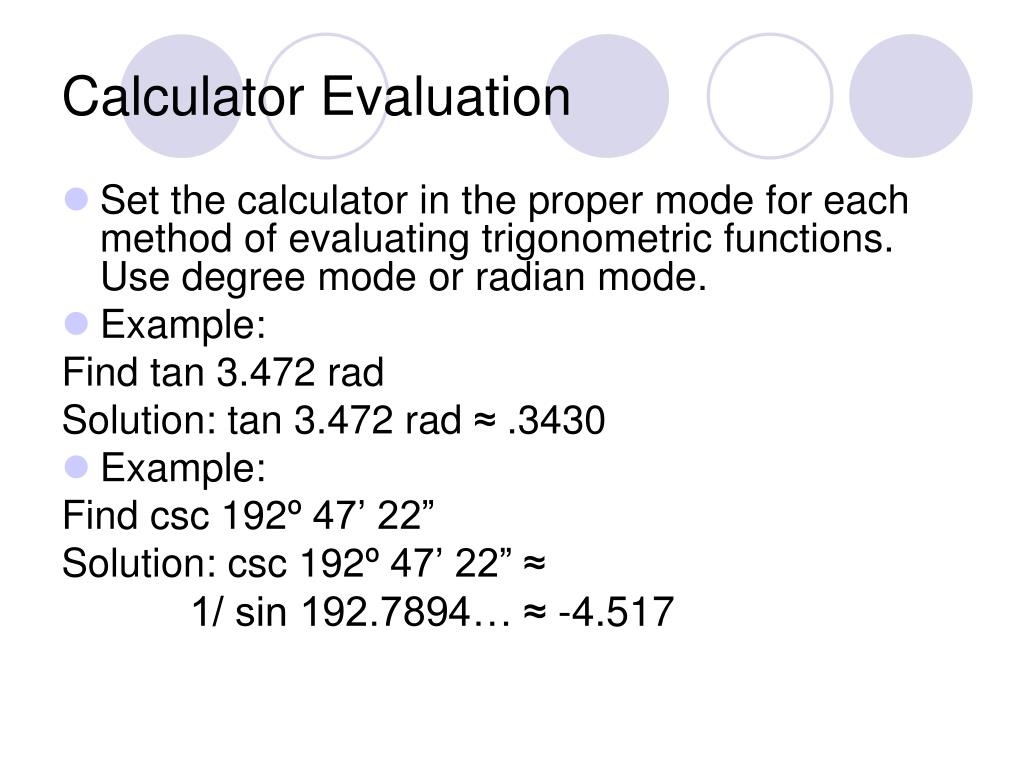

Calculator evaluation

Calculator Evaluation

  • Set the calculator in the proper mode for each method of evaluating trigonometric functions. Use degree mode or radian mode.

  • Example:

    Find tan 3.472 rad

    Solution: tan 3.472 rad ≈ .3430

  • Example:

    Find csc 192º 47’ 22”

    Solution: csc 192º 47’ 22” ≈

    1/ sin 192.7894… ≈ -4.517
