PAL 3/30/12. An ideal gas is compressed from v i to v f =v i /2. If the process is isothermal, then P f ___ . If the process is adiabatic, then P f ___ . =P i /2, >P i /2 =P i /2, <P i /2 =2P i , >2P =2P i , <2P i

peyton
Download Presentation

PAL 3/30/12

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

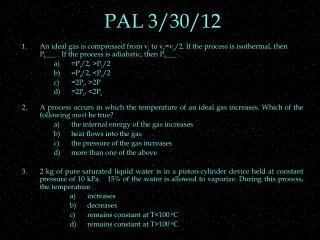

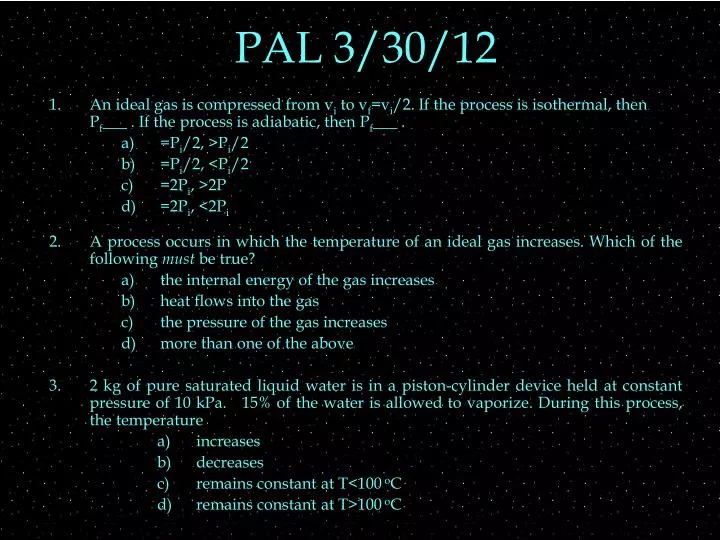

  1. PAL 3/30/12 • An ideal gas is compressed from vi to vf=vi/2. If the process is isothermal, then Pf___ . If the process is adiabatic, then Pf___ . • =Pi/2, >Pi/2 • =Pi/2, <Pi/2 • =2Pi, >2P • =2Pi, <2Pi • A process occurs in which the temperature of an ideal gas increases. Which of the following must be true? • the internal energy of the gas increases • heat flows into the gas • the pressure of the gas increases • more than one of the above • 2 kg of pure saturated liquid water is in a piston-cylinder device held at constant pressure of 10 kPa. 15% of the water is allowed to vaporize. During this process, the temperature • increases • decreases • remains constant at T<100 oC • remains constant at T>100 oC

  2. 100 g of liquid water is held at a constant pressure of 10MPa while its temperature is increased from 60oC to 70oC. • Find the change in internal energy of the water. • Find the change in enthalpy of the water. • Find the heat transfer to or from the water. • Approximate the heat capacity of the water for this temperature range. • 100 g of liquid water is held at a constant volume. It is initially at a temperature of 60oC and a pressure of 10MPa. It is heated until its pressure is 15MPa. • Find the final temperature of the water. • Find the heat transfer to or from the water. • Approximate the heat capacity of the water for this temperature range.
