Crystallization unit

CRYSTALLIZATIONUNIT

Rachel Adams

Jana Dengler

Megan MacLeod

Kyla Sask

CHEE 450: Insulin Design Project


Outline
Outline

  • Purpose of Crystallizer

  • Methods of Crystallization

  • Design Specifications

  • Engineering Drawing

  • Alternative Cost and Suppliers

  • Alternative Processes

  • Questions

CRYSTALLIZATION UNIT


Purpose of crystallizer
Purpose of Crystallizer

  • Used to recover pure solids from solution

  • Highly desirable end product because of:

    • Exceptional purity

    • Ease of handling

    • Long shelf life

  • One of the final treatment steps in the purification and concentration of insulin

  • 98% of the insulin must be crystallized

CRYSTALLIZATION UNIT


Mechanism of crystallization
Mechanism of Crystallization

  • Crystal nucleation and amorphous precipitates are in competition during supersaturation conditions

  • Nucleation favored by slowly exceeding the equilibrium point of saturation

    • permits time for the protein structure

      to orient in a crystalline lattice

CRYSTALLIZATION UNIT


Continuous or batch design
Continuous or Batch Design

  • Benefits of Continuous

    • Can maintain solution in supersaturated state

    • Large fluidized bed for crystallization

    • Minimizes operation costs

    • Minimize down time (startup and shutdown)

  • Benefits of Batch

    • Good when have low concentration of product, high viscosity or many impurities

    • Can produce high quality crystal

CRYSTALLIZATION UNIT


Methods of crystallization

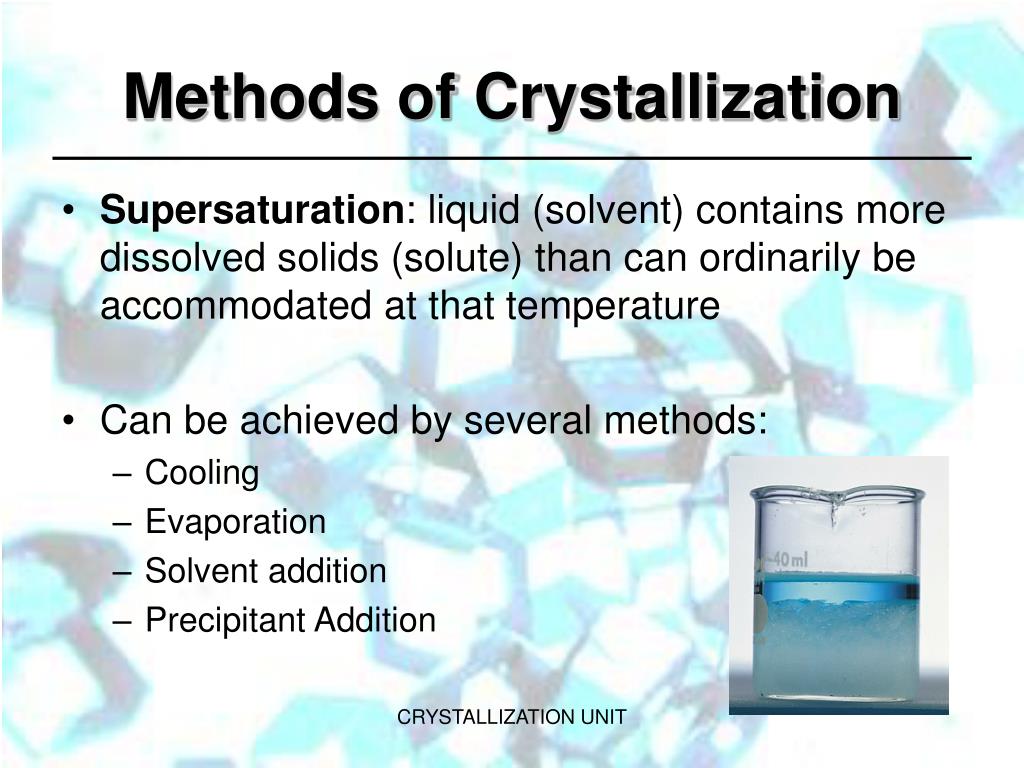

Methods of Crystallization

  • Supersaturation: liquid (solvent) contains more dissolved solids (solute) than can ordinarily be accommodated at that temperature

  • Can be achieved by several methods:

    • Cooling

    • Evaporation

    • Solvent addition

    • Precipitant Addition

CRYSTALLIZATION UNIT


Cooling method
Cooling Method

  • Concentrated solution gradually cooled below saturation temperature (50-60°C) to generate a supersaturated state

  • Yields well defined micron-sized crystals

  • Shell and tube heat exchanger is used to cool solution

CRYSTALLIZATION UNIT


Cooling method1
Cooling Method

  • Advantages:

    • High purity downstream

  • Disadvantages:

    • Temperature change does not always have a positive effect on supersaturation in proteins

    • Protein stability may be at risk

    • Solubility can be relatively insensitive to temperature at high salt concentrations

    • Cooling will only help reach supersaturation in systems where solubility and temperature are directly related

CRYSTALLIZATION UNIT


Evaporation method
Evaporation Method

  • Solute dissolves in solution when heated to a certain temperature (75°C)

  • Slowly cooled until crystals precipitate

  • Shell and tube heat exchanger is used to heat and cool solution

CRYSTALLIZATION UNIT


Evaporation method1
Evaporation Method

  • Advantages:

    • high purity levels downstream

  • Disadvantages:

    • Vaporization chamber requires high pressures

    • Protein viability very sensitive to high temperatures

CRYSTALLIZATION UNIT


Solvent method
Solvent Method

  • Solvents are generally good protein precipitants

  • Their low dielectric constants lower the solvating power of their aqueous solutions

  • Requires acidic solvent

    • For crystallization, an insulin protein falls out of solution at isoelectric point pH 5.4-5.7

CRYSTALLIZATION UNIT


Solvent method1

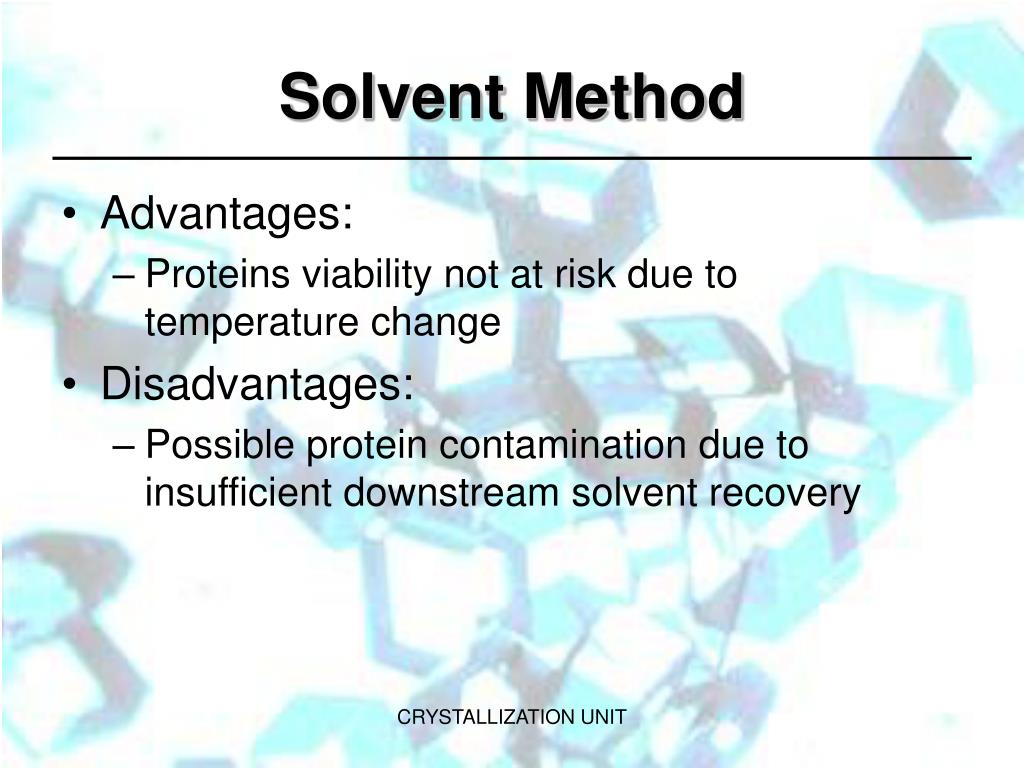

Solvent Method

  • Advantages:

    • Proteins viability not at risk due to temperature change

  • Disadvantages:

    • Possible protein contamination due to insufficient downstream solvent recovery

CRYSTALLIZATION UNIT


Addition of zinc ions

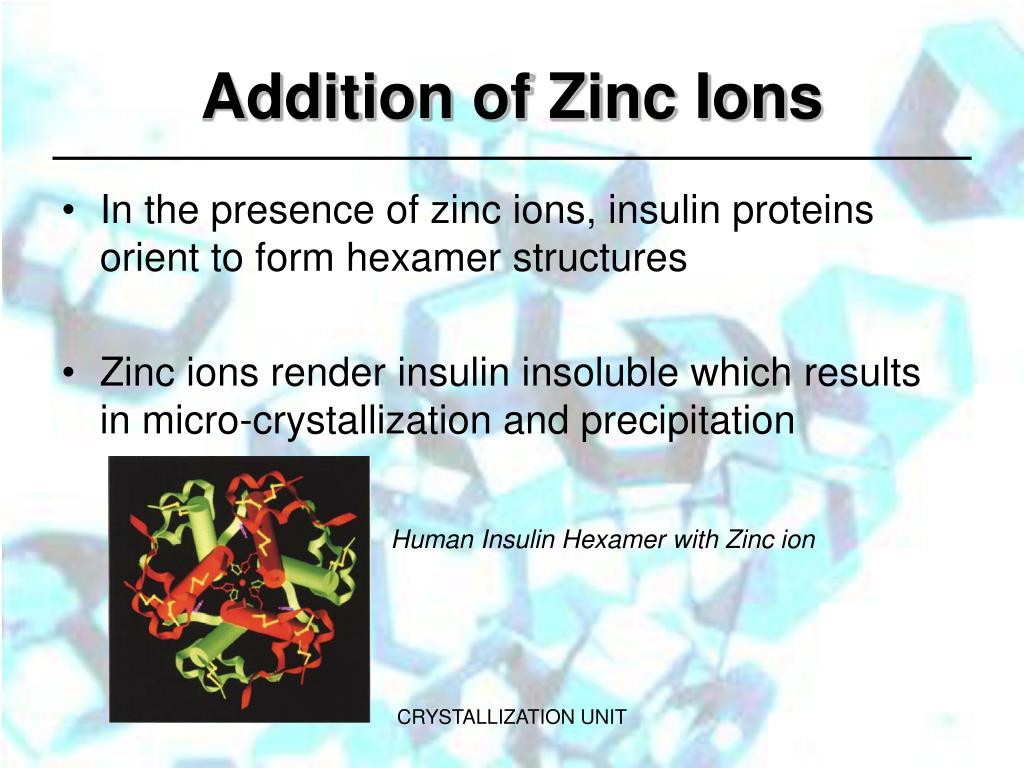

Addition of Zinc Ions

  • In the presence of zinc ions, insulin proteins orient to form hexamer structures

  • Zinc ions render insulin insoluble which results in micro-crystallization and precipitation

    Human Insulin Hexamer with Zinc ion

CRYSTALLIZATION UNIT


Seeding techniques
Seeding Techniques

  • Primary nucleation is the first step in crystallization - growth of a new crystal

    • Can bypass primary nucleation (creation of new crystals) by "seeding" the solution

  • Secondary nucleation is crystal growth initiated by contact

    • Accelerated by "seeding" adding existing insulin crystals to perpetuate crystal growth

CRYSTALLIZATION UNIT


Progression of crystallization
Progression of Crystallization

http://www.cheresources.com/cryst.shtml

CRYSTALLIZATION UNIT


Crystal size and growth rate
Crystal Size and Growth Rate

  • Crystal size distribution is important for the production process; affects:

    • downstream processing

    • solids transport

    • caking and storage properties of the material

  • Correct crystal size vital for economic production

  • Crystals produced in commercial crystallization processes are usually small

    • 30 to 100 um in diameter

CRYSTALLIZATION UNIT


Crystal size and growth rate1
Crystal Size and Growth Rate

  • Assumptions:

    • Continuous

    • Constant-volume

    • Isothermal

    • Well-mixed

  • Relates population density and crystal size

  • Mechanism of crystal growth to determine crystal growth

CRYSTALLIZATION UNIT


Crystallizer design
Crystallizer Design

  • Addition of acidic solvent to decrease pH to achieve supersaturation

  • Addition of Zinc ions to initiate Insulin precipitation

  • Implementing of “seeding” technique

  • Minimize heat variation to maintain protein stability

  • Washing and extensive solvent recovery downstream

CRYSTALLIZATION UNIT


Design equations

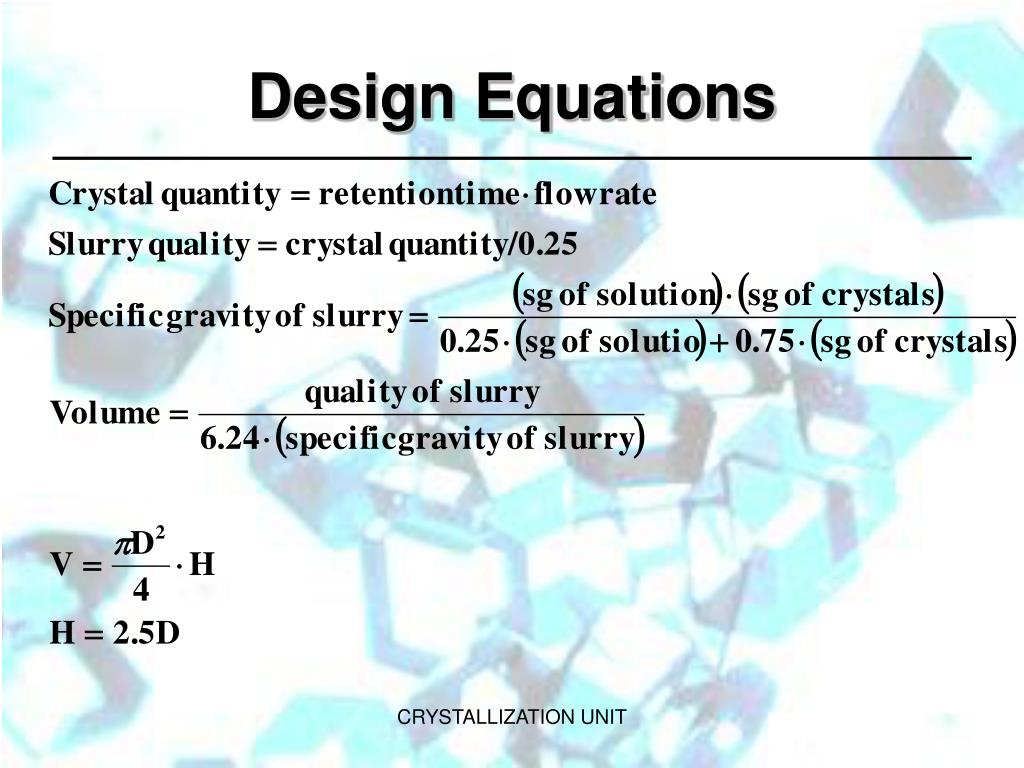

Design Equations

CRYSTALLIZATION UNIT


Proposed design
Proposed Design

CRYSTALLIZATION UNIT


Engineering drawing
Engineering Drawing

http://sundoc.bibliothek.uni-halle.de/diss-online/04/04H181/prom.pdf

CRYSTALLIZATION UNIT


Costing estimates

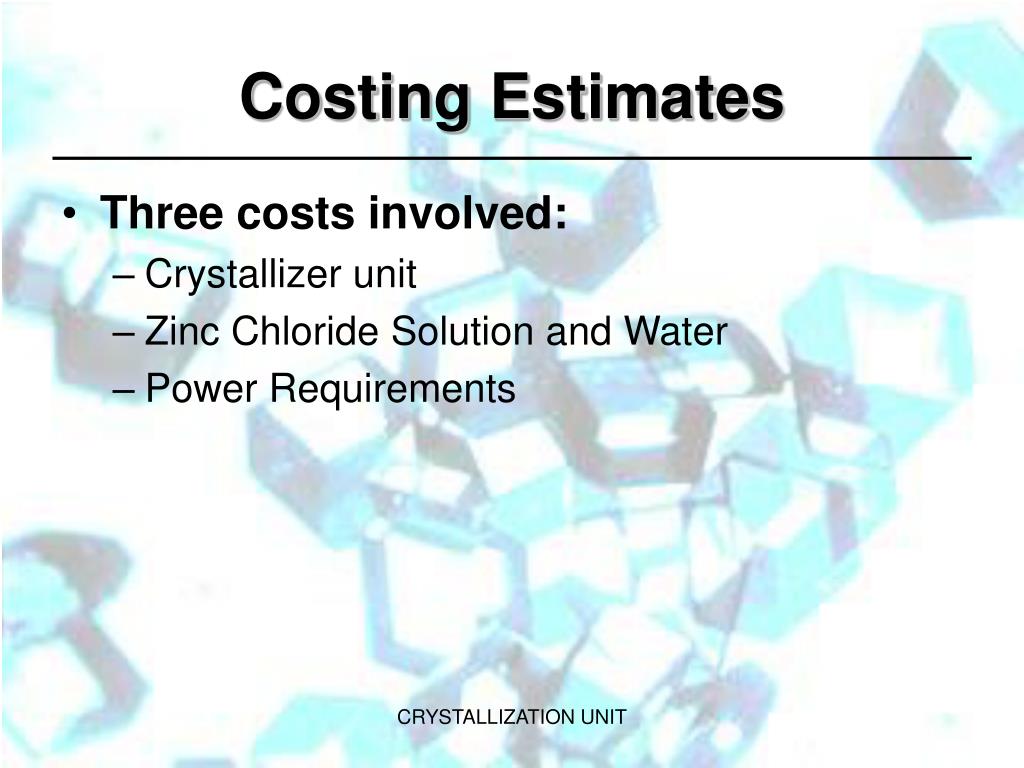

Costing Estimates

  • Three costs involved:

    • Crystallizer unit

    • Zinc Chloride Solution and Water

    • Power Requirements

CRYSTALLIZATION UNIT


Costing estimates1
Costing Estimates

  • Crystallizer Unit www.matche.com

CRYSTALLIZATION UNIT


Costing estimates2
Costing Estimates

  • Crystallizer Unit

CRYSTALLIZATION UNIT


Costing estimates3
Costing Estimates

  • Zinc Chloride Solution

    • Many suppliers

    • $15.00 - $27.00 for 500g

  • Power Requirements

    • Canadian Hydro: 8.99 cents/kWh (April, 2006)

CRYSTALLIZATION UNIT


Crystallizer suppliers
Crystallizer Suppliers

  • GEA Niro Inc.

    • Companies in over 50 countries

    • Copenhagen, Columbia, Germany, USA

      GEA Kestner Evaporator/Crystallizer

  • Swenson Technology Inc.

    • Illinois, USA

  • HPD Inc.

    • Illinois, USA

CRYSTALLIZATION UNIT


Alternative processes
Alternative Processes

  • For special drug purposes and when a zinc-free product is needed

  • Alternative processes that can be used include:

    • Isoelectric Precipitation

    • Gel Chromatography

    • Ultrafiltration

CRYSTALLIZATION UNIT


Isoelectric precipitation
Isoelectric Precipitation

  • Protein purification procedure that can be used with crystallization or on its own

  • The pH of a mixture is adjusted to the pI of the protein to be isolated to selectively minimize its solubility

CRYSTALLIZATION UNIT


Gel filtration chromatography
Gel Filtration Chromatography

  • Molecules are separated according to their size and shape

  • Filtration column is filled with porous beads

  • Solution passes through column

  • Elution through the gel occurs in order of decreasing molecular masses

CRYSTALLIZATION UNIT


Ultrafiltration
Ultrafiltration

  • Ultrafiltration used to concentrate macromolecular solutions

  • Forced under pressure or by centrifugation through a semipermeable membranous disk

  • Solvent and small solutes pass

    through the membrane, leaving

    behind a more concentrated

    macromolecular solution

CRYSTALLIZATION UNIT


QUESTIONS?
