  1. Breaking the Internet2 Land Speed Record: Twice Les Cottrell – SLAC Prepared for the Ricoh, Menlo Park, April 2003 http://www.slac.stanford.edu/grp/scs/net/talk/ricoh-hiperf.html Partially funded by DOE/MICS Field Work Proposal on Internet End-to-end Performance Monitoring (IEPM), by the SciDAC base program.

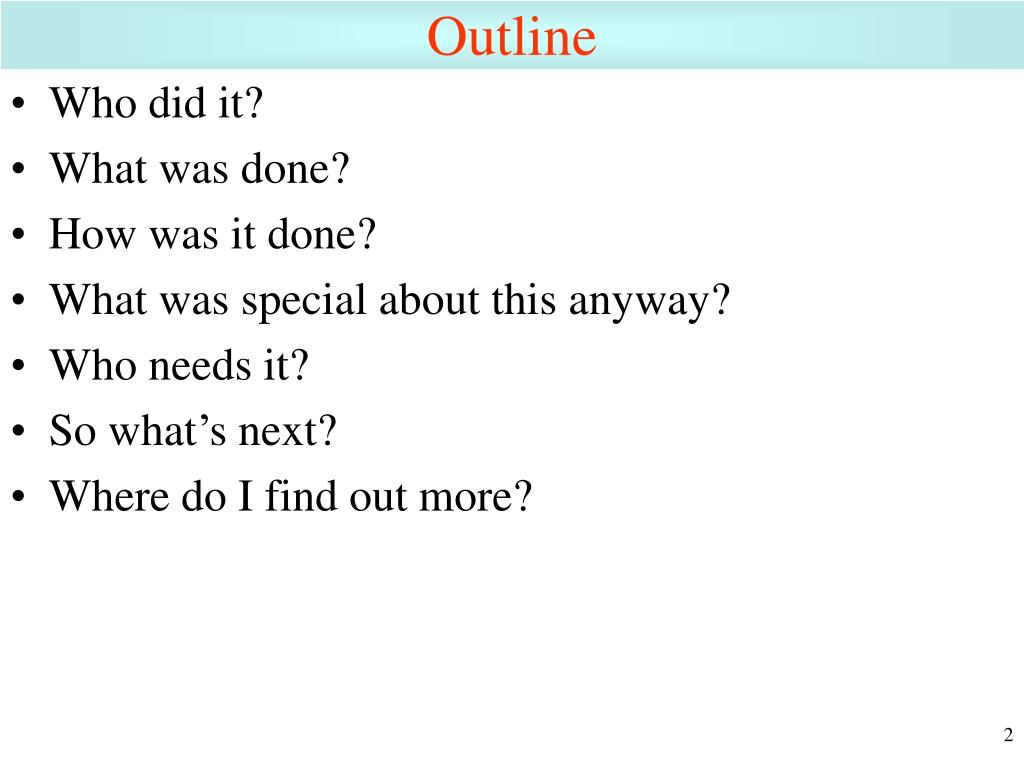

  2. Outline • Who did it? • What was done? • How was it done? • What was special about this anyway? • Who needs it? • So what’s next? • Where do I find out more?

  3. Who did it: Collaborators and sponsors • Caltech: Harvey Newman, Steven Low, Sylvain Ravot, Cheng Jin, Xiaoling Wei, Suresh Singh, Julian Bunn • SLAC: Les Cottrell, Gary Buhrmaster, Fabrizio Coccetti • LANL: Wu-chun Feng, Eric Weigle, Gus Hurwitz, Adam Englehart • NIKHEF/UvA: Cees DeLaat, Antony Antony • CERN: Olivier Martin, Paolo Moroni • ANL: Linda Winkler • DataTAG, StarLight, TeraGrid, SURFnet, NetherLight, Deutsche Telecom, Information Society Technologies • Cisco, Level(3), Intel • DoE, European Commission, NSF

  4. What was done? • Set a new Internet2 TCP land speed record, 10,619 Tbit-meters/sec • (see http://lsr.internet2.edu/) • With 10 streams achieved 8.6Gbps across US • Beat the Gbps limit for a single TCP stream across the Atlantic – transferred a TByte in an hour One Terabyte transferred in less than one hour

  5. 10GigE Data Transfer Trial On February 27-28, over a Terabyte of data was transferred in 3700 seconds by S. Ravot of Caltech between the Level3 PoP in Sunnyvale, near SLAC, and CERN.The data passed through the TeraGrid router at StarLight from memory to memoryas asingle TCP/IP stream at an average rate of 2.38 Gbps (using large windows and 9KByte “jumbo” frames).This beat the former record by a factor of approximately 2.5, and used the US-CERN link at 99% efficiency. European Commission Original slide by: Olivier Martin, CERN

  6. How was it done: Typical testbed 12*2cpu servers 6*2cpu servers 7609 T640 GSR 4 disk servers 4 disk servers OC192/POS (10Gbits/s) Chicago Sunnyvale 2.5Gbits/s (EU+US) 7609 Sunnyvale section deployed for SC2002 (Nov 02) 6*2cpu servers SNV Geneva CHI AMS > 10,000 km GVA

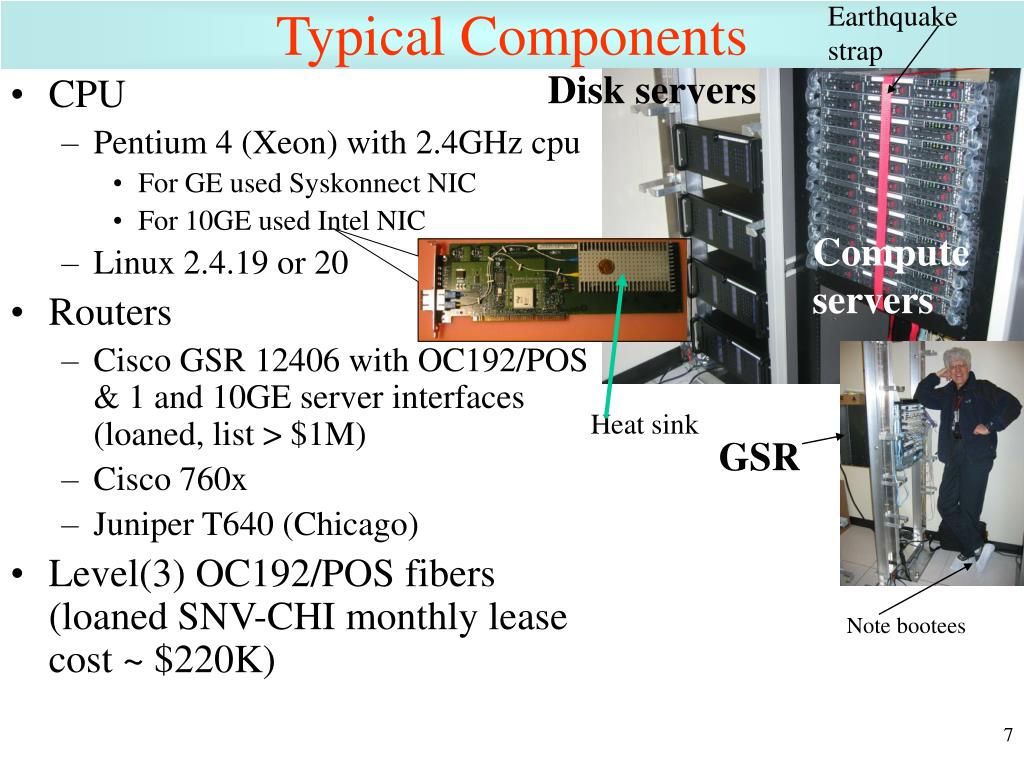

  7. Earthquake strap Typical Components Disk servers • CPU • Pentium 4 (Xeon) with 2.4GHz cpu • For GE used Syskonnect NIC • For 10GE used Intel NIC • Linux 2.4.19 or 20 • Routers • Cisco GSR 12406 with OC192/POS & 1 and 10GE server interfaces (loaned, list > $1M) • Cisco 760x • Juniper T640 (Chicago) • Level(3) OC192/POS fibers (loaned SNV-CHI monthly lease cost ~ $220K) Compute servers Heat sink GSR Note bootees

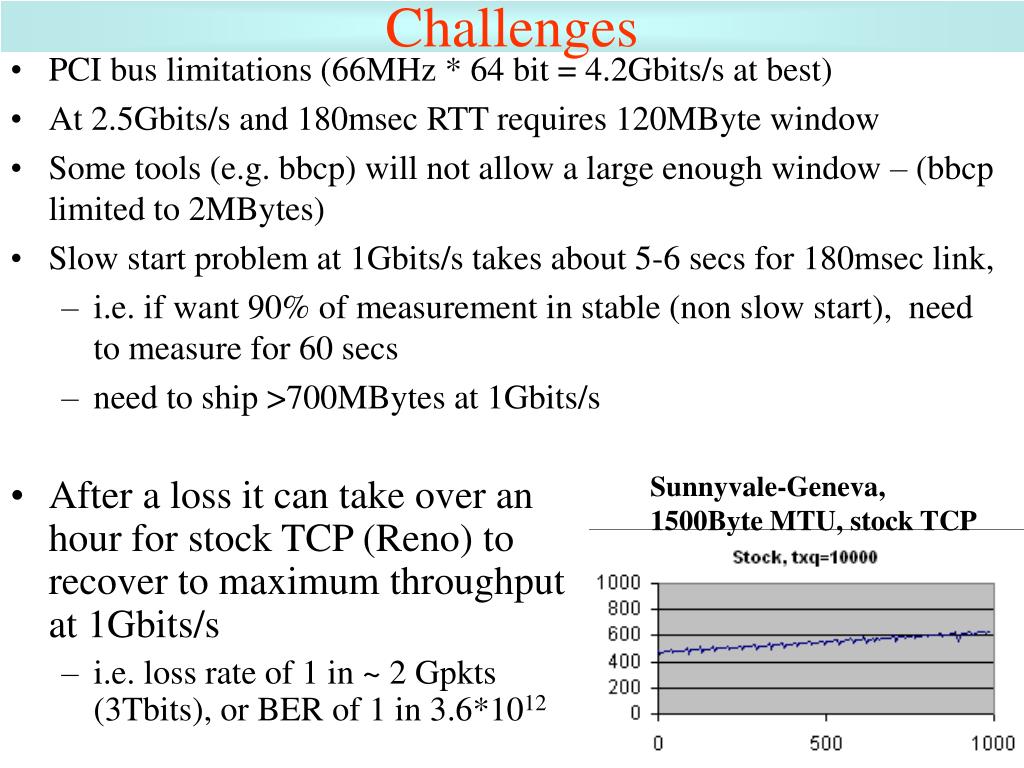

  8. Challenges • PCI bus limitations (66MHz * 64 bit = 4.2Gbits/s at best) • At 2.5Gbits/s and 180msec RTT requires 120MByte window • Some tools (e.g. bbcp) will not allow a large enough window – (bbcp limited to 2MBytes) • Slow start problem at 1Gbits/s takes about 5-6 secs for 180msec link, • i.e. if want 90% of measurement in stable (non slow start), need to measure for 60 secs • need to ship >700MBytes at 1Gbits/s • After a loss it can take over an hour for stock TCP (Reno) to recover to maximum throughput at 1Gbits/s • i.e. loss rate of 1 in ~ 2 Gpkts (3Tbits), or BER of 1 in 3.6*1012 Sunnyvale-Geneva, 1500Byte MTU, stock TCP

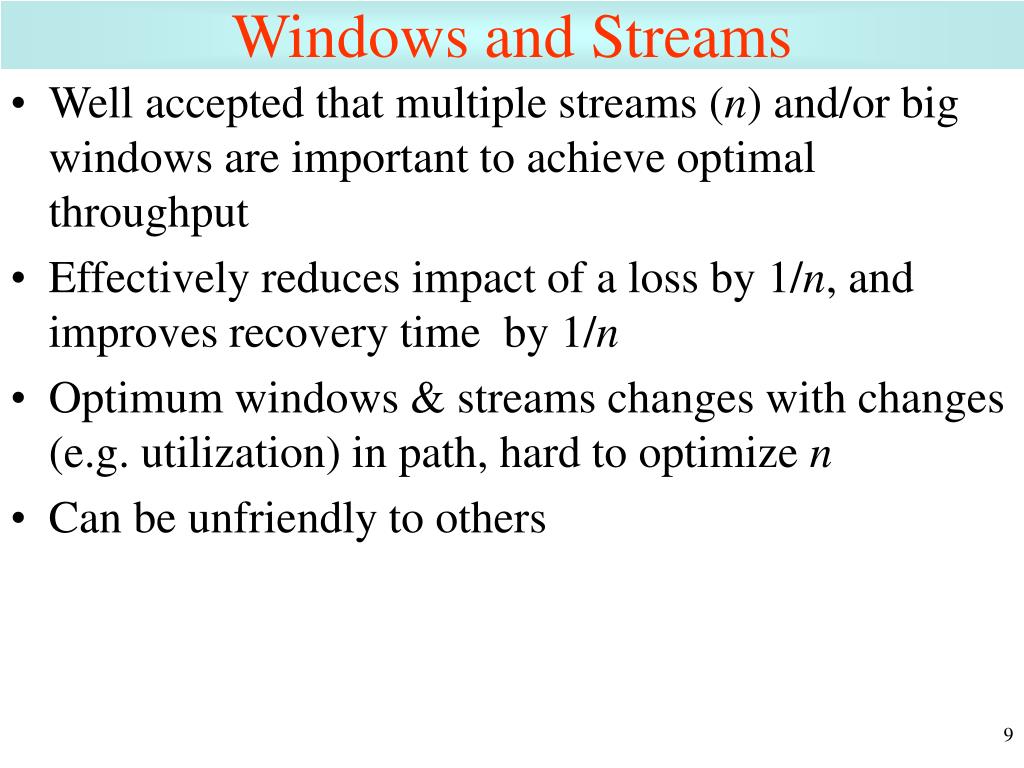

  9. Windows and Streams • Well accepted that multiple streams (n) and/or big windows are important to achieve optimal throughput • Effectively reduces impact of a loss by 1/n, and improves recovery time by 1/n • Optimum windows & streams changes with changes (e.g. utilization) in path, hard to optimize n • Can be unfriendly to others

  10. Even with big windows (1MB) still need multiple streams with Standard TCP • Above knee performance still improves slowly, maybe due to squeezing out others and taking more than fair share due to large number of streams • Streams, windows can change during day, hard to optimize • ANL, Caltech & RAL reach a knee (between 2 and 24 streams) above this gain in throughput slow

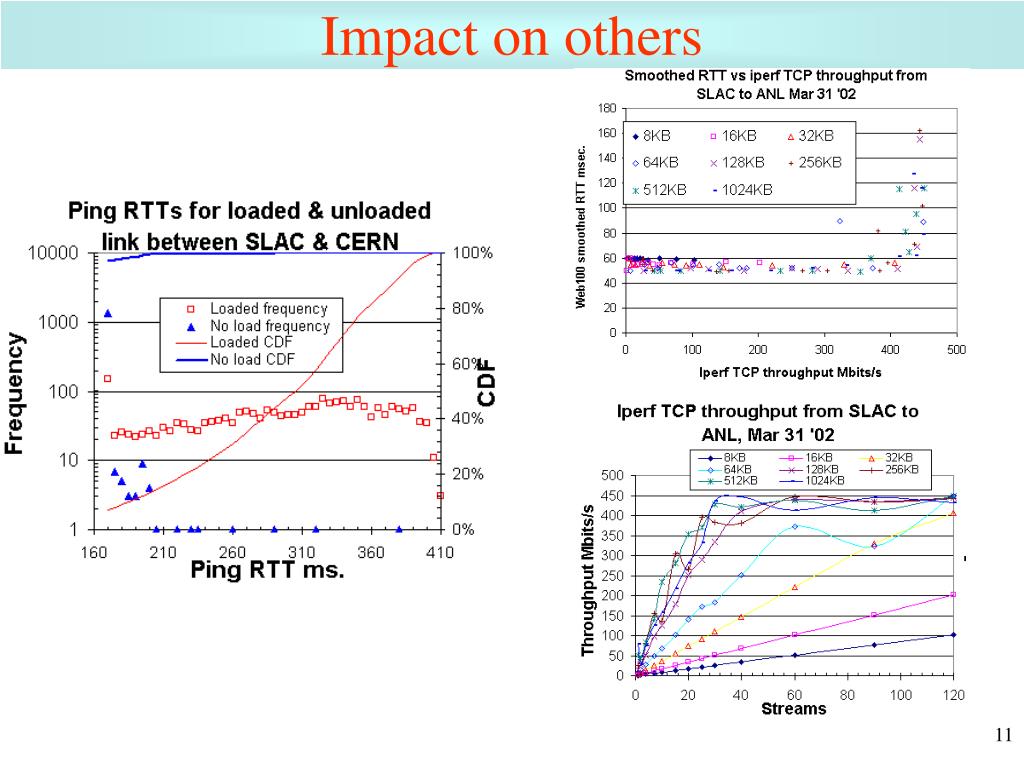

  11. Impact on others

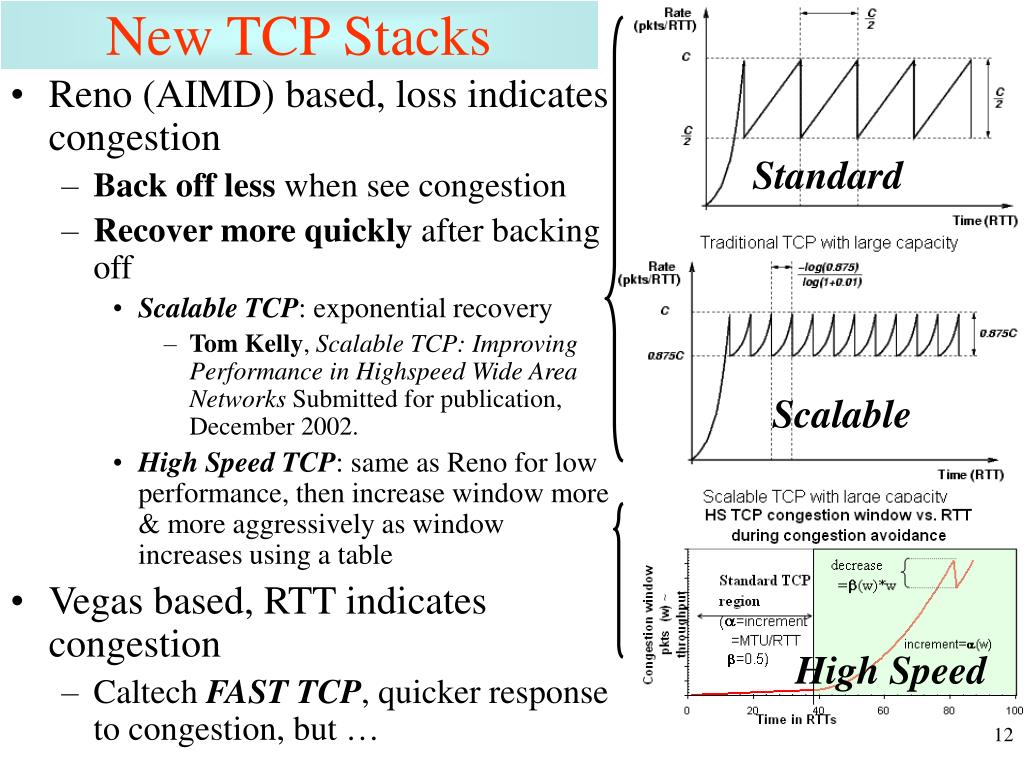

  12. New TCP Stacks • Reno (AIMD) based, loss indicates congestion • Back off less when see congestion • Recover more quickly after backing off • Scalable TCP: exponential recovery • Tom Kelly, Scalable TCP: Improving Performance in Highspeed Wide Area Networks Submitted for publication, December 2002. • High Speed TCP: same as Reno for low performance, then increase window more & more aggressively as window increases using a table • Vegas based, RTT indicates congestion • Caltech FAST TCP, quicker response to congestion, but … Standard Scalable High Speed

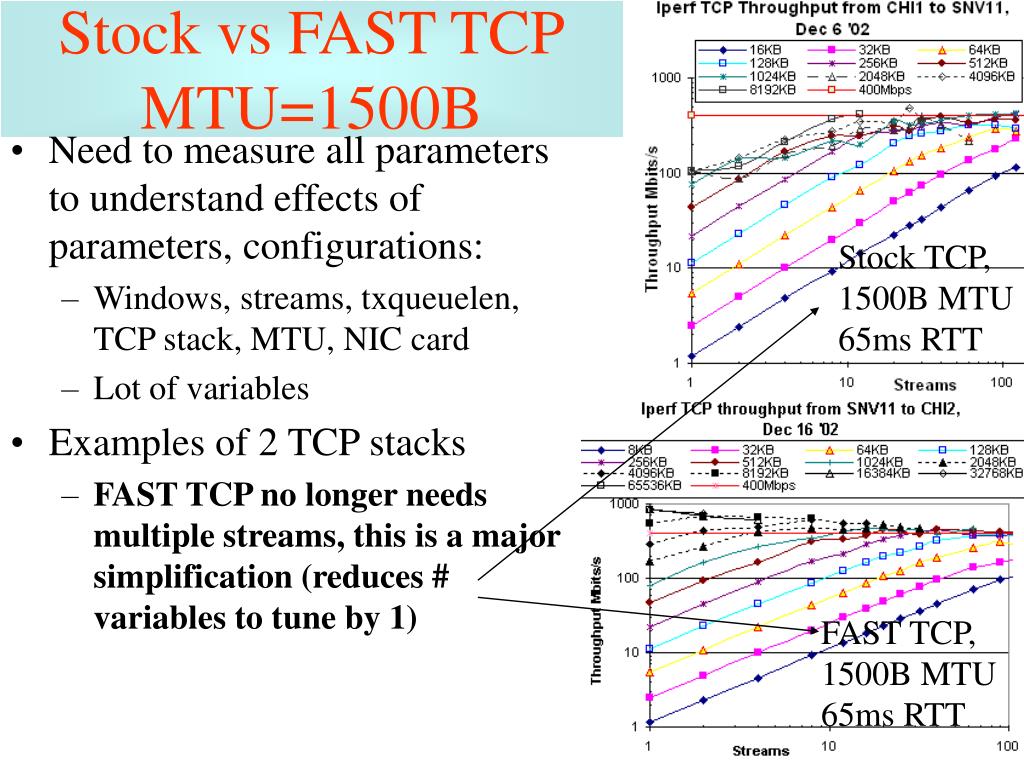

  13. Stock vs FAST TCPMTU=1500B • Need to measure all parameters to understand effects of parameters, configurations: • Windows, streams, txqueuelen, TCP stack, MTU, NIC card • Lot of variables • Examples of 2 TCP stacks • FAST TCP no longer needs multiple streams, this is a major simplification (reduces # variables to tune by 1) Stock TCP, 1500B MTU 65ms RTT FAST TCP, 1500B MTU 65ms RTT FAST TCP, 1500B MTU 65ms RTT

  14. Jumbo frames • Become more important at higher speeds: • Reduce interrupts to CPU and packets to process, reduce cpu utilization • Similar effect to using multiple streams (T. Hacker) • Jumbo can achieve >95% utilization SNV to CHI or GVA with 1 or multiple stream up to Gbit/s • Factor 5 improvement over single stream 1500B MTU throughput for stock TCP (SNV-CHI(65ms) & CHI-AMS(128ms)) • Complementary approach to a new stack • Deployment doubtful • Few sites have deployed • Not part of GE or 10GE standards 1500B Jumbos

  15. TCP stacks with 1500B MTU @1Gbps txqueuelen

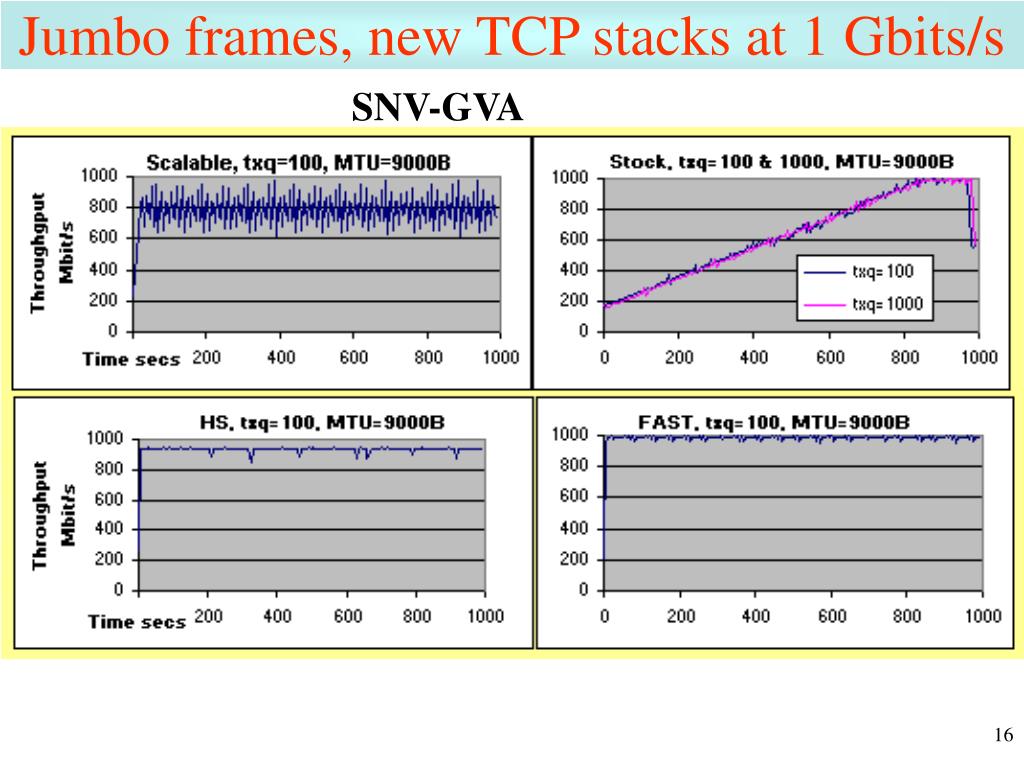

  16. Jumbo frames, new TCP stacks at 1 Gbits/s SNV-GVA

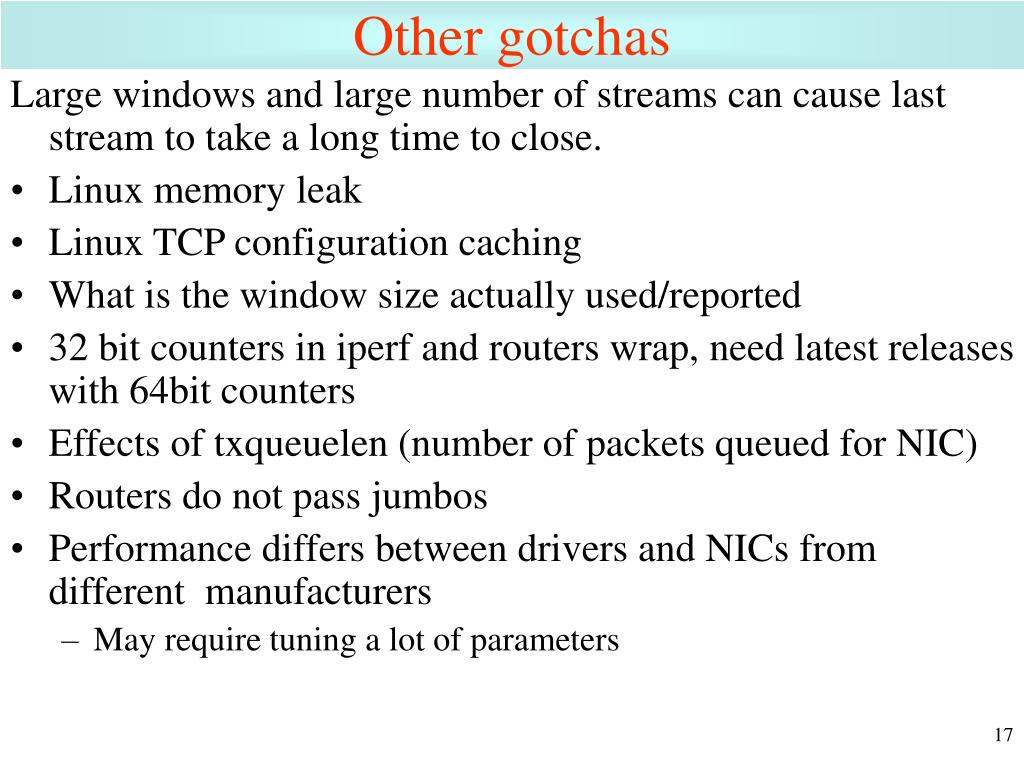

  17. Other gotchas Large windows and large number of streams can cause last stream to take a long time to close. • Linux memory leak • Linux TCP configuration caching • What is the window size actually used/reported • 32 bit counters in iperf and routers wrap, need latest releases with 64bit counters • Effects of txqueuelen (number of packets queued for NIC) • Routers do not pass jumbos • Performance differs between drivers and NICs from different manufacturers • May require tuning a lot of parameters

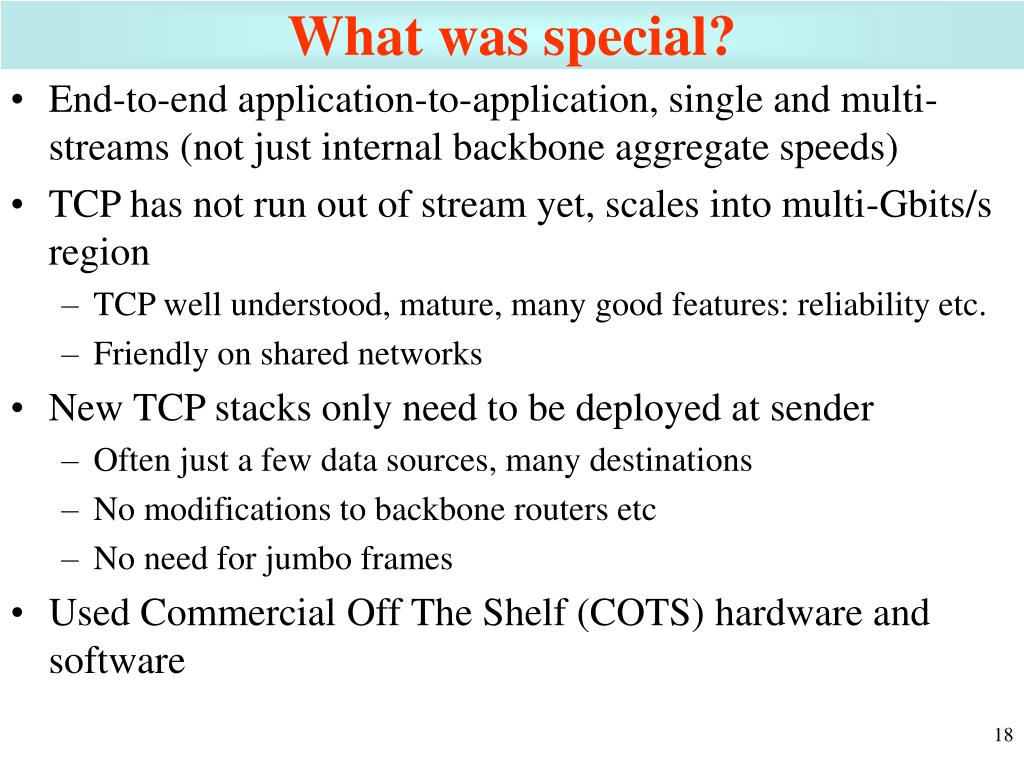

  18. What was special? • End-to-end application-to-application, single and multi-streams (not just internal backbone aggregate speeds) • TCP has not run out of stream yet, scales into multi-Gbits/s region • TCP well understood, mature, many good features: reliability etc. • Friendly on shared networks • New TCP stacks only need to be deployed at sender • Often just a few data sources, many destinations • No modifications to backbone routers etc • No need for jumbo frames • Used Commercial Off The Shelf (COTS) hardware and software

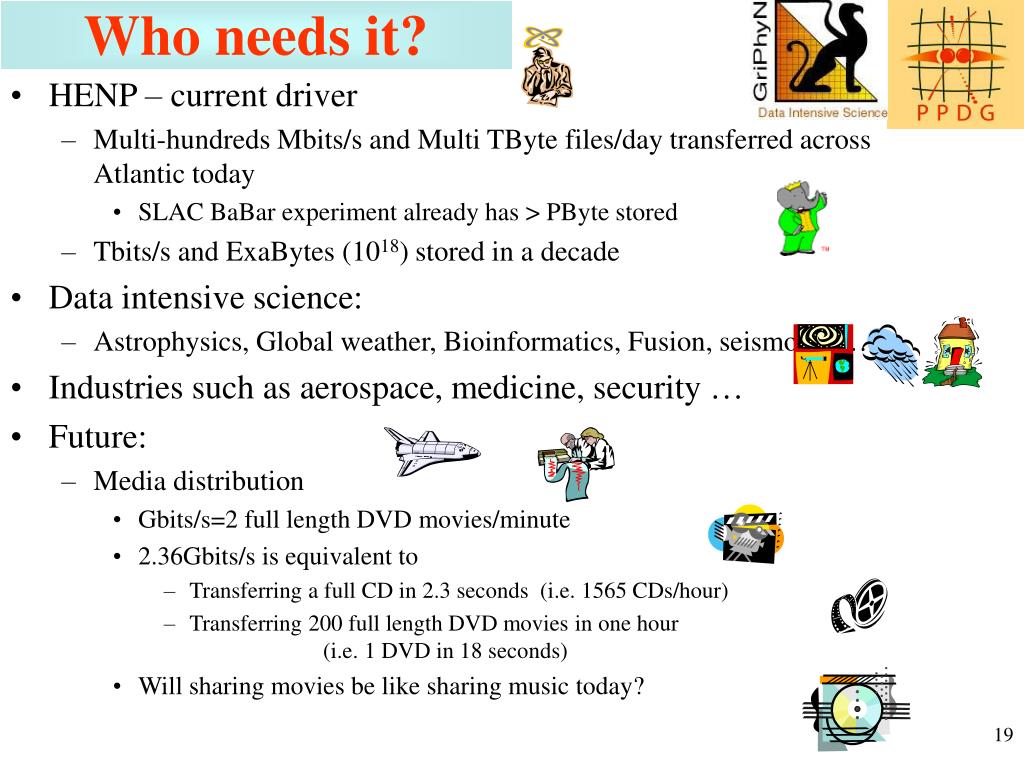

  19. Who needs it? • HENP – current driver • Multi-hundreds Mbits/s and Multi TByte files/day transferred across Atlantic today • SLAC BaBar experiment already has > PByte stored • Tbits/s and ExaBytes (1018) stored in a decade • Data intensive science: • Astrophysics, Global weather, Bioinformatics, Fusion, seismology… • Industries such as aerospace, medicine, security … • Future: • Media distribution • Gbits/s=2 full length DVD movies/minute • 2.36Gbits/s is equivalent to • Transferring a full CD in 2.3 seconds (i.e. 1565 CDs/hour) • Transferring 200 full length DVD movies in one hour (i.e. 1 DVD in 18 seconds) • Will sharing movies be like sharing music today?

  20. When will it have an impact • ESnet traffic doubling/year since 1990 • SLAC capacity increasing by 90%/year since 1982 • SLAC Internet traffic increased by factor 2.5 in last year • International throughput increase by factor 10 in 4 years • So traffic increases by factor 10 in 3.5 to 4 years, so in: • 3.5 to 5 years 622 Mbps => 10Gbps • 3-4 years 155 Mbps => 1Gbps • 3.5-5 years 45Mbps => 622Mbps • 2010-2012: • 100s Gbits for high speed production net end connections • 10Gbps will be mundane for R&E and business • Home: doubling ~ every 2 years, 100Mbits/s by end of decade? Throughput from US Throughput Mbits/s

  21. What’s next? • Break 2.5Gbits/s limit • Disk-to-disk throughput & useful applications • Need faster cpus (extra 60% MHz/Mbits/s over TCP for disk to disk), understand how to use multi-processors • Evaluate new stacks with real-world links, and other equipment • Other NICs • Response to congestion, pathologies • Fairnesss • Deploy for some major (e.g. HENP/Grid) customer applications • Understand how to make 10GE NICs work well with 1500B MTUs • Move from “hero” demonstrations to commonplace

  22. More Information • Internet2 Land Speed Record Publicity • www-iepm.slac.stanford.edu/lsr/ • www-iepm.slac.stanford.edu/lsr2/ • 10GE tests • www-iepm.slac.stanford.edu/monitoring/bulk/10ge/ • sravot.home.cern.ch/sravot/Networking/10GbE/10GbE_test.html • TCP stacks • netlab.caltech.edu/FAST/ • datatag.web.cern.ch/datatag/pfldnet2003/papers/kelly.pdf • www.icir.org/floyd/hstcp.html • Stack comparisons • www-iepm.slac.stanford.edu/monitoring/bulk/fast/ • www.csm.ornl.gov/~dunigan/net100/floyd.html
