Presentation Transcript


Unit 5d clinical laboratory testing basic clinical chemistry l.jpg

Unit #5D – Clinical Laboratory Testing – Basic Clinical Chemistry

Cecile Sanders, M.Ed., MLS(ASCP)


Unit 5d clinical laboratory testing basic clinical chemistry2 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

Purpose of Clinical Chemistry Tests

  • Measure levels of substances found normally in human blood that have biological functions. Examples: Glucose, Calcium

  • Detect or measure non-functional metabolites or waste products. Examples: Creatinine, Blood Urea Nitrogen (BUN)


Unit 5d clinical laboratory testing basic clinical chemistry3 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Detect or measure substances that indicate cell damage or disease. Examples: Liver enzymes, such as ALT, Cardiac enzymes, such as CK-MB

  • Detect or measure drugs or toxic substances. Examples: Dilantin, Drugs of abuse screen


Unit 5d clinical laboratory testing basic clinical chemistry4 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Types of Specimens for Chemical Analysis

    • Whole blood, serum or plasma. The most common specimen is serum, collected in a tube with no anticoagulant so that the blood will clot.

    • Urine – often 24 hour collections

    • Others – Cerebrospinal Spinal Fluid (CSF) and other fluids


Unit 5d clinical laboratory testing basic clinical chemistry5 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

Blood to which an anticoagulant has been added will not clot. Blood cells will settle to the bottom of the tube leaving plasma at the top of the tube.


Unit 5d clinical laboratory testing basic clinical chemistry6 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

Blood to which no anticoagulant has been added will clot. Blood cells get caught in the clot leaving serum behind.


Unit 5d clinical laboratory testing basic clinical chemistry7 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Collection and Handling of Blood Specimens for Chemical Analysis

    • Blood collection tubes for obtaining serum - Serum Separator Tubes (SST) do not have an anticoagulant but do contain a gel substance which will form an interface between the clot and the serum when the blood specimen is centrifuged. These tubes are sometimes referred to as “Tiger Tops”.


Unit 5d clinical laboratory testing basic clinical chemistry8 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

Serum is separated from an SST (Tiger Top) tube


Unit 5d clinical laboratory testing basic clinical chemistry9 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry


Unit 5d clinical laboratory testing basic clinical chemistry10 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

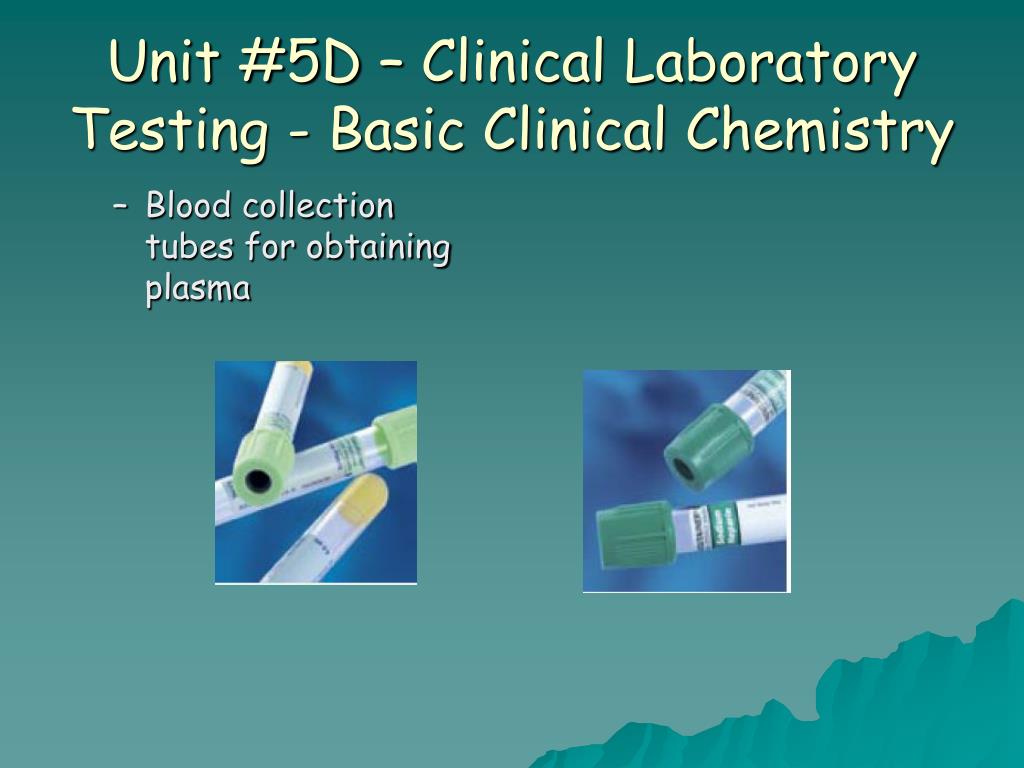

  • Blood collection tubes for obtaining plasma


Unit 5d clinical laboratory testing basic clinical chemistry11 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Patient preparation; time of collection; & effects of eating on chemistry analysis

    • Some specimens are increased or decreased after eating (ex. Glucose, triglycerides), so it is important to know what the test and collection method call for. Specimens for these tests are usually collected in a fasting state.


Unit 5d clinical laboratory testing basic clinical chemistry12 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Sometimes serum or plasma appears lipemia (milky) after a patient has eaten a fatty meal. Lipemia affects most chemistry analyses. The blood must be recollected when the patient is fasting.


Unit 5d clinical laboratory testing basic clinical chemistry13 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Clinical Chemistry Tests

    • Normal or Reference Values – range of values for a particular chemistry test from healthy individuals

    • Chemistry Panel grouping – some tests are “bundled” according to the system or organ targeted. Examples: thyroid panel, liver panel, cardiac panel, kidney panel, basic metabolic panel, etc.


Unit 5d clinical laboratory testing basic clinical chemistry14 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Commonly Performed Chemistry Tests or Analytes

    • Proteins – essential components of cells and body fluids. Some made by body, others acquired from diet. Provides information about state of hydration, nutrition and liver function, since most serum proteins are made in the liver.


Unit 5d clinical laboratory testing basic clinical chemistry15 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Electrolytes – sometimes called “lytes”

    • Includes sodium (Na), potassium (K), chloride (Cl) and bicarbonate (HCO3-)

    • Collectively these have a great effect on hydration, acid-base balance and osmotic pressure as well as pH and heart and muscle contraction

    • Levels differ depending on if inside vs. outside cells

    • Important in transport of substances into and out of cells


Unit 5d clinical laboratory testing basic clinical chemistry16 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Minerals

    • Calcium

      • Used in coagulation and muscle contraction

      • 99% is in skeleton and is not metabolically active

      • Influenced by vitamin D, parathyroid hormone, estrogen and calcitonin

      • Hypercalcemia – occurs in parathyroidism, bone malignancies, hormone disorders, excessive vitamin D, and acidosis; may cause kidney stones

      • Hypocalcemia – can cause tetany; occurs in hypoparathyroidism, vitamin D deficiency, poor dietary absorption and kidney disease


Unit 5d clinical laboratory testing basic clinical chemistry17 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

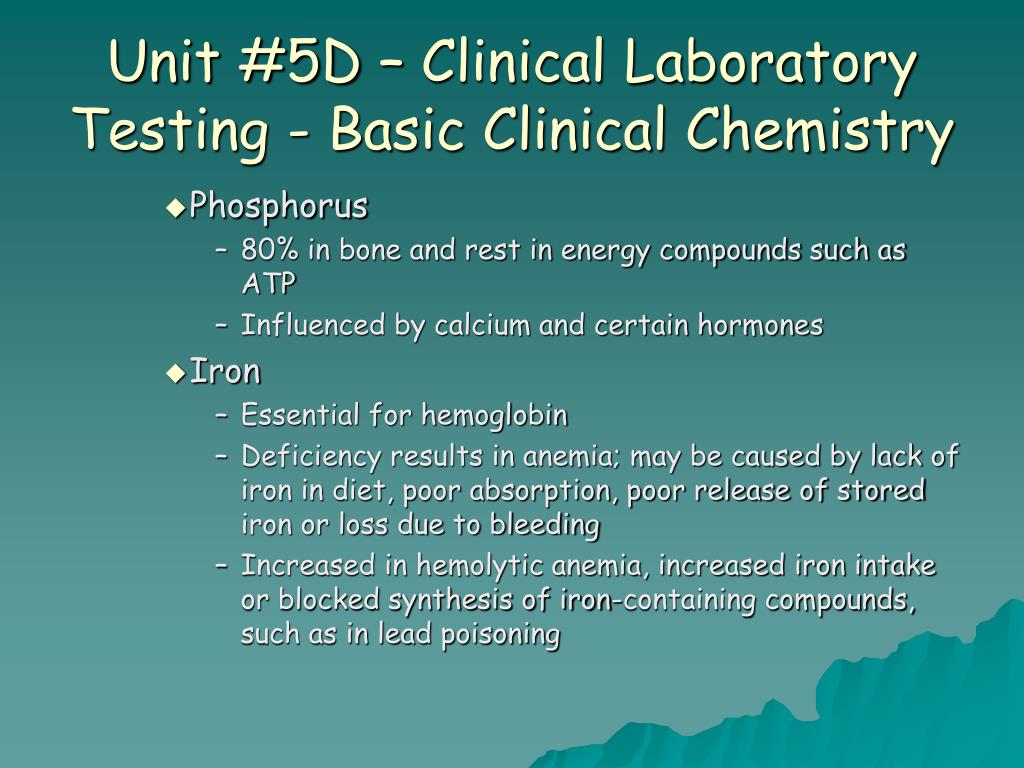

  • Phosphorus

    • 80% in bone and rest in energy compounds such as ATP

    • Influenced by calcium and certain hormones

  • Iron

    • Essential for hemoglobin

    • Deficiency results in anemia; may be caused by lack of iron in diet, poor absorption, poor release of stored iron or loss due to bleeding

    • Increased in hemolytic anemia, increased iron intake or blocked synthesis of iron-containing compounds, such as in lead poisoning


Unit 5d clinical laboratory testing basic clinical chemistry18 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Kidney Function Tests

    • Serum Creatinine

      • Best test for overall kidney function; not affected by diet or hormone levels

      • Waste product of muscle metabolism

      • Serum creatinine rises when kidney function is impaired


Unit 5d clinical laboratory testing basic clinical chemistry19 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • BUN (Blood Urea Nitrogen)

    • BUN is surplus amino acids that are converted to urea and excreted by kidneys as a waste product

    • BUN influenced by diet and hormones, so it is NOT as good an indicator of renal function as serum creatinine levels

    • BUN increased in kidney disease, high protein diet, and after administration of steroids

    • BUN decreased in starvation, pregnancy and in persons on a low protein diet


Unit 5d clinical laboratory testing basic clinical chemistry20 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Uric Acid

    • Formed from breakdown of nucleic acids and excreted as a waste product by kidneys

    • Increased in kidney disease, but most often used to diagnosis gout (pain in joints, mainly big toe, due to precipitated uric acid crystals)

    • Also increased in increased cell destruction, such as after massive radiation or chemotherapy


Unit 5d clinical laboratory testing basic clinical chemistry21 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Liver Function Tests

    • Liver functions:

      • Synthesizes glycogen from glucose

      • Makes plasma proteins (albumin, lipoproteins, coagulation proteins)

      • Forms cholesterol and degrades it into bile acids, which emulsifies fats for absorption

      • Stores iron, glycogen, vitamins and other substances

      • Destroys old blood cells and recycles components of hemoglobin


Unit 5d clinical laboratory testing basic clinical chemistry22 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry


Unit 5d clinical laboratory testing basic clinical chemistry23 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Total Bilirubin

    • Waste production of hemoglobin breakdown

    • Increased in excessive RBC breakdown, such as hemolytic anemia, or impaired liver function or some sort of obstruction, such as a tumor or gall stone


Unit 5d clinical laboratory testing basic clinical chemistry24 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Liver Enzymes – levels increase following damage to liver tissues

    • Alkaline Phosphatase (ALP or AP) - Greatly increased in liver tumors and lesions; moderately increased in diseases such as hepatitis

    • Alanine Aminotransferase (ALT; formerly called SGPT) - Increases up to 10x in cirrhosis, infections or tumors and up to 100x in viral or toxic hepatitis


Unit 5d clinical laboratory testing basic clinical chemistry25 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Asparate Aminotransferase (AST; formerly called SGOT) - Increased in liver disease, but also in heart attacks

  • Gamma Glutamyl Transferase (GGT) - Often used to monitor patients recovering from hepatitis and cirrhosis

  • Lactate Dehydrogenase (LD) - Increased in liver disease and following heart attacks


Unit 5d clinical laboratory testing basic clinical chemistry26 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Cardiac Function Tests

    • Creatine Kinase (CK) - Widely used to diagnosis and monitor heart attacks

    • Troponins

      • Only present in heart muscle, making it a more accurate indicator of heart attack than CK

      • Cardiac Troponin T (cTnT)

      • Cardiac Troponin I (cTnI)


Unit 5d clinical laboratory testing basic clinical chemistry27 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Lipid Metabolism Tests

    • Cholesterol

      • Present in all tissues

      • Serves as the skeleton for many hormones

      • Recommended to be less than 200 mg/dL in adults)

      • LDL = “bad” cholesterol; HDL = “good” cholesterol


Unit 5d clinical laboratory testing basic clinical chemistry28 l.jpg

Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

  • Triglycerides

    • Main storage form of lipids, comprising 95% of fat tissue

    • Hyperlipidemia – having high blood levels of triglycerides – may increase risk of heart attack

  • Carbohydrate Metabolism Tests

    • Glucose - Largely regulated by insulin


  • Unit 5d clinical laboratory testing basic clinical chemistry29 l.jpg

    Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry


    Unit 5d clinical laboratory testing basic clinical chemistry30 l.jpg

    Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

    • Thyroid Function Tests

      • Thyroid Stimulating Hormone (TSH) - Inverse relationship to thyroid function (the higher the TSH, the lower the thyroid function and vice versa)

      • Other less common thyroid tests include T3 and T4

      • Hypothyroidism – underactive thyroid gland

      • Hyperthyroidism – overactive thyroid gland


    Unit 5d clinical laboratory testing basic clinical chemistry31 l.jpg

    Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

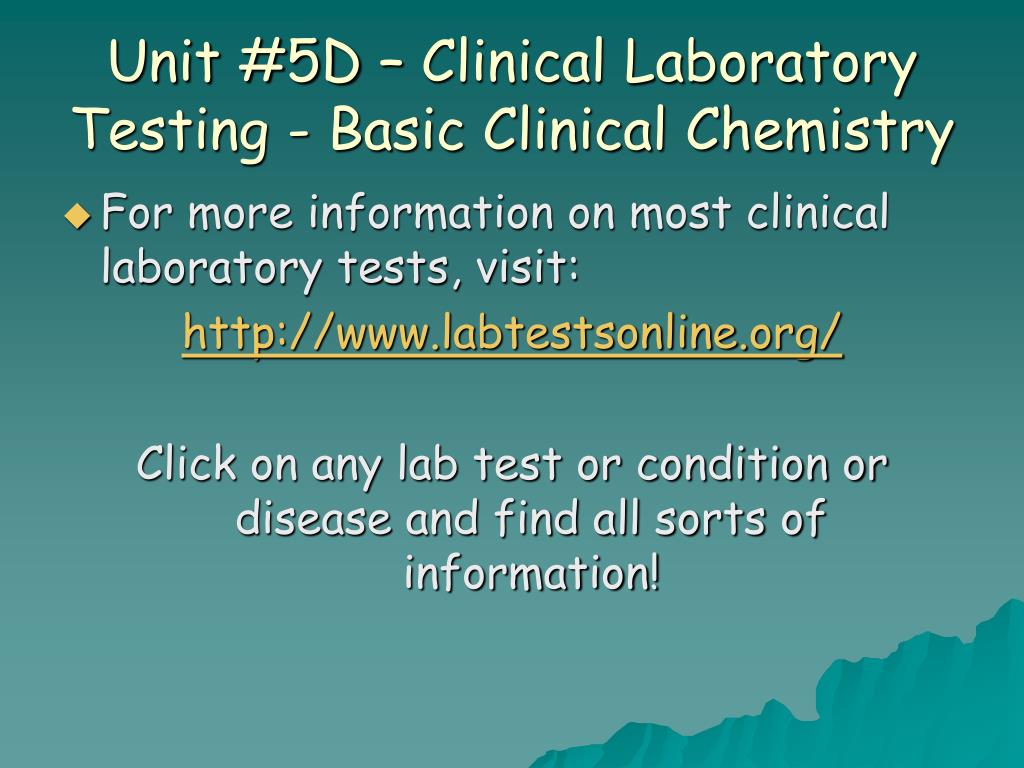

    • For more information on most clinical laboratory tests, visit:

      http://www.labtestsonline.org/

      Click on any lab test or condition or disease and find all sorts of information!


    Unit 5d clinical laboratory testing basic clinical chemistry32 l.jpg

    Unit #5D – Clinical Laboratory Testing - Basic Clinical Chemistry

    Photos of some clinical chemistry laboratories
