Real world fabricpath deployment at ibm data centers

Real world FabricPath Deployment at IBM Data Centers

Santiago Freitas

CCIE#18776 (R&S / SP)

Consulting Systems Engineer

Cisco-IBM Global Team

[email protected]

Lasse Leegaard

IT Architect

AT&T

[email protected]

Cisco Confidential

1


Real world fabricpath deployment at ibm data centers

What?

IBM has achieved tangible benefits by migrating its infrastructure from Catalyst 6500 to a Nexus 2000, 5000, 7000 Architecture.

IBM has adopted FabricPath on the Nexus 5K and 7K and MPLS L3VPN on the Nexus 7K.

The solution was extensively tested at Cisco ECATS.

FabricPath was a key differentiator when competing with Juniper.

We learned a lot from this deployment.

2

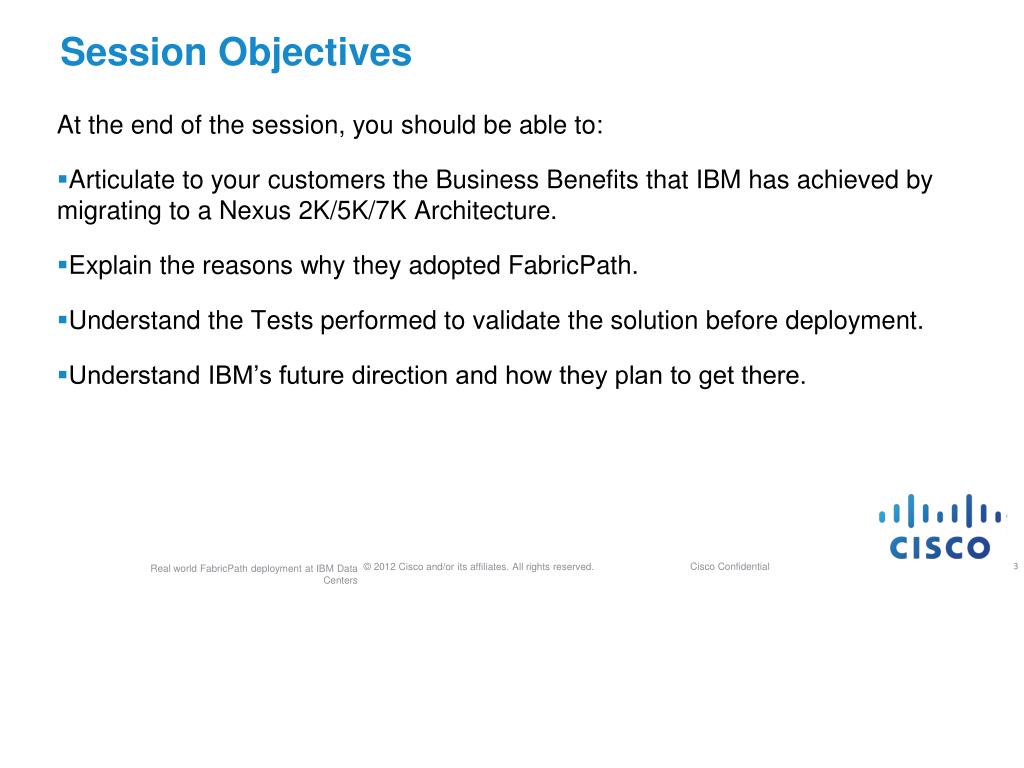

Session objectives

Session Objectives

At the end of the session, you should be able to:

Articulate to your customers the Business Benefits that IBM has achieved by migrating to a Nexus 2K/5K/7K Architecture.

Explain the reasons why they adopted FabricPath.

Understand the Tests performed to validate the solution before deployment.

Understand IBM’s future direction and how they plan to get there.

3


Ibm nordic strategic outsourcing

IBM Nordic Strategic Outsourcing

One of the company’s largest Integrated Market Teams (IMT) globally

IBM SO provides outsourcing services that offer management of applications and other IT components in either an onsite or hosted arrangement.

Eight Data Centers located in Denmark, Sweden and Finland.

Serve around 200 customers

  • Some have dedicated infrastructures

  • Over 100 served by a shared, multitenant

    infrastructure

4


Overview of the network infrastructure

Overview of the Network Infrastructure

5

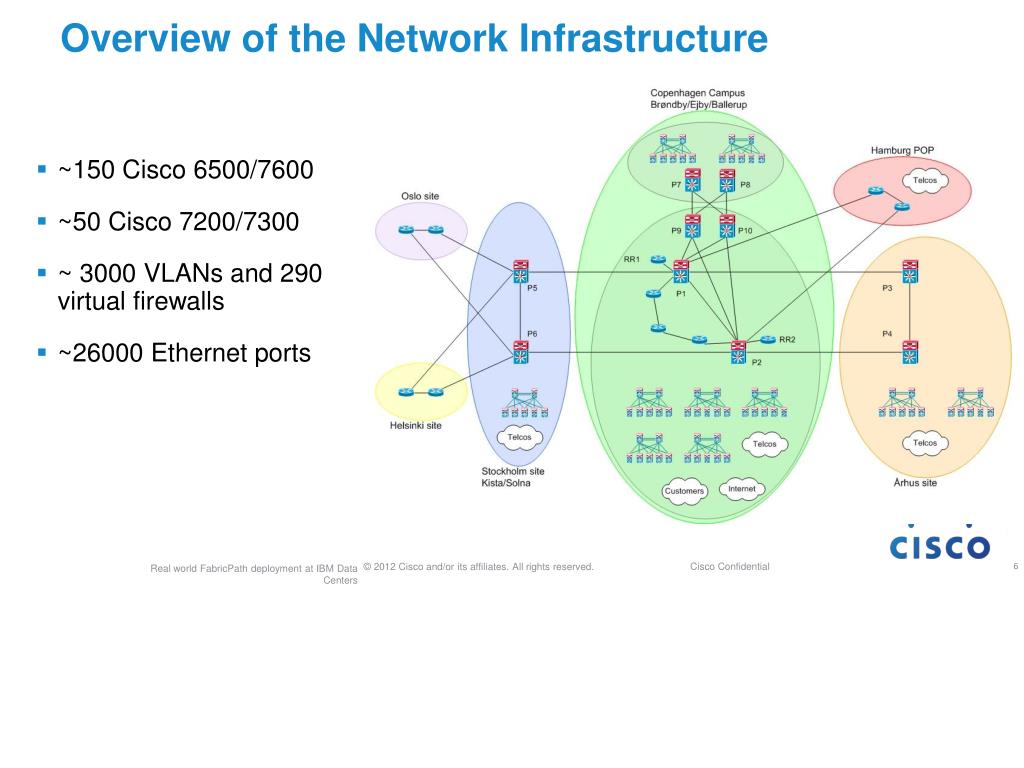

Overview of the network infrastructure1

Overview of the Network Infrastructure

6

~150 Cisco 6500/7600

~50 Cisco 7200/7300

~ 3000 VLANs and 290 virtual firewalls

~26000 Ethernet ports


One of the access blocks reached eol

One of the Access Blocks Reached EoL

A portion of the shared infrastructure was approaching end of life

- 22 Access Switches

- 4080 access ports

  • 1G or 2x1G uplinks

    - 2 pair of FWSM in Service Switches

7

Cisco and AT&T performed EoL analysis.

Factual discussion: Vital to demonstrate the need for a full network refresh.


Hardware refresh options

Hardware Refresh Options

8


Business benefits of the nexus based solution

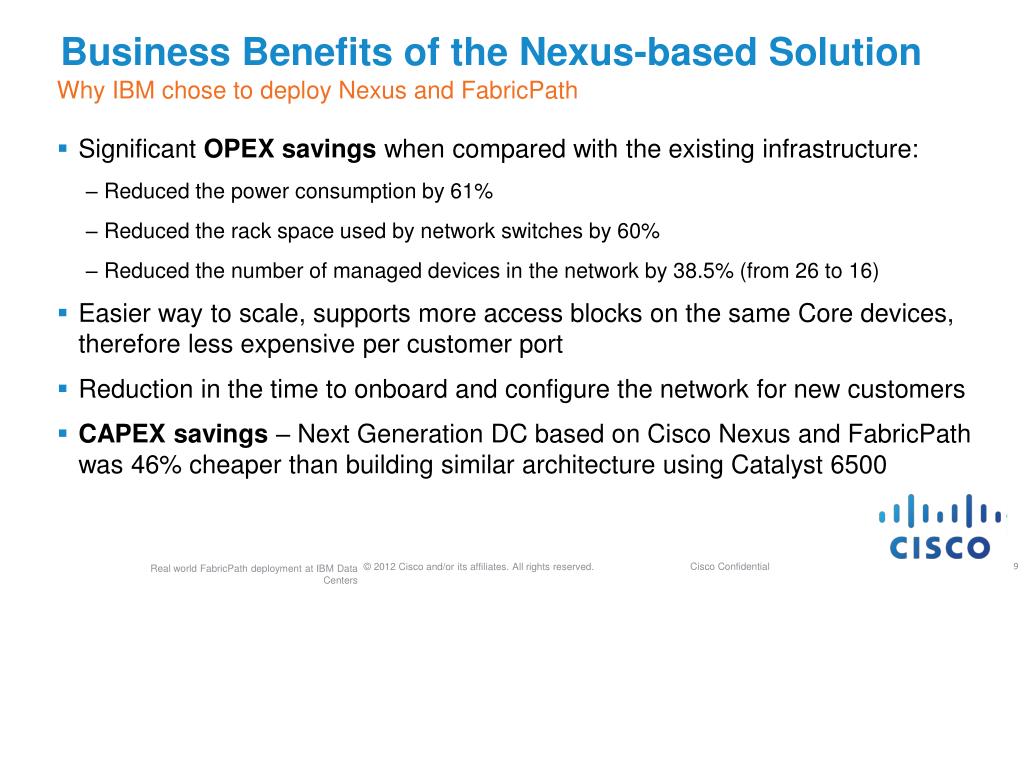

Business Benefits of the Nexus-based Solution

Why IBM chose to deploy Nexus and FabricPath

Significant OPEX savings when compared with the existing infrastructure:

  • Reduced the power consumption by 61%

  • Reduced the rack space used by network switches by 60%

  • Reduced the number of managed devices in the network by 38.5% (from 26 to 16)

    Easier way to scale, supports more access blocks on the same Core devices, therefore less expensive per customer port

    Reduction in the time to onboard and configure the network for new customers

    CAPEX savings – Next Generation DC based on Cisco Nexus and FabricPath was 46% cheaper than building similar architecture using Catalyst 6500

9

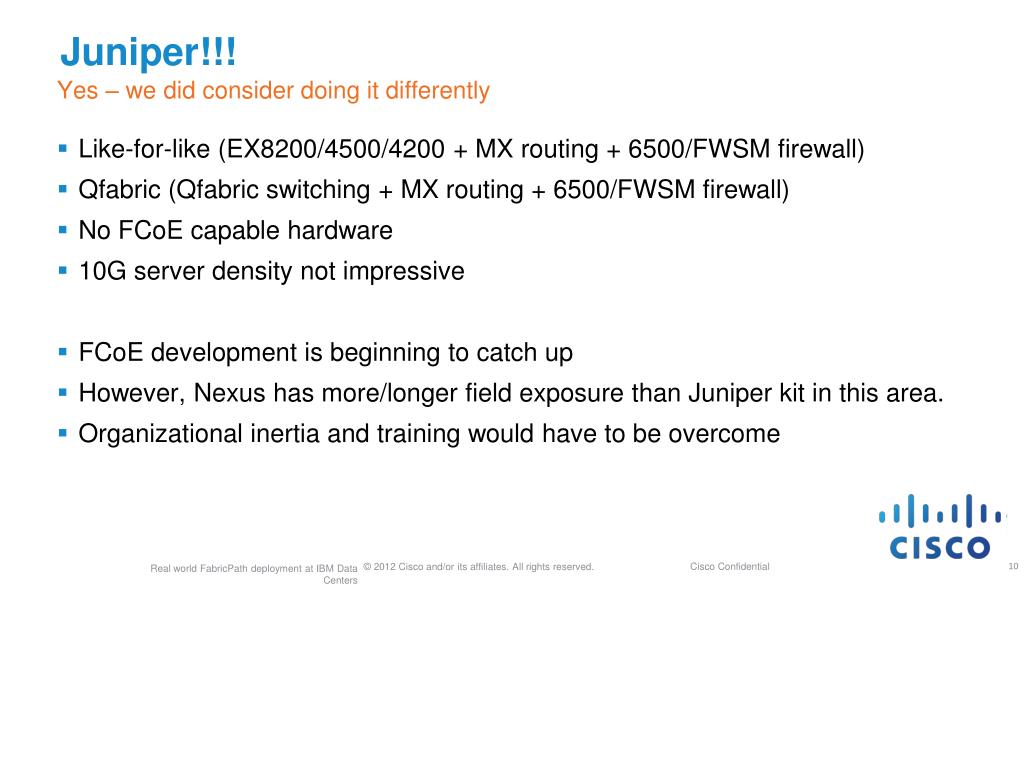

Juniper

Juniper!!!

Yes – we did consider doing it differently

Like-for-like (EX8200/4500/4200 + MX routing + 6500/FWSM firewall)

Qfabric (Qfabric switching + MX routing + 6500/FWSM firewall)

No FCoE capable hardware

10G server density not impressive

FCoE development is beginning to catch up

However, Nexus has more/longer field exposure than Juniper kit in this area.

Organizational inertia and training would have to be overcome

10


What ibm actually deployed

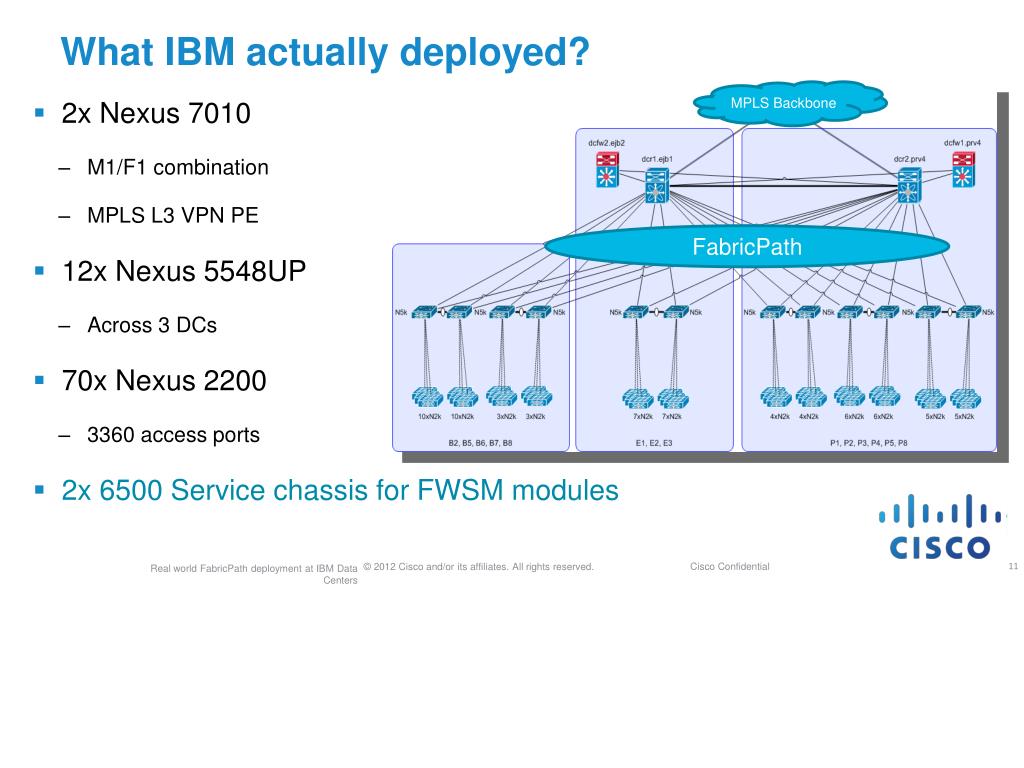

What IBM actually deployed?

MPLS Backbone

FabricPath

11

2x Nexus 7010

  • M1/F1 combination

  • MPLS L3 VPN PE

    12x Nexus 5548UP

  • Across 3 DCs

    70x Nexus 2200

  • 3360 access ports

    2x 6500 Service chassis for FWSM modules


Fabricpath flexibility

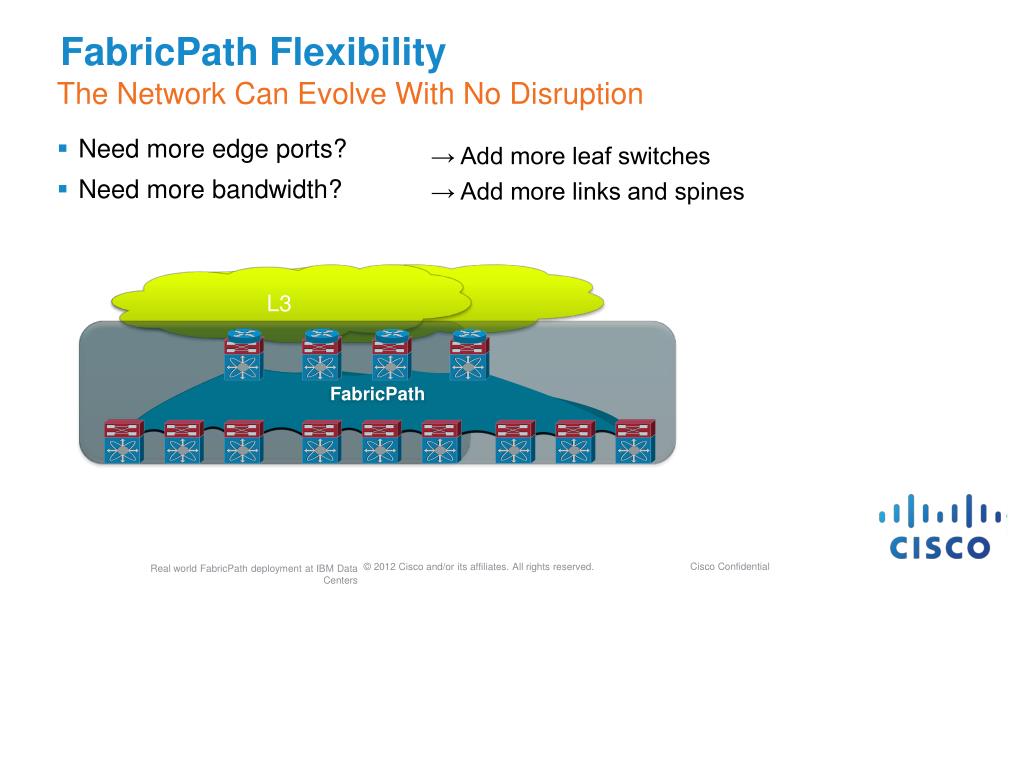

FabricPath Flexibility

The Network Can Evolve With No Disruption

L3

L3

FabricPath

FabricPath

FabricPath

→ Add more leaf switches

→ Add more links and spines

Need more edge ports?

Need more bandwidth?


Why ibm adopted fabricpath

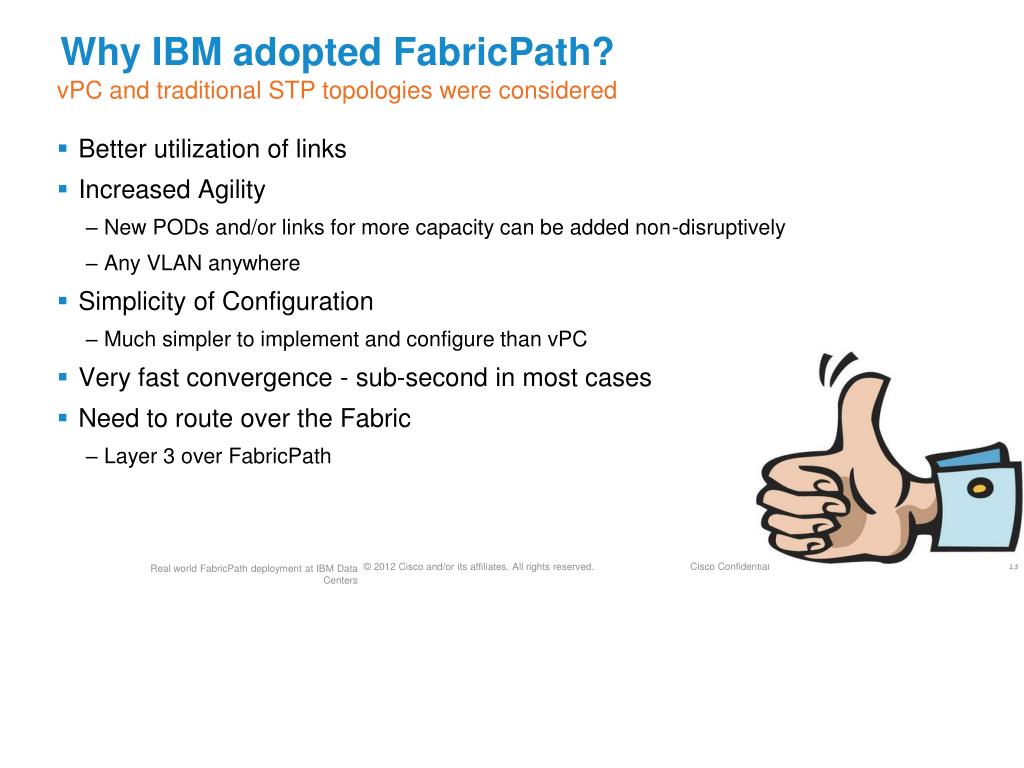

Why IBM adopted FabricPath?

vPC and traditional STP topologies were considered

Better utilization of links

Increased Agility

  • New PODs and/or links for more capacity can be added non-disruptively

  • Any VLAN anywhere

    Simplicity of Configuration

  • Much simpler to implement and configure than vPC

    Very fast convergence - sub-second in most cases

    Need to route over the Fabric

  • Layer 3 over FabricPath

13


Fabricpath enablement

FabricPath enablement

Was that really it?

vpc domain 11

role priority 100

peer-keepalive destination 10.1.20.46 source 10.1.20.45

peer-gateway

auto-recovery

fabricpath switch-id 1000

fabricpath domain default

spf-interval 50 50 50

lsp-gen-interval 50 50 50

root-priority 255 / 254 (N7K)

fabricpath switch-id 1

install feature-set fabricpath

feature-set fabricpath

vlan 3865

mode fabricpath

spanning-tree mst configuration

name IBMMST02

revision 10

instance 1 vlan 1-2048

instance 2 vlan 204

interface Ethernet1/5

switchport mode fabricpath

14

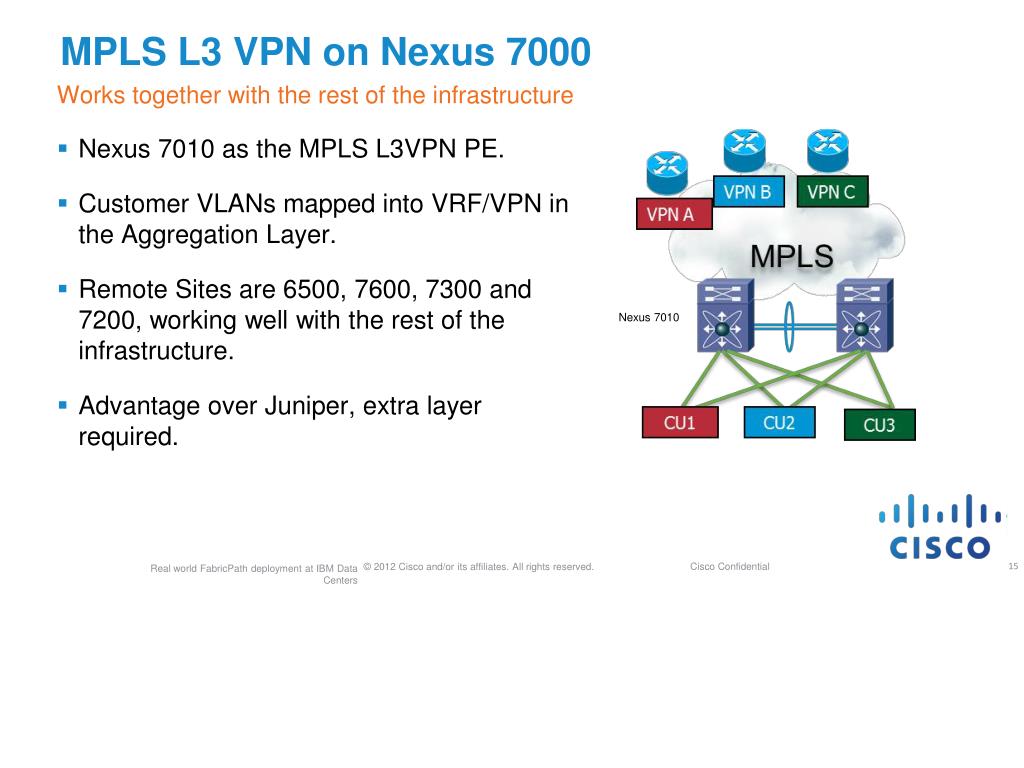

Mpls l3 vpn on nexus 7000

MPLS L3 VPN on Nexus 7000

Works together with the rest of the infrastructure

Nexus 7010

Nexus 7010 as the MPLS L3VPN PE.

Customer VLANs mapped into VRF/VPN in the Aggregation Layer.

Remote Sites are 6500, 7600, 7300 and 7200, working well with the rest of the infrastructure.

Advantage over Juniper, extra layer required.

15


Migration plan

Migration plan

How to get from here to there (or from there to here depending on your point of view)

MPLS P

VPLS PE

MPLS PE +

Aggregation

L3

L3

VLANs

VLANs

FabricPath

VLANs

FW/LB service +

Access

17


Ecats end of test report

ECATS End of Test Report

Cisco Enhanced Customer Aligned Testing Services - http://ecats

See Additional Resources Slides for link to it

36 Major Tests Areas

Detailed Results

DDTS/Bugs Found and workarounds

Technical Notes

Convergence Summary Table

HW and SW utilized

Lessons Learned

Configuration Files

18


Migration plan1

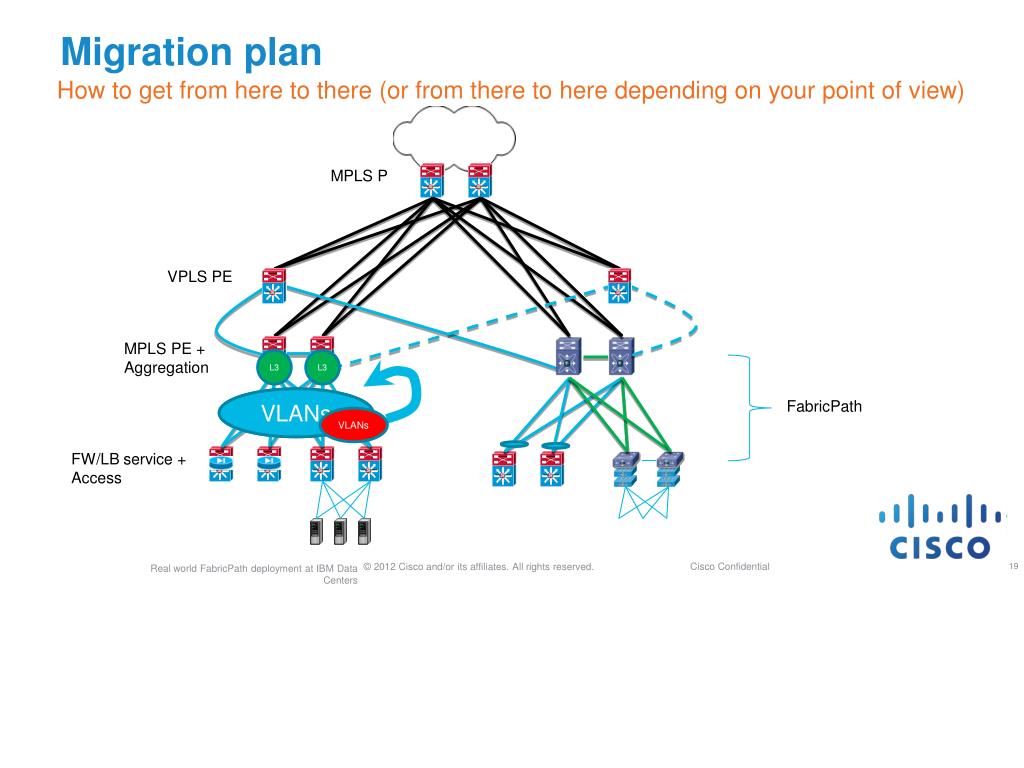

Migration plan

How to get from here to there (or from there to here depending on your point of view)

MPLS P

VPLS PE

MPLS PE +

Aggregation

L3

L3

VLANs

VLANs

FabricPath

VLANs

FW/LB service +

Access

19


Ecats end of test report1

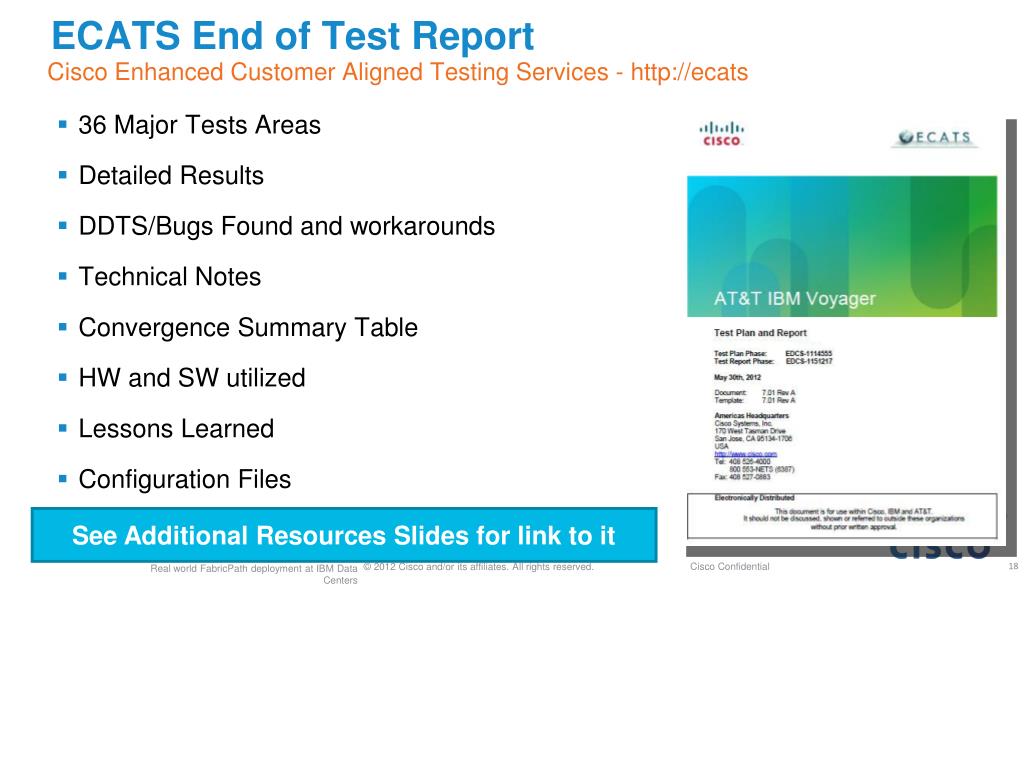

ECATS End of Test Report

Cisco Enhanced Customer Aligned Testing Services - http://ecats

See Additional Resources Slides for link to it

36 Major Tests Areas

Detailed Results

DDTS/Bugs Found and workarounds

Technical Notes

Convergence Summary Table

HW and SW utilized

Lessons Learned

Configuration Files

20


Ecats testing experience

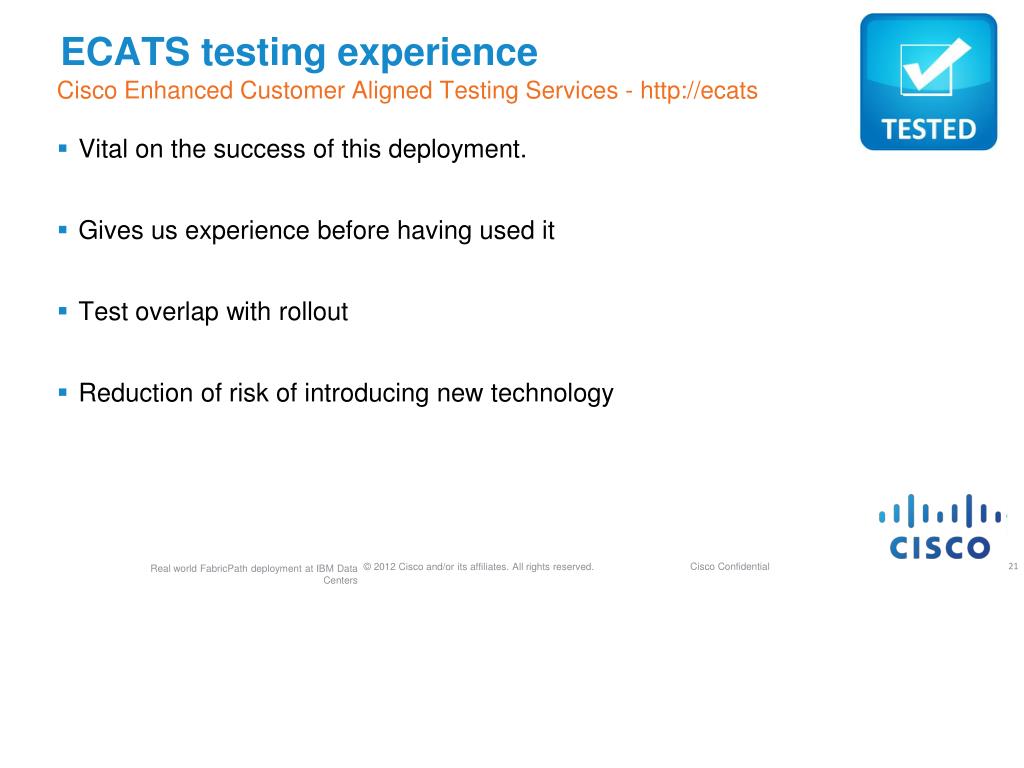

ECATS testing experience

Cisco Enhanced Customer Aligned Testing Services - http://ecats

Vital on the success of this deployment.

Gives us experience before having used it

Test overlap with rollout

Reduction of risk of introducing new technology

21


Testing topology

Testing Topology

22

Remote Site

  • Agg/MPLS PEs (7600)

    • L2/L3 Aggregation

    • ISIS / MP-BGP / LDP

  • Access Layer Cat6500 (Layer 2)

    ISIS and MPLS in the core

    Site Under Test

  • Nexus 7010 as Agg/MPLS PE (L2/L3)

  • vPC+ at the Core for Active/Active HSRP

  • Nexus 5548UP/Nexus 2248 as Access

  • FabricPath

  • Servers attached with vPC+

  • OSPF/BGP over FP


Testing topology and scale numbers

Testing Topology and Scale Numbers

Hardware and Software Versions and Scale Numbers

For Your

Reference

  • 300 VLANs

  • 300 SVIs and 300 HSRP

  • 200 VRFs / MPLS L3 VPN

  • 3000 MAC addresses injected

  • IMIX Ethernet Traffic

    • 4Gbps within Nexus Access Block (East – West)

    • 800Mbps towards remote site (North-South)

    • A full mix of bi-directional traffic paths (Inter-VLAN, Intra-VLAN, Inter-VRF)

Access Layer

  • Nexus 5548UP – NX-OS 5.1(3)N1(1a)

  • FEX Nexus 2248

    Core

  • Nexus 7010 – NX-OS 5.2(3a)

  • 2x M1 8x 10GE (N7K-M108X2-12L)

  • 2x F1 32x 1/10GE (N7K-F132XP-15)

    Remote Site PE

  • 7609 with RSP-720 – IOS 15.1(1)S

23


Convergence times

Convergence Times

Failover Test Result Convergence Summary

Sub-second on FabricPath link failures

Layer 3 Link Failure on Core towards Remote site – 64 ms / 30 ms on Recovery

M1 Line Card Failure on Core - 950 ms (North-South) / 75 ms on Recovery

Fabric Path Link Failures (multiple tests) – 117 ms / 241 ms on Recovery

F1 Line Card failure on Core - 1380 ms / 319 ms on Recovery

Core Node Failure (power off N7010) - 2584 ms / 2703 ms on Recovery

Access Node Failure - 316.52 ms for vPC+ attached servers / 181 ms on Recovery

24


Dynamic routing protocol and fabricpath

Dynamic Routing Protocol and FabricPath

You can run OSPF and BGP over FabricPath, you can’t over vPC

CE3-2851-RK18#sh ip ospf neighbor

Neighbor ID Pri State Dead Time Address Interface

10.10.101.5 1 FULL/BDR 00:00:36 10.10.101.5 GigabitEthernet0/1

10.10.101.7 1 FULL/DR 00:00:33 10.10.101.7 GigabitEthernet0/1

10.10.101.8 0 2WAY/DROTHER 00:00:30 10.10.101.8 GigabitEthernet0/1

CE3-2851-RK18#

25

The OSPF CE routers CE-3 and CE-4 were configured with “ip ospf priority 0” interface configuration so they don’t participate in DR/BDR election process

FULL OSPF neighborships are formed with both Core1 and Core2

Traffic still forwarded even when crossing peer-link

FabricPath doesn’t have same limitations as vPC

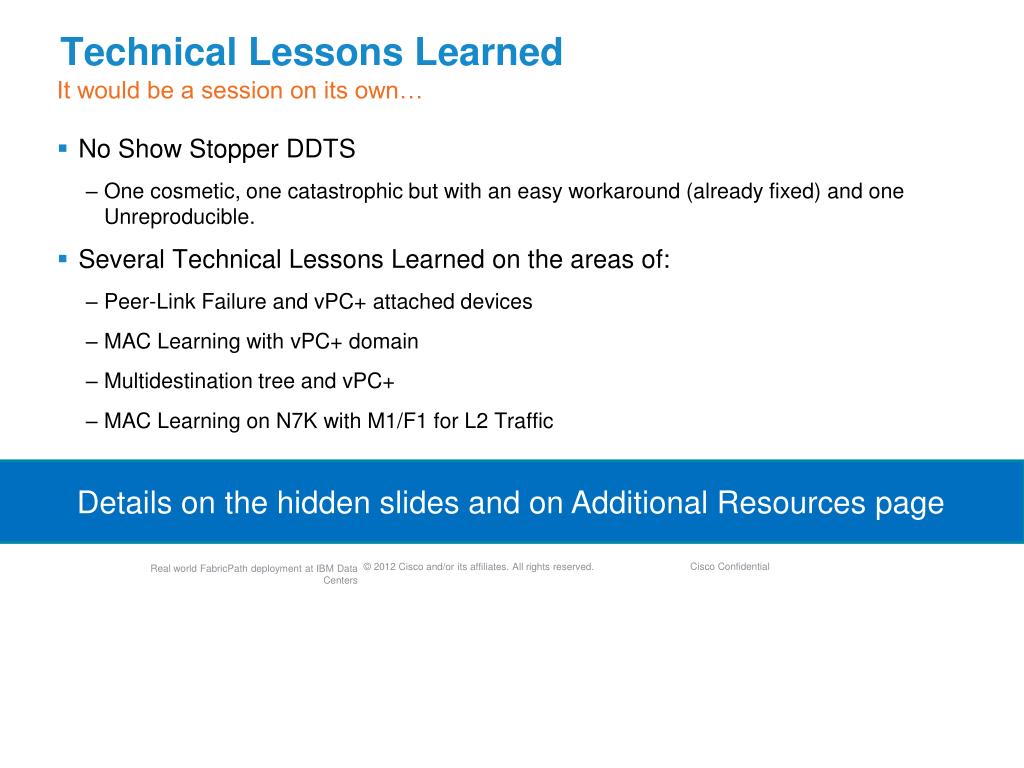

Technical lessons learned

Technical Lessons Learned

It would be a session on its own…

Details on the hidden slides and on Additional Resources page

No Show Stopper DDTS

  • One cosmetic, one catastrophic but with an easy workaround (already fixed) and one Unreproducible.

    Several Technical Lessons Learned on the areas of:

  • Peer-Link Failure and vPC+ attached devices

  • MAC Learning with vPC+ domain

  • Multidestination tree and vPC+

  • MAC Learning on N7K with M1/F1 for L2 Traffic

26


Further developments

Further developments

Where do we see the rest of the infrastructure go?

27

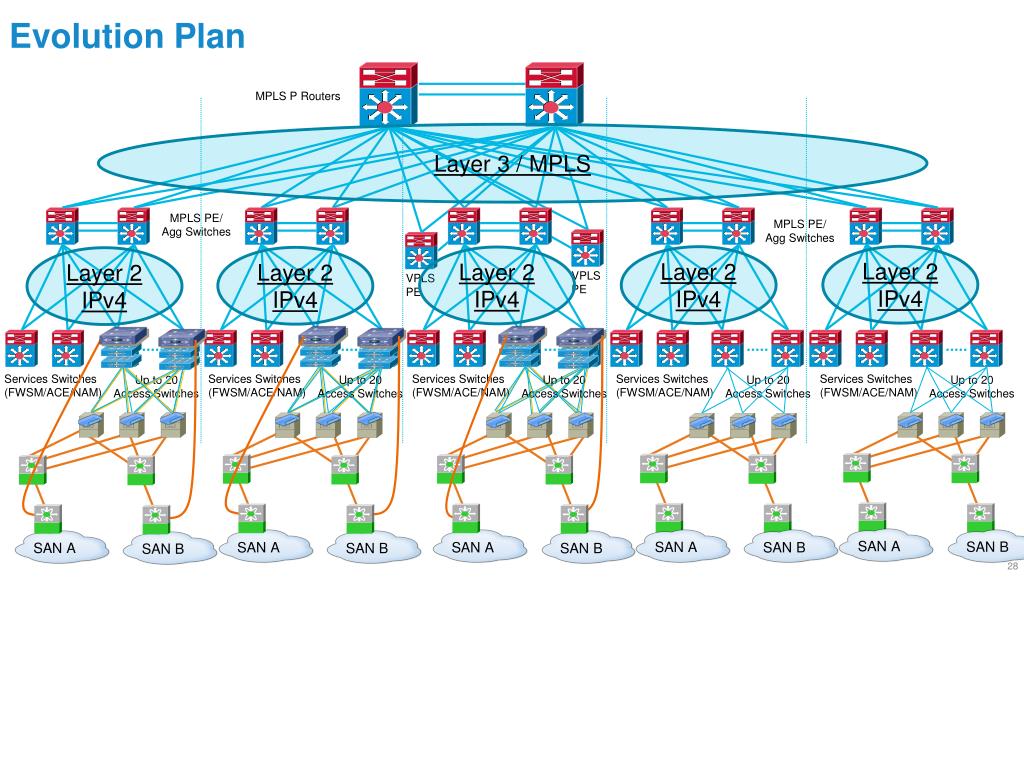

Evolution plan

Evolution Plan

SAN A

SAN B

SAN A

SAN B

SAN A

MPLS P Routers

Layer 3 / MPLS

MPLS PE/

Agg Switches

MPLS PE/

Agg Switches

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4

VPLS

PE

VPLS

PE

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Up to 20

Access Switches

Up to 20

Access Switches

Up to 20

Access Switches

Up to 20

Access Switches

Up to 20

Access Switches

SAN A

SAN A

SAN B

SAN B

SAN B

28


Evolution plan1

Evolution Plan

Management

Orchestration

Provisioning

Automation

Dynamic Infrastructure

VPLS

PE

VPLS

PE

Storage

FC/FCoE/NAS

1

2

1

2

Storage

FC/FCoE/NAS

3

4

3

4

SAN A

SAN B

SAN A

SAN A

SAN A

SAN B

SAN B

SAN B

SAN A

SAN B

SAN A

SAN B

MPLS P Routers

Layer 3 / MPLS

2^12 = 4096 VLANs…

2^24 = 16777216 Segment IDs

MPLS PE/

Agg Switches

MPLS PE/

Agg Switches

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4

Layer 2

IPv4/ IPv6

IPv4/IPv6

IPv4/IPv6

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Services Switches

(FWSM/ACE/NAM)

Up to 20

Access Switches

Up to 20

Access Switches

Up to 20

Access Switches

Up to 20

Access Switches

Up to 20

Access Switches

29


Key takeaways

Key Takeaways

The Key Takeaways of this presentation were:

IBM has achieved OPEX and CAPEX savings by migrating to a Nexus 2K/5K/7K Architecture in their Data Centers.

IBM has adopted FabricPath and is very happy with its Flexibility, Easy to Implement and Use and Convergence Time.

FabricPath was extensively tested and validated at Cisco ECATS.

FabricPath and MPLS on N7K were differentiators against Juniper.

You can reuse the lessons learned and additional resources available from this deployment to position FabricPath to your customers.

30


Additional resources

Additional Resources

http://bock-bock.cisco.com/wiki/User:Safreita:FabricPath_Testing

You can find the following additional information on the link below

  • Customer Requirements and Business Case for Catalyst 6500 -> Nexus and FabricPath

  • Joint Technical Plan of Record (test requirements)

  • Detailed Test Plan

  • Complete end of Test Report (including detailed test results and configurations)

  • Lessons Learned Presentation

  • INTERNAL Case Study of IBM Nordic Adoption of Nexus and FabricPath

  • EXTERNAL version of the Case Study

31


  • Login
