  1. OFTEN Testing OpenFlow Networks Maciej Kuźniar, Marco Canini*, Dejan Kostić EPFL *TU Berlin / T-Labs

  2. Software-Defined Networking (SDN) Third-partyprogram

  3. When Faults Happen • Unreliable communication • What is the rootcause?

  4. Faults NICE [NSDI’12] Third-partyprogram OFTest SOFT [CoNEXT’12] We need to test an integrated SDN network

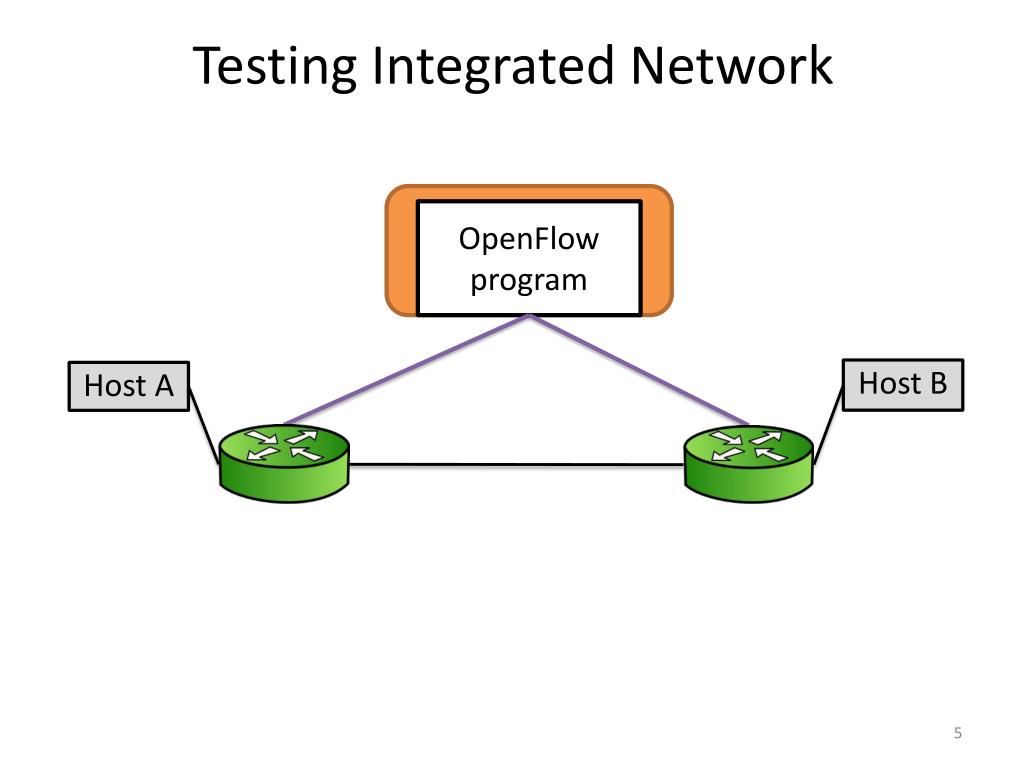

  5. Testing Integrated Network OpenFlowprogram Host B Host A

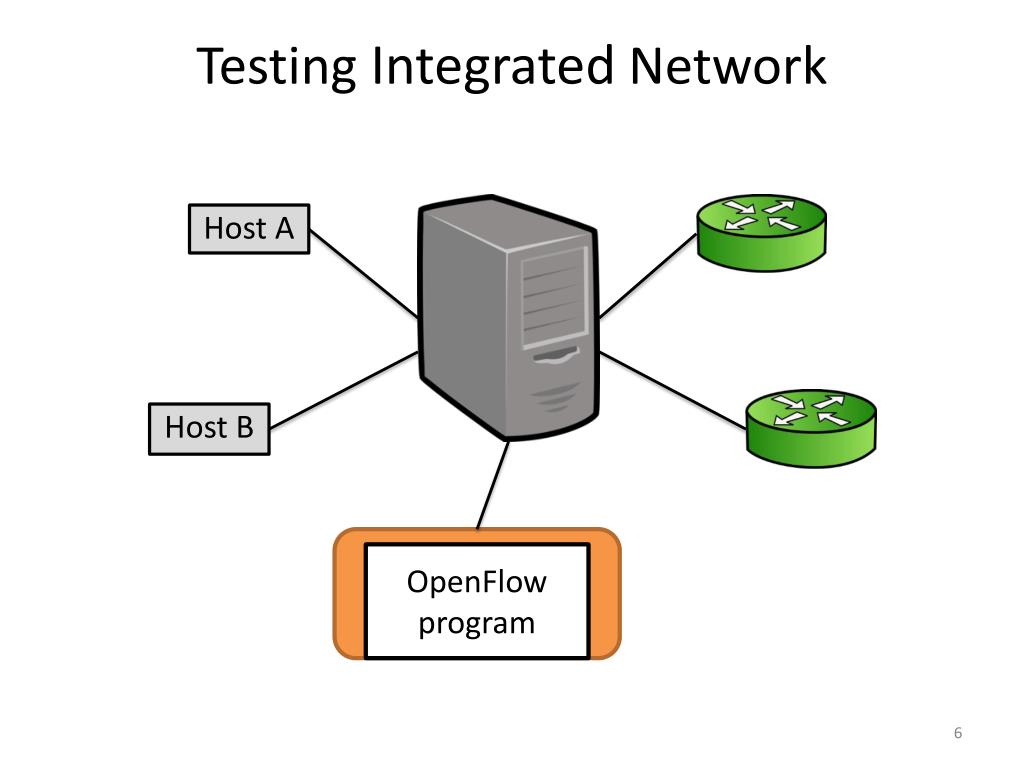

  6. Testing Integrated Network Host A OpenFlowprogram Host B

  7. Challenges • Unmodified components • Switches as black boxes • Correctness definition • Avoid false positives

  8. NICE UnmodifiedOpenFlowprogram Environment model Host B Host A TopologyDescription Correctness Properties Switch1 Switch2

  9. State-Space Exploration State0 hostsend switchprocess_pkt State1 State3 State2 Define state and execute transitions ctrlpacket_in(pkt A) switchprocess_of ctrlpacket_in(pkt B) State9 State8 State6 State5 State4 State7

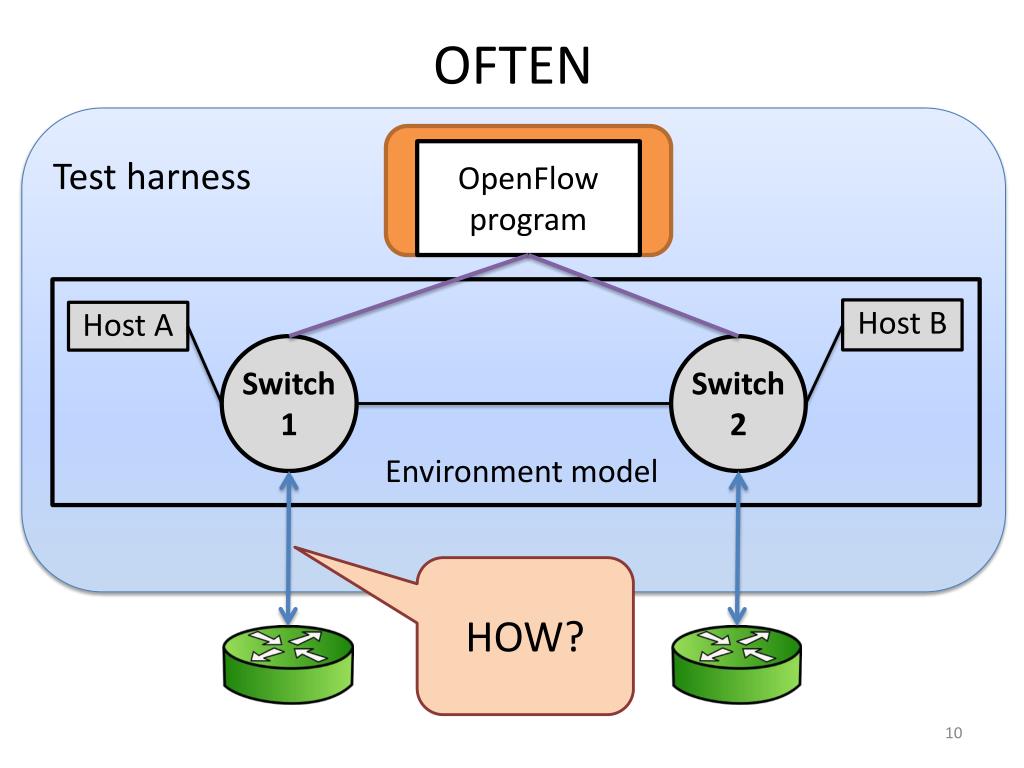

  10. OFTEN Test harness OpenFlowprogram Host B Host A Switch1 Switch2 Environment model HOW?

  11. Problem I: Transitions - Packes Test harness SwitchModel

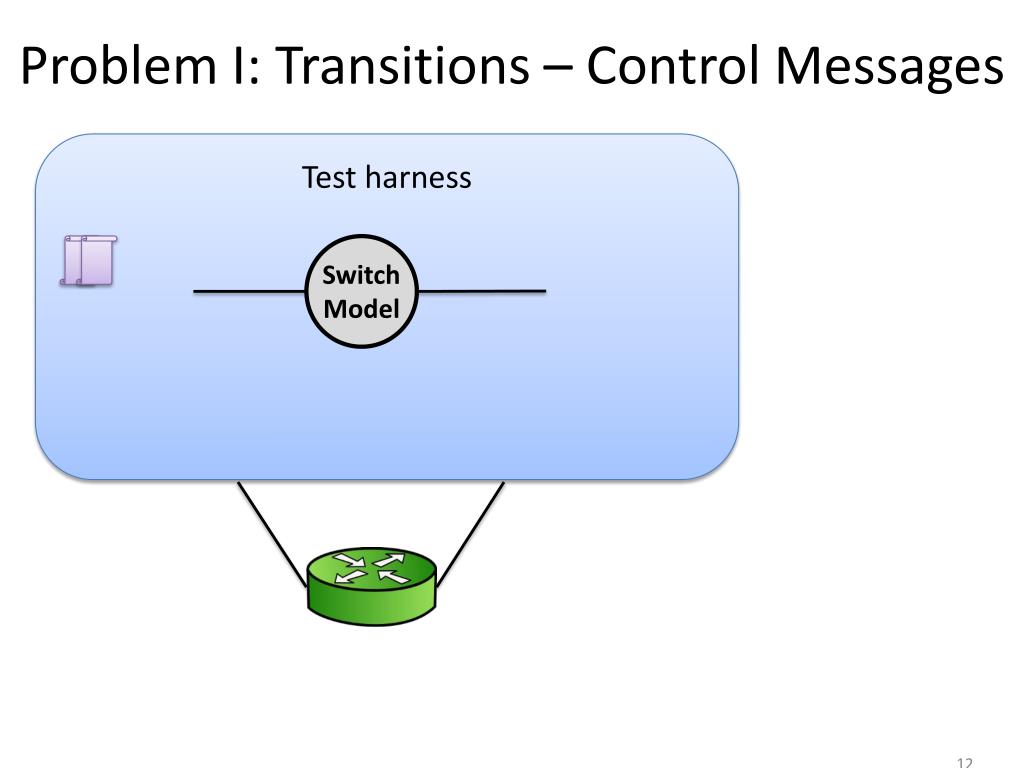

  12. Problem I: Transitions – Control Messages Test harness SwitchModel

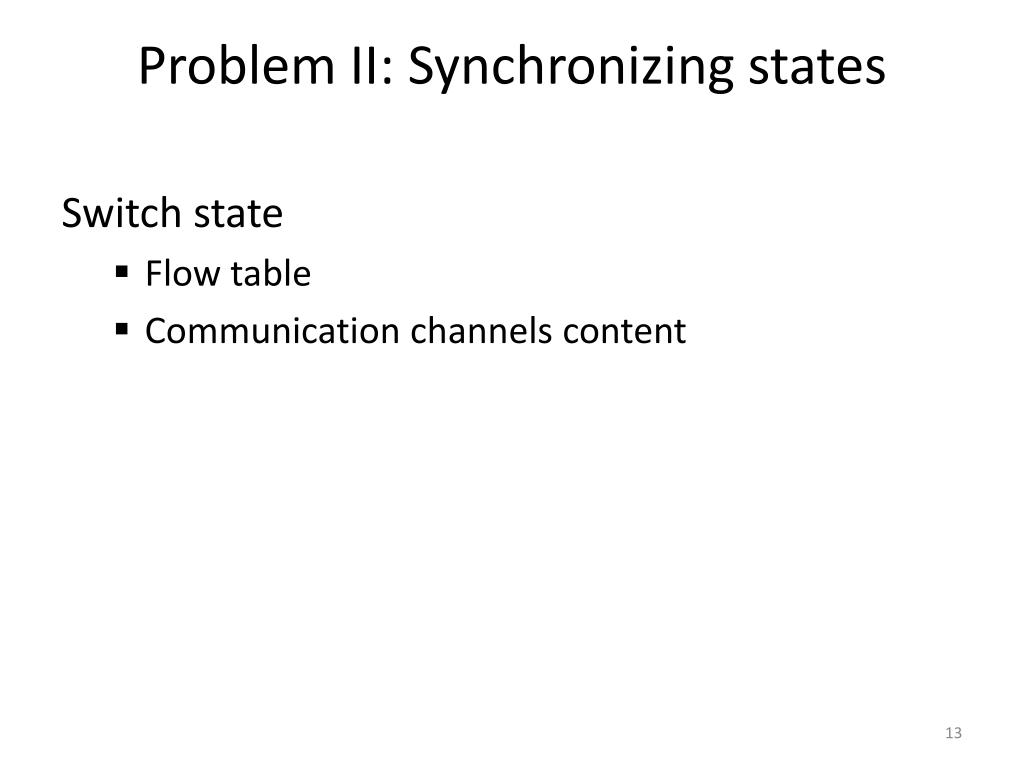

  13. Problem II: Synchronizing states Switch state • Flow table • Communication channels content

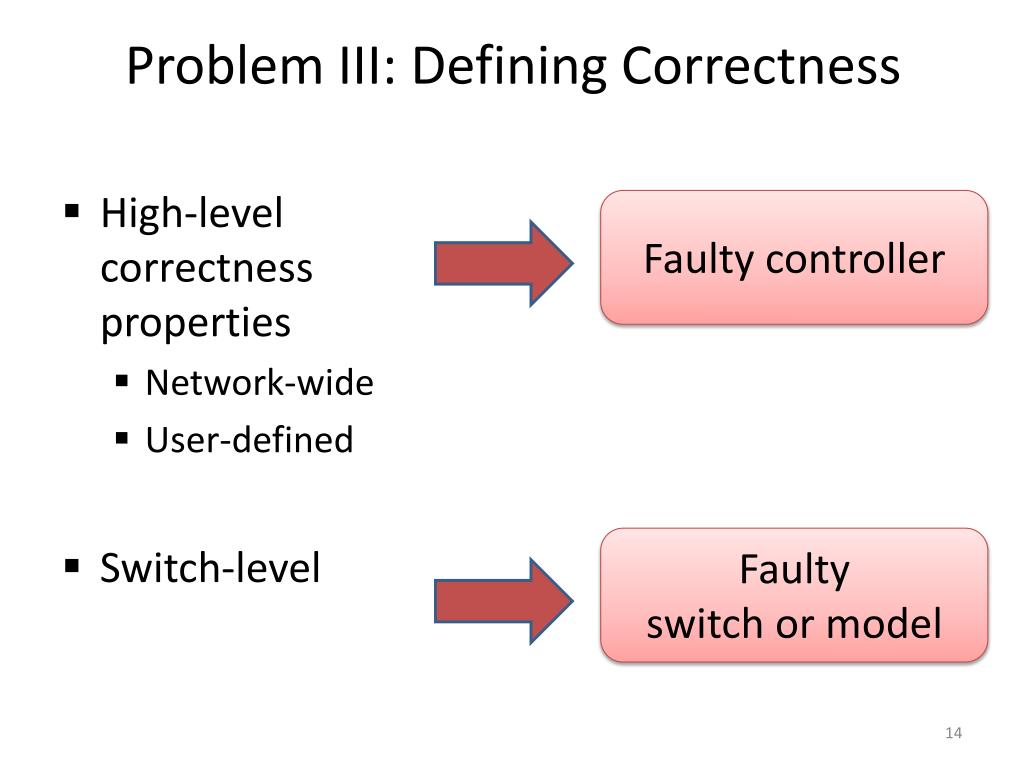

  14. Problem III: Defining Correctness • High-level correctness properties • Network-wide • User-defined • Switch-level Faulty controller Faulty switch or model

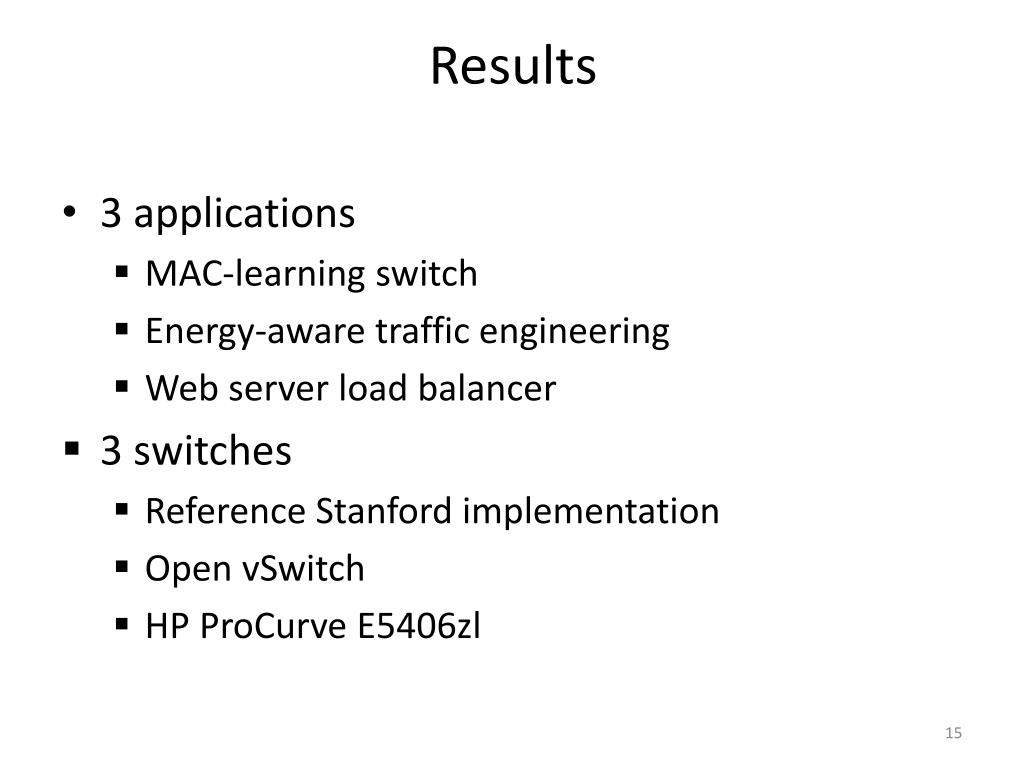

  15. Results • 3 applications • MAC-learning switch • Energy-aware traffic engineering • Web server load balancer • 3 switches • Reference Stanford implementation • Open vSwitch • HP ProCurve E5406zl

  16. Results Load-balancer issue • Send to the controller – 0 bytes Incorrect PacketIn message fields

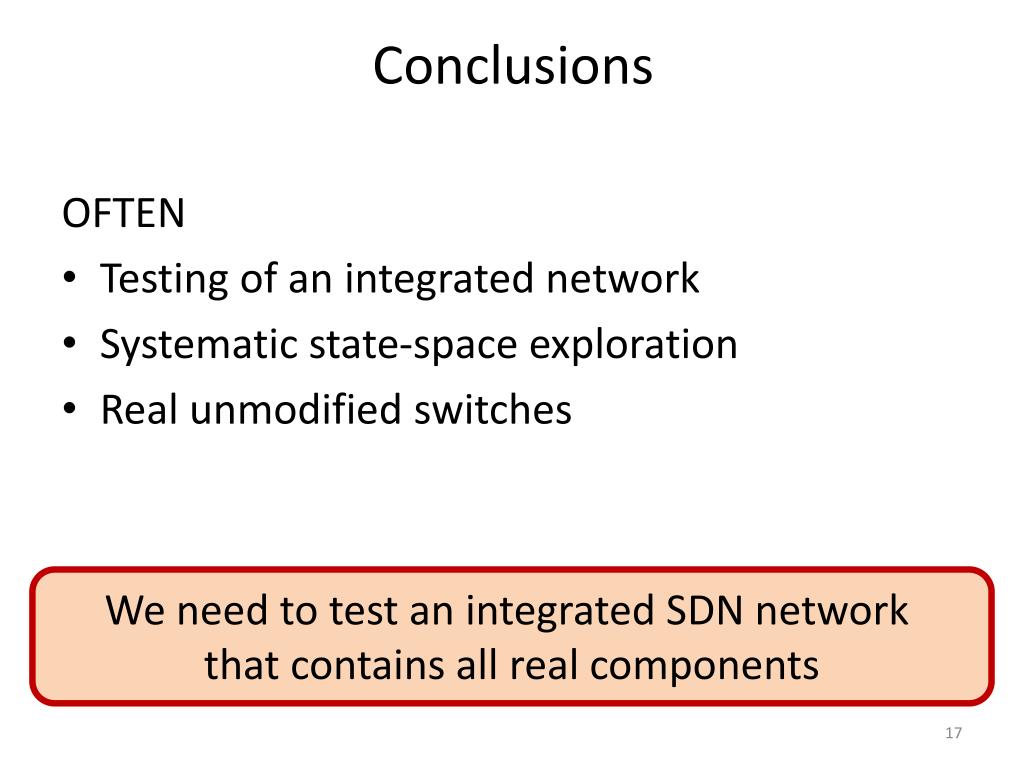

  17. Conclusions OFTEN • Testing of an integrated network • Systematic state-space exploration • Real unmodified switches We need to test an integrated SDN network that contains all real components

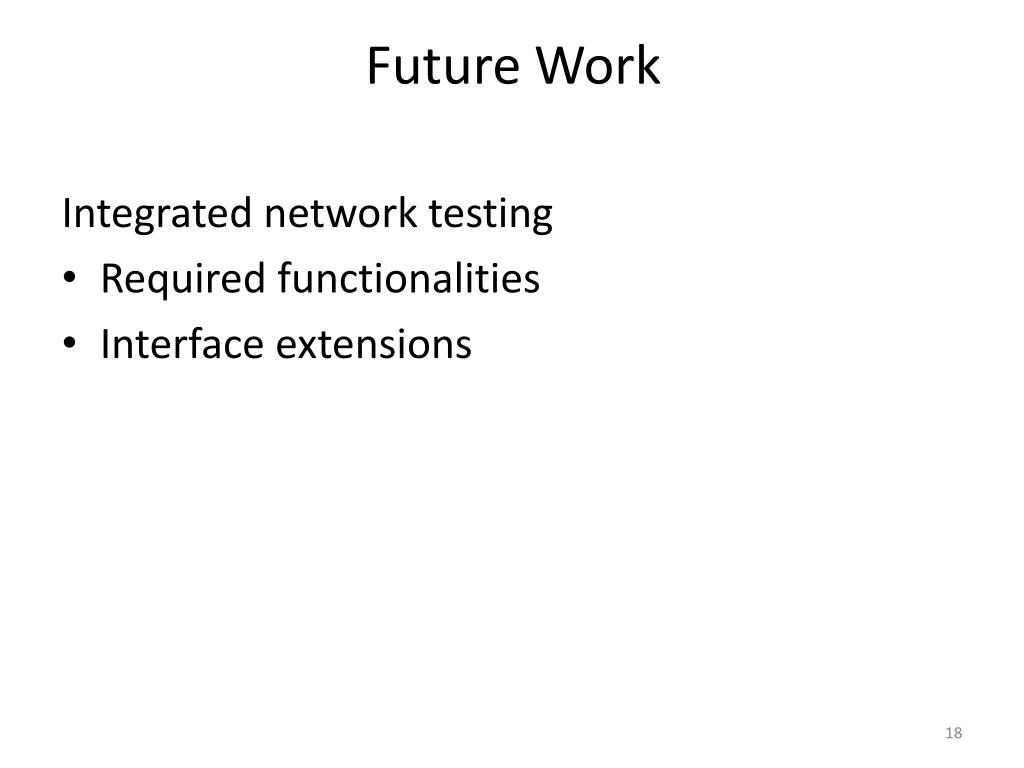

  18. Future Work Integrated network testing • Required functionalities • Interface extensions
