Soil Water Content

Soil Moisture Content

Water that may be evaporated from soil by heating at 1050C to a constant weight

mass of water evaporated (g)

Gravimetric moisture content (w) =

mass of dry soil (g)

volume of water evaporated (cm3)

Volumetric moisture content (q) =

volume of soil (cm3)

bulk density of soil

q = w *

density of water

mass of dry soil (g)

Bulk density of soil (r) =

volume of soil (cm3)


Slide2 l.jpg

Example: A soil is sampled by a cylinder measuring 7.6 cm in diameter and 7.6 cm length. Calculate gravimetric and volumetric water contents, and wet and dry bulk densities using the following data:

  • Weight of empty cylinder = 300 g

  • Weight of cylinder + wet soil = 1000 g

  • Weight of cylinder + oven dry (1050C) soil = 860 g

Volume of cylinder = p*r2*h = 3.14*(7.6/2)2*7.6 = 345 cm3

Weight of wet soil = 1000 – 300 = 700 g

Weight of dry soil = 860 – 300 = 560 g

Dry bulk density = 560/345 = 1.62 g cm-3

Gravimetric moisture content = (700-560)/560 = 0.25 or 25%

Volumetric moisture content = r *w = 1.62*0.25 = 0.41 or 41%

Know how to do these calculations for

quiz on Friday


Calculating dry soil weight basis of samples for analysis l.jpg

Calculating dry soil weight basis of samples for analysis

Weigh drying pan, moist soil subsample + pan,

Oven dry the subsample at 105C for 24 hr,

Weigh the dried soil + pan.

Calculate the moisture content (w):

w = (g moist soil – g dry soil)/(g dry soil – pan)

Rearrange the eqn to solve for dry soil wt.

Dry soil wt = g moist soil / (1 + w)


Slide4 l.jpg

Methods for measuring soil water content

Direct method

(Gravimetric)

Indirect methods

(need to calibrate)

Electrical properties

Acoustic method

Thermal properties

Chemical methods

Radiation technique

-Neutron scattering

-g- ray attenuation

Electrical Conductance

Dielectric constant

TDR

- Gypsum blocks

- Nylon blocks

- Change in conductance

Principles underlying different methods of

assessment of soil water content


Slide5 l.jpg

Water Content

Direct

Gravimetric: evaporating water at 1050C (be able to do the calc’ns)

Indirect

Neutron scattering:

Thermalization

Time domain reflectrometry:

Dielectric constant


Slide6 l.jpg

Soil Water (matric) Potential

In-direct:

Watermark (granular matrix sensor), gypsum block

Direct: Tensiometer


Calibrating field instruments l.jpg

Calibrating field instruments

http://www.bae.ncsu.edu/programs/extension/evans/ag452-3.html


Slide8 l.jpg

Gently tap a tube into the soil to take an undisturbed sample from the center of the effective root zone.


Slide9 l.jpg

Trim the soil at each end of the tube to the tube length so that the soil occupies the exact tube volume.


Calibration for moisture content l.jpg

Calibration for moisture content

  • Measure and weigh the tube

  • Weigh the field moist soil + tube

  • Oven dry the soil from the tube

  • Calculate:

    W = g water/g dry soil = (wet – dry) / dry soil

    Db = g dry soil / cm3 volume soil

    Θ = (W x Db) / Dw

  • Compare lab moisture content to field measurements

  • For water potential, compare water retention curves derived in lab using pressure plates.


Slide12 l.jpg

Water retention curves: Water content vs pressure or tension

Note: clay holds more water at a specific water potential than sand or loam;

Water is held tighter at a given water content in clay than in sand.

Structure is predominant at low potentials; as soil dries out, texture is more important


Effect of structure on water flow l.jpg

Effect of structure on water flow

www.soils.umn.edu/.../soil2125/doc/s7chp3.htm

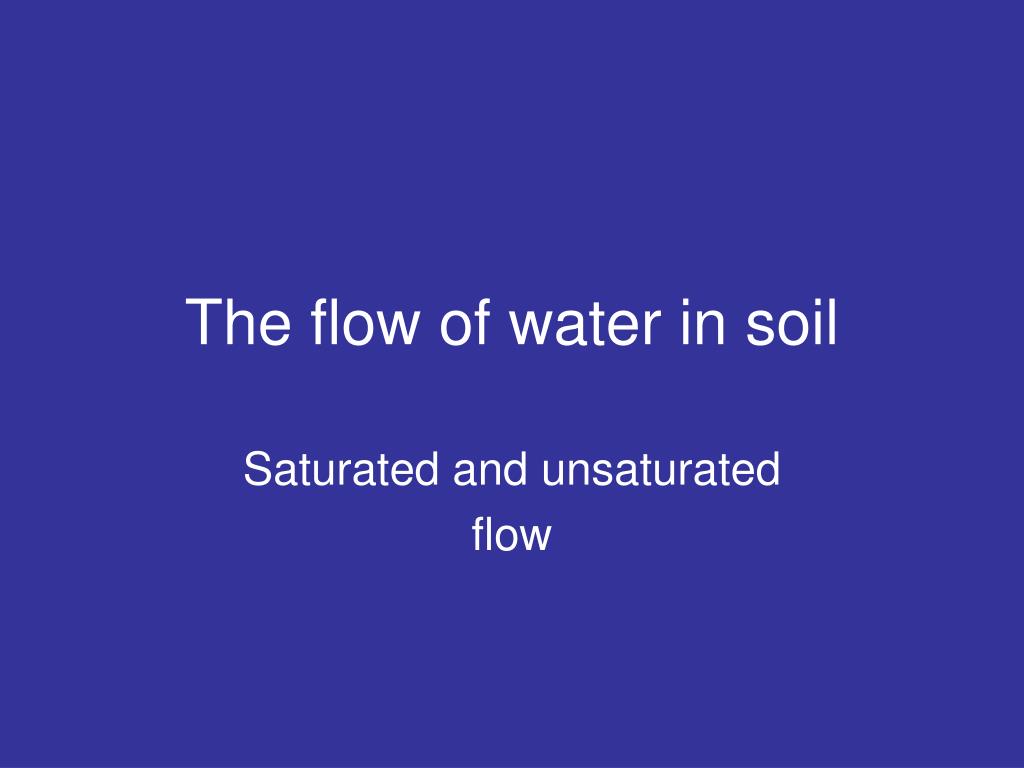

The flow of water in soil l.jpg

The flow of water in soil

Saturated and unsaturated

flow


Slide15 l.jpg

Saturated flow

Ksat = Q/A x L/(Ψ1 - Ψ2)

where Q is volume of water in time (t)

A is area of cross section

Ksat is saturated hydraulic conductivity of soil (how fast water moves)

L is length of column

Ψ is the water potential at points 1 and 2


Slide16 l.jpg

Flux can be thought of as water flowing from a hose. The flux is the rate of water discharged by the hose, divided by the cross-sectional area of the hose.

http://soils.usda.gov/technical/technotes/note6fig1.jpg


Saturated flow in soils l.jpg

Saturated flow in soils

  • The pores are full of water and matric potential is considered to be negligible

    because at least some of the water is a long distance from solid surfaces

  • Under these conditions, flow is:Rapid - moving through large poresDriven by gravity and sometimesHydrostatic pressure if water is ponded


Slide18 l.jpg

http://www.maf.govt.nz/mafnet/schools/activities/swi/swi-04.htm


Slide19 l.jpg

http://www.montcalm.org/montcalmold/media/planningeduc/tn_gwa5.jpg


Slide20 l.jpg

Saturation

unsaturated

wet

dry


Slide23 l.jpg

Unsaturated flow

Soil moisture content changing with depth


Unsaturated flow most common in soils l.jpg

Unsaturated flow – most common in soils

  • Occurs along soil surfaces, not through large pores.

  • Driven by matric forces that are much stronger than gravity.

    Gravity is not sufficiently strong to exert a significant influence on unsaturated flow because much of the soil water adheres to solid surfaces.

  • Unsaturated flow is slow.

  • Even though the driving force is usually greater than for saturated flow, the resistance to flow is enormous.

  • Water will flow toward a lower (more negative) potential regardless of direction (up, down, laterally). In other words it will flow towards:            drier medium            salty solution            finer texture (small pores)


Slide25 l.jpg

http://www.maf.govt.nz/mafnet/schools/activities/swi/swi-04.htm


Slide27 l.jpg

http://wwwlb.aub.edu.lb/~webeco/SIM215soilwater_files/image004.gif
