Matrix operations

Matrix Operations


Chapter 4 matrices lesson 1 using matrices to represent data

Chapter 4: MatricesLesson 1: using Matrices to Represent Data

  • Objectives:

    • Represent mathematical and real-world data in a matrix.

    • Find sums and differences of matrices and the scalar product of a number and a matrix.


Matrix operations

MATRIX: A rectangular arrangement of numbers in rows and columns.

The ORDER of a matrix is the number of the rows and columns.

The ENTRIES are the numbers in the matrix.

What is a Matrix?

This order of this matrix is a 2 x 3.

columns

rows


Matrix operations

What is the order?

(or square matrix)

3 x 3

(Also called a column matrix)

1 x 4

3 x 5

(or square matrix)

2 x 2

4 x 1

(Also called a row matrix)


Matrix operations

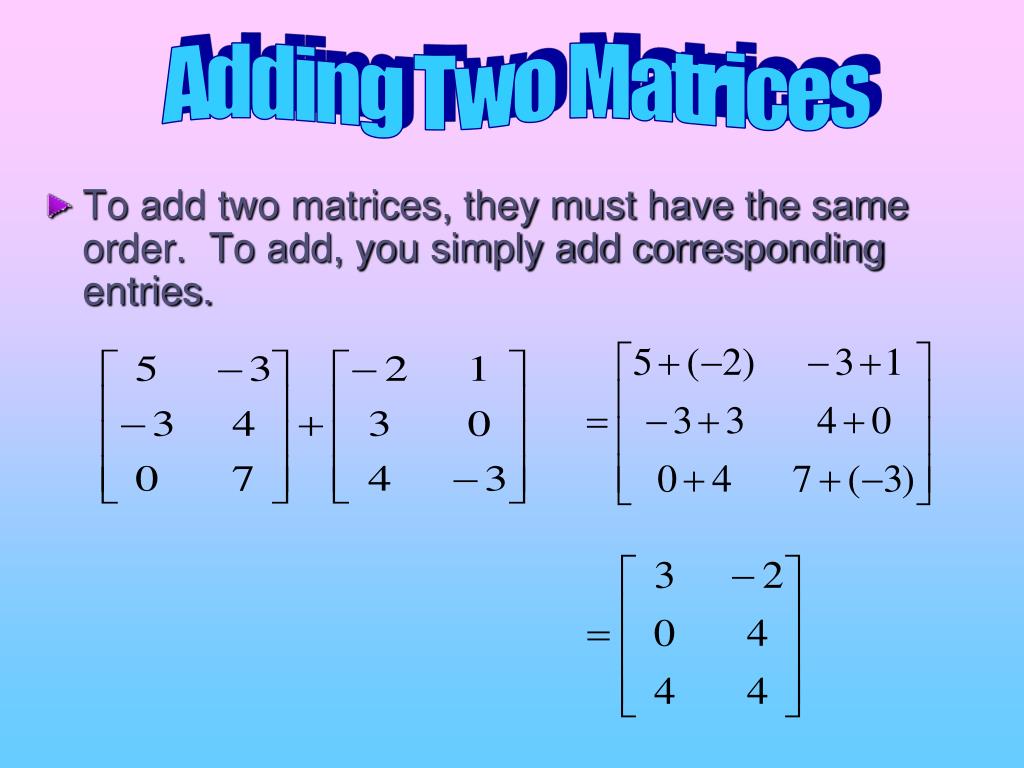

Adding Two Matrices

  • To add two matrices, they must have the same order. To add, you simply add corresponding entries.

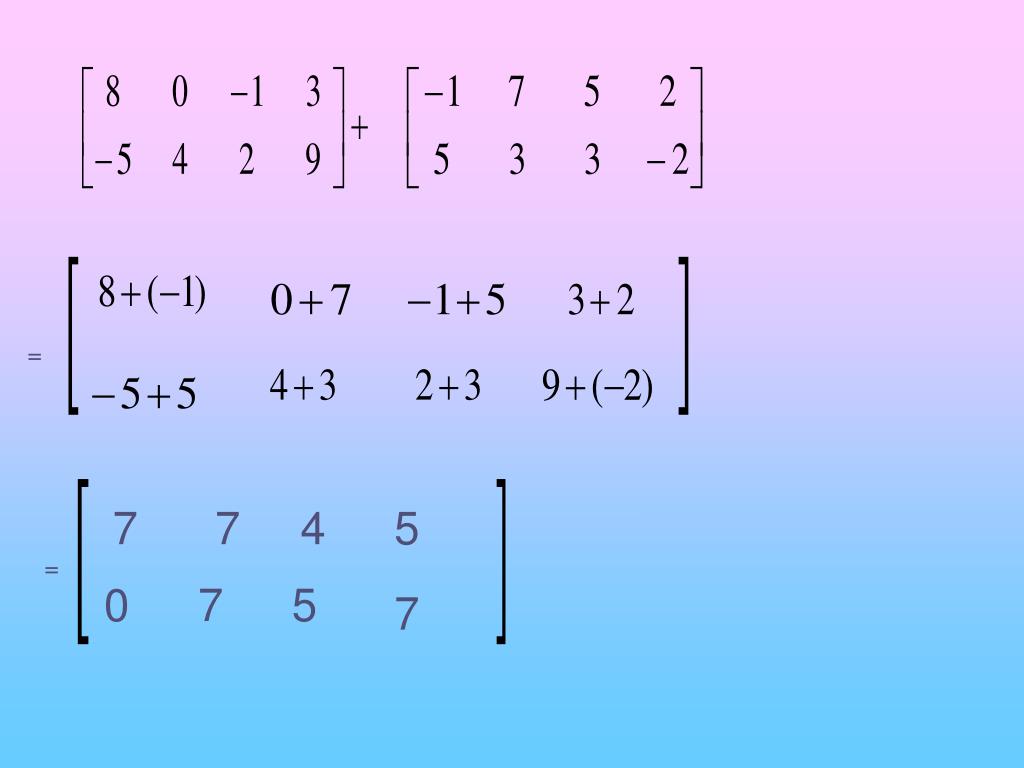

Matrix operations

=

7

7

4

5

=

0

7

5

7


Matrix operations

Subtracting Two Matrices

To subtract two matrices, they must have the same order. You simply subtract corresponding entries.


Matrix operations

2-0

-4-1

3-8

-5

2

-5

8-3

0-(-1)

-7-1

5

-8

1

=

=

1-(-4)

5-2

0-7

5

3

-7


Matrix operations

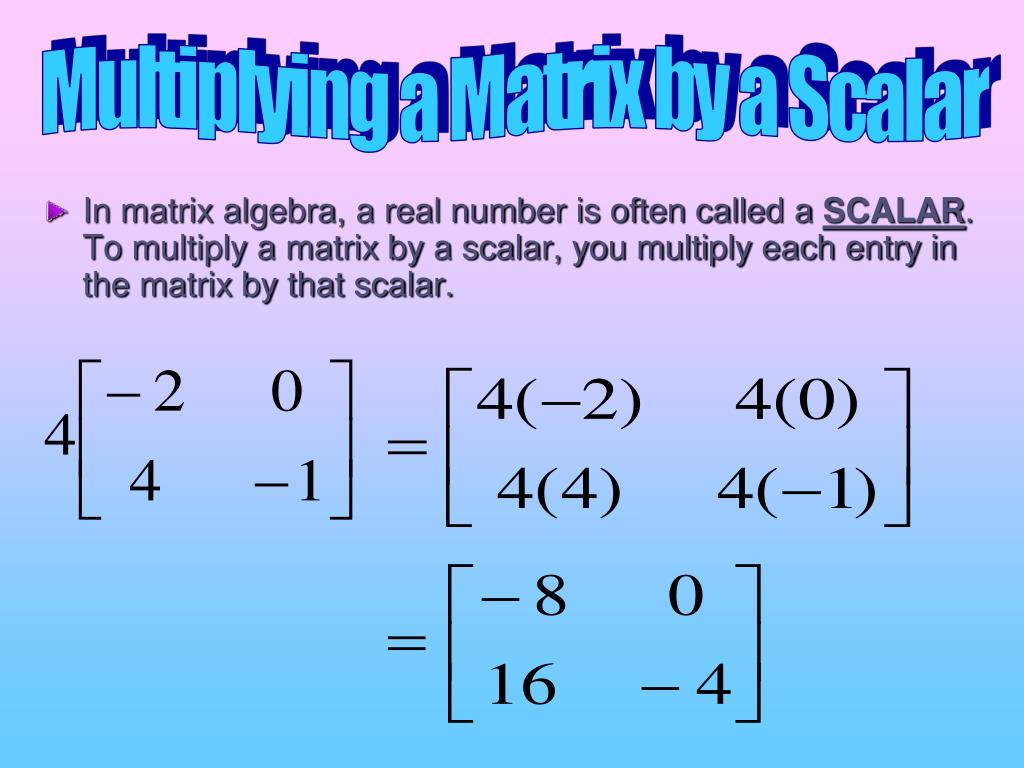

Multiplying a Matrix by a Scalar

  • In matrix algebra, a real number is often called a SCALAR. To multiply a matrix by a scalar, you multiply each entry in the matrix by that scalar.


Matrix operations

-3

3

-2

6

-5

-2(-3)

-2(3)

6

-6

-12

-2(6)

-2(-5)

10

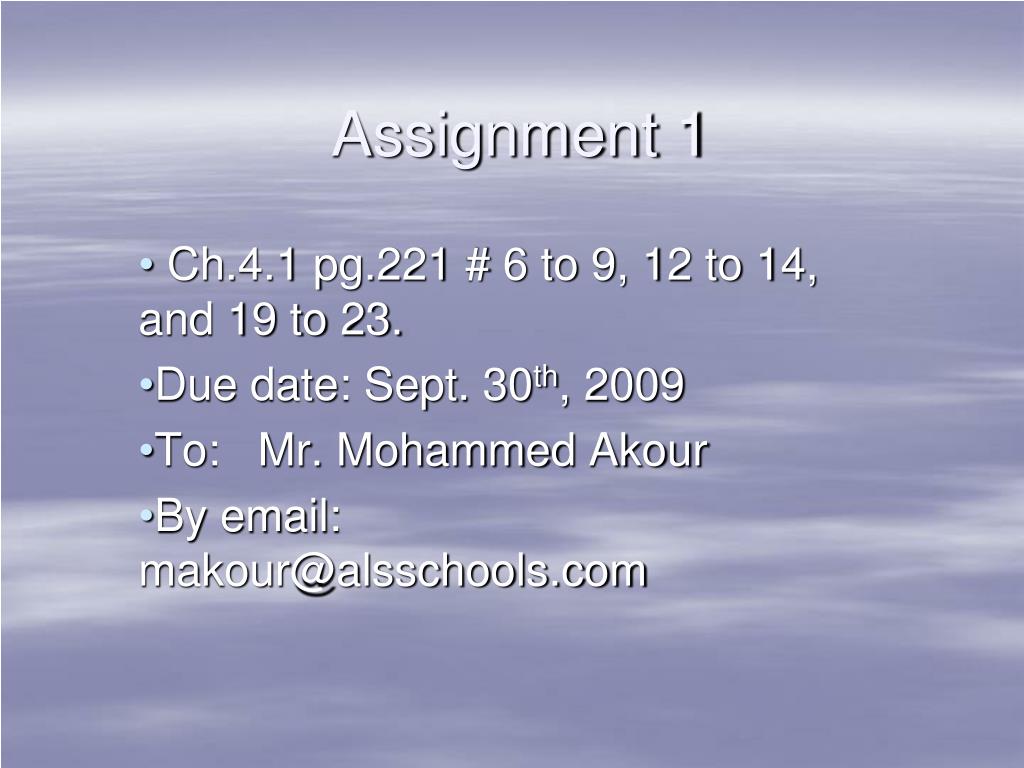

Assignment 1

Assignment 1

Ch.4.1 pg.221 # 6 to 9, 12 to 14, and 19 to 23.

Due date: Sept. 30th, 2009

To: Mr. Mohammed Akour

By email: [email protected]


Matrix operations

This presentation edited by Mr. Mohammed Akour

Mr Wassim Fakih
