Presentation Transcript

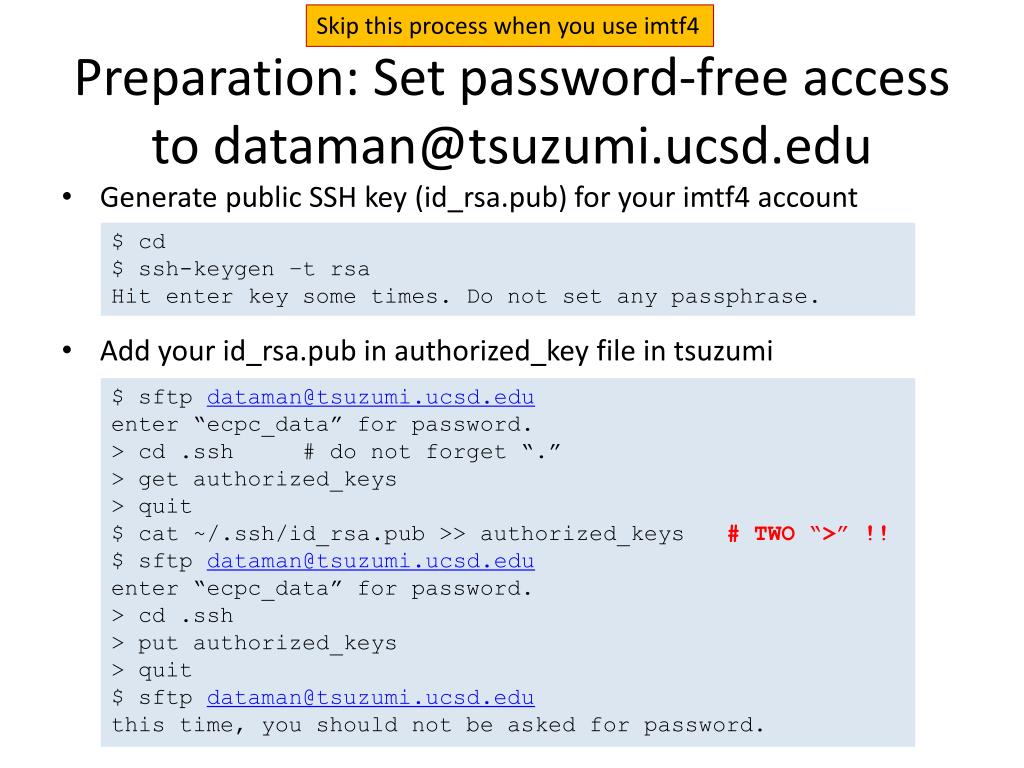

Preparation set password free access to dataman@tsuzumi ucsd edu

Skip this process when you use imtf4

Preparation: Set password-free access to dataman@tsuzumi.ucsd.edu

  • Generate public SSH key (id_rsa.pub) for your imtf4 account

  • Add your id_rsa.pub in authorized_key file in tsuzumi

$ cd

$ ssh-keygen –t rsa

Hit enter key some times. Do not set any passphrase.

$ sftp dataman@tsuzumi.ucsd.edu

enter “ecpc_data” for password.

> cd .ssh # do not forget “.”

> get authorized_keys

> quit

$ cat ~/.ssh/id_rsa.pub >> authorized_keys # TWO “>” !!

$ sftp dataman@tsuzumi.ucsd.edu

enter “ecpc_data” for password.

> cd .ssh

> put authorized_keys

> quit

$ sftp dataman@tsuzumi.ucsd.edu

this time, you should not be asked for password.

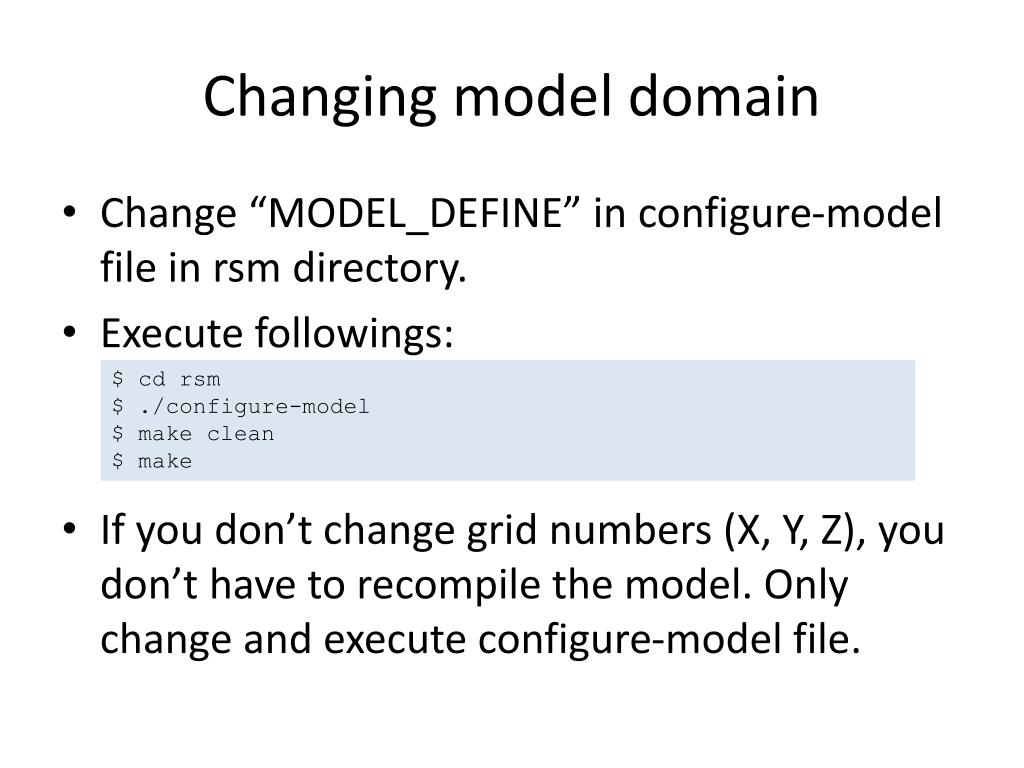

Changing model domain
Changing model domain

  • Change “MODEL_DEFINE” in configure-model file in rsm directory.

  • Execute followings:

  • If you don’t change grid numbers (X, Y, Z), you don’t have to recompile the model. Only change and execute configure-model file.

$ cd rsm

$ ./configure-model

$ make clean

$ make

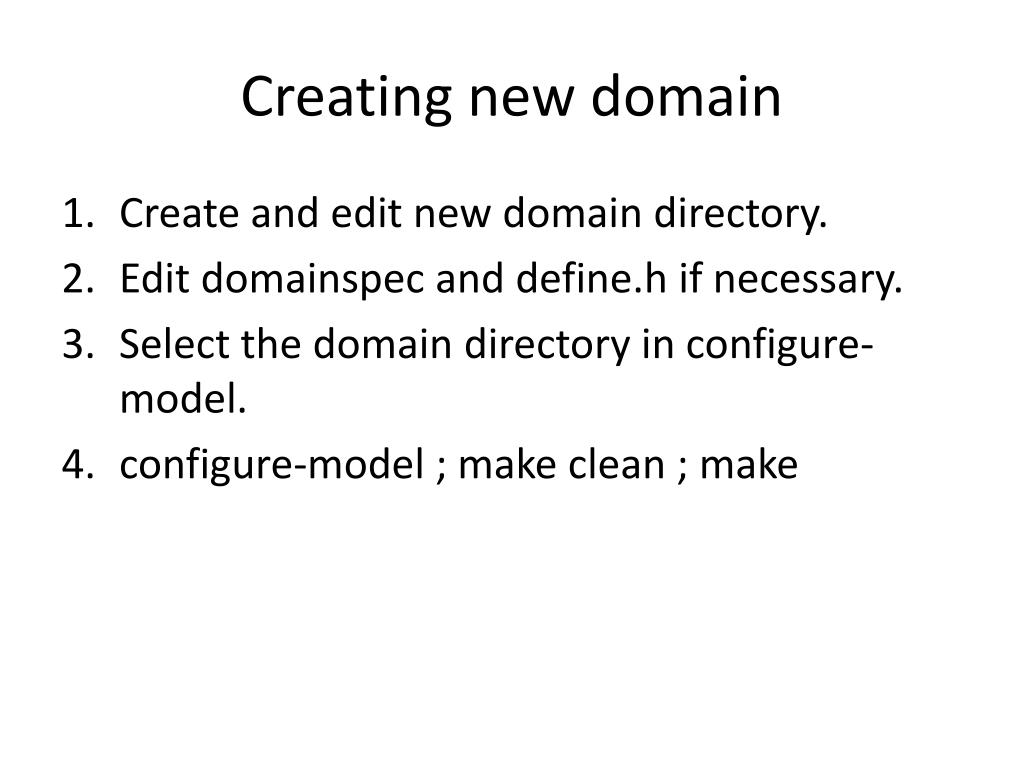

Creating new domain
Creating new domain

  • Create and edit new domain directory.

  • Edit domainspec and define.h if necessary.

  • Select the domain directory in configure-model.

  • configure-model ; make clean ; make

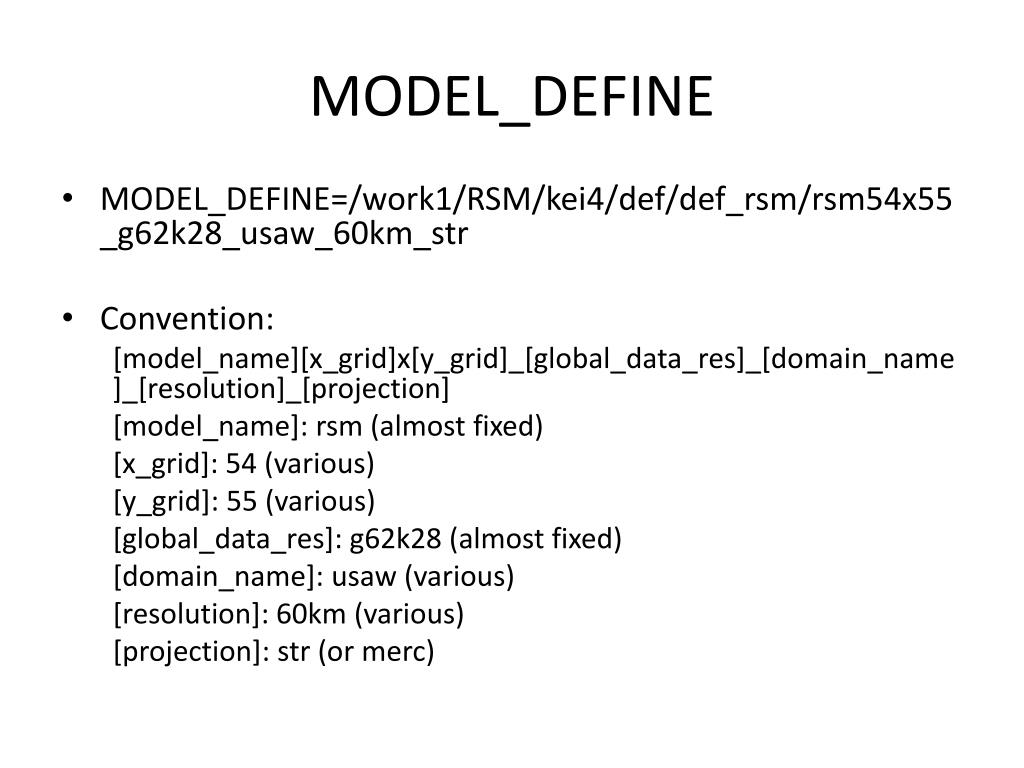

Model define
MODEL_DEFINE

  • MODEL_DEFINE=/work1/RSM/kei4/def/def_rsm/rsm54x55_g62k28_usaw_60km_str

  • Convention:

    [model_name][x_grid]x[y_grid]_[global_data_res]_[domain_name]_[resolution]_[projection]

    [model_name]: rsm (almost fixed)

    [x_grid]: 54 (various)

    [y_grid]: 55 (various)

    [global_data_res]: g62k28 (almost fixed)

    [domain_name]: usaw (various)

    [resolution]: 60km (various)

    [projection]: str (or merc)

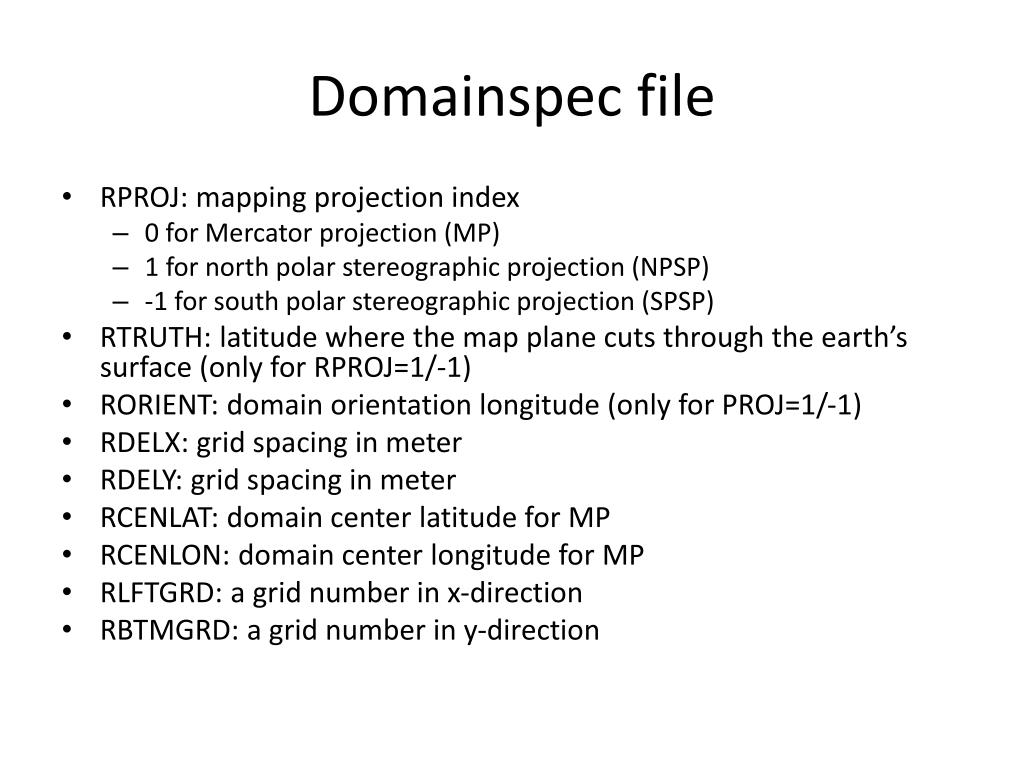

Domainspec file
Domainspec file

  • RPROJ: mapping projection index

    • 0 for Mercator projection (MP)

    • 1 for north polar stereographic projection (NPSP)

    • -1 for south polar stereographic projection (SPSP)

  • RTRUTH: latitude where the map plane cuts through the earth’s surface (only for RPROJ=1/-1)

  • RORIENT: domain orientation longitude (only for PROJ=1/-1)

  • RDELX: grid spacing in meter

  • RDELY: grid spacing in meter

  • RCENLAT: domain center latitude for MP

  • RCENLON: domain center longitude for MP

  • RLFTGRD: a grid number in x-direction

  • RBTMGRD: a grid number in y-direction

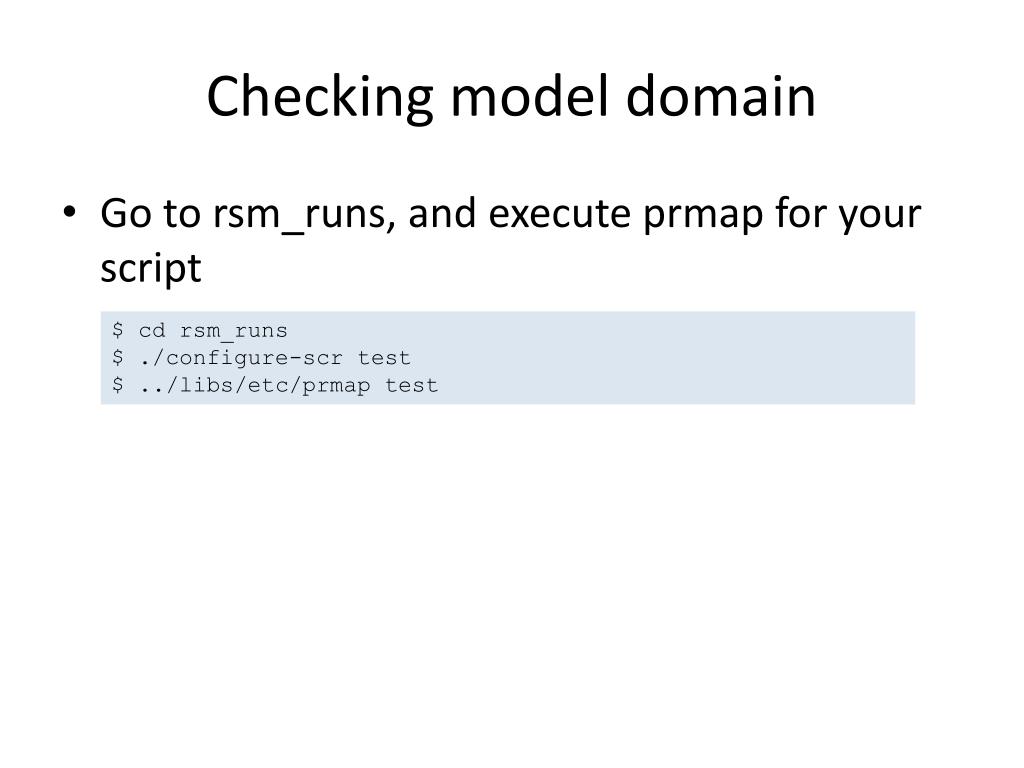

Checking model domain
Checking model domain

  • Go to rsm_runs, and execute prmap for your script

$ cd rsm_runs

$ ./configure-scr test

$ ../libs/etc/prmap test


Changing integration period
Changing integration period

  • Generate rsim script in rsm_runs directory.

  • Modify rsim script.

$ cd rsm_runs

$ ./configure-scrrsim

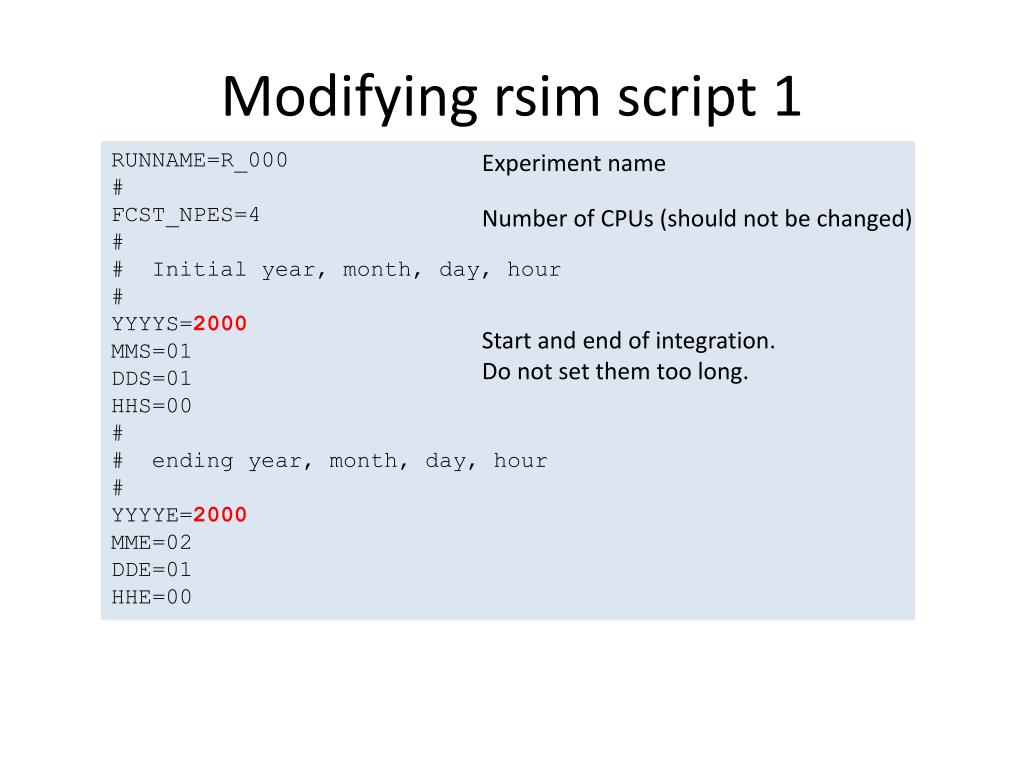

Modifying rsim script 1
Modifying rsim script 1

RUNNAME=R_000

#

FCST_NPES=4

#

# Initial year, month, day, hour

#

YYYYS=2000

MMS=01

DDS=01

HHS=00

#

# ending year, month, day, hour

#

YYYYE=2000

MME=02

DDE=01

HHE=00

Experiment name

Number of CPUs (should not be changed)

Start and end of integration.Do not set them too long.

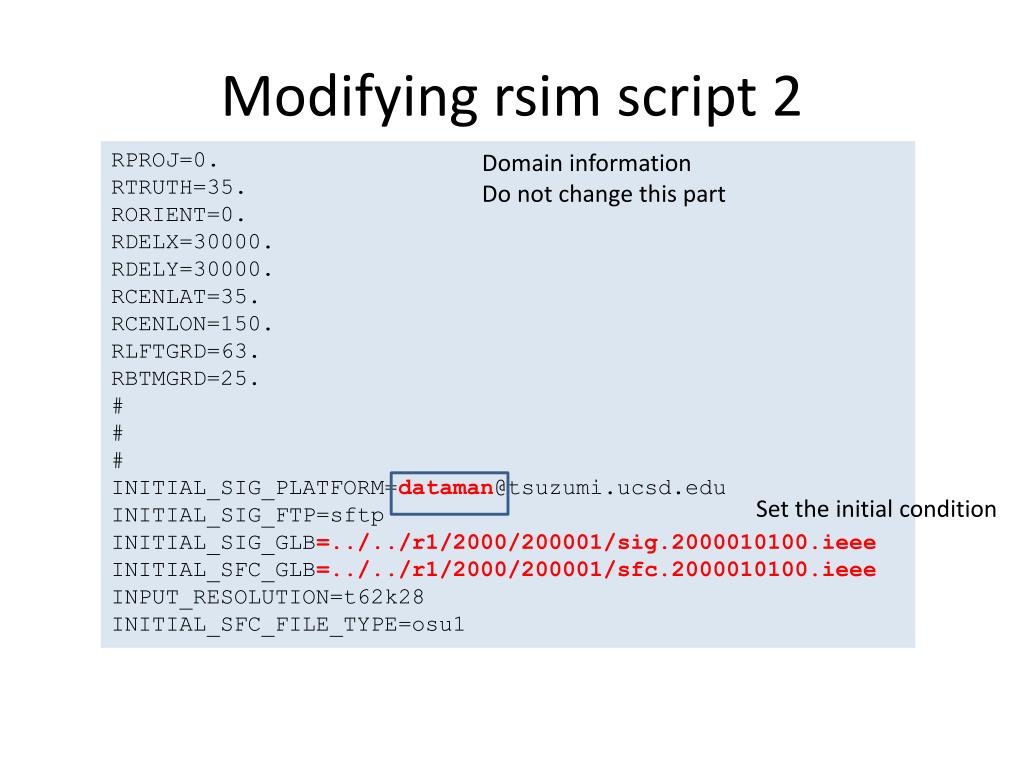

Modifying rsim script 2
Modifying rsim script 2

RPROJ=0.

RTRUTH=35.

RORIENT=0.

RDELX=30000.

RDELY=30000.

RCENLAT=35.

RCENLON=150.

RLFTGRD=63.

RBTMGRD=25.

#

#

#

INITIAL_SIG_PLATFORM=dataman@tsuzumi.ucsd.edu

INITIAL_SIG_FTP=sftp

INITIAL_SIG_GLB=../../r1/2000/200001/sig.2000010100.ieee

INITIAL_SFC_GLB=../../r1/2000/200001/sfc.2000010100.ieee

INPUT_RESOLUTION=t62k28

INITIAL_SFC_FILE_TYPE=osu1

Domain information

Do not change this part

Set the initial condition

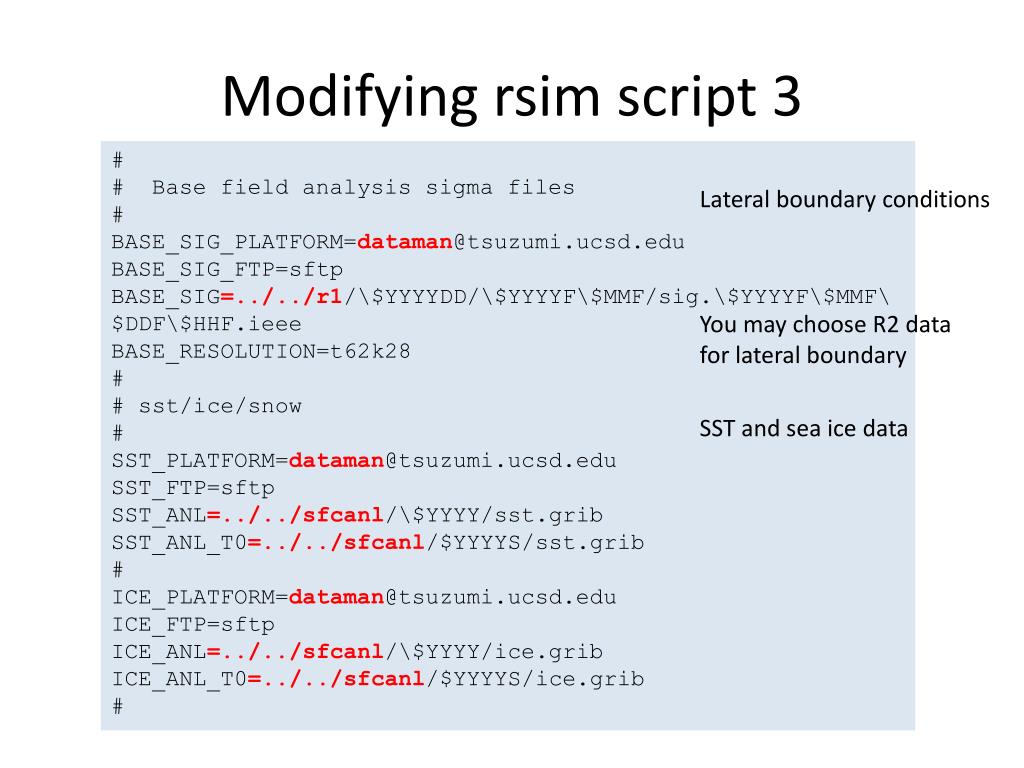

Modifying rsim script 3
Modifying rsim script 3

#

# Base field analysis sigma files

#

BASE_SIG_PLATFORM=dataman@tsuzumi.ucsd.edu

BASE_SIG_FTP=sftp

BASE_SIG=../../r1/\$YYYYDD/\$YYYYF\$MMF/sig.\$YYYYF\$MMF\$DDF\$HHF.ieee

BASE_RESOLUTION=t62k28

#

# sst/ice/snow

#

SST_PLATFORM=dataman@tsuzumi.ucsd.edu

SST_FTP=sftp

SST_ANL=../../sfcanl/\$YYYY/sst.grib

SST_ANL_T0=../../sfcanl/$YYYYS/sst.grib

#

ICE_PLATFORM=dataman@tsuzumi.ucsd.edu

ICE_FTP=sftp

ICE_ANL=../../sfcanl/\$YYYY/ice.grib

ICE_ANL_T0=../../sfcanl/$YYYYS/ice.grib

#

Lateral boundary conditions

You may choose R2 data

for lateral boundary

SST and sea ice data

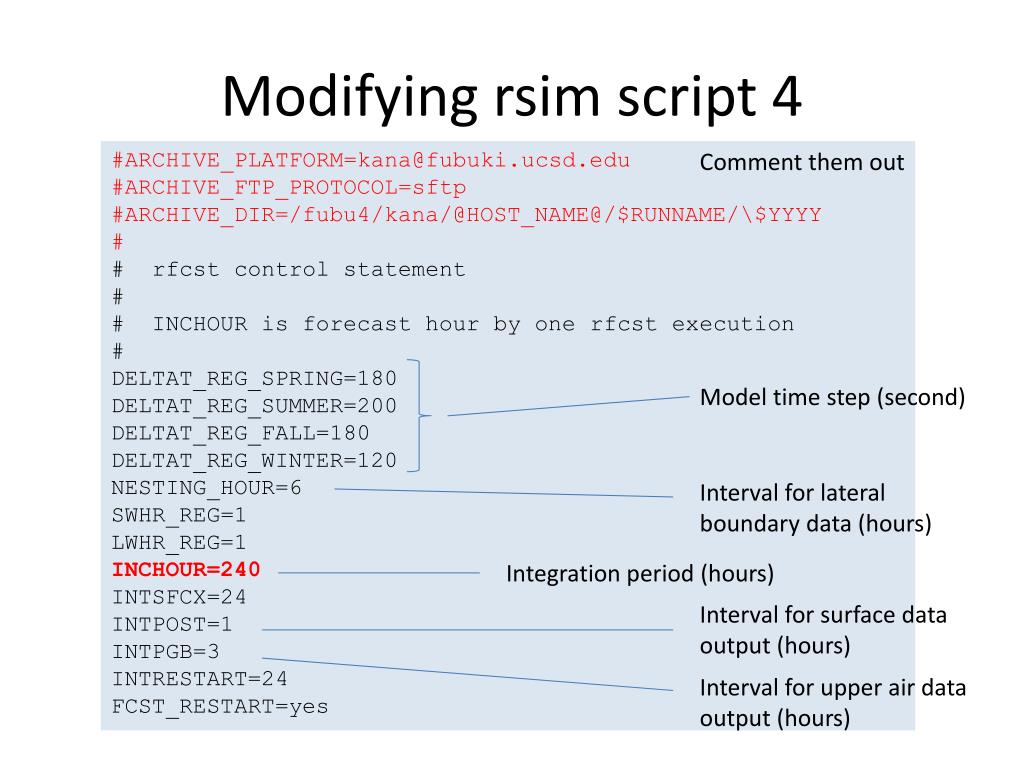

Modifying rsim script 4
Modifying rsim script 4

#ARCHIVE_PLATFORM=kana@fubuki.ucsd.edu

#ARCHIVE_FTP_PROTOCOL=sftp

#ARCHIVE_DIR=/fubu4/kana/@HOST_NAME@/$RUNNAME/\$YYYY

#

# rfcst control statement

#

# INCHOUR is forecast hour by one rfcst execution

#

DELTAT_REG_SPRING=180

DELTAT_REG_SUMMER=200

DELTAT_REG_FALL=180

DELTAT_REG_WINTER=120

NESTING_HOUR=6

SWHR_REG=1

LWHR_REG=1

INCHOUR=240

INTSFCX=24

INTPOST=1

INTPGB=3

INTRESTART=24

FCST_RESTART=yes

Comment them out

Model time step (second)

Interval for lateral boundary data (hours)

Integration period (hours)

Interval for surface data output (hours)

Interval for upper air data output (hours)


Run new rsim script
Run new rsim script

$ cd rsm_runs

$ rsim
