Presentation Transcript


Experiment 5 pipe flow major and minor losses review l.jpg

H

Reservoir

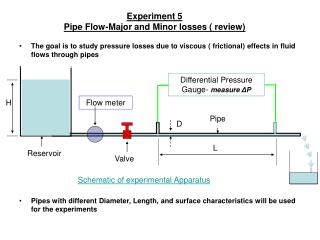

Experiment 5Pipe Flow-Major and Minor losses ( review)

  • The goal is to study pressure losses due to viscous ( frictional) effects in fluid flows through pipes

Differential Pressure Gauge- measure ΔP

Flow meter

Pipe

D

L

Valve

Schematic of experimental Apparatus

  • Pipes with different Diameter, Length, and surface characteristics will be used for the experiments


Major and minor losses l.jpg

Major and Minor losses

Total Head Loss( hLT) = Major Loss(hL)+Minor Loss (hLM)

Due to sudden expansion, contraction, fittings etc

Due to wall friction

In this experiment you will find friction factor for various pipes

K is loss coefficient must be determined for each situation

For Short pipes with multiple fittings, the minor losses are no longer “minor”!!


Major loss l.jpg

Major loss

Differential Pressure Gauge- measure ΔP

  • Physical problem is to relate pressure drop to fluid parameters and pipe geometry

L

ρμε

V

Pipe

D

Using dimensional analysis we can show that


Friction factor l.jpg

Friction factor


Friction factor5 l.jpg

Friction Factor

  • For Laminar flow ( Re<2300) inside a horizontal pipe, friction factor is independent of the surface roughness.

For Laminar flow

  • For Turbulent flow ( Re>4000) it is not possible to derive analytical expressions.

  • Empirical expressions relating friction factor, Reynolds number and relative roughness are available in literature


Friction factor correlations l.jpg

Friction factor correlations

f is not related explicitly Re and relative roughness in this equation.

The following equation can be used instead


Moody s chart for friction factor l.jpg

Moody’s chart for friction factor

f

Increases

Laminar

f=64/Re

Smooth

Transition

ReD


Minor losses l.jpg

Minor Losses

  • Flow separation and associated viscous effects will tend to decrease the flow energy and hence the losses

  • The phenomenon is fairly complicated. Loss coefficient ‘K’ will take care of this complicities

Valves

Bends

T joints

Expansions

Contractions


Experiment 5 new experimental set up l.jpg

Digital Manometer

To measure ΔP

Reservoir

H

Experiment 5 - New Experimental Set up


Experiment 5 experimental steps details l.jpg

Reservoir

H

L1

L2

L3

L4

Δx3

Δx1

Δx2

Experiment 5 - Experimental Steps & Details

  • Overall Measurements

  • Measure the Reservoir Height, H

  • Measure the Distances L1, L2, etc.

  • Measure the distances Δx1, Δx2, etc. Measure the pipe diameters

  • For EACH PIPE Follow Steps below

  • Set the reservoir height, H, to the maximum level, approx. close to the ‘spill-over’ partition height. Record the level.

  • Adjust the flow rate to a relatively high value, wait for steady flow to be established.

  • Measure the flow rate.

  • Measure the pressure drop, ΔP, for this flow rate.

  • Reduce the flow rate, by using the valves, repeat steps 1 & 2.

  • Reduce the reservoir height and repeat steps 1-3.

  • Repeat all steps until 3 reservoir heights have been measured

  • Hence for each pipe, you will measure ΔP, for six flow rates

  • (3 H x 2 valve openings)
