Presentation Transcript
arc welding

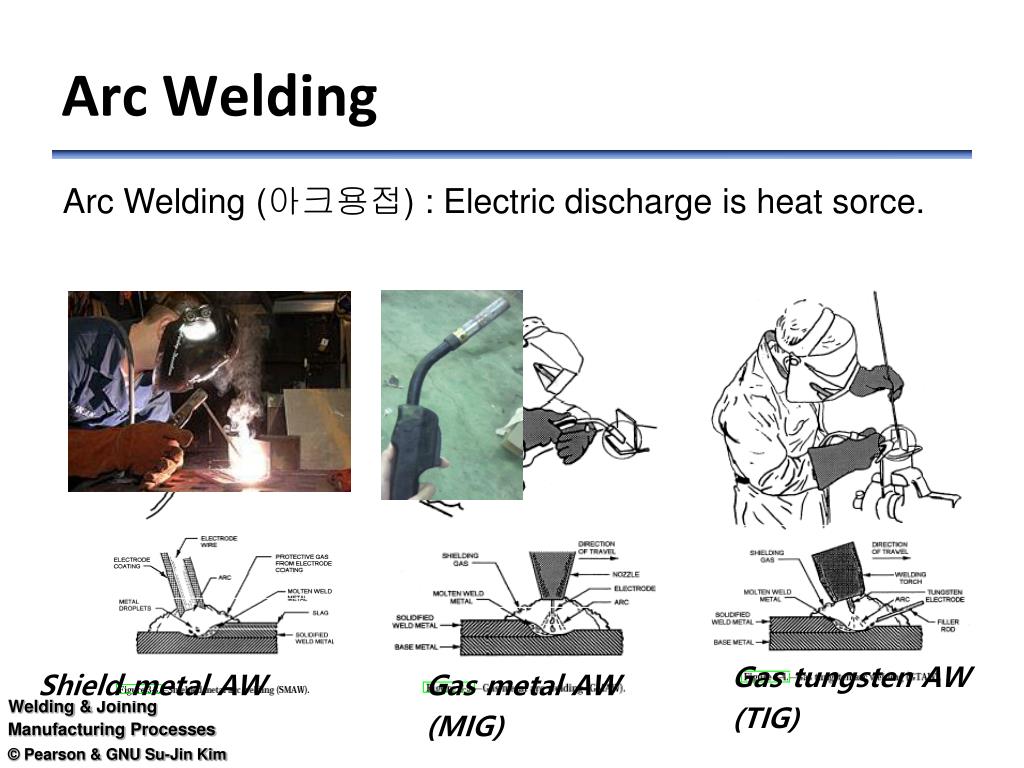

Arc Welding

Arc Welding (아크용접) : Electric discharge is heat sorce.

Gas tungsten AW

(TIG)

Shield metal AW

Gas metal AW

(MIG)

heat transfer in arc welding
Heat transfer in arc welding
  • Welding speed is

e = efficiency

V = voltage applied

I = current

u = specific energy

A=weld section area

shielded metal arc welding
Shielded metal arc welding
  • SMAW (피복금속AW) is the simplest and most versatile joining process.
  • It uses a consumable electrode coated in flux giving off a shielding gas.

http://www.youtube.com/watch?v=TeBX6cKKHWY&feature=related

submerged arc welding
Submerged arc welding
  • Weld arc is covered by a flux powder which is fed into the weld zone by gravity through a nozzle.
  • Flux completely covers the molten metal and prevents weld from oxidization and spatter.

http://www.youtube.com/watch?v=Uns93e4HaNU&feature=related

gas metal arc welding
Gas metal arc welding
  • GMAW(가스방호AW)= MIG (metal inert-gas welding)
  • Weld area is shielded by gas (Ar, He, CO2) to prevent oxidation.

MIG: http://ma.gnu.ac.kr/vod/Joining/Metal_Inert_Gas_Welding.MP4

flux cored arc welding
Flux-cored arc welding
  • FCAW (유심용제AW) is similar to MIG but electrode is tubular and filled with flux.
  • Continuous and automatic electrode feeding.

FCAW vs. MIG: http://www.youtube.com/watch?v=chE6RPhM3xE

electrogas welding
Electrogas welding
  • EGW welds thick vertical edges in one pass with special equipment. A shielding gas is sometimes used. Used in shipbuilding and storage tanks.

http://www.youtube.com/watch?v=8nwP0JYQIdg

electroslag welding
Electroslagwelding
  • ESW is for thick (25~300mm) vertical edges.
  • Flux is added. After the molten slag reaches the tip of the electrode, arc is extinguishes and energy is supplied through the electrical resistant of the molten zone.

http://www.youtube.com/watch?v=rCL8NCy2eg8

gas tungsten arc welding
Gas tungsten arc welding
  • GTAW(텅스텐AW)=TIG(Tungsten inert gas)
  • A filler metal is supplied from a filler wire.

http://www.youtube.com/watch?v=VEEpikDY058
