Presentation Transcript
Asterisk based pbx solutions l.jpg

Asterisk®-based PBX Solutions

Open Source Telephony Interfaces and Appliances for Commercial Installations

Asterisk is a registered trademark of Digium, Inc.


Contents l.jpg
Contents

  • Introduction to Xorcom

  • Astribank – USB Channel Bank

  • Xorcom IP-PBX Product Lines

  • Supported Extras

  • Web Interfaces

  • Case Studies & Testimonials

  • Key Sales & Support Benefits

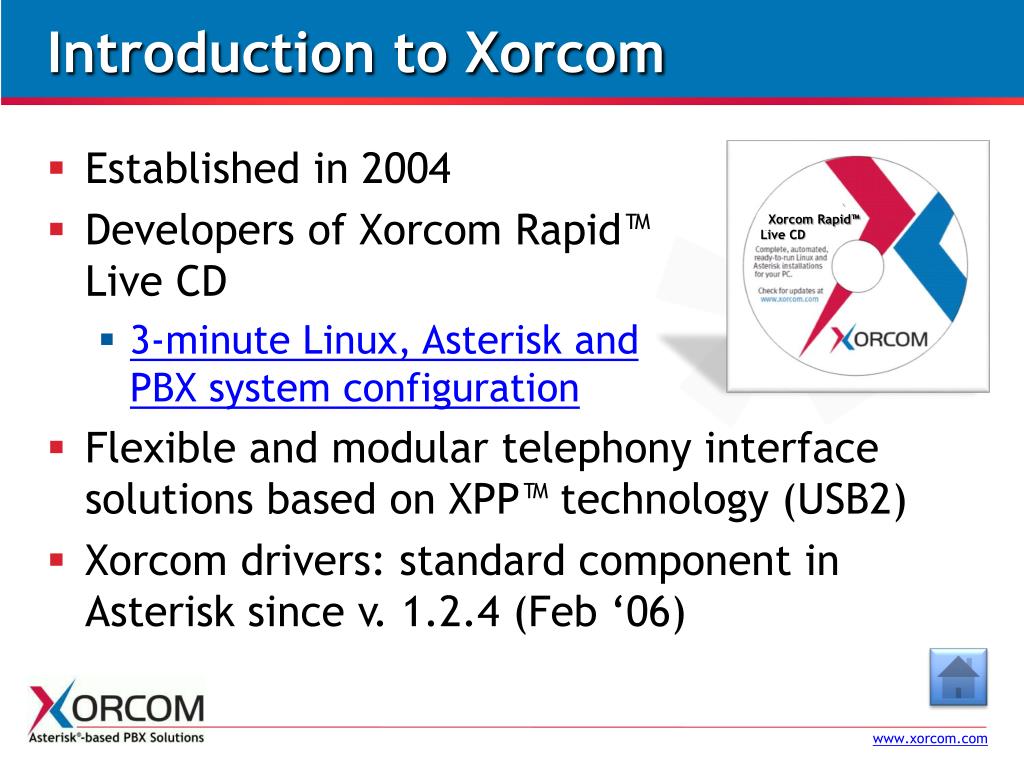

Introduction to xorcom l.jpg
Introduction to Xorcom

  • Established in 2004

  • Developers of Xorcom Rapid™ Live CD

    • 3-minute Linux, Asterisk and PBX system configuration

  • Flexible and modular telephony interface solutions based on XPP™ technology (USB2)

  • Xorcom drivers: standard component in Asterisk since v. 1.2.4 (Feb ‘06)

Xorcom Rapid™ Live CD


Distribution oem channels l.jpg
Distribution & OEM Channels

 Distributor  OEM



Xpp unique selling points l.jpg
XPP: Unique Selling Points

  • High speed 480 Mbit/s USB2 connectivity

  • Supports very high densities

    • Typical uncompressed voice: 2,400 calls/USB

  • Full support for fax and modems

  • Modular and scalable

  • Additional ports are ‘hot pluggable’

  • Simple integration of software applications


Powerful open source engine l.jpg

Powerful Open-Source Engine

Asterisk is a registered trademark of Digium, Inc.


Asterisk l.jpg
Asterisk

  • Most popular open-source OS for telephony (85% share)

  • Worldwide body of avid developers

  • Robust and accepted platform

    • Jan ‘09 report: 18% of N.A. installs (http://www.easternmanagement.com/pbx.htm)

  • Minimal $$ needed to start; higher flexibility

    • Open Source PBXs typically cost ~40% less than conventional telephone systems

    • Simple to integrate s/w apps


Astribank l.jpg

Astribank™

Asterisk® USB Channel Bank

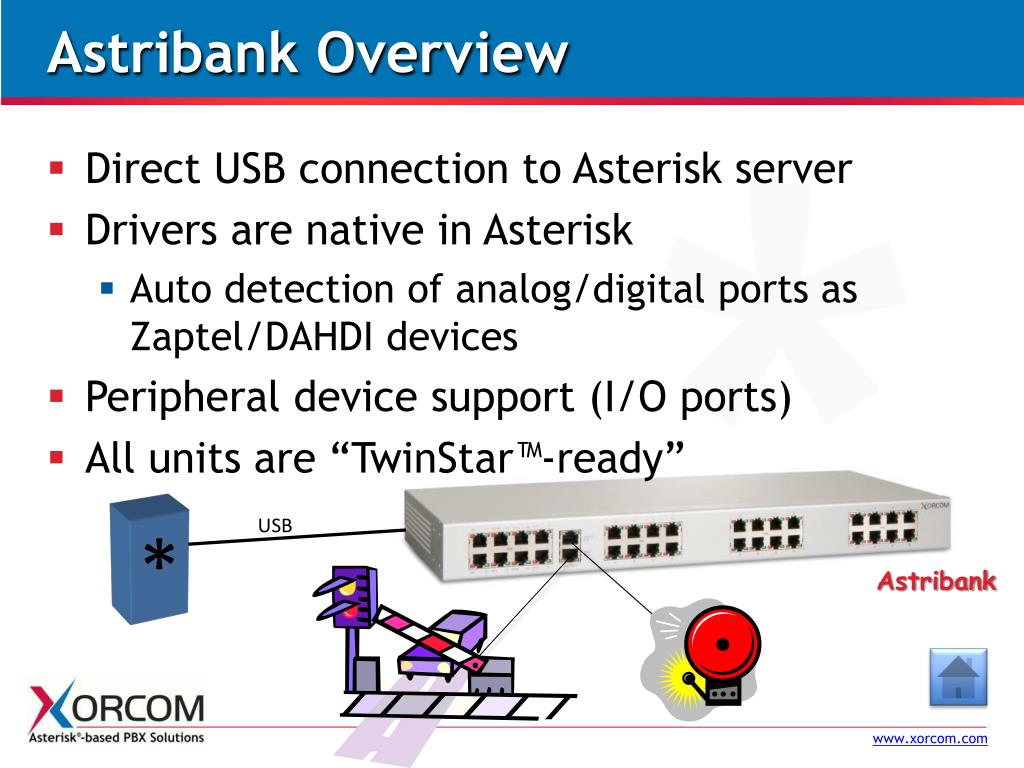

Astribank overview l.jpg
Astribank Overview

  • Direct USB connection to Asterisk server

  • Drivers are native in Asterisk

    • Auto detection of analog/digital ports as Zaptel/DAHDI devices

  • Peripheral device support (I/O ports)

  • All units are “TwinStar™-ready”

USB

*

Astribank


Analog capacity l.jpg
Analog Capacity

  • Up to 32 FXS ports

*

USB

Astribank


Fxo digital ports l.jpg

PSTN

FXO + Digital Ports

  • Up to 32 FXO ports

  • Up to 4 E1/T1 PRI ports

  • Up to 4 E1 R2 ports

  • Up to 8 BRI ports

*

USB

Astribank


Modular design l.jpg
Modular Design

  • Flexible and scalable

Astribank


Mount options l.jpg
Mount Options

  • Wall Mount

  • Rack Mount


Xorcom ip pbx product lines l.jpg
Xorcom ip-pbx product lines

Three lines to meet requirements of different sized businesses


Xorcom ip pbx product lines16 l.jpg
Xorcom IP-PBX Product Lines

XR1000 – up to 50 users

XR2000 – up to 300 users

XR3000 – up to 1000 users


Ip pbx features partial list l.jpg
IP-PBX Features (partial list)

  • User-friendly Web Interface

  • Interface in Different Languages

  • Unlimited Extensions

  • CDR (Call Details Record)

  • TDM/SIP/IAX Trunks

  • Remote Extensions

  • Voicemail

  • Fax Support

  • Voicemail to Email

  • IVR Menu System

  • Ring Groups

  • Call Queues

  • Conference Rooms

  • Follow-Me

  • Time-Based Routing

  • Advanced Dialing Rules

  • Music On Hold

  • Paging and Intercom

  • Web Access to Voicemail

  • Admin Status Screen

  • Package Manager (for easy updates)

  • Phone Provisioning Tool

  • Network Settings Tool

  • Echo Cancellation - OSLEC (Open Source Line Echo Cancellation)

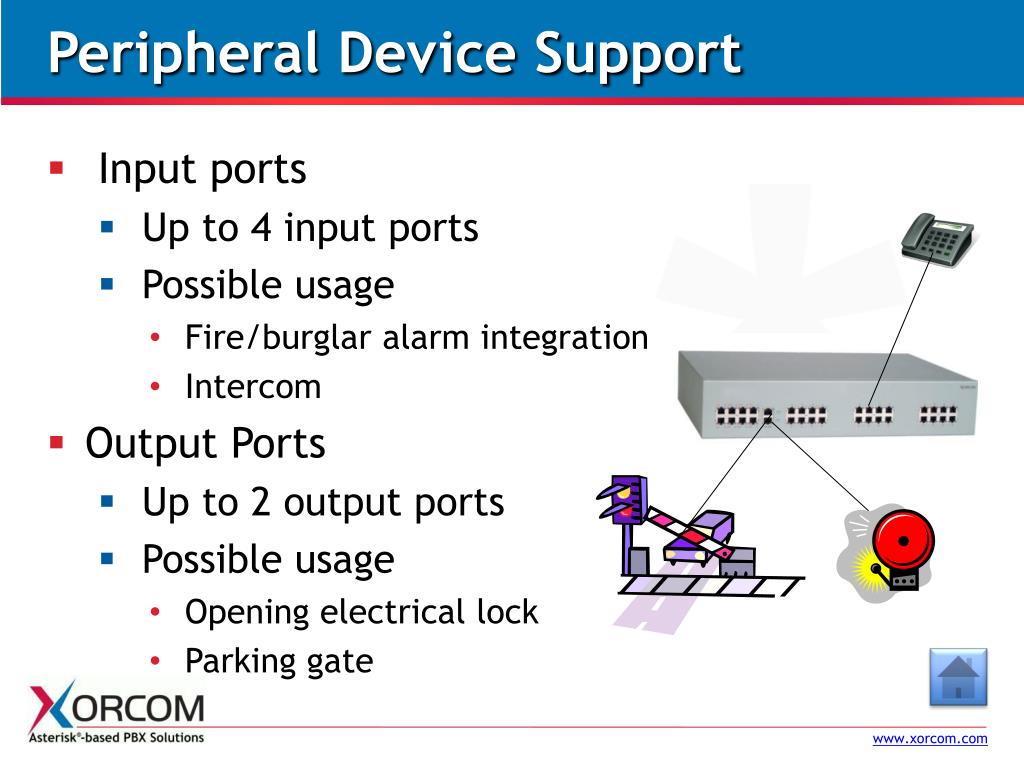

Peripheral device support l.jpg
Peripheral Device Support

  • Input ports

    • Up to 4 input ports

    • Possible usage

      • Fire/burglar alarm integration

      • Intercom

  • Output Ports

    • Up to 2 output ports

    • Possible usage

      • Opening electrical lock

      • Parking gate


Xr1000 series l.jpg

XR1000 Series

IP-PBX Optimized for SOHO


Xr1000 overview l.jpg
XR1000: Overview

  • IP-PBX optimized for SOHO

  • Stand-alone Asterisk-based IP-PBX

  • Up to 16 ports (BRI, FXO and/or FXS)

  • Peripheral device support (I/O ports)

  • Up to 5 concurrent calls

  • Up to 50 users

  • Remote access

  • Built-in echo-cancellation

XR1000


Pstn connections extensions l.jpg

PSTN

PSTN Connections & Extensions

  • Analog

    • Up to 16 internal FXS ports

    • Up to 16 internal FXO ports

  • BRI

    • 2-8 BRI ISDN ports

    • Each port NT/TE configurable

XR1000


Mount options22 l.jpg
Mount Options

  • Wall Mount

  • Rack Mount


Xr2000 series l.jpg

XR2000 Series

Leading-Edge IP-PBX for SMB


Xr2000 overview l.jpg
XR2000: Overview

  • Leading-Edge IP-PBX for SMB

  • Stand-alone Asterisk-based IP-PBX

  • Up to 60 concurrent calls

  • Up to 300 users

  • Built-in echo-cancellation

  • Remote access

  • RAID1 option (dual HDD redundancy)

  • Peripheral device support (I/O ports)

XR2000


Pstn connections l.jpg

PSTN

PSTN Connections

  • Analog

    • Up to 32 internal FXO ports (analog lines)

    • Up to 4 additional analog Astribank units (4 x 32) + 32 = 160

  • PRI

    • 1 E1/T1 PRI port

    • E1/T1 – programmable

    • Each port NT/TE configurable

  • R2

    • 1 E1 R2 port

    • NT

  • BRI

    • 2-8 BRI ISDN ports

    • Each port NT/TE configurable

XR2000


Extensions l.jpg

LAN

Extensions

  • Analog

    • Up to 32 internal FXS ports (analog phones)

    • Up to 4 additional analog Astribank units

    • Max. total – 160 analog extensions

  • IP

    • Up to 300 SIP

    • Up to 300 IAX

  • Total (mixed)

    • Up to 300 users

XR2000


Supports existing infrastructure l.jpg

XR2000 supports up to 160 analog extensions with add-on Astribank units

Supports Existing Infrastructure

XR2000

Astribank Channel Banks(up to 4)


User interface management l.jpg
User Interface & Management Astribank units

  • Elastix

  • trixbox CE

XR2000


Xr3000 series l.jpg

XR3000 Series Astribank units

Heavy Duty IP-PBX for Enterprise, Hotel and Call Centers


Xr3000 overview l.jpg
XR3000: Overview Astribank units

  • Stand-alone enterprise-grade Asterisk-based IP-PBX

  • Up to 300 concurrent calls

  • Up to 1,000 users

  • Built-in echo-cancellation

  • Remote Access

  • RAID1 option (dual HDD redundancy)

  • Peripheral device support (I/O ports)

XR3000


Pstn connections31 l.jpg

PSTN Astribank units

PSTN Connections

  • Analog

    • Up to 32 internal FXO ports (analog lines)

    • Up to 20 additional analog Astribank units (20 x 32) + 32 = 672

  • BRI

    • 2-8 BRI ISDN ports

    • Each port NT/TE configurable

  • PRI

    • Up to 4 E1/T1 PRI ports

    • E1/T1 – programmable

    • Each port NT/TE configurable

  • R2

    • Up to 4 E1 R2 ports

    • NT

XR3000


Extensions32 l.jpg

LAN Astribank units

Extensions

  • Analog

    • Up to 32 internal FXS ports (analog phones)

    • Up to 20 additional analog Astribank units

    • Max. Total – 672 analog extensions

  • IP

    • Up to 1,000 SIP

    • Up to 1,000 IAX

  • Total (mixed)

    • Up to 1,000 users

XR3000


High density l.jpg
High Density Astribank units

XR3000

XR3000 supports up to 672 analog extensions (with add-on Astribank units)

Astribank Channel Banks(up to 20)

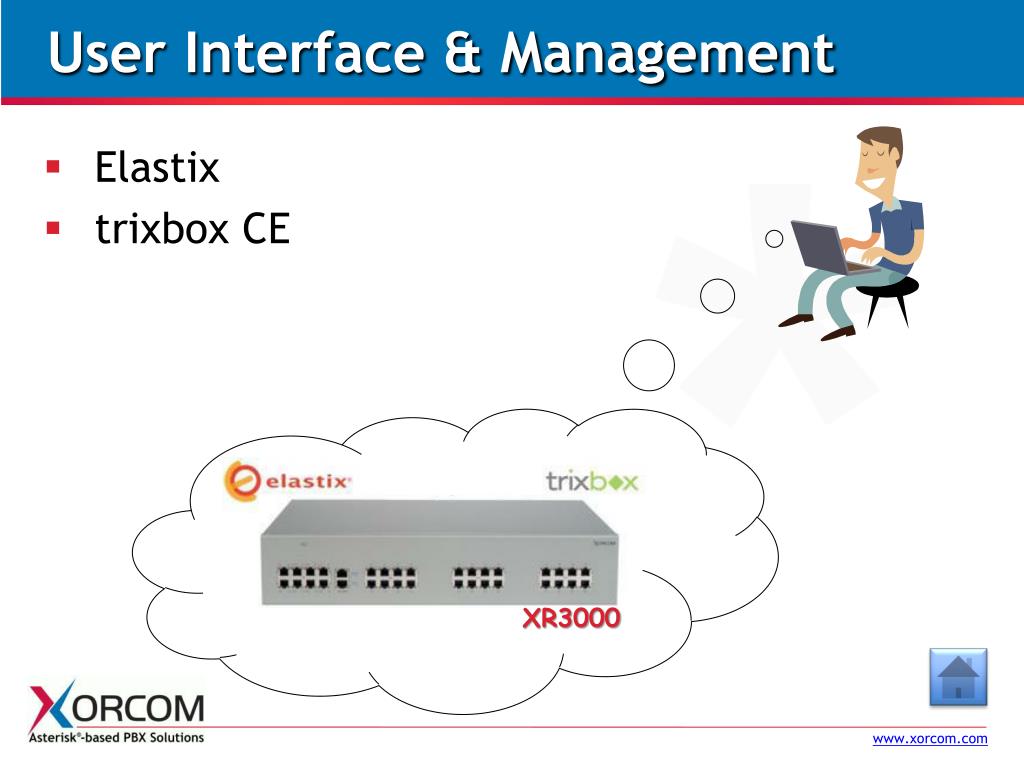

User interface management34 l.jpg
User Interface & Management Astribank units

  • Elastix

  • trixbox CE

XR3000


Supported extras l.jpg
Supported Extras Astribank units

Simplifying and extending the usability of open source telephony


Telecom connector option tco l.jpg
Telecom Connector Option (TCO) Astribank units

  • Optional factory installed add-on

  • Unites FXS ports into a single telecom connector on the rear panel

  • Available for all Astribanks,XR2000 and XR3000 units with ≥8 FXS ports

  • Does not disable front panel FXS ports; can be used in parallel

  • Excellent for maintenance; front panel LEDs are active when the Telco port is in use

  • Supplied with 3 meters (~9 ft) telecom cable


Rapid pa public address system l.jpg
Rapid PA™ - Public Address System Astribank units

  • Small stand-alone unit; activated by dialing port’s extension

  • 2 RJ11 ports per Rapid PA

    • ‘PBX’ port connects directly to Astribank FXS port

    • ‘PA’ connection connects to PA ‘line in’ port

  • No power supply needed; uses Astribank FXS feed

  • PA device:

    • standard PC speaker with internal amplifier

    • industrial-strength amplifying system

    • anything in-between…


Raid1 support l.jpg
RAID1 Support Astribank units

  • Geometrically increases IP-PBX hard-drive reliability

  • Suitable for XR2000 and XR3000

  • Two hard disks are supplied; all blocks replicated/mirrored

  • If the active hard disk fails, the second hard-disk automatically takes over and an alarm e-mail is sent to the system administrator

  • PBX continues working seamlessly


Pbx disaster recovery made simple l.jpg
PBX Disaster Recovery Made Simple Astribank units

  • Never worry again about:

    • natural disasters

    • hardware failure

    • human error

  • Now you can create, save and restore your PBX files in minutes!


Rapid recovery backup restore l.jpg
Rapid Recovery: Backup & Restore Astribank units

  • Utility and storage space 2GB USB Disk-on-Key (DOK)

  • Supports XR1000, XR2000 and XR3000

  • Backs up entire PBX includinguser-defined options:

    • configuration files

    • voice prompts

    • voice mail

  • Descriptive name for each backup

  • Single DOK for multiple system backups; Up to four* different system recoveries on single DOK

* For XR2000 and XR3000. A single, non-compressed backup is supported for XR1000.


Live rescue temporary recovery l.jpg
Live Rescue: Temporary Recovery Astribank units

  • Bootable Disk-on-Key (DOK)

  • Runs Xorcom XR1000, XR2000 and XR3000 directly from USB port

  • Simple, safe and speedy disaster recovery:

    • human error

    • disk crash

    • other disaster

  • Utilizes Xorcom Rapid Recovery™ backup

  • Temporary solution until maintenance can be scheduled

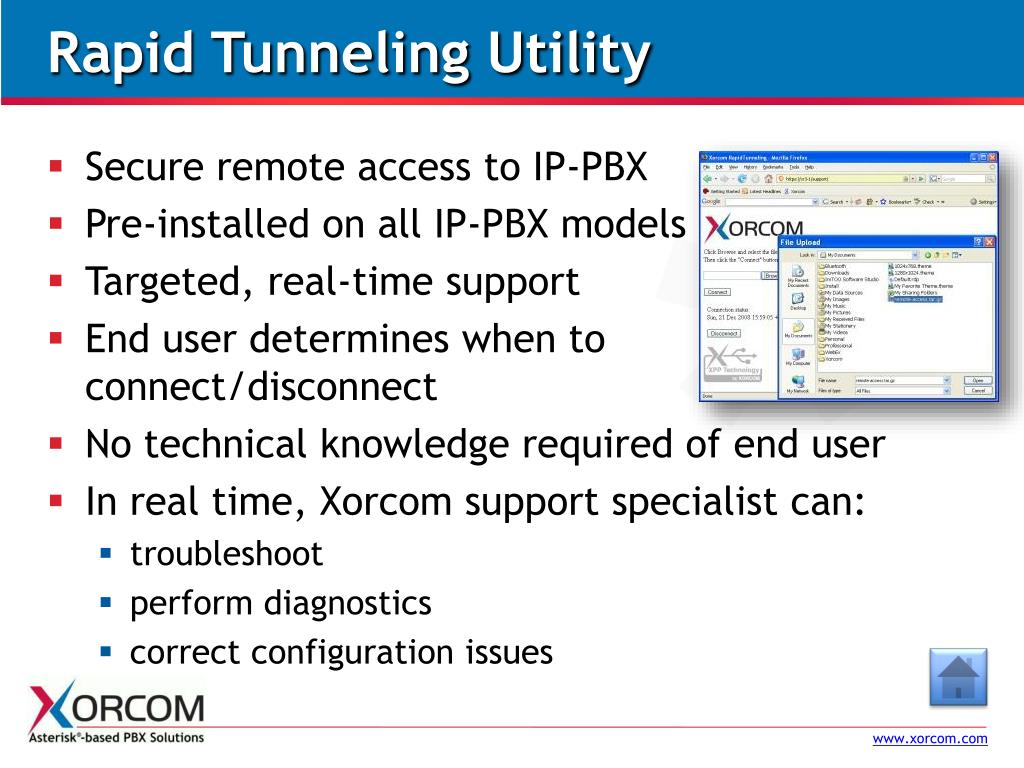

Rapid tunneling utility l.jpg
Rapid Tunneling Utility Astribank units

  • Secure remote access to IP-PBX

  • Pre-installed on all IP-PBX models

  • Targeted, real-time support

  • End user determines when to connect/disconnect

  • No technical knowledge required of end user

  • In real time, Xorcom support specialist can:

    • troubleshoot

    • perform diagnostics

    • correct configuration issues


Twinstar l.jpg
TwinStar Astribank units™

True Redundancy Solution for Asterisk PBX with Multiple Telephony Interfaces


High availability solution for asterisk l.jpg
High Availability Solution for Asterisk Astribank units

  • Provides full redundancy for a complete PBX system, incl. telephony interfaces

  • Quick and automatic failover process keeps downtime to an absolute minimum

  • Auto detection of server failure & switch to backup server

  • Firmware-based switching mechanism is not network-dependent

  • Solution components:

    • two Xorcom IP PBX units with identical configurations

    • Xorcom Astribank channel bank(s) with dual USB ports

XPP Technology


Initial setup identical servers l.jpg
Initial Setup: Identical Servers Astribank units

  • Two Xorcom servers + dual-USB Astribank

Xorcom server(primary)

Xorcom server(backup)

USB

USB

LAN/WAN

PSTN

Astribank (front panel) USB-connected channel bank providing analog/digital telephony interfaces

IP Phones

Analog Phones


Standard operation primary active l.jpg
Standard Operation: Primary Active Astribank units

  • Two Xorcom servers + dual-USB Astribank

Xorcom server(primary)

Xorcom server(backup)

USB

USB

LAN/WAN

PSTN

Astribank (rear panel) USB-connected channel bank providing analog/digital telephony interfaces

IP Phones

Analog Phones


If the primary server fails l.jpg
If the Primary Server Fails… Astribank units

Server Failure

Xorcom server(primary)

Xorcom server(backup)

USB

USB

LAN/WAN

PSTN

Astribank (rear panel) USB-connected channel bank providing analog/digital telephony interfaces

IP Phones

Analog Phones

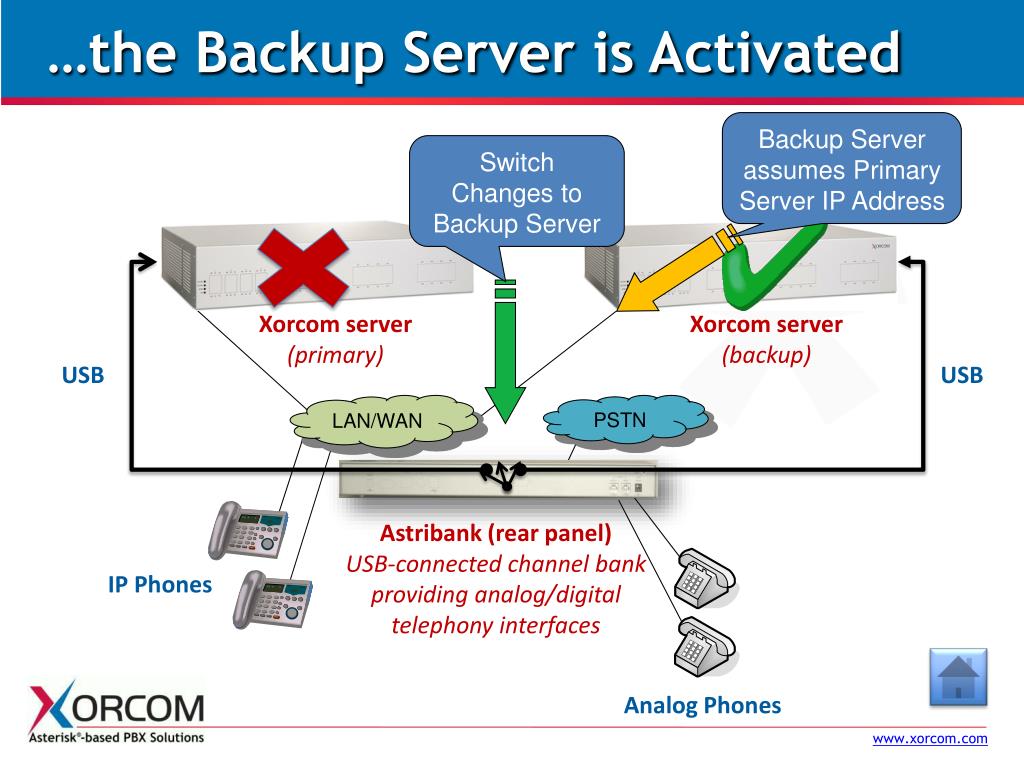

The backup server is activated l.jpg
…the Backup Server is Activated Astribank units

Backup Server assumes Primary Server IP Address

Switch Changes to Backup Server

Xorcom server(primary)

Xorcom server(backup)

USB

USB

LAN/WAN

PSTN

Astribank (rear panel) USB-connected channel bank providing analog/digital telephony interfaces

IP Phones

Analog Phones


Twinstar demo l.jpg
TwinStar Demo Astribank units


Web interfaces l.jpg

Web Interfaces Astribank units

Interface and Management Systems



Elastix add conference l.jpg
Elastix Add Conference Astribank units



Elastix crm interface l.jpg
Elastix CRM Interface Astribank units


Trixbox management interface l.jpg
trixbox Management Interface Astribank units

  • PBX Settings


Trixbox management interface56 l.jpg
trixbox Management Interface Astribank units

  • Admin Screen


Trixbox management interface57 l.jpg
trixbox Management Interface Astribank units

  • CRM


Installing astribank on distributions l.jpg
Installing Astribank on Distributions Astribank units

  • For Astribank FXS/FXO/PRI

    • install the fxload package for uploading of Astribank firmware

    • install the freepbx-module-zapauto package for automatic channels configuration

  • For Astribank BRI

    • same packages as above

    • install BRIstuff

    • recompile Asterisk, Zaptel, and libpri from the source

  • Full documentation on Xorcom Web site


Case studies testimonials l.jpg
Case studies & Testimonials Astribank units

Sample Implementations of Xorcom Products


Het maatman foundation l.jpg
Het Maatman Foundation Astribank units

  • Chain of special education facilities in Holland

  • Customer requirements:

    • Hybrid VoIP PBX

    • Use of existing legacy phones incl. text phones

    • IVR (digital receptionist)

    • Time Conditions

    • Call Group Limitations

    • Ring Groups and Queues

    • Music on Hold

    • Personal Voicemail

  • Solution: Astribank channel banks connected to Asterisk server, PSTN (BRI ISDN) and analog phones


Het maatman foundation61 l.jpg
Het Maatman Foundation Astribank units

WAN

PSTN

BRI ISDN

USB

IP Phones

Analog Phones (x80)


Slide62 l.jpg

  • Int’l company providing automated optical inspection systems for semiconductors and printed circuit boards (PCB)

  • Ten worldwide branch offices

  • Communication costs reached $KK each month

  • Customer requirements:

    • Reduce communication costs without changing personnel habits (previous attempts – calling cards / Boomerang – failed)

  • Solution:

    • Xorcom IP-PBX attached to existing proprietary PBX via PRI in main office

    • Xorcom IP-PBX systems in other large branches

    • IP between all branches (reducing inter-branch calls to $0)


Slide63 l.jpg

Belgium systems for semiconductors and printed circuit boards (PCB)

XR2050

PSTN

Laptop Computer

IP Phones (x15)

Cell Phone

PRI

WAN

China CZ

Israel

PRI

XR2050

XR3059

Coral III

IP Phones (x2)

Analog Phones (x24)

MPLS

Hong Kong

Analog Phones (x300)

IP Phones (x8)

XR2050

IP Phones (x30)


Testimonials l.jpg
Testimonials systems for semiconductors and printed circuit boards (PCB)

  • “This is our first install with Xorcom FXS analog modules, and we have to say they work a lot easier than the 'other' FXS/FXO PCI cards of your competitors.” – Casper Kamp, CEO - Checkmarq

  • “Xorcom provides hardware interfaces in the Astribank USB channel banks. This is genius…” – Michael Graves, VoIP blogger

  • “We chose the Xorcom IP-PBX as our voice platform for the EPICAcce because it includes a complete voice solution that integrates seamlessly with legacy and VoIP PBX environments.” – Shlomo Shur, CEO - EasyRun

  • "...To get around this problem of having to use expensive T1 cards that are tied to a single server, Xorcom shuns T1 cards and uses good old USB 2.0 for its interface to the PC..." – George Ou – ZDNet

  • “I've found Xorcom support to be extremely responsive when needed.” – Kenn10 – PBX in a Flash Forum


Key sales support benefits l.jpg
Key sales & Support benefits systems for semiconductors and printed circuit boards (PCB)

Why Choose Xorcom? In a Nutshell…


Sales benefits of xorcom platform l.jpg
Sales Benefits of Xorcom Platform systems for semiconductors and printed circuit boards (PCB)

  • Simple, pre-configured: works ‘out of the box’ to save time and money

  • Small, professional, industry standard 19” 1U/2U

  • High density:

    • Up to 32 analog, 120 digital or 144 combined ports (per chassis)

  • Full telephony connectivity: FXS, FXO, PRI (E1/T1), E1/R2, BRI ISDN

  • Modular and scalable

  • Connects to VoIP (SIP, IAX), incl. soft phones


Support benefits of xorcom platform l.jpg
Support Benefits of Xorcom Platform systems for semiconductors and printed circuit boards (PCB)

  • 12-month warranty; on-going free software upgrades for future features

  • Rapid Tunneling™ for easy remote maintenance

  • RAID1 for dual hard disk drive redundancy

  • Easy-to-use suite of disaster recovery tools

  • TwinStar™ failover solution


Thank you l.jpg

Thank You systems for semiconductors and printed circuit boards (PCB)

www.xorcom.com


ad
