Autostereograms
Autostereograms

What would happen if you remove the divider of a stereoscope?

  • Convergence is on a point at the same distance as the images

  • Boxes and faces are on the horopter

  • How many boxes would you see?

boxes and faces are on the horopter


Autostereograms1
Autostereograms

Now cross your eyes:

  • right-eye line of sight crosses left-eye line of sight in front of image (crossed convergence)

  • each retina is now pointed at the opposite box

  • How many boxes would you see?

  • What would happen to the face?

crossed convergence


Autostereograms2
Autostereograms

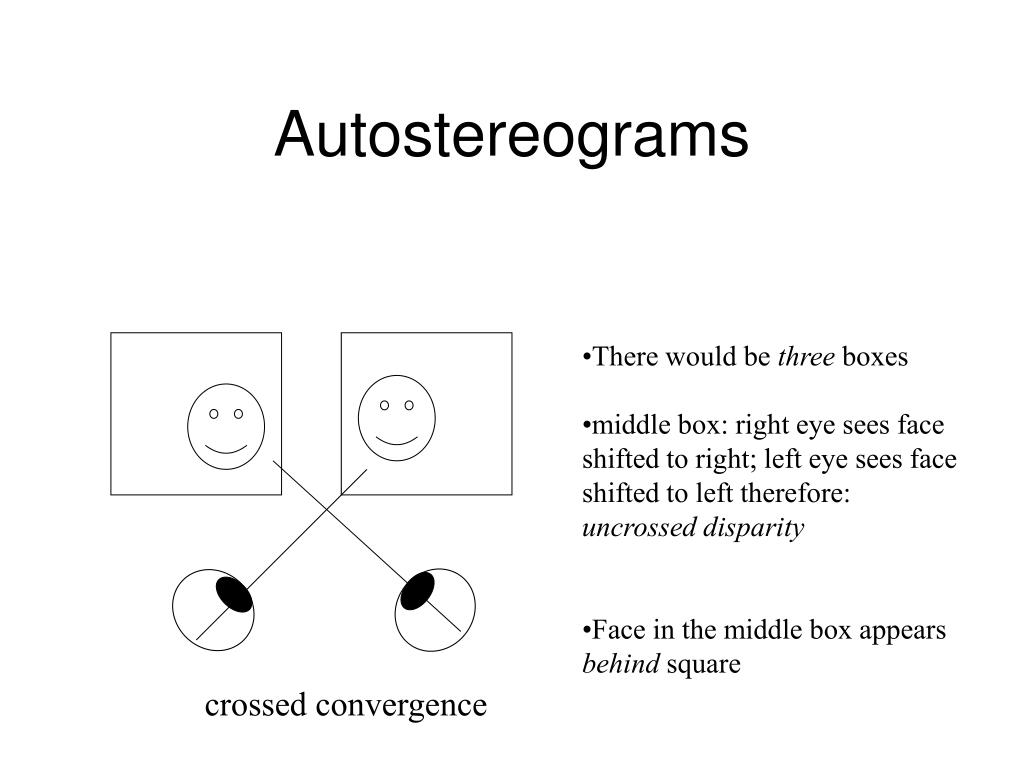

  • There would be three boxes

  • middle box: right eye sees face shifted to right; left eye sees face shifted to left therefore:

  • uncrossed disparity

  • Face in the middle box appears behind square

crossed convergence


Autostereograms3
Autostereograms

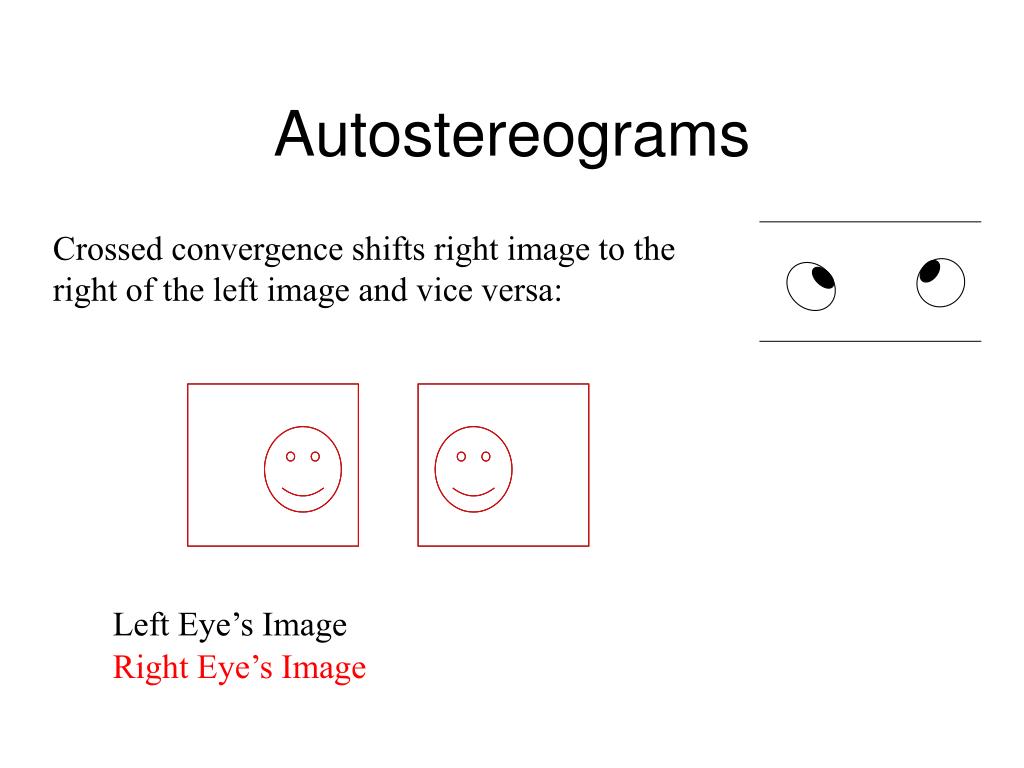

Crossed convergence shifts right image to the right of the left image and vice versa:

Left Eye’s Image

Right Eye’s Image


Autostereograms4
Autostereograms

What would happen if the convergence was uncrossed?


Autostereograms5
Autostereograms

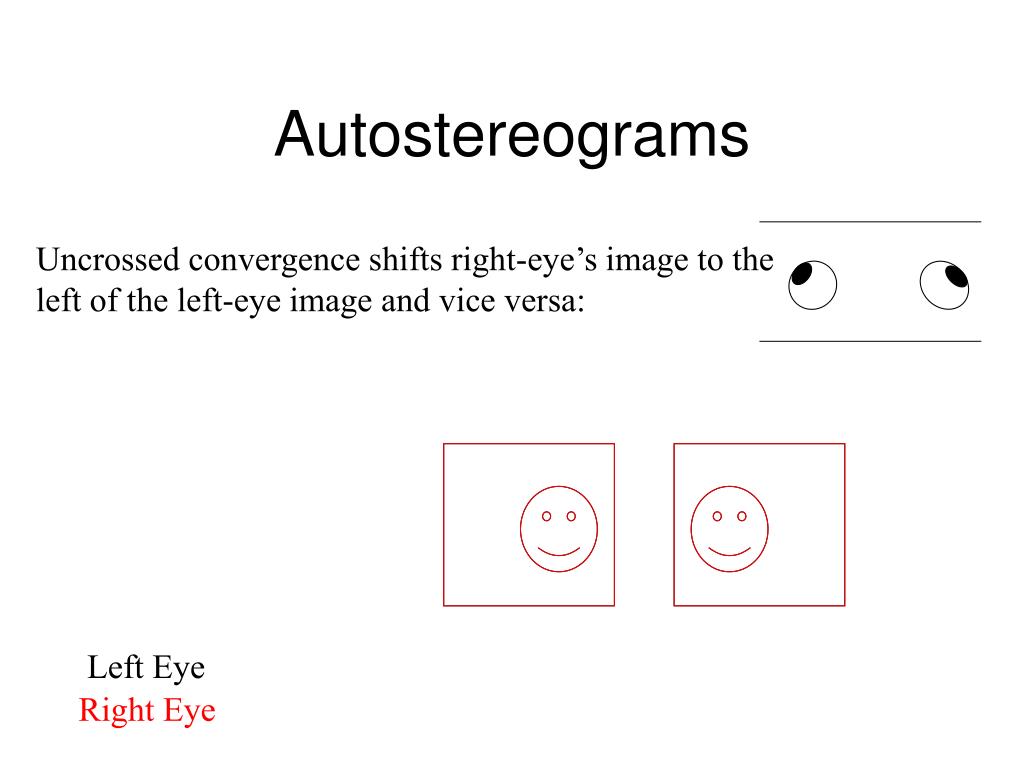

Uncrossed convergence shifts right-eye’s image to the left of the left-eye image and vice versa:

Left Eye

Right Eye


Autostereograms6
Autostereograms

What would happen if the faces were switched relative to the boxes?


Autostereograms7
Autostereograms

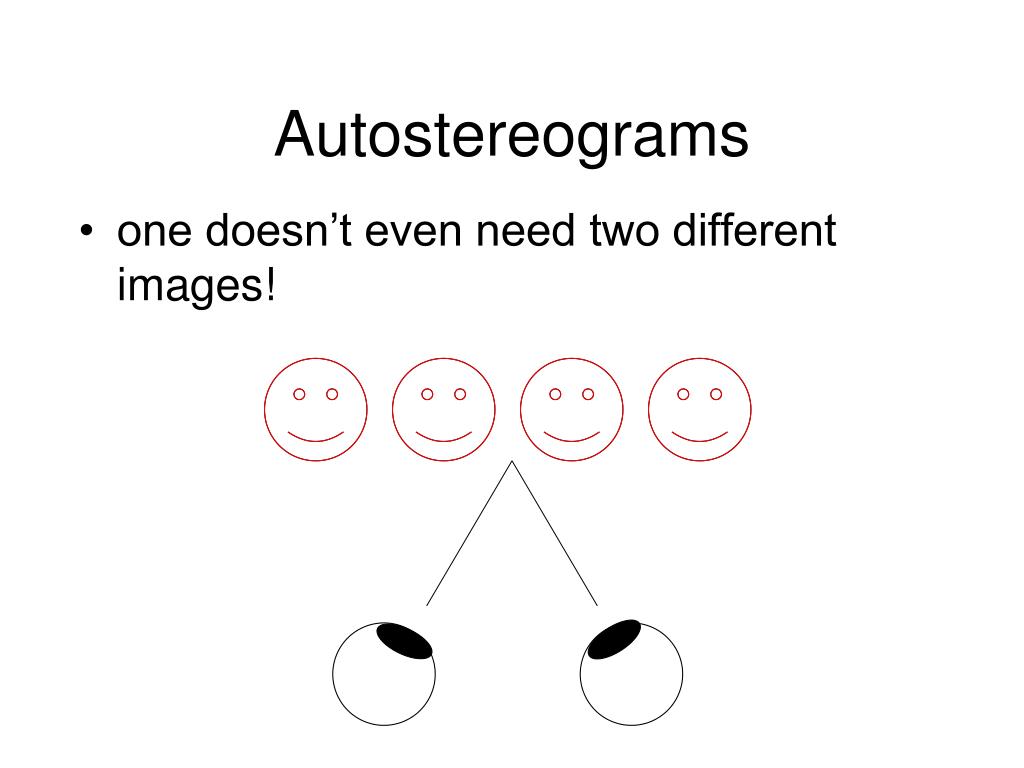

  • one doesn’t even need two different images!


Autostereograms8
Autostereograms

RIGHT EYE

LEFT EYE

Faces fuse

Convergence tells your brain that the plane of the image is farther away than it really is


Autostereograms9
Autostereograms

  • Uneven spacing between identical objects in a single picture can appear as disparity if the angle of convergence is inappropriate


Autostereograms10
Autostereograms

  • Uneven spacing between identical objects in a single picture can appear as disparity if the angle of convergence is inappropriate

  • TRICK: Seeing depth in autostereograms requires you to suppress the reflexive coordination between convergence and accommodation


Autostereograms

Any repeating objects that have a spacing different from the background will have either crossed or uncrossed disparity

RIGHT EYE

LEFT EYE

If you uncross convergence, your right eye gets these faces shifted slightly to left, left eye gets them shifted to right = CROSSED DISPARITY

What would you see?


Autostereograms

Any repeating objects that have a spacing difference from the background will have either crossed or uncrossed disparity

RIGHT EYE

LEFT EYE

If you uncross convergence, right eye gets these faces shifted slightly to right, left eye gets them shifted to left = UNCROSSED DISPARITY

What would you see?


Autostereograms11
Autostereograms

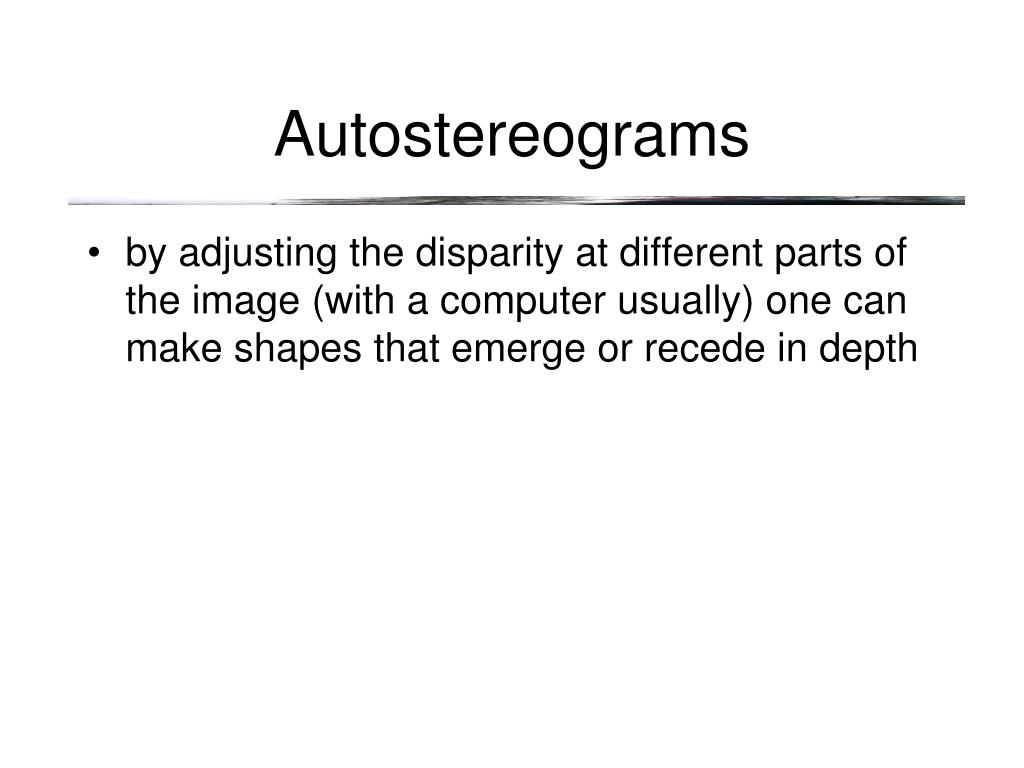

  • by adjusting the disparity at different parts of the image (with a computer usually) one can make shapes that emerge or recede in depth


Magic eye stereograms
“Magic Eye” Stereograms

  • Usually viewed with uncrossed convergence

  • Imagine gazing farther than the surface (let your eyes “relax”)

  • Now try to notice objects or forms in the blurriness

  • As you become aware of shapes, try to focus (accommodate) the plane of the image without converging your eyes






Wavelength and color
Wavelength and Color

  • Recall that light is electromagnetic radiation


Wavelength and color1
Wavelength and Color

  • Recall that light is electromagnetic radiation

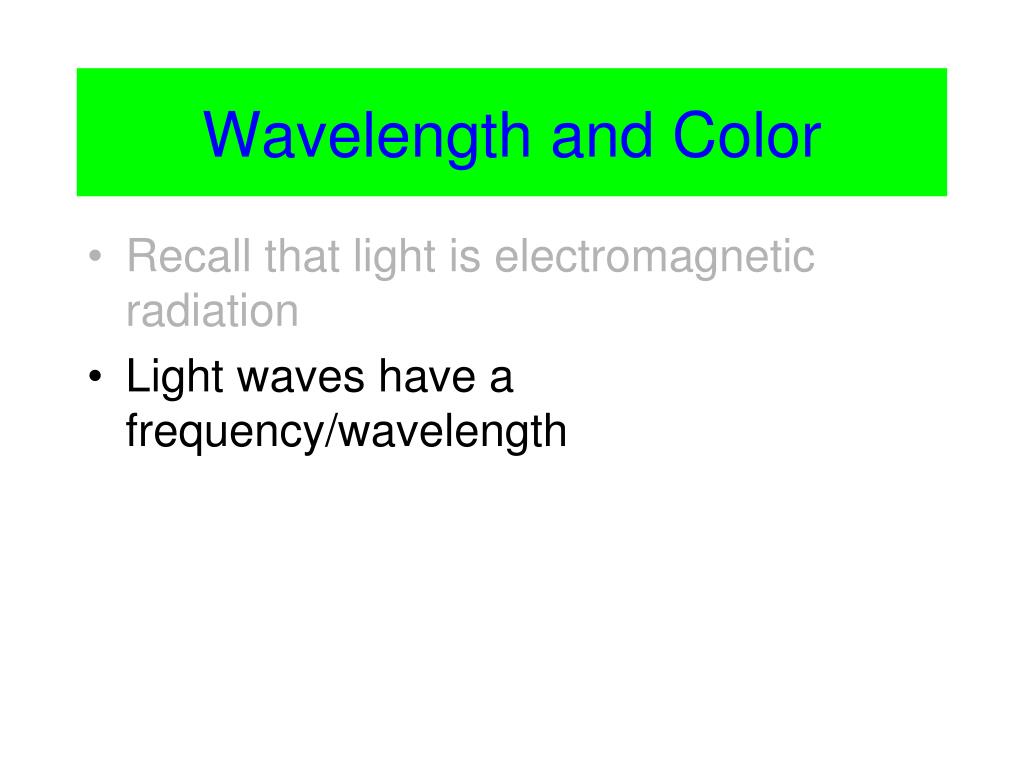

  • Light waves have a frequency/wavelength


Wavelength and color2
Wavelength and Color

  • Recall that light is electromagnetic radiation

  • Light waves have a frequency/wavelength

  • Frequency/wavelength is the physical property that corresponds (loosely) to the perception called color


Color vision
Color Vision

Wavelength and Color

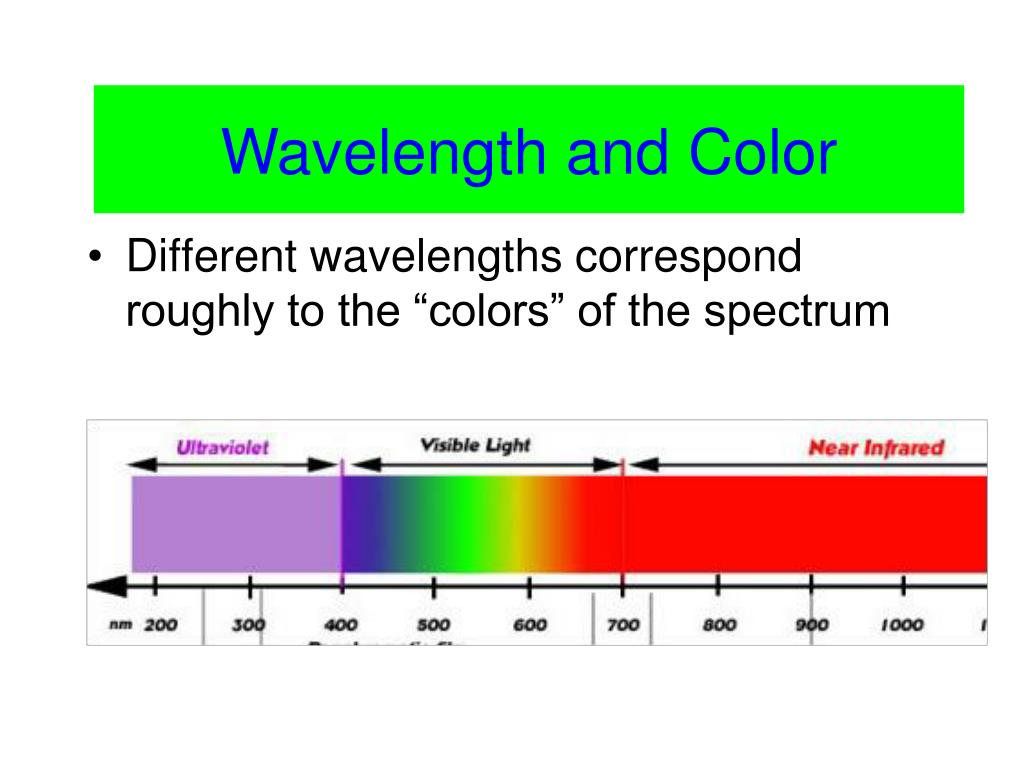

  • Different wavelengths correspond roughly to the “colors” of the spectrum


Color vision1
Color Vision

Wavelength and Color

  • White light is a mixture of wavelengths

    • prisms decompose white light into assorted wavelengths


Color vision2
Color Vision

Wavelength and Color

  • White light is a mixture of wavelengths

    • prisms decompose white light into assorted wavelengths

    • likewise, adding all wavelengths together makes white light

What happens if you mix several different paints together?


Color vision3
Color Vision

Wavelength and Color

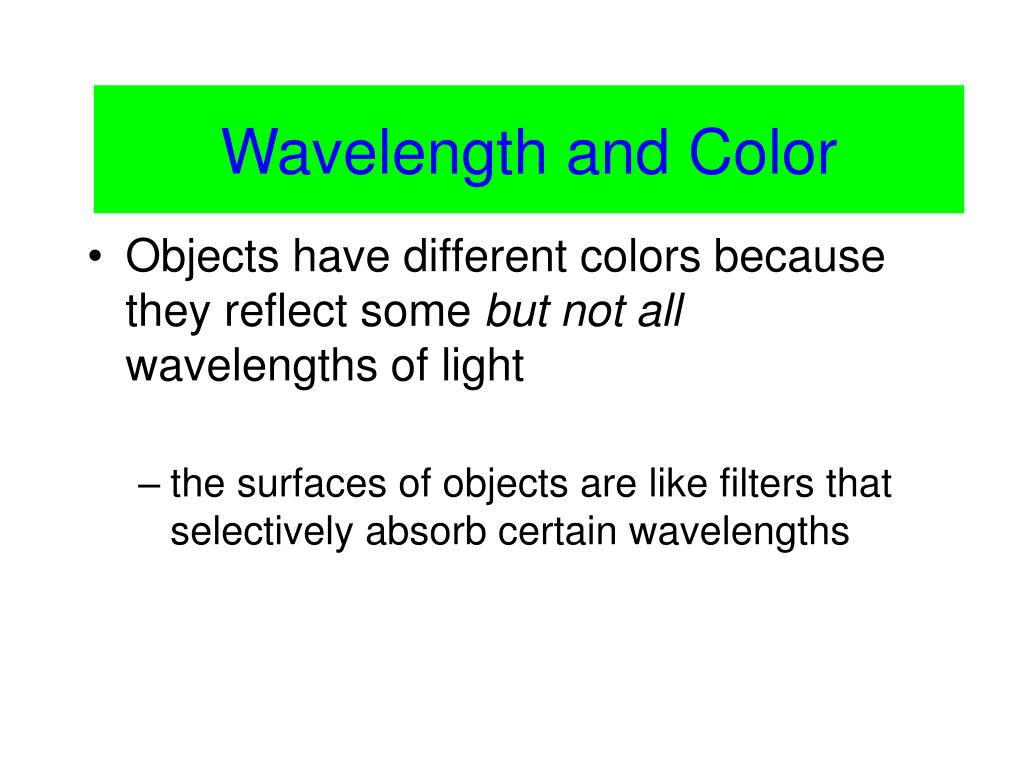

  • Objects have different colors because they reflect some but not all wavelengths of light

    • the surfaces of objects are like filters that selectively absorb certain wavelengths


Color vision4
Color Vision

Perceiving Color

  • Primary colors

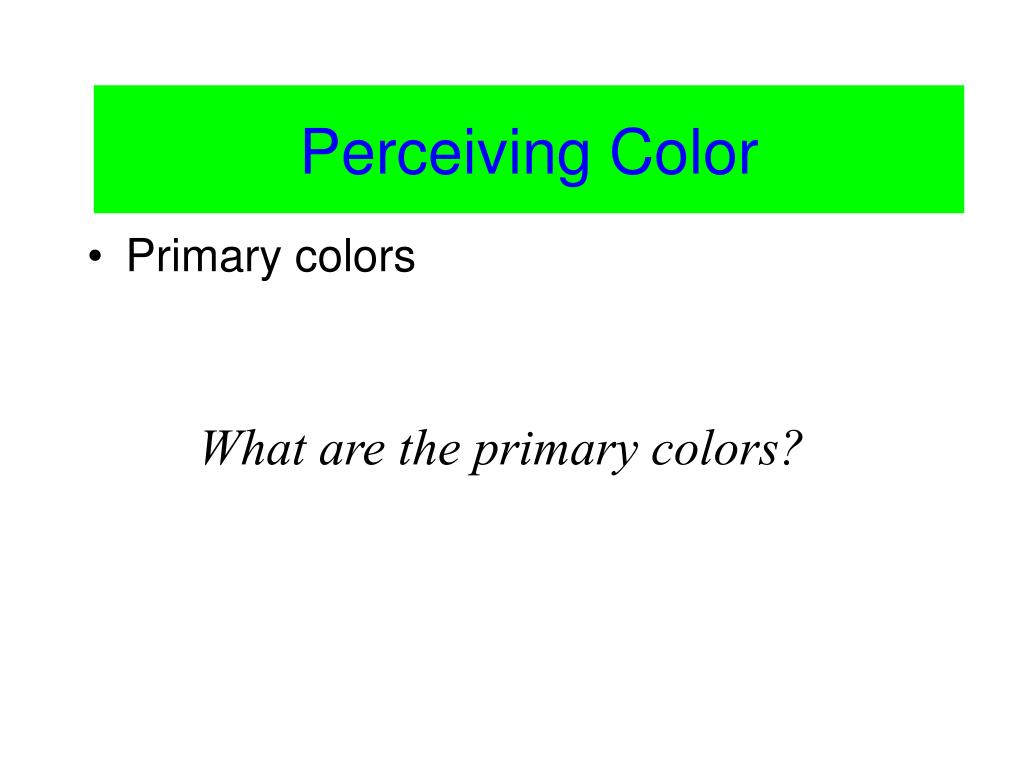

What are the primary colors?


Color vision5
Color Vision

Perceiving Color

  • Primary colors

RedGreenBlue


Color vision6
Color Vision

Perceiving Color

  • Primary colors

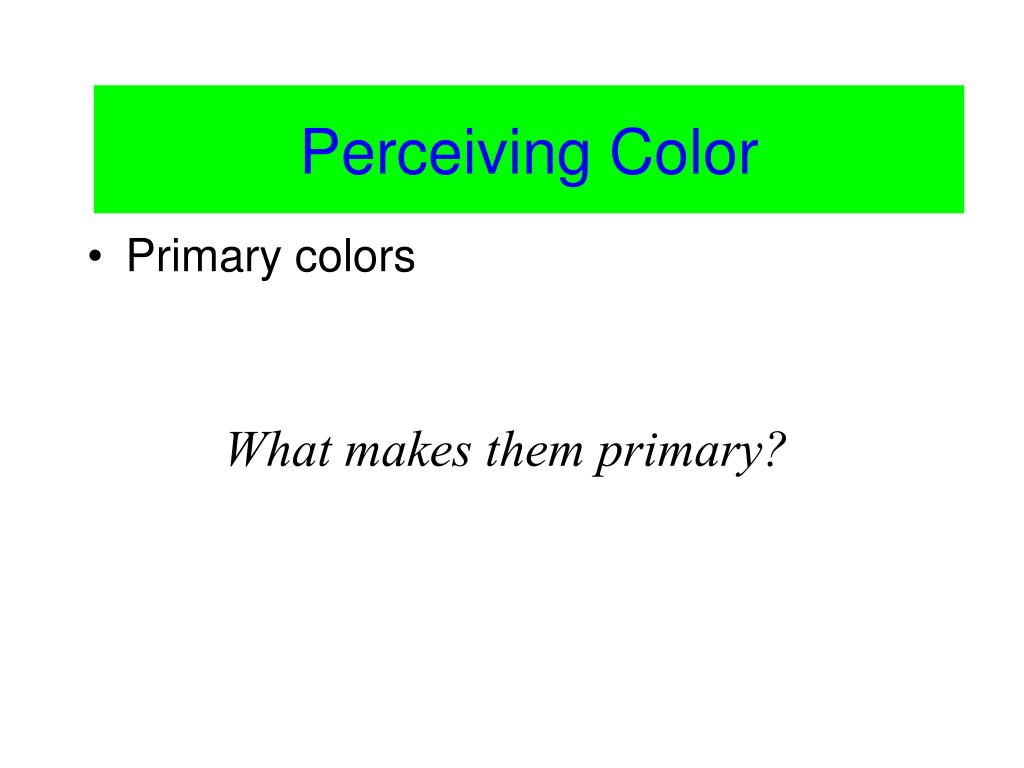

What makes them primary?


Color vision7
Color Vision

Perceiving Color

  • Primary colors

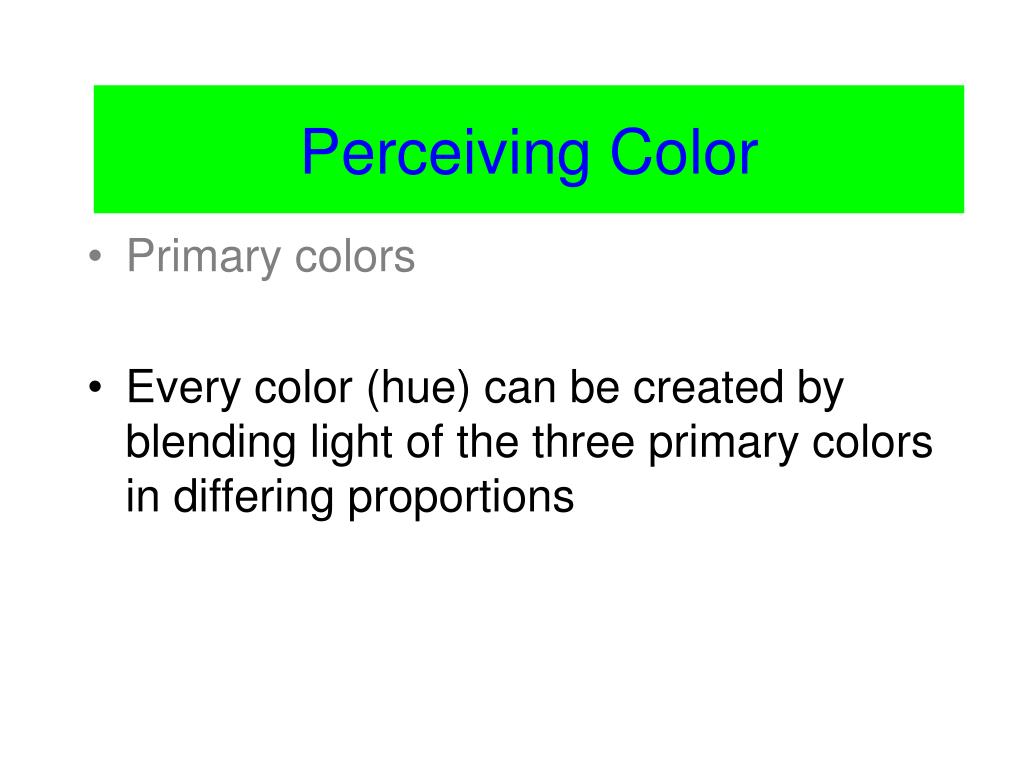

  • Every color (hue) can be created by blending light of the three primary colors in differing proportions


Color vision8
Color Vision

Perceiving Color

  • Primary colors

  • Every color (hue) can be created by blending light of the three primary colors in differing proportions

  • Led to prediction that there must be three (and only three) distinct color receptor types


Color vision9
Color Vision

Perceiving Color

  • Four absorption peaks in retina: 3 cone types plus rods

Absorption/Cone response


Color vision10
Color Vision

Theories of Color Vision

Signal to Brain

Wavelength Input

Cone

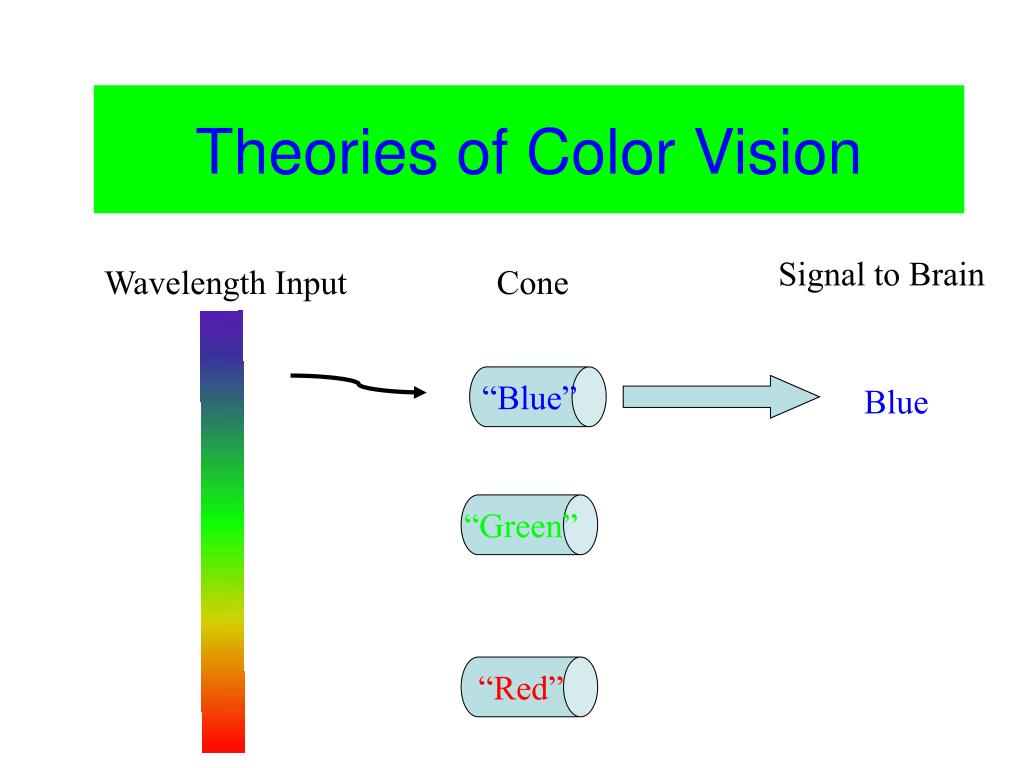

“Blue”

Blue

“Green”

“Red”


Color vision11
Color Vision

Theories of Color Vision

Signal to Brain

Wavelength Input

Cone

“Blue”

“Green”

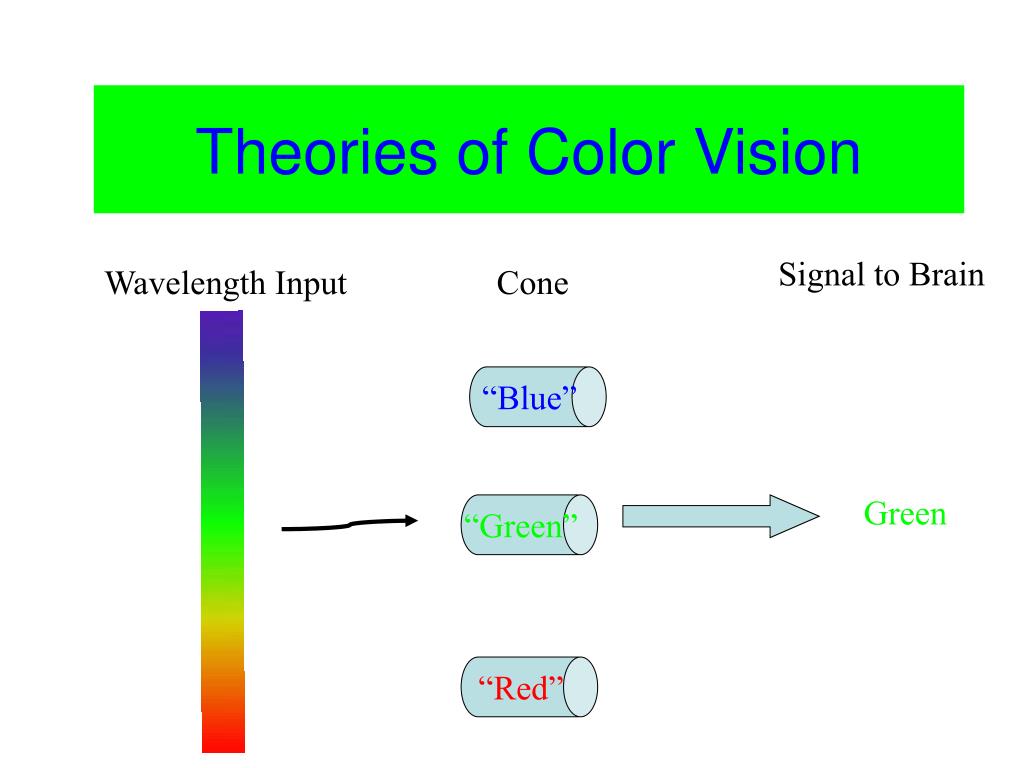

Green

“Red”


Color vision12
Color Vision

Theories of Color Vision

Signal to Brain

Wavelength Input

Cone

“Blue”

“Green”

“Red”

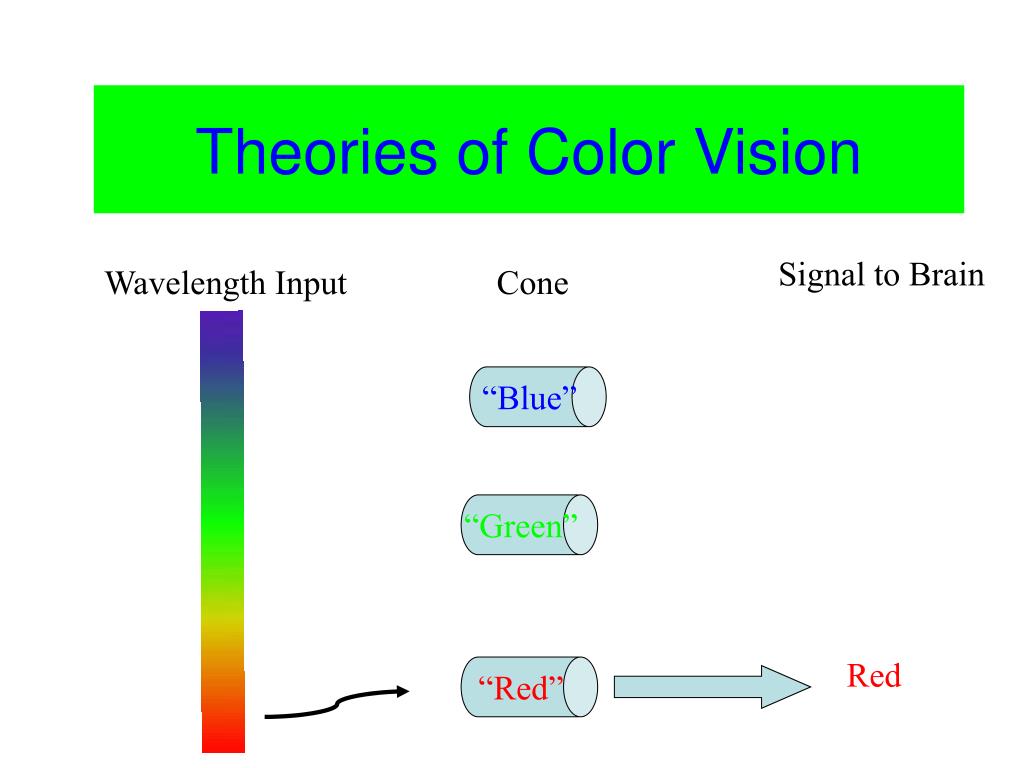

Red


Color vision13
Color Vision

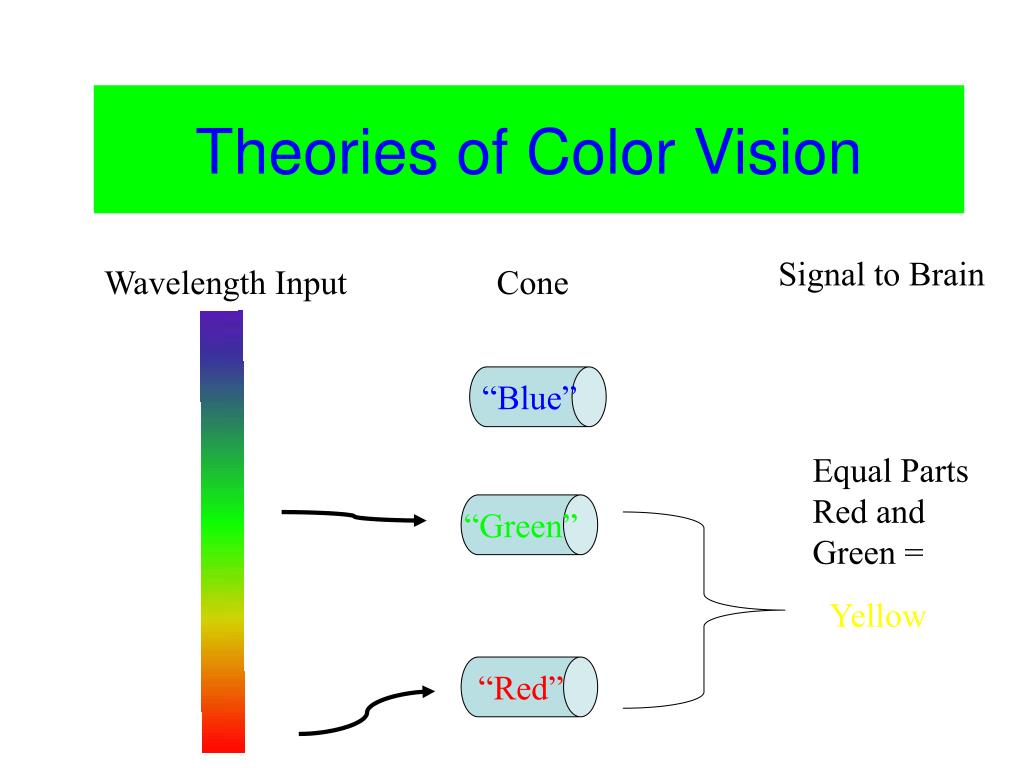

Theories of Color Vision

Signal to Brain

Wavelength Input

Cone

“Blue”

Equal Parts Red and Green =

“Green”

Yellow

“Red”


Color vision14
Color Vision

Theories of Color Vision

Signal to Brain

Wavelength Input

Cone

“Blue”

Equal Parts Red and Green =

“Green”

Yellow

“Red”


Color vision15
Color Vision

Theories of Color Vision

Signal to Brain

Wavelength Input

Cone

“Blue”

Equal Parts Red and Green =

“Green”

Yellow

“Red”
