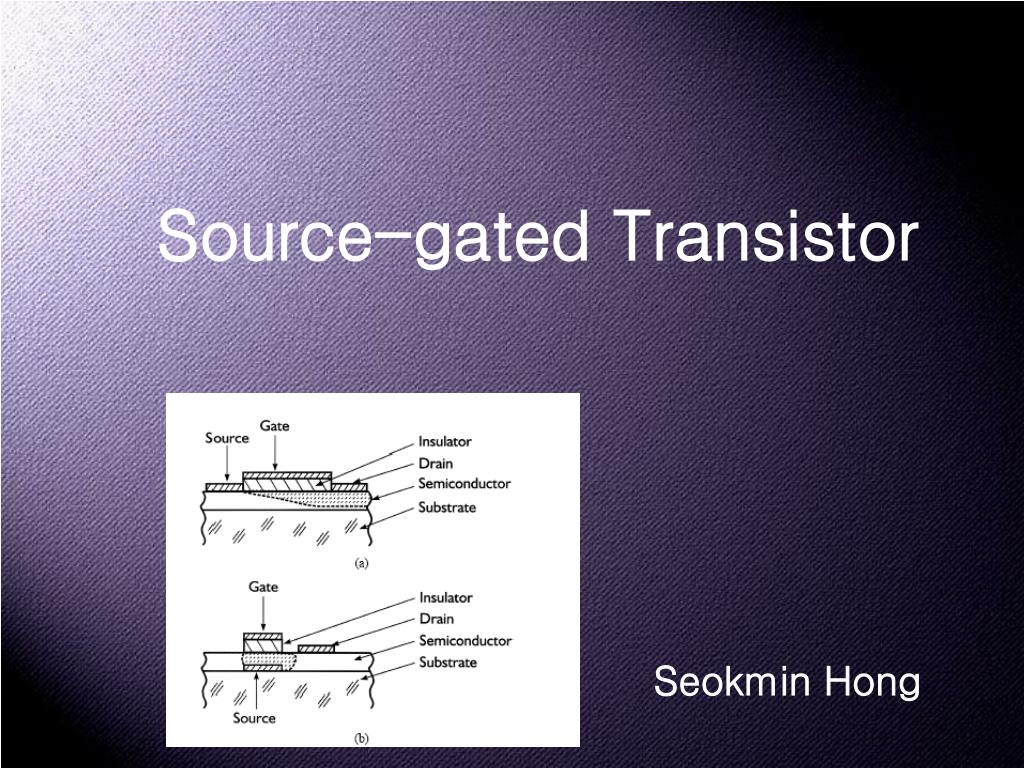

Source gated transistor l.jpgSlide 1

Source-gated Transistor

Seokmin Hong

Why do we need it l.jpgSlide 2

Why do we need it?

* Short Channel Effects

Source/Drain Charge Sharing

Drain-Induced Barrier Lowering

Subsurface Punchthrough

Mobility Degradation

Velocity Saturation

And so on…

No details, no explanation, only a kneeling of Intel's CEO and an excuse :

We are in the transition towards a new architecture

Slide3 l.jpgSlide 3

Metal-Semiconductor Contact

Slide4 l.jpgSlide 4

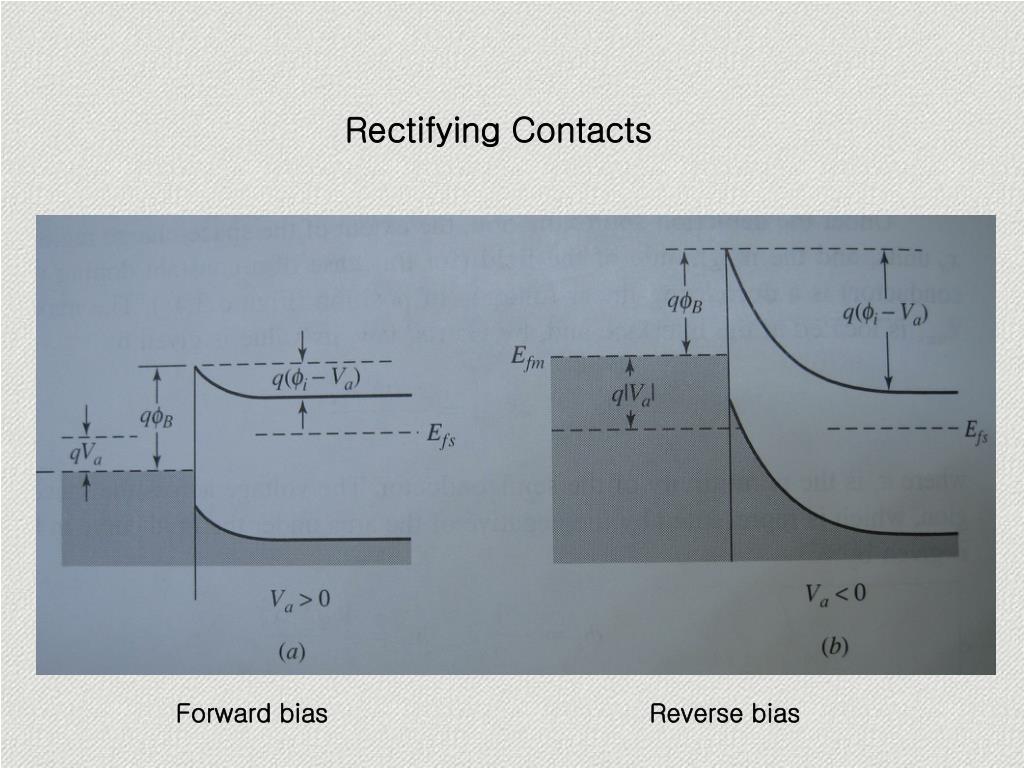

Rectifying Contacts

Forward bias

Reverse bias

Slide5 l.jpgSlide 5

Some terminologies

Slide6 l.jpgSlide 6

[Conventional Metal source and drain structure]

Slide7 l.jpgSlide 7

Conduction band minimum

Vg=1V, Vd=0.2V

Vg=0V, Vd=0.2V

Vg=1V, Vd=0V

C.-K. Huang, W.E. Zhang, and C.H. Yang, “Two-dimensional numerical simulation of Schottky barrier

MOSFET with channel length to 10nm,” IEEE Trans. Electron Devices, vol. 45, pp842-848.1998.

Slide8 l.jpgSlide 8

Performance ??

Slide9 l.jpgSlide 9

* Source-gated structure

  • Small Saturation Voltage

  • (Saturation voltage coincides with

  • Vt(threthold voltage))

  • High Output Resistance

d & L=2um,Same semiconductor &

insulation deposition

Slide10 l.jpgSlide 10

Transport Mechanism

We constrict the flow of carriers using a source barrier and use the field effect to change the effective height of the barrier and the magnitude of the current.

As the drain voltage is increased, the whole semiconductor region between the source and gate becomes depleted of charge. When this happens, the source current is determined by the voltage on the gate and is insensitive to further increase of voltage on the drain.

Slide11 l.jpgSlide 11

Basic Strategy

Metal

(Source)

Metal

(Gate)

Oxide

Semiconductor

1-D MOSFET

Extraction of Band Bending

Then we can get current using NEGF.

Slide12 l.jpgSlide 12

I-V relation between source and drain-(1)

Relatively large leakage

current when the transistor

Is off.

*Barrier Height = 0.2 V

*Channel = 3 nm

*Oxide thickness = 1 nm

*Vg=0/0.25/0.5/0.75/1 V

Slide13 l.jpgSlide 13

I-V relation between source and drain-(1)

*Barrier Height = 0.3 V

*Channel = 3 nm

*Oxide thickness = 1 nm

*Vg=0/0.25/0.5/0.75/1 V

Slide14 l.jpgSlide 14

I-V relation between source and drain-(1)

Reduced off-current

*Barrier Height = 0.3 V

*Channel = 6 nm

*Oxide thickness = 2 nm

*Vg=0/0.5/1/1.5/2 V

Source gated transistor is fundamentally 2 d structure so it needs 2 d simulation l.jpgSlide 15

Source-gated transistor is fundamentally 2-D structureso it needs 2-D simulation!
