Samaris creep test

SAMARISCreep test

Meeting at TRL 2-3 March 2005


Time schedule

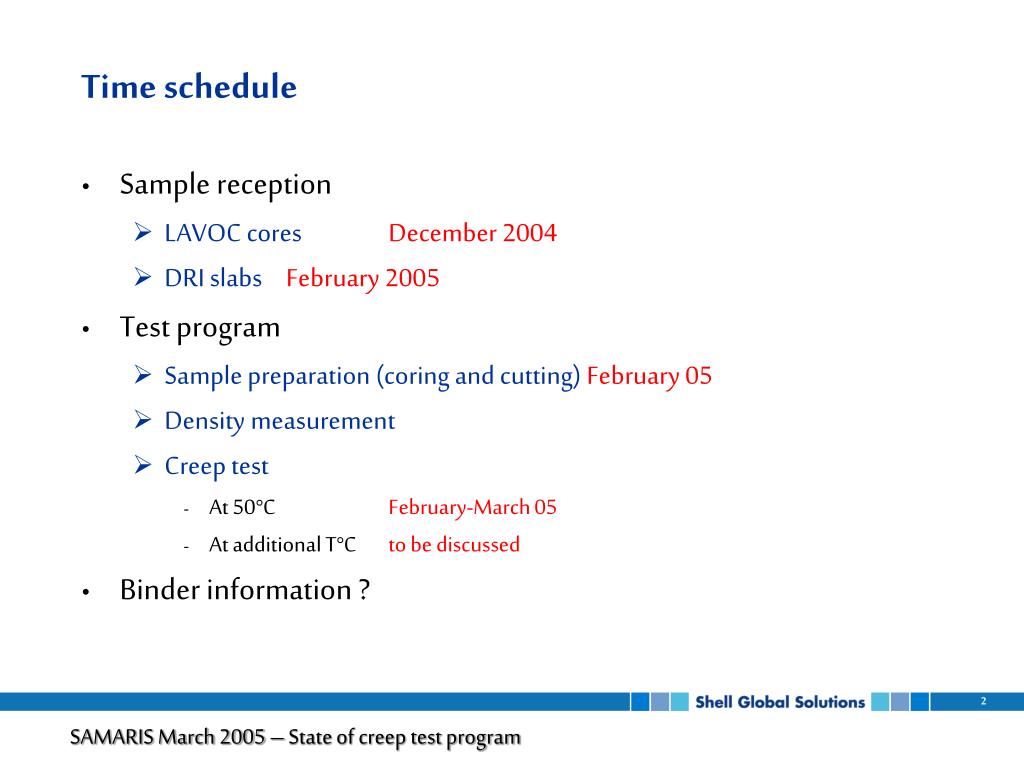

Time schedule

  • Sample reception

    • LAVOC cores December 2004

    • DRI slabs February 2005

  • Test program

    • Sample preparation (coring and cutting) February 05

    • Density measurement

    • Creep test

      • At 50°CFebruary-March 05

      • At additional T°C to be discussed

  • Binder information ?


Creep test conditions 1 2

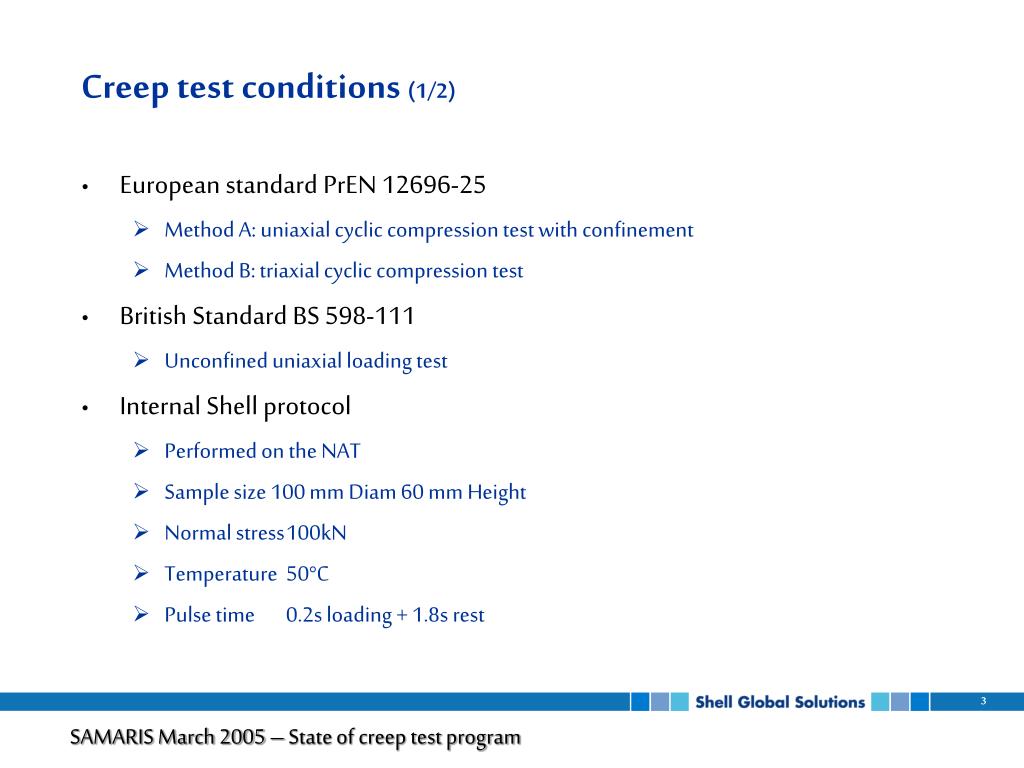

Creep test conditions (1/2)

  • European standard PrEN 12696-25

    • Method A: uniaxial cyclic compression test with confinement

    • Method B: triaxial cyclic compression test

  • British Standard BS 598-111

    • Unconfined uniaxial loading test

  • Internal Shell protocol

    • Performed on the NAT

    • Sample size 100 mm Diam 60 mm Height

    • Normal stress100kN

    • Temperature50°C

    • Pulse time 0.2s loading + 1.8s rest


Creep test conditions 2 2

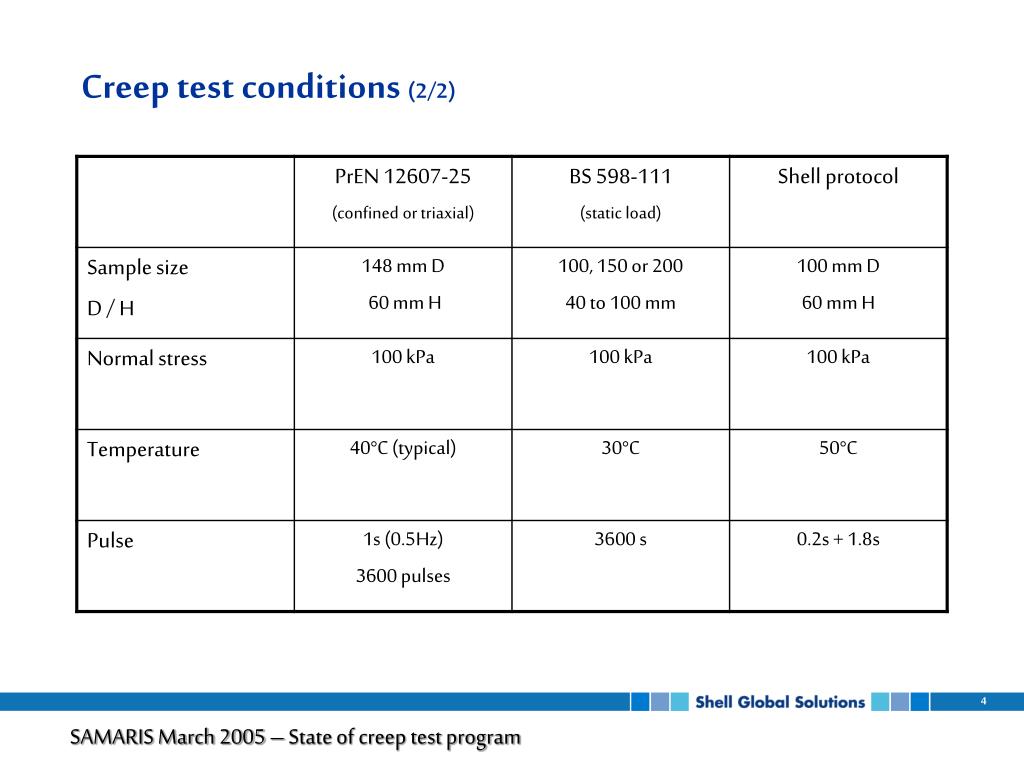

Creep test conditions (2/2)


Sample preparation

Sample preparation

  • From LAVOC materialDone

    • 2x9 cores 90mm diam (not 100mm)

    • Layer sawing in order to have

      • Surface layer 2x30mm thick

      • Base layer 60mm thick

  • From DRI materialUnder progress

    • 2 slabs

    • Coring

    • Layer sawing as for LAVOC


Preliminary measurements 1 3

Preliminary measurements (1/3)

  • Density measurement (for the time being for LAVOC only)

    • Require information on mix characteristics (density, composition, …)

    • Slight difference between base and surface layers

    • Scattering of results (higher for surface than base)

Impact of test results


Preliminary measurements 2 3

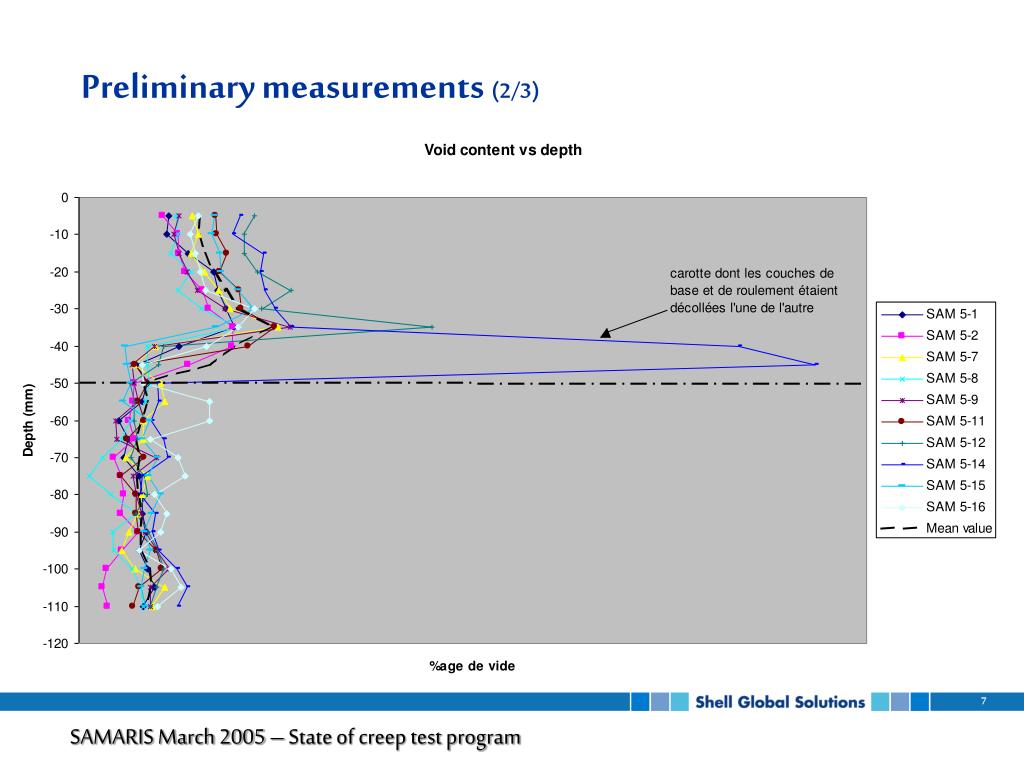

Preliminary measurements (2/3)


Preliminary measurements bis

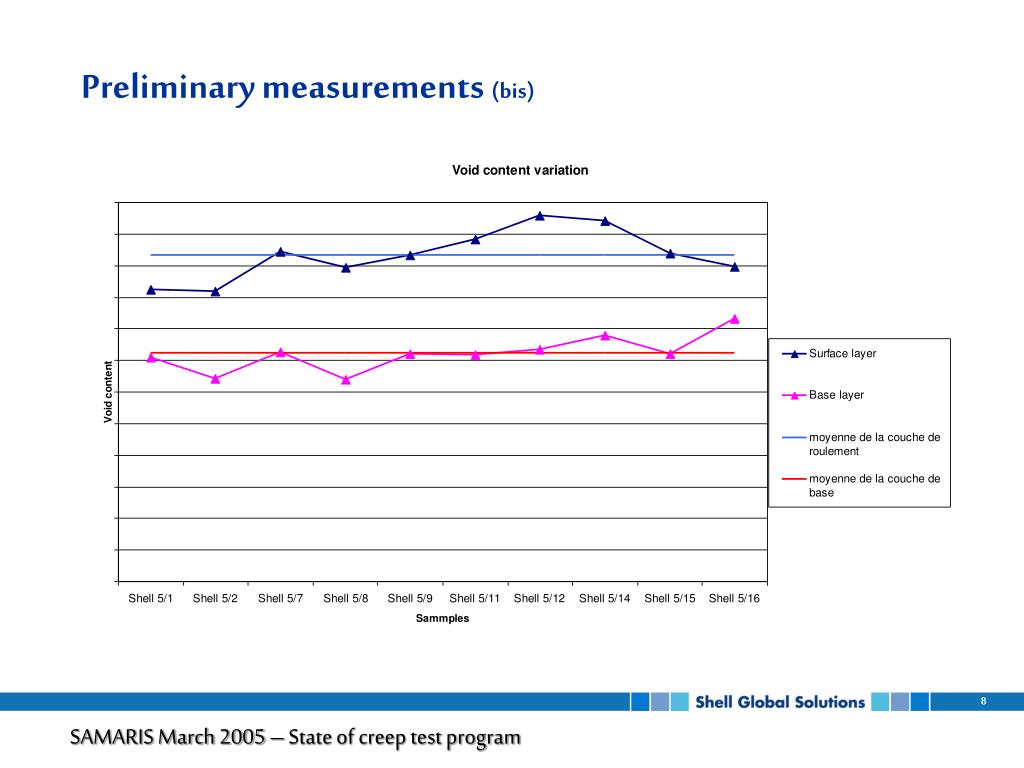

Preliminary measurements (bis)


First creep test result for lavoc

First creep test result for LAVOC

  • Base layer

    • Excellent behaviour

    • Longer test required

  • Surface layer

    • Lower behaviour

    • Breakdown of certain sample


Next step

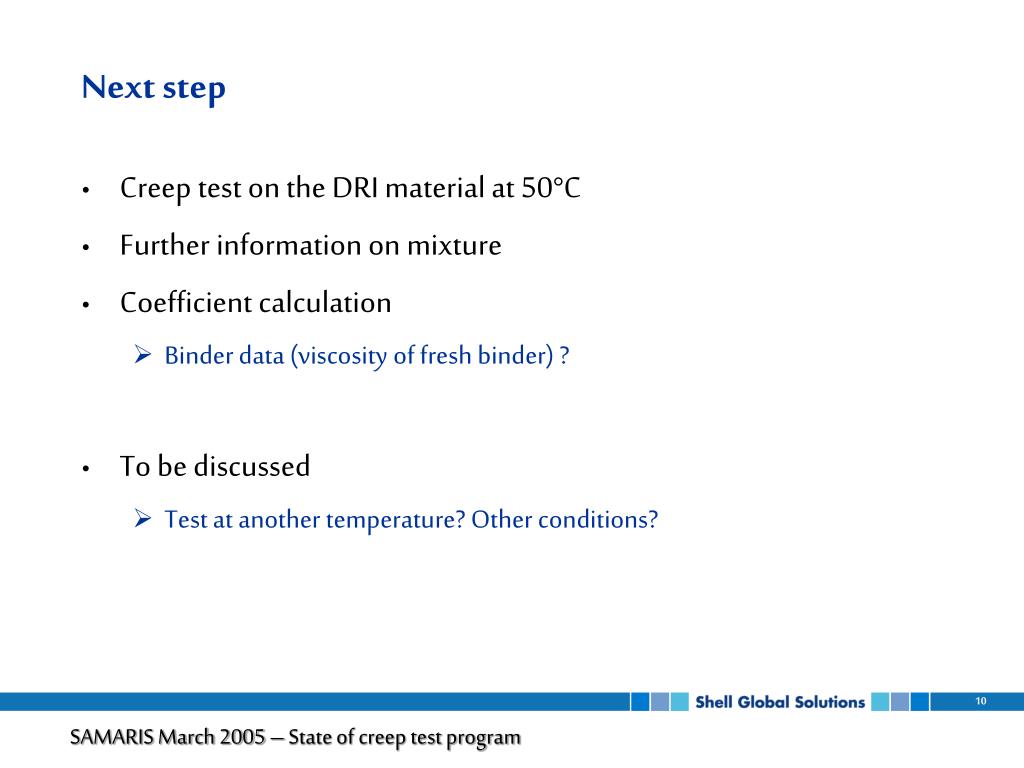

Next step

  • Creep test on the DRI material at 50°C

  • Further information on mixture

  • Coefficient calculation

    • Binder data (viscosity of fresh binder) ?

  • To be discussed

    • Test at another temperature? Other conditions?
