Presentation Transcript


Dvd much more than just another movie format

DVD — Much More than Just Another Movie Format

ETT 555

Media Design: Multimedia

With special thanks to

Ken Reed, formerly with

Pioneer New Media Technologies, Inc.


What is dvd

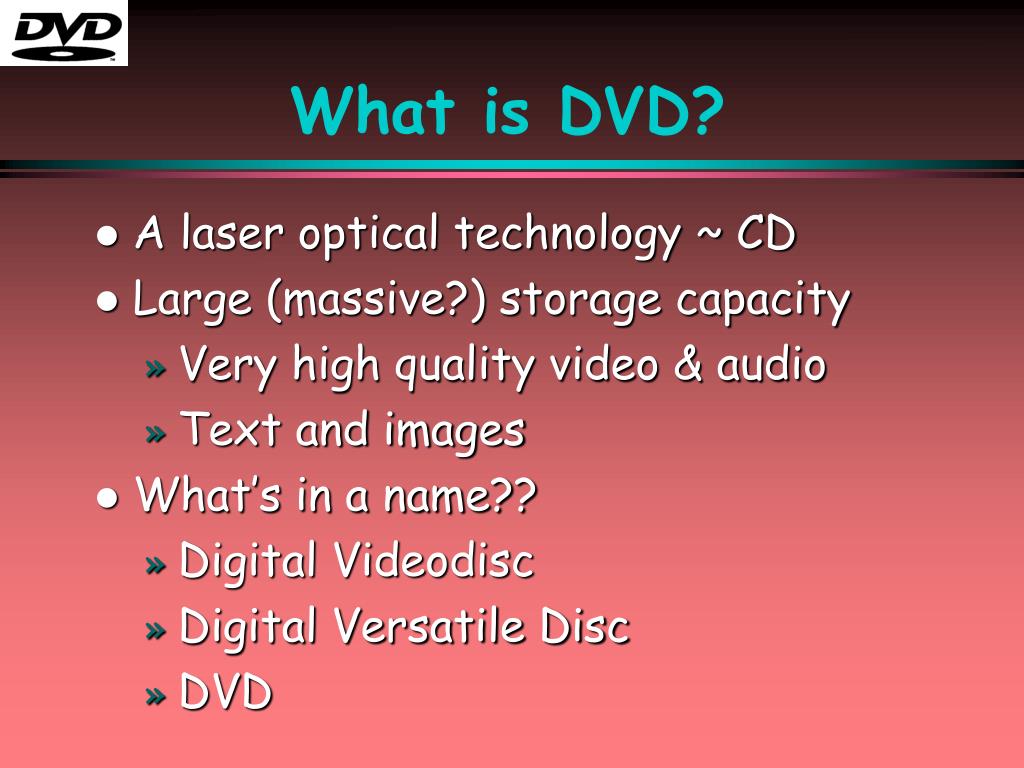

What is DVD?

  • A laser optical technology ~ CD

  • Large (massive?) storage capacity

    • Very high quality video & audio

    • Text and images

  • What’s in a name??

    • Digital Videodisc

    • Digital Versatile Disc

    • DVD


Dvd physical characteristics

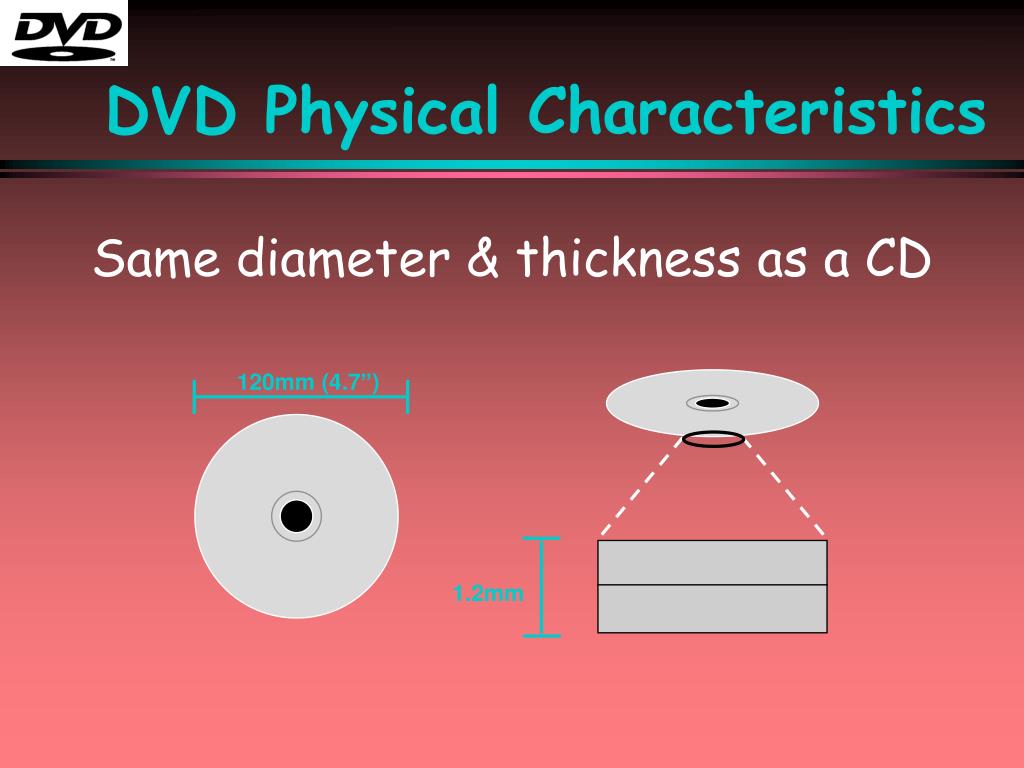

DVD Physical Characteristics

Same diameter & thickness as a CD

120mm (4.7”)

1.2mm


Dvd physical characteristics1

DVD Physical Characteristics

Can be double-sided

DVD

Compact Disc

0.6mm

1.2mm

0.6mm

& Dual Layer!


How dual layering works

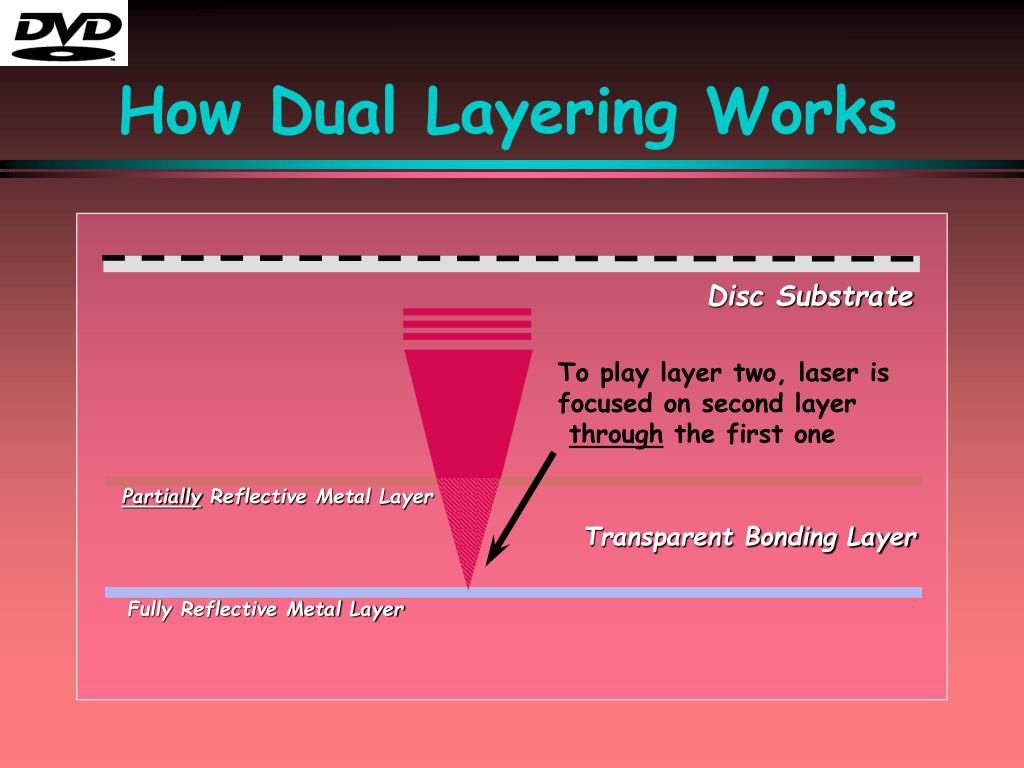

How Dual Layering Works

Disc Substrate

To play layer two, laser is

focused on second layer

through the first one

Partially Reflective Metal Layer

Transparent Bonding Layer

Fully Reflective Metal Layer


Replicated dvd disc capacity

Replicated DVD Disc Capacity


The latest dvd technologies

The Latest DVD Technologies

  • Dual Layer PC Recorders

    • Just coming along

    • Pricing & compatibility?

    • Media availability and cost?

  • Blue Laser Technology

    • Multiple, incompatible formats!

    • Shorter wavelength = greater density

    • “Blu-ray” = 23-27GB, single layer

    • HD-DVD = 15GB/30GB, single/dual spec


Dvd concepts

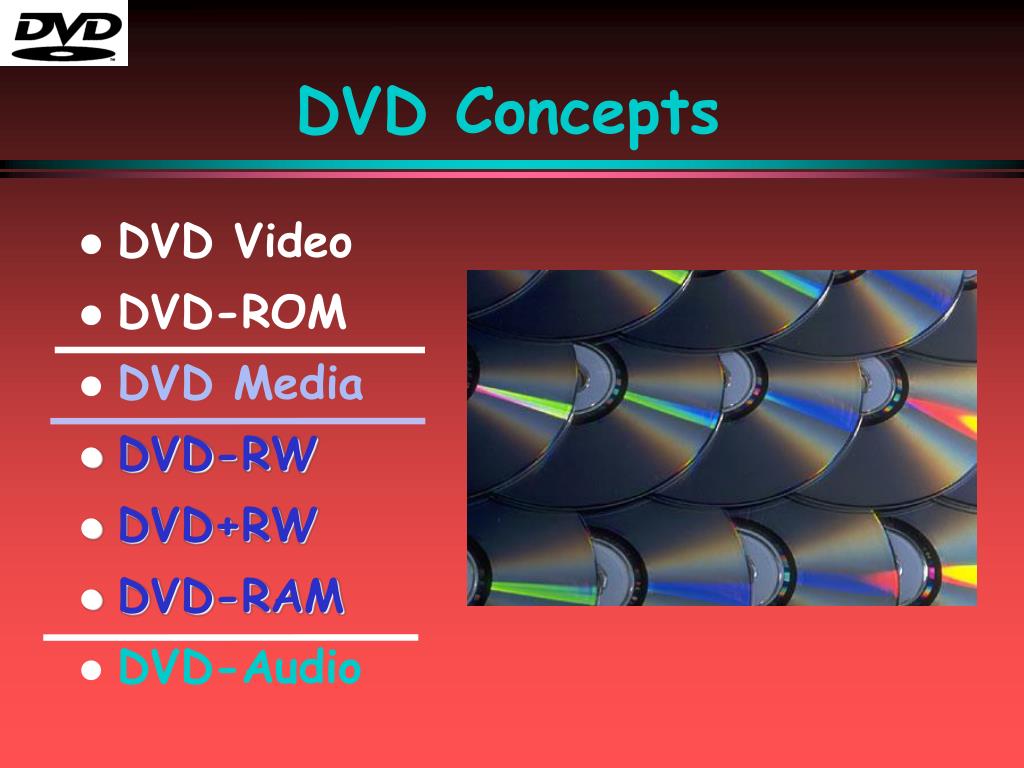

DVD Concepts

  • DVD Video

  • DVD-ROM

  • DVD Media

  • DVD-RW

  • DVD+RW

  • DVD-RAM

  • DVD-Audio


Dvd hardware

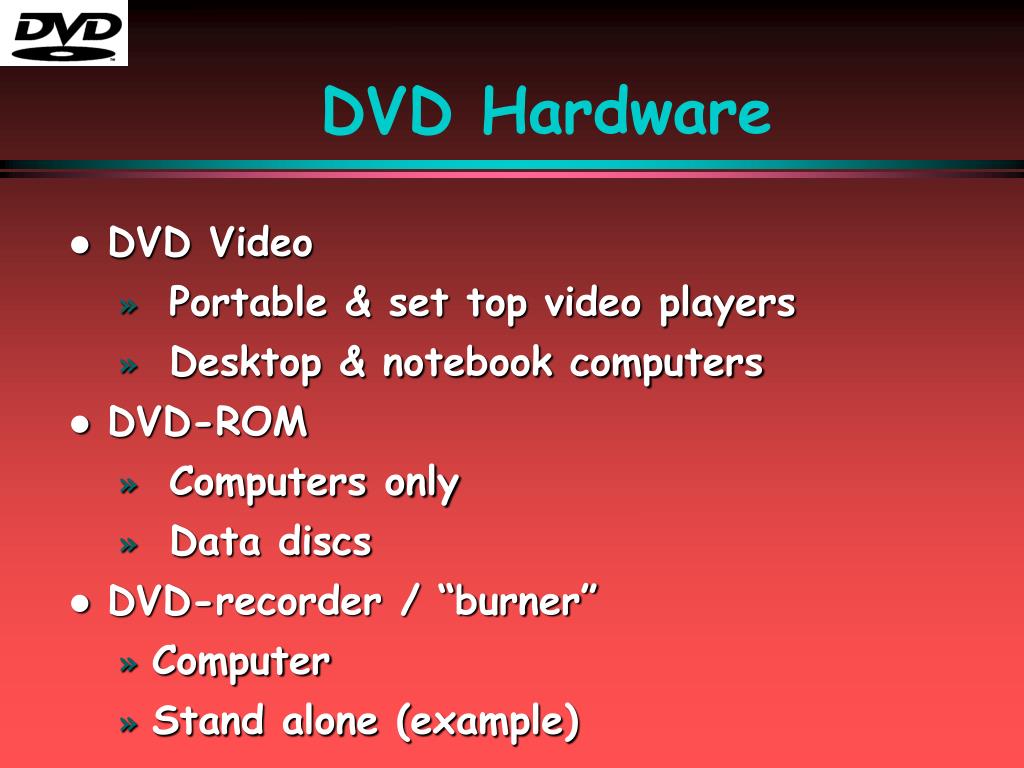

DVD Hardware

  • DVD Video

    • Portable & set top video players

    • Desktop & notebook computers

  • DVD-ROM

    • Computers only

    • Data discs

  • DVD-recorder / “burner”

    • Computer

    • Stand alone (example)


Dvd media types

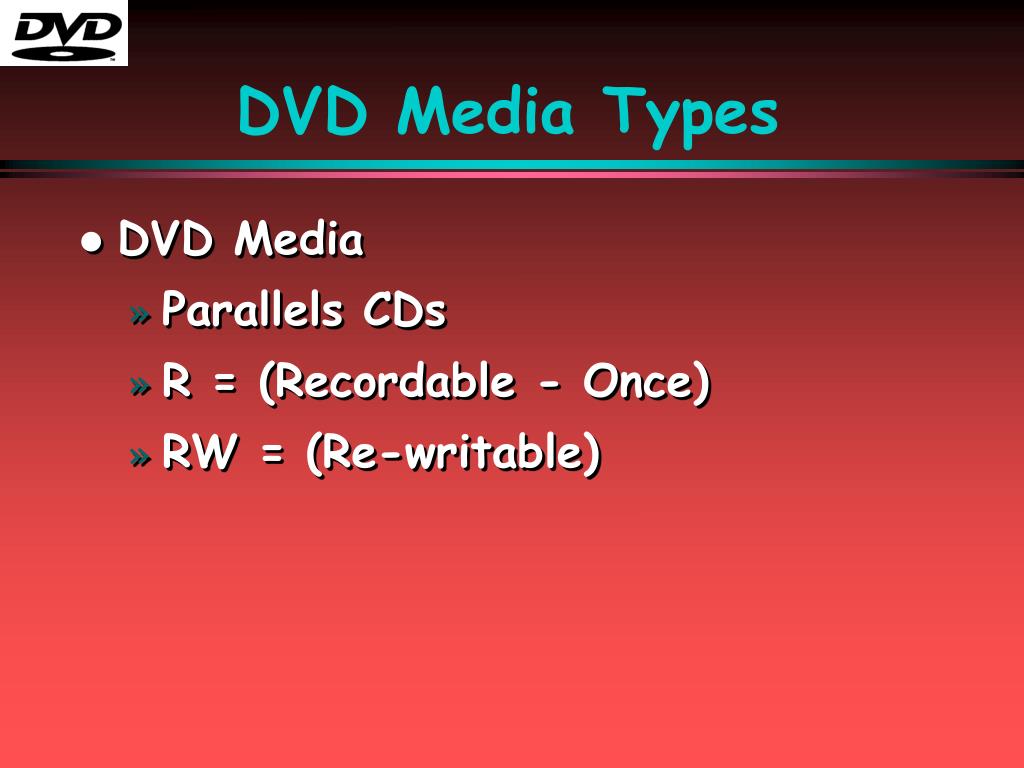

DVD Media Types

  • DVD Media

    • Parallels CDs

    • R = (Recordable - Once)

    • RW = (Re-writable)


Dvd media standards

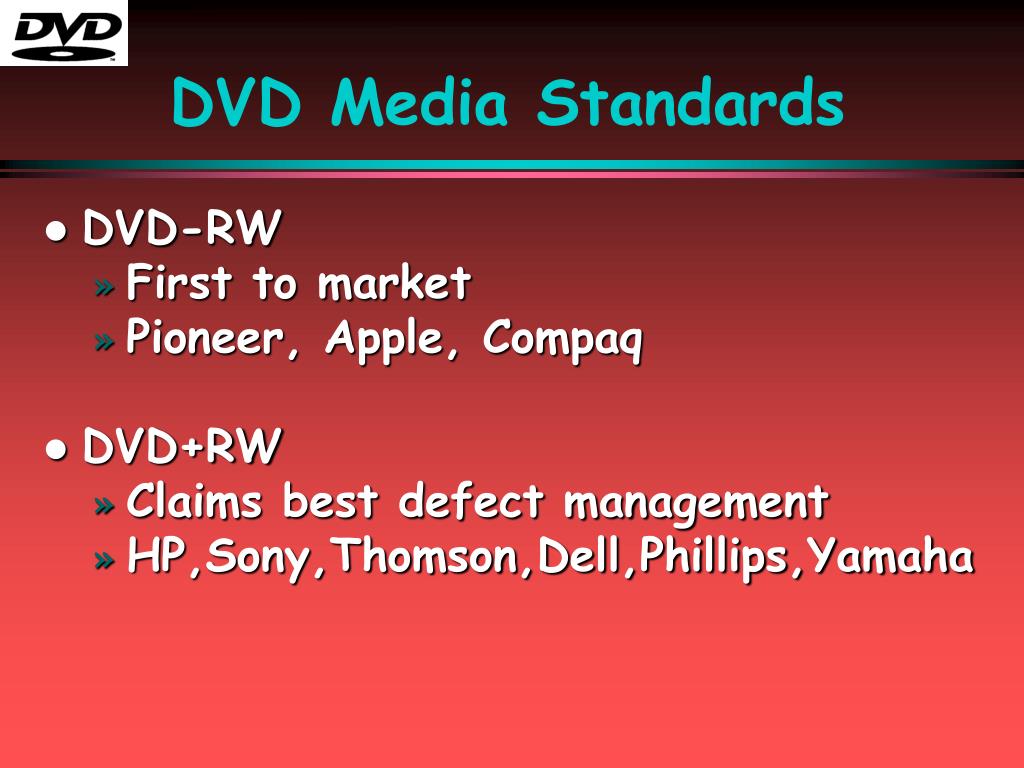

DVD Media Standards

  • DVD-RW

    • First to market

    • Pioneer, Apple, Compaq

  • DVD+RW

    • Claims best defect management

    • HP,Sony,Thomson,Dell,Phillips,Yamaha


Dvd media standards1

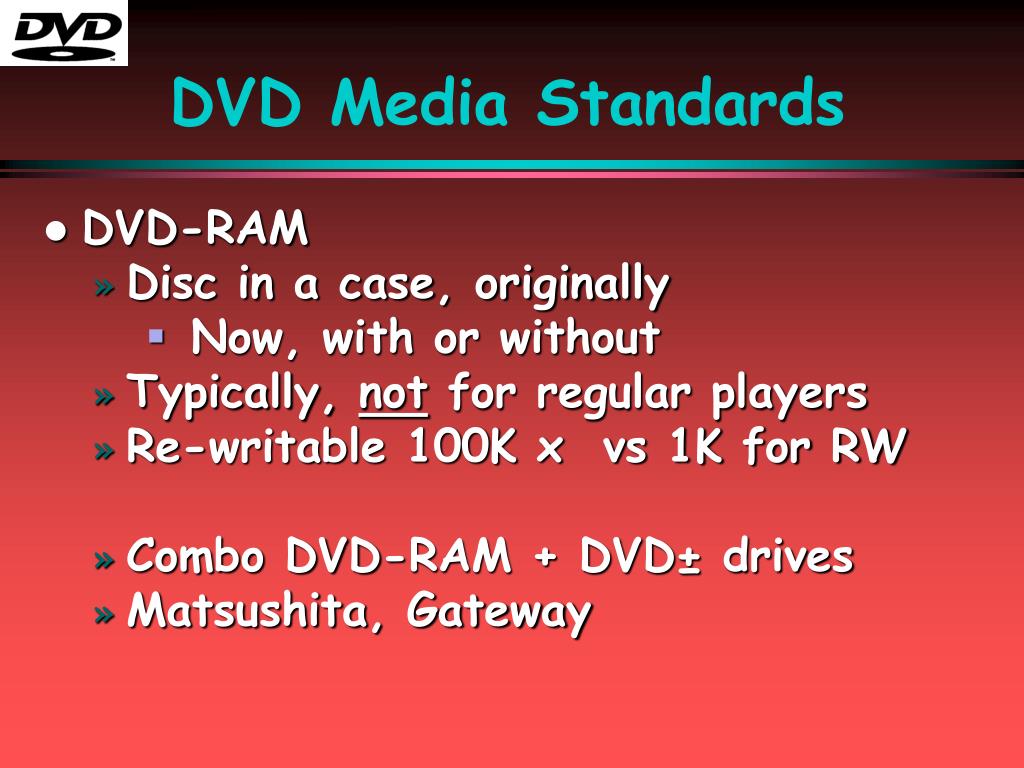

DVD Media Standards

  • DVD-RAM

    • Disc in a case, originally

      • Now, with or without

    • Typically, not for regular players

    • Re-writable 100K x vs 1K for RW

    • Combo DVD-RAM + DVD± drives

    • Matsushita, Gateway


Dvd applications

DVD Applications

  • DVD-Data (ROM)

    • Ideal for backups?

  • DVD-Audio (Massive Storage)

    • ca. 7 hrs per side / layer @ CD quality

    • Higher quality possible

    • Still rare, but coming

  • DVD Video (Interactive Video)

    • Movies with “extras”


Dvd video features

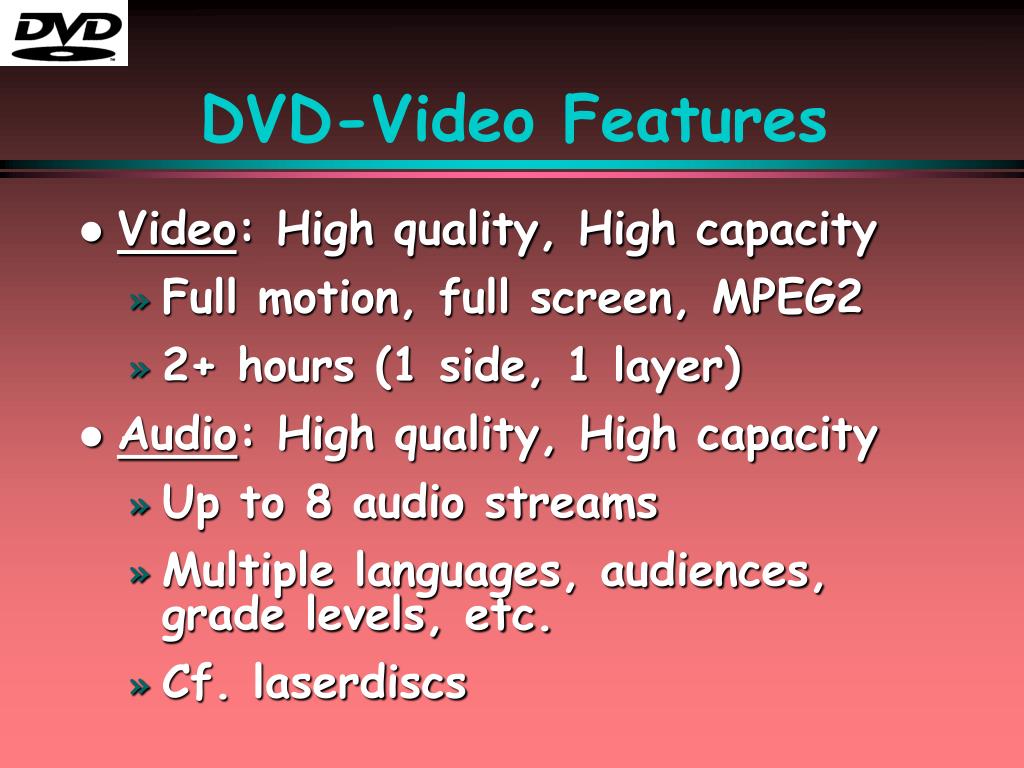

DVD-Video Features

  • Video: High quality, High capacity

    • Full motion, full screen, MPEG2

    • 2+ hours (1 side, 1 layer)

  • Audio: High quality, High capacity

    • Up to 8 audio streams

    • Multiple languages, audiences, grade levels, etc.

    • Cf. laserdiscs


Dvd video features1

DVD-Video Features

Sub-Picture Streams

  • Up to 32 sub-picture streams

  • Used for sub-titles or closed-captions

  • Graphic overlays to highlight video

  • Text annotations to video content

  • On-screen buttons


Dvd video features2

DVD-Video Features

Multiple Angles

  • Up to 9 parallel video paths

  • Provide alternate views of technical procedures or science experiments

  • Switch to different video scenarios based on user input

  • Strong potential for visual learning


Dvd video features3

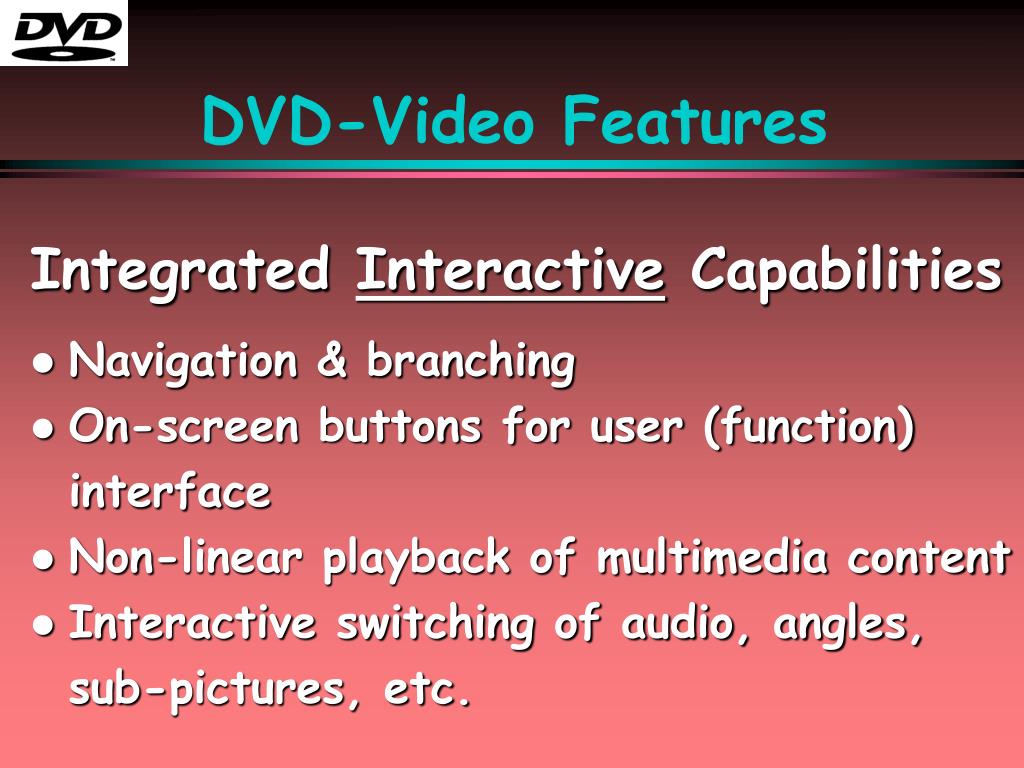

DVD-Video Features

Integrated Interactive Capabilities

  • Navigation & branching

  • On-screen buttons for user (function) interface

  • Non-linear playback of multimedia content

  • Interactive switching of audio, angles, sub-pictures, etc.


Dvd hardware for education

DVD Hardware for Education

  • Home entertainment DVD players

    • Lack durability for interactivity

    • Lack easy-use control

  • Computer DVD drives lack versatility

    • On screen remote control

    • Less universal (notebook vs desktop)

  • Industrial grade players are the ideal

    • Parallel laserdisc players


Pioneer dvd v7400

Pioneer DVD-V7400


Benefits of an industrial player

Benefits of an Industrial Player

  • Highest Level of Flexibility

    • No need for computer

    • Interactivity

      • in the menus of the DVD

      • via computer control (cf. laserdiscs)

    • System remote provides simple & easy Menu Navigation


Industrial players

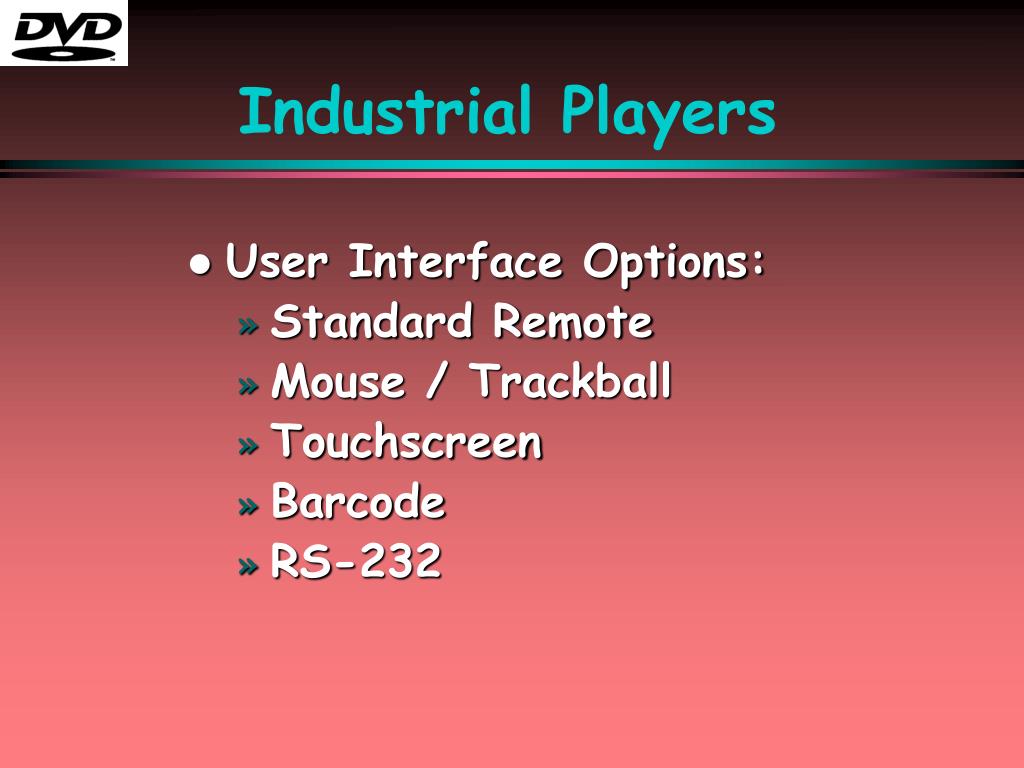

Industrial Players

  • User Interface Options:

    • Standard Remote

    • Mouse / Trackball

    • Touchscreen

    • Barcode

    • RS-232


Special features of dvd v7400

Special Features of DVD-V7400

  • Video Blackboard

    • Annotate video

    • Excellent for Instruction

  • Internal Memory (non-volatile)

    • Save Text or Graphics generated by Video Blackboard

    • Save “clips” in non-linear play sequence


Pioneer education products

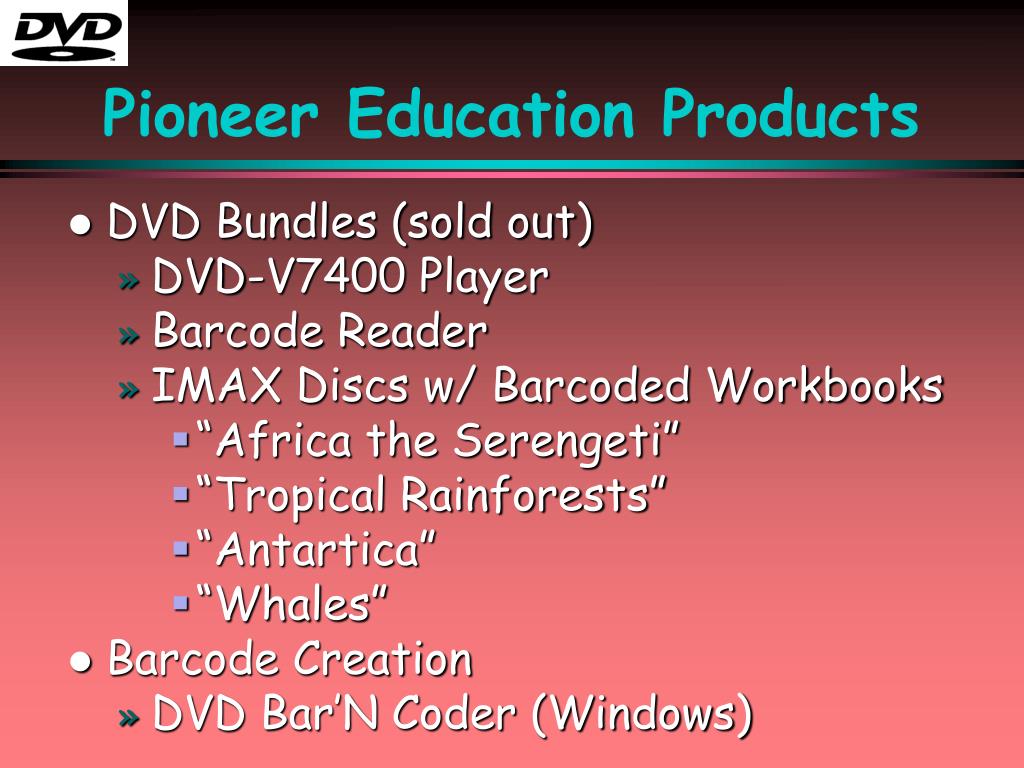

Pioneer Education Products

  • DVD Bundles (sold out)

    • DVD-V7400 Player

    • Barcode Reader

    • IMAX Discs w/ Barcoded Workbooks

      • “Africa the Serengeti”

      • “Tropical Rainforests”

      • “Antartica”

      • “Whales”

  • Barcode Creation

    • DVD Bar’N Coder (Windows)


Creating your own dvd

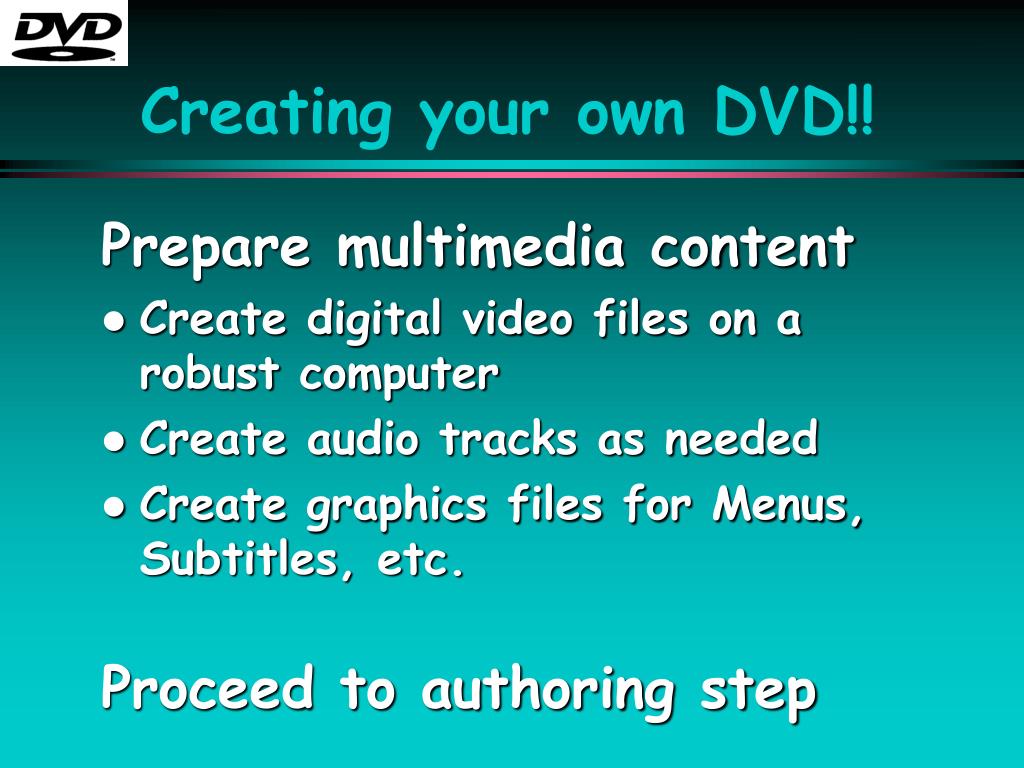

Creating your own DVD!!

Prepare multimedia content

  • Create digital video files on a robust computer

  • Create audio tracks as needed

  • Create graphics files for Menus, Subtitles, etc.

    Proceed to authoring step


Authoring tools

Authoring Tools

  • Authoring Systems range from $00 to $50K

    • Sonic Solutions

      • MyDVD, DVDit

    • Apple

      • iDVD, DVD Studio Pro

    • ULead DVD MovieFactory

    • Be wary of claims!

  • Prices down, usability up


Creating your own dvd1

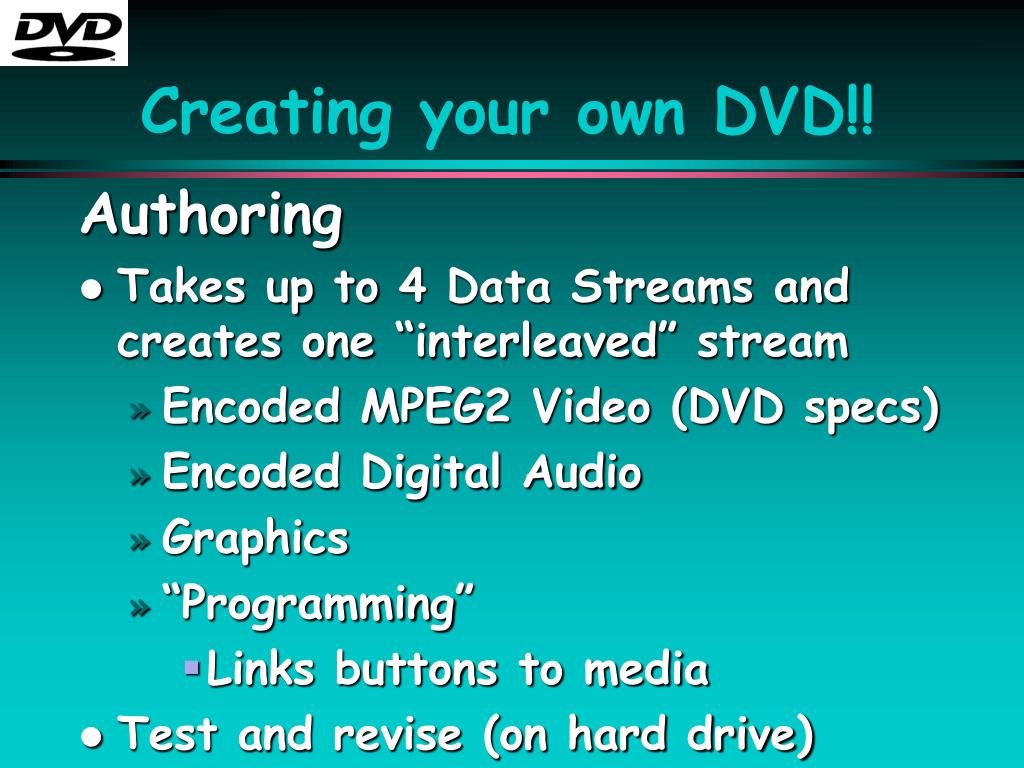

Creating your own DVD!!

Authoring

  • Takes up to 4 Data Streams and creates one “interleaved” stream

    • Encoded MPEG2 Video (DVD specs)

    • Encoded Digital Audio

    • Graphics

    • “Programming”

      • Links buttons to media

  • Test and revise (on hard drive)


Creating your own dvd2

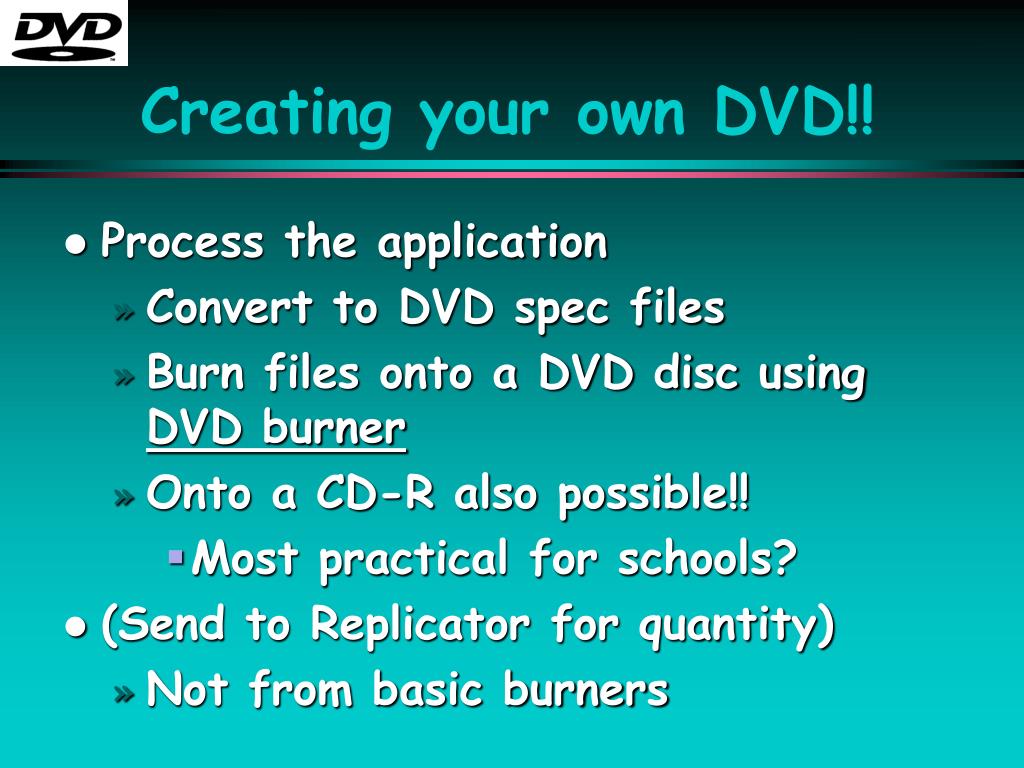

Creating your own DVD!!

  • Process the application

    • Convert to DVD spec files

    • Burn files onto a DVD disc usingDVD burner

    • Onto a CD-R also possible!!

      • Most practical for schools?

  • (Send to Replicator for quantity)

    • Not from basic burners


Creating the dvd disc

Creating the DVD Disc

  • Professional Creator / Burner

    • e.g., Pioneer PVR-LX1

      • External burner

      • Street Price ~ $4000

    • Discs can be sent to replicatorsas Masters


Creating the dvd disc1

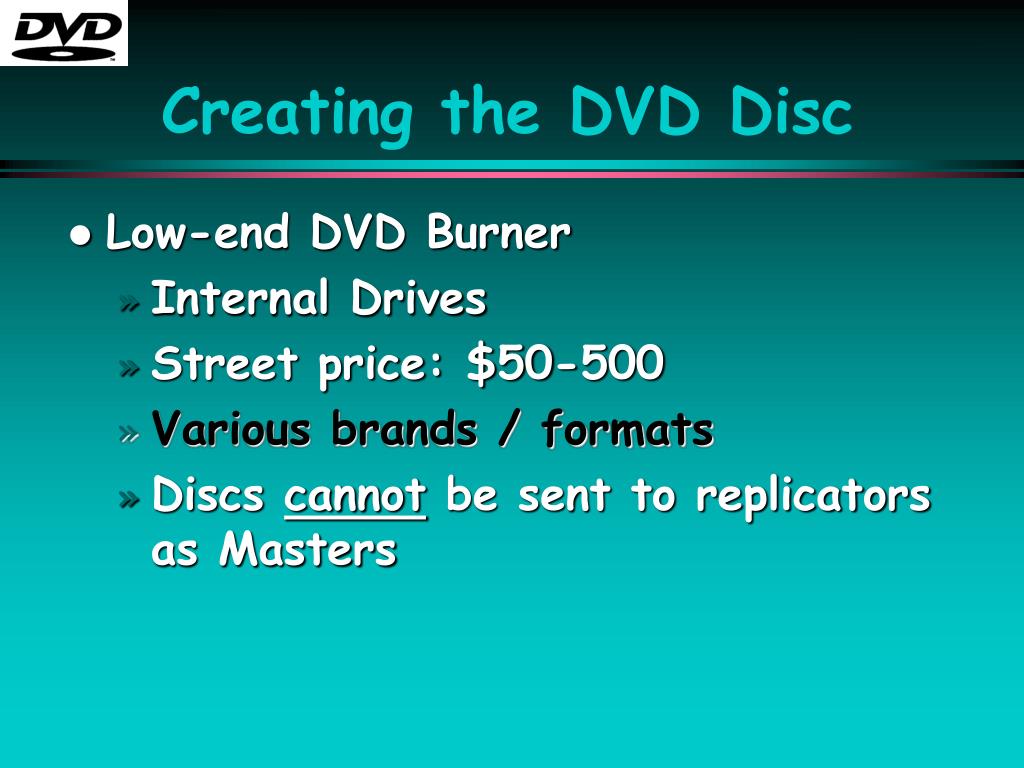

Creating the DVD Disc

  • Low-end DVD Burner

    • Internal Drives

    • Street price: $50-500

    • Various brands / formats

    • Discs cannot be sent to replicators as Masters


Sample dvd products

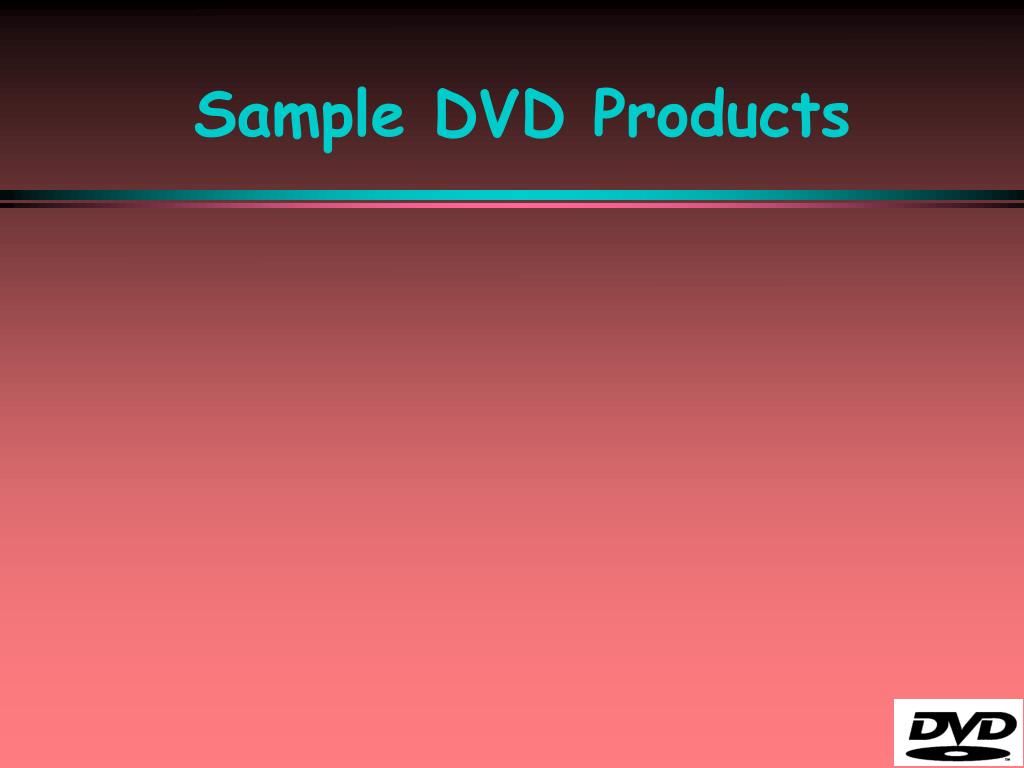

Sample DVD Products


Creating the dvd disc2

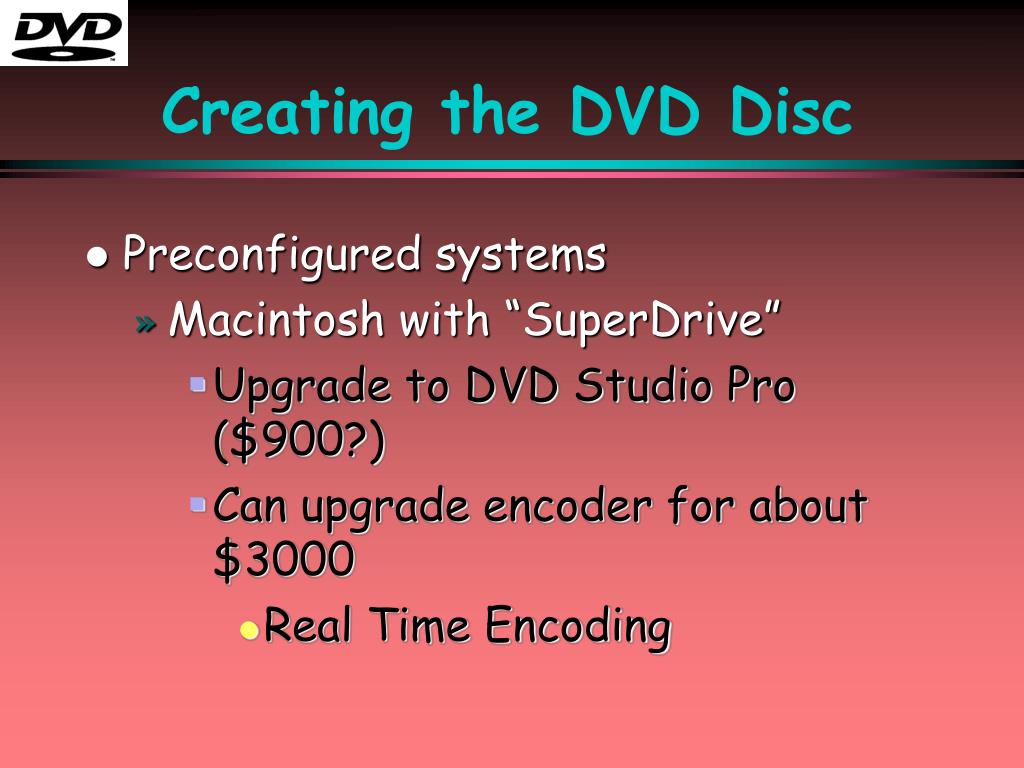

Creating the DVD Disc

  • Preconfigured systems

    • Macintosh with “SuperDrive”

      • Upgrade to DVD Studio Pro ($900?)

      • Can upgrade encoder for about $3000

        • Real Time Encoding


Creating the dvd disc3

Creating the DVD Disc

  • Preconfigured systems

    • Compaq Presario

    • Sony Vaio

    • Dell & Gateway

    • Non-linear Editors “Print to DVD”

      • Casablanca Kron


Dvd much more than just another movie format1

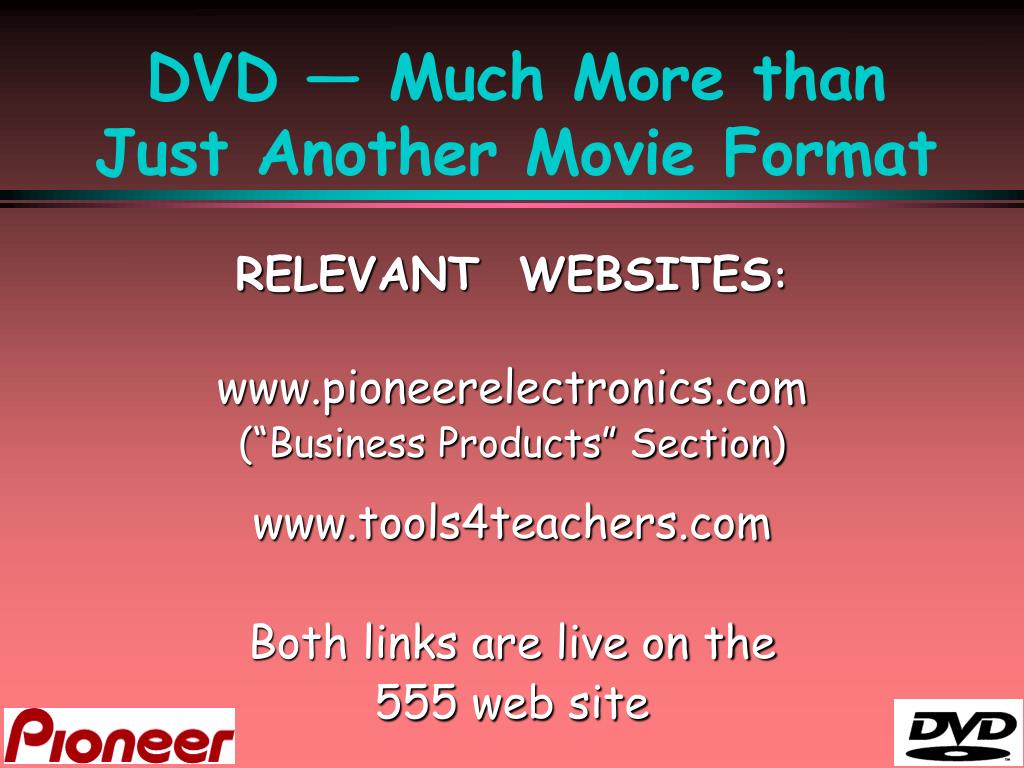

DVD — Much More than Just Another Movie Format

RELEVANT WEBSITES:

www.pioneerelectronics.com

(“Business Products” Section)

www.tools4teachers.com

Both links are live on the

555 web site
