Presentation Transcript


The nervous system

The Nervous System


The nervous system1

The nervous system

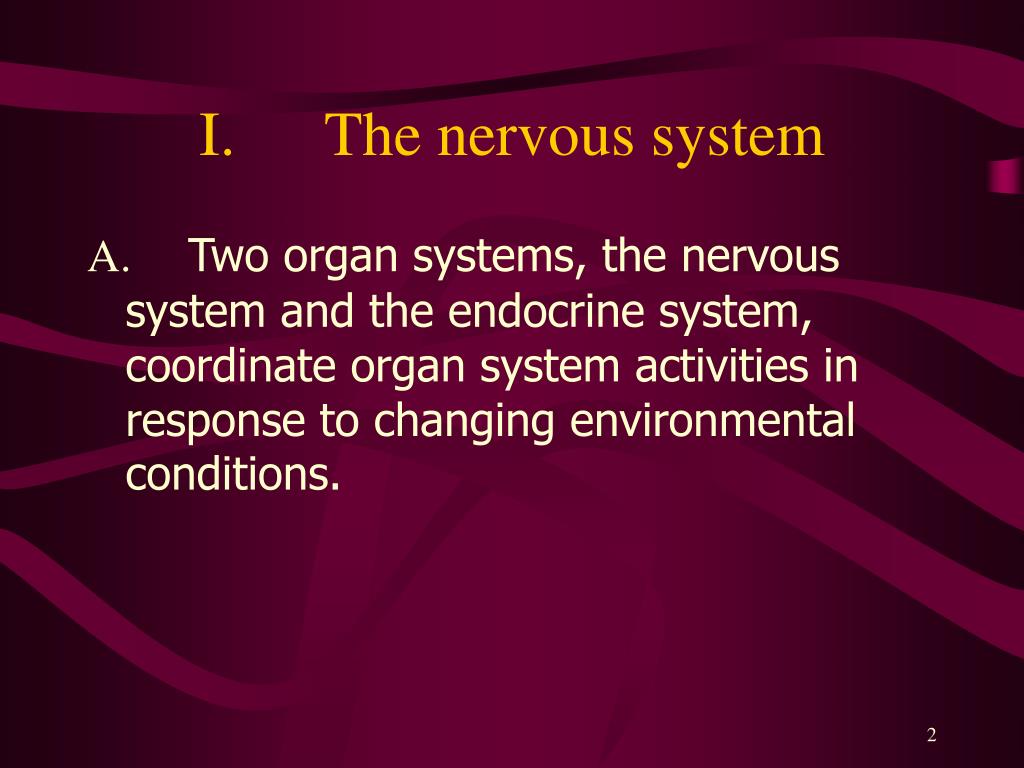

A.     Two organ systems, the nervous system and the endocrine system, coordinate organ system activities in response to changing environmental conditions.


The nervous system

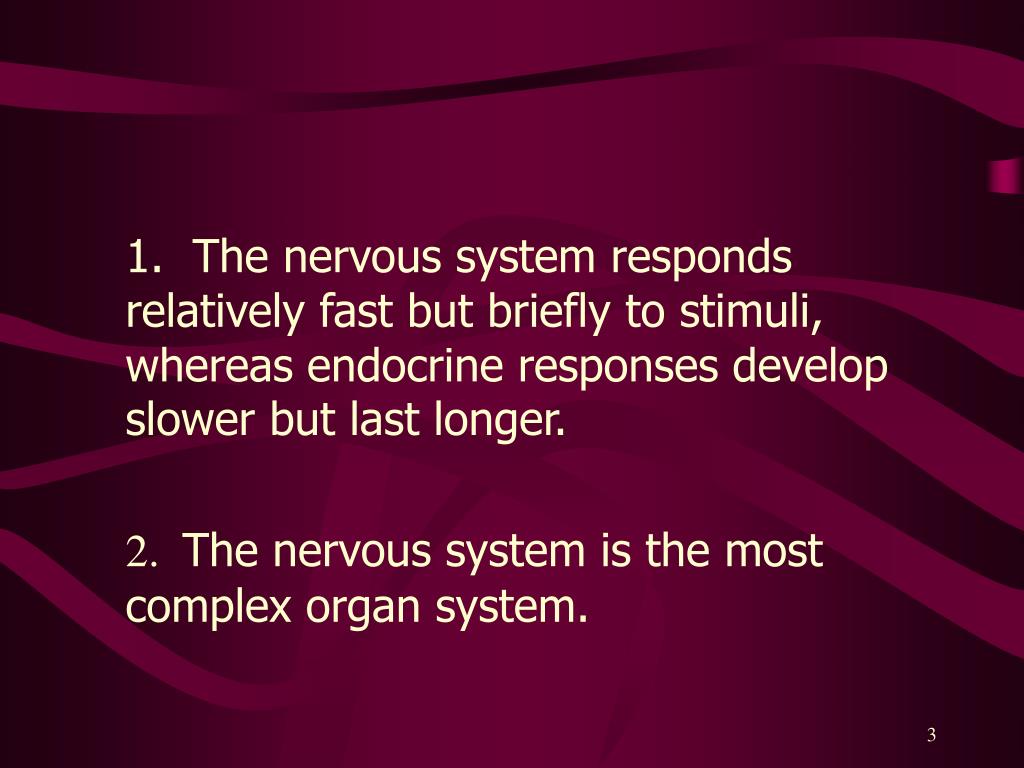

1. The nervous system responds relatively fast but briefly to stimuli, whereas endocrine responses develop slower but last longer.

2. The nervous system is the most complex organ system.


The nervous system

3.       The nervous system has three functions- 1- monitors the internal and external environments, 2- integrates sensory information and 3- coordinates voluntary and involuntary responses.

4. The functions of the two major anatomical subdivisions of the nervous system are shown in figure 8.1 pages 226.


The nervous system

5. The central nervous system (CNS): consisting of the brain and spinal cord, integrates and coordinates sensory data and motor commands. The CNS is also the site for intelligence memory and emotions.

6. All communication between the CNS and the rest of the body occurs over the peripheral nervous system (PNS). The PNS includes all the neural tissue OUTSIDE the CNS.


The nervous system

7. Its afferent division brings sensory information TO the CNS.

8. The efferent division carries motor commands AWAY from the CNS to the muscles and glands.

9. The PNS is divided into the somatic nervous system (SNS) and the autonomic nervous system (ANS)


The nervous system

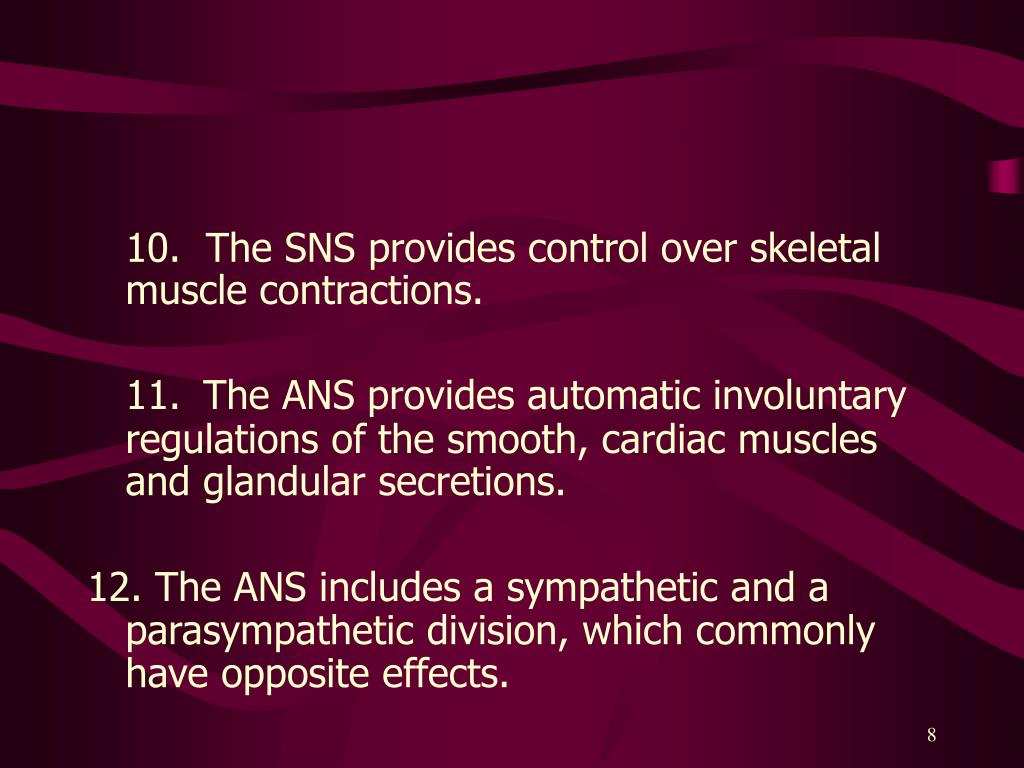

10. The SNS provides control over skeletal muscle contractions.

11. The ANS provides automatic involuntary regulations of the smooth, cardiac muscles and glandular secretions.

12. The ANS includes a sympathetic and a parasympathetic division, which commonly have opposite effects.


The nervous system

13. Example: sympathetic division accelerates the heart rate and parasympathetic slows it down.


B cellular organization in neural tissue

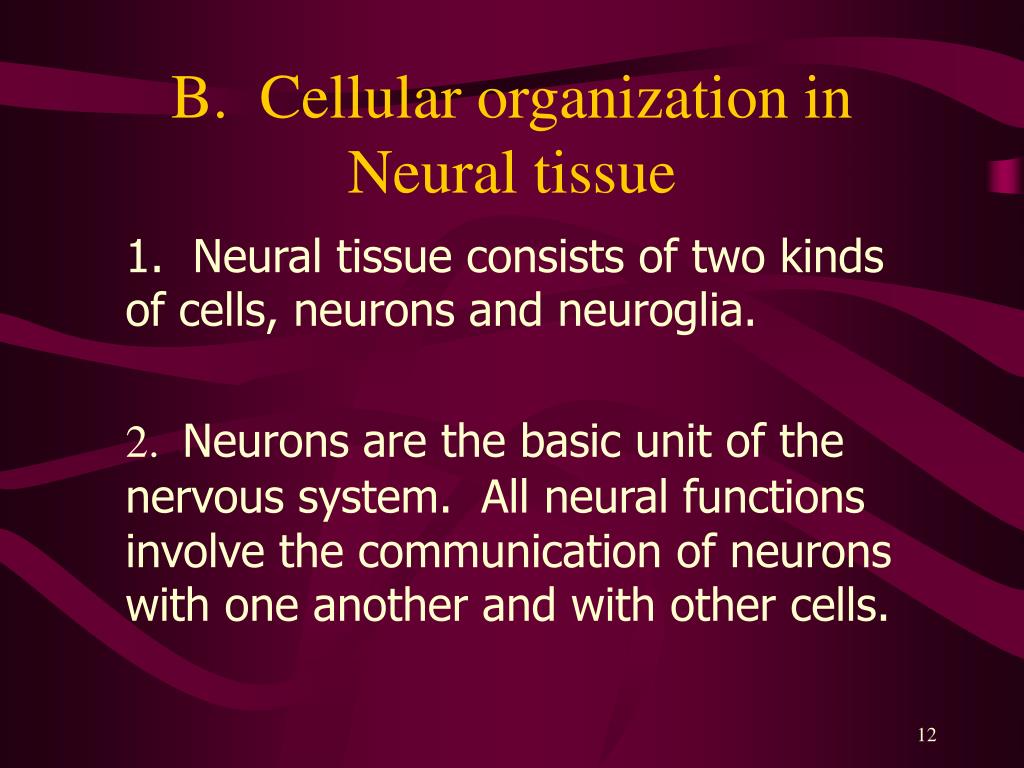

B. Cellular organization in Neural tissue

1. Neural tissue consists of two kinds of cells, neurons and neuroglia.

2. Neurons are the basic unit of the nervous system. All neural functions involve the communication of neurons with one another and with other cells.


The nervous system

3. The neuroglia regulates the environmental around the neurons; provide a support framework for neural tissue, and act as phagocytes.


C the general structure of the neurons

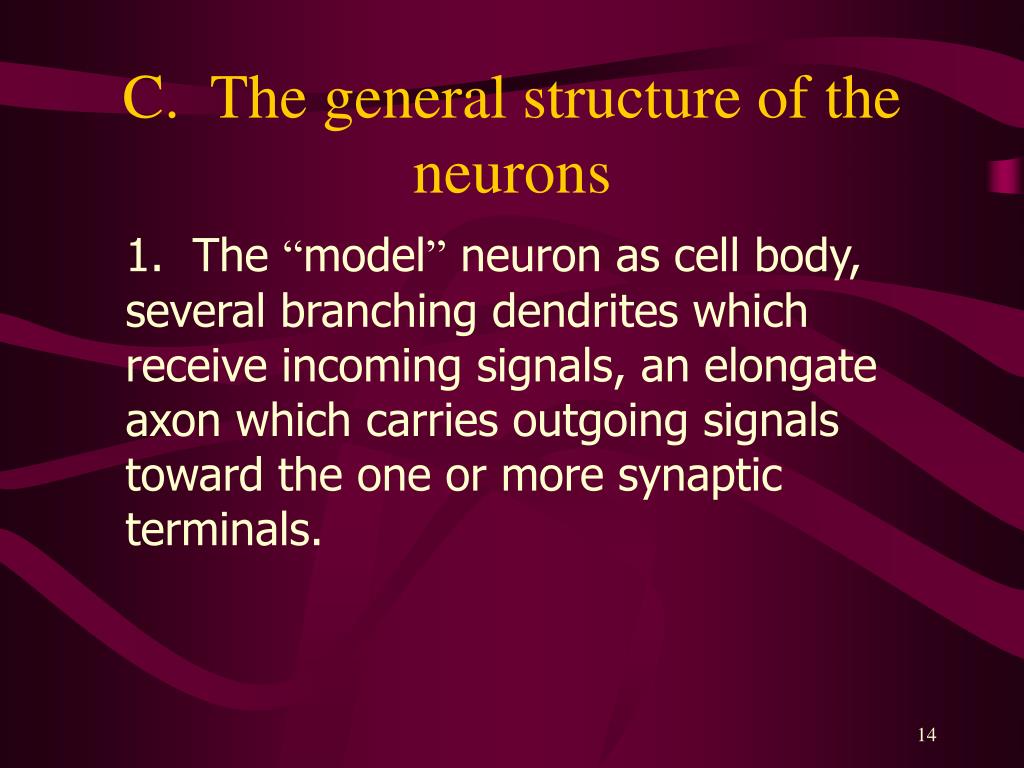

C. The general structure of the neurons

1. The “model” neuron as cell body, several branching dendrites which receive incoming signals, an elongate axon which carries outgoing signals toward the one or more synaptic terminals.


The nervous system

2. Neurons can have a variety of shapes the most common type of neuron in the CNS is shown on page 227.


The nervous system

3. Neurons come in all shapes and sizes; they have enough features in common that we can draw a neuron.


The nervous system

a. The largest part of the neuron is the cell body. The cell body contains the nucleus and much of the cytoplasm.

b. Spreading out from the cell body are short-branched extensions called dendrites. Dendrites carry impulses from the environment or from other neurons toward the cell body.


The nervous system

c. The long fiber that carries impulses away from the cell body is called the axon.

d. The axon ends in a series of small swellings called axon terminates.


D structural classification of neurons

D. Structural classification of neurons

1. A multipolar neuron has multiple processes extending away from the cell body. These are very common in the CNS.


The nervous system

2. A unipolar neuron, the dendrites and axon are continuous, and the cell body lies off to one side. In a unipolar neuron, the action potential begins at the base of the dendrites and the rest of the process is considered an axon


The nervous system

3. Bipolar neurons have two processes, one dendrites and one axon, with the cell body between them. Bipolar neurons are rare but occur in special sense organs such as the eye and the ear.


E functional classification of neurons

E. Functional classification of Neurons

1. Neurons are sorted into three functional groups: sensory, motor and interneurons.


The nervous system

F.Sensory neurons of the afferent division convey information from both external and internal environments to other neurons inside the CNS.

1. Receptors may be grouped into three categories based on the information they carry.


The nervous system

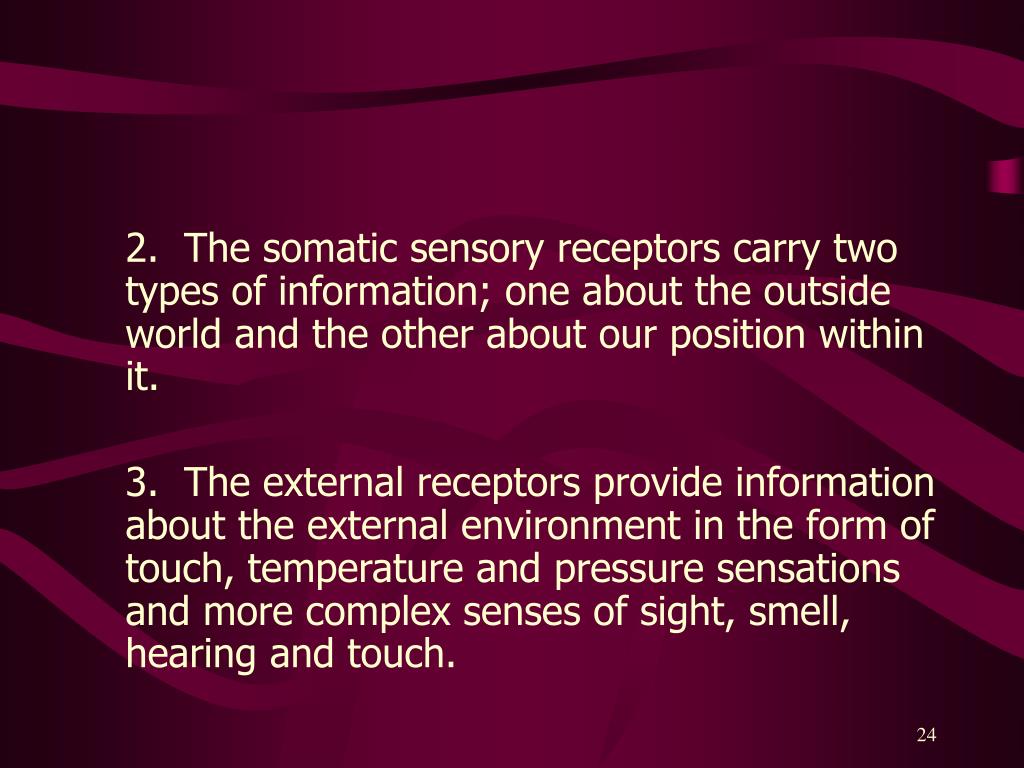

2. The somatic sensory receptors carry two types of information; one about the outside world and the other about our position within it.

3. The external receptors provide information about the external environment in the form of touch, temperature and pressure sensations and more complex senses of sight, smell, hearing and touch.


The nervous system

4. The proprioceptors monitor the position and movement of skeletal muscles and joints.

5. The visceral receptors or internal receptors monitor activities of digestive, respiratory, cardiovascular, urinary and reproductive systems and provide sensation for taste deep pressure and pain.


G motor neurons

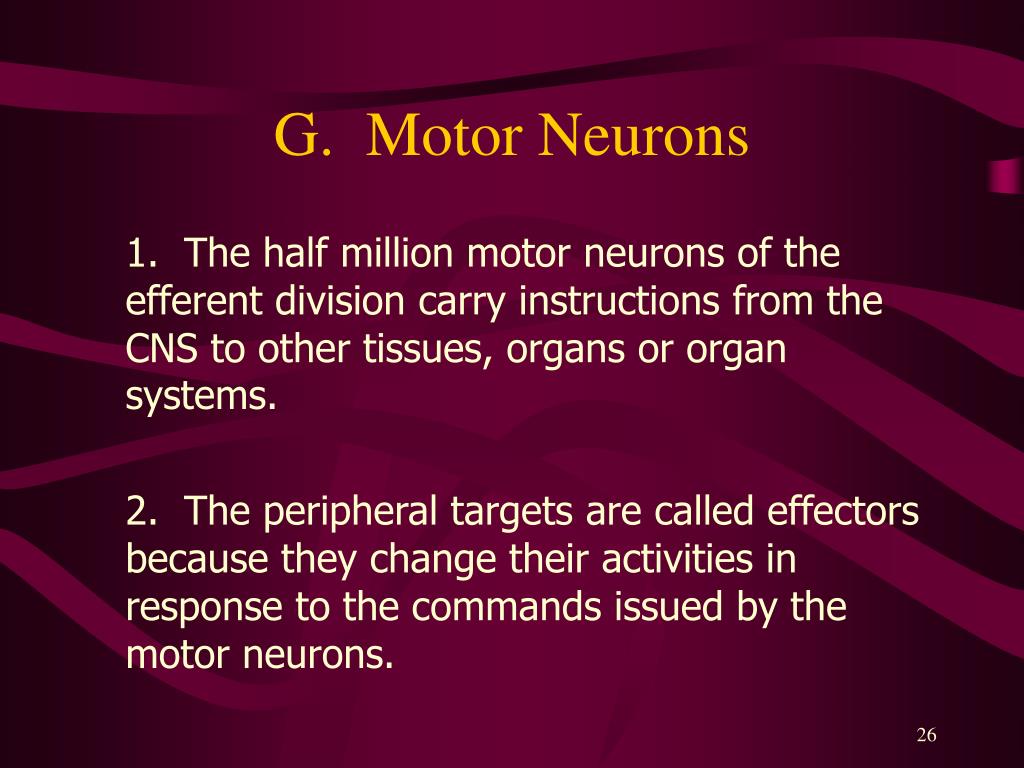

G. Motor Neurons

1. The half million motor neurons of the efferent division carry instructions from the CNS to other tissues, organs or organ systems.

2. The peripheral targets are called effectors because they change their activities in response to the commands issued by the motor neurons.


The nervous system

3. The somatic motor neurons of the somatic nervous system and the visceral motor neurons of the autonomic nervous system. Example: cardiac tissue.


H interneurons

H. Interneurons

1. The 20 billion interneurons are located entirely within the brain and the spinal cord.

2. Interneurons are responsible for the connection between sensory and motor activity.


The nervous system

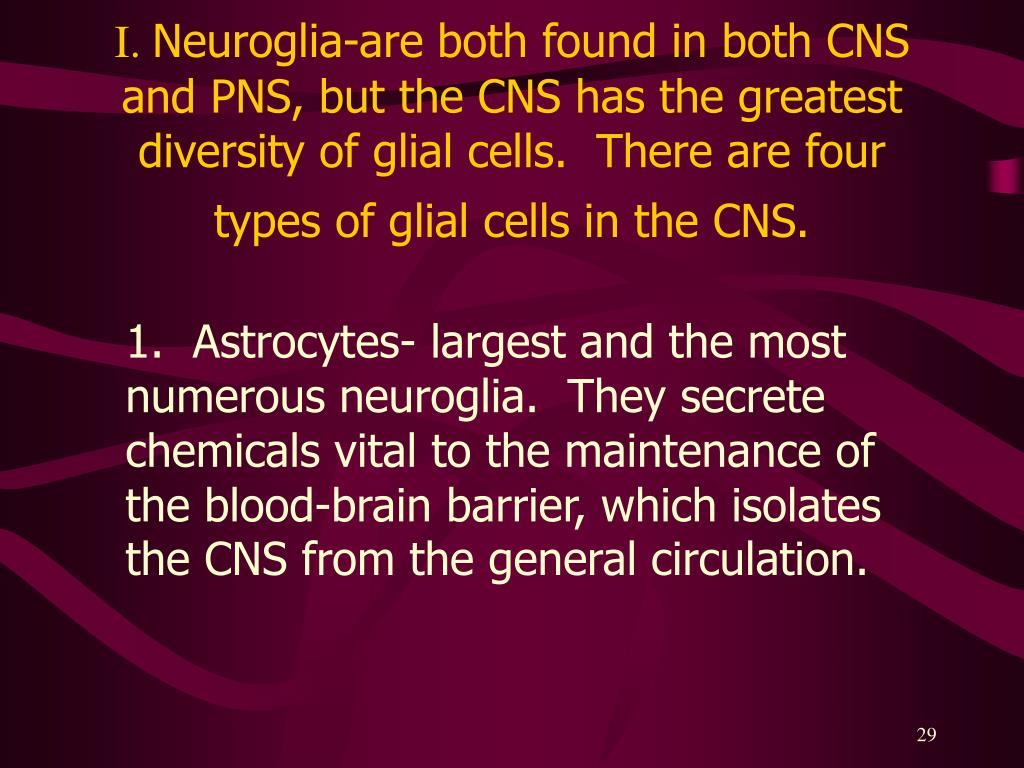

I. Neuroglia-are both found in both CNS and PNS, but the CNS has the greatest diversity of glial cells. There are four types of glial cells in the CNS.

1. Astrocytes- largest and the most numerous neuroglia. They secrete chemicals vital to the maintenance of the blood-brain barrier, which isolates the CNS from the general circulation.


The nervous system

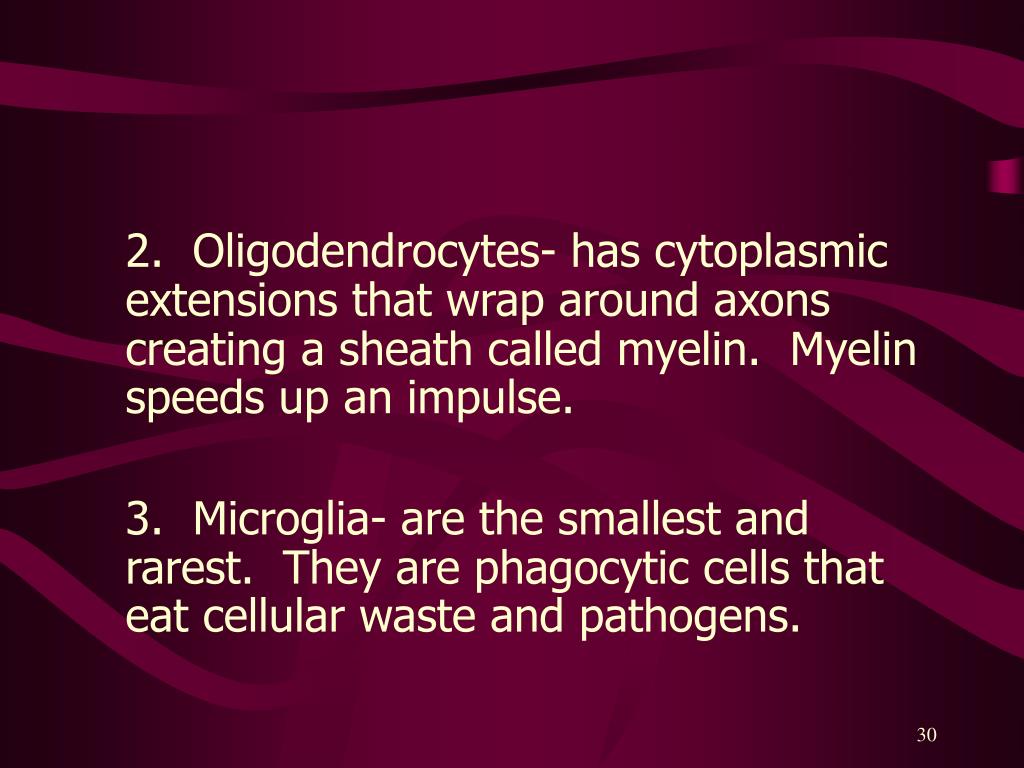

2. Oligodendrocytes- has cytoplasmic extensions that wrap around axons creating a sheath called myelin. Myelin speeds up an impulse.

3. Microglia- are the smallest and rarest. They are phagocytic cells that eat cellular waste and pathogens.


The nervous system

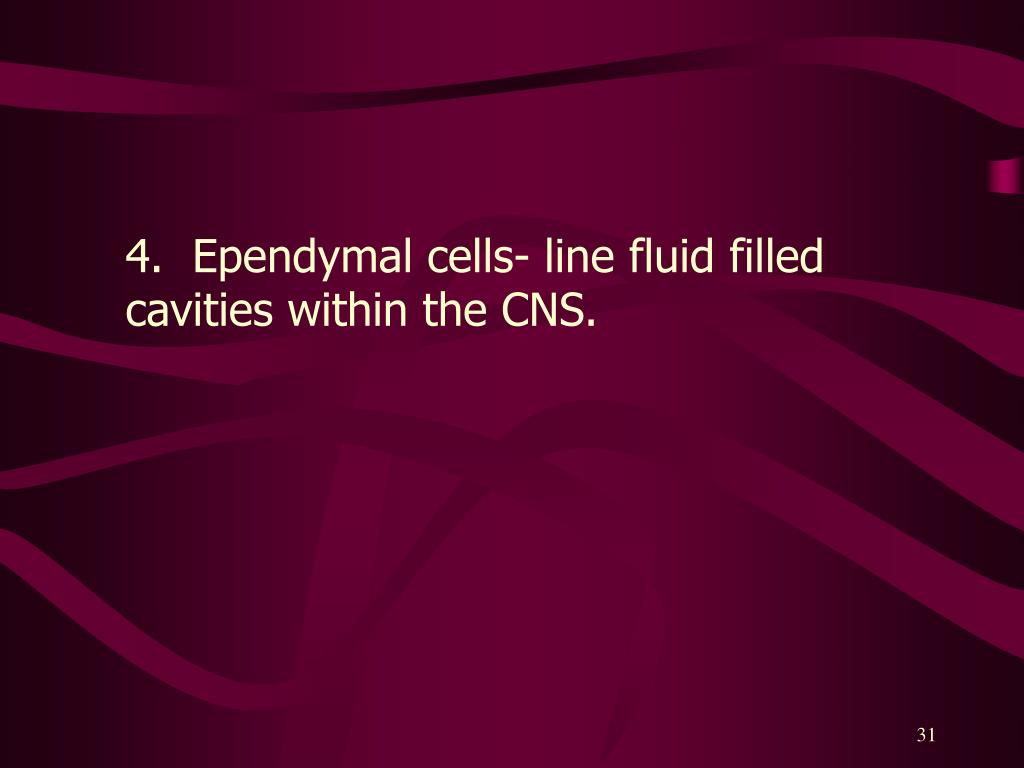

4. Ependymal cells- line fluid filled cavities within the CNS.


Ii neuron functions

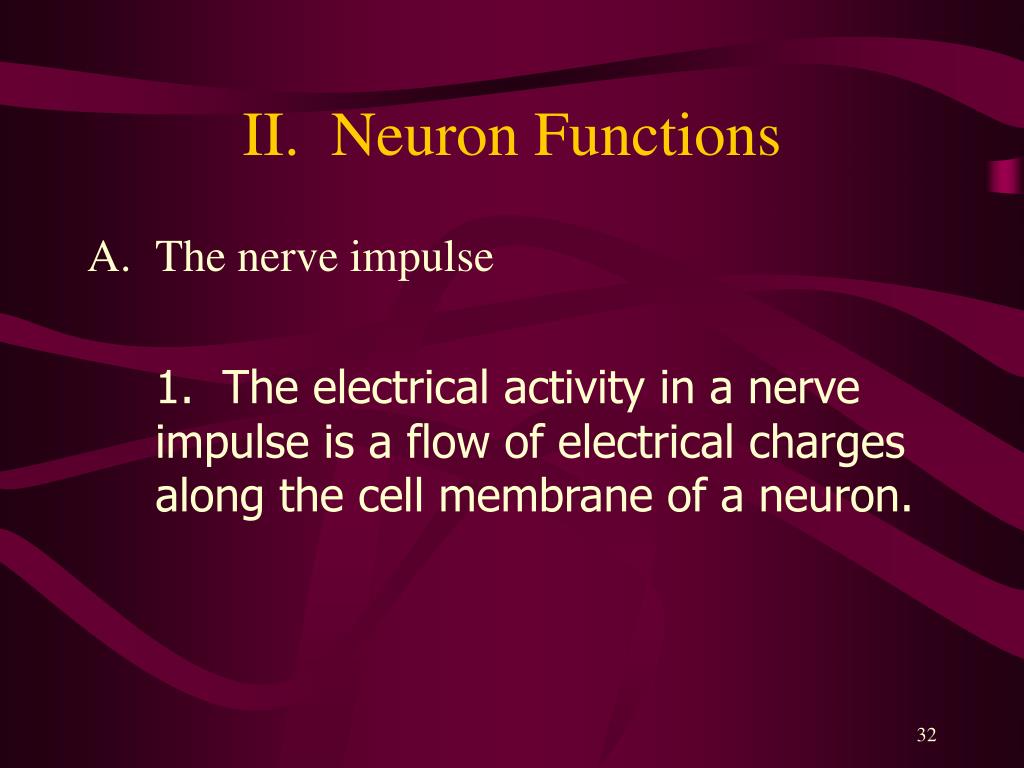

II. Neuron Functions

  • The nerve impulse

    1. The electrical activity in a nerve impulse is a flow of electrical charges along the cell membrane of a neuron.


The nervous system

2. Nerve cell has an electrical potential across its cell membrane because of the difference in the number of positively and negatively charged ions on each side of the cell. The potential is 70 millivolts.

3. Myelin improves the rate of impulses along an axon. Myelin is composed of 80 percent lipid and 20 percent protein forms an insulated sheath around the axon.


The nervous system

4. Most important feature is there are small nodes or gaps in thy myelin allowing the impulse to jump from note to node instead of moving along the membrane. Jumping greatly increases the speed of the impulse.

5. The minimum level of a stimulus that is required to activate a neuron is called a threshold. Any stimulus that is weaker than the threshold will produce no impulse. Any stimulus that is stronger than the threshold will have an impulse.


The nervous system

6. At the ends of the axons are receptors. Receptors are special sensory neurons in sense organs that receive stimuli from the external environment.

7. The points of contact at which the impulses are passed from one cell to another are known as synapses.


The nervous system

8. The axon terminals at a synapse contain tiny vesicles, or sacs. These tiny vesicles are filled with chemicals known as neurotransmitters. A neurotransmitter is a substance that is used by one neuron to signal another.


Iii the brain

III. The brain

  • Major divisions of the brain

    1.The adult brain has six major regions:

    ·Cerebrum

    ·Diencephalon

    ·Midbrain

    ·Pons

    ·Medulla oblongata

    ·Cerebellum


The nervous system

2. The brain is the main switching unit of the CNS. The spinal cord provides the link between the brain and the rest of the body.

3. The brain is wrapped in three layers of connective tissue known as meninges


The nervous system

4. The inner layer covers and is bound to the surface of the brain is called pia matter.

5. The outermost layer is called dura mater.

6. Between the pia mater and the dura mater is cobweb like layer called arachnoid. This area is filled with cerebrospinal fluid. The fluid protects the brain from injury. Acts like a shock absorber.


The nervous system

B. The cerebrum is the largest prominent part of the human brain. It is responsible for all the voluntary activities in the body. It is the site of intelligence. . Hearing and judgment.

1. Is divided into two hemispheres, the right and left. It is separated by a deep groove. The hemispheres are connected in a region known as the corpus callosum.


The nervous system

2. The cerebrum has numerous folds. These folds and grooves increase the surface area of the cerebrum. It allows more to fit in a small area.

3. Each hemisphere of the cerebrum is divided into regions called lobes. These lobes are named for the skull bones.


The nervous system

4. Each half of the cerebrum deals with the opposite side of the body.

5. It is thought that right hemisphere is associated with creativity and artistic ability, whereas the left hemisphere is associated with analytical and mathematical ability.


The nervous system

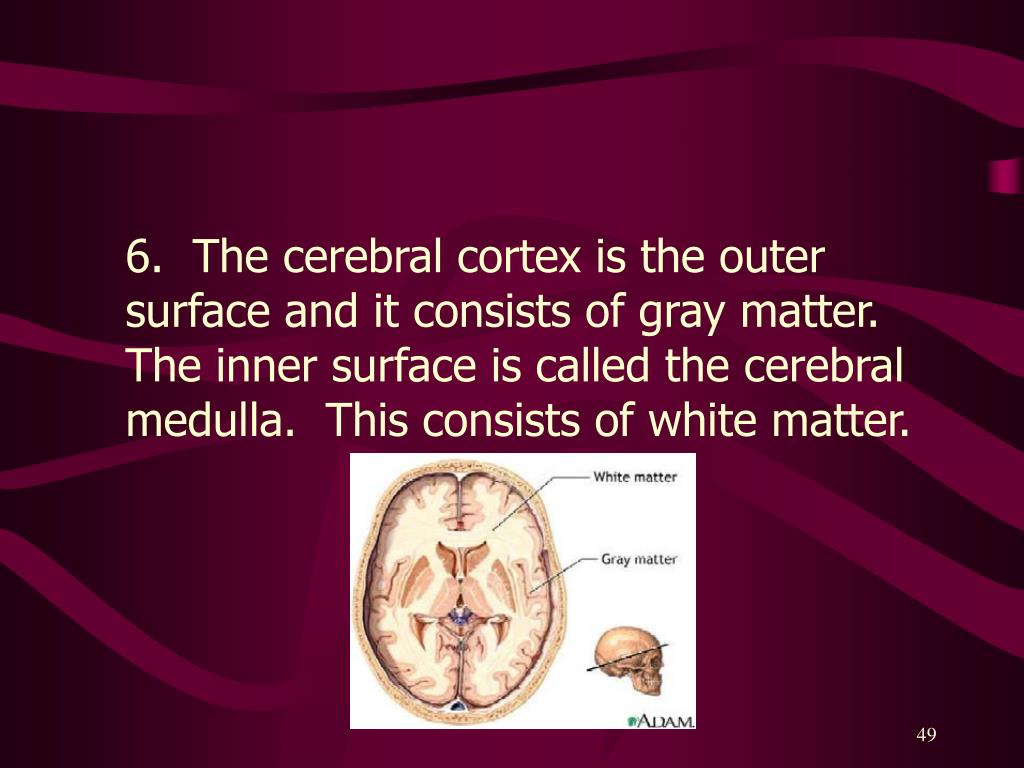

6. The cerebral cortex is the outer surface and it consists of gray matter. The inner surface is called the cerebral medulla. This consists of white matter.


C the cerebellum is the second largest part of the brain is located at the back of the skull

C.The cerebellum is the second largest part of the brain is located at the back of the skull.

1. Its function is balance and coordination.

2. Major part of learning how to perform physical activities seems to be related to the cerebellum. Ex. Shooting a basketball.


The nervous system

D. The diencephalon provides switching and relay centers that integrate conscious and unconscious sensory information and motor commands. It consists of the epithalamus, thalamus and hypothalamus.


The nervous system

1. The thalamus serves as a switching station for sensory input.

2. The hypothalamus controls center for hunger, thirst, fatigue, and anger and body temperature.


The nervous system

3. The epithalamus contains the pineal gland, an endocrine structure that secretes the hormone melatonin. Melantonin is important in regulating day-night cycles.


The nervous system

E. Just above the medulla are the pons. Pons means bridge and this is provides a link between the cerebral cortex and the cerebellum.

F. Above the pons is the midbrain, the smallest division of the brainstem. This area involves hearing and vision.


The nervous system

G. The medulla oblongata connects the brain with the spinal cord. It relays sensory information to the thalamus and other brain stem cells. It also regulates autonomic functions like heart rate, blood pressure, respiration and digestion


H functions of the brain are performed in the grey matter of the cerebral cortex

H. Functions of the Brain are performed in the Grey matter of the cerebral cortex.

1. Electroencephalogram (EEG) gives a general idea of the activity of the brain.


The nervous system

2. When the activity of the cerebral cortex falls to the lowest possible level the person becomes unconscious-sleep. Sleep is a state of unconsciousness in which a person can be awakened by normal sensory stimulation.

3. Rapid Eye movement (REM) is deep sleep this is when all systems are the slowest.


The nervous system

4. Memory is also a function of the brain. There are two types of memory. Short term and long term. Short term is not permanent-you can easily forget it. Long-term memories are more permanent.


The nervous system

I. Spinal Cord is a link between the brain and the peripheral nervous system. It carries impulses to and from the brain, the spinal cord regulates reflexes. Examples sneezing and blinking.


Iv the peripheral nervous system

IV. The Peripheral Nervous system

A. The PNS is the link between the neurons and the CNS and the rest of the body.

1. The PNS transmits impulses from sense organs (ears, taste buds) to the CNS. The motor division transmits impulses from the CNS to the muscles or glands. The motor division is further divided into the somatic nervous system and the autonomic nervous system.


The nervous system

2. There are 12 pairs of cranial nerves that connect to the brain.

3. See page 255- cranial nerves.


I olfactory smell

I. Olfactory-Smell


Ii optic sensory

II. Optic-sensory


Iii oculomotor somatic parasympathetic control of extrinsic eye muscles and pupil dilation

III. Oculomotor: Somatic & Parasympathetic: control of extrinsic eye muscles and pupil dilation.


Iv trochlear somatic control of muscles that surround the eye

IV. Trochlear: Somaticcontrol of muscles that surround the eye.


V trigeminal sensory somatic control of facial nerves and muscles for chewing

V. Trigeminal: Sensory & Somatic control of facial nerves and muscles for chewing.


Vi abducens somatic muscle control of lateral movement of the eyeball

VI. Abducens: Somaticmuscle control of lateral movement of the eyeball.


Vii facial sensory somatic parasympathetic control over facial expression and taste

VII. Facial: Sensory, Somatic & Parasympatheticcontrol over facial expression and taste.


Viii vestibulocochlear or auditory nerve sensory nerve for hearing

VIII. Vestibulocochlear or Auditory Nerve: Sensorynerve for hearing.


Ix glossopharyngeal sensory somatic parasympathetic control over taste the tongue and the pharynx

IX. Glossopharyngeal: Sensory, Somatic &Parasympathetic control over taste, the tongue and the pharynx.


The nervous system

X. Vagus Primary Parasympatheticnerve with someSomatic and Sensoryfunctions. Controls visceral organs.


Xi accessory somatic control over larynx pharynx and sternocleidomastoid muscles

XI. Accessory: Somaticcontrol over larynx, pharynx and sternocleidomastoid muscles


Xii hypoglossal somatic control over the tongue

XII. Hypoglossal: Somaticcontrol over the tongue.


B the somatic nervous system regulates activities that are under conscious control

B. The Somatic nervous system regulates activities that are under conscious control.

1. If you step on a tac, you will pull your foot up. The information is taken to your muscle before it is taken to your brain. This is called a reflex arc.


The nervous system

C. The autonomic nervous system regulates activities that are automatic, involuntary. The autonomic nervous system is further subdivided into two parts, sympathetic nervous system and the parasympathetic nervous system.


The nervous system

1. Most organs controlled by the autonomic nervous system are under the control of the sympathetic and parasympathetic neurons. Ex. Heart rate is speeded up by the sympathetic nervous and para slows it down.


The nervous system

D. The senses each of the five senses (sight, hearing, smell, taste, and touch) have a specific sense organ associated with it.

1. Vision the eye-is composed with three layers. The outer layer consists of the sclera and the cornea; the middle layer contains the chorioid, ciliary body and iris. The inner layer consists of the retina.


The nervous system

2. The sclera (white) helps maintain the shape of the eye and also provides a means of attachment for the muscles that move they eye.

3. In the front of the eye is the cornea, the iris the part of the eye through which light enters.


The nervous system

4. Inside the cornea is a small chamber filled with a fluid known as aqueous humor.

5. The pupil appears as the small black disk in the center of the eye. Tiny muscles in the iris regulate the size of the pupil.


The nervous system

6. Behind the iris is the lens. This allows bending which enables the normal eye to focus on close and distant objects.

7. Rods and cones are photoreceptors. Rods will see black and white and cones will see color.

8. See page 293 for accommodation problems.


E ear

E. Ear

1. Sound vibrations strike the eardrum and the little bones in the ear, malleus, hammer, anvil and stapes vibrate.

2. The ears contain structures for detecting movements and allow us to maintain our balance. Located within the inner ear are semicircular canals filled with fluid. The movement of fluid will detect movement.


The nervous system

F. Smell-because the sense of smell is a chemical sense; the cells that are responsible fore smell are called chemoreceptors. These contain cilia that react to chemicals in the air. Little is known about smell.

G. Taste-it is also chemical with chemoreceptors. The sense organs are taste buds. Taste is detected by sweet, salty, sour, and bitter.


The nervous system

H. Touch and Related senses-all regions of the skin are sensitive to touch. There are two different types of sensory receptor heat and cold and pain.


V clinical considerations

V. Clinical considerations

  • CNS and PNS

    1. Meningitis- is the inflammation of the meningeal membranes following a bacterial or a viral infection. Meningitis is dangerous because it can disrupt the normal circulatory and CSF fluid.

    2. Seizure- a temporary cerebral disorder accompanied by abnormal, involuntary movements. This chronic condition is called epilepsy.


The nervous system

3. The term cerebral palsy refers to a number of disorders affecting voluntary motor performance, such as movement and posture that appear during infancy or childhood and persist throughout life.

4. Cataract- when the lens loses its transparency. As aging proceeds, the lens becomes less elastic, takes on a yellowish hue and eventually begins to lose transparency.


The nervous system

5. Visual acuity- clarity of vision is rated on the basis of the sight of a “normal” person.

6. Night blindness- The dim light proves insufficient to activate the rods. This can be treated with vitamin A. Carrots contain vitamin A.


The nervous system

7. Color blindness is a sex linked trait.


The end

THE END


  • Login
