Presentation Transcript

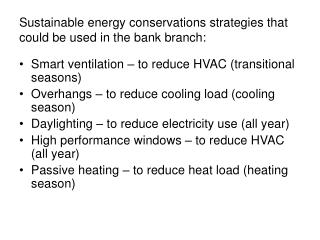

Sustainable energy conservations strategies that could be used in the bank branch l.jpg
Sustainable energy conservations strategies that could be used in the bank branch:

  • Smart ventilation – to reduce HVAC (transitional seasons)

  • Overhangs – to reduce cooling load (cooling season)

  • Daylighting – to reduce electricity use (all year)

  • High performance windows – to reduce HVAC (all year)

  • Passive heating – to reduce heat load (heating season)


Sustainable energy conservations strategies that could be used in the bank branch2 l.jpg
Sustainable energy conservations strategies that could be used in the bank branch:

  • Photovoltaic energy production and solar hot water (all year – made attractive by new tax incentives)

  • High reflectivity, high emissivity roof – to reduce cooling load (cooling season).


Doe energy star building designation l.jpg
DOE Energy-Star Building Designation used in the bank branch:

  • Leed’s certification is too expensive.

  • US Dept. of Energy now has a designation for buildings that meet energy conservation criteria.

    • Less burdensome than Leed’s

  • See: http://www.energystar.gov/index.cfm?c=small_business.sb_index


New jan 2006 tax incentives for energy conserving technologies l.jpg
New (Jan 2006) tax incentives for energy conserving technologies:

  • $1.80/sq ft for commercial buildings that are constructed to save at least 50% of the heating, cooling, water heating, and interior lighting energy cost of a building that meets ASHRAE Standard 90.1-2001.

  • Solar Energy Systems - The tax credits are for 30% of the cost of the system (PV & hot water).

  • http://www.energytaxincentives.org/tiap-solar-energy-systems.html

  • http://www.energytaxincentives.org/tiap-commercial-bldgs.html


Technologies white roofs l.jpg
Technologies: White Roofs technologies:

  • Maximize reflection and radiation heat loss.

  • Reduce cooling load, energy use, and equipment sizing

  • Longer life span

  • Options: PVC – TPO – EPDM – Spray


Technologies daylighting l.jpg
Technologies: Daylighting technologies:

  • Features:

  • Many options available

  • Drive light deep into the room

  • Unobtrusive

  • Inexpensive

Photo Credits: University of Oregon, Design Share, Inc., University of Florida Center for Construction and Environment, National

Renewable Energy Laboratory web sites


Six keys to daylight design l.jpg
Six Keys to Daylight design: technologies:

  • Prevent direct sunlight penetration

  • Provide gentle uniform light

  • Avoid glare

  • Control

  • Electric lights work with the daylight

  • Plan the layout of interior spaces


Daylighting controls regulate electric light usage l.jpg

Daylight direction technologies:

Daylighting controls regulate electric light usage.

  • Continuous dimming

  • Stepped dimming


Skylights and solar tubes l.jpg
Skylights and Solar Tubes technologies:

  • Specific applications

  • Gets light far into a building

  • Saves lighting energy


Design options l.jpg
Design options: technologies:

  • Roof Monitors

  • Clerestories

  • Lightshelves

  • Controls

  • Lightwell

  • Surface color

  • Visible Light Transmission


Slide11 l.jpg

Keeping light diffuse, minimizing direct heat gain, technologies:

and maximizing penetration are critical.


Building cost of daylighting l.jpg
Building cost of daylighting: technologies:

  • One example: Daylighting cost = $1.23/ft² (about half of building is daylit).

    • Includes roof monitors, light shelves, lighting controls, cloth baffles, etc.

  • Reductions in peak cooling load, electric lighting needs, and electric lighting energy cost more than offset cost of installation.


Energy savings l.jpg
Energy Savings technologies:

  • Reduction in annual lighting energy of daylit spaces: 70%

  • Reduction in annual cooling energy: 19%

  • Increase in annual heating energy due to reduced internal heat from lighting: 20%

  • (cooling load > heating load in our region)


Paying for daylighting l.jpg
Paying for daylighting: technologies:

  • Construction cost: $1.23/ft²

  • Operation:

    • Annual lighting & cooling savings: $0.33/ft²

    • Annual heating cost increase: $0.04/ft²

    • Total annual energy savings: $0.29/ft²

  • Simple payback = 1.23/0.29 = 4.2 years


Demand reduction l.jpg
Demand Reduction: technologies:

  • Little electrical lighting on clear days.

  • Intermittent on/off cycling on overcast days

  • Few complaints about cycling


Online resources l.jpg
Online Resources technologies:

  • Available at www.daylightdividends.org

Smith Middle School

Harmony Library

Guide for Daylighting Schools

TomoTherapy, Inc.



Types of controls l.jpg
Types of Controls technologies:

  • Occupancy Sensors

  • Automatic on / Automatic off

  • Integration with HVAC


Occupancy sensors l.jpg
Occupancy Sensors technologies:

  • Technologies:

  • Passive Infrared

  • Ultrasonic

  • Dual Technology


Energy analysis l.jpg
Energy Analysis technologies:

  • Energy Analysis/Modeling Tools:

  • COMcheck™

  • DOE-2

  • Energy-10

  • EnergyPlus
