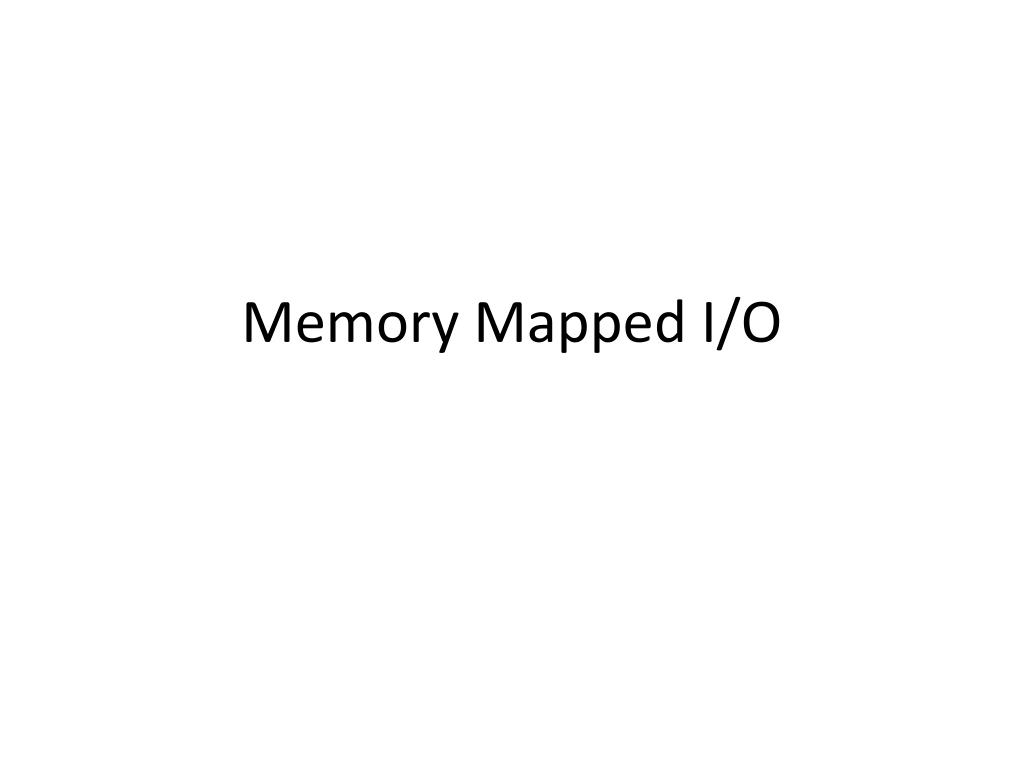

  1. Memory Mapped I/O

  2. What is Memory Mapped I/O? • Instead of having special methods for accessing the values to be read or written, just get them from memory or put them into memory. • The device is connected directly to certain main memory locations. • Two types of information to/from the device • Status • Value read/write

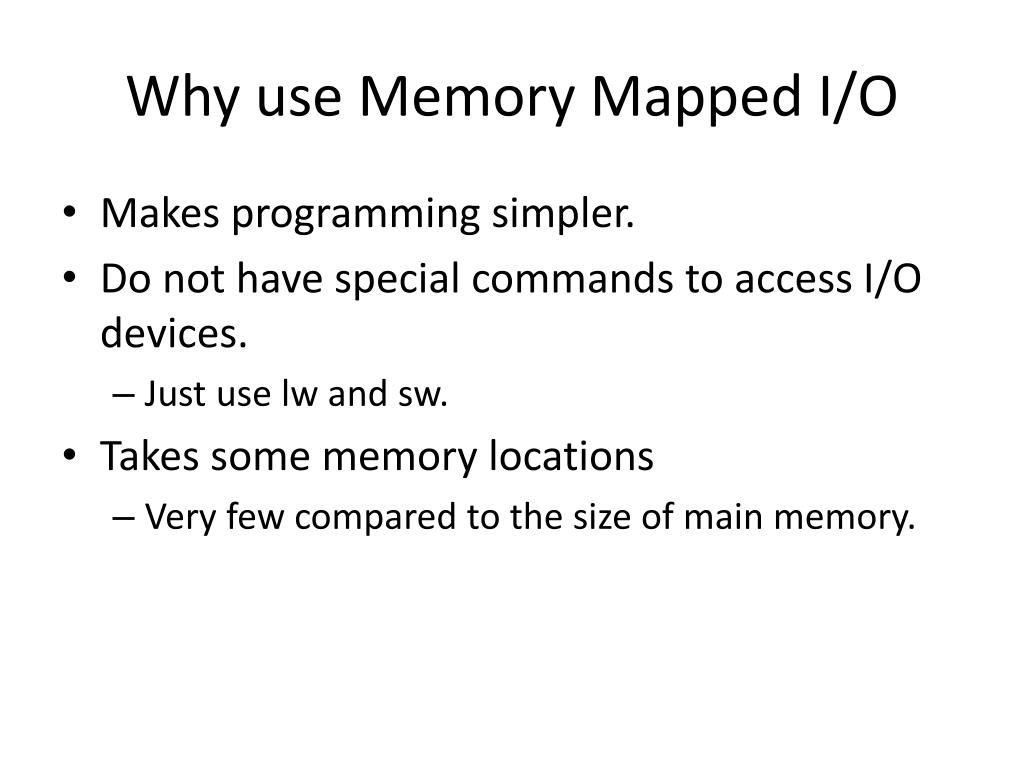

  3. Why use Memory Mapped I/O • Makes programming simpler. • Do not have special commands to access I/O devices. • Just use lw and sw. • Takes some memory locations • Very few compared to the size of main memory.

  4. Which Memory? • Memory addresses xffff0000 and above are used for I/O devices. • The device controller has “registers”. • These registers are given a memory address. • Recall that the processor is attached to a bus, memory is attached to the bus, I/O devices are attached to the bus. • When the bus sees certain addresses, it knows they are not memory addresses, but are addresses for accessing I/O devices.

  5. Communicating with the Keyboard • The keyboard has 2 registers associated with it • Receiver control at address xffff0000 • Receiver data at address xffff0004 • The receiver control will have a 1 in the rightmost bit when there is a value ready to be read. It will have a 0 in that bit otherwise. • The receiver data will have the character pressed on the keyboard (only when the receiver control has a 1 in the rightmost bit)

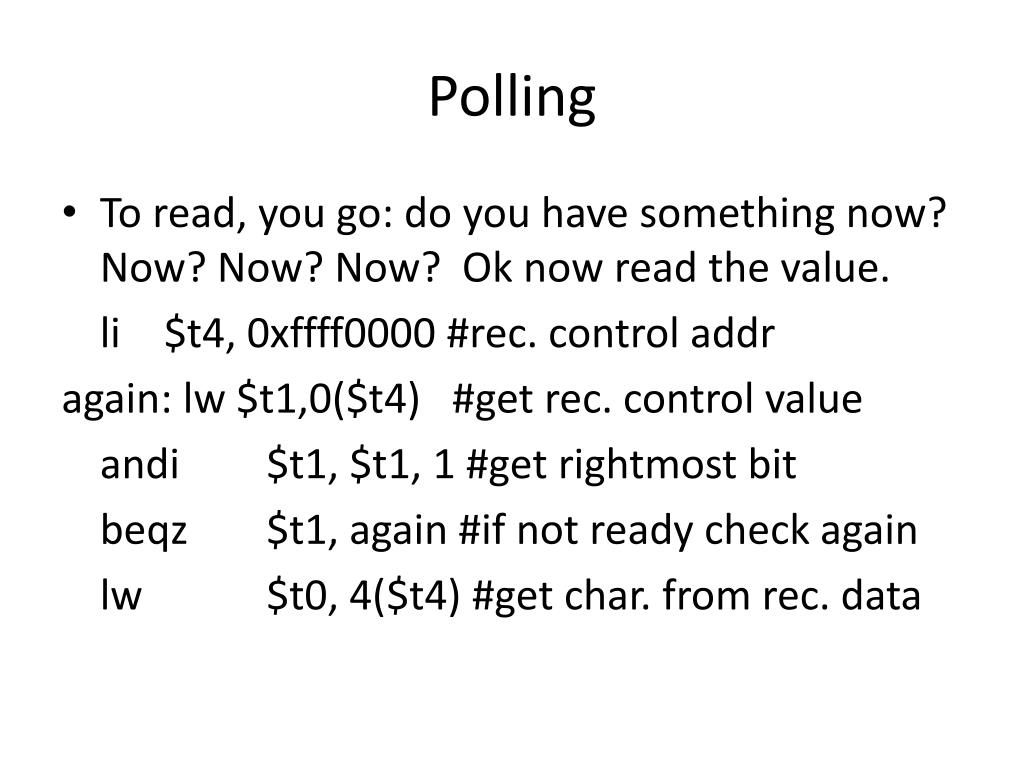

  6. Polling • To read, you go: do you have something now? Now? Now? Now? Ok now read the value. li $t4, 0xffff0000 #rec. control addr again: lw $t1,0($t4) #get rec. control value andi $t1, $t1, 1 #get rightmost bit beqz $t1, again #if not ready check again lw $t0, 4($t4) #get char. from rec. data

  7. Display • Again 2 registers • Transmitter control (0xffff008) • Transmitter data (0xffff000c) li $t4, 0xffff0000 again: lw $t1, 8($t4) andi $t1,$t1,1 beqz $t1,again sw $t0, 12($t4)

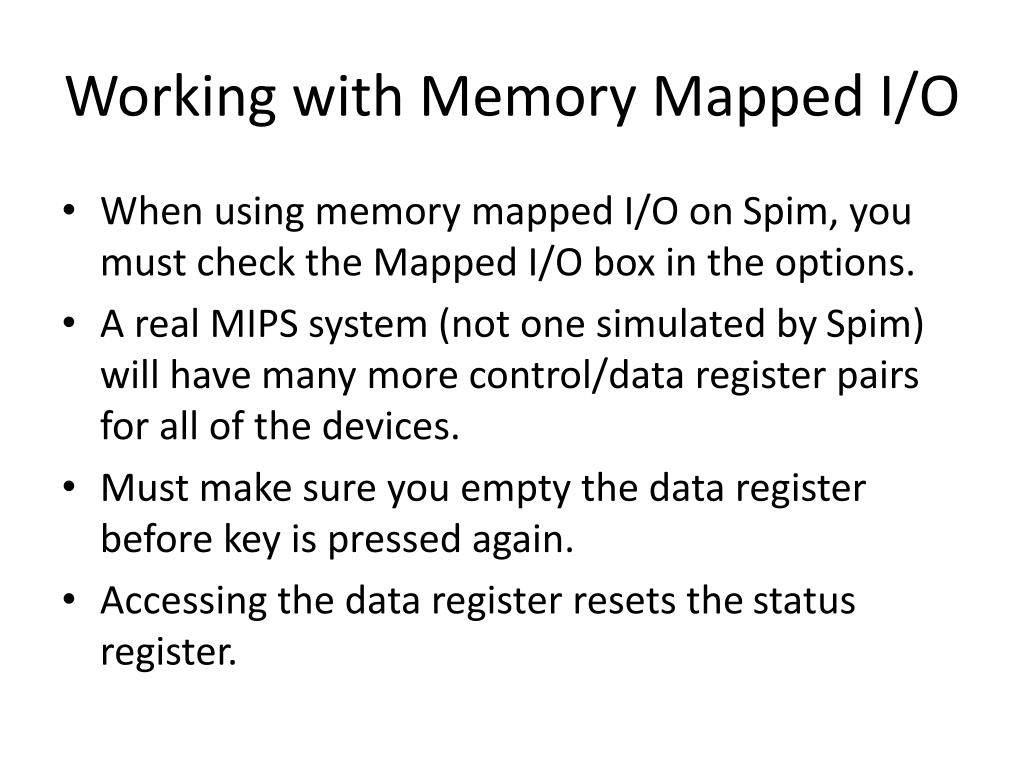

  8. Working with Memory Mapped I/O • When using memory mapped I/O on Spim, you must check the Mapped I/O box in the options. • A real MIPS system (not one simulated by Spim) will have many more control/data register pairs for all of the devices. • Must make sure you empty the data register before key is pressed again. • Accessing the data register resets the status register.
